Progress PHN23000X User manual

PHN23000X
User Manual
Istruzioni per l’uso
Manual de instrucciones
Oven
Forno
Horno

CONTENTS
Safety information 2
Safety instructions 3
Product description 6
Before first use 6
Daily use 6
Using the accessories 8
Additional functions 9
Hints and tips 9
Care and cleaning 15
Troubleshooting 18
Installation 19
Energy efficiency 21
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Children aged 3 years and under must be kept away from
this appliance when it is in operation at all times.
2 Progress

General Safety
•Only a qualified person must install this appliance and
replace the cable.
•The control panel must be connected to specified heating
unit with matching colours of connectors, to avoid possible
hazard.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before replacing
the lamp to avoid the possibility of electric shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•The means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
Progress 3

• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power supply.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially when
the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the mains
at all poles. The isolation device must
have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
Use
WARNING! Risk of injury, burns
and electrical shock or
explosion.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING! Risk of damage to
the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
4 Progress

– do not put water directly into the hot
appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
Care and cleaning
WARNING! Risk of injury, fire,
or damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING! Risk of electrical
shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the appliance.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Progress 5

PRODUCT DESCRIPTION

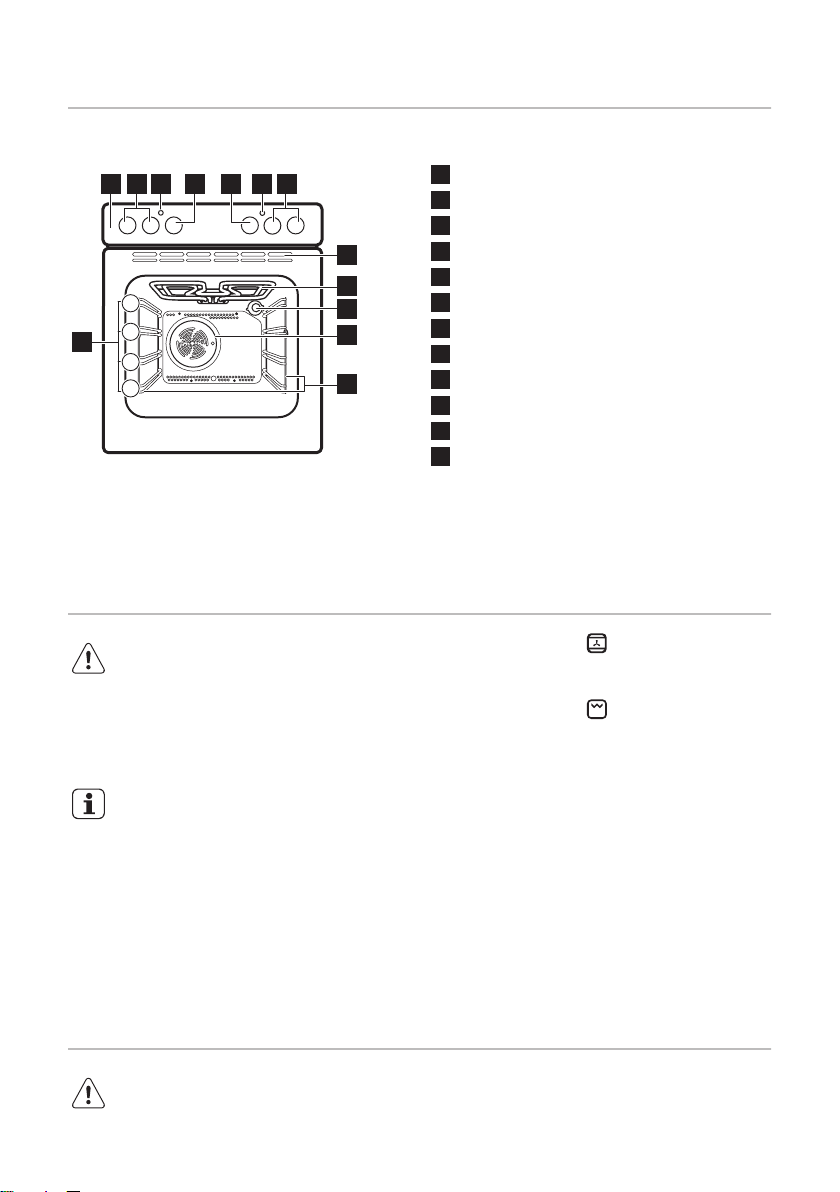

General overview
1 3 4 5 6
7
8
9
10
11
4
3
2
1
12
2 2
1Control panel
2Knobs for the hob
3Temperature indicator / symbol
4Knob for the temperature
5Knob for the oven functions
6Power lamp / symbol
7Air vents for the cooling fan
8Heating element
9Lamp
10 Fan
11 Shelf support, removable
12 Shelf positions
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
BEFORE FIRST USE
WARNING! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
Preheating
Preheat the empty appliance to burn off the
remaining grease.
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function and set the
maximum temperature.
4. Let the appliance operate for 15
minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow in the room is sufficient.
DAILY USE
WARNING! Refer to Safety
chapters.
6 Progress

Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
Activating and deactivating the
appliance
It depends on the model if
your appliance has lamps,
knob symbols or indicators:
• The lamp comes on when
the appliance operates.
• The symbol shows whether
the knob controls one of the
cooking zones, the oven
functions or the temperature.
• The indicator comes on when
the oven heats up.
1. Turn the knob for the oven functions to
select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance turn the
knobs for the oven functions and
temperature to the off position.
Oven Functions
Oven function Application
Off position The appliance is off.
Fan Cooking To roast or roast and bake food with the same cooking
temperature on more than one shelf position, without fla-
vour transference.
Top / Bottom
Heat
To bake and roast food on one shelf position.
Bottom Heat To bake cakes with crispy bottom and to preserve food.
Turbo Grilling To roast larger meat joints or poultry with bones on one
shelf position. Also to make gratins and to brown.
Grilling To grill flat food and to toast bread.
Defrost This function can be used for defrosting frozen foods, such
as vegetables and fruits. The defrosting time depends on
the amount and size of the frozen food.
Knobs for the cooking zones
You can operate the hob with the knobs for
the cooking zones. Refer to the hob user
manual.
You must read the Safety
chapters in the hob user
manual.
Progress 7

Heat settings
Knob indication Function
0 Off position
1 - 9 Heat settings
Double zone switch
1. Turn the knob to a necessary heat
setting.
2. To complete the cooking process, turn
the knob to the off position.
Using the double zone (if
applicable)
To activate the double zone,
turn the knob clockwise. Do not
turn it through the stop position.
1. Turn the knob clockwise to position 9.
2. Turn the knob slowly to the symbol
until you can hear a click. The two
cooking zones are on.
3. To set the necessary heat setting refer
to "Heat settings".
USING THE ACCESSORIES
WARNING! Refer to Safety
chapters.
Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray:
Push the baking tray between the guide
bars of the shelf support.
Wire shelf and baking tray together:
Push the baking tray between the guide
bars of the shelf support and the wire shelf
on the guide bars above.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim around
the shelf prevents cookware
from slipping.
8 Progress

ADDITIONAL FUNCTIONS
Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
Safety thermostat
Incorrect operation of the appliance or
defective components can cause
dangerous overheating. To prevent this, the
oven has a safety thermostat which
interrupts the power supply. The oven
activates again automatically when the
temperature drops.
HINTS AND TIPS
WARNING! Refer to Safety
chapters.
The temperature and baking
times in the tables are guidelines
only. They depend on the
recipes and the quality and
quantity of the ingredients used.
General information
• The appliance has four shelf positions.
Count the shelf positions from the
bottom of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system you
can cook in a steamy environment and
keep the food soft inside and crusty
outside. It decreases the cooking time
and energy consumption to a minimum.
• Moisture can condense in the appliance
or on the door glass panels. This is
normal. Always stand back from the
appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
• Clean the moisture after each use of the
appliance.
• Do not put the objects directly on the
appliance floor and do not put aluminium
foil on the components when you cook.
This can change the baking results and
cause damage to the enamel.
Baking cakes
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware,
recipes and quantities when you use this
appliance.
Progress 9

Baking and roasting table
Cakes
Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
Whisked
recipes
170 2 165 2 (1 and
3)
45 - 60 In a cake
mould
Short-
bread
dough
170 2 160 2 (1 and
3)
20 - 30 In a cake
mould
Butter-
milk
cheese
cake
170 1 165 2 70 - 80 In a 26
cm cake
mould
Apple
cake (Ap-
ple pie)
170 1 160 2 (1 and
3)
80 - 100 In two 20
cm cake
moulds
on a wire
shelf
Strudel 175 2 150 2 60 - 80 In a bak-
ing tray
Jam-tart 170 2 160 2 (1 and
3)
30 - 40 In a 26
cm cake
mould
Fruit cake 170 2 155 2 50 - 60 In a 26
cm cake
mould
Sponge
cake (Fat-
less
sponge
cake)
170 2 160 2 90 - 120 In a 26
cm cake
mould
Christmas
cake /
Rich fruit
cake
170 2 160 2 50 - 60 In a 20
cm cake
mould
Plum
cake1)
170 2 165 2 20 - 30 In a bread
tin
Small
cakes
170 3 166 3 (1 and
3)
25 - 35 In a bak-
ing tray
10 Progress

Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
Biscuits1) 150 3 140 3 (1 and
3)
30 - 35 In a bak-
ing tray
Merin-
gues
100 3 115 3 35 - 40 In a bak-
ing tray
Buns1) 190 3 180 3 80 - 100 In a bak-
ing tray
Choux1) 190 3 180 3 (1 and
3)
15 - 20 In a bak-
ing tray
Plate tarts 180 3 170 2 25 - 35 In a 20
cm cake
mould
Victoria
sandwich
180 1 or 2 170 2 45 - 70 Left +
right in a
20 cm
cake
mould
Rich fruit
cake
160 1 150 2 110 - 120 In a 24
cm cake
mould
Victoria
sand-
wich1)
170 1 160 1 50 - 60 In a 20
cm cake
mould
1) Preheat the oven for 10 minutes.
Bread and pizza
Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
White
bread1)
190 1 195 1 60 - 70 1 - 2
pieces,
500 gr
per piece
Rye bread 190 1 190 1 30 - 45 In a bread
tin
Progress 11

Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
Bread
rolls1)
190 2 180 2 (1 and
3)
25 - 40 6 - 8 rolls
in a bak-
ing tray
Pizza1) 190 1 190 1 20 - 30 On a
deep pan
Scones1) 200 3 190 2 10 – 20 In a bak-
ing tray
1) Preheat the oven for 10 minutes.
Flans
Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
Pasta flan 180 2 180 2 40 - 50 In a
mould
Vegetable
flan
200 2 200 2 45 - 60 In a
mould
Quiches 190 1 190 1 40 - 50 In a
mould
Lasagne 200 2 200 2 25 - 40 In a
mould
Cannello-
ni
200 2 200 2 25 - 40 In a
mould
Yorkshire
pudding1)
220 2 210 2 20 - 30 6 pudding
mould
1) Preheat the oven for 10 minutes.
12 Progress

Meat
Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
Beef 200 2 190 2 50 - 70 On a wire
shelf and
a deep
pan
Pork 180 2 180 2 90 - 120 On a wire
shelf and
a deep
pan
Veal 190 2 175 2 90 - 120 On a wire
shelf and
a deep
pan
English
roast beef
rare
210 2 200 2 44 - 50 On a wire
shelf and
a deep
pan
English
roast beef
medium
210 2 200 2 51 - 55 On a wire
shelf and
a deep
pan
English
roast beef
well done
210 2 200 2 55 - 60 On a wire
shelf and
a deep
pan
Shoulder
of pork
180 2 170 2 120 - 150 On a
deep pan
Shin of
pork
180 2 160 2 100 - 120 2 pieces
on a deep
pan
Lamb 190 2 190 2 110 - 130 Leg
Chicken 200 2 200 2 70 - 85 Whole
Turkey 180 1 160 1 210 - 240 Whole
Duck 175 2 160 2 120 - 150 Whole
Goose 175 1 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in
pieces
Progress 13

Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
Hare 190 2 175 2 150 - 200 Cut in
pieces
Pheasant 190 2 175 2 90 - 120 Whole
Fish
Food Top / Bottom Heat Fan Cooking Time
(min)
Com-
ments
Temper-
ature
(°C)
Shelf po-
sition
Temper-
ature
(°C)
Shelf po-
sition
Trout /
Sea
bream
190 2 175 2 (1 and
3)
40 - 55 3 - 4
fishes
Tuna
fish / Sal-
mon
190 2 175 2 (1 and
3)
35 - 60 4 - 6 fil-
lets
Grilling
Preheat the empty oven for 10
minutes before cooking.
Food Quantity Temper-
ature
(°C)
Time (min) Shelf po-
sition
Pieces (g) 1st side 2nd side
Fillet
steaks
4 800 250 12 - 15 12 - 14 3
Beef
steaks
4 600 250 10 - 12 6 - 8 3
Sausages 8 - 250 12 - 15 10 - 12 3
Pork
chops
4 600 250 12 - 16 12 - 14 3
Chicken
(cut in 2)
2 1000 250 30 - 35 25 - 30 3
Kebabs 4 - 250 10 - 15 10 - 12 3
Breast of
chicken
4 400 250 12 - 15 12 - 14 3
14 Progress

Food Quantity Temper-
ature
(°C)
Time (min) Shelf po-
sition
Pieces (g) 1st side 2nd side
Hambur-
ger
6 600 250 20 - 30 - 3
Fish fillet 4 400 250 12 - 14 10 - 12 3
Toasted
sand-
wiches
4 - 6 - 250 5 - 7 - 3
Toast 4 - 6 - 250 2 - 4 2 - 3 3
Turbo Grilling
Use this function with a
maximum temperature of 200
°C.
Food Quantity Temper-
ature
(°C)
Time (min) Shelf po-
sition
Pieces (g) 1st side 2nd side
Rolled
joints (tur-
key)
1 1000 200 30 - 40 20 - 30 3
Chicken
(cut in
two)
2 1000 200 25 - 30 20 - 30 3
Chicken
drum-
sticks
6 - 200 15 - 20 15 - 18 3
Quail 4 500 200 25 - 30 20 - 25 3
Vegetable
gratin
- - 200 20 - 25 - 3
Scallops - - 200 15 - 20 - 3
Mackerel 2 - 4 - 200 15 - 20 10 - 15 3
Fish slices 4 - 6 800 200 12 - 15 8 - 10 3
CARE AND CLEANING
WARNING! Refer to Safety
chapters.
Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
Progress 15

• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
Stainless steel or aluminium
appliances
Clean the oven door with a
damp cloth or sponge only. Dry
it with a soft cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean
the oven control panel with the
same precautions.
Cleaning the door gasket
• Regularly do a check of the door gasket.
The door gasket is around the frame of
the oven cavity. Do not use the
appliance if the door gasket is damaged.
Contact an Authorised Service Centre.
• To clean the door gasket, refer to the
general information about cleaning.
Removing the shelf supports
To clean the oven, remove the shelf
supports.
1. Pull the front of the shelf support away
from the side wall.
2. Pull the rear end of the shelf support
away from the side wall and remove it.
2
1
Install the shelf supports in the opposite
sequence.
Cleaning the oven door
The oven door has two glass panels. You
can remove the oven door and the internal
glass panel to clean it.
The oven door can close if you
try to remove the internal glass
panel before you remove the
oven door.
CAUTION! Do not use the
appliance without the internal
glass panel.
1. Open the door fully and hold the two
door hinges.
16 Progress

2. Lift and turn the levers on the two
hinges.
3. Close the oven door halfway to the first
opening position. Then pull forward and
remove the door from its seat.
4. Put the door on a soft cloth on a stable
surface.
5. Release the locking system to remove
the internal glass panel.
6. Turn the two fasteners by 90° and
remove them from their seats.
90°
7. First lift carefully and then remove the
glass panel.
12
Progress 17

8. Clean the glass panel with water and
soap. Dry the glass panel carefully.
When the cleaning is completed, install the
glass panel and the oven door. Do the
above steps in the opposite sequence.
The screen-printing zone must face the
inner side of the door. Make sure that after
the installation the surface of the glass
panel frame on the screen-printing zones is
not rough when you touch it.
Make sure that you install the internal glass
panel in the seats correctly.
Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING! Danger of
electrocution! Disconnect the
fuse before you replace the
lamp.
The lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
The back lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300 °C
heat-resistant lamp.
4. Install the glass cover.
TROUBLESHOOTING
WARNING! Refer to Safety
chapters.
What to do if...
Problem Possible cause Remedy
The cooking zones do not
operate.
Refer to the operating instructions for the built-in cooking sur-
face.
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The fuse is blown. Make sure that the fuse is the
cause of the malfunction. If
the fuse is blown again and
again, contact a qualified
electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
18 Progress

Problem Possible cause Remedy
Steam and condensation set-
tle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in the
oven for longer than 15 - 20
minutes after the cooking
process ends.
Service data
If you cannot find a solution to the problem
yourself, contact your dealer or an
Authorised Service Centre.
The necessary data for the service centre is
on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
INSTALLATION
WARNING! Refer to Safety
chapters.
Building Under
CAUTION! Only a qualified and
competent person must do the
installation of the appliance. If
you do not contact a qualified or
competent person, the
guarantee becomes invalid if
there is damage.
Before you install the appliance, fit it with
the applicable hob from the table.
Type Maximum power
LEM6001E 7000 W
PES6001E 6000 W
PES6061E 7600 W
PES6065E 7600 W
Electrical connection with the
hob
The hob connection socket is at the top of
the oven cabinet. The hob has connection
leads for the cooking zones and the ground
cable. The leads have plug-in connectors.
To connect the hob to the oven, plug the
connectors into the correct oven sockets.
The design of the plugs and sockets
prevents incorrect connections.
Progress 19

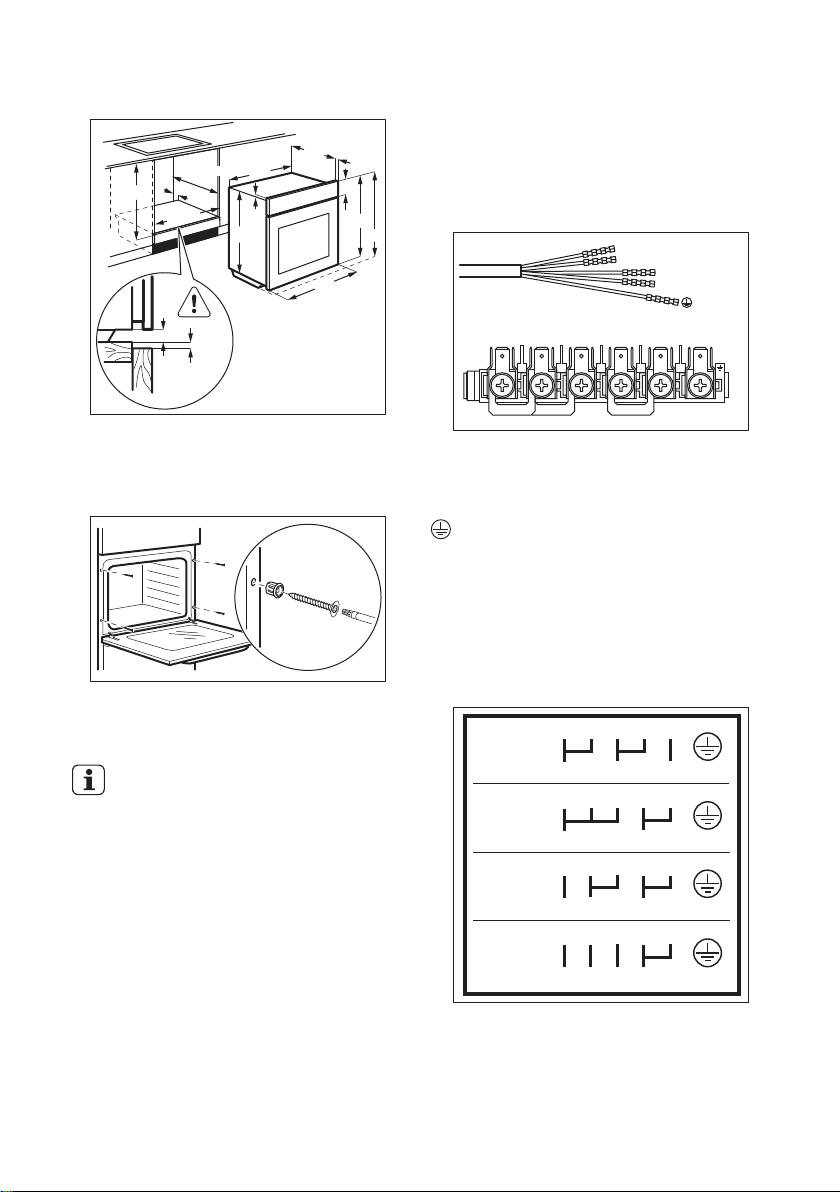

Building In
589
598
594
114
19
21540
570
558
min. 550
20
600
min. 560
3
9
Securing the appliance to the
cabinet
A
B
Electrical installation
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This appliance is supplied without a main
plug and a main cable.
Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F,
H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate.
Connecting the terminal board
The appliance has a six-pole terminal
board. The jumpers (bridges) are set for
operation on a 400 V three-phase with a
neutral wire.
1 = 45 mm
2 = 45 mm
3 = 60 mm
4 = 60 mm
= 70 mm
1 2 3 4 5
L 1 – 2 – 3 = phase cables
N 4 = neutral cable
= earth cable
If the mains voltage is different, rearrange
the jumpers on the terminal board (refer to
the connection diagram below). Connect
the ground cable to the terminal. After you
connect the supply cable to the terminal
board, attach it with a junction clamp.
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
230V 3~
230V 1~
400V 2N~
400V 3N~
L1
L1 N
L2
L1 N
N
L2
L3
L1 L2 L3
PE
PE
PE
PE
20 Progress
