Promate Panorama-5 User manual

Universal Mini Multimedia
Android DLP Projector
Panorama-5

• Panorama-5
• Remote Control
• MHL Cable
• RCA AV Cable
• Power Adaptor
• Suction Cup
• User guide
Introduction
Packaging Contents
With Panorama-5, find a simple solution to all your business, home and
education projections. Simply give quick presentations with this compact yet
powerful pocket-sized projector which runs on Android Jelly Bean 4.1.2. With
its super bright DLP lamp, project brightness up to a 50 Lumens that too up to
a size up to 120”. The powerful 2400mAh built-in rechargeable Lithium Battery
lasts up to 2 hrs. on a single charge. Now, project images and other content
from any HDMI Compatible device and also Smartphones supporting Mobile
High Definition Link (MHL). Panorama-5 also has inserts for Micro SD and TF
Cards. Handling your presentations will become easier with its Compact
Remote Control. Also, adjust your Panorama-5 on tripods and make
projections simpler. Thus, with Panorama-5, find quick and easy solutions to
your projections.
English
1

Specication
• Imaging Technology: DLP
• Brightness: 50 Lumens.
• Projection Size: 9”~ 120”
• Projection Distance: 0.3m~4m
• Resolution: 854 x 480
• Contrast Ratio: 800:1
• Operating System: Android Jelly Bean 4.1.2
• Rechargeable Lithium Battery Capacity: 2400mAh
• Power Supply: DC 12V/1.25A
• Total Usage Time: ~2hrs.
• Battery Charging Time: ~2hrs
Features
• Pocket Size.
• 50 Lumens DLP High Quality Projection.
• With Android OS: Jelly Bean 4.1.2
• Powerful 2400mAh Rechargeable Lithium Battery.
• Ideal for business presentations and school/college presentations.
• Usage on-the-go.
• Ports for Micro SD, TF Card, USB, HDMI, and MHL.
• Superior Wi-Fi Connectivity.
• Easily fits on tripods.
• Compact remote control for hassle-free operation.
• Projection Size up to 120”
English
1 2

Precautions
Please read all safety instructions and warnings thoroughly before using this
product. Improper use of this product may result in damage to this or
attached products.
• Do not disassemble the device or attempt to x it.
• Kindly use the included USB Cable to charge the product.
• Do not attempt to replace any part of this case or battery inside.
• Do not crush, puncture or dispose of in re.
• Do not store or use the battery in a high temperature environment,
including intense sunlight or heat.
• Avoid drops, bumps, abrasions and impacts.
• If there is any reason to believe that there is internal damage to the device,
discontinue use immediately.
• If you nd that the device is too hot, is emitting an odor or is deformed,
punctured or exhibits any suspicious or abnormal behavior, discontinue
use immediately and contact our customer service.
• Always charge this product before extended storage.
English
3

English
HMDI
MHL
Appearance & Interface Description:
1. Home Button
2. Menu Button
3. Return Button
4. Volume -
5. Volume +
6. Enter Key
7. Directions Button
8. Mouse Mode Button
9. HDMI Input Port
10. MHL Input Port
11. USB Port
Move Cursor Up
Move Cursor Down
Move Cursor Left
Move Cursor Right
Panorama-5
Mini Multimedia Android DLP Projector
HMDIWifi USB MicroSD MHL AV Touch Control Built-in Battery
2
3
5
910 11
6
7
8
1
4
4

Left View
Right View
1. DC Power Input Port.
2. LED Indicator
3. Power On/Off Switch.
4. Earphone Jack.
5. AV Input Port.
6. Focus Slider.
7. Reset Button
8. Micro-SD/TF Card Slot
English
RESET MicroSD/TF
DC 12V AV I N
1 2 3 4 5 6
7 8
5

1. Power Button
2. Menu Button
3. Home Button
4. Back Button
5. Enter Key
6. Left Cursor Button
7. Right Cursor Button
8. Up Cursor Button
9. Down Cursor Button
10. Mute Button
11. Volume +
12. Volume –
13. Play/ Pause Button
14. Mouse Mode Button
15. Stop Button
16. Browser Previous Button
17. Browser Forward Button
1
2
6
12
14
16
13
9
5
3
10
8
4
7
11
15
17
English
6

1. Charge Panorama-5 using the power adaptor provided.
2. Orange LED turns ON during charging and turns Green once the device is fully
charged.
3. When Panorama-5 is low on power a low battery pop up will appear on the
screen.
Charging Panorama-5
1. Turn on the projector by toggling and holding the power switch for 3 seconds.
2. Turn off the projector by toggling and holding the power switch for 3 seconds.
3. You may project your media on any given surface. The projection will come up
automatically. However, for the best quality projection is best if you nd a light
colored wall (preferably smooth and white) and place the Panorama with its lens
facing the location. You can watch media up to 120’’
Powering on/o Panorama-5
1. Slide the Focus slider on the Panorama-5 to ne-tune the output media.
Adjusting the Focus
Operation Instructions:
English
7

Main Menu Usage Instruction
Connecting to external devices
• Connecting USB Drive, Micro-SD or TF Card:
1. Turn on the projector by toggling and holding the power switch for 3 seconds.
2. Turn off the projector by toggling and holding the power switch for 3 seconds.
3. You may project your media on any given surface. The projection will come up
automatically. However, for the best quality projection is best if you nd a light
colored wall (preferably smooth and white) and place the Panorama with its lens
facing the location. You can watch media up to 120’’
1. Insert the USB drive into the USB input port or Micro-SD and TF Card into
the Card slot.
2. Select the input mode of projection by clicking the “Media” tab on the
Main Menu
English
SOURCE
Channel for connecting
HDMI, MHL, AV
NAVIGATION
Access pre-stored frequently
visited web pages
MEDIA
Access video, music, photo
and text files from USB drive,
Micro SD/TF card
BROWSER
Surf the Internet
APP
Access all apps
SETTING
Set the relevant
parameters for the unit
8

HMDI
MHL
HMDI
MHL
• Connecting HDMI compatible devices
1. Connect your PC or any other HDMI compatible device to Panorama-5 by
connecting one end of the HDMI cable to the output port of the source
HDMI device and the other end to the HDMI input on Panorama-5.
2. Select the input mode of projection by clicking the “Source” tab on
the Main Menu
RESET MicroSD/TF
English
Micro SD
HDMI
9

HMDI
MHL
• Connecting MHL compatible devices
1. Connect your Smartphone or any other MHL compatible device to
Panorama-5 by connecting one end of the MHL cable to the MHL port of the
source MHL device and the other end to the MHL input port on Panorama-5.
2. Select the input mode of projection by clicking the “Source” tab on the Main
Menu
• Connecting Audio/Video Equipment
1. Connect external AV devices to Panorama-5 by connecting the composite
RCA cable to the AV port on Panorama-5.
2. Select the input mode of projection by clicking the “Source” tab on the Main
Menu.
English
Note: When connected to AV equipment the volume is controlled via the
external AV equipment.
10

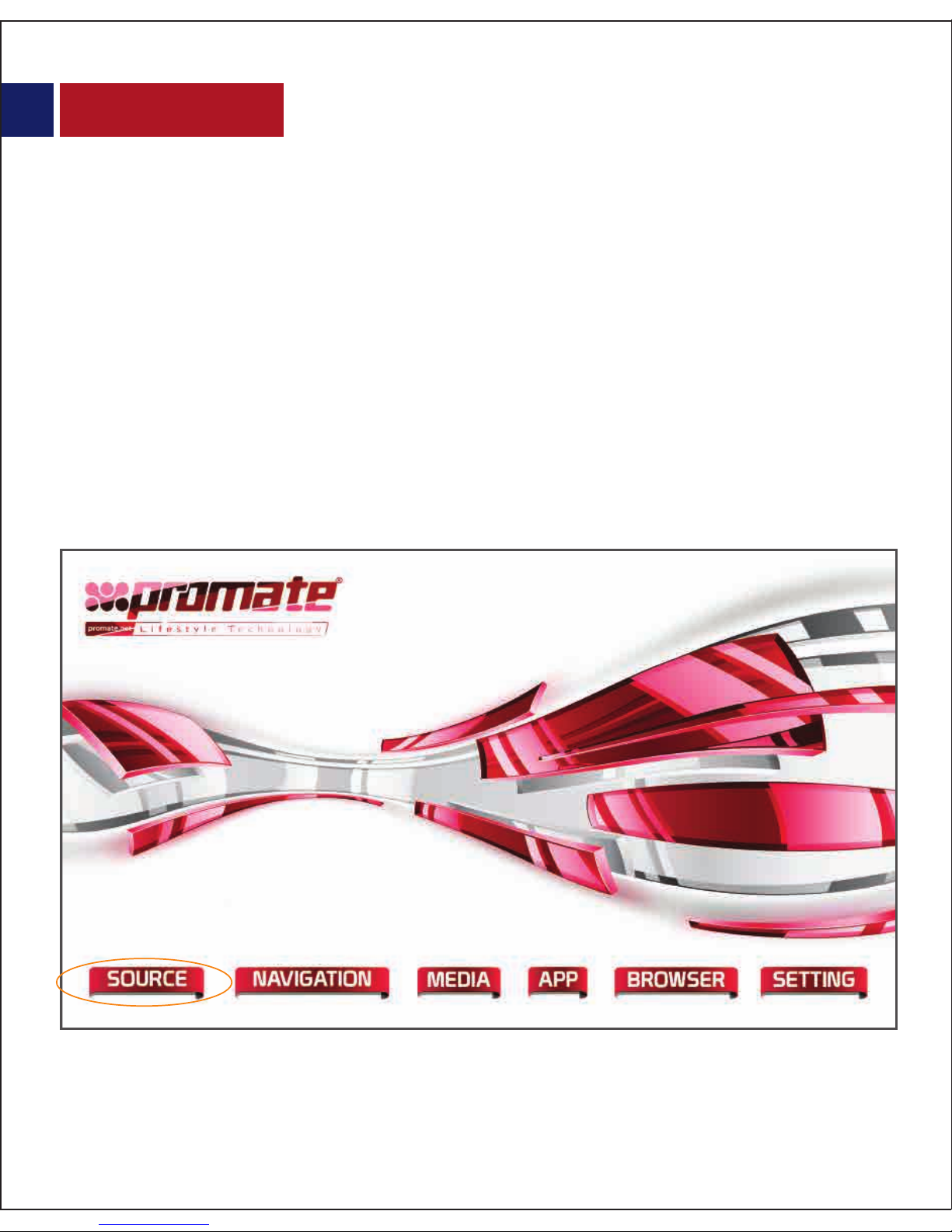

Use the Direction Buttons to select the “Source” to enter the channel selection.
English
Main Menu Introduction:
• Source (Connecting HDMI/MHL/AV)
Once you turn Panorama-5, you will come across the below mentioned function.
Follow the below mentioned description in order to understand Panorama-5’s
functionality.
11
10

English
Use the Direction Buttons to select “Navigation” to access pre-stored frequently
visited web pages.
• Navigation
Use the Direction Buttons to enter “Media” to select your desired videos, music,
photos, text saved in the inserted USB, Micro SD/TF Card.
• Media
1211

English
• Please select your desired Micro SD/TF Card or USB when connecting with
Micro SD/TF card or USB.
• Click the Menu/Settings Button to bring out the side menu. Use the
Direction Buttons to select music, videos, and photos.
Use the Direction Buttons to enter “App” to download your favorite
application.
• App
The Steps to navigate through the Media mode are:
12 13

English
Note: Panorama-5 supports third-party applications. Applications can be
downloaded and installed from the internet directly. If you encounter
difficulty to do so, you can follow the below mentioned steps to try and
download the application on a PC, copy it onto a Micro SD card, and then
install the application on Panorama-5
Step 1: On PC, nd APK from https://play.google.com/store
Step 2: Copy the APK to http://apps.evozi.com/apk-downloader/
Step 3: Download the APK to PC
Step 4: Save the APK in a Micro SD Card.
Step 5: Insert the Micro SD card into Panorama-5 to install the APK.
However, when connecting Micro SD/TF Card or USB drive, please follow the
below show steps to select the memory.
13 14

English

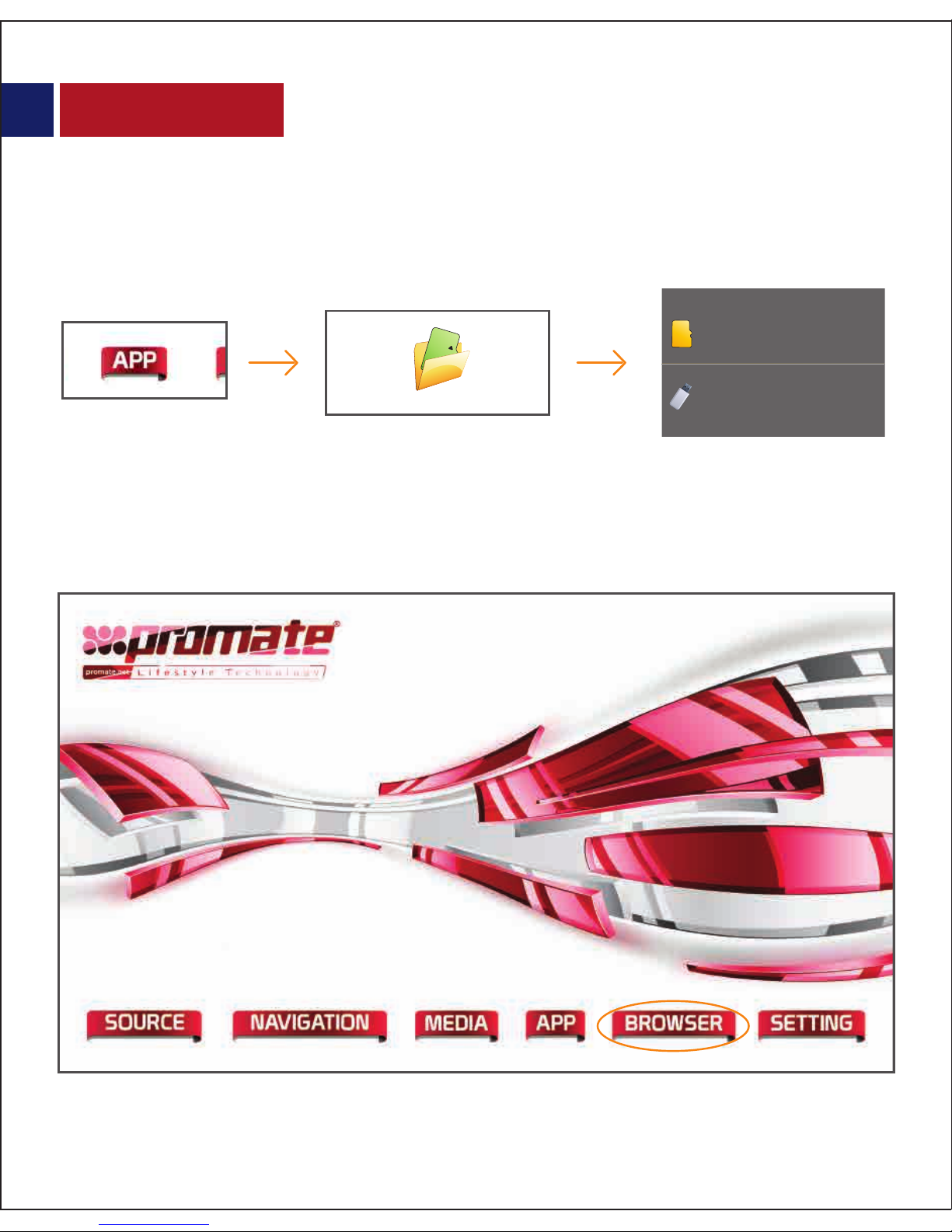

Use the Direction Button to select “Browser” to access the internet.
• Browser
However, when connecting Micro SD/TF Card or USB drive, please follow the
below show steps to select the memory.
Micro SD
External Storage
USB
15

Accessing Internet through Wi-Fi Connection
o Click “Settings” on the main menu to enter the settings page.
o Click Wi-Fi, the screen prompts “Connecting…”, then ( ) indication
shows that Wi-Fi is on.
• Wi-Fi Settings
English
ON
Connected
ADSL
Wi-Fi
More
16

HMDI
MHL
Descripción de la interfaz
1. Inicio botón
2. Botón menu
3. Gire el botón
4. volumen-
5. volumen
6. Introduzca la clave
7. Instrucciones botón
8. botón modo de ratón
9. Puerto de entrada HDMI
10. Puerto de entrada de MHL
11. Puerto USB
Mover el Cursor hacia arriba
Mover el Cursor hacia abajo
Mover el cursor hacia la izquierda
Mover el cursor hacia la dercecha
Panorama-5
Mini Multimedia Android DLP Projector
HMDIWifi USB MicroSD MHL AV Touch Control Built-in Battery
2
3
5
910 11
6
7
8
1
4
HMDI
MHL
Descripción de la interfaz
1. Inicio botón
2. Botón menu
3. Gire el botón
4. volumen-
5. volumen
6. Introduzca la clave
7. Instrucciones botón
8. botón modo de ratón
9. Puerto de entrada HDMI
10. Puerto de entrada de MHL
11. Puerto USB
Mover el Cursor hacia arriba
Mover el Cursor hacia abajo
Mover el cursor hacia la izquierda
Mover el cursor hacia la dercecha
Panorama-5
Mini Multimedia Android DLP Projector
HMDIWifi USB MicroSD MHL AV Touch Control Built-in Battery
2
3
5
910 11
6
7
8
1
4
Spanish
17

Left View
Right View
1. Puerto de entrada DC Power
2. LED indicador
3. Interruptor encendido y pagado
4. Toma de auriculares.
5. Puerto de entrada AV
6. Manejo de enfoque.
7. Botón de reposición
8. Ranura para tarjeta micro-FANFC
RESET MicroSD/TF
DC 12V AV I N
1 2 3 4 5 6
7 8
Spanish
18

1. Botón de encendido
2. Botón menú
3. Botón de Inicio
4. botón de retorno
5. Introducir la clave
6. Botón Cursor izquierdo
7. Botón Cursor derecho
8. Botón Cursor hacia arriba
9. Botón Cursor hacia abajo
10. Botón de silencio
11. Volumen +
12. Volumen –
13. Botón de pausa
14. Botón de modo ratón.
15. Botón de parada
16. Botón navegar anterior
17. Botón navegador de avance
1
2
6
12
14
16
13
9
5
3
10
8
4
7
11
15
17
Spanish
18 19
