Optoma X304M User manual

Ideal for on-the-road presentations
HDMI connectivity for maximum
compatibility
Fully 3D capable for the most amazing,
immersive viewing experience
Advanced energy saving features to
reduce the cost of operation
Easy to operate
PERFECT TRAVEL COMPANION
DIGITAL
CAMERAS
CAMCORDERS
GAME
CONSOLES
TABLETS
SMART
PHONES
COMPUTERS SET TOP BOXES
3D BLU-RAY/DVD PLAYERS
Roku®Apple TV®
MULTIMEDIA PROJECTOR
X304M
CONNECTIVITY (May require optional accessories)
The Optoma X304M is the perfect
projector for mobile professionals looking
for a powerful, compact projector that is
capable of delivering stunning presenta-
tions. Its 3000 lumens and 10,000:1
contrast ratio provide the brightness level
you need to make your presentations
stand out.
The Optoma X304M offers the level
of connectivity necessary to satisfy
your current and future needs, and its
intuitive menu system makes it incred-
ibly easy to operate. Designed for road
warriors, the X304M is small in size,
lightweight and strong in performance
and reliability. Its DLP®light engine
ensures that your projector will deliver
the same outstanding performance
year after year.

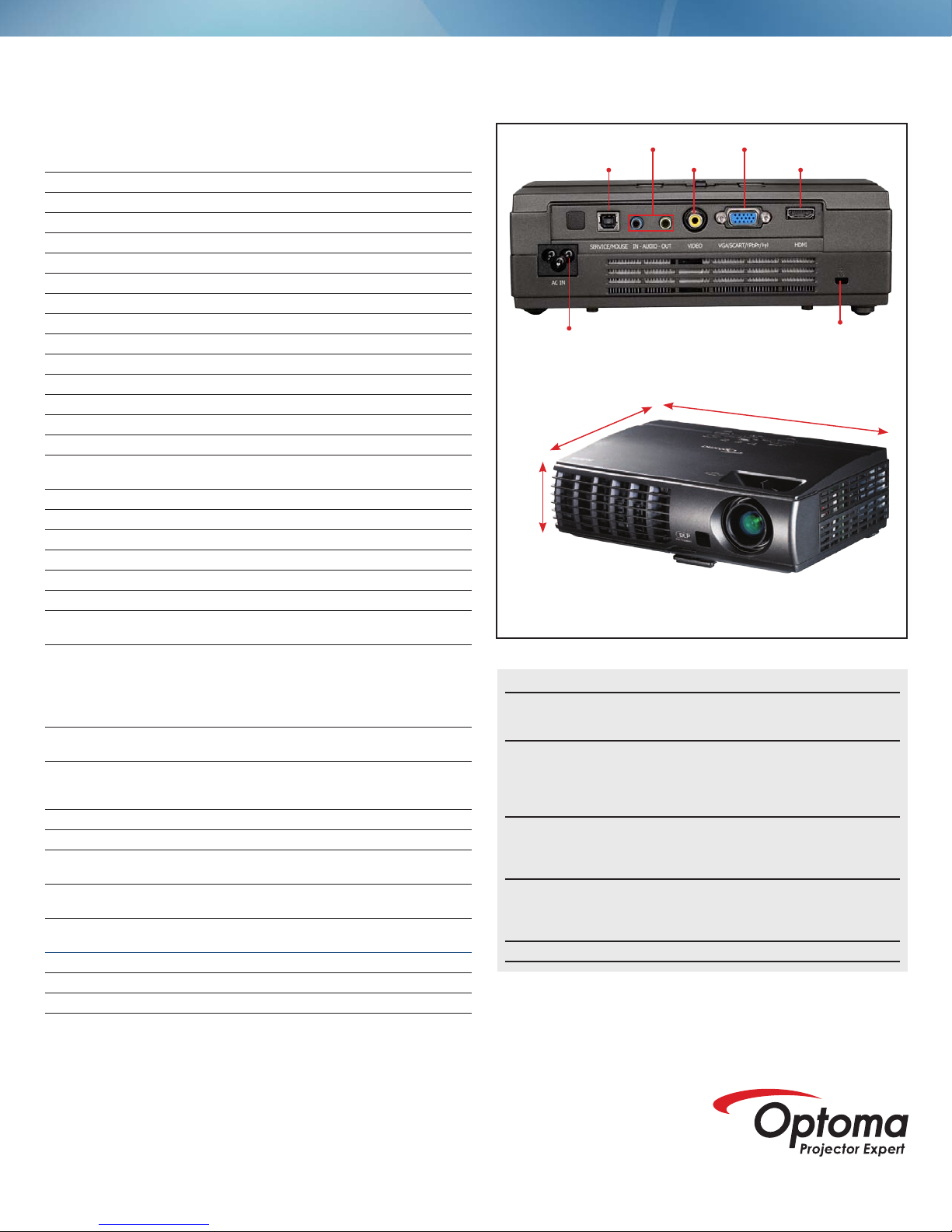

8.66ʺ
7.0ʺ
2.79ʺ
**YPbPr Via Adapter
Audio In/Out
Kensington lock
port
VideoMouse HDMI
VGA**
AC Power
MULTIMEDIA PROJECTOR — X304M
Warranty
2-Year Optoma Express Service, 1-Year Lamp
In the Box (Standard Accessories)
X304M projector, AC power cord, VGA to VGA cable, remote control, batteries for
remote, carrying case, multilingual CD-ROM user’s manual, quick start card,
and warranty card
Optional Accessories
HDMI cable, ceiling mount, component to VGA cable, composite video cable,
RS-232 cable, S-video cable, Optoma screens and DLP®Link™3D glasses
Accessory Part Numbers
Lamp: BL-FS220C Mount: BM-5001U
Remote: BR-5042L DLP®Link™3D glasses: BG-ZD301
Carrying case: BK-4021 Wireless VGA dongle: BI-EXTBG03
UPC 796435 41 843 4
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Single 0.55ʺ DC3 DMD
DLP®Technology by Texas Instruments™
Native Resolution XGA (1024 x 768)
Maximum Resolution WUXGA (1920 x 1200)
Brightness 3000 lumens
Contrast Ratio 10,000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life* and Type 5000/4000 Hours (ECO/Bright) 220W SHP
Projection Method Front, rear, ceiling mount, table top
Keystone Correction ± 30° Vertical
Uniformity >80%
Offset 114%
Aspect Ratio 4:3 Native, 16:9 compatible
Throw Ratio (Distance/Width) 1.8–2.2 (distance/width)
Projection Distance 3.9ʹ–39.4ʹ (1.2–12 m)
Image Size (Diagonal) 26.87ʺ–311.1ʺ: (0.68–7.9 m)
Projection Lens F=2.55–2.72, f=21.3–24.5 mm
1.22x manual zoom and focus
Digital Zoom 0.7 ~ 1.5
Audio One 1-Watt speaker
Noise Level (Normal/Bright) 33dB
Remote Control IR remote mouse control
Operating Temperature 41–113°F (5–45°C), 85% max humidity
Power Supply AC Input 100–240V, 50–60Hz, auto-switching
Power Consumption Max 280W (Normal), Min 230W (Eco+),
<0.5W (standby-ECO)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility WUXGA, UXGA, SXGA+, WXGA+, WXGA,
SXGA, XGA, SVGA, VGA resized, VESA,
PC and Mac compatible
Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p),
HDTV (720p, 1080i/p)
3D Compatibility†Supports all HDMI 1.4a mandatory 3D format,
side-by-side format and top and bottom format.
3D glasses are needed and sold separately.
Vertical Scan Rate 24–85Hz, 120Hz
Horizontal Scan Rate 15.375–91.4KHz
User Controls Complete on-screen menu, adjustments
in 22 languages
I/O Connection Ports HDMI v1.4a, VGA-in, composite video, audio-in,
audio-out and USB-B
PHYSICAL SPECIFICATIONS
Security Kensington®Lock Port and keypad lock
Weight 3.3 lb (1.50 kg)
Dimensions (W x H x D) 8.66ʺ x 2.79ʺ x 7.0ʺ (220 x 72 x 178 mm)
†3D content can be viewed with either RF or DLP Link active shutter glasses when projector is used
with a compatible 3D player. RF 3D glasses require the use of the RF 3D emitter. Please visit
www.OptomaUSA.com for more information
*Lamp life is dependent on many factors, including lamp mode, display mode, usage, environmental
conditions and more. Lamp brightness can decrease over time.
