Promax ST-10P User manual

ST-10P
Hot Water Shrink Tank
Operation Manual
Version 6.9.1
1915 E. Acacia Street, Ontario, CA91761, U.S.A
TEL : [phone]
FAX : [phone]
http://www.promaxvac.com
S/N: QCSIGNATURE:

INDEX
SAFETY RECOMMENDATION …………………………………………………… 1
1. APPLICATIONS …………………………………………………………………... 2
2. TRANSPORTATION INSTRUCTION ………………………………………….. 2
3. ST-10 SPECIFICATION ………………………………………………………….. 3
4. INSTALLATION ………………………………………………………………….. 3
5. OPERATION ……………………...……………………………………………….. 4
6. TROUBLESHOOTING ……………………..…………………………………….. 4
7. EXECTRICAL DIAGRAM ..………………..…………………………………….. 5
8. FABRICATION ……………………………….…………………………………… 7
8.1 BODY ………………………………………………………………………………………. 7
8.2 WORKING BED DIAGRAM …………………………………………………………….. 10
8.3 OPERATOR BOX…………... …………………………………………………………….. 12
8.4 ELECTRICAL BOX ……………………………………………………………………..... 14
8.5 CONTROL PANEL ………………………………………………………………………....16

1
SAFETY RECOMMENDATION
Certain Practices Or Minor Modifications On The Part Of The User May Increase The Risk Of
Damage And/Or Accidents.
In The Interest Of Safe Installation, Handling And Maintenance, The Following Recommendations
Should Be Strictly Followed:
1) Do not attempt to start or handle the machine until all safety topics, installation instructions,
operator’s guide and maintenance procedures have been fulfilled and understood.
2) All adjustments, repairs must only be carries out by qualified maintenance personnel, according
to the instructions in this manual.
3) The operator must never insert hands, rags, etc, inside the machine while it is functioning.
4) Do not place tools, parts or other objects on or inside the machine.
5) Always keep the machine clean, oiled and in good working condition.
6) To provide continued protection against risk of electrical shock. Connect to properly grounded
outlets only.
7) Always disconnect machine from power source (main power switch) as show on next page
before removing service panel.

2
1.APPLICATIONS
Frozen food, sea food, prepared food, meat, soaked foods, products … etc.
Recommendation of vacuum pouch – Vacuum shrink film must be applied.
2. TRANSPORTATION INSTRUCTION
For the transportation and placing of this machine have a forklift truck available (keep in mind
weight of the machine before lifting)
Precautions to take:
zBefore lifting balance the machine by adjusting the forks of the fork lift before lifting the
machine. Make sure the machine is safe to lift
zLift the machine with the forklift, from the front of the machine (opposite to the electrical box).
Check for components hanging under the machine before lifting because it may cause machine
to fall.
zAlways lift the machine by placing the forks of the truck between the two free casters of the
machine; never lift it by the ends or extensions.
zAlways take the utmost care when carrying out lifting andmovingoperations.
zApproximate Weight of the machine:100kg or 200 lbs.
zBefore installation, remove the pallet under the machine then place the machine down for
installation.

3
3. ST-10P SPECIFICATION
4. INSTALLATION
PLUG-UP POWER CORD
Before plug-up the power cord make sure you have right power source to hook up the pump.
Please look at the back of the machine for the current requirement.

4
5. OPERATION
1、Led－Lamp,indicator.
2、Power－Electrical ON/OFF
3、Emergency－push this button to stop the operation.
4、Switch,Selector Two－Automatic or manual operation switch.
5、Temperature Controller－Set the temperature according to the materiall of film and it＇s thickenss. More
detail information controller please refer to the user＇s manual.
6、TMR2－this timer is to control the dipping time.
7、START－push this button to start the operation.
6. MAINTENANCE
DAILY MACHINE CLEANING
The hot water shrink tank should be cleaned every day. We recommend cleaning by hand with a mild
detergent. Do not directly hose down machine.
LED
POWER
START
Temperature
Controller
Switch,Selector
Two
TMR2
EMERGENCY
AUTO
MANUAL

5

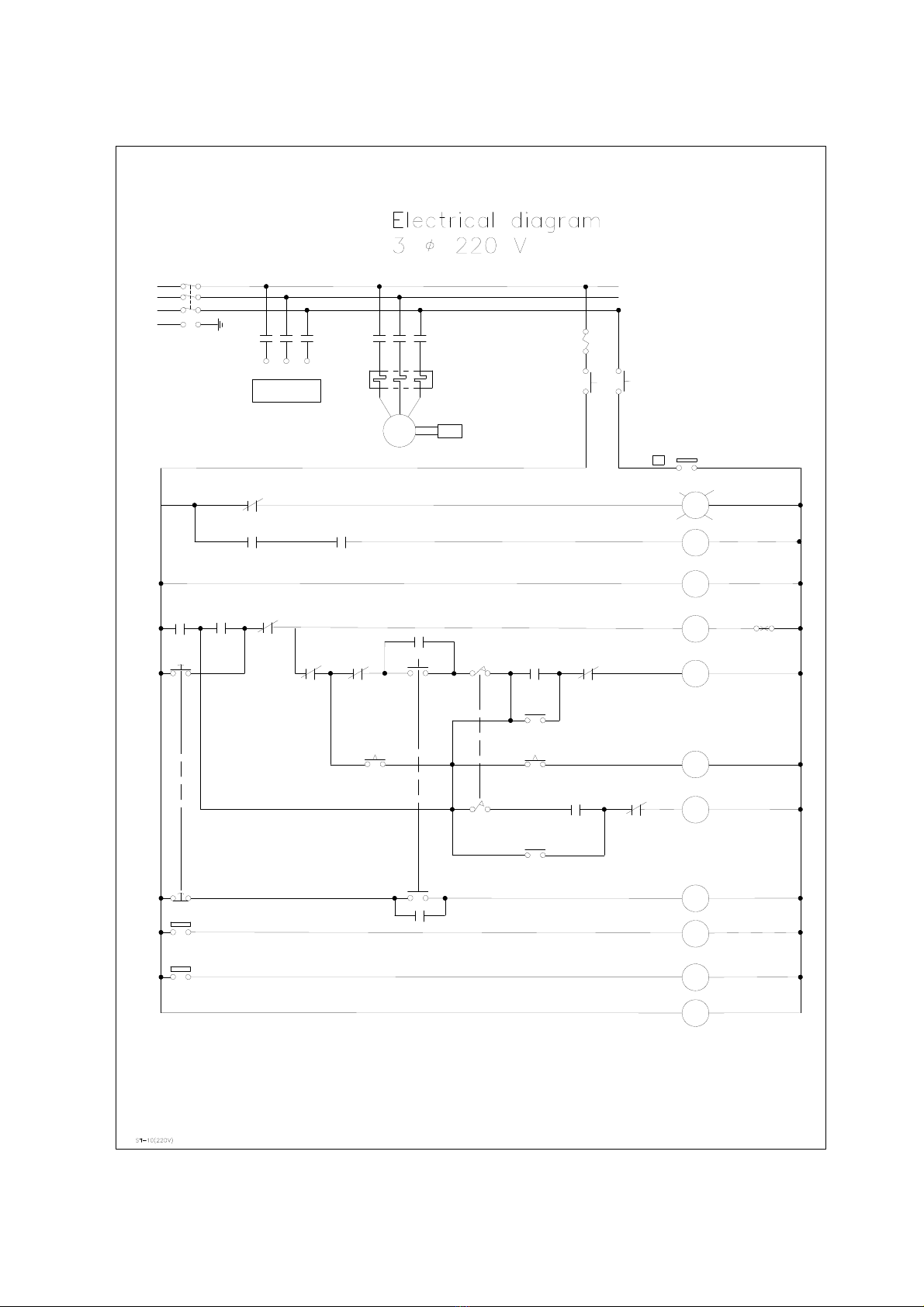

7. EXECTRICAL DIAGRAM
UH1 VH1 WH1
M
R
R1 T1
3A
POWER
118
R LED
122 22 18
218
118
110 11 13
111 20 12 5
20 10
13 OL
17 18
19 18
18
10
10
818
318
418
118
17
13
14
R1
78
10 16
614 15
10
BRAKE
STOP
EMERGENCY STOP
L1
L2
L3
R
S
T
KM2 KM1
KM2
E5CZ
KM1
TMR2
R4
TMR1
R1
R2
R3
A61F
R3
A61F
123
A61F 2
E5CZ
R1 R4 R2
R3 R4 START NANUAL R3 R2
KM1
TMR2
TMR2
AUTO
TMR1
TMR1
R2
TOP SWITCH BRACKET LIMIT
BOTTOM SWITCH BRACKET LIMIT
TO Heater Nippno
Sheatth Wire
OL
18
10
PFIM
(DOWN STOP TIME)
(LIFT STOP TIME)
(WATER SCARCITY SWITCH LIGHT)
(HEAT CONTACTOR)
(TEMPERATURE CONTROLLER)
(MOTOR CONTACTOR)
18 18
LS1

6
7. EXECTRICAL DIAGRAM
UH1 VH1 WH1
M
RT
POWER
R1 T1
R LED
122 22 18
218
118
110 11 13
111 20 12 5
20 10
13 OL
17 18
19 18
18
10
10
818
318
418
118
17
13
14
R1
78
10 16
614 15
10
BRAKE
STOP
EMERGENCY STOP
L1
L2
L3
R
S
T
KM2 KM1
380V
220V
KM2
E5CZ
KM1
TMR2
R4
TMR1
R1
R2
R3
A61F
R3
A61F
123
A61F 2
E5CZ
R1 R4 R2
R3 R4 START NANUAL R3 R2
KM1
TMR2
TMR2
AUTO
TMR1
TMR1
R2
TOP SWITCH BRACKET LIMIT
BOTTOM SWITCH BRACKET LIMIT
TO Heater Nippno
Sheatth Wire
OL
18
10
1
3A TRANSFORMER
150VA
PFIM
(DOWN STOP TIME)
(LIFT STOP TIME)
(WATER SCARCITY SWITCH LIGHT)
(HEAT CONTACTOR)
(TEMPERATURE CONTROLLER)
(MOTOR CONTACTOR)
18 18
LS1

8.1 BODY
7
8. FABRICATION
S10P100000
Body Diagram
1
27 28 29 31
30
52
37
33 34
5354
5554
10
3
16
9
8
7
6
54
11
21
39 56
22
23
26
42
48
51
41
40
50
48
59
45
32
44
14
20
13
17
19
18
12
15
35
38
24
25
43
48
37
42
36
26 26
42
26
41
41
41
49
46
42
60
47
57
47
59
49
58
39
2
39
39
61

S10p100P00
NO. PART NO. DESCRIPTION QTY NOTE
1 S10P101000 Frame 1
2 ST10102003 Plate , Frame Rear Cover 1
3 ST10103002 Mount, Electrical Box 1
4 ST10104000 Arm, Lifting Up 1
5 ST10105000 Bushing 1
6 ST10106000 Mount, Guide 1
7 ST10107000 Plate, Lift Guide 1
8 ST10108000 Guide 2
9 ST10110000 Top Fixed Plate 1
10 ST10111000 Bracket, Motor 1
11 ST10112001 Plate, Rear Side Cover 1
12 ST10113000 Trough 1
13 ST10114000 Tube, Water Check 1
14 ST10115000 Turn Connector 1-1/4 x 1/2 1
15 ST10116000 Block, Guide 1
16 ST10117000 Shaft 1
17 274000673 Turn Connector PT 1-1/4 1
18 2856023 Thermalψ6.35x100mmLx PT 1/4 1
19 2856024 Heater nippno Sheatth Wire 5KW 220V/380V 2
20 2732027 Level Electrode Holder ψ25(PS-31) 1
21 2712145 Caster, 2-1/2 4
22 27131215 Reducer, Motor w/Brake LK-SH 1/4HP 1/100 1
23 2728816 Bearing, Cam CF16 1
24 29090311 C Type Adapter VSC - 8 x 1/8 1
25 2931028 PU Air Hose 1
26 ST10119000 Bearing, Linear 4
27 29093279 Nipple 1/2 x 4 （S）2
28 29093277 Fitting 1/2 （S）2
29 29093265 Nipple 1/2 x 70mm （S）2
30 274000673 Elbow 1-1/4 (S) 2
31 29093278 Nipple 1/2 x 30 （S）2
32 ST10208000 Roller 1
33 ST10118000 Bracket, Limit Switch 1
34 2853215 Switch, Limit TZ-8108 2
35 2701153 Screw, Round Hd Socket M6x20 (S) 4
8

ST10100P01
NO. PART NO. DESCRIPTION QTY NOTE
36 2704603 Screw, Socket Set M6x10 (S) 1
37 2705302 Washer, Split Lock M6 (S) 11
38 2700358 Screw, Hex Hd M5 x 12 (S) 4
39 2883342 Door lock 4
40 2700408 Screw, Hex Hd M8x20 (S) 4
41 2701156 Screw, Socket Hd M8 x 20 (S) 4
42 2706232 Ring R32 (S) 4
43 2700426 Screw, Hex Hd M6x40 (S) 2
44 2707204 Nut, M6 (S) 5
45 2700449 Screw, Hex Hd M6x55 (S) 1
46 27004764 Screw, Socket Hd M10x40 (S) 2
47 2705332 Washer, Split Lock M10 (S) 6
48 2707017 Nut, M10 (S) 6
49 2705301 Washer, Split Lock M8 (S) 16
50 2707103A Nut, Nylon Lock M8 (S) 16
51 2700443 Screw, Hex Hd M10x35 (S) 4
52 2700402 Screw, Hex Hd M6x16 (S) 4
53 27000361 Screw, Hex Hd M5x20 (S) 2
54 2705150 Washer,Flat M5 (S) 8
55 2700413 Screw, Hex Hd M5x16 (S) 2
56 2700408 Screw, Hex Hd M8x16 (S) 4
57 2705151 Washer, Flat M6 (S) 4
58 2705152 Washer,Flat M8 (S) 16
59 2705189 Washer,Flat M10 (S) 4
60 27011591 Screw, Socket Hd M10x25 (S) 4
61 2909143 Fitting 1/4"x1/2" 1
9

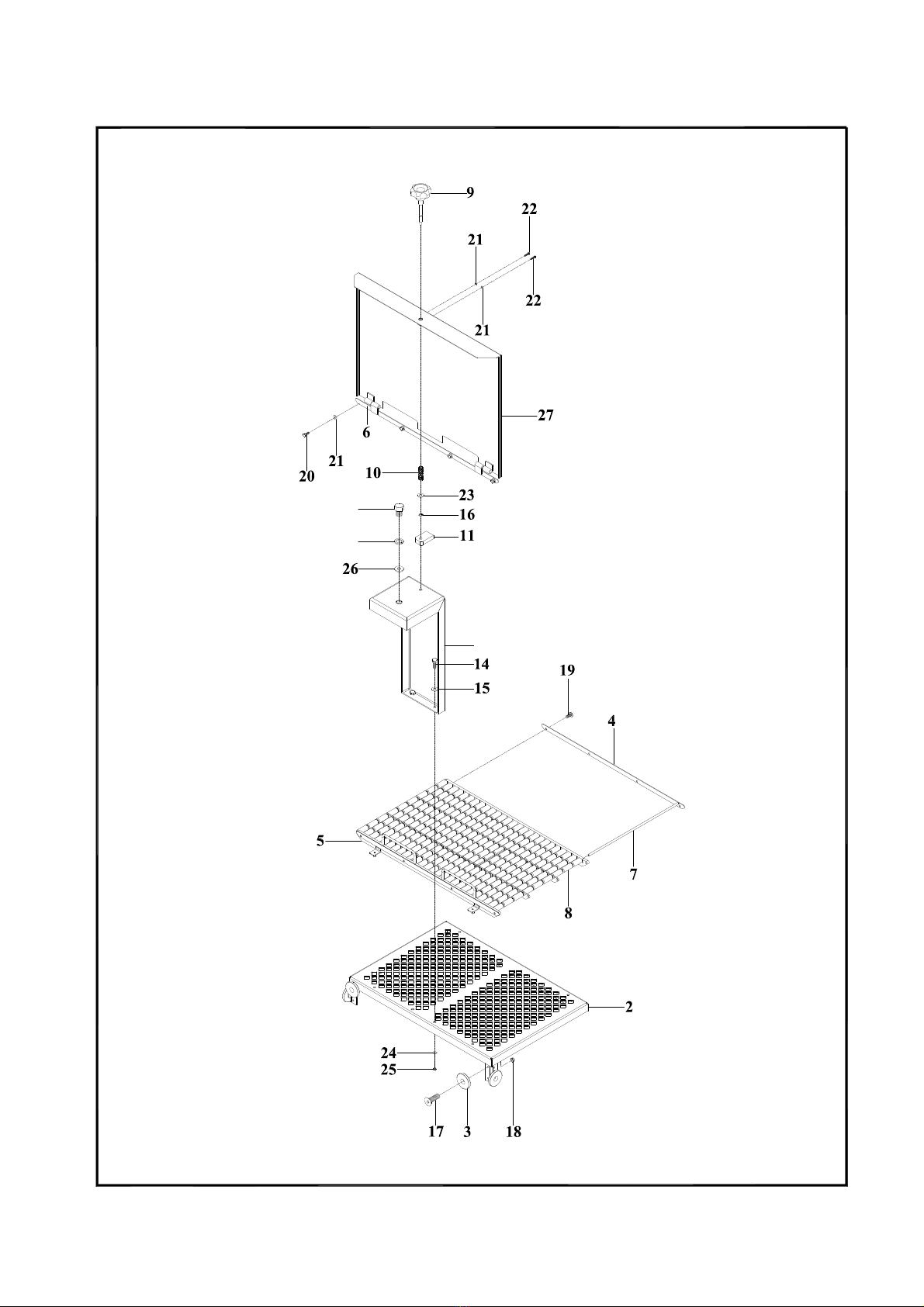

8.2 WORKING BED DIAGRAM
10
1
Working bed Diagram
ST10200000
12
13

ST10200P00
NO. PART NO. DESCRIPTION QTY NOTE
1 ST10201000 Plate, Movable 1
2 ST10202000 Frame, Support 1
3 ST10203000 Roller 4
4 ST10204000 Stopper 2
5 ST10205000 Frame, Roller Support 1
6 ST10206000 Plate, Roller Join 1
7 ST10207000 Shaft, Roller 27
8 ST10208000 Roller 243
9 ST10211000 Tip, Position 1
10 ST10212000 Spring, Compressor 1
11 ST10213000 Block, Spring Support 1
12 2700472 Screw, Hex Hd M14x30 (S) 1
13 2705333 Washer, Split Lock M14 (S) 1
14 2700423 Screw, Hex Hd M6 x 45 (S) 2
15 27046151 Washer Flat M6 (S) 2
16 27060121 Ring S8 (S) 1
17 27020831 Screw, Flat Philip M5 x 20 (S) 2
18 2707208 Nut, Hex Hd M5 (S) 2
19 2701502 Screw, Oval Hd M5 x 10 (S) 1
20 27000362 Screw, Hex Hd M5 x 12 (S) 4
21 2749022 Washer, Split Lock M5 (S) 2
22 27000361 Screw, Hex Hd M5x20 (S) 2
23 2705187 Washer, Flat M8 (S) 1
24 2705302 Washer, Split Lock M6 (S) 2
25 2707110 Nut, Nylon Lock M6 (S) 2
26 2705155 Washer, Flat M14 (S) 1
27 ST10209000 Corver 1
11

8.3 OPERATOR BOX
12
Operator Box

S10P300P00
NO. PART NO. DESCRIPTION QTY NOTE
1 S10P102000 Operator Box Hlder 1
2 S10P103000 Operator Box 1
3 PST8113030 Window 1
4 2870066 Screw(red) 1
5 2870048 Screw(Green) 1
2856022 Temperature controller
2832022 Socket relay
7 2870067 Switch screw(Green) 1
2832020 Time relay
2832021 Socket relay
9 2872502 Lamp indicator 1
10 2871119 Switch selector 1
11 2703307 Round head screw M4x10 10
12 2883343 Handle 1
6 1
8 1
13

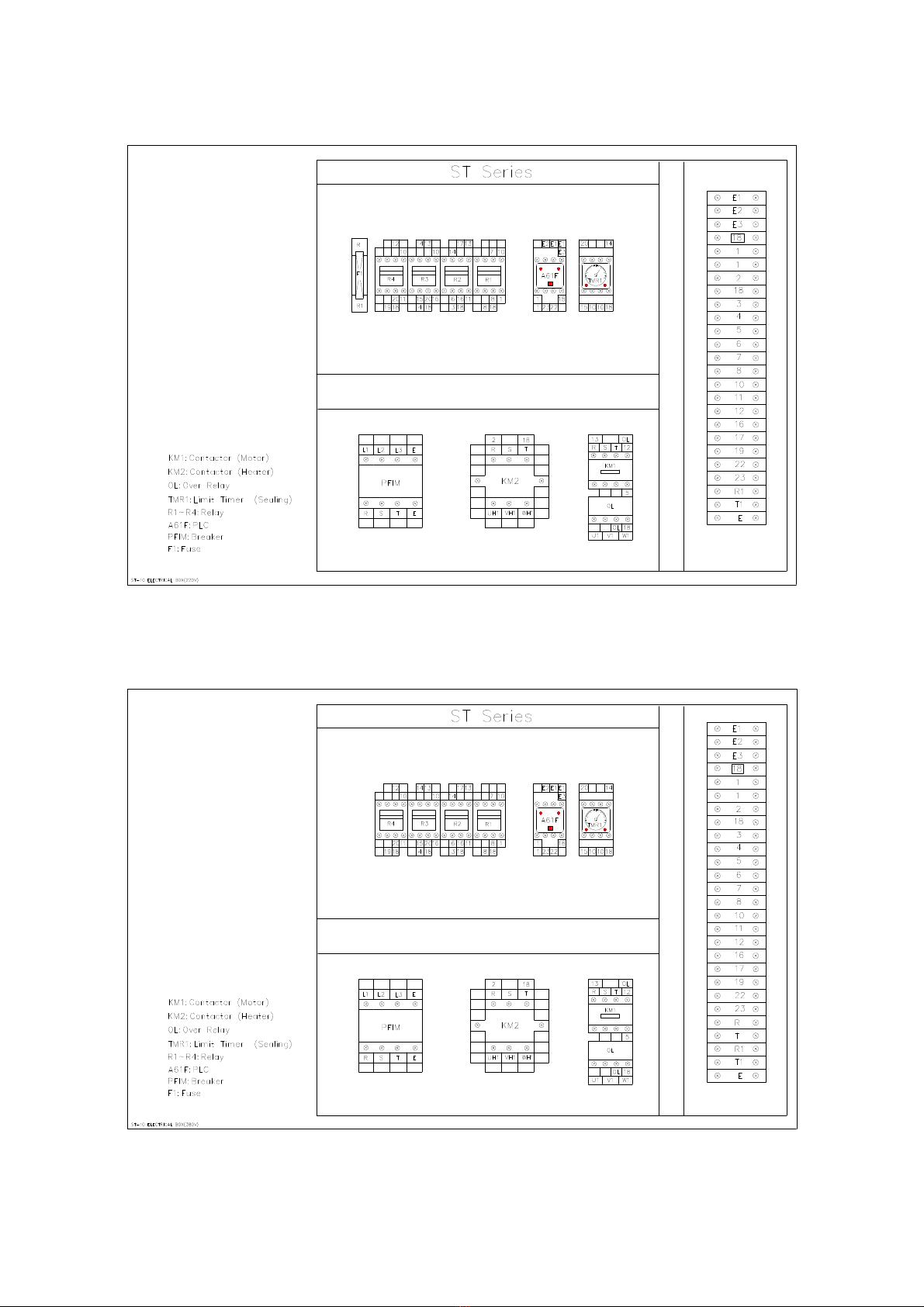

8.4 ELECTRICAL BOX
14
3ψ 220V 50/60Hz
3ψ380V 50/60Hz

8.4 ELECTRICAL BOX
15
ITEM PART NO. DESCRIPTION SPECIFICATION Q’TY NOTE
KM1 2810764 Contactor TECO CN-11(220V) 1
KM2 2810765 Contactor TECO CN-50R(220V) 1
OL 2811528 Overload Relay
TECO RHU-10K1
(1.1~1.6A) 1
F1 2890042 Fuse 30mm 5A 1
R1~R4
2810271 Relay RU4S-C-A220 1
2831106 Socket, Relay SY4S-05D 1
TMR2
2832020 Time Relay GE1A-B 220-240V/AC 1
2833202 Socket Relay PF-085A 1
A61F
2823421 PLC A61F-GP-N 220V 1
2831202 Socket Relay PF113A 1
PFIM 2801006 Breaker Moeller N17066/F1-4-63-0.03 1
TB
2843212 Terminal Block PTU-10 26
2843207 Plate Terminal Block SBN-20(TA-002) 2
T1 28960031 Transformer 380V/220V 150VA 1
BOX ST10800000 Electrical Box 1

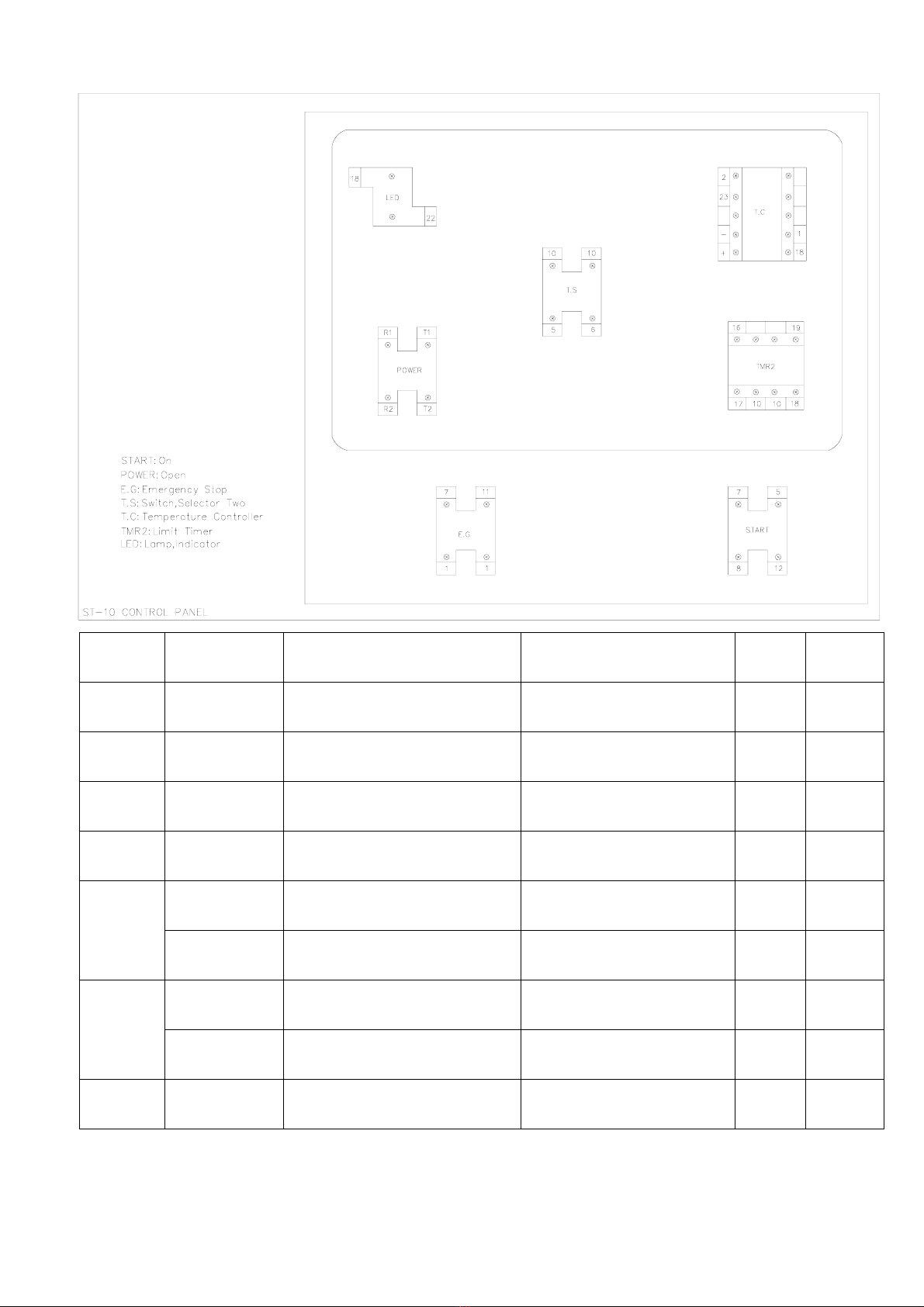

8.5 CONTROL PANEL
16
ITEM PART NO. DESCRIPTION SPECIFICATION Q’TY NOTE
START 2870067
Switch Screw（Green）(YWIB-MIE20G) 1
POWER 2870048 Switch Screw（Green）YW1B-A1E20G 1
E.G 2870066
Screw（Red）YW1B-A4E11R 1
T.S 2871119
Switch Selector
Two(1A.1B) YWIS-2111P 1
2856022 Temperature Controller E5CZ-R2
（AC100-240V）1
T.C 2832022 Socket Relay (Y) Y-50 (48*48) 1
2832020 Time Relay GE1A-B 220-240V/AC 1
TMR2 2832021 Socket Relay P3G-08 ANLY 1
LED 2872502
Lamp Indicator （Red）SCR-3041 220V 1
