ProScan PSB3787W User manual

MODEL:
HOME THEATER BLUETOOTH SOUNDBAR WITH WIRELESS SUBWOOFER
LIGHT SHOW AND LED ROOM ILLUMINATION
PROSCAN™ IS A REGISTERED TRADEMARK OF TECHNICOLOR USA INC.
AND USED UNDER LICENSE TO CURTIS INTERNATIONAL LTD.
PLEASE READ CAREFULLY BEFORE OPERATION
37 inch Bluetooth Soundbar with Wireless Subwoofer
PSB3787W

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD
This unit has a long cord that can be easily tripped on or pulled on, causing injury. Please
make sure it is arranged so that it will not drape over a tabletop, etc. Where it can be
pulled on by children or tripped over accidentally.
CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons..
2
Industry Canada Notice
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
ISED RF Exposure statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the ISED radio frequency
exposure limits, Human proximity to the antenna shall not be less than 20 cm (7.9 inches)
during normal operation.
ATTENTION:
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
To assure continued operation, follow the attached installation instructions and use only
shield cables when connecting to other devices. Changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate
the equipment.
FCC NOTICE:
3
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may
cause undesired operation. The antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.
CALIFORNIA PROP 65 WARNING:
This product contains chemicals known to the State of California to cause birth defects
or other reproductive harm. For more information on these regulations and a list of
chemicals, log on the following website: http://www.oehha.ca.gov/prop65.html
This product meets and complies with all Federal regulations.

The appliance should not be used near water; for example, near a bath tub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
6. Clean only with dry cloth
The appliance should be cleaned only as recommended by the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to
ensure reliable operation of the product and to protect it from overheating. These openings
must not be blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or similar surface. This product should never be placed near or
over a radiator or heat source. This product should not be placed in a built-in installation,
such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. An appliance and cart combination should be moved with care.
4
Quick stop, excessive fore and uneven surfaces may cause the
appliance and cart combination to overturn.
1. Read these instructions
All the safety and operating instructions should be read before the appliance is operated.
2. Keep these instructions
The safety and operating instructions should be kept for future reference.
3. Heed all warnings
All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions
All operation and use instructions should be followed.
5. Do not use this apparatus near water
13. Unplug this apparatus during lightning storms or when unused for long periods of
time. To protect your product from a lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and power-line surges
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

15. Power source
This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your
appliance dealer or local power company. For products intended to operate from battery
power, or other source, refer to the operation instructions.
16. Power lines
An outside antenna system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric
shock.
18. Object and liquid entry
Never push objects of any kind into the product through openings as they may touch
dangerous voltage points or short out parts that could result in fire or electric shock. Never
spill or spray any type of liquid on the product.
5
19. Service
Do not attempt to service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
b) If liquid has been spilled or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions, as an adjustment of
other controls may result in damage and will require extensive work by a qualified
technician to restore the product to its normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance- this indicates a need for
service.
20.Replacement parts
When replacement parts are required, be sure the service technician uses replacement
parts specified by the manufacturer or those that have the same characteristics as the
original parts. Unauthorized substitutions may result in fire or electric shock or other
hazards.
21. Safety check
Upon completion of any service or repairs to this product, ask the service technician
to perform safety checks to determine that the product is in proper operating condition.
22. Wall or ceiling mounting
The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
23.Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service personnel
under the following conditions.
a) When the power- supply cord or plug is damaged.

PROdUCT OvERvIEW
6
CONTROL PANEL
FRONT VIEW
BOTTOM VIEW
3
4
5
78
REAR PANEL
11
10 12 13 14
2. Remote Sensor
1. Source Indicator
3. LED Light Tube
5. Volume Down Button
6. Volume Up/REC. Button
4. Power/Source Button
7. Previous Button
8. Next Button
9. SB Pair Button
12. OPTICAL IN Jack
10. LINE IN Jacks
11. AUX IN Jack
14. DC IN Jack
12
POWER
SOURCE
SB
PAIR
LINE IN
L
ROPT IN DC 20V
USB
AUX IN
6
9
13. USB Port
33
SUBWOOFER
INDICATOR
POWER
INDICATOR
PAIR DC 20V
15
16
17 18 19 20
15. LED Light Tube
16. Speaker
17. Indicator
18. Power Indicator
19. PAIR Button
20. DC IN Jack
REC.

Fig.2 Fig.3
BATTERY INSTALLATION OF REMOTE CONTROL
First time use
Remove and discard the insulation film as Fig.1.
Replacing battery for Remote Control
7

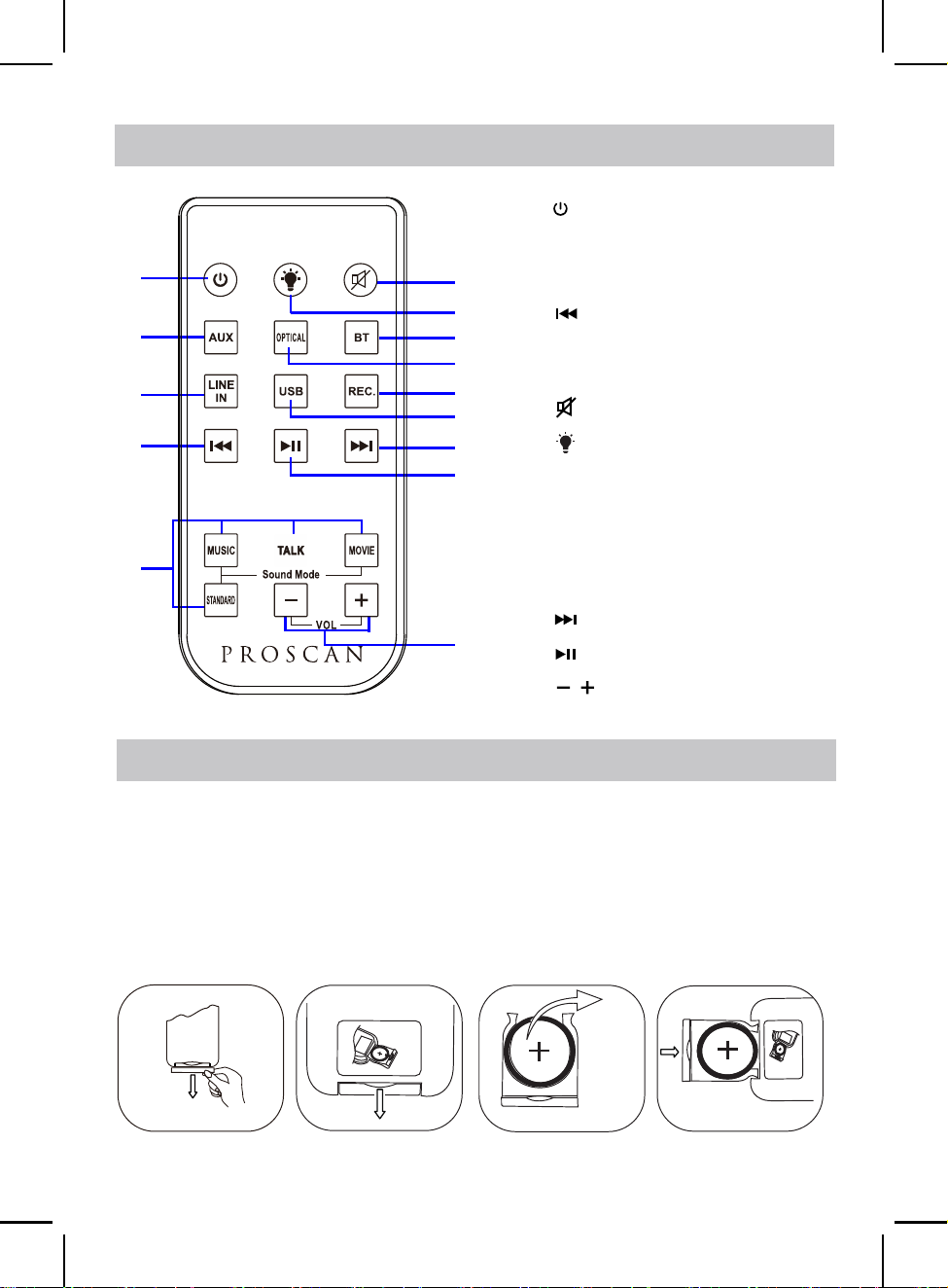

REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
12
1. (Power On/Off) Button
2. AUX Button
3. LINE IN Button
4. (Previous) Button
6. (Mute) Button
12. (Next) Button
13. Play/Pause Button
14. (Volume Up/Down) Button
10. REC. (USB Recording) Button
OPEN
OPE N
1. Pull out the battery holder as Fig.2.
2. Replace the old button cell with a new CR2025 button cell
with the polarity markings facing upward as Fig.3.
3. Push back the battery holder as Fig.4.
Fig.4
14
8. BT Button (Bluetooth mode)
9. OPTICAL Button
5. Sound Mode (MUSIC, TALK,
MOVIE, STANDARD)
7. (Light Effect) Button
11
11. USB Button
13
,
Fig.1

9
8
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1.Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in
the battery compartment, a reserved battery may cause damage to the device.
3. Do not mix different types of batteries together ( e.g: Alkaline and Carbon-zinc )
or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long
period of time, remove the batteries to prevent damage or injury from possible leakage.
5.Do not try to recharge the battery as it is not intended to be recharged; it can
overheat and rupture. ( Follow the battery manufacturer's instructions.)
6.The batteries shall not be exposed to excessive heat such as sunshine or fire.
7. Clean the battery contacts and also those of the device prior to battery installation.
8.The remote control is supplied with a coin/button
cell battery. If the coin button cell battery is
swallowed, it can cause severe internal burns in just
2 hours and can lead to death. Keep new and used
battery away from children. If the Battery
compartment does not close securely, stop using
the product and keep it away from children. If you
think batteries might have been swallowed or placed
any part of the body, seek immediate medical
attention.
CR2025
Remote control operation range
●
●When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light
shines on the REMOTE SENSOR of the sounbar, the operation of the remote may be
unstable.
CAUTION
●Danger of explosion if the battery is incorrectly replaced.
●Replace only with the same or equivalent type.
16.4 Feet (5M)
When there is an obstacle between the transmitter and the sounbar, the unit may not operate.

PLACEMENT AND MOUNTING
1. Placing the device on a table - Ventilation
2. The Installation Distance
2-3inches
2-3inches
9
2-3inches
2-3inches
873mm (34.4inches)
When placing the sounbar and the subwoofer on an entertainment center, bookshelf, or
any type of enclosed space, be sure to allow enough space for ventilation. Otherwise, the
heat generated will produce potential heat hazard.
LINE IN
L
ROPT IN DC 20V
USB
AUX IN

2.1 Mounting to a wooden wall
A. Mark the position of the mounting screws on the wall using a pencil.
approx. 0.3 inches length to hook the sound bar.
C. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
2.2 Mounting to a brick wall
34.4 inches
B. Drill the screws directly into the marks that you have made on the wall and leave
(screws not included)
(screws and plastic fixing plug are not included)
E. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
A. Mark the position of the mounting screws on the wall using a pencil.
B. Drill 2 holes on wall with a powerful electric drill.
C. Insert the fixing plug and hammer into the holes.
D. Secure the screws into the fixing plug and leave approx. 0.3 inches length to hook
the sound bar.
34.4 inches
10

Press the POWER/SOURCE button on the sounbar repeatedly to switch to desired
mode. Or press the AUX, OPTICAL, BT, LINE IN, USB button on remote control to turn
to desired mode directly, the mode indicator on front of the sounbar will turn to:
Blue.............................................................................................Bluetooth Mode
Green.............................................................................................LINE IN Mode
Cyan (blue+green)..............................................................................USB Mode
GENERAL OPERATIONS
3. Press the POWER/SOURCE button on the sounbar or the button on remote control to
power on the sounbar. The LED light effect will light up.
2.Press and hold the "PAIR" button on the rear side of the subwoofer until the nearby
INDICATOR lamp starts to blink rapidly, then release the button.
Violet (red+blue).............................................................................AUX IN Mode
11
Orange (red+green)................................................................OPTICAL IN Mode
3.Press and hold the SB PAIR button on the soundbar until the prompt of "Pairing" is heard.
The blinking INDICATOR lamp on the subwoofer also turns solid blue, which indicates
the subwoofer has been connected to the soundbar successfully.
Connect Subwoofer to Soundbar
Note: Once the connection is established, the subwoofer will connect to the soundbar
automatically when they are powered on on next time. If not, make the connection
between them following the above steps.
Select an Audio Source
Power On the sounbar
1.Press and hold the POWER/SOURCE button on the sounbar or press the button on
remote to power off the sounbar. The mode indicator on the soundbar will turn red
again. (If the subwoofer has already been connected to the soundbar, the INDICATOR
will turn off and the POWER INDICATOR will turn to solid red.)
1. Connect one end of the adapter to the DC IN jack on the soundbar, and the other end
into an AC outlet with AC 110~240V; 50/60Hz. The mode indicator will light up in red.
2. Connect one end of the second adapter to the DC IN jack on the subwoofer, and the
other end into an AC outlet with AC 110~240V; 50/60Hz. The POWER indicator on the
subwoofer will light up in red.
Power Off the sounbar
1.Power on the sounbar as above.
Note:
1. USB mode can be selected only when a USB device is inserted.
2. If you insert a USB device, other playback mode will be switched to USB mode, and audio
tracks stored in it start to play automatically. You can switch to other playback mode by
the operations instructed above.

12
Press and hold the button to turn on/off the LED light on the soundbar and subwoofer.
Press the button repeatedly on remote control to switch the LED light effect.
Mode 1: The RGB LED light with change its color alternatively following the music rhythm.
Mode 2: The LED light will be Blue.
Mode 3: The LED light will be Green.
Mode 4: The LED light will be Red.
Mode 5: The LED light will be Violet.
Mode 6: The LED light will be Cyan.
Mode 7: The LED light will be Light Green.
Mode 8: The LED light will be Light Blue.
Light Effect
Note: The LED lights at the both ends of the soundbar and beside the front panel of the
subwoofer keep changing in red and blue alternatively and will not answer the color-
switching command of from the remote control
Sound Control
~ Press the + or - button on the sounbar or remote control repeatedly to adjust volume.
~ Press the button on remote control to turn off sound. The mode indicator on the
sounbar will blink, press the button again to resume.
~ Press the MUSIC button on remote control to turn to MUSIC sound effect mode.
~ Press the TALK button on remote control to turn to TALK sound effect mode.
~ Press the MOVIE button on remote control to turn to MOVIE sound effect mode.
~ Press the STANDARD button on remote control to turn to normal sound effect mode.

BLUETOOTH OPERATION
10
5. After successful paired, the mode indicator on the sound bar will stop blinking.
6. During playback:
~ Press the or button on remote control to skip tracks.
~ Press the button on remote control to pause; press it again to resume.
1. Power on the sounbar and subwoofer and pair them as previously explained.
3. Power on the external Bluetooth-enabled device, then enter Bluetooth mode and try
searching the unit.
NOTE: The unit will be automatically connected with the last connected Bluetooth device
if their Bluetooth function are activated and they are in working range.
13
4. When Pro PSB3787W appears, select it and make connection.
2. Press the BT button on remote control, or press the POWER/SOURCE button on the
sounbar repeatedly to switch to the Bluetooth mode, the indicator on front of the
soundbar will turn blue and blink.
7. Press and hold the button to disconnect current connection and go into a pairing
mode, you can pair to new devices with this sound bar.

AUX INOPERATION
An external Audio player (such as mobile phone, MP3 player) can be connected to
this sounbar and listen through the unit's speakers.
Rear View
Mobile Phone
Connect to the earphone/ AUX Out/Line Out Jack
of external devices such like laptop, MP3 Player,
cell phone, iPod/iPad, etc.
MP3 Player
1. Plug one end of the AUX IN cable into the AUX IN jack on the sounbar.
2. Plug the other end of the AUX IN cable into the headphone jack or Aux Out
jack on the external audio player.
5. Power on the connected external player and play your favourite music as usual.
14
LINE IN
L
ROPT IN DC 20 V
USB
AUX IN
3. Power on the sounbar and subwoofer and pair as previously explained.
4. Press the POWER/SOURCE button on the sounbar repeatedly, or press the
AUX button on remote control to switch to the AUX IN mode. The indicator on
front of the sounbar will turn Violet (red + blue).

LINE IN OPERATION
An external Audio/Video player (such as TV, DVD player) can be connected to this
sounbar and listen through the unit's speakers.
1. Plug one end of the line in cable into the LINE IN jacks (L&R) on the sounbar.
2. Plug the other end of the line in cable into the Line Out jacks (L&R) on TV or DVD
player, etc.
Line out jacks of
TV/DVD player etc.
L R Video
15
white
red
5. Power on the connected external player and play your favourite music as usual.
Rear View
LINE IN
L
ROPT IN DC 20V
USB
AUX IN
3. Power on the sounbar and subwoofer and pair as previously explained.
4. Press the POWER/SOURCE button on the sounbar repeatedly, or press the LINE IN
button on remote control to switch to LINE IN mode, the indicator on front of the
sounbar will turn Green.

OPTICAL-IN OPERATION
4. Power on the connected external player and play your favourite music as usual. Turn on
the digital audio output and set it to PCM (Pulse Code Modulation) type similar to the
below picture:
Bass
Treble
Balance
Select Move MENU Exit
Sound Mode Standard
Surround Off
AVL Off
Audio Language English
Picture Time Setup Lock Off
AudioAudio
Digital Output PCMDigital Output PCM
1. Use an optical cable to connect the Optical out jack from the external audio player (such
as TV, DVD player etc.) to the OPTICAL IN jack on the rear of the sounbar as below:
(For PCM format only)
OPTICAL OUT
TV or DVD player etc.
16
Rear View
LINE IN
L
ROPT IN DC 20V
USB
AUX IN
2. Power on the sounbar and subwoofer and pair them as previously explained.
Press the POWER/SOURCE button on the sounbar repeatedly, or press the OPTICAL
button on remote control to switch to the OPTICAL IN mode The indicator on front of the
sounbar will turn Orange (red + green).
3.

17
USB PLAYBACK
Rear View
2. Power on the sounbar and subwoofer and pair them as previously explained.
Press the POWER/SOURCE button on the sounbar repeatedly, or press the USB button
on remote control to switch to the USB mode. The indicator on front of the sounbar will
turn Cyan (blue + green).
3.
4. During playback:
~ Press the or button on remote control to skip tracks.
~ Press the button on remote control to pause, press it again to resume.
1. Plug a USB device into the USB port at the rear panel of the sounbar.
LINE IN
L
ROPT IN DC 20V
USB
AUX IN
USB
1. Power on the sounbar and subwoofer and pair as previously explained.
2. Press the POWER/SOURCE button on main sounbar repeatedly, or press BT, AUX or
LINE IN button on remote control to switch to desired mode.
3. When in playback, press and hold the +/REC. button on sounbar or press REC. remote
control, and a prompt tone will be heard to indicate the recording process starts.
4. Press and hold the +/REC. button on main sounbar or press REC. button on remote
control again to stop recording, and a prompt tone will be heard to indicate the recording
process ends.
•
NOTE:
The recorded tracks will be stored in USB device automatically and the last recorded
track will be played first when switching to USB play mode. Press the button
repeatedly to playback other recorded tracks.
•The recording function only works in BT, AUX and Line in mode.
RECORDING OPERATION
This sounbar has Recording function, please insert a USB device first when using
this function.

Sound
distortion/rattle
Reduce the volume level of the paired/
connected device.
Bluetooth
reception failure
Place the external BT device close to
the sounbar.
Not paired Pair the unit with the BT device as the
procedures stated in this manual.
Input source incorrect
The sounbar is in power off
mode
The paired/connected
device is not in playback
mode
The external device is
too far from the sounbar
Remote Control
not functioning Out of range
The battery in the remote
control is drained
Point the remote control to the remote
sensor on the sounbar within 16 feet,
+/-30 degrees.
Replace with new battery.
No sound or
sound weak
Volume level in minimum
position
SYMPTOM
TROUBLESHOOTING
POSSIBLE SOLUTION
No power The adapter is not connected Connect the adapter to the sounbar and
wall outlet.
Press and hold the POWER/SOURCE
button on the sounbar or press the button
on remote control to power on the sounbar.
Raise the volume level by pressing the
+ button on the soundbar Or press
VOL+ button on remote control.
Press the POWER/SOURCE button
repeatedly on sounbar or press the
desired mode button on remote control
to switch mode.
Reduce the volume level by pressing
the - button on the top of the sounbar
Or press VOL- button on remote control.
18
Play music/movie in the paired/
connected device as usual and make
sure the volume level of it is in high
level.
Volume level too high
POSSIBLE CAUSE

SPECIFICATIONS
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE
WITHOUT NOTICE
19
Power input ...........................................................................AC 100~240V, 50/60Hz
Power output ......................................................................DC 20V 1.8A
Audio output of the sounbar............................................................................2 x 25W
Bluetooth effective working range in open area.......................................up to 32 feet
Remote effective working range...............................................................up to 16 feet
PACKAGES
1x Soundbar
1x Subwoofer
1x User manual
1x Remote control
1x AUX IN cable
1x LINE IN cable
1x Power adapter for the sounbar (20V, 1.8A)
1x Power adapter for the subwoofer (20V, 1.8A)
Audio output of the subwoofer..............................................................................50W
For service assistance and product information, please call: 1-800-968-9853.
Curtis International Ltd.
7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3
www.curtisint.com
is a trademark on a registered trademark of Bluetooth SIG Inc.
All other trademarks and trade names are those of their
respective owners.
