PSG Dover SMVP15B Manual

BLACKMER SEAL-LESS PUMPS 960901
INSTRUCTIONS NO. 108-A00_apr05
INSTALLATION OPERATION AND MAINTENANCE INSTRUCTIONS
MODELS: SMVP15B, SMVP30B
Section
Effective
Replaces
108
April 2005
July 2002
TABLE OF CONTENTS Page
PUMP DATA
Technical Data.......................................................2
Initial Pump Start Up Information...........................2
INSTALLATION
Pre-Installation Cleaning........................................3
Location and Piping...............................................3
Check Valves.........................................................3
Pump Mounting......................................................3
Motor Installation ...................................................4
OPERATION
Pre-Start Up Check List.........................................5
Start Up Procedures..............................................5
Pump Rotation.......................................................5
Reverse Rotation...................................................5
Flushing the Pump.................................................5
Pump Relief Valve.................................................6
Relief Valve Setting and Adjustment .....................6
MAINTENANCE
Strainers ................................................................7
Lubrication.............................................................7
Vane Replacement................................................8
Pump Disassembly................................................8
Pump Assembly.....................................................9
TROUBLE SHOOTING......................................11
NOTE: Numbers in parentheses following individual parts
indicate reference numbers on Blackmer Parts Lists 108-
A01 and 108-A02
NOTE: Blackmer pump manuals & parts lists may be
obtained from Blackmer’s website (www. blackmer. com)
or by contacting Blackmer Customer Service
SAFETY DATA
This is a SAFETY ALERT SYMBOL.
When you see this symbol on the product, or in the manual,
look for one of the following signal words and be alert to the
potential for personal injury, death or major property damage
Warns of hazards that WILL cause serious personal injury,
death or major property damage.
Warns of hazards that CAN cause serious personal injury,
death or major property damage.
Warns of hazards that CAN cause personal injury
or property damage.
NOTICE:
Indicates special instructions which are very
important and must be followed.
NOTICE:
Blackmer Seal-Less pumps MUST only be installed In
systems, which have been designed by qualified
engineering personnel. The system MUST conform to
all applicable local and national regulations and
safety standards.
This manual is intended to assist in the installation
and operation of the Blackmer Seal-Less pumps, and
MUST be kept with the pump.
Blackmer Seal-Less pump service shall be performed
by qualified technicians ONLY. Service shall conform
to all applicable local and national regulations and
safety standards.
Thoroughly review this manual, all instructions and
hazard warnings, BEFORE performing any work on
the Blackmer Seal-Less pumps.
Maintain ALL system and Blackmer Seal-Less pump
operation and hazard warning decals.
Discontinued models: MVP15B, 20B, 30B

108-A00: Page 2/12

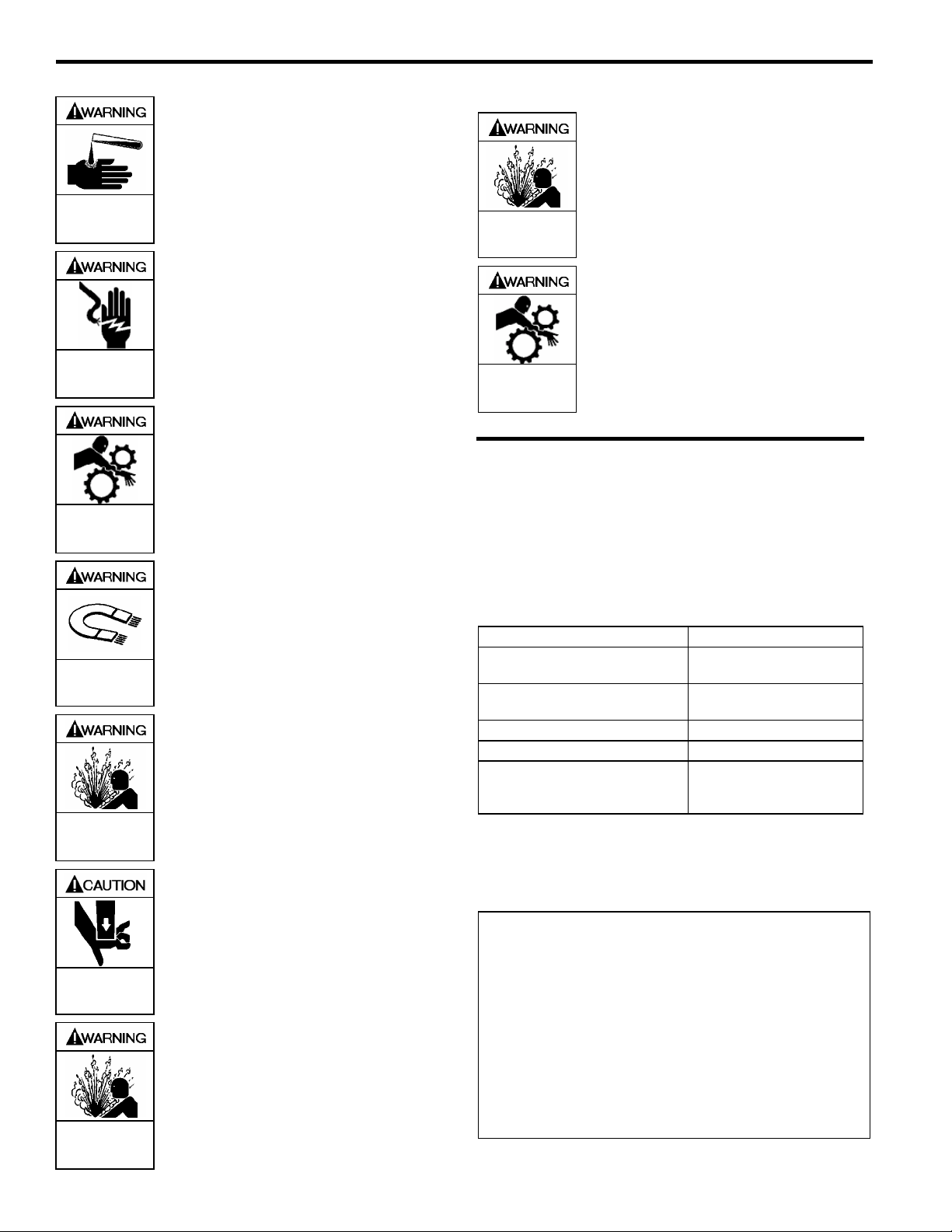

SAFETY DATA
Hazardous or toxic
fluids can cause
serious injury.
IF PUMPING HAZARDOUS FLUIDS,
SYSTEM MUST BE FLUSHED, PRIOR TO
PERFORMING SERVICE OR
MAINTENANCE
Hazardous voltage.
Can shock, burn or
cause death.
FAILURE TO DISCONNECT AND
LOCKOUT ELECTRICAL POWER
BEFORE ATTEMPTING MAINTENANCE
CAN CAUSE SHOCK, BURNS OR
DEATH
Hazardous
machinery can
cause serious
personal injury
FAILURE TO DISCONNECT AND
LOCKOUT ELECTRICAL POWER OR
ENGINE DRIVE BEFORE ATTEMPTING
MAINTENANCE CAN CAUSE SERIOUS
PERSONAL INJURY OR DEATH
Strong
Magnetic
field
STRONG MAGNETIC FIELD CAN CAUSE
PERSONAL INJURY OR DEATH TO
INDIVIDUALS WITH MEDICAL
IMPLANTS OR OTHER MAGNETIC
FIELD SENSITIVE MEDICAL
CONDITIONS
Explosive
atmosphere can
cause serious
injury
RARE EARTH MAGNETS MAY CREATE
SPARKS THROUGH CONTACT AND
HANDLING. NEVER HANDLE RARE
EARTH MAGNETS IN EXPLOSIVE
ATMOSPHERES WHERE SPARKING
MAY IGNITE THAT ATMOSPHERE
Strong magnetic
field can cause
personal injury
FAILURE TO USE CARE WHEN
HANDLING MAGNETS CAN CAUSE
PERSONAL INJURY
Hazardous pressure
can cause serious
personal injury or
property damage
FAILURE TO RELIEVE SYSTEM
PRESSURE PRIOR TO PERFORMING
PUMP SERVICE OR MAINTENANCE
CAN CAUSE PERSONAL INJURY OR
PROPERTY DAMAGE.
Hazardous pressure
can cause personal
injury or property
damage
DISCONNECTING FLUID OR PRESSURE
CONTAINMENT COMPONENTS DURING
PUMP OPERATION CAN CAUSE
SERIOUS PERSONAL INJURY, DEATH
OR MAJOR PROPERTY DAMAGE
Do not operate
without guards in
place
OPERATION WITHOUT COUPLING
GUARD CAN CAUSE SERIOUS
PERSONAL INJURY, DEATH OR MAJOR
PROPERTY DAMAGE
PUMP DATA
PUMP IDENTIFICATION
A pump Identification tag, containing the pump serial number,
I.D. number, and model designation, is attached to each
pump. It is recommended that the data from this tag be
recorded and filed for future reference. If replacement parts
are needed, or if information pertaining to the pump is
required, this data must be furnished to a Blackmer
representative.
TECHNICAL DATA
Maximum Pump Speed 1750 RPM
Maximum Operating
Temperature 200°F (93°C)
Minimum Operating
Temperature -40°F (-40°C)
Maximum Viscosity 5,000 SSU (1.050 CP)*
Maximum Differential Pressure 125 psi (8.6 bar)
Maximum Working Pressure
(Inlet Pressure + Differential
Pressure) 175 psi (12.1 bar)
Technical Data is for standard materials of construction.
Consult Blackmer Material Specs for optional materials of
construction.
* Conversion is based on a specific gravity of 1.0.
INITIAL PUMP START UP INFORMATION
Model No.: ____________________________________
Serial No.: ____________________________________
ID No.: _______________________________________
Date of Installation: _____________________________
Inlet Gauge Reading: ____________________________
Discharge Gauge Reading: _______________________
Flow Rate: _____________________________________

108-A00: Page 3/12

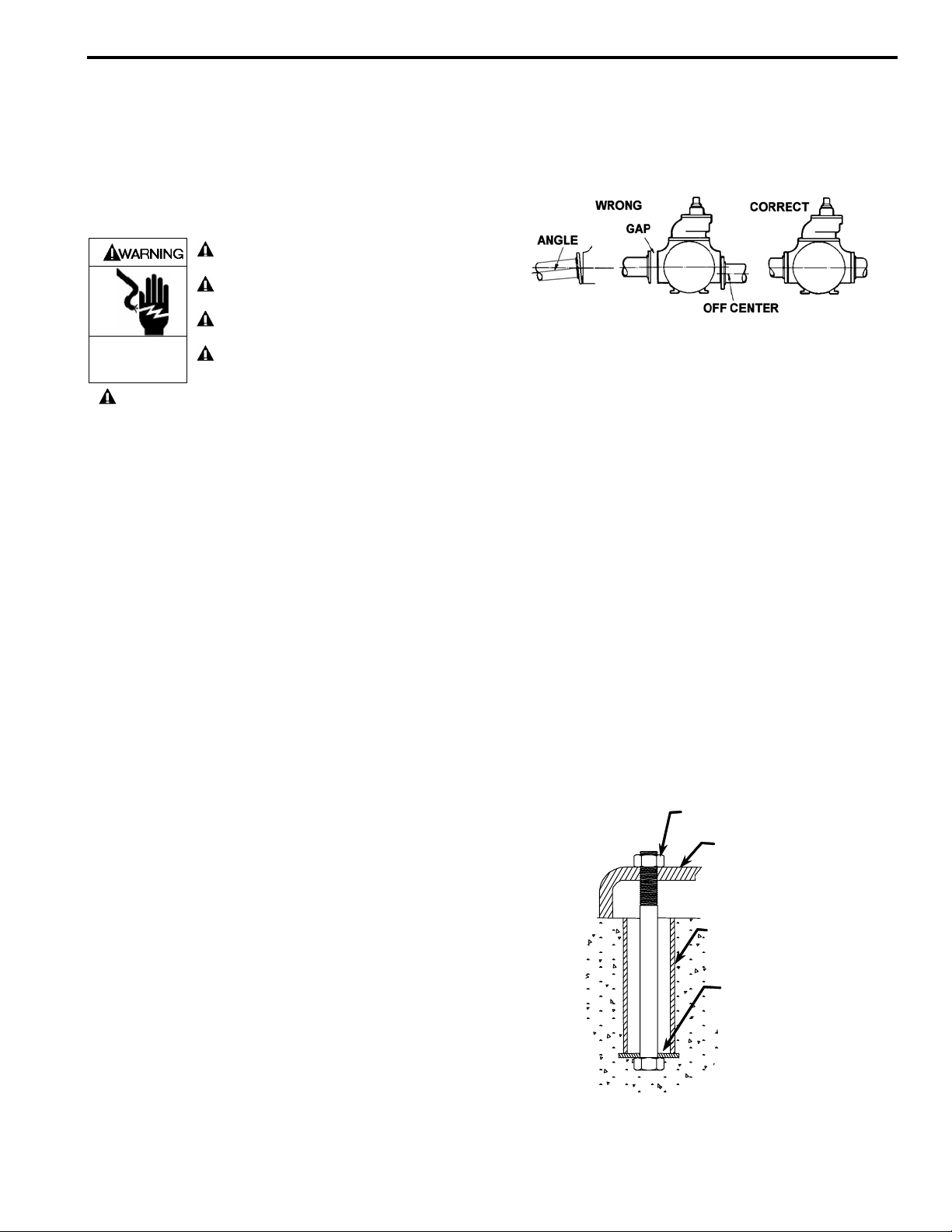

INSTALLATION
NOTICE:
BLACKMER SEAL-LESS PUMPS MUST ONLY BE
INSTALLED IN SYSTEMS DESIGNED BY QUALIFIED
ENGINEERING PERSONNEL. SYSTEM DESIGN MUST
CONFORM WITH ALL APPLICABLE REGULATIONS AND
CODES AND PROVIDE WARNING OF ALL SYSTEM
HAZARDS.
Hazardous voltage.
Can shock, burn or
cause death.
Install, ground and wire to local and
National Electrical Code requirements.
Install an all-leg disconnect switch near
the unit motor.
Disconnect and lockout electrical power
before installation or service
Electrical supply MUST match motor
nameplate specifications.
Motors equipped with thermal protection automatically
disconnect motor electrical circuit when overload exists.
Motor can start unexpectedly and without warning.
PRE-INSTALLATION CLEANING
NOTICE:
NEW PUMPS CONTAIN RESIDUAL TEST FLUID AND RUST
INHIBITOR. IF NECESSARY, FLUSH PUMP PRIOR TO
USE.
Foreign matter entering the pump WILL cause extensive
damage. The suction tank and piping MUST be cleaned and
flushed prior to pump installation and operation.
LOCATION AND PIPING
An improperly designed piping system or improper unit
installation WILL significantly reduce pump performance and
life. Blackmer recommends the following piping system layout
and unit installation.
1. To minimize intake losses, locate the pump as close as
possible to the source of supply.
2. Intake piping and fittings MUST be at least as large in
diameter as the pump intake connection.
3. Minimize the number of intake line fittings (valves, elbows,
etc.) and piping turns or bends.
4. It is recommended an intake strainer be installed at least
24" (0.6m) from the pump intake. For viscosities less than
1000 SSU the strainer should have a net open area of at
least four times the area of the intake pipe. For viscosities
greater than 1000 SSU consult the strainer manufacturer
instructions. Strainers must be cleaned regularly to avoid
pump starvation.
5. Intake and discharge piping MUST be free of all leaks.
6. Expansion joints, placed at least 36" (0.9m) from the
pump, will compensate for expansion and contraction of
the pipes. Contact the flexible connector/hose
manufacturer for required maintenance/care and design
assistance in their use.
7. Install vacuum and pressure gauges in the 1/4" NPT ports
provided in the pump cylinder to check pump at start up.
8. ALL piping and fittings MUST be properly supported to
prevent any piping loads from being placed on the pump.
9. Check alignment of pipes to pump to avoid strains which
might later cause misalignment. See Figure 1. Unbolt
flanges or break union joints. Pipes should not spring
away or drop down. After pump has been in operation for
a week or two, completely recheck alignment.
Figure 1
10. When pumping liquids at elevated temperature, provisions
should be made to compensate for expansion and
contraction of the pipes, especially when long pipe lines
are necessary. Steel pipe expands approximately 3/4”
(1.9 cm) per 100 feet (30.49 m) per 100°F (37.8°C) rise in
temperature.
CHECK VALVES
The use of check valves or foot valves in the supply tank is not
recommended with self-priming, positive displacement pumps.
If the possibility of liquid backflow exists when the pump is off,
a check valve in the pump discharge piping is recommended
because the pump can motor in the reverse rotation and create
undue stress on all attached components. Never start a pump
when it is rotating in the reverse rotation as the added starting
torque can damage the pump and related equipment.
PUMP MOUNTING
Permanently mount the unit by securing the base plate with
adequately sized anchor bolts to a level concrete floor following
recommended industry standards. A solid foundation will
reduce system noise and vibration, and will improve pump
performance. Refer to ANSI/HI standards or a suitable pump
handbook for information on typical pump mounting and
foundations. BOLT
BASE
STANDARD
PIPE
WASHER
Figure 2

108-A00: Page 4/12
INSTALLATION
MOTOR INSTALLATION
Strong
Magnetic
field
STRONG MAGNETIC FIELD CAN CAUSE
PERSONAL INJURY OR DEATH TO
INDIVIDUALS WITH MEDICAL
IMPLANTS OR OTHER MAGNETIC
FIELD SENSITIVE MEDICAL
CONDITIONS
Strong magnetic
field can cause
personal injury
FAILURE TO USE CARE WHEN
HANDLING MAGNETS CAN CAUSE
PERSONAL INJURY
NOTICE:
CLEAR WORK AREA OF ALL TOOLS AND MATERIALS
AFFECTED BY MAGNETS. NON-MAGNETIC WORK
SURFACE RECOMMENDED.
MAGNET SET
1. Put drive key in keyway on motor shaft.
2. Loosely assemble bushing with bolts & outer magnet.
Slide magnet assembly onto motor shaft.
3. Position bushing and magnet to Reference Dim “B”,
(see Table 1) and tighten setscrew over drive key.
4. Tighten the 3 bolts in a uniform sequence, torque to 9 ft
lbs. (12.2Nm)
5. When bolts are tightened, take a measurement for Dim
“A”. (see table 1)
Table 1 Dim “A”
Magnet Set Dim “B” Bushing Set
Motor Frame INCH MM INCH MM
143TC / 145TC 0.464 11.8 0.454 11.5
182TC / 184TC 1.274 32.4 1.264 32.1
213TC / 215TC 1.374 34.9 1.364 34.6
6. If Measurement “A” does not match the value in the Table,
the bushing MUST be repositioned with a new Dim “B”.
Loosen the bolts and setscrew.
If Measurement “A” is High:
Move the bushing towards the motor “C-Face”
New Dim “B” = table Dim “B” less the difference
between Measurement “A” and table Dim “A”.
If Measurement “A” is Low:
Move the bushing away from the motor “C-Face”
New Dim “B” = table Dim “B” plus the difference
between Measurement “A” and table Dim “A”
7. Retighten setscrew over drive key. Repeat Steps 4 – 6
8. When Dim “A” is set correctly. Ensure that Shaft &
Outer Magnet assembly rotate freely without binding
9. Slide the motor adapter ring (86) over the outer magnet to
the “C-Face” of the motor. Ensure that the flange of the
motor adapter ring is fully and squarely seated. Install the
adapter ring capscrews (56) torquing to 40 lbs ft (54 Nm)
NOTICE:
BE PREPARED FOR STRONG MAGNET ATTRACTION
BETWEEN THE INNER AND OUTER MAGNETS, FORCIBLY
PULLING THE MOTOR COUPLING ADAPTER ASSEMBLY
INWARD.
10. Ensure that the magnet housing (57) is bolted to the base.
11. Using an appropriately sized hoist, CAREFULLY insert the
outer magnet and motor into the mounted magnet housing
(57).
12. With the magnet housing fully and squarely seated, install
the four housing capscrews (54B); torque to 40 lbs ft (54
Nm).
Figure 3

108-A00: Page 5/12
OPERATION
Do not operate
without guards in
place
OPERATION WITHOUT COUPLING
GUARD CAN CAUSE SERIOUS
PERSONAL INJURY, DEATH OR MAJOR
PROPERTY DAMAGE
Hazardous pressure
can cause personal
injury or property
damage
DISCONNECTING FLUID OR PRESSURE
CONTAINMENT COMPONENTS DURING
PUMP OPERATION CAN CAUSE
SERIOUS PERSONAL INJURY, DEATH
OR MAJOR PROPERTY DAMAGE
Hazardous pressure
can cause personal
injury or property
damage
OPERATING PUMP AGAINST A CLOSED
VALVE CAN CAUSE SYSTEM
COMPONENT FAILURE, PERSONAL
INJURY AND PROPERTY DAMAGE
Hazardous pressure
can cause personal
injury or property
damage
FAILURE TO RELIEVE SYSTEM
PRESSURE PRIOR TO PERFORMING
PUMP SERVICE OR MAINTENANCE
CAN CAUSE PERSONAL INJURY OR
PROPERTY DAMAGE.
PRE-START UP CHECK LIST
1. Check the alignment of the pipes to the pump. Pipes
should be supported so that they do not spring away or
drop down when pump flanges or union joints are
disconnected.
2. Inspect complete piping system to ensure all valves and
fittings are in their start up or operation positions.
3. Ensure all electrical connections are correct and tight.
4. Jog the pump motor to ensure free and CLOCKWISE
pump rotation, as viewed from the fan end of the motor.
START UP PROCEDURES
NOTICE:
CONSULT THE "TROUBLESHOOTING" SECTION OF THIS
MANUAL IF DIFFICULTIES ARE EXPERIENCED DURING
START UP.
1. Start the motor. Priming should occur within one minute.
2. Check the vacuum and pressure gauges installed on the
pump to ensure the pump is operating within the
acceptable parameters. Record the gauge readings in the
"Initial Pump Start Up Information" section.
3. If possible, check the flow rate to ensure the pump is
operating within expected parameters.
4. Inspect piping, fittings and associated system equipment
for leaks, noise, vibration and overheating.
5. If equipped, check the pressure relief setting of the pump
relief valve by gradually closing a valve in the discharge
line momentarily and noting the reading on the pressure
gauge. This pressure reading should be 10-20 psi (.96 –
1.4 bar) higher than the maximum system operating
pressure. DO NOT run the pump for more than 15
seconds with the discharge valve completely closed. If
adjustments need to be made, refer to "Relief Valve
Setting and Adjustment."
PUMP ROTATION
The pump models described in this manual are designed as
RIGHT HAND pumps ONLY, with CLOCKWISE rotation. When
viewing the pump from the drive end (motor end), the pump
intake port must always be on the right, and the discharge port
on the left.
REVERSE ROTATION NOTICE:
MAGNETIC COUPLED PUMPS SHOULD BE OPERATED IN
REVERSE ROTATION FOR NO MORE THAN 10 MINUTES,
AND ONLY WHEN A SEPARATE PRESSURE RELIEF
VALVE IS INSTALLED TO PROTECT THE PUMP FROM
EXCESSIVE PRESSURE.
It may be desirable to operate the pump in reverse rotation for
system maintenance. The pump will operate satisfactorily for a
LIMITED time; at a reduced performance level.
FLUSHING THE PUMP NOTICE:
IF FLUSHING FLUID IS TO BE LEFT IN THE PUMP FOR AN
EXTENDED TIME, IT MUST BE A LUBRICATING, NON-
CORROSIVE FLUID. IF A CORROSIVE OR NON-
LUBRICATING FLUID IS USED, IT MUST BE FLUSHED
FROM THE PUMP IMMEDIATELY.
1. To flush the pump, run the pump with the discharge valve
open and the intake valve closed. Bleed air into the pump
through the intake gauge plug hole or through a larger
auxiliary fitting in the intake piping. Pump air for 30 second
intervals to clean out most of the pumpage.
2. Run a system compatible flushing fluid through the pump
for one minute to clear out the remainder of the original
pumpage.
3. To remove the flushing fluid, follow step 1 above.
On SMVP models any remaining fluid in the pump can be
drained from the cylinder through the drain plugs (73A).
NOTICE:
AFTER FLUSHING THE PUMP SOME RESIDUAL FLUID
WILL REMAIN IN THE PUMP AND PIPING.
NOTICE:
PROPERLY DISPOSE OF ALL WASTE FLUIDS IN
ACCORDANCE WITH THE APPROPRIATE STANDARDS
AND REGULATIONS.

108-A00: Page 6/12
OPERATION
PUMP RELIEF VALVE
NOTICE:
A PUMP RELIEF VALVE AND / OR AN EXTERNAL BYPASS
VALVE MUST BE INSTALLED IN THE SYSTEM TO
PROTECT THE PUMP FROM EXCESSIVE PRESSURE.
The SMVP15B and SMVP30B pump models are offered with
an optional pump relief valve assembly that bolts onto the
pump cylinder. Blackmer STRONGLY RECOMMENDS the
installation of the optional relief valve to protect the pump from
excessive pressure, and a separate system pressure control
valve to protect the system from excessive pressure.
The MVP15B, MVP20B, and MVP30B pump models come
equipped with an internal relief valve.
NOTICE:
THE PUMP RELIEF VALVE IS DESIGNED TO PROTECT
THE PUMP FROM EXCESSIVE PRESSURE AND MUST
NOT BE USED AS A SYSTEM PRESSURE CONTROL
VALVE.
Pumping volatile liquids under suction lift may cause cavitation.
Partial closing of the discharge valve WILL result in internal
relief valve chatter and is NOT recommended. For these
applications, install an external system pressure control valve,
and any necessary bypass piping, back to the storage tank.
A system pressure control valve is also recommended when
operating for extended periods (more than 1 minute) against a
closed discharge valve.
RELIEF VALVE SETTING AND ADJUSTMENT
The factory relief valve pressure setting is marked on a metal
tag attached to the valve body. It is recommended the relief
valve be set at least 10-20 psi (.69-1.4 bar) higher than the
operating pressure or the system pressure control valve
setting.
DO NOT remove the R /V Cap OR adjust the relief valve
pressure setting while the pump is in operation.
Hazardous pressure
can cause personal
injury or property
damage
INCORRECT SETTINGS OF THE
PRESSURE RELIEF VALVE CAN CAUSE
PUMP COMPONENT FAILURE,
PERSONAL INJURY AND PROPERTY
DAMAGE
Hazardous or toxic
fluids can cause
serious injury.
RELIEF VALVE CAP IS EXPOSED TO
PUMPAGE AND WILL CONTAIN SOME
FLUID
1. To INCREASE the pressure setting, remove the relief
valve cap (1) and O-ring / gasket (88), and turn the
adjusting screw (2) inward, or CLOCKWISE. Install a new
R/V O-ring / gasket (88), and re-attach the R/V cap.
2. To DECREASE the pressure setting, remove the relief
valve cap (1) and O-ring / gasket (88), and turn the
adjusting screw (2) outward, or COUNTERCLOCKWISE.
Install a new R/V O-ring / gasket (88), and re-attach the
R/V cap.
Refer to corresponding Blackmer pump parts lists for relief
valve spring pressure ranges. Unless specified otherwise,
pumps are supplied from the factory with the relief valve
adjusted to the mid-point of the spring range.

108-A00: Page 7/12
MAINTENANCE
Hazardous voltage.
Can shock, burn or
cause death.
FAILURE TO DISCONNECT AND
LOCKOUT ELECTRICAL POWER
BEFORE ATTEMPTING MAINTENANCE
CAN CAUSE SHOCK, BURNS OR
DEATH
Hazardous or toxic
fluids can cause
serious injury.
IF PUMPING HAZARDOUS FLUIDS,
SYSTEM MUST BE FLUSHED, PRIOR TO
PERFORMING SERVICE OR
MAINTENANCE
Strong
Magnetic
field
STRONG MAGNETIC FIELD CAN CAUSE
PERSONAL INJURY OR DEATH TO
INDIVIDUALS WITH MEDICAL
IMPLANTS OR OTHER MAGNETIC
FIELD SENSITIVE MEDICAL
CONDITIONS
Explosive
atmosphere can
cause serious
injury
RARE EARTH MAGNETS MAY CREATE
SPARKS THROUGH CONTACT AND
HANDLING. NEVER HANDLE RARE
EARTH MAGNETS IN EXPLOSIVE
ATMOSPHERES WHERE SPARKING
MAY IGNITE THAT ATMOSPHERE
Hazardous
machinery can
cause serious
personal injury
FAILURE TO DISCONNECT AND
LOCKOUT ELECTRICAL POWER OR
ENGINE DRIVE BEFORE ATTEMPTING
MAINTENANCE CAN CAUSE SERIOUS
PERSONAL INJURY OR DEATH
Hazardous pressure
can cause serious
personal injury or
property damage
FAILURE TO RELIEVE SYSTEM
PRESSURE PRIOR TO PERFORMING
PUMP SERVICE OR MAINTENANCE
CAN CAUSE PERSONAL INJURY OR
PROPERTY DAMAGE.
Do not operate
without guard
in place
OPERATION WITHOUT GUARDS IN
PLACE CAN CAUSE SERIOUS
PERSONAL INJURY, MAJOR
PROPERTY DAMAGE, OR DEATH.
Hazardous pressure
can cause serious
personal injury or
property damage
DISCONNECTING FLUID OR PRESSURE
CONTAINMENT COMPONENTS DURING
PUMP OPERATION CAN CAUSE
SERIOUS PERSONAL INJURY, DEATH
OR MAJOR PROPERTY DAMAGE
Strong magnetic
field can cause
personal injury
FAILURE TO USE CARE WHEN
HANDLING MAGNETS CAN CAUSE
PERSONAL INJURY
NOTICE:
MAINTENANCE SHALL BE PERFORMED BY QUALIFIED
TECHNICIANS ONLY, FOLLOWING THE APPROPRIATE
PROCEDURES AND WARNINGS AS PRESENTED IN THIS
MANUAL.
NOTICE:
PROPERLY DISPOSE OF ALL WASTE FLUIDS
ACCORDING TO STATE AND LOCAL REGULATIONS.
NOTICE:
CLEAR THE WORK AREA OF ALL TOOLS AND
MATERIALS AFFECTED BY MAGNETS. NON-MAGNETIC
WORK SURFACE RECOMMENDED.
STRAINERS
Adequately sized system strainers are recommended.
Strainers MUST be kept clean to ensure adequate fluid flow to
the pump. Failure to do so can cause pump cavitation and
system damage.
LUBRICATION NOTICE:
TO AVOID POSSIBLE ENTANGLEMENT IN MOVING PARTS
DO NOT LUBRICATE THE OPTIONAL MOTOR COUPLING
ADAPTOR OR ANY OTHER PARTS WHILE THE PUMP IS
RUNNING.
Pump sleeve bearings are lubricated by the pumpage. No other
lubrication is required. For motor lubrication, refer to the
manufacturer's instructions.

108-A00: Page 8/12
MAINTENANCE
VANE REPLACEMENT
1. Drain the pump and system, as required.
Drain plugs (73A) are located at the base of the cylinder of
SMVP Models.
2. For replacement of the vanes ONLY, remove the outboard
head, following steps 10 and 11 in the "Pump
Disassembly" section of this manual.
3. Turn the shaft by hand until a vane (14) comes to the top
(12 o'clock) position of the rotor. Remove the vane.
4. Install a new vane, ensuring that the rounded edge is UP
(facing outward) and that the relief grooves are facing
TOWARDS the direction of rotation. See Figure 4.
5. Repeat steps 2 and 3 until all vanes have been replaced.
6. To reassemble, follow steps 2 through 7 in the "Pump
Assembly" section of this manual.
ROUNDED EDGE OUT
RELIEF GROOVES
FACE IN DIRECTION
OF ROTATION
Figure 4 - Vane Installation
PUMP DISASSEMBLY NOTICE:
THE MAGNET HOUSING (57) SHOULD REMAIN MOUNTED
TO ITS BASE DURING PUMP DISASSEMBLY. IF
REMOVED, THE MAGNET HOUSING (57) MUST BE
SECURED BEFORE PUMP DISASSEMBLY.
1. Drain the pump and system, as required.
Drain plugs (73A) are located at the base of the cylinder of
SMVP Models.
2. Disconnect the piping from the pump intake and discharge
connections.
3. Remove the four magnet housing/head capscrews (54A)
NOTICE:
BE PREPARED FOR STRONG MAGNETIC ATTRACTION
BETWEEN THE INNER AND OUTER MAGNETS, FORCIBLY
PULLING THE PUMP ASSEMBLY INWARD.
4. While facing the outboard end of the pump, grasp the
pump cylinder (12) with two hands and firmly pull the pump
assembly from the magnet housing.
5. Remove the containment can (50) from the inboard head,
using a slight pry, if necessary. DO NOT damage the
containment can or pump head. Remove and discard the
containment can O-ring (51).
Strong magnetic
field can cause
personal injury
FAILURE TO USE CARE WHEN
HANDLING MAGNETS CAN CAUSE
PERSONAL INJURY
6. With properly sized snap ring pliers, remove the snap ring
(83) from the shaft end. Pull the inner magnet (52) from
the shaft. Remove the shaft key (35).
7. Remove the four (SMVP) or eight (MVP) socket head
capscrews (21) from the inboard head and bearing
assembly (20). Carefully slide the inboard head assembly
off the shaft. A pry may be necessary to separate the head
and cylinder. DO NOT damage head, cylinder / casing or
shaft.
8. Remove the disc (71) and head seal ring / O-ring (72) from
the cylinder / casing. Discard the head seal ring / O-ring.
9. Carefully pull the rotor and shaft assembly (13) from the
cylinder while preventing the vanes (14) and push rods
(77) from falling out of the rotor. Set the rotor and shaft
assembly aside for future vane replacement and
reassembly.
10. Remove the four bearing cover capscrews (28) and the
bearing cover (27). Remove and discard the bearing cover
seal ring (26).
11. Remove the four (SMVP) or eight (MVP) outboard head
capscrews (21 A) and the outboard head and bearing
assembly (23). Remove the disc (71) and head seal ring /
O-ring (72). iscard head seal ring / O-ring. se care not to
let the disc fall and become damaged.
12. MVP models only. Remove the liner (41) by uniformly
tapping around the outside diameter of the liner with a
hard wood drift and a hammer until it is driven from the
casing.
13. RELIEF VALVE DISASSEMBLY (if equipped)
a. Remove the valve cap (1) turn the adjusting screw (2)
to relieve the spring pressure.
b. Remove the relief cover capscrews (5) and relief valve
cover (4)
c. Remove the spring guide (7), spring (8), and valve (9)
from the relief valve bore.

108-A00: Page 9/12
MAINTENANCE
MAGNET HOUSING DISASSEMBLY
1. Remove the four housing/adapter capscrews (54B), and
pull the motor, motor adapter (86) and outer magnet (53)
from the magnet housing (57).
2. Remove the motor adapter capscrews (56), and the motor
adapter (86) from the motor.
3. Place a flat wrench or “plate” between the three bushing
capscrews and the “C” face of the motor. Loosen the
three Capscrews located in the bushing (87) allowing them
to bottom out against the flat wrench or “plate” and assist
in removing the outer magnet. If room allows for the
screws to be removed completely, the bushing is predrilled
with jacking holes for the purpose of removing the outer
magnet from the bushing.
4. When outer magnet has been removed from the bushing,
loosen setscrew and remove bushing and keyway from the
motor shaft.
5. Pump and magnet housing disassembly is complete.
PUMP ASSEMBLY NOTICE:
FOLLOW ALL HAZARD WARNINGS AND INSTRUCTIONS
PROVIDED IN THE "MAINTENANCE" SECTION OF THIS
MANUAL.
Hazardous or toxic
fluids can cause
serious injury.
CONTAINMENT CAN FAILURE WILL
PERMIT FLUID LEAKAGE AND CAN
CAUSE SERIOUS INJURY.
Before reassembling the pump, all parts should be thoroughly
cleaned and inspected for wear, damage, and replaced as
necessary. Remove any burrs from the rotor and mating
cylinder (SMVP) or liner (MVP).
NOTICE:
THE CONTAINMENT CAN (50) MUST BE REPLACED IF
ANY CORROSION, CRACKING, WEAR OR OTHER
DAMAGE IS PRESENT.
1. Begin assembly on the outboard side of the pump, by
laying the pump cylinder (12) on a flat surface with the
intake port to the LEFT.
Figure 5 – SMVP Models
2. For SMVP Models install the disc (71) on the outboard end
of the cylinder with the disc holes positioned as shown in
Figure 5. Use the dowel locator pin hole to locate the disc.
Figure 6 – MVP Models
For MVP Models start the liner (41) into the pump casing
(12) with the liner keyway aligned with the setscrew (74) in
the casing, and the cast word "INTAKE" on the liner
towards the intake port of the pump. Use a rubber mallet
to uniformly tap around the edge of the liner to fully install
in the casing. For MVP Models install the disc (71) on the
outboard end of the casing with the disc holes positioned
as shown in Figure 6. The dowel locator pin hole in the
disc should be in the 12 o'clock position.
3. Install a new head seal ring / O-ring (72) in the groove
provided between the disc and the cylinder.
4. Inspect both sleeve bearings (24) for damage or wear. If
damaged, bearings MUST be replaced. If the inside
diameter of the bearing measures 1.074" (27.28mm) or
greater at any point around the entire circumference,
bearings MUST be replaced. To replace bearings:
a. Using an appropriately sized arbor press, remove the
old bearing from the head.
b. To aid installation and prevent damage, heat the head
in an oven to 200°F (93°C).
c. Coat the new bearing with a quality grade of bearing
grease, and place it on the inside face of the head
with the notched end UP. Align the notch in the
bearing with the groove in the head.
d. Using an arbor press, CAREFULLY press the bearing
into the head until it is flush with the inside face of the
head. Ensure that the bearing does not become
misaligned during the pressing activity.

108-A00: Page 10/12
MAINTENANCE
5. Install the outboard head and bearing assembly (23) on
the pump cylinder with the V-notch down, towards the
bottom of the cylinder. Use the head dowel pins for proper
alignment.
6. For SMVP Models lubricate the four outboard head
capscrews (21 A) with a quality grade of anti-seize
compound and install, torquing to 15 lbs-ft(20.3Nm).
For MVP Models install and uniformly tighten the outboard
head capscrews (21 A), torquing to 15 Ibs ft (20.3 Nm).
7. Install a new bearing cover seal ring (26) in the groove in
the outboard head. Place the bearing cover (27) on the
head.
For SMVP Models lubricate the bearing cover capscrews
(28) with a quality grade of anti-seize compound, and
install, torquing to 11 lbs-ft(15Nm)
For MVP Models install the bearing cover capscrews (28),
torquing to 15 Ibs ft (20.3 Nm).
8. Turn the pump cylinder / casing over so that it rests on the
just installed outboard head and bearing cover.
9. Remove the four vanes (14) and two push rods (77) from
the rotor assembly. Inspect for wear and damage, and
replace as follows:
a. The push rods MUST be installed before installing
the rotor and shaft (13) into the pump cylinder /
casing. To do so, hold the rotor and shaft vertical,
with the non-driven (shorter end) down. Slide the
push rods into the push rod holes of the rotor, then
insert the rotor and shaft into the open end of the
pump cylinder / casing.
b. Insert new vanes into the rotor slots with the rounded
edges outward, and the vane relief grooves facing
TOWARDS the direction of rotation. Refer back to
Figure 4 If necessary, move the push rods with a
small screwdriver to install the vanes.
10. Install the inboard disc (71), head seal ring / O-ring (72),
and sleeve (24) bearing as instructed in steps 2 – 4.
11. Install the inboard head and bearing assembly (20) on the
pump cylinder / casing with the V-notch down, towards the
bottom of the cylinder / casing. Use the head dowel pins
for proper alignment.
12. For SMVP Models lubricate the four inboard head
capscrews (21) with a quality grade of anti-seize
compound, and install, torquing to 15 lbs ft (20.3Nm).
For MVP Models install and uniformly tighten the inboard
head capscrews (21), torquing to 15 Ibs ft (20.3 Nm).
RELIEF VALVE ASSEMBLY (If Equipped)
1. Insert the valve (9) into the relief valve bore of the casing
with the fluted end inward.
2. Install the relief valve spring (8) and spring guide (7)
against the valve.
3. Attach a new relief valve O-ring (10) and the valve cover
(4) on the cylinder.
4. Screw the relief valve adjusting screw (2) with locknut (3)
into the valve cover (4) until it makes contact with the
spring guide (7). NOTICE:
The relief valve setting MUST be tested and adjusted
more precisely before putting the pump into service.
Refer to "Relief Valve Setting and Adjustment"
5. After the relief valve has been adjusted, tighten the
Locknut (3) and install the relief valve cap (1) and O-ring
(88)
MAGNET HOUSING ASSEMBLY
INNER MAGNET & PUMP ASSEMBLY
1. Install the shaft key (35) on the inboard shaft end.
2. Align the inner magnet (52) with the key, and slide the
magnet over the shaft with the pump end of the magnet
towards the inboard head.
3. Fully and squarely install the snap ring (83) into the
groove in the end of the shaft.
4. Check to ensure the pump shaft rotates freely when
turned by hand.
5. Install a new containment can O-ring (51) into the groove
provided on the hub of the inboard head (20). Slide the
containment can (50) over the magnet and push it firmly
against the inboard head.
6. CAREFULLY slide the pump assembly into the magnet
housing.
7. Install the four housing / head capscrews (54A), torquing
to 40 lbs ft (54 Nm)
OUTER MAGNET ASSEMBLY
Follow instructions given in the MOTOR INSTALLATION
Section of this Manual.
FINAL ASSEMBLY
When Outer Magnet & Motor have been installed correctly.
1. Reinstall the piping to the pump intake and discharge
connections.
2. Reassembly is complete.
NOTICE:
FOLLOW ALL STEPS IN THE "OPERATION" SECTION OF
THIS MANUAL FOR START UP PROCEDURES.

108-A00: Page 11/12
TROUBLESHOOTING
NOTICE:
MAINTENANCE SHALL BE PERFORMED BY QUALIFIED TECHNICIANS ONLY, FOLLOWING THE
APPROPRIATE PROCEDURES AND WARNINGS AS PRESENTED IN THIS MANUAL.
PROBLEM CAUSE
Pump Not Priming
See causes 1 through 7
Reduced Capacity
See causes 1 , 2, 3, 6 through 10
Noisy
See causes 1, 6, 7, 8, 9, 11 through 14
Damaged Vanes
See causes 8, 11, 16 through 21
Broken Shaft
See causes 7, 11, 13, 16, 17&20
Motor Overload
See causes 9, 13, 17, 22 & 23
1. Suction/discharge valve incorrectly set.
2. Leaks in suction piping.
3. Incorrect rotation.
4. Broken shaft.
5. Pump vapor locked.
6. Incorrect pump speed.
7. Vanes damaged, worn or incorrectly installed.
8. Cavitation.
9. Damaged or worn pump or system components.
10. Excessive piping/system friction losses.
11. Relief valve incorrectly set, worn or damaged.
12. Operating against a closed discharge.
13. Shaft bent or misaligned.
14. Worn or damaged bearings.
15. Piping inadequately anchored.
16. Foreign objects entering the pump.
17. Viscosity too high
18. Excessive heat.
19. Worn or damaged push rods.
20. Hydraulic hammer - pressure spikes.
21. Incompatible fluid(s).
22. Inadequate horsepower.
23. Incorrect voltage, wiring, phase loss.

Visit www.blackmer.com for complete information on all Blackmer products
1809 Century Avenue, Grand Rapids, Michigan 49503-1530 U.S.A.
Telephone: [phone] • Fax: [phone]
E-mail: [email protected] • Internet Address: www .blackmer.com
