PT W50099 User manual

12 VOLT DC 1/2 IN. DR. IMPACT WRENCH
OWNER'S MANUAL
Item Number W50099
SPECIFICATIONS:
Drive Size ..........................................1/2 in.
Max Torque......................................250 ft./lbs.
Power Source......................................DC 12V
Maximum Current...................................13 AMP
Electrical Cord Length ............................12 ft./3.6 m
In-Line Rated Fuse ..................................15 AMP
Weight ..........................................5.17 lbs.
Specifications are subject to change without notice.
WARNING!
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS
BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN
PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID
WARRANTY. NOT FITTED FOR COMMERCIAL USE.
1 YEAR LIMITED WARRANTY
PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These war-
ranties give specic legal rights. Except where prohibited by local law, the law of the State of Washington governs
all warranties and all exclusions and limitations of warranties and remedies. There may be other rights which vary
from state to state.
PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under
normal use and service. A defective product may be returned for a free replacement within 90 days from the date
of purchase, provided that product is returned to place of purchase immediately after discovery of defect. After
90 days and up to one year from date of purchase, PERFORMANCE TOOL® will replace at no charge any parts
which our examination shall disclose to be defective and under warranty. These warranties shall be valid only
when a sales receipt showing the date of purchase accompanies the defective product or defective part (s) being
returned. For part (s) after 90 days, please remit your request, postage prepaid to:
PERFORMANCE TOOL, P.O. Box 88259 Tukwila, WA 98138
These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be
replaced under normal use and service. These warranties shall not apply to any product or part which is used for
a purpose for which it is not designed, or which has been repaired or altered in any way so as to aect adversely
its performance or reliability, nor shall these warranties apply to any product or part which has been subject to
misuse, neglect, accident or wear and tear incident to normal use and service.
PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in
connection with its products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes
no express or implied warranties of any kind with respect to its products. In particular, PERFORMANCE TOOL®
makes no implied warranty of merchantability and no implied warranty of tness for any particular purpose, except
that for goods purchased primarily for personal, family or household use and not for commercial or business use,
PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise applicable, an implied
warranty of tness for a particular purpose), but only for the particular qualities or characteristics, and for the
duration, expressly warranted above.
The laws on limitation of implied warranties may dier from state to state, so the above limitations may not apply
in all cases.
PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in
any manner related to any product, or to the design, use, or any inability to use the product. The sole and exclu-
sive remedy for a defective product or part shall be the repair, or replacement thereof as provided above. The laws
on limitation of remedies or on consequential, incidental or special damages may vary from state to state, so the
above limitations may not apply in all cases.
© Copyright 2018 WILMAR CORPORATION, P.O. Box 88259 Tukwila, WA 98138
3. Follow the vehicle manufacturer instruction and specifications for appropriate lifting
locations. Life vehicle using rated jack, jack stands, & wheel chocks.
4. Select appropriate socket for intended vehicle lug nuts/bolts size and insert it securely all
the way onto impact wrench drive. Make sure socket is tight and secure.
5. Follow the vehicle manufacturer instruction to remove lug nuts and wheels.
6. Insert the socket onto the wheel lug nut/bolt and press the upper
side of the impact wrench switch marked "L" to turn on power to
the impact wrench. Keep on pressing and holding the button until
the lug nut/bolt is loosen, it takes about 3 seconds. Repeat this step
to loosen all wheel lug nuts/bolts as needed.
TIGHTENING LUG NUTS/BOLTS ON WHEEL
1. Follow the vehicle manufacturer instruction to install lug nuts/bolts
and wheels.
2. Position wheel in place. Insert lug nuts/bolts and thread by hand prior
to tightening with the impact wrench to prevent cross threading.
3. Insert the socket onto the wheel lug nut/bolt and press the lower side of the impact wrench
switch marked "T" to turn on power to the impact wrench. The lug nut/bolt will be turned in a
clockwise direction. Keep on pressing and holding the button until 4 to 5 clicks are heard. To
avoid thread stripping, do not overtighten. Repeat this step to install all wheel lug nuts/bolts.
4. Unplug impact wrench male plug from 12-volt DC power outlet when finished.
5. After all lug nuts/bolts and wheel(s) have been installed, follow the vehicle owner's manual
to remove the jack stand, lower the vehicle, remove lifting device (Jack), and wheel chocks.
OPERATION CONT.
3/4 in./19mm 13/16 in./23mm
11/16 in./17mm 7/8 in./21mm
Dual Sockets
Switch
Body
Shaft
Cord
Plug
Fuse

IMPORTANT SAFETY INFORMATION
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids. Do not bring
combustible materials near the tools.
3. As with any tool, use common sense when operating. Do not wear loose clothing or
jewelry that could become caught by moving parts, causing injury. Operate tool a
safe distance from yourself and others in the work area.
4. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools, hoses or extension cords.
5. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children and other
untrained persons. Switch off all unused electrical tools when stored. Tools are
dangerous in the hands of untrained users.
6. Always wear approved eye protection when using tools. If raising dust, wear a suitable mask.
7. Work Safe. When wearing gloves to operate the tool, make sure that the gloves do not
interfere with operating the Trigger. Test your gloves with the Trigger before attaching
the unit to an air source. Keep your finger away from the Trigger until you are ready to
work. Never start the tool unless you have a firm grip with both hands and you are
positioned at your work piece or area. Before using the tool, know what is directly
underneath the work area or work piece. The tool can quickly penetrate material. If
working directly on the ground, make sure you are not directly above shallow cables,
lines, or pipes. Keep your limbs and body clear of the tool. If an accessory or
attachment breaks off, the tool tends to surge forward suddenly. Operate tool a safe
distance from yourself and others in the work area. Make sure the immediate area is
clear of other people or animals. Spectators must stay at a safe distance. Never point
the tool or the air hose (not included) at anyone. Keep proper footing and balance at
all times. Do not reach over or across running machines, hoses, etc.
8. Do not operate any tool if under the influence of alcohol or drugs. Read warning
labels on prescriptions to determine if your judgment or reflexes are impaired while
taking drugs. If there is any doubt, do not operate any tool.
9. Use only those accessories that are designed for use with tools. For example, with
impact wrenches do not use ordinary sockets.
10. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified technician.
11. Maintenance. For your safety, maintenance should be performed regularly by a
qualified technician using original PERFORMANCE TOOLS® replacement parts.
Failure to do so can lead to accidents for the operator. Use of any other parts will
void the warranty. Only use accessories intended for use with this tool. Approved
accessories are available from Performance Tool®. Use only accessories that are
recommended by the manufacturer for your model. Accessories that may be suitable
for one tool may become hazardous when used on another tool.
12. Do not use the unit if the device gets soaked.
13. Do not operate this product for more then 10 minutes continuously.
WARNING!
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO
SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY
DAMAGE AND WILL VOID WARRANTY.
IMPORTANT SAFETY INFORMATION
14. Allow the device to cool down between each continuous operation.
15. Use this product with 12-volt DC system only.
16. Always block or chock wheels and apply emergency brake prior to product use.
17. Use extreme caution when removing or installing wheel cover.
18. Use auxiliary lifting devices and additional safety support devices when changing vehicle tires.
19. Never leave the impact wrench unattended while it is in use.
WARNING: Repetitive motions or exposure to vibration may be harmful to your hands and arms.
CAUTION: Some dust created by operation power tools contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm. An example of this type of chemical is
- lead from lead based paints
- Crystalline Silica from bricks and cement or other masonry
- Arsenic and Chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure: work in a well ventilated area and work with approved safety equipment, such as dusk masks that
are specially designed to filter out microscopic particles.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all
possible conditions and situations that may occur. It must be understood by the operator that common
sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
Read and understand all of the instructions provided in the instruction manual of this product, as well as, any
other tool (s) used with this product.
Keep sockets and impact wrench drive clean and dry. Place all components inside
provided plastic casing after each use.

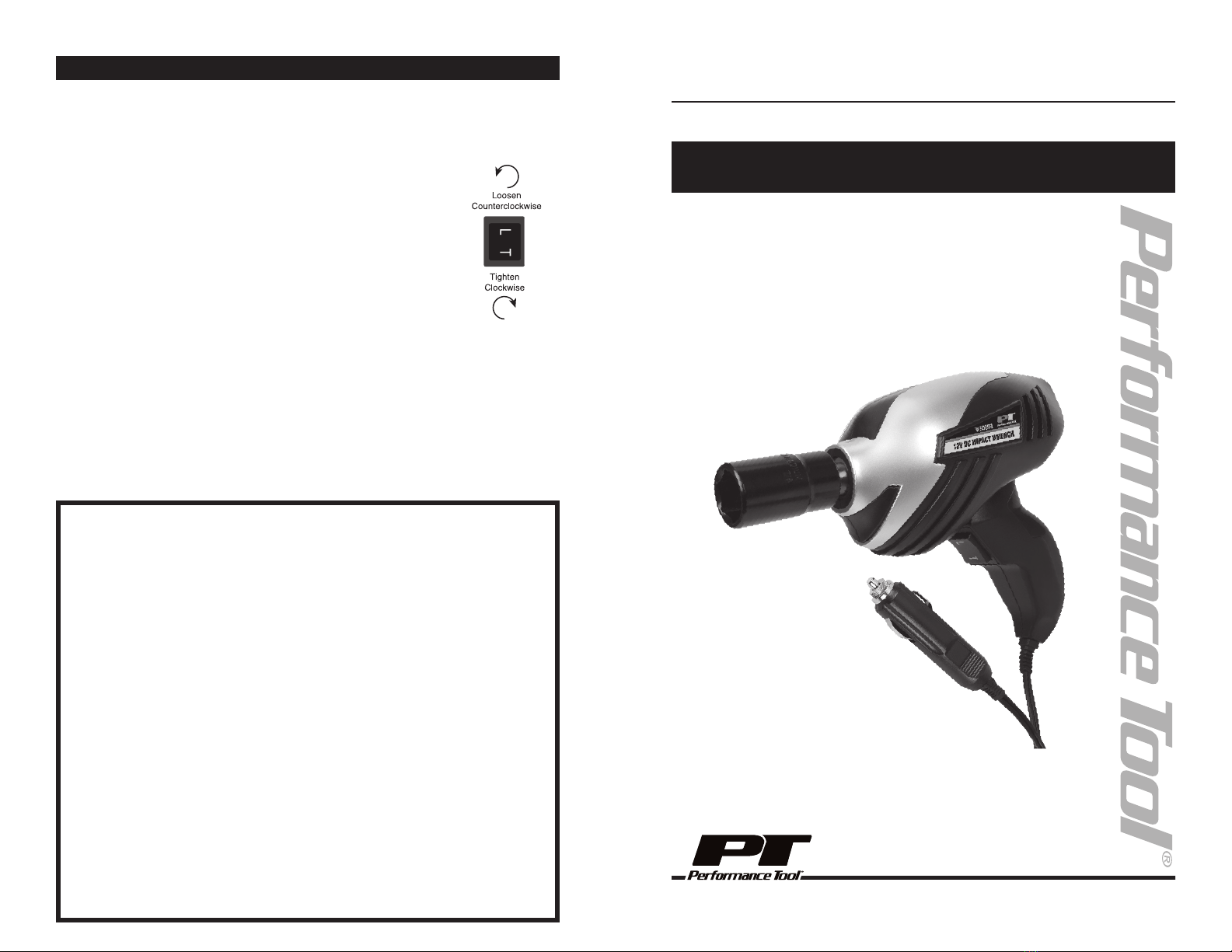

PARTS IDENTIFICATION
3/4 in./19mm 13/16 in./23mm
11/16 in./17mm 7/8 in./21mm
Dual Sockets
Switch
Body
Shaft
Cord
Plug
Fuse
REMOVING LUG NUTS/BOLTS FROM WHEEL
1. Make sure the vehicle battery is fully charged before using the 12-volt power outlet.
2. If the vehicle's 12-volt DC outlet has power when ignition is turned off, insert impact
wrench's male plug securely into 12-volt DC outlet directly. If the vehicle's 12-volt DC
outlet does not have power when the ignition is turned off, turn on vehicle power to "ACC"
and insert impact wrench's male plug securely into 12-volt DC outlet.
OPERATION
3/4 in./19mm 13/16 in./23mm
11/16 in./17mm 7/8 in./21mm
Dual Sockets
Switch
Body
Shaft
Cord
Plug
Fuse
FUSE REPLACEMENT
1. Turn tip counter-clockwise to unlock plug body.
2. Replace fuse with 15 amp fuse.
3. Press and twist tip to secure fuse in body. Tip
Plug Body
Fuse
