Pullman M7P User manual

SPRAY
EXTRACTOR
1200W (10AMP)
IDEAL FOR:
Car Cleaning
Garages
Motels & Hotels
Restaurants & Cafes
M7P

Always switch off the cleaner and remove the plug from the electricity power supply before cleaning
your appliance, when not in use, or attempting any maintenance task. The cleaner must only be
connected to an AC power supply at the voltage shown on the rating label. This cleaner should only
be used for its intended purpose as described in this instruction manual.
SAFETY PRECAUTIONS AND WARNING:
IMPORTANT
WHEN USING YOUR VACUUM CLEANER BASIC PRECAUTIONS SHOULD ALWAYS
BE OBSERVED, INCLUDING THE FOLLOWING;
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety
2. Children should be supervised to ensure that
they do not play with the appliance.
3. If the power cord is damaged it must be
replaced by an authorized service agent or
similarly qualified persons.
4. Carpets should be dry vacuumed thoroughly
before washing. Use a vacuum cleaner with a
power brush for best results.
5. If using an extension cord please make sure
that it is of an approved type and that it is
fully extended. Failure to do so could cause
your cleaner to overheat and damage it.
6. Do not run the appliance over the power
cable and power socket on the floor.
7. Do not place cleaner on stairs or furniture,
as it may result in injury or damage Do not
handle the plug or carpet washer with wet
hands.
8. Do not put any objects into the openings or
operate with the openings blocked. Keep
them free of anything that may reduce air
flow.
9. Keep hair, loose clothing, fingers and all parts
of the body away from openings and moving
parts.
10. Do not use this cleaner and accessories on
hard floors. Using this machine on hard floors
may scratch or damage your floor.
11. Do not use the carpet washer on any
glowing, burning or smoking particles.
12. Do not use without the solution tank and
dirty water tank in place.
13. Turn off all controls before unplugging.
14. Do not store cleaner with solution in tanks.
15. Do not use to pick up flammable or
combustible liquids such as petrol or use in
areas where they may be present.
16. Only use a cleaning solution recommended
by an authorised Pullman Representative.
17. Do not use any high-foaming solutions as
an excessive amount of foam impairs the
functioning of the shampooer. If unsuitable
cleaning solutions are used, this will void
warranty
2

1. Do not operate the vacuum cleaner too close to heaters, radiators, and other
hot surfaces.
2. Before inserting the plug into the wall, make sure your hand is dry.
3. Before turning on the vacuum cleaner, remove any large or sharp objects from
the floor or cleaning surface in order to prevent damage to the filter.
4. When you want to pull the plug from the wall, do not use the power cable, gently
pull the plug from the power socket.
5. If the hose inlet or telescopic tube are blocked, you should switch off the cleaner
straight away and remove from mains power. Clear the blockage before attempting
to start the vacuum cleaner again.
BEFORE YOU BEGIN
This machine is equipped with a cord and plug. In the event that either of these parts get
damaged, it must be repaired by a qualified technician.
Warning:
For your safety, disconnect the cleaner from the power supply before you refill the water tank,
empty the bin or change the accessories.
FAULTS
Consult the trouble shooting guide in this manual if your carpet washer fails to operate properly.
Do not continue to use this appliance if it appears to be faulty or the supply cord is damaged. If a fault can’t
be rectified, please return to the point of purchase.
CAUTION!
The cover (Part 36 in Fig.19) head contains electrical connections. It is not a serviceable part. Please return
the product to your nearest Godfreys store if it is faulty.
Do not wash the cover with water or immerse the top cover water.
3PULLMAN M7 SPRAY EXTRACTOR

KNOW YOUR PRODUCT

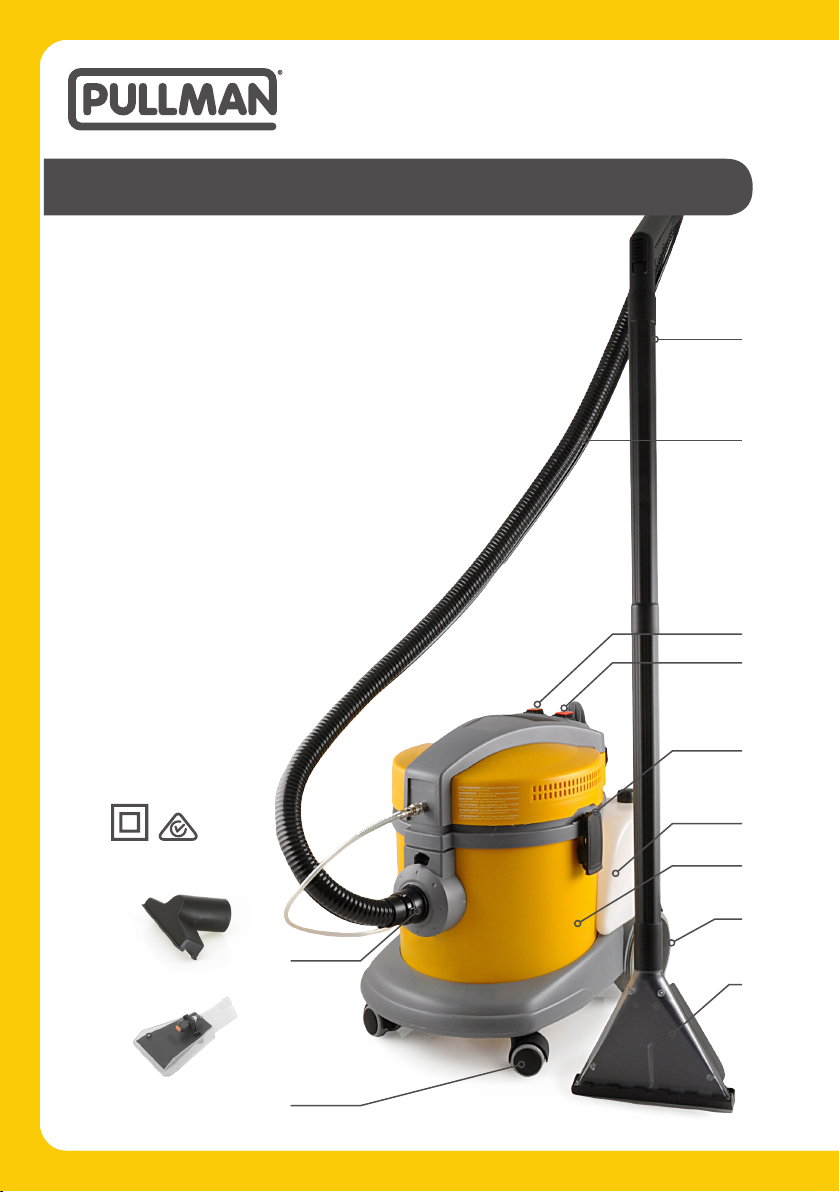

1. 2pc Tubes
2. Hose
3. Vacuum Switch
4. Pump Switch
5. Connection Latches
6. Solution Tank
7. Canister
8. Rear Wheel on Axle
9. Floor Tool
10. Hose Inlet
11. Castor Wheel
12. Uphostery Tool
13. Fabric Nozzle
Technical Information
Model: M7P
Voltage: 240V
Max Power: 1200W
1
2
3
4
5
6
7
8
10
11
9
12
13
4

Fig. 1 Fig. 2 Fig. 3 Fig. 4
Fig. 5 Fig. 6 Fig. 7
Fig. 8 Fig. 9
Fig. 10
Fig. 12
Fig. 11
Fig. 13
13
20
21
9
7
5
17
1
4
11
8
1
10 14
19
18
2
3
6
10
9
10
11
10
11
12
11
13
15
9
8
16
22
23
24
25
5PULLMAN M7 SPRAY EXTRACTOR

Fig. 14
Fig. 20
Fig. 19
Fig. 17
Fig. 21
Fig. 15 Fig. 16
Fig. 18
30
21
31
26
34
29
27
11
33
28
37
13
10
9
28
30
32
35
36
6

7PULLMAN M7 SPRAY EXTRACTOR
Fig. 26 Fig. 27
Fig. 22
Fig. 24
Fig. 23
Fig. 25
40
39
38
38
40
37
39
39
40
37 38
41

PREPARING THE APPLIANCE
Assembling the hoses

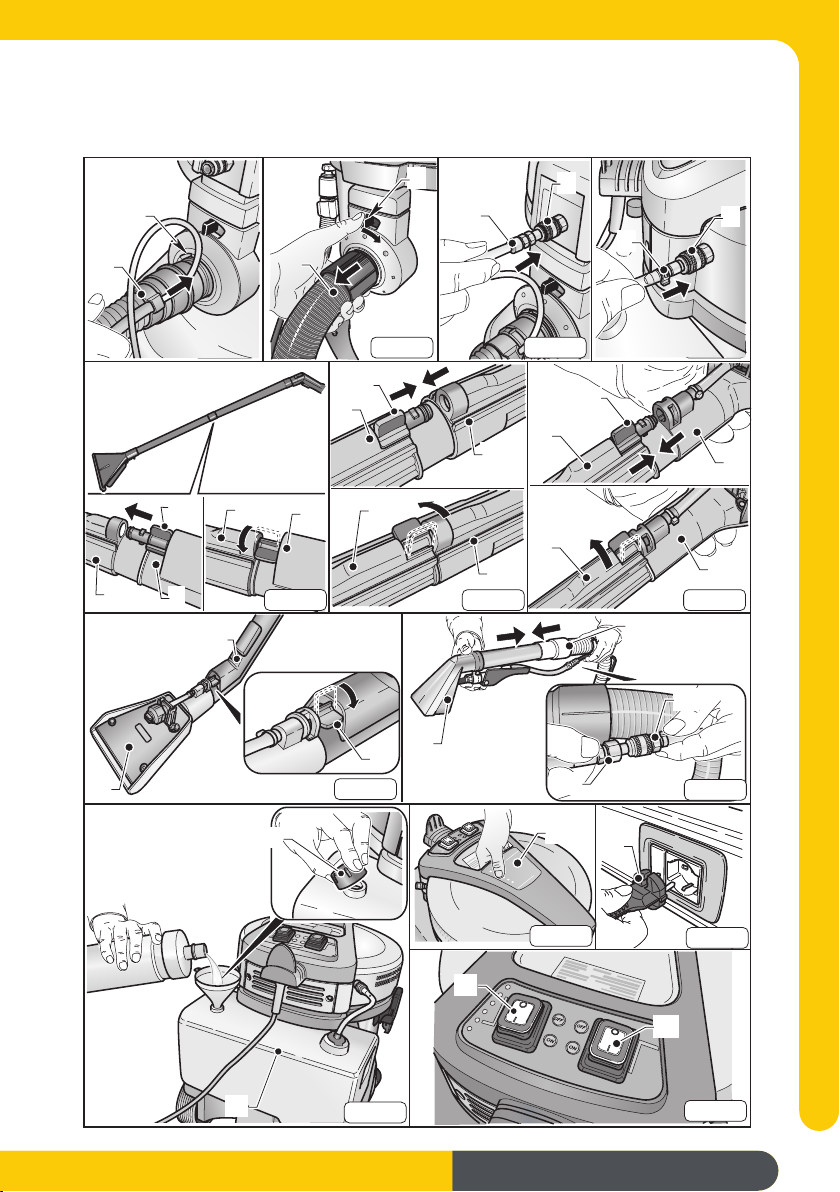

- Insert, as far as possible, the sleeve (1 Fig. 1)
of the suction hose into the nozzle (2 Fig. 1) on
the drum.
- To release the sleeve (1 Fig. 2) move the lever (3
Fig. 2) clockwise then pull the sleeve outwards
(1 Fig. 2).
- Connect the (4 Fig. 3) detergent delivery hose
to the quick coupling (5 Fig.3); to release it push
the quick coupling (5 Fig.3) inwards.
- Connect the detergent suction (6 Fig. 4) hose to
the quick coupling (7 Fig.4); to release it push
the quick coupling (7 Fig.4) inwards.
Rigid pipe assembly for washing
carpets or floors (if present)
After connecting the suction hose to the outlet
the drum, do as follows:
- Make sure the lever (8 Fig.5) is in vertical
position then attach the first extension (10 Fig.5)
to the ergonomic handle (9 Fig.5) of the flexible
hose and lock it in place by turning the lever (8
Fig.5) to the horizontal position.
- Attach the first extension (10 Fig. 6) to the
second extension (11 Fig.6) and lock it in
place using the lever (12 Fig.6) as described
previously for the first extension.
- Attach the floor nozzle (13 Fig.7) to the second
extension (11 Fig.7) and lock it in place using
the lever (14 Fig.7) as described above.
Hose assembly for fabric washing (if
present)
After connecting the suction hose to the outlet
the drum, do as follows:
- Make sure the lever (8 Fig.8) is in vertical
position then attach the fabric nozzle (15 Fig.8)
to the ergonomic handle (9 Fig.8) and lock it
in place by turning the lever (8 Fig.8) to the
horizontal position.
Professional hose assembly for fabric
washing (if present)
After connecting the suction hose to the outlet
the drum, do as follows:
- Insert the fabric nozzle (16 Fig.9) into the flexible
hose (17 Fig.9).
- Connect the detergent hose (18 Fig.9) to the
quick coupling (19 Fig.9) on the flexible hose;
to release it push the quick coupling (19 Fig.9)
towards the hose.
Filling the detergent tank
- Remove the cap (20 Fig.10) and pour the
detergent liquid (suitable for the surfaces to be
washed) into the tank (21 Fig.10) .
NOTE: For detergent dosing refer to the
manufacturer’s instructions.
- Put the cap back on (20 Fig.10)
8

USING THE APPLIANCE
- The appliance is fitted with wheels and can
therefore be pulled along using the flexible
hose.
- To lift it up, insert your fingers under the handle
(22 Fig. 11) on the top of the cover.
Starting up the appliance
- Insert the plug (23 Fig.12) into the electrical
socket.
- Push the switch (24 Fig.13) on “I” to start the
suction motor; the switch lights up.
- Push the switch (25 Fig.13) on “I” to start the
detergent pump; the switch lights up.
NOTE: The suction motor and the
detergent pump operate independently;
therefore, it is possible to:
- wash fabrics or floors/ carpets by
starting only the detergent pump;
- wash and suction liquid simultaneously
by starting up the detergent pump and
suction motor at the same time;
- suction liquids by only starting the
suction motor.
NOTE: For the ergonomic handle (if
present) it is possible to adjust the suction
force using the selector (26 Fig.14). The
suction force is decreased by opening the
window (27 Fig.14).
Washing floors or carpets
- To wash floors or carpets it is necessary to
mount the hose with ergonomic handle (9
Fig.15), the rigid extensions (10 and 11 Fig.15)
and the floor nozzle (13 Fig.15), if present.
- Start the suction motor and the detergent
pump by pressing the relative switches (24 - 25
Fig.13).
- Press the switch (28 Fig.15) to dispense
the detergent, release the button to stop
dispensing. The switch (28 Fig.15) can be
blocked in the pushed position (continuous
detergent dispensing) by moving the slide (29
Fig.15) towards the switch (28 Fig.15). When the
slide (29 Fig.15) is moved back to its original
position the switch is released and detergent
dispensing stops.
- The detergent released washes the floor/
carpet / and the dirty liquid is suctioned into the
tank of the appliance. For very dirty areas it is
recommended you apply detergent to the dirty
area without suctioning it; leave the detergent
allowing it to work for several seconds and then
wash the area and suction the dirt.
NOTE: To prevent the detergent pump
from breaking, it is recommended that you
stop its operation, pushing the relative
switch, when dosing has not occurred for
several minutes
NOTE: When the recovery tank is full,
noise increases and the appliance does
not suction; therefore, switch it off and
empty the tank as described in the
relevant paragraphs.
Cleaning chairs

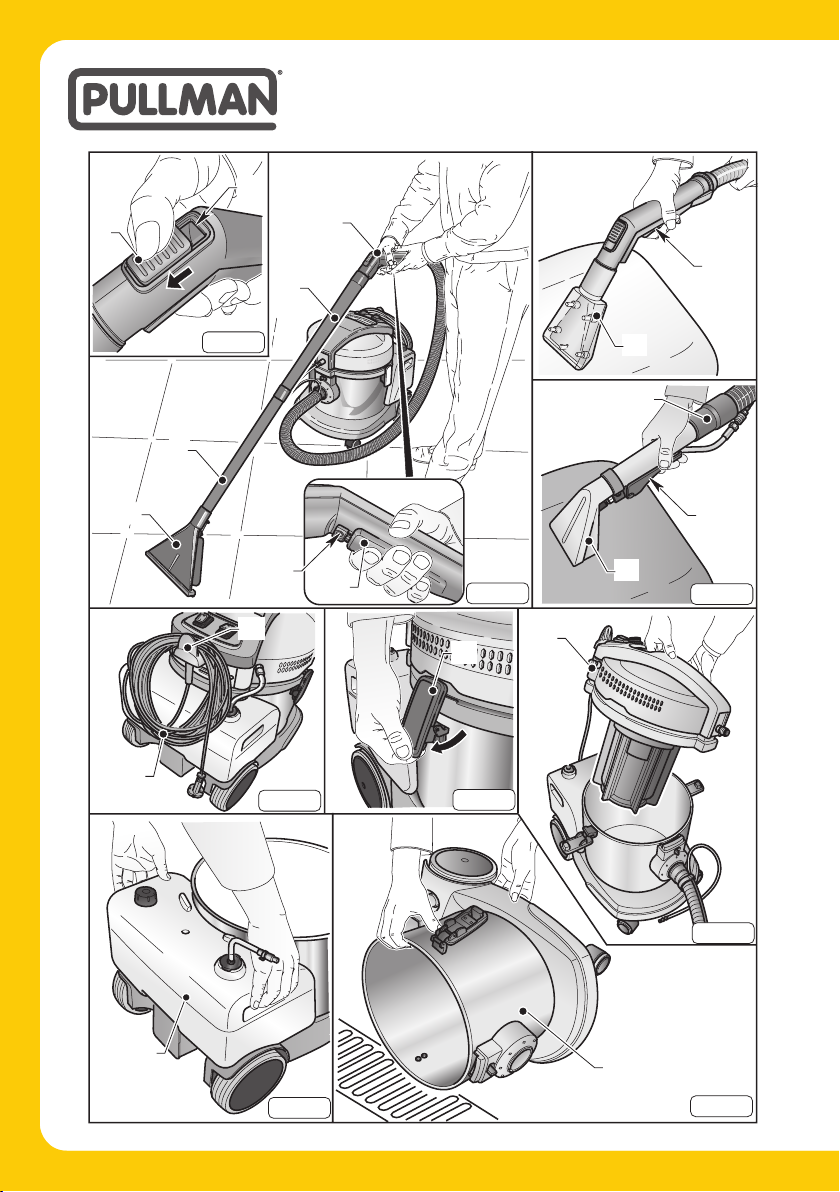

- Mount the fabric nozzle (30 Fig.16) on the
relative hose (31 Fig.16).
- Start the suction motor and the detergent
pump by pressing the relative switches (24 - 25
Fig.13).
- Place the nozzle on the fabric pressing slightly
then press the switch (28 Fig.15) or the lever
(32 Fig.15), depending on the nozzle type,
to dispense the detergent, release to stop
dispensing.
For very dirty areas it is recommended you
apply detergent to the dirty area without
suctioning it; leave the detergent allowing it to
work for several seconds and then wash the
area and suction the dirt.
9PULLMAN M7 SPRAY EXTRACTOR

NOTE: To prevent the detergent pump
from breaking, it is recommended that you
stop its operation, pushing the relative
switch, when dosing has not occurred for
several minutes.
NOTE: When the recovery tank is full,
noise increases and the appliance does
not suction; therefore, switch it off and
empty the tank as described in the
relevant paragraphs.
Switching off the appliance
- Press the switches (24 and 25 Fig.13) to “0”
to switch off the appliance; the lamps on the
switches will go out.
- Remove the plug (23 Fig.12) from the electrical
socket.
- Wind up the cable (33 Fig.17) and hook it onto
its housing (34 Fig.17).
10

CLEANING AND MAINTENANCE
DANGER: Before performing any
maintenance operations, unplug the
appliance from the electrical socket.
DAILY CLEANING
Emptying the recovery tank
- Disconnect the detergent delivery hose (4 Fig.3)
and the flexible hose (1 Fig.2).
- Disconnect the detergent suction hose (6 Fig.4).
- Lift up the levers (35 Fig.18) and remove the
cover (36 Fig. 19) complete with motor.
- Remove the detergent container (21 Fig.20)
lifting it by the handles.
- Place yourself over a floor drain and empty the
liquid in the recovery tank (37 Fig.21)
- Clean the inside of the tank with running water
and then reassemble everything proceeding in
the reverse order.
Cleaning the detergent dosing circuit
At the end of each workday, clean the detergent
dosing circuit as follows to prevent clogging:
- Disconnect the detergent delivery hose (4
Fig.3).
- Disconnect the detergent suction hose (6 Fig.4).
- Lift up the levers (35 Fig.18) and remove the
cover (36 Fig. 19) complete with motor.
- Remove the detergent container (21 Fig.20)
lifting it by the handles.
- Remove the cap (20 Fig.10) of the detergent
container and empty the residual liquid into a
suitable container.
- Wash the inside of the detergent container with
running water.
- Reassemble all of the parts performing these
operations in the reverse order.
- Pour clean water into the detergent container,
electrically connect the appliance and start the
dosing pump by pressing the switch (25 Fig.13).
- Clean the circuit by pressing the switch (28
Fig.15) or the lever (32 Fig.15), depending on the
type of nozzle.
- Dispense the liquid from the nozzle until clean
water comes out.
- Empty the water in the detergent tank as
described above.
Cleaning the appliance body
- Clean the unit body with a cloth dampened with
water or a mild detergent;
DANGER: Do not wash the appliance using
jets of water.
PERIODIC CHECKS
Checking the air outlet filter
- Loosen the screws (38 Fig.22) and remove the
cover (39 Fig.22)
- Remove the filter sponge (40 Fig.23) and clean
it with a blast of air (Fig.24). The filter sponge
can be washed in warm water and must only
be replaced once it is completely dry. If it is too
dirty, replace it with a new one.
- Reassemble all the parts by following the
dismantling process steps in the reverse order.
Cleaning the detergent dispensing
nozzle
If you note that the detergent is not dispensed
evenly, clean the nozzle as described below:
- Remove the ring nut (37 Fig.25).
- Remove the nozzle (38 Fig.25) and clean it with
running water, if it is clogged use a pin being
careful not to distort the shape of the nozzle.
- Reassemble all of the parts performing these
operations in the reverse order.
11PULLMAN M7 SPRAY EXTRACTOR

Cleaning the detergent suction filter
If you note that the detergent is not being
suctioned properly, check and clean the suction
filter located inside the detergent tank.
- Using a screw driver, loosen the suction cap
(39 Fig.26) and remove it from the tank with the
relative suction hose.
- Remove the filter (40 Fig.26) and wash it under
running water; if it is too clogged it should be
replaced.
- Reassemble all of the parts performing these
operations in the reverse order.
Replacing the floor nozzle squeegee
(if present)
If when washing the floors the washing liquid
is not suctioned properly and the floor or
carpet remains wet, check the condition of the
squeegee (41 Fig.27).
If the squeegee is worn or damaged replace it
by slipping the squeegee and its bristles off the
nozzle as shown in figure 27.
12

SPECIFICATIONS
Voltage: 240V
Max Power: 1200 W
Sound level: 81 dB(A)
Suction Power: 22 Kpa
Useful capacity tank: 10L
Detergent tank capacity: 8L
Weight: 12 kg
Accessories: Ø 36 mm
13PULLMAN M7 SPRAY EXTRACTOR

TROUBLESHOOTING
TROUBLE POSSIBLE CAUSE REMEDY
The vacuum cleaner
does not work.
Switch not pressed.
Plug not inserted.
Power cut.
Press the switch.
Insert the plug into the socket.
Check the power line.
Suction is not
satisfactory.
Accessories or tubes clogged.
Suction nozzle squeegee
worn or damaged.
Check and clean the flexible hose
and the suction nozzle.
Check and replace the squeegee
Detergent dispensing
not even
Nozzle clogged.
Filter clogged.
Clean nozzle.
Clean suction filter.
Detergent dispensing not
working
Switch not pressed Press the switch
14

CUSTOMER CARE
For customer service or product enquiries please contact 1800 815 270 (AU) or 0800 282 288 (NZ)
PRODUCT NUMBER PRODUCT DESCRIPTION
33500114 Small Castor Wheels
3115 0 055 Squeegee Replacement
33200762 On/Off Switch (Vacuum)
31110211 Carpet Floor Tool
31220444 Hose Assembly
31300548 2-Piece Tube
3115 0321 Upholstery Tool
33200763 On/Off Switch (Pump)
15PULLMAN M7 SPRAY EXTRACTOR

Electrical Home-Aids Pty. Ltd.
ABN 62 007 539 577
Ground Level, Building 3, Brandon Business Park
530 Springvale Road, Glen Waverley, Victoria 3150
Pullman is a registered trademark.
Contact Electrical Home-Aids Pty. Ltd. for your nearest authorised
service centre on 1800 815 270 (AU) or 0800 282 288 (NZ).
[email protected]
V1 11/2017
Your Pullman cleaner has a
one year parts and labour
warranty against product
defects and failures when the
product is used in accordance
with the terms and conditions
of this warranty statement.
The cleaner must be operated in accordance with
these instructions. This cleaner is not designed for
the collection of vitreous building material including
particle board, construction products and similar
products such as wood/fibres, cement, fillers,
fibre glass etc or excessive or frequent sand. The
infrequent pick-up of these materials in these
circumstances may be harmful to your cleaner
and may void the manufacturer’s warranty.
Accessories and consumables including dust
bags and filters, unless defective in manufacture,
are not subject to this warranty. In order to prolong
the life of accessories and consumables, regular
care and maintenance is recommended.
When properly used and cared for, your cleaner
will render excellent service; refer to the instruction
manual for further details, as misuse or failure to
follow the instructions makes this warranty void.
In the event of service or advice being needed,
please contact Electrical Home-Aids Pty Ltd, ABN
62 007 539 577, Ground Level, Building 3 Brandon
Business Park, 530 Springvale Rd, Glen Waverley,
VIC 3150. Customer Care: 1800 815 270.
The decision to repair or replace the cleaner is at
the sole discretion of Electrical Home-Aids Pty Ltd.
If International Cleaning Solutions Pty Ltd decide
to repair or replace the cleaner, it will do so at its
own cost.
Electrical Home-Aids Pty Ltd is unable to accept
responsibility under this warranty for any repair
work not carried out by an authorised Electrical
Home-Aids Service Agent or from the use of
non-genuine parts. If any part is no longer
available or manufactured, International Cleaning
Solutions will replace it with a genuine functional
replacement part. This warranty does not apply
to the cost of replacing any parts of the product
due to normal wear and tear, alterations, improper
installation, physical abuse, misuse or accidental
damage. Any transportation costs involved in the
repair of defective parts shall be borne by the
claimant.
If proof of purchase cannot be provided at the time
of a warranty claim or service, any work carried
out on the cleaner is chargeable. The repair or
replacement of the cleaner under this warranty
does not extend the original period of warranty.
The benefits conferred by this warranty are in
addition to all other rights and remedies in respect of
the product as outlined under the Competition and
Consumer Act and other State and Territory laws.
“Our goods come with guarantees that cannot
be excluded in the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.”
Conditions of warranty
