Pulsafeeder GLM1 Owner's manual

PULSA®GLM
MECHANICAL DIAPHRAGM
METERING PUMP
Bulletin: IOM-GLM-5000-Rev.A
Installation, Operation &
Maintenance Manual
Models: GLM1 – 6

Pulsafeeder Factory Service Policy
Pulsafeeder’s Factory Service Policy is maintained on its website. Please source this document at
this URL:
http://www.pulsa.com/downloads/pdf/Pulsafeeder%20EPO%20Limited%20Warranty%20Statement.pdf
Safety Considerations:
1. Read and understand all related instructions and documentation before attempting to install or
maintain this equipment.
2. Observe all special instructions, notes, and cautions.
3. Act with care and exercise good common sense and judgment during all installation,
adjustment, and maintenance procedures.
4. Ensure that all safety, work procedures, and standards that are applicable to your company and
facility are followed during the installation, maintenance, and operation of this equipment.
Copyright ©2015 Pulsafeeder, Inc. All rights reserved.
Information in this document is subject to change without notice. No part of this publication may be
reproduced, stored in a retrieval system or transmitted in any form or any means electronic or
mechanical, including photocopying and recording for any purpose other than the purchaser’s
personal use without the written permission of Pulsafeeder, Inc.
ii

Table of Contents
1. EQUIPMENT INSPECTION....................................................................................................................... 1
2. INSTALLATION...................................................................................................................................... 1
2.1 Location....................................................................................................................................... 1
2.2 Motor............................................................................................................................................ 1

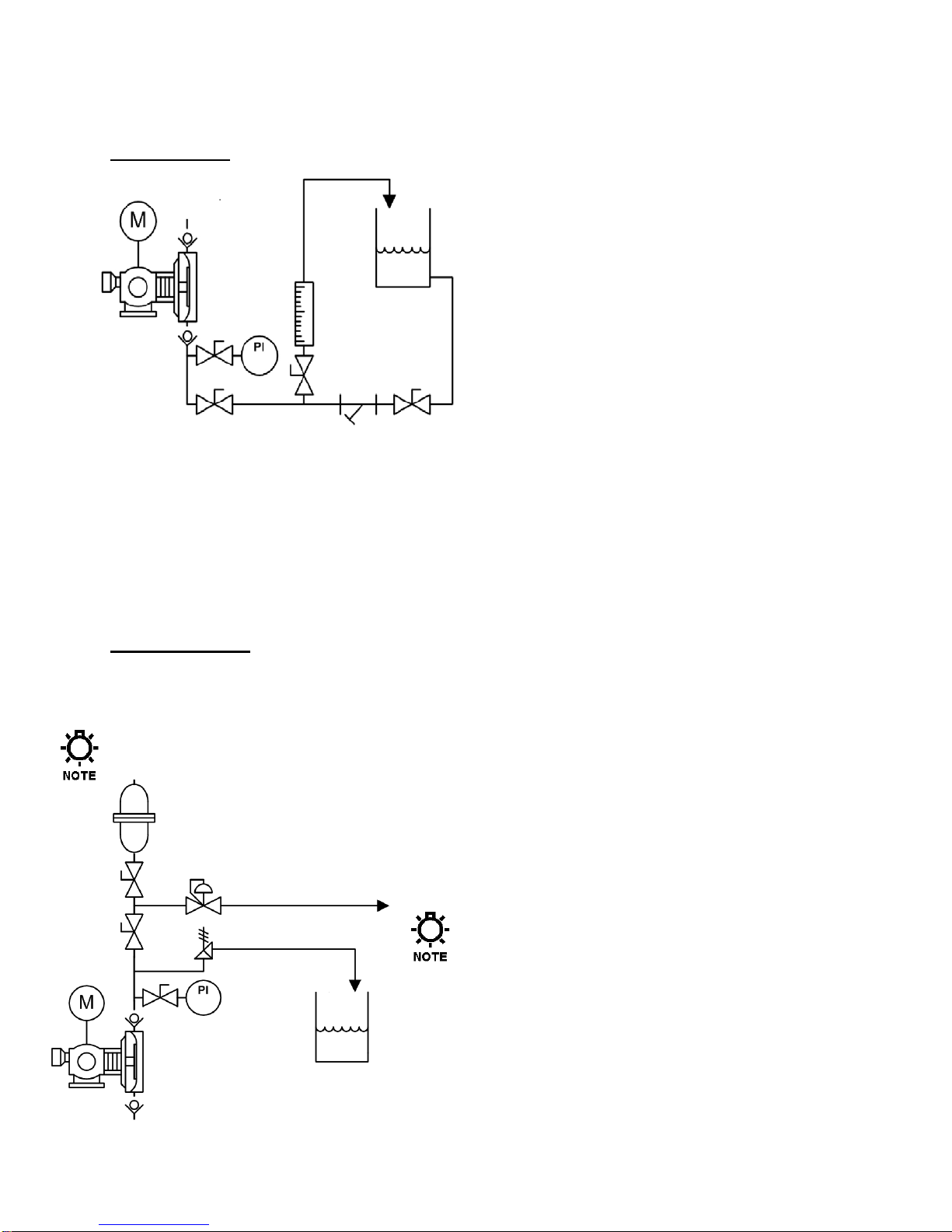

2.3 Piping System ............................................................................................................................. 2
2.4 Suction Pressure Requirements ............................................................................................... 3
2.5 Discharge Pressure Requirements........................................................................................... 4
3. EQUIPMENT STARTUP .......................................................................................................................... 5
3.1 Fastener Inspection.................................................................................................................... 5
3.2 Output Adjustment ..................................................................................................................... 5
3.3 Priming the Reagent Head......................................................................................................... 5
3.4 Calibration ................................................................................................................................... 7
4. MAINTENANCE ..................................................................................................................................... 7
4.1 Lubrication................................................................................................................................... 8
4.2 Wet End Removal, Inspection, & Reinstallation...................................................................... 9
4.3 Check Valves............................................................................................................................... 11
4.4 Motor Removal & Reinstallation................................................................................................ 13
4.5 Pump Head Removal .................................................................................................................. 14
5. REPLACEMENT PARTS ......................................................................................................................... 15
5.1 KOPkit®Program......................................................................................................................... 15
5.2 Ordering KOPkits or Parts......................................................................................................... 15
5.3 KOPkit numbers by model......................................................................................................... 15
6. TROUBLESHOOTING ............................................................................................................................. 16
7. PIPING ACCESSORIES .......................................................................................................................... 17
8. DIMENSIONAL DRAWING....................................................................................................................... 19
9. Policies & Procedures .................................................................................................................... 21
iii

1.Equipment Inspection
Check all equipment for completeness against the order and for any evidence of shipping damage.
Shortages or damage must be reported immediately to the carrier and your authorized representative or
distributor of PULSA GLM pumps.
Included Items:
•PULSA GLM Metering Pump with Motor Adaptor
Optional Items:
•Motor
•Foot Valve Kit (provided on PULSA GLM models 1 and 2 only).
2.Installation
2.1 Location
When selecting an installation site or designing a chemical feed system, plan for operation and routine
maintenance. Provide 3.25 ft ( 1 m) of space around the pump for this purpose.
PULSA GLM pumps are designed to operate in an environment where the pump is protected from direct
sunlight, and precipitation (i.e., under shelter). The ambient temperature must be between 32°F (0°C) and
104°F (40°C). If necessary add environmental controls.
The pump must be rigidly bolted to a solid and flat foundation to minimize vibration and prevent loosening
of the connections. The pump must be level within 5°to assure proper check valve operation.
2.2 Motor
The PULSA GLM is not typically shipped with the motor pre-installed. It must be mounted and wired in
accordance with local and national requirements by a qualified electrician. Please refer to the motor
nameplate for further manufacture specific information.
If the PULSA GLM was purchased less motor, please refer to section 5.4 Motor Installation for further
instructions.
Figure 1: Foot Valve Kit
1
