pumpeng Raptor 8kw Installation manual

www.pumpeng.com.au
HIGH HEAD
SUBMERSIBLE
PUMP
Manual
INSTALLATION, CARE &
of the
Maintenance
Raptor 8kw

1 of 15
01. Company Profile
02. Capability Statement
03. Warranty Details
04. Pump Description & Technical Specifications
05. Transportation, Storage & Installation

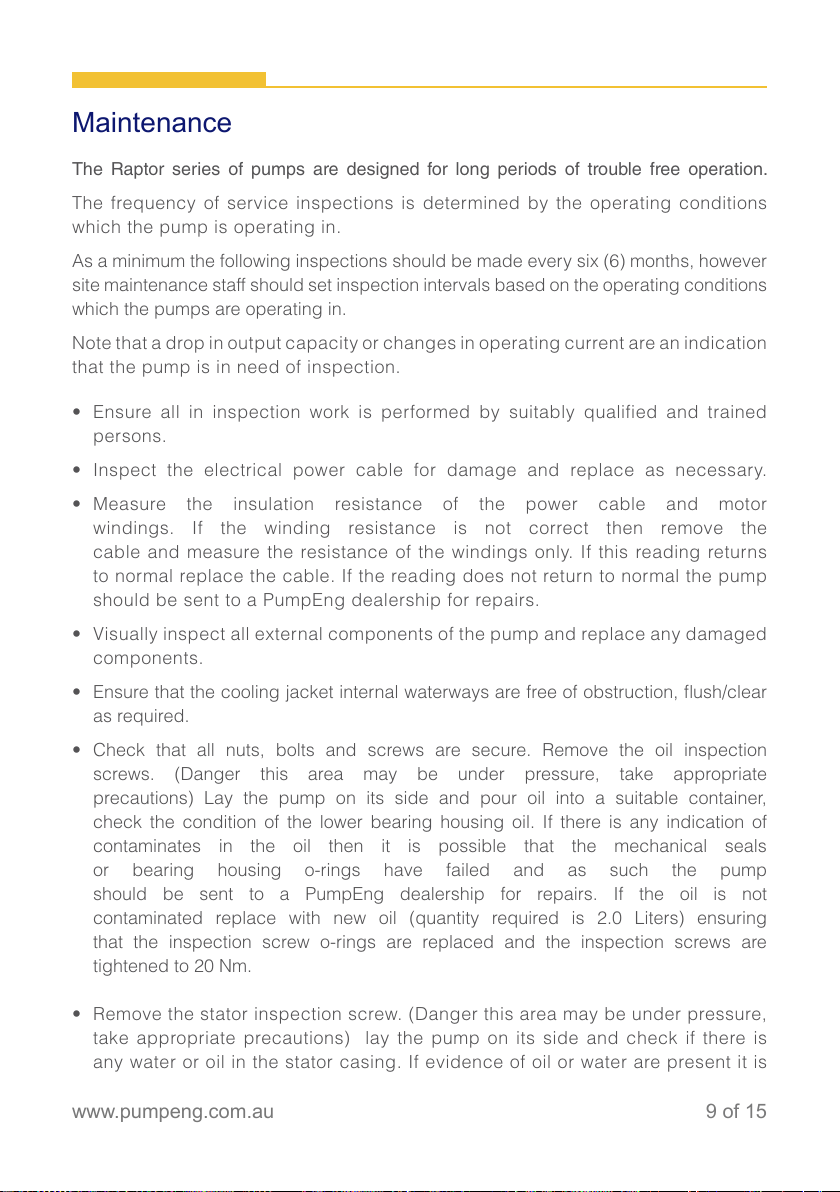

06. Pump Maintenance
07. 8kw Raptor Torque Settings
08. Raptor Motors - Installation Instructions
09. Checklist Prior to Installation
10. Connection Arrangement
2
3
5
6
8
8
10
11
11
12
www.pumpeng.com.au
Manual Contents

2 of 15
www.pumpeng.com.au

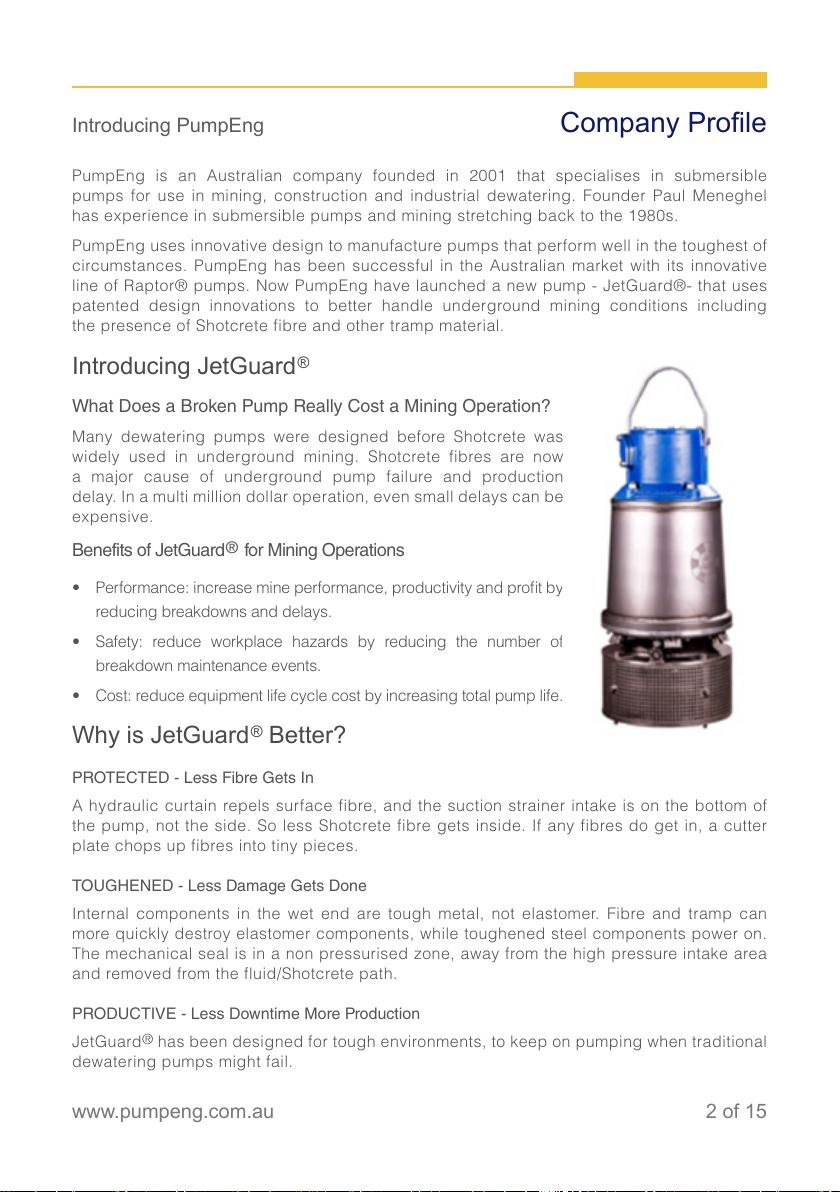

Introducing JetGuard®
Why is JetGuard® Better?
Performance: increase mine performance, productivity and profit by
reducing breakdowns and delays.
Safety: reduce workplace hazards by reducing the number of
breakdown maintenance events.
Cost: reduce equipment life cycle cost by increasing total pump life.
•
•
•
Introducing PumpEng
Company Prole
PumpEng is an Australian company founded in 2001 that specialises in submersible
pumps for use in mining, construction and industrial dewatering. Founder Paul Meneghel
has experience in submersible pumps and mining stretching back to the 1980s.
PumpEng uses innovative design to manufacture pumps that perform well in the toughest of
circumstances. PumpEng has been successful in the Australian market with its innovative
line of Raptor® pumps. Now PumpEng have launched a new pump - JetGuard®- that uses
patented design innovations to better handle underground mining conditions including
the presence of Shotcrete fibre and other tramp material.
What Does a Broken Pump Really Cost a Mining Operation?
Many dewatering pumps were designed before Shotcrete was
widely used in underground mining. Shotcrete fibres are now
a major cause of underground pump failure and production
delay. In a multi million dollar operation, even small delays can be
expensive.
Benefits of JetGuard® for Mining Operations
PROTECTED - Less Fibre Gets In
A hydraulic curtain repels surface fibre, and the suction strainer intake is on the bottom of
the pump, not the side. So less Shotcrete fibre gets inside. If any fibres do get in, a cutter
plate chops up fibres into tiny pieces.
TOUGHENED - Less Damage Gets Done
Internal components in the wet end are tough metal, not elastomer. Fibre and tramp can
more quickly destroy elastomer components, while toughened steel components power on.
The mechanical seal is in a non pressurised zone, away from the high pressure intake area
and removed from the fluid/Shotcrete path.
PRODUCTIVE - Less Downtime More Production
JetGuard® has been designed for tough environments, to keep on pumping when traditional
dewatering pumps might fail.

3 of 15
www.pumpeng.com.au
Heavy duty underground dewatering pump. Shotcrete handling capability, all
metal wet end, electro submersible pump with high chrome impeller.
10Kw (20Kw and 37Kw planned)
Heavy duty submersible sludge/slurry pump with high chrome impeller &
agitator. Flows available up to 83 l/s and heads up to 35 m.
1.5Kw to 22Kw
A 415v range of pumps with smart technology. Stainless Steel with a HRC
impeller.
1.5Kw to 22Kw
JetGuard®
Raptor®
ScatPump®
CorroTuff®
PumpEng manufacture and sell tough submersible pumps suitable for underground
mining and other heavy duty applications. We innovate to increase operational reliability
and productivity.
Capability Statement
Submersible Pump Range
Underground dewatering submersible. Compatible with Xylem/Flygt Bibo range.
5Kw to 20Kw
Disclaimer: PumpEng Pty Ltd is not an authorized distributor of parts or services for
the products of Xylem. PumpEng Pty Ltd products are not associated with, endorsed
by or sponsored by Xylem. Any use of Xylem names, trademarks, model no, item no or part no is
for reference purpose only. Flygt is a registered trademark of Xylem.
A pump designed to handle solids without damaging the product.
4Kw to 18.5Kw
Small 240v grinder pump for dirty water applications.
0.75Kw to 1.1Kw
Vortex
MetalVest™ submersible pumps use a full metal build, so there is no urethane
or rubber lined parts for a longer life available in 1000v & 415v. The cylindrical
MetalVest™ HHS Slimline is designed for those places where physical size is an
issue. It fits inside caissons for offshore requirements.
4Kw to 18.5Kw
The Heavy Duty MetalVest HH for those tough conditions 37kw.
MetalVest
Grinder

4 of 15
www.pumpeng.com.au

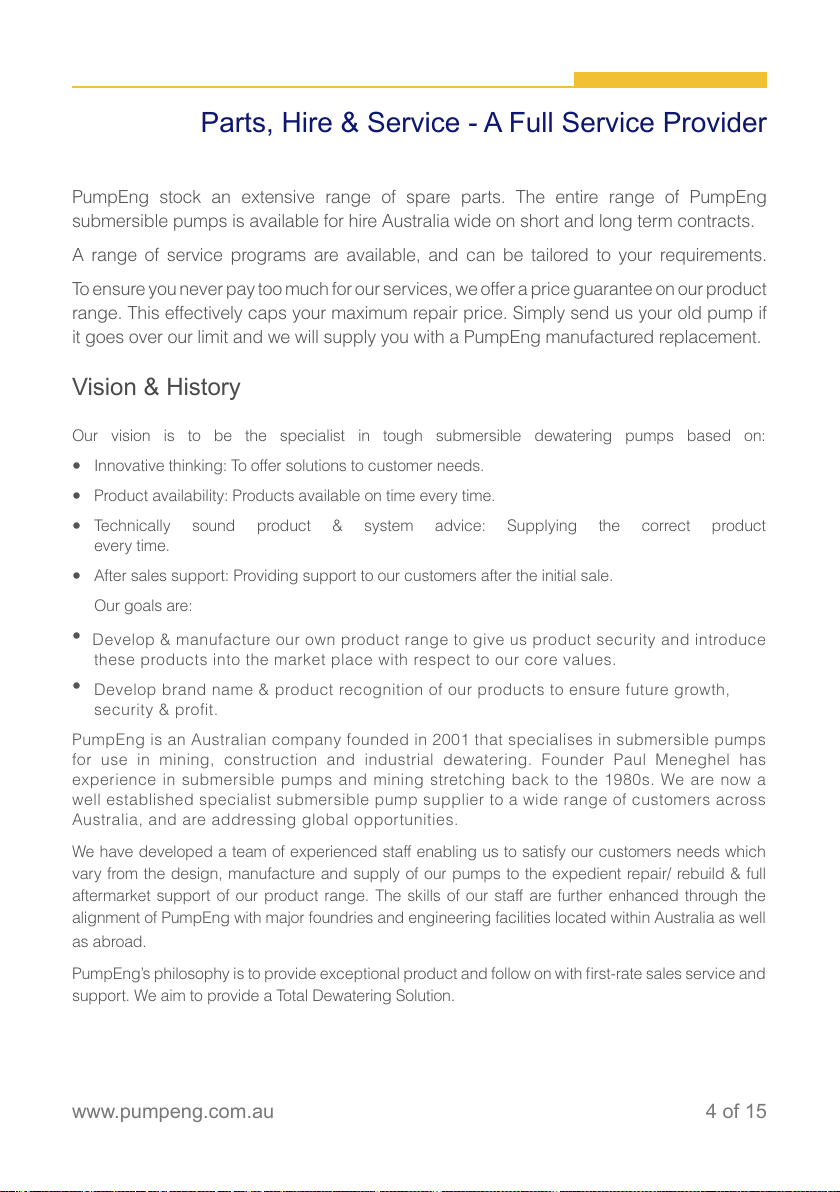

Vision & History
PumpEng stock an extensive range of spare parts. The entire range of PumpEng
submersible pumps is available for hire Australia wide on short and long term contracts.
A range of service programs are available, and can be tailored to your requirements.
To ensure you never pay too much for our services, we offer a price guarantee on our product
range. This effectively caps your maximum repair price. Simply send us your old pump if
it goes over our limit and we will supply you with a PumpEng manufactured replacement.
•
•
•
•
•
•
Our vision is to be the specialist in tough submersible dewatering pumps based on:
Innovative thinking: To offer solutions to customer needs.
Product availability: Products available on time every time.
Technically sound product & system advice: Supplying the correct product
every time.
After sales support: Providing support to our customers after the initial sale.
Our goals are:
Develop & manufacture our own product range to give us product security and introduce
these products into the market place with respect to our core values.
Develop brand name & product recognition of our products to ensure future growth,
security & profit.
PumpEng is an Australian company founded in 2001 that specialises in submersible pumps
for use in mining, construction and industrial dewatering. Founder Paul Meneghel has
experience in submersible pumps and mining stretching back to the 1980s. We are now a
well established specialist submersible pump supplier to a wide range of customers across
Australia, and are addressing global opportunities.
We have developed a team of experienced staff enabling us to satisfy our customers needs which
vary from the design, manufacture and supply of our pumps to the expedient repair/ rebuild & full
aftermarket support of our product range. The skills of our staff are further enhanced through the
alignment of PumpEng with major foundries and engineering facilities located within Australia as well
as abroad.
PumpEng’s philosophy is to provide exceptional product and follow on with first-rate sales service and
support. We aim to provide a Total Dewatering Solution.
Parts, Hire & Service - A Full Service Provider

5 of 15
www.pumpeng.com.au

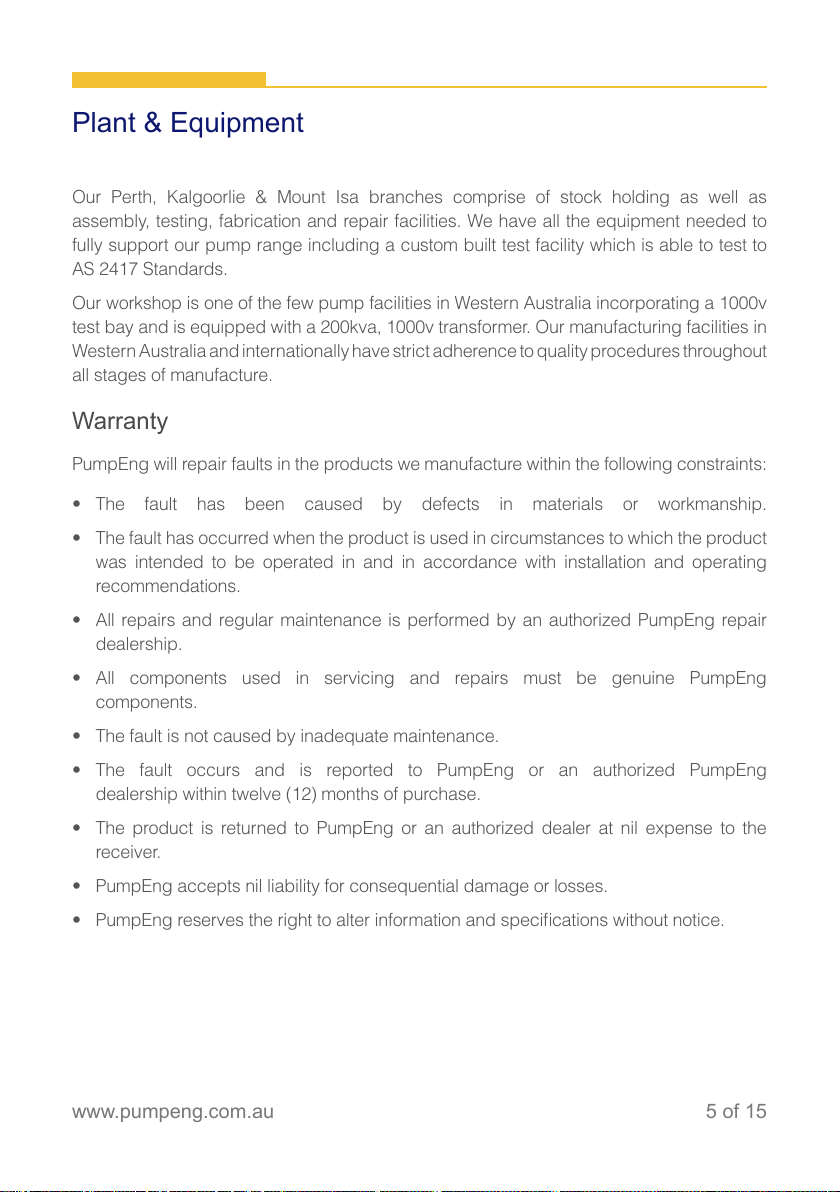

Warranty
PumpEng will repair faults in the products we manufacture within the following constraints:
Our Perth, Kalgoorlie & Mount Isa branches comprise of stock holding as well as
assembly, testing, fabrication and repair facilities. We have all the equipment needed to
fully support our pump range including a custom built test facility which is able to test to
AS 2417 Standards.
Our workshop is one of the few pump facilities in Western Australia incorporating a 1000v
test bay and is equipped with a 200kva, 1000v transformer. Our manufacturing facilities in
Western Australia and internationally have strict adherence to quality procedures throughout
all stages of manufacture.
The fault has been caused by defects in materials or workmanship.
The fault has occurred when the product is used in circumstances to which the product
was intended to be operated in and in accordance with installation and operating
recommendations.
All repairs and regular maintenance is performed by an authorized PumpEng repair
dealership.
All components used in servicing and repairs must be genuine PumpEng
components.
The fault is not caused by inadequate maintenance.
The fault occurs and is reported to PumpEng or an authorized PumpEng
dealership within twelve (12) months of purchase.
The product is returned to PumpEng or an authorized dealer at nil expense to the
receiver.
PumpEng accepts nil liability for consequential damage or losses.
PumpEng reserves the right to alter information and specifications without notice.
•
•
•
•
•
•
•
•
•
Plant & Equipment

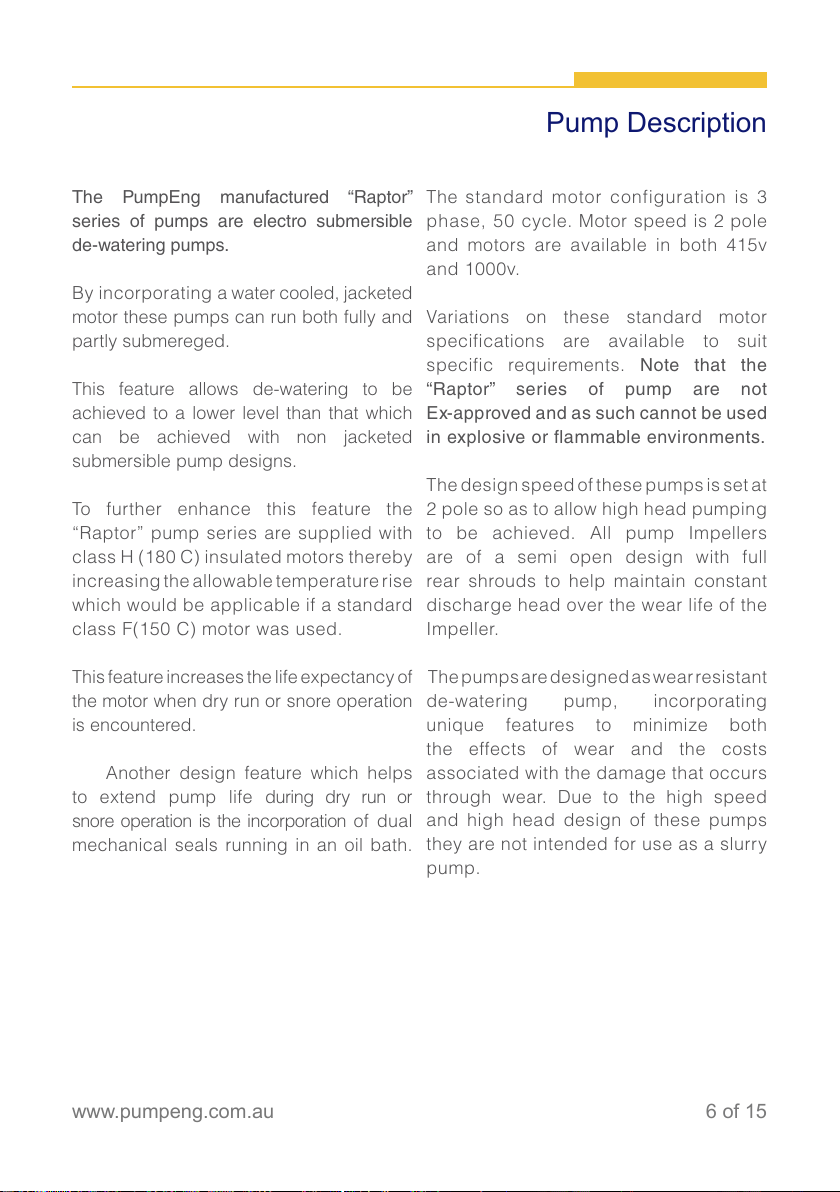

The PumpEng manufactured “Raptor”
series of pumps are electro submersible
de-watering pumps.
By incorporating a water cooled, jacketed
motor these pumps can run both fully and
partly submereged.
This feature allows de-watering to be
achieved to a lower level than that which
can be achieved with non jacketed
submersible pump designs.
To further enhance this feature the
“Raptor” pump series are supplied with
class H (180 C) insulated motors thereby
increasing the allowable temperature rise
which would be applicable if a standard
class F(150 C) motor was used.
This feature increases the life expectancy of
the motor when dry run or snore operation
is encountered.
Another design feature which helps
to extend pump life during dry run or
snore operation is the incorporation of dual
mechanical seals running in an oil bath.
The standard motor configuration is 3
phase, 50 cycle. Motor speed is 2 pole
and motors are available in both 415v
and 1000v.
Variations on these standard motor
specifications are available to suit
specific requirements. Note that the
“Raptor” series of pump are not
Ex-approved and as such cannot be used
in explosive or flammable environments.
The design speed of these pumps is set at
2 pole so as to allow high head pumping
to be achieved. All pump Impellers
are of a semi open design with full
rear shrouds to help maintain constant
discharge head over the wear life of the
Impeller.
Thepumpsaredesignedaswearresistant
de-watering pump, incorporating
unique features to minimize both
the effects of wear and the costs
associated with the damage that occurs
through wear. Due to the high speed
and high head design of these pumps
they are not intended for use as a slurry
pump.
6 of 15
www.pumpeng.com.au
Pump Description

Full Load Amps
Maximum discharge head
70 meters
15 amps
6 amps
Full Load Torque
Maximum flow
15 liters/second
26 Nm
26 Nm
Locked Torque/Full Torque
Discharge
80mm BSP Female
2.6
2.9
Speed
Gross Packed Weight
115 kg
2890 RPM
2890 RPM
Phase
Oil Type
Hydraulic 68 ISO68 or equiv
3
3
Hz
Winding Insulation
Oil Quantity
2.0 Litres
50
50
Maximum Water Temperature
40 C
Maximum Pump Submergence
22 m
Maximum SG of Pumped Water
1. 1
Class F/H
Class F/H
415v
1000v
Motor Details
Pump Details
7 of 15
www.pumpeng.com.au

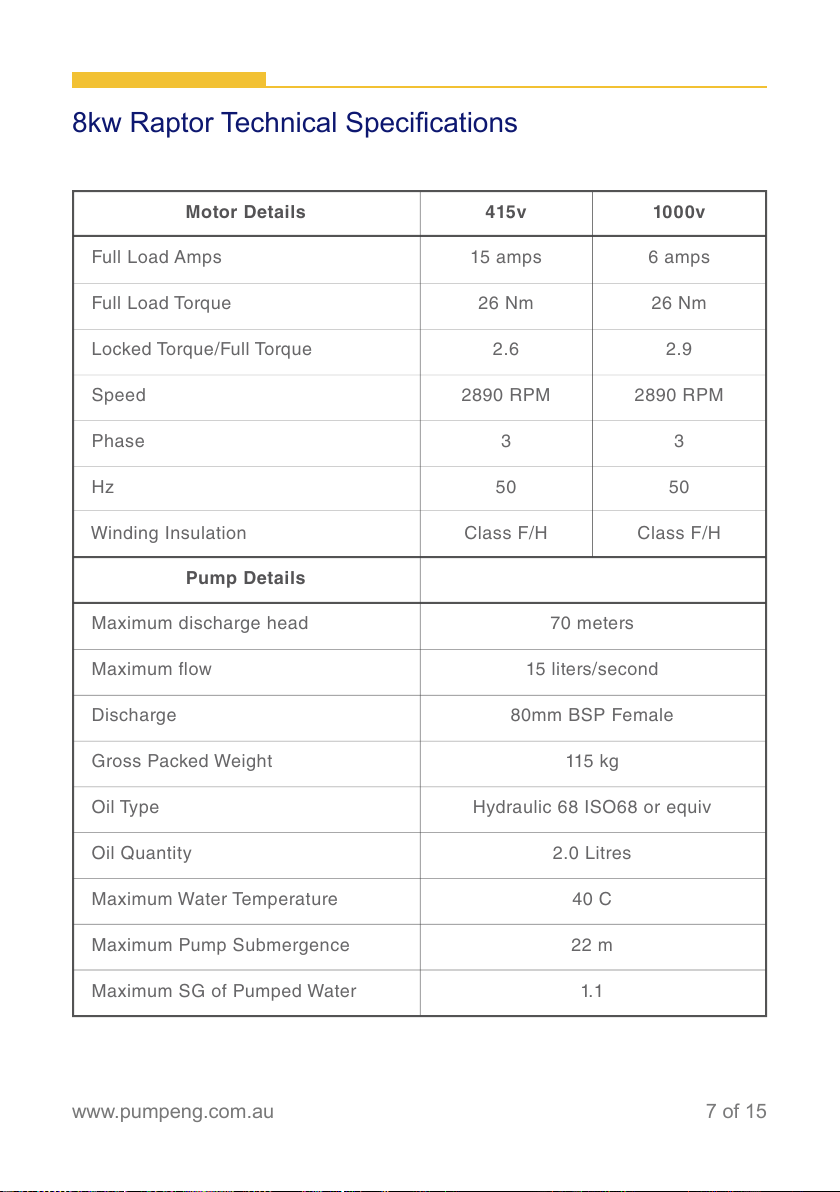

8kw Raptor Technical Specications

8 of 15
www.pumpeng.com.au
Transportation, Storage & Installation
•
•
•
•
•
•
•
•
•
Always lift the pump via the lifting handle. Never lift or drag the pump
via electrical power cable.
Always ensure the pump is secured and packaged to prevent damage
during transportation. When transporting along unsealed roads, pack
the pump so as prevent damage which can be caused to the bearings
and seals by excessive vibration.
Do not drop the pump as not only can this cause physical damage to
the exterior of the pump it can also cause damage to bearings and
mechanical seals.
Where pumps are stored for extended periods ensure that the cable,
seal sleeve and mechanical seals, are intact putting the pump into
operation, also ensure that the impeller can rotate freely and that
oil/grease levels are correct.
Installation must be undertaken by suitably qualified persons. Ensure all
relevant safety standards are adhered to and be aware of hazards
which exist in the area in question.
When positioning the pump in an operating environment take measures to
reduce the amount of solids and fines which can enter the pump.
Wear and associated repair costs are directly related to the amount of solids
being pumped.
Ensure that all electrical connections are correct and that suitable overload/motor
protection devices are used and that the pump is operating within its
designated current range.
Ensure the direction of rotation is correct.
Ensure discharge lines and fittings are properly secured and rated for the
installation’s design pressure. All discharge lines must be free of kinks
and blockages.

The Raptor series of pumps are designed for long periods of trouble free operation.
The frequency of service inspections is determined by the operating conditions
which the pump is operating in.
As a minimum the following inspections should be made every six (6) months, however
site maintenance staff should set inspection intervals based on the operating conditions
which the pumps are operating in.
Note that a drop in output capacity or changes in operating current are an indication
that the pump is in need of inspection.
Ensure all in inspection work is performed by suitably qualified and trained
persons.
Inspect the electrical power cable for damage and replace as necessary.
Measure the insulation resistance of the power cable and motor
windings. If the winding resistance is not correct then remove the
cable and measure the resistance of the windings only. If this reading returns
to normal replace the cable. If the reading does not return to normal the pump
should be sent to a PumpEng dealership for repairs.
Visually inspect all external components of the pump and replace any damaged
components.
Ensure that the cooling jacket internal waterways are free of obstruction, flush/clear
as required.
Check that all nuts, bolts and screws are secure. Remove the oil inspection
screws. (Danger this area may be under pressure, take appropriate
precautions) Lay the pump on its side and pour oil into a suitable container,
check the condition of the lower bearing housing oil. If there is any indication of
contaminates in the oil then it is possible that the mechanical seals
or bearing housing o-rings have failed and as such the pump
should be sent to a PumpEng dealership for repairs. If the oil is not
contaminated replace with new oil (quantity required is 2.0 Liters) ensuring
that the inspection screw o-rings are replaced and the inspection screws are
tightened to 20 Nm.
Remove the stator inspection screw. (Danger this area may be under pressure,
take appropriate precautions) lay the pump on its side and check if there is
any water or oil in the stator casing. If evidence of oil or water are present it is
•
•
•
•
•
•
•
9 of 15
www.pumpeng.com.au
Maintenance

indicative of a mechanical seal o-ring failure and as such it is recommended
that the pump be repaired by PumpEng dealership. If nil water or oil is evident
replace the stator inspection screw o-ring and ensure that the inspection screw
is tightened to 20 Nm.
Remove the junction box cover and inspect for signs of water. (Danger this
area may be under pressure, take appropriate precautions) If evidence of water
exists determine where the water has entered. If the water has entered from the
stator casing the pump should be returned to a PumpEng dealership for repairs.
If on the other hand the water has entered via the lid or power cable then replace
the cable, 0-rings and seal sleeve as necessary. When re-fitting the seal sleeve
ensure that the cable entry clamps are tightened securely on the electric power
cable.
Inspect all wet end components & replace as necessary.
•
•
10 of 15
www.pumpeng.com.au
8kw Torque List
8kw Raptor Torque List
Suction Cover Nut
1/2 unc
08120096
96
60 Nm
Impeller Nut
Diffuser Nut
1/2 unc
08120096
60 Nm
Special nut G1/2
0812001
1
70 Nm
Oil/Stator Inspection Screws
Strainer Nut
1/2 unc
1/2 unc
08120096
08120096
60 Nm
60 Nm
Special bolt 5/8 unc
08130072
72
20 Nm
Bearing Cover Bolt
Oil Housing Nut
1/2 unc
1/2 unc
08120096
08120096
60 Nm
60 Nm
1/4 unc x 13mm
08120087
87
8 Nm
Handle Bolt
Stator Housing Nut
Outer Casing Nut
Lid Nut
Top Cover Bolt
1/2 unc
3/8 unc x 3/4
08120096
08120141
141
60 Nm
10 Nm
1/2 unc x 3/4
08120089
89
30 Nm
Diffuser Disk Bolts
3/8 unc x 13mm
08120090
90
8 Nm
Bearing Housing Upper Bolt
3/8 unc x 3/4
08120091
91
25 Nm
Description
Recmd Torque Nm
Item
Part #
Item #
Cable Entry Nut
3/8 unc
08120095
95
Tighten until it bottoms
out to metal
Maintenance

11 of 15
www.pumpeng.com.au
WARNING
CATASTROPHIC OR FATAL ELECTRIC SHOCK MAY RESULT FROM FAILURE
TO CONNECT THE MOTOR CONTROL ENCLOSURE, METAL PLUMBING, AND
ALL OTHER METAL NEAR THE MOTOR OR CABLE, TO THE POWER SUPPLY
GROUND TERMINAL. TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DISCONNECT POWER BEFORE WORKING ON OR AROUND THE WATER SYSTEM.
THIS EQUIPMENT IS INTENDED FOR INSTALLATION BY TECHNICALLY
QUALIFIED PERSONNEL. FAILURE TO INSTALL IN COMPLIANCE WITH NATIONAL
AND LOCAL REGULATIONS, MAY RESULT IN ELECTRIC SHOCK OR FIRE
HAZARD, UNSATISFACTORY PERFORMANCE, AND EQUIPMENT FAILURE.
SUBMERSIBLE MOTOR INSTALLATION INFORMATION IS AVAILABLE FROM
PUMP MANUFACTURERS AND DISTRIBUTORS.
INSTALLATION INSTRUCTIONS FOR 3 PHASE
SUBMERSIBLE MOTORS
HANDLING AND INITIAL CHECKS
1.
2.
3.
4.
5.
6.
and advise the supplier immediately
if there appears to be any oil leakage.
On new installations and if the motor
has not been used for a long period
it must be “Meggered” at 1000V prior to
operation. The Megger reading / insulation
Resistance should be at least 100 Mohms
before operation and at least 50 Mohms
when hot after running.
Verify that the motor Mechanical Seal
chamber is full of oil to the fill plug level
prior to installation. (FAILURE TO ENSURE
THAT THE SEAL CHAMBER IS FULL OF
OIL PRIOR TO OPERATION WILL VOID ANY
WARRANTY CLAIMS).
Inspect the motor and cable for transport
damage. Report any visible damage to the
transport company and to your supplier
immediately.
Do not lift the motor using the supply
cable. Do not pull the supply cable. The
supply cable needs to be protected at
all times as a damaged cable may allow
water into the individual conductors
causing an Earth fault.
Check the motor nameplate data and
ensure that it matches your purchase order and
meets your requirements.
Motors are usually supplied with factory-installed
oil in the Mechanical Seal Chamber. Please
check for any signs of oil leakage,
IF THERE IS A WARRANTY INSPECTION
THE MOTOR MUST BE RETURNED TO
THE ORIGINAL SUPPLIER, OR PUMPENG,
WITH CABLES INTACT
(The oil chamber should only be filled to the level,
asindicated in thespecific pump modeltechnical
specs.) Ensure all filling plugs, drain plugs, cable
connections, and mounting bolts are tight.
Raptor Motors

12 of 15
www.pumpeng.com.au
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Please check the following:
13.
14.
15.
16.
17.
18.
19.
The motor has been correctly
selected to suit the pump, thrust
load from the pump, electrical
supply capacity, and water availability.
The motor should be installed to be
submerged at all times as this will ensure a
long service life.
These motors may overheat if they are run
continuously on full load while not
submerged or whilst running on the snore.
Connection of the motor to an incorrect
supply will void any warranty.
Protection against single phasing is strong-
ly recommended. If the motor fails due to
single phasing the warranty will be void.
Installation of Lighting Arrestors is also
recommended to protect the control panel,
motor cables, and the motor. Any failure
due to lightening will not be covered by
warranty.
Any cable joints must be done properly by
technically competent technicians. They
mustbewaterproofandgiveagoodelectrical
connection with no significant volt drop.
Reduced voltage starting using Soft
Starters, VVVF drives, Auto transformers,
(or Star-Delta starters if the motor has been
supplied with 6 leads out), can create
additional problems for submersible
motors. Please ensure compliance with the
following points.
Ambient Temperature of the water to be
pumped and ensure that it is less than the
temperature rating of the motor.
The PH of the water is between 6.5 and 8.
Maximum Chlorine content in water is less
than 500 PPM.
Maximum Sulphuric Acid Iron content in
the water is less than 15 PPM.
Maximum Flourine content in the water is
less than 0.8 PPM.
Maximum San content is less than 50 PPM.
The electrical control equipment includes
suitable fast acting current overload
protection, which is set to shut the motor
down within 3 seconds under locked
rotor current conditions.
The electrical control equipment includes
suitable fuses or circuit breakers to
disconnect the system if there is a fault.
Variation of the supply voltage and
frequency combination is within 5% of the
motor nameplate voltage and frequency.
Maximum voltage unbalance is less than 5%.
The cable sizes are calculated to ensure
that the voltage at the motor is still within
2% of the motor nameplate voltage after
allowing for volt drop at full load current.
Waterproof submersible type cables must
be used with these motors.
Checklist Prior to Installation

13 of 15
www.pumpeng.com.au
COMMISSIONING and OPERATION
A.
B.
C.
small reduction in voltage will lead to a
large reduction in starting torque).
Timers are set to ensure that the motor
has enough time to run the motor up to
speed as quickly as possible, and also
switch the motor over to full voltage
as quickly as possible and prolonged
running at reduced voltage will stress the
motor windings.
Correctly selected Overloads or Circuit
Breakers are correctly set to protect the
motor.
Suitable Short Circuit Protection is
installed.
The starter will allow the motor to generate
sufficient torque to start the pump and run
it up to speed. (In general the torque is
reduced by the square of the voltage a
D.
1.
2.
3.
4.
5.
6.
allowed 5 minutes to cool down
between each start.
It is strongly recommended that the
“Over Current” protection is set to trip at
about 5% higher than the steady state
current recorded when the motor/pump
is commissioned. It is not recommended
that the “Over Current” protection is
set at just above Full Load Nameplate
Current, as in a lot of cases, this will not
protect the motor if the current increas-
es, especially if the motor is not fully
loaded. We believe that the operator
needs to know if the current starts to
increase, so they can determine why.
All temperatures and all 3
phases of voltage and current
and insulation levels should be
recorded throughout the life
of the installation and moni-
tored and reviewed as a form of
preventative maintenance.
After energising the motor for the first
time, ensure that the starting current
drops to below the nameplate current
within 5 seconds, which means that
the motor has run up to full speed.
Check the starting reaction, flow
rate and pressure from the pump is
running in the correct direction of
rotation. Swapping any 2 of the 3
phase supply leads will change the
direction of rotation.
While the motor is running for the first
time check the water for sand. If sand
appears continue to pump until the
water clears. If the motor is switched
off while the pump is still pumping
sand this could accumulate in the
pump and cause it to seize up.
During testing or checking rotation
the number of starts and the time
between starts needs to be controlled.
As a general rule the motor should be
Checklist Prior to Installation

14 of 15
www.pumpeng.com.au
Maintenance
1.
2.
3.
drops below 2 Megohms the
installation needs to be carefully
checked out so as to determine the
cause of the low Megohm reading.
The output pressure and flow from
the pump should also be monitored
on a regular basis.
The normal running current, and voltage
on all 3 phases need to be recorded
on a regular basis.
The motor winding and the cable
insulation needs to be recorded on
a regular basis. If the cold insulation
The overall performance of the
pump and motor can be reviewed
based on the information being
recorded and this can be used to
determine any need for maintenance or
overhauling, which might be required.
The ball bearings have been greased for
life during assembly - there is no need
for additional oil or greasing during the
operating life of the motor and bearings.
The motor cannot be accessed unless it is
removed from the sump, so everything that
can be monitored on a regular basis, and
any unexplained changes investigated.

15 of 15
www.pumpeng.com.au
Raptor Motors Connection Arrangement

www.pumpeng.com.au
Perth
1/18 Renewable Chase
Bibra Lake WA 6163
[email protected]
Email us:
Mount Isa
Kalgoorlie
8 Keogh Way
Kalgoorlie WA 6430
Mount Isa
QLD 45825
[phone]
0457 006 407
[phone]
