Punktal PK-MA320 User manual

key
board control
plate
fuse
High
volt age
diod e
magnetron
highvoltagetransfomer
highvoltagecapacity
Circuit Diagram
PK-MA320
MICROONDAS

520mmX430mmX290mm
220V~50Hz
PK-MA320
900W

7.5CM
30CM
7.5CM

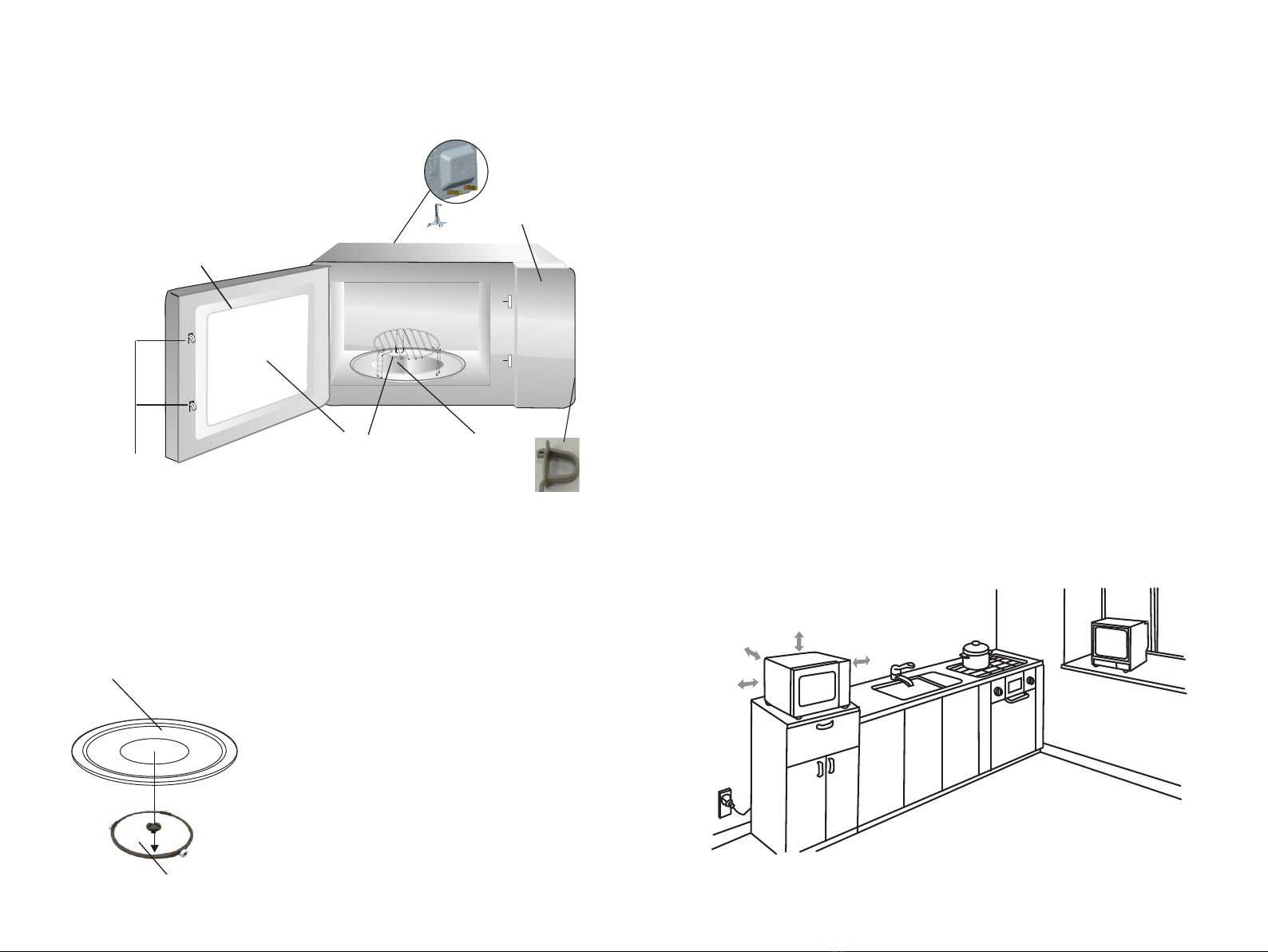

A
C
D
E
F
B
G
F

Palomitas
de Maíz

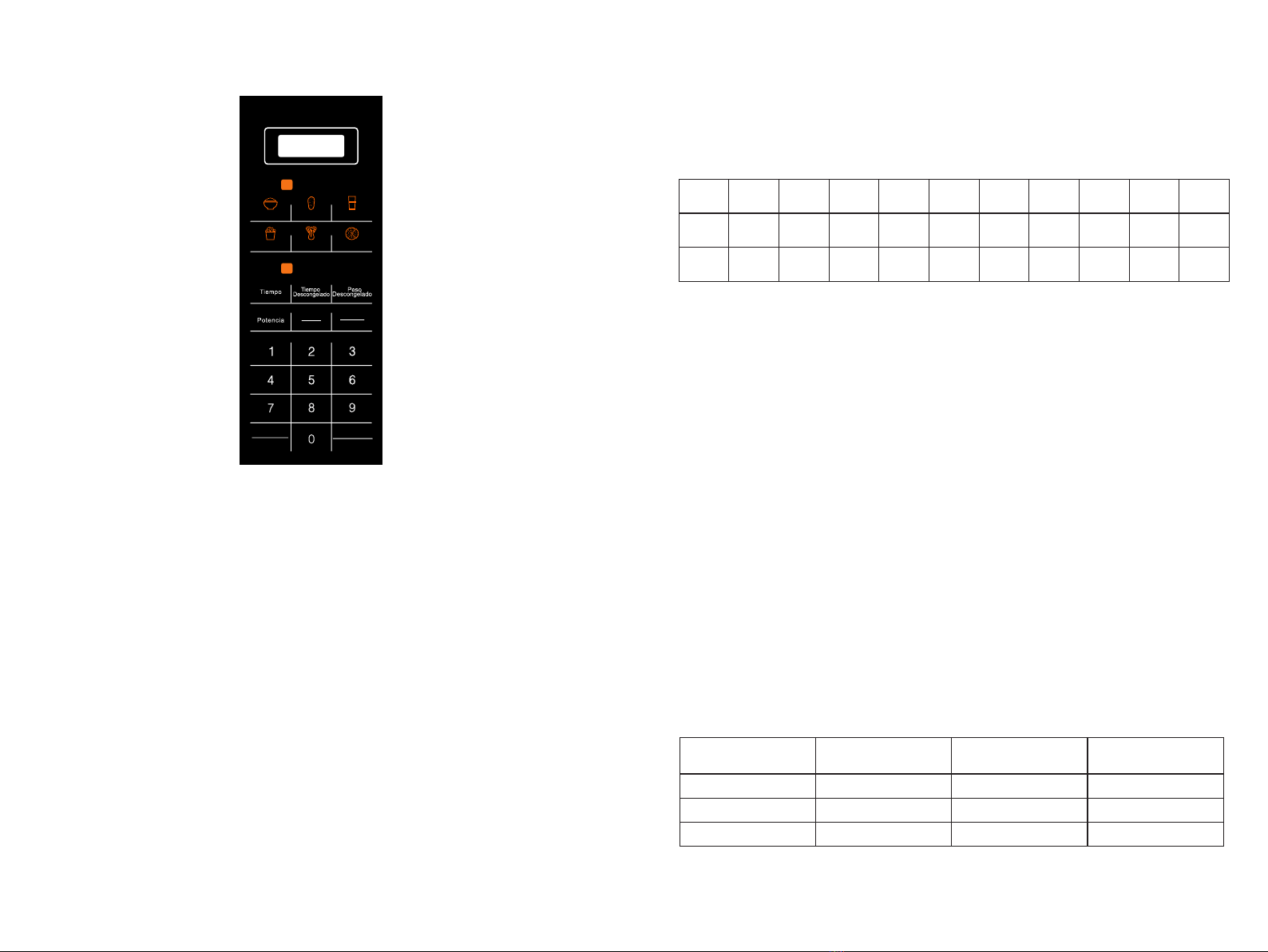

INICIO
+30 Seg
PAUSA
BORRAR
ENÚ RÁPIDO
Cena Tubérculos Bebidas
Vegetales Pizza
UNCIONES
Reloj
Hora
Grill
Combi.
M
F
PRECAUÇÕES PARA EVITAR POSSÍVEL EXPOSIÇÃO EXCESSIVA A ENERGIA DO MICROONDAS

255 340
340
100 250
250
120
90

key
board control
plate
fuse
High
voltage
diode
magnetron
highvoltagetransfomer
highvoltagecapacity
Circuit Diagram
PK-MA320
MICROONDAS

Specifications
Model:
Rated Voltage
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
PK-MA320
220V~50Hz
1250W
800W
25L
270 mm
520mmX430mmX290mm
Approximately 13.5kg
EN-2
Rated Grill Power: 900W
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, injury to persons or exposure to excessive
microwave oven energy when using your appliance, follow basic precautions,
including the following:
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to break or tamper with the
safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated
until it has been repaired by a competent person.
(d) Do not cook under empty load status or use metal vessel when heating.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be
degraded and affect the lifespan of the apparatus and lead to a dangerous situation.
1. Warning: Liquids and other foods must not be heated in sealed containers since they
are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover
which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a safe way
and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should
only use under adult supervision due to the temperatures generated. (only for grill
series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAU-TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in
order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread,
cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions
provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave
ovens since they may explode, even after microwave heating has ended.
15.This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
16.Children shall not play with the appliance.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
EN-3

EN-5
20. Use this appliance only for its intended uses as described in manual. Do not use
corrosive chemicals or vapors in this
appliance. This oven is especially designed to heat. It is not designed for industrial or
laboratory use.
21. If the supply cord is damaged, it must be replaced by the manufacturer, its service
22. Do not store or use this appliance outdoors.
23. Do not use this oven near water, in a wet basement or near a swimming pool.
24. The temperature of accessible surfaces may be high when the appliance is operating.
The surfaces are liable to get hot
during use. Keep cord away from heated surface, and do not cover any vents on the
oven.
25. Do not let cord hang over edge of table or counter.
26. Failure to maintain the oven in a clean condition could lead to deterioration of the
surface that could adversely affect the life of the appliance and possibly result in a
hazardous situation.
27. The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
28. Microwave heating of beverages can result in delayed eruptive boiling; therefore
take care when handling the container.
29. The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
30. Children should be supervised to ensure that they do not play with the appliance.
31. The microwave oven shall not be placed in a cabinet unless it has been tested in a
cabinet.
32. Appliances should be forbidden to be operated by means of an external timer or separate
remote-control system.
33. The door or the outer surface may get hot when the appliance is operating.
34. The rear surface of appliance shall be placed against a wall.
1.Take care not to spill water on the glass floor during or immediately after grilling
as it may crack.
2.Be sure to use an oven glove when loading and unloading the oven.
3.Be careful not to press the viewing window when loading or unloading the oven.
4.Do not place items on the oven as the top of the cabinet gets very hot when grilling.
The oven surface, air vents and door will be very hot during and after grill cooking,
do not touch them in case of injury.
5.The heater gets on or gets off periodically during grilling.
6.The utensils will be very hot during cooking. DO NOT touch the heater of the oven.
7.Do not use steam to clean the oven.
8.The grill function of this oven is designed in accordance with the grill rack.
9.When the appliance is operated in the combination mode, children should only use
the oven under adult supervision due to the temperatures generated.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet
until appliance is properly installed and grounded.
WARNING
EN-4
35.This appliance is intended to be used in household and similar applications
such as.
(1)staff kitchen areas in shops, offices and other working environments;
(2)farm houses and by clients in hotels, motels and other residential type environments;
(3)bed and breakfast type environments;
(4)catering and similar non-retail applications.
17.Cleaning and user maintenance shall not be made by children unless they are older
than 8 and supervised.
18.Keep the appliance and its cord out of reach of children less than 8 years.
19.If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or ist service agent.
1. A short power-supply cord is provided to reduce the risks resulting
from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the
counter top or tabletop where it can be pulled on by children or
tripped over unintentionally.
Be sure to unplug the appliance from the power supply.
1.Clean the inside of the oven after using with a slightly damp cloth.
2.Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp
cloth when they are dirty.

EN-6 EN-7
CAUTION
Personal Injury Hazard
UTENSILS
Materials you can use in microwave oven
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin
parts of meat or poultry to prevent overcooking. Arcing can occur
if foil is too close to oven walls. The foil should be at least 2.5cm
away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish
must be at least 5mm above the turntable. Incorrect usage may
cause turntable break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do
not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Oven cooking
bags
Follow manufacturer's instructions. Do not close with metal tie.
Make slits to allow steam to escape.
It is hazardous for anyone other than a competent person to carry out any service or
repair operation that involves the removal of a cover which gives protection against
exposure to microwave energy.
See the instructions on "Materials you can use in microwave oven or to be avoided in
microwave oven."
There may be certain non-metallic utensils that are not safe to use for micro waving. If
in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the
utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
4. Do not exceed 1 minute cooking time.
Utensils Remarks
Paper plates
and cups
Use for shortterm cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment
paper
Plastic
Plastic wrap
Thermometers
Wax paper
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer's instructions.
Should be labeled "Microwave Safe". Some plastic containers
soften, as the food inside gets hot. "Boiling bags" and tightly
closed plastic bags should be slit, pierced or vented as directed
by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Microwave-safe only (meat and candy thermometers).
Microwave-safe only.Use as a cover to prevent splattering and
retain moisture.
May cause arcing. Transfer food into microwave-safe dish.
Aluminum tray
Food carton with
metal handle May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may
cause arcing.
Metal twist ties
Paper bags
Plastic foam
Wood
May cause arcing and could cause a fire in the oven arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood will dry out when used in the microwave oven and may
split or crack.
To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance.
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wireextension cord.

Turntable Installation
A. Never place the glass tray upside down. The glass
tray should never be restricted.
B. Both glass tray and turntable ring assembly must
always be used during cooking.
C. All food and containers of food are always placed
on the glass tray for cooking.
D. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Countertop Installation
Remove all packing material and accessories. Examine the oven for any damage such
as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.
Do not remove the light brown Mica cover that is attached to the oven cavity to protect
the magnetron.
Installation
1.Select a level surface that provides enough open space for the intake and/or
outlet vents.
A minimum clearance of 7.5cm is required between the oven and any adjacent
walls. One side must be open.
(1) Leave a minimum clearance of 30cm above the oven.
(2) Do not remove the legs from the bottom of the oven.
(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible. Operation of
Microwave oven may cause interference to your radio or TV reception.
2.Plug your oven into a standard household outlet. Be sure the voltage and the
frequency is the same as the voltage and the frequency on the rating label.
Do not install oven over a range cook top or other heat-producing WARNING:
appliance. If installed near or over a heat source, the oven could be damaged
and the warranty would be void.
7.5CM
30CM
OPEN
7.5CM
EN-8 EN-9
Shut off oven power if the door is opened during operation
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray
Turntable ring assembly
Instruction Manual
1
1
1
Glass tray
Turntable ring assembly
A
C
D
E
Operation.
A) Control panel
B) Glass tray
C)Observation window
D) Door assembly
E) Safety interlock system
F) Stop Pin
G)Frame
F
B
GF

EN-10
OPERATION

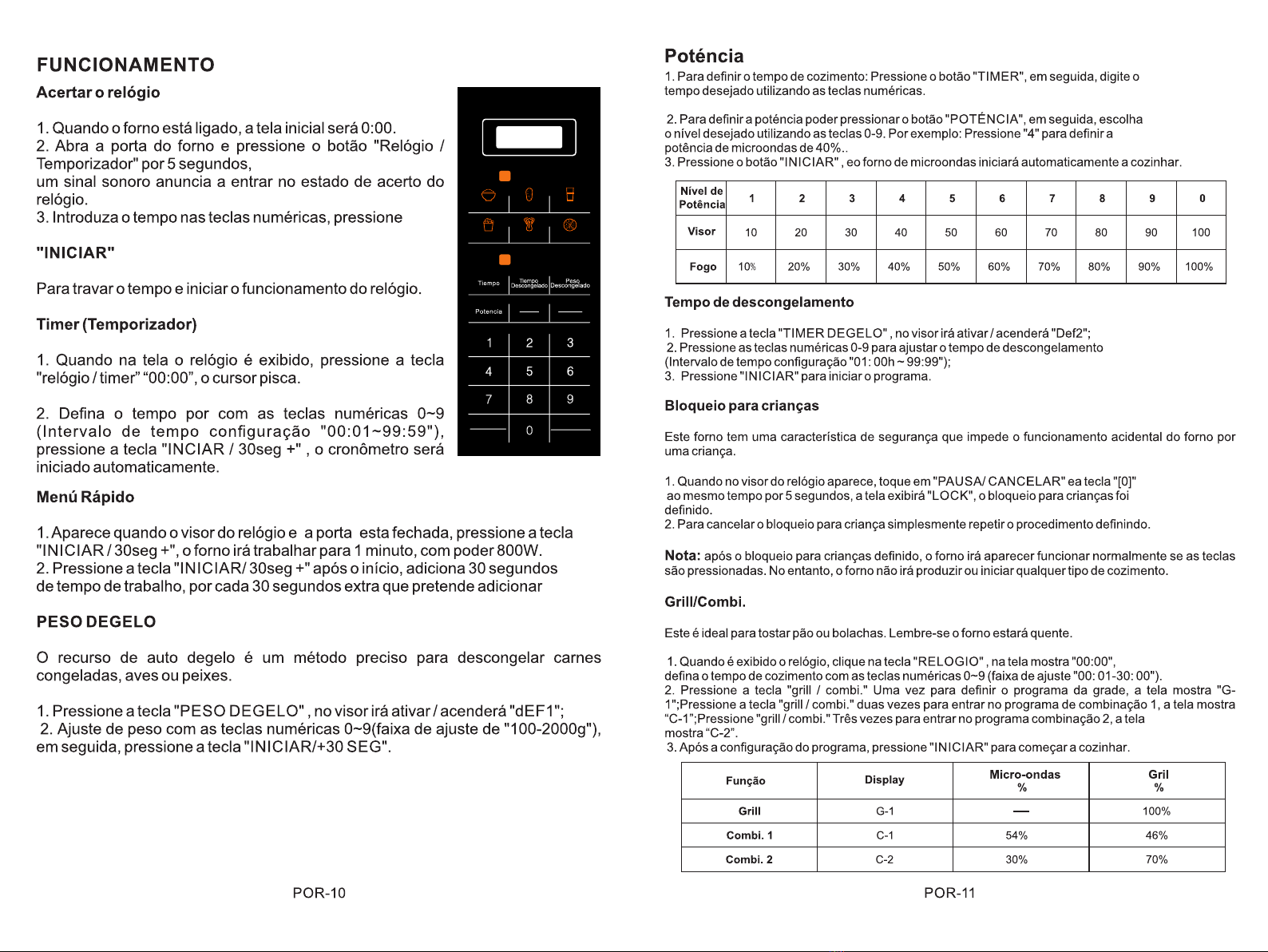

Control Panel and Features
Operation Instructions
Setting the Clock
1.When the oven is plugged, initial display will be 00:00.
2.Open the door of oven and press “clock/timer” key for 5 seconds, a beep sound to
enter clock setting status.
3.Input the time by number keys, press “start” key to lock in the time and start the clock
running.
Timer
1.When clock displays, press “clock/timer” key , screen shows “00:00”, the cursor
flashes.
2.Set the time by 0-9 number keys(setting range “00:01-99:59”), press
“start/+30sec”key,the timer will start automatically.
Quick Start
1.When the clock display appears and the door is closed, touch the “start/+30sec” key,
the oven will work for 1 min with 700W power.
2. Press the “start/+30sec” key after starting could add 30 seconds working time.
Weight Defrost
The auto defrost feature is an accurate defrosting method for frozen meat,
poultry or fish.
1.Press “weight defrost” key, screen shows “dEF1”;
2. Adjust weight by 0-9 number keys (setting range “100-2000g”), then press
“start” key.
EN-11
Power
Level
Display
Fire
12345678910
10 20 30 40 50 60 70 80 90 100
10%20% 30% 40% 50% 60% 70% 80% 90% 100%
Time Defrost
1.Press the “time defrost” key, the screen shows “dEF2”;
2. Press the 0-9 number keys to adjust the defrost time( Time setting range “01:00-
99:99”);
3.press “start” to begin the program.
Child Lock
This oven has a safety feature which prevents the accidental running of the oven by a
child.
1.When the clock display appears in the display window, touch “stop/cancel” key and
“[0]” key at the same time for 5 seconds, the screen displays “LOCK”, the child lock
has been set.
2.To cancel child lock simply repeat setting procedure.
Note: after the child lock has been set, the oven will appear to operate normally if the
keys are pressed. However the oven will produce no actual microwave power.
Grill/Combi.
This function is ideal for toasting bread or muffins. Remember the oven will be hot.
1. When clock displays, press “time cook” key, the screen displays “00:00”, set the
cooking time by 0-9 number keys (setting range “00:01-30:00”).
2. Press “grill/combi.” key once to set the grill program, the screen displays “G-1”;
Press “grill/combi.” key for twice to enter combination program 1, the screen
displays “C-1”;
Press “grill/combi.” three times to enter combination program 2, the screen displays
“C-2”.
3. After program setting, press “start” key to begin cooking.
Function Display Microwave
Percent Grill Percent
Grill
Combi. 1
Combi. 2
G-1
C-1
C-2
-
54%
30% 70%
46%
100%
Microwave Power
1.To set the time of cooking: press the “time cook” key, then input the desired time
using the number keys.
2. To set cooking power by pressing the “power level” key, then choose the desired
level through the 0-9 number keys. For example: Press “4”to set 40% microwave power.
3. Press “start” key , and The microwave oven will automatically start cooking.
Palomitas
de Maíz
INICIO
+30 Seg
PAUSA
BORRAR
ENÚ RÁPIDO
Cena Tubérculos Bebidas
Vegetales Pizza
UNCIONES
Reloj
Hora
Grill
Combi.
M
F

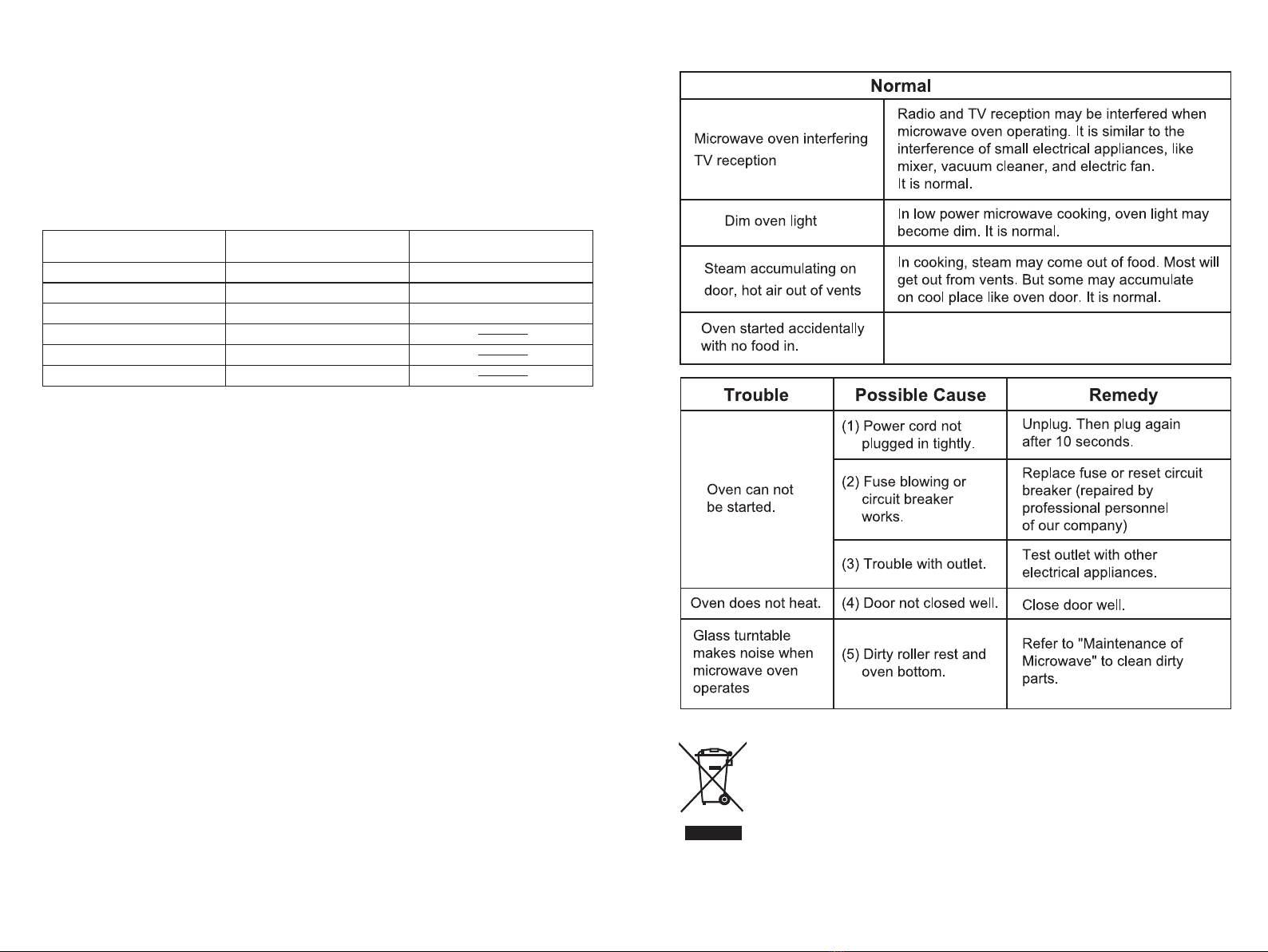

Trouble shooting
According to Waste of Electrical and Electronic Equipment (WEEE)
directive, WEEE should be separately collected and treated. If at any
time in future you need to dispose of this product please do NOT dispose
of this product with household waste. Please send this product to WEEE
collecting points where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.
EN-13
First Stage Second Stage. Third Stage
Microwave Microwave Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Grill
Combi.
Grill
Combi.
Quick Menu
Note: The function has a built-in pause mechanism to allow for checking and rearranging the
food. When pause the screen shows “P”, please open the door and turn over the food, then
close the door, the oven will continue working.
DINNER
1.When clock displays, press “dinner” key, the screen displays “di”;
2.Press “dinner”again, “1”(255g), “2”(340g), will display in turn, choose your desired
weight.
For example: Press “dinner”key twice(the screen displays “2”) to set the weight for 340g.
3.Press “start/+30SEC”key to start dinner program.
POTATO
1.When clock displays, press “potato” key, the screen displays “Po”;
2.Press “potato”again, “1”(100g), “2”(250g), will display in turn, choose your desired
weight.
For example: Press “potato”key twice (the screen displays “2”) to set the weight for 250g.
3.Press “start/+30SEC”key to start potato program.
BEVERAGE
1.When clock displays, press “beverage” key, the screen displays “bE”;
2.Press “beverage”again, “1”(100g), “2”(250g), will display in turn, choose your desired
weight.
For example: Press “beverage”key twice(the screen displays “2”) to set the weight for 250g.
3.Press “start/+30SEC”key to start beverage program.
POPCORN
1.When clock displays, press “popcorn” key, the screen displays “PoP”;
2.Press “start/+30SEC”key to start popcorn program(weight setting: 120g).
VEGETABLE
1.When clock displays, press “vegetable” key, the screen displays “vE”;
2.Press “start/+30SEC”key to start vegetable program(weight setting: 100g).
PIZZA
1.When clock displays, press “pizza” key, the screen displays “PI”;
2.Press “start/+30SEC”key to start pizza program(weight setting: 90g).
EN-12
Multi-Stage Cooking
At most 3 stages can be set in multi-stage cooking program.
Note: The grill/combi. function can only be set at the last stage.
Example: if you want to cook with 80% microwave power for 5 minutes + 60%
microwave
power for 10 minutes. The cooking steps are as following:
(1) Press "Time Cook", then press 0-9 number keys to set the cooking time 05:00;
(2) Press "Power Level", then press "8" to select 80% microwave power.
(3) Press "Time Cook" , then press 0-9 number keys to set the cooking time 10:00;
(4) Press "Power Level" , then press "6" to select 60% microwave power.
(5) Press "START/ +30 SEC." to start cooking.
