Thank you for choosing Highway H250S. This manual will get you up and running in no time,
and explains how to make the most of your Highway H250S. We’re constantly improving and
adding new features to our products. To take advantage of any enhancements made since
your product was shipped, please visit support.pure.com where you can check for any updated
versions of software and download the latest version of this user guide in PDF format.
VOL
SEL
IN TTOP RP T
H250S
FR
NO
ENGLISH
DE
NL
IT

2
Please read through these operating instructions
so you will know how to operate Highway properly.
After you have finished reading the instructions,
keep this manual in a safe place for future reference.
Precautions
Use only in a 12-volt DC negative-ground
electrical system.
Disconnect the vehicle’s negative battery
terminal while mounting and connecting the
unit.
When replacing the fuse, be sure to use one
with an identical amperage rating.
Using a fuse with a higher amperage rating
may cause serious damage to the unit.
DO NOT attempt to disassemble the unit. Laser
beams from the optical pickup are dangerous
to the eyes.
Make sure that no pins or other objects get
inside the unit as this may cause malfunctions,
or create safety hazards such as electric
shocks or laser beam exposure.
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating
Highway.
Keep the volume at a level where you can still
hear outside warning sounds (horns sirens,
etc.).
Stop the car before performing any complex
operations.
CD notes
Playing a defective or dusty CD can cause
dropouts in sound.
Handle the CD by holding its inner and outer
edges.
Do not touch the surface of the unlabelled side
of the CD.
Do not attach any seal, label or data protection
sheet to either side of a CD.
Do not expose a CD to direct sunlight or
excessive heat.
Wipe a dirty CD from the centre outwards with
a cleaning cloth.
Never use solvents such as benzine or alcohol.
Highway can not play 3-inch ( 8cm ) CDs.
Never attempt to insert a 3-inch CD with
an adapter or other irregularly shaped CD.
Highway may not be able to eject it, resulting in
a malfunction.
In addition to ordinary CDs, Highway can also
play back CD-R/CD-RW/MP3/UDF discs.
Caution
Please power off Highway and return it to the after-
sales service centre or dealer /distributor that you
purchased Highway from if one of the following
symptoms occurs:
(1) Water or other obstacle enters Highway;
(2) Smoke;
(3) Highway emits a burning smell.
Safety information

3
Warranty information
Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the
course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or
design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification
or repair not authorised by us.
Please visit www.pure.com/register to register your product with us. Should you have a problem with your unit please contact your
supplier or contact Pure Support at the address shown on the rear of this manual. If you need to return your product please use the
original packaging and include all parts and accessories. We reserve the right to refuse incomplete or badly packaged returns.
Note: To register Highway you will need Highway’s serial number, which can be found on the back of the detachable front panel.
Disclaimer
Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically
disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited
reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies
Limited to notify any person or organization of such revisions or changes.
Copyright
Copyright 2014 by Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed,
transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means,
electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination
Technologies Limited. Version 4 July 2014.
Trademarks
Highway H250S, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered
trademarks of Imagination Technologies Limited, iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
“Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect
specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance
standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.
Contents
4 Getting started
4 Front panel controls
5 Using your Highway
5 Removing and fitting the detachable
front panel
5 Listening to digital radio
6 Listening to FM or MW radio
6 Service following
7 Listening to a CD or USB drive
10 Listening to iPod or iPhone content
12 Setup options
12 Options available in digital radio
12 Options available in FM radio
14 General options
15 Adjusting audio settings
16 Appendix
16 Electrical connections
17 Installation guide
18 Carrying out a factory reset
18 Removing the Highway head unit
19 Troubleshooting
20 Specifications
EN

4
Front panel controls
1. Press to eject a CD
2. Power/Mute
3. Toggle the audio source
4. Sound effect setting
5. TUNER mode (FM or MW only):
- Preset scan
- Auto store (long press)
DAB mode – Autotune
6. Unlock the front panel.
7. Display switch
- Adjust system setup (long press)
8. Band switch:
- TUNER mode – FM1 > FM2 > FM3 > MW
- DAB mode – D1 > D2 > D3
9. Adjust volume level / Confirm (press)
10. Button 1: Play / Pause / Top play (long press)
(see page 7) / Preset station 1
Button 2: Scan play / Preset station 2
Button 3: Repeat play / Preset station 3
Button 4: Random play / Preset station 4
Button 5: Previous folder / Preset station 5 /
MP3 and WMA tracks -10 down (long
press)
Button 6: Next folder / Preset station 6 / MP3
and WMA tracks +10 up (long press)
11. Aux-in socket
12. USB connector (open cover)
13. CD mode – Previous / next track
TUNER mode – Manual tune (short press)
Seek + / - (long press)
DAB mode – Previous / next station
14. CD slot
15. TUNER mode – PTY select
CD mode – No function
DAB mode – No function
AUX mode – No function
iPod mode – iPod menu
CD/USB MP3 and WMA mode – Folder search
16. DAB button – Press to toggle between digital
radio and previously used audio source
17. Traffic announcement
Getting started
VOL
SE L
IN TTOP RPT

5
Using your Highway
Listening to digital radio
Selecting digital radio as playing source
Press DAB once, or Source repeatedly until ‘DAB’ is
displayed on the screen.
Changing digital stations
Press the or buttons to scroll through the
list of stations and press the VOLUME dial to select.
Choosing a digital radio band
Highway includes a BAND button that you can press
to change the stations that are allocated to the six
preset buttons. There are three bands available for
digital radio, allowing you to store up to 18 digital
radio presets. Press BAND to select band D1, D2
or D3.
Storing and selecting presets
Manually storing a preset
Tune into the digital radio station you want to store.
Press and hold one of the numbered preset buttons
(1-6) to store it in the memory.
Recalling a preset
To tune to a preset, press the corresponding preset
button (1 to 6).
Carrying out an autotune
The autotune function scans all digital radio
frequencies and automatically updates the station
list by adding any stations found and removing any
stations that are no longer available. To carry out an
autotune, press the PS/AS button.
Removing and fitting the
detachable front panel
To help improve security, Highway has a
detachable front panel so you can take it with you
whenever you leave your car.
Note: To prevent damage, place the front panel in
the protective case whenever you remove the front
panel from the head unit.

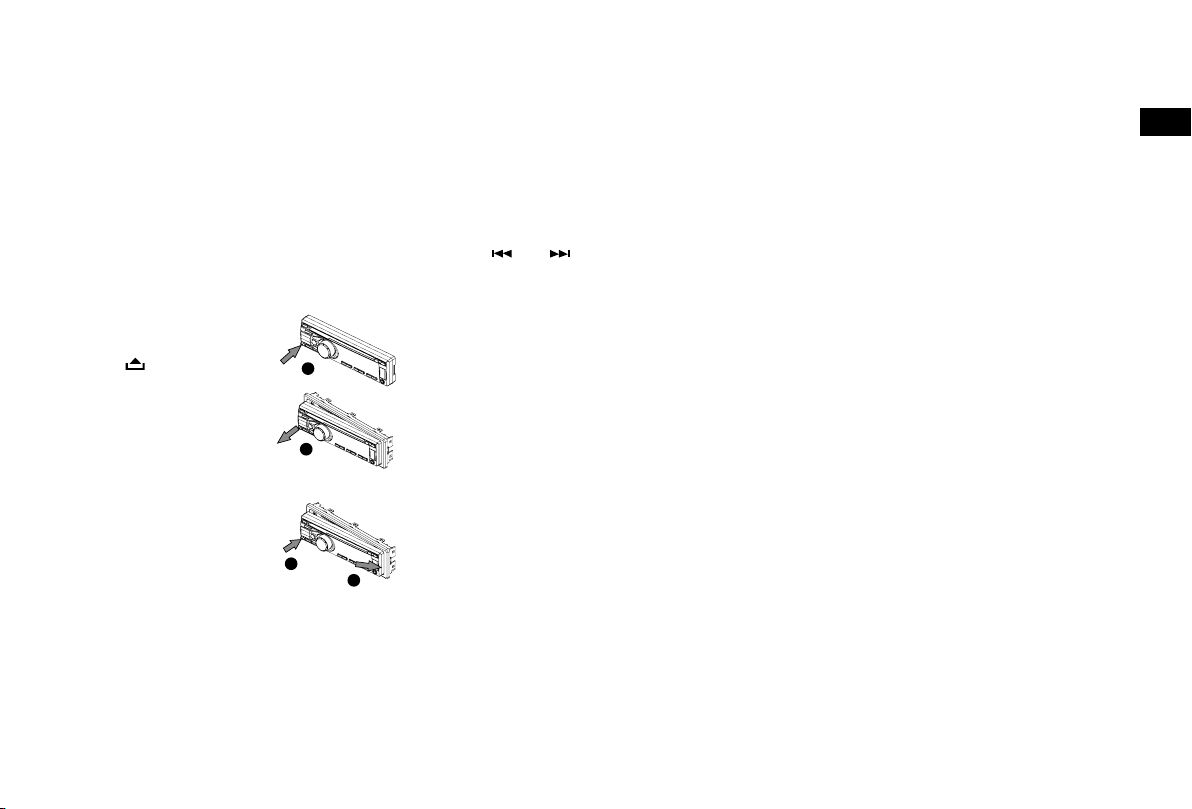

Removing the detachable
panel
1. Press the button.
2. Hold the loose part of the
panel and remove from the
head unit.

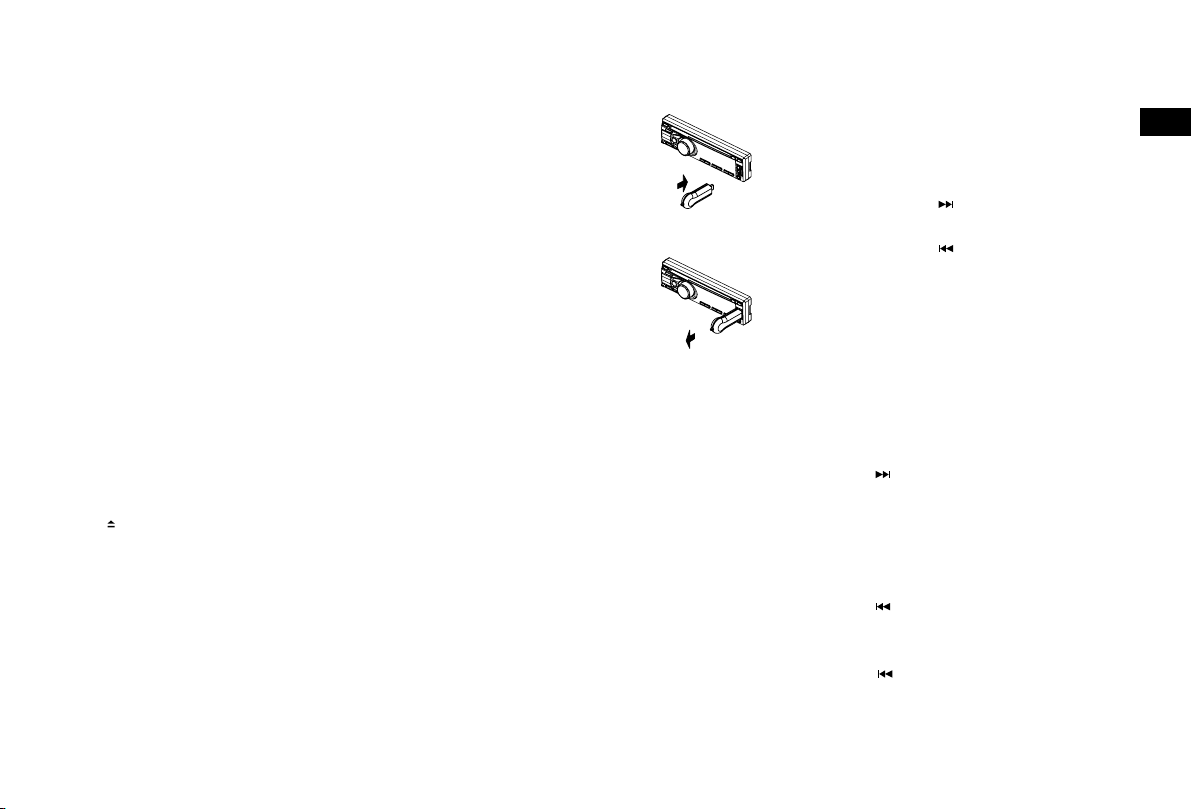

Fitting the detachable
panel
1. Line up the groove on the
right side of the face panel
with the slot on the unit.
2. Press down the left side of
the face plate until it clicks
into the panel slot.
2
2
1
1
2
2
1
1
Changing the information shown on
screen
In digital radio mode, Highway displays two
rows of text. The first row always displays the
name of the radio station.
You can toggle the information that is
displayed on the second row by pressing the
DISP button.
Highway can display the current time, scrolling
text, programme type (PTY) information, multiplex
(MUX), band information and frequency.
EN

6
Listening to FM or MW radio
Press SOURCE repeatedly until ‘TUNER’ is
displayed on the screen.
Changing FM or MW stations
Manual tuning
Press the or buttons to tune in to a higher
or lower station.
Seek tuning
Press and hold the or buttons to seek to
the next or previous radio station that has a strong
signal.
Note: To stop seek tuning, repeat the steps above
or press any other button that has a radio function.
Choosing an FM or MW radio band
Highway includes a BAND button that you can
press to change the stations that are allocated to
the six preset buttons. In FM there are three bands
available, allowing you to store up to 18 FM presets.
In MW there is only one band available, allowing
you to store up to 6 presets. Press BAND to select
either FM1, FM2, FM3 or MW.
Storing and selecting presets
Manually storing a preset
Tune into the FM or MW radio station that you
want to store. Press and hold one of the numbered
preset buttons (1-6) to store it in the memory.
Recalling a preset
To tune to a preset, press the corresponding preset
button (1 to 6).
Auto storing presets
You can use the auto store function to automatically
populate your presets with radio stations that are
detected by Highway.
Press and hold the PS/AS button to start automatic
station search.
To stop auto store, press any button that has a
radio function.
Notes: If you start the auto store function in an
FM band, the auto store function will automatically
populate the presets in all the FM bands (FM1, FM2
and FM3). If you start the auto store function in the
MW band, the auto store function will automatically
populate the presets in the MW band.
Preset scan
You can use the preset scan function to listen
to ten seconds of audio from each of the radio
stations stored in your presets.
1. Press the PS/AS button to begin the preset
scan.
2. Press the PS/AS button again when you hear a
station that you want to listen to.
Note: Pressing the PS/AS button for more than
one second will start the auto store function, which
will overwrite all your presets.
Changing the information shown on
screen
In FM mode, Highway displays two rows of text.
The first row will display RDS information if it is
available. If there is no RDS information, the band
and frequency will display.
You can toggle the information that is displayed
on the second row by pressing the DISP button.
Highway can display the current time, scrolling text
(if available), programme type (PTY) information,
and band and frequency.
Service following
If you are listening to a digital radio station and
you lose the digital radio reception, Highway’s
service following feature will always attempt to
automatically tune in to the same radio station with
a better reception or a similar digital radio station. If
the same or a similar digital station cannot be found,
Highway will attempt to find the same station in FM
mode*.
Note: If Highway has used service following to
retune a digital radio station to the same FM station,
Highway’s screen will display ‘FM’ after the radio
station’s name.
Note: Digital to FM service following will not work
if TA standby mode is enabled. See page 12 for
more information.
*Service following is only supported by some broadcasters.

7
Listening to a CD or USB drive
Highway can play audio CDs and MP3 and WMA
files that are stored on a CD or USB drive.
Note: Highway cannot play AAC files stored on a
CD or USB drive.
Loading a CD
Insert a CD into the centre of the CD slot with the
label facing upwards. The CD will play automatically
after it has been loaded.
Notes:
• Never insert foreign objects into the CD slot.
• If the CD is not inserted easily, there may be
another CD in the mechanism or the unit may
require a service.
• Some CD-R/CD-RW discs may not be usable.
• In addition to ordinary CDs Highway can also
play back CD-R and CD-RW discs.
Ejecting a CD
Press the button to eject a CD.
Notes:
• Forcing a CD into the unit can damage the CD.
• If a CD (12 cm) is left ejected for 15 seconds, the
CD is automatically reloaded.
Listening to a CD that is already loaded
in Highway
Press the SOURCE button to select CD/MP3
mode.
When Highway enters CD/MP3 mode, the CD will
play automatically.
Playback controls for an audio CD and
MP3/WMA tracks saved to a CD or
USB drive
Fast-forward
Press and hold the button.
Rewind
Press and hold the button.
*For MP3/WMA discs, there may be a slight
delay when searching and skipping between
tracks.
Pausing playback
Press the 1button to pause playback. Whilst
playback is paused, ‘PAUSE’ will appear on the
display.
To resume playback , press the 1button again.
Skipping to the next track
Press the button to skip to the beginning of
the next track.
If you are listening to an MP3/WMA file, press
and hold the 6 button (1 sec.) to move ahead
10 tracks.
Playing the previous track
Press the button within the first 10 seconds
of the track to go to the previous track.
Playing the beginning of a track
Press the button after the first 10 seconds
of the track to go to the start of the track.
For MP3/WMA files, press and hold the 5button
(1 sec.) to move back 10 tracks.
Inserting a USB drive
Insert a USB device into the
USB connector.
When connecting a USB
device, the unit will read the
files automatically.
Removing a USB drive
Before removing a USB drive,
select another source or
turn off the power to avoid
damaging the USB device.
For more information on
listening to MP3 or WMA files
see the following section.
1
2
1
2
EN

8
Random play function
If listening to an audio CD, you can use the random
play function to play all the tracks on the CD in a
random order.
If listening to an MP3 or WMA file, you can use the
random play function to play all the MP3 or WMA
files on the CD or USB drive in a random order.
Press the 4button to toggle the random play
function on ‘RDM ON’ and off ‘RDM OFF’.
Displaying title data
Highway can display the title data for MP3 and
WMA files.
If the CYCLE setting is OFF (see page 14), you
can press the DISP button to change the title data
displayed on the screen. Highway can display the
following data about the MP3 or WMA file:
File name > Folder name > Track Title > Album >
Artist > File ...
Notes:
• If the MP3/WMA file has no ID3 tag, ‘NO TITLE‘
will appear on the display.
Selecting a folder
You can select the folder that contains the MP3/
WMA files you want to listen to. Highway will start
to play all the tracks stored in the folder, starting
from the first track.
To move to the next folder, press the 6button.
To move to the previous folder, press the 5button.
Press the or button to change tracks within
a folder.
Using the search function
Highway can search for MP3 or WMA files stored
on a CD or USB drive.
1. Press the MENU button to see the FOLD SCH
option.
2. Press the VOLUME dial to enter the folder list
search.
3. Turn the VOLUME dial to select the folder that
you want to search in.
4. Press the VOLUME dial to see the file list on the
display.
5. Turn the VOLUME dial to choose a track and
press to play.
Listening to the first track on a CD or USB
drive
Highway features a function called Top that allows
you to listen to the first track on the CD that is
currently playing. To listen to the first track on the
CD that is currently playing, press and hold the
Top (1) button (1 sec.).
Note: If you are listening to an MP3/WMA file,
pressing the 1button will play the first track on the
CD or USB drive.
Intro function
If listening to an audio CD, you can use the intro
function to play the first 10 seconds of the next track
and the rest of the tracks on the CD in sequential order.
If listening to an MP3 or WMA file, this function
allows you to play the first 10 seconds of all the
MP3 or WMA tracks on a CD or USB drive.
To use the intro function, press the 2button during
playback. The ‘SCN’ icon will display on the screen
when the intro function is enabled.
To turn the intro function off, press the 2button.
Repeat play function
If listening to an audio CD, you can use the repeat
play function to play the current track repeatedly.
Press the 3button to toggle the repeat function on
‘RPT ON’ and off ‘RPT OFF’.
If you are listening to an MP3/WMA file, press the
3button to choose one of the following repeat
options:
TRK RPT: Repeats the current track.
FOLD RPT: Repeats all the tracks in the current
folder.
RPT OFF: No tracks repeated.

9
Logical format (File system):
1. When writing MP3/WMA files to a CD-R disc
or CD-RW disc, please select either ‘ISO9660
level 1, 2 or Joliet’ or Apple ISO as the writing
software format. Normal playback might not
be possible if the disc is recorded in any other
format.
2. The folder name and file name can be displayed
as the title during MP3/WMA playback.
However, the title must be within 30 single byte
alphabetical letters and numerals (including an
extension).
3. Do not name a folder with the same name as a
file within that folder.
Folder structure:
You cannot play a CD that contains folders with
more than eight hierarchical levels.
Number of files or folders:
1. Up to 999 files can be recognised per folder.
Up to 3000 files can be played.
2. Tracks are played in the order that they were
recorded onto a CD. (Tracks may not always be
played in the order displayed on a computer.)
3. Some noise may occur depending on the type
of encoder software used while recording.
Notes about listening to WMA/MP3 files
Disabling DRM (Digital Rights Management)
Highway will not play any WMA files if they are
DRM (Digital Rights Management) enabled. If you
want to play a WMA file on Highway, you will need
to disable DRM.
If using Windows Media Player 9/10/11, click on
Tools > Options > Copy Music tab. Under Copy
settings, un-check the Copy protect music.
checkbox, then reconstruct the files.
Personally constructed WMA files are used at your
own responsibility.
File extensions:
1. Always add a file extension ‘.MP3’, ‘.WMA’ to
an MP3, WMA file by using single byte letters. If
you add a file extension other than specified or
forget to add the file extension, the file cannot
be played.
2. Files without MP3/WMA data will not play. The
files will play with no audio if you attempt to
play files without the MP3/WMA data.
*When VBR files are played, the play time display
may differ depending on the play location.
*When MP3/WMA files are played, very little or
no sound will play between tunes.
EN

10
Listening to iPod or iPhone content
Connecting an iPod and iPhone
Connect an iPod or iPhone* to the USB connector.
After connecting an iPod/iPhone, you will be able
to control all playback functions and view all the
information about the track’s stored on your iPod/
iPhone using Highway’s controls.
Listening to audio from an iPod or
iPhone
You can listen to audio from any music or videos
stored on your iPod. To listen to audio from your iPod:
1. Press the MENU button.
2. Turn and press the VOLUME dial to select
‘MUSIC’ or ‘VIDEO’.
3. If you selected ‘MUSIC’, turn and press the
VOLUME dial to select either ‘PLAY LISTS’,
‘ARTISTS’, ‘ALBUMS’, ‘SONGS’, ‘GENRES’ or
‘COMPOSERS’.
If you selected ‘VIDEO’, turn and press the
VOLUME dial to select either ‘MOVIES’, ‘MUSIC
VIDEOS’, ‘TV SHOWS’, ‘VIDEO PODCASTS’,
or ‘RENTALS’.
Note: When you play a video file, Highway
can only play the audio from the video and not
display any image content.
4. Turn and press the VOLUME dial to select the
item that you want to listen to.
Note: The items listed in VIDEO MENU vary
depending on what model of iPod you have
connected and the language used.
Searching for content on your iPod/
iPhone
Highway lets you search for content using
alphabetical letters. To search for content:
1. Press the MENU button to select the iPod menu
mode.
2. Turn the VOLUME dial to specify whether you
want to search for ‘MUSIC’ or ‘VIDEO’ content.
3. If you selected ‘MUSIC’, turn the VOLUME
dial to select either ‘PLAY LISTS’, ‘ARTISTS’,
‘ALBUMS’, ‘SONGS’, ‘GENRES’ or
‘COMPOSERS’.
If you selected ‘VIDEO’, turn the VOLUME dial
to select either ‘MOVIES’, ‘MUSIC VIDEOS’,
‘TV SHOWS’, ‘VIDEO PODCASTS’, or
‘RENTALS’.
4. Press the VOLUME dial to display all the
contents that match the selected category.
5. Press and hold the DISP button (1 sec).
6. Turn the VOLUME dial to specify a letter to
search for.
7. Press the DISP button again to start searching.
8. Press the VOLUME dial to confirm.
Repeat play function
You can use the repeat play function to play
the track currently being played on your iPod
repeatedly.
Press the 3button to specify one of the following
repeat options:
RPT ONE: Repeats the current track.
RPT ALL: Repeats all the tracks in the current
folder.
Random play (Shuffle) function
Album Shuffle
To play all the albums stored on your iPod or
iPhone in a random order, press the 4button until
‘RDM ALBUM’ is displayed on the screen.
Song Shuffle
To play the tracks in the folder you are currently
listening to on your iPod or iPhone in a random
order, press the 4button until ‘RDM SONG’ is
displayed on the screen.
Disabling the Shuffle function
To disable the shuffle function, press the 4button
until ‘RDM OFF’ is displayed on the screen.
*Supports most iPod and iPhone models. For the latest information, check the compatibility table on our website: www.pure.com/products/ipod-compatibility.

11
Using your iPod/iPhone to select tracks
on your Highway
Highway allows you to use your iPod/iPhone to
select the tracks that are playing on Highway. This
function is known as simple control (S-CTRL).
This setting is disabled by default.
To enable your iPod/iPhone to select tracks on
Highway:
1. Press and hold the DISP button to enter
system setup.
2. Press or button to scroll to ‘S-CTRL’.
3. Turn and press the VOLUME dial to turn
S-CTRL ‘ON’ or ‘OFF’. Select ‘ON’ to enable
your iPod to control Highway’s iPod/iPhone
functions. Select ‘OFF’ to disable the S-CTRL
function.
Notes:
• Be patient when selecting tracks on Highway
with your iPod/iPhone as there may be a slight
delay.
• Do not try to select tracks on Highway using
your iPod and the controls on the head unit at
the same time.
• Some iPod models do not support the S-CTRL
function. Consult your nearest dealer or the Pure
website to confirm which models do not support
S-CTRL.
EN

12
Options available in digital radio
Digital radio antenna setting
You can specify the type of digital radio antenna you
are connecting to Highway. The available options
are ‘ACTIVE’ and ‘PASSIVE’. See page 17 for
more information.
L-band settings
You can specify whether or not Highway tunes in to
radio stations that broadcast on L-band.
To enable or disable the L-band setting:
1. Press and hold the DISP button on the front
panel until ‘CLOCK’ is displayed on the screen.
2. Press the or buttons to scroll to ‘DAB
LBND’.
3. Turn and press the VOLUME dial to toggle the
L-band function ‘ON’ or ‘OFF’.
Setup options
Options available in FM radio
Local seeking
You can use the local seeking function so that
Highway only tunes into radio stations with a strong
signal.
To enable or disable the local seeking function:
1. Press and hold the DISP button on the front
panel until ‘CLOCK’ is displayed on the screen.
2. Use the button to scroll to ‘DX/LO’.
3. Turn and press the VOLUME dial to select
either ‘LOCAL’ (enable) or ‘DX’ (disable).
Note: The number of radio stations that can be
received will decrease when local seeking function
is enabled.
Highway has a built-in Radio Data System (RDS)
decoder system that supports broadcast stations
transmitting RDS data.
RDS settings
AF function
If you are listening to an FM radio station and the
signal starts to weaken, the AF function will try to
search and automatically retune Highway to the
same radio station on an alternative frequency. This
setting is ON by default.
1. Press and hold the DISP button on the front
panel until ‘CLOCK’ is displayed on the screen.
2. Press the or buttons to scroll to ‘AF’.
3. Turn the VOLUME dial to select ‘ON’ or ‘OFF’.
When the AF function is enabled, the AF indicator
will appear on the display.
Note: Digital to FM service following will not work
when the AF function is disabled.
Radio Data System

13
REG (Regional programme) function
When the REG function is ON, Highway will
automatically tune into the station with the strongest
signal within the specified region using the AF
control. If this function is OFF and the regional area
changes as you drive, Highway will tune into a
station within the current region. This setting is ON
by default.
Notes:
• This function is disabled when Highway is tuned
into a national station, such as BBC R2.
• The REG function ON/OFF setting only applies
when the AF function is ON.
1. Press and hold the DISP button on the front
panel until ‘CLOCK’ is displayed on the screen.
2. Press the or buttons to scroll to ‘REG’.
3. Turn the VOLUME dial to select ON or OFF.
Manually tuning to a regional station in the
same network
You can manually tune to a regional station in the
same network when the AF function is ON and the
REG function is OFF.
Note: This function can be used when a regional
broadcast of the same network is received.
TA (Traffic Announcement)
In TA standby mode (‘TA’ icon is lit on the display),
Highway will wait for a TA signal from any available
FM station that is in range. When Highway
receives a TA or EON traffic signal, Highway
will automatically tune into the FM station it has
found with a traffic announcement. When the
traffic announcement has finished, Highway will
automatically tune back to the last FM station you
were listening to.
To cancel an active traffic announcement, press
the TA button.
Setting the TA standby mode
Note: If TA standby mode is on, digital to FM
service following will not work.
Press the TA button to toggle the ‘TA’ icon on
and off. When the ‘TA’ icon is lit in the display,
Highway will remain in TA standby mode until a
traffic announcement is broadcast. When a traffic
announcement broadcast starts, Highway will
display ‘TRAF INF’ if the traffic announcement is
being broadcast from the radio station that you are
currently listening to. If Highway tunes in to a traffic
announcement from another radio network, ‘EON
INF’ will appear on the display.
PTY (Programme Type)
You can use the PTY (Programme Type)
function to search for radio broadcasts that
match a certain genre. In Europe there are thirty
one predefined programme type genres.
* Some countries do not currently broadcast PTY
information.
* In the TA standby mode, a TP station has priority
over a PTY broadcast station.
To use the PTY function to search for a particular
type of radio broadcast:
1. Press the MENU button.
2. Turn and press the VOLUME dial on the front
panel to select the genre of the PTY broadcast
that you want to search for.
Highway will start to search for a matching radio
broadcast and tune into the first radio station that
matches the specified PTY type.
Repeat the above steps to search for another
station that matches the specified PTY type.
EN

14
In any mode, press and hold the DISP button to
enter the system setup menu. Press the or
buttons to scroll through the options, and turn the
VOLUME dial to adjust a setting.
CLOCK
1. Press the VOLUME dial.
2. The hour will flash on and off. Turn and press
the VOLUME dial to set the hour. Repeat to set
the minutes.
LANGUAGE
You can select the language that your Highway
uses for menus and options.
1. Press the VOLUME dial.
2. Turn and press the VOLUME dial to select
a menu language from ‘English’, ‘French’,
‘German’ or ‘Italian’.
AUX SENS (AUX mode)
Turn and press the VOLUME dial to increase or
decrease the audio boost level for the AUX input. The
available options are LOW, MID or HIGH.
General options CYCLE: ON/OFF
This function is used to control how Highway
displays the track name, folder name, title, album,
and artist in CD/MP3, USB and iPod mode:
ON: Select this option to specify that the display
will automatically alternate between the TRACK,
FOLDER, TITLE, ALBUM and ARTIST.
Note: In iPod mode, the cycle option only alternates
the display between TITLE, ALBUM and ARTIST.
OFF: Select this option to stop the display from
automatically alternating between the TRACK,
FOLDER, FILE, ALBUM, TITLE, and ARTIST.
To change the information that is currently
displaying on the screen (Highway displays the
Track name by default, except for iPod mode),
press the DISP button.
REAR / S-W
If you are using Highway with an external amplifier,
you can use this setting to specify if you are
connecting the Rear line-outs to an external
amplifier connected to full range speakers (REAR)
or a Sub Woofer (S-WOOFER). See the diagram on
page 16 for more information.
Turn and press the VOLUME dial to select either
REAR or S-WOOFER.
REAR: Select this option to provide an external
amplifier with a full range signal from the rear left
and right line-outs.
S-WOOFER: Select this option to allow
adjustments to be made to a dedicated subwoofer
amplifier from the EQ menu without affecting the
signal from the front line-outs, or sound from the
built-in amplifier.
DIMMER: ON/OFF
Turn and press the VOLUME dial to toggle the
DIMMER setting ‘ON’ or ‘OFF’.
ON: The display brightness is dimmed.
OFF: Disables the dimmer setting so that the LCD
brightness is set to the maximum level.
BEEP: ON/OFF
Turn and press the VOLUME dial to toggle the
beep sound that is made when pressing a button
‘ON’ or ‘OFF’.
12/24H
Turn and press the VOLUME dial to change the
time format to either ‘12HOURS’ or ‘24HOURS’.
CT: ON/OFF
Turn and press the VOLUME dial to toggle
automatic time updates from the digital or FM radio
signal ‘ON’ or ‘OFF’.

15
Adjusting audio settings
Press the EQ button to enter equalizer setting
mode. When you initially press EQ, the current EQ
setting is displayed. Turn the dial to change the
DSP EQ in the following order:
OFF > POP > ROCK > CLASSIC > JAZZ >
CUSTOM
Creating a custom EQ setting
1. Press the EQ button.
2. Turn and press the VOLUME dial to select
‘CUSTOM’.
3. Press the or button to select the EQ
value that you want to change. The available
options are: BASS-G > BASS-F >BASS-Q
> MID-G > MID-F >MID-Q >TREBLE-G >
TREBLE-F.
4. Turn the VOLUME dial to adjust the value.
5. Press the or button to move to another
custom EQ setting or press the VOLUME dial if
you have finished.
Audio control settings
1. Press the EQ button.
2. Press the or button to select the audio
control setting that you want to adjust. The
available options are BALANCE > FADER >
LOUD > SUBW FRE > SUBW VOL.
3. Turn and press the VOLUME dial to adjust the
value. The available values are for each option
are shown below:
BALANCE: LEFT 1-7 > CENTRE > RIGHT 1-7
FADER: FRONT 1-7 > CENTRE > REAR 1-7
LOUD: ON/OFF
SUBW FRE: THROUGH > 80 > 120 > 160
SUBW VOL: (-6) - (+6)
EN

16
Electrical connections
Wiring Diagram
FM/MW ANTENNA
Rear Right Line-out (Red)
SUB OUT
Front Right Line-out (Red) Front Left Line-out (White)
A
B
1357
2468
1357
2468
DAB ANTENNA
Rear Left Line-out (White)
SUB OUT
Telemute
ANTENNA
Rear Right Line-out (Red)
SUB OUT
Front Right Line-out(Red) Front Left Line-out(White)
A
B
1357
2468
1357
2468
DAB ANTENNA
Rear Left Line-out (White)
SUB OUT
Telemute
Appendix

17
Digital radio antenna setting
Highway features an SMB type digital radio
antenna connector and should be used with an
automotive antenna appropriate for your vehicle and
geographical area (e.g. band 3 for UK use).
An antenna is not supplied with the product in order
to allow an appropriate antenna to be used for your
specific vehicle needs.
If your chosen antenna operates at a different
voltage to the 12 volts supplied by Highway,
then an in-line voltage regulator must be used
to correct the voltage to the level required by
the antenna BEFORE connecting the antenna to
Highway. The antenna power should then be set
to 'ACTIVE' using the previous steps (Highway is
set to 'ACTIVE' from the factory).
Under no circumstances should a separate power
supply at either 12 volts, or any other voltage,
be provided in-line with the antenna connection
with the antenna power set to either 'ACTIVE',
or 'PASSIVE' as this will present power to the
product through the centre of the antenna cable
and will cause damage to the product not covered
by the warranty.
WARNING - Connecting an active antenna that
is not designed to operate at 12 volts to the SMB
Digital Radio Antenna Connector on Highway may
cause damage to the antenna or Highway, which
is not covered by the warranty.
Installing a digital radio antenna
Highway is designed to work with an active digital
radio antenna. Before installing the Highway head
unit ensure that you have installed an appropriate
digital radio antenna in your vehicle. Refer to your
digital radio antenna installation guide for more
information.
Note: Always insert the mounting sleeve into the
dashboard before fitting the head unit
.
Antenna power for Active Antennas:
As many automotive antennas have an amplifier
either built-in, or in-line with the cable connected
to the car stereo, this product provides power at
12 volts along the centre of the digital antenna
connector (centre pin of SMB connector).
Most active automotive digital radio antennas work
on 12 volts. However, some may be designed to
operate at other voltages, e.g. 5 volts. The antenna
power output from the product is set to ‘Active’, i.e.
12 volts ON, from production (shown as ‘DAB ANT
ACTIVE’ in the system menu).
If your chosen antenna does not have an amplifier
(i.e. it is ‘PASSIVE’), please set the antenna power
to ‘PASSIVE’ using the following steps before
connecting the antenna to Highway:
1. Press and hold the DISP button until ‘CLOCK’
appears on the top line of the display. This
shows that you have entered the system menu.
2. Press the button repeatedly until ‘DAB ANT’
appears on the top line of the display.
3. Turn the VOLUME dial until ’PASSIVE’ appears
on the second line of the display.
4. Press the DISP button once to confirm the
new antenna setting and return to the previous
screen.
Installation guide
Installation notes
Preparing to install Highway
Highway can be installed in any dashboard that has
an opening matching the dimensions shown in the
diagram below. The dashboard needs to be
4.75mm - 5.56mm thick in order to be able to
support Highway.
EN

18
Installing the detachable panel
1. Line up the groove on the
right side of the face panel
with the slot on the unit.
2. Press down the left side of
the face plate until it clicks
into the panel slot.
Installing the Highway head unit
1. Insert the mounting sleeve into the dashboard. Fix
it firmly in place by folding down the metal tabs.
2. Connect the audio, FM/MW antenna and
electrical cables to the back of Highway (see
page 16).
3. Install the detachable panel (see opposite) and
test Highway to check that all audio functions are
working properly.
4. Connect the digital antenna cable.
Note: See page 17 before connecting the
digital antenna cable.
5. Remove the two protective screws on the top of
Highway so that the CD function works and slide
Highway into the mounting sleeve and push to
secure in place.
6. Attach the outer trim frame.
If you are not sure how to install this unit
correctly, contact a qualified technician.
Carrying out a factory reset
1. Remove the detachable panel as described on
page 5.
2. Press the RESET button with a pointed object
to reset Highway to factory settings.
3. Replace the detachable panel as described on
page 5.
Note: Pressing the RESET button will erase the
clock setting and stored stations.
2
2
1
1
Mounting sleeve
Main unit
Trim plate
Remove the
two screws
Mounting bolt
Rubber cushion
Removing the Highway head unit
1. Power off Highway.
2. Remove the detachable panel as described on
page 5.
3. Remove the outer trim frame.
4. Insert the L-key removal tools into the slots on
the front of Highway until they lock (as shown in
the diagram below).
5. Pull out Highway and disconnect all cables.
