PURElight PIKO BAT LED User manual

ENGLISH
Important safety instructions! Please read before connection!
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged, it
must be replaced immediately with an original spare part from the manufacturer. Failure to
do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by swallowing
parts!
WARNING! (High light intensity - eye injuries)
A direct view into the light source is absolutely to be omitted!
WARNING! (Epilepsy)
Stroboscopic effects (flashes of light) can trigger seizures of epilepsy in some people.
Accordingly sensitive people should be warned and should not be in the vicinity of such
devices.
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.
Do not tape or cover the ventilation slots of the unit.

ENGLISH
Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation (IP20).
Never expose the device to rain, moisture or liquids as this may cause damage.
Vibrations, dust or sunlight can also cause damage, avoid them!
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains voltage. It
is highly recommended that you fuse your mains socket with a residual current circuit
breaker (FI).
If you do not use your device for a longer period of time or carry out maintenance work,
disconnect the device from the mains in order to minimize danger. The same applies to
storm conditions such as thunderstorms, floods, etc.
Hint! (Error during data transmission)
Never connect the DMX input or output to audio devices such as power amplifiers or
mixing consoles!
DMX cables enable trouble-free operation and the highest possible transmission reliability
of signal data. Do not use microphone cables!
Hint! (Condensation)
To avoid condensation in the unit, the unit should adapt to the ambient temperature
before commissioning.
Hint! (Unwanted odours)
A new product can sometimes lead to unwanted odours. This reaction is normal and
disappears after a few minutes.
Hint! (Battery)
The indicated battery life depends strongly on the operating mode and the
ambient temperature. The running time is significantly reduced in cold conditions. Fully
charge the battery before the first use. The Li-Ion battery contained in the device is
subject to the requirements of the hazardous goods law. Special requirements for
packaging and labelling must be observed during shipping. In this case, a dangerous
goods expert or a forwarding agent must be consulted when preparing the package.
Please also observe any additional national and international regulations.
Pay attention to the correct polarity when inserting the batteries. Do not leave batteries
lie around openly, there is the danger that these are from children or pets be swallowed.
If swallowed, consult a doctor immediately!
Leaking or damaged batteries can cause damage if they come into contact with the skin.
cause burns, therefore in this case use suitable
Protective gloves. Make sure that the batteries are not short-circuited,
cannot be thrown into the fire and cannot be charged.
There is a danger of explosion.

ENGLISH
Symbols on device and packaging:
The lightning flash symbol warns the user of uninsulated voltages and the risk
of electric shock.
The exclamation mark symbol draws the user’s attention to important maintains
and operating instructions in the manual.
Only suitable for indoor use.
This symbol defines the minimum distance of the object to be illuminated.
Read the manual
Please read and follow the warnings and recommendations carefully to ensure safe
and trouble-free use.
Installation:
Be sure to check the unit for damage before use. Use the original packaging or a suitable
transport or storage packaging to protect the product from dust, moisture, etc. when not in use.
The unit can be installed either upright or suspended. The device must always be attached to a
solid, approved carrier or a suitable surface. Note the load limit of the selected installation
position (e.g. for tripods).
The opening of the bracket must be used to fasten the device. Always provide a second,
independent safety backup for the device, e.g. with a safety cable.
Work on the device (e.g. assembly) should always be carried out from a stable and permissible
platform. Make sure that the area below you is closed off.
WARNING! (Risk of injury due to falling down)
Improper installation can cause considerable injury and damage!
The installation of the device should always be carried out by experienced personnel and
must be carried out in compliance with the mechanical and electrical safety regulations in
your country.
Please note that it is not possible to use this device with a dimmer!

ENGLISH
Congratulations on your new PURElight PIKO BAT LED!
Thank you for choosing a PURElight product. Through efficient development and economical
production, PURElight enables high quality products at a fantastic price.
Please read the instruction manual carefully to learn about all the features of this
product and keep it for future use.
Have fun with your new product!
Your PURElight Team
Guarantee:
The current general terms and guarantee conditions
of the Music Store professional GmbH apply.
You can view it at: www.musicstore.de
If you have any questions or suggestions, please
contact us:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Cologne
Managing Director: Michael Sauer
WEEE-Reg.-No. DE 41617453
Tel: [phone]
Fax: [phone]
[e-mail]
Intended use:
The PURElight PIKO BAT LED was designed for use as an electronic LED lighting effect. The
device may only be used for this purpose and in accordance with the operating instructions. Other
purposes as well as operation under other operating conditions are expressly not intended and can
lead to damage to property or personal injury! No liability is assumed for damage resulting from
improper use.
It must be ensured that the device is operated exclusively by trained and competent users who are
in full possession of their mental, physical and sensory abilities. The use of other persons is
expressly only permitted at the request of a person responsible for their safety, who instructs or
supervises the use.
Content
Quantity
PURElight PIKO BAT LED
1
USB charging cable
1
Mounting bracket
1
Manual
1

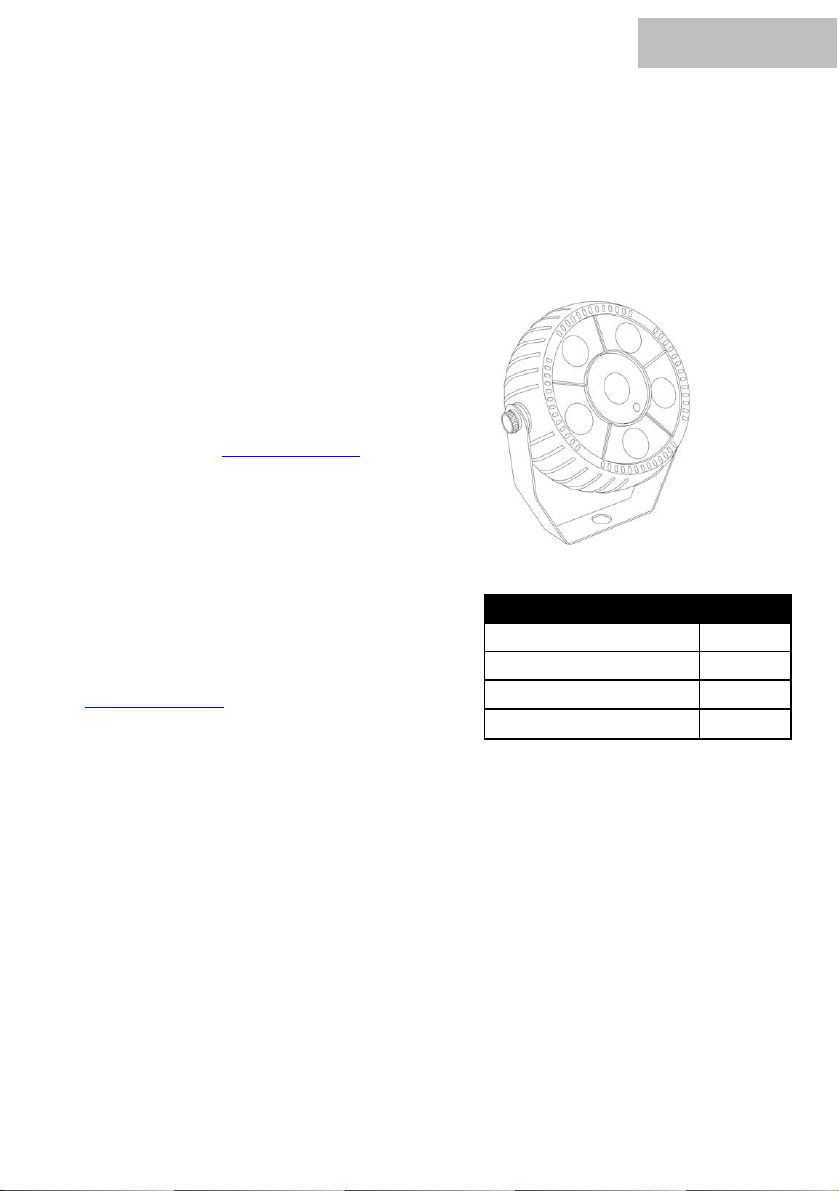

Scope of delivery:

ENGLISH

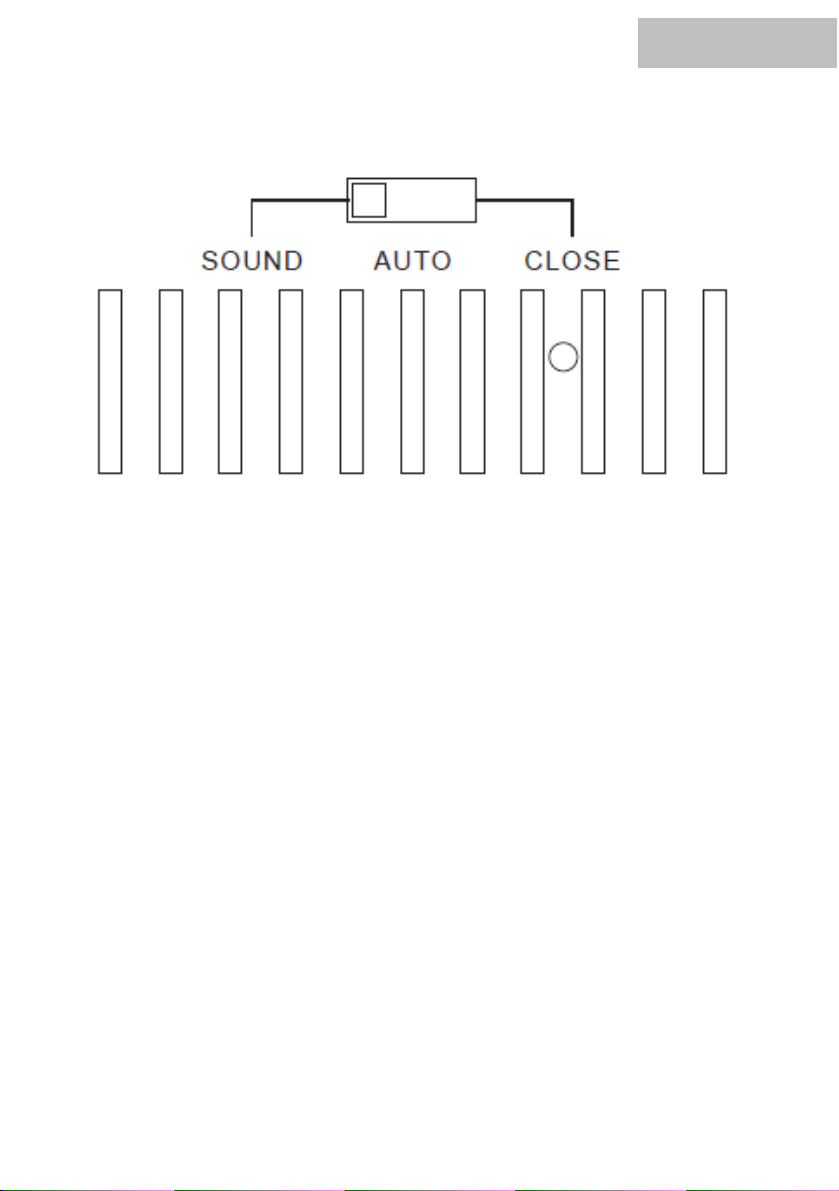

Auto or Sound mode:
The device contains automatic programs that run according to fixed schedules (Auto) or are
called up via the built-in microphone to match the music (Sound). The selection of the respective
mode is done with the function switch on the back of the device.

ENGLISH
Remote control mode:
The device can be managed remotely using the remote control included in the scope of delivery.
The respective functions can be performed using the various program selection or color keys.
nO.
Function
No.
Function
1
ON/OFF switch
9
Green
2
----------------
10
Blue
3
Automatic mode
11
White
4
Colour change - jump
12
Pink
5
Colour fade 1 and 2
13
Yellow
6
Strobe
14
Cyan
7
Music control
15
Speed setting, decreasing
8
Red
16
Speed setting, increasing

ENGLISH
Operation:
Start:
The device can be powered by mains voltage and the built-in rechargeable battery.
1. Mains operation
Connect the included USB charging cable to the device and then to a USB power adapter. Now
connect the device to the power supply and wait a few seconds until it is ready for operation.
After use, switch off the device at the function switch (CLOSE) and disconnect the power plug to
avoid unnecessary power consumption.
2. Battery operation
Before the device can be operated for the first time, the built-in battery must be fully charged. To
do this, connect the device to an electrical outlet using the supplied power cable. The charging
time is 3 to 4 hours.
The battery life depends strongly on the operating mode and the brightness of the LED. The
battery life is at least 3 hours if all LEDs light up after complete charging, up to 6 hours in
automatic and single colour mode.
Switch off the device at the function switch after use (CLOSE).

ENGLISH

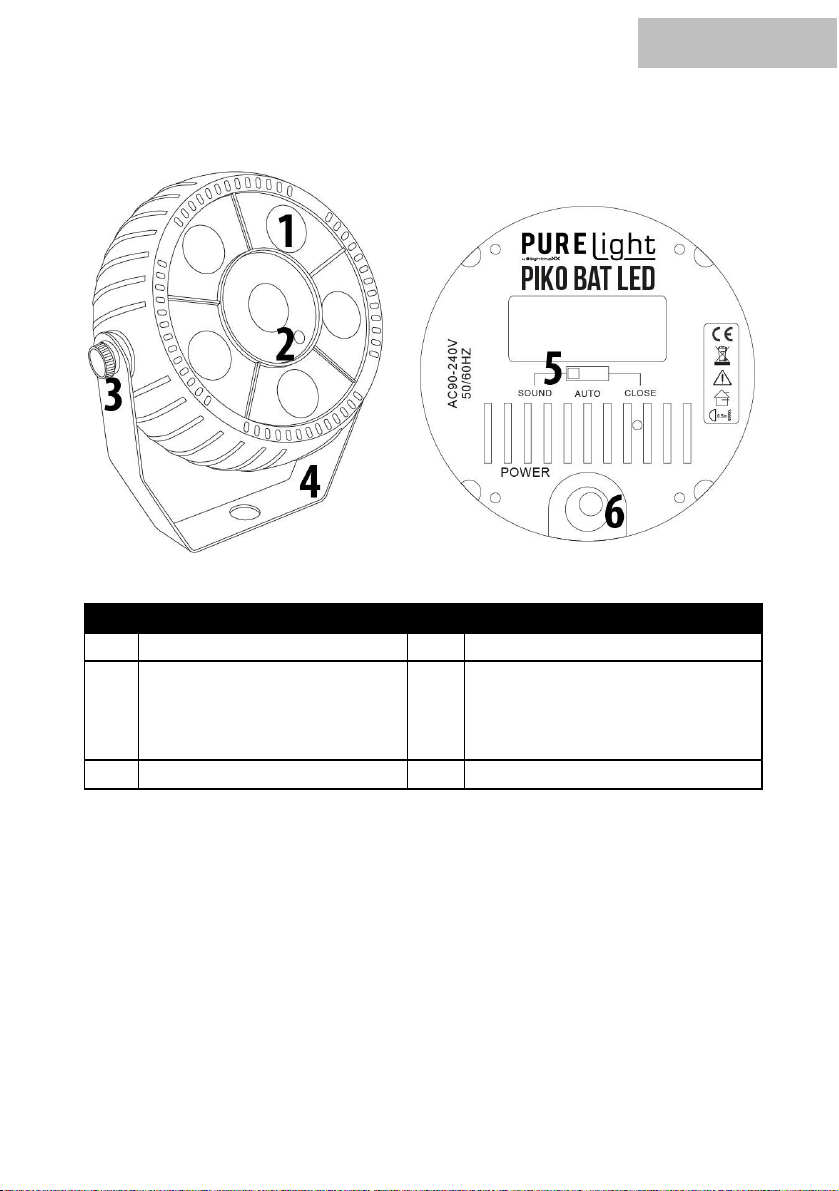

Connections and controls:
.
No.
Designation
No.
Designation
1
LED lenses
4
Mounting bracket
2
Infrared sensor for remote control
5
Function switch
Sound = music control via integrated
microphone
Auto = automatic operation
Close = device is switched off
3
Locking screw
8
Connection for charging cable

ENGLISH
Specifications:
Troubleshooting:
The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the
manufacturer, the dealer or the corresponding specialist personnel. Never open the device on
your own!
If the specified corrections have not led to success, please contact our service staff. The contact
details can be found at www.musicstore.de
Model
PIKO BAT LED
Power supply
AC110-240V, 50/60Hz
Battery
Lithium-Ion, DC 5V 2200MA
Charging time
3 to 4 hours
Battery operating time
3 to 6 hours
Power consumption
9 Watt
Light source
6 x 1,5 Watt LEDs
Colour mixture
RGB (Red –Green –Blue)
Portection class
IP20
Cooling
Passive
Operating modes
Automatic, music control, remote control
Dimensions (L x Hx B)
120 x 120 x 55 mm
Weight
0,4 kg
Symptom
Troubleshooting
No function
Check the mains connection and the fuse
No reaction in remote mode
Change the battery in your remote control
Ensure that the IR transmitter and receiver are at
close and clear distances from each other

ENGLISH
Cleaning:
Regular cleaning of the device from dirt and dust increases the shelf life of the product. Always
disconnect the device from the power supply before cleaning it! Never clean the appliance wet!
Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation
grilles and openings should always be cleaned of dust and dirt. Suitable compressed air sprays
are recommended for this application.
Environmental protection:
The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging
to a minimum. The use of environmentally friendly and recyclable materials is of fundamental
importance to us. Please dispose of and recycle the packaging components after use properly.
Disposal of packaging:
Ensure that paper packaging, plastic materials, etc. are separately recycled. Observe the
corresponding disposal instructions on the packaging.
Disposal of batteries:
Batteries do not belong in the garbage! Please keep batteries in accordance with the
official collection points or disposal stations in accordance with the specifications.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the WEEE
Directive (Waste Electrical and Electronic Equipment) in its currently valid version.
The device will be disposed of by an approved waste disposal company or your local waste
disposal office. The regulations valid in your country must be observed!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstraße 22-26,
51103 Cologne, Germany

ENGLISH
MS ID: LIG0017352-000
10/2020
