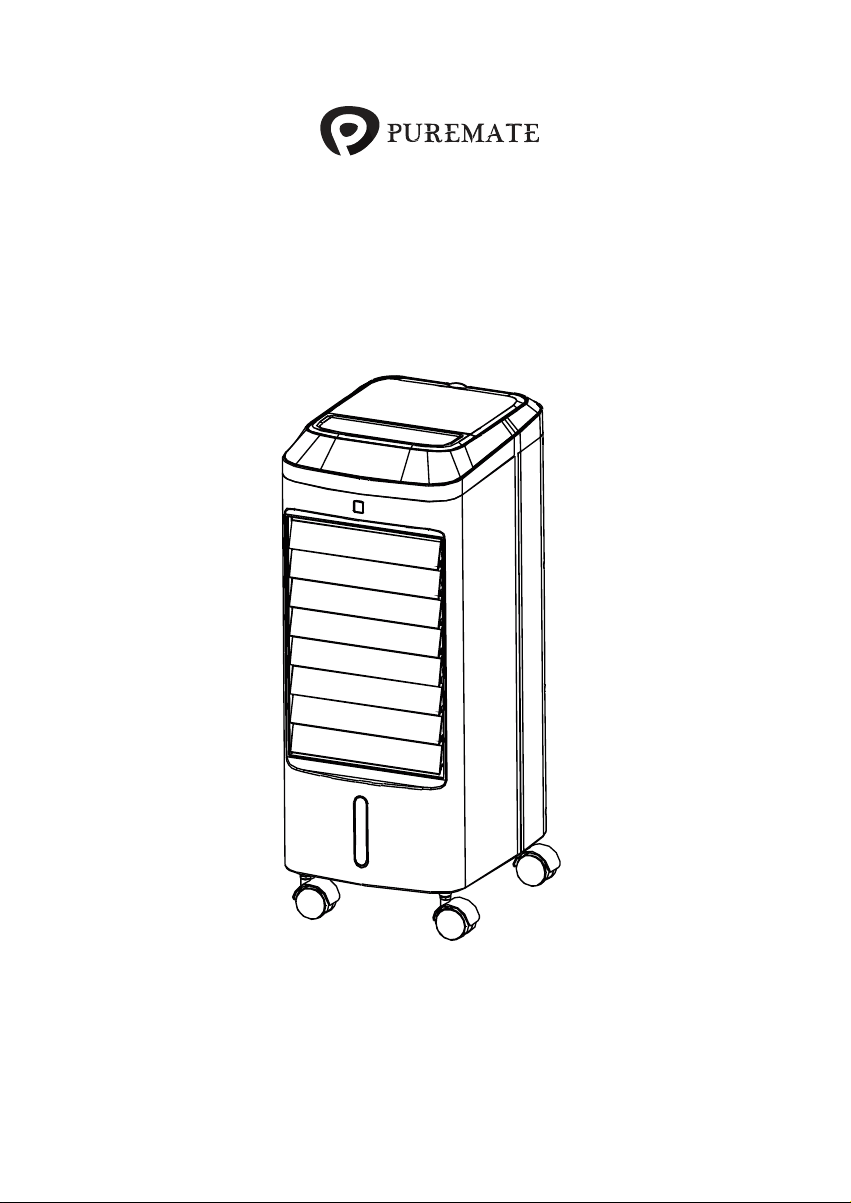

PureMate PM 777 User manual

5L Evaporative Air Cooler
MODEL NO: PM 777
INSTRUCTION MANUAL

- ALWAYS use the appliance only on the voltage specified.
- NEVER immerse the product or power cable with water or other liquids.
- DO NOT leave the appliance unattended around children.
- DO NOT insert any objects or fingers into any openings.
- DO NOT use around heated surfaces, open flames, flammable substances or in
direct sunlight.
- Please turn off and unplug the appliance before cleaning or maintenance.
- DO NOT operate if there are signs of damage to the cord, plug or appliance. Do not
attempt to repair or adjust any electrical or mechanical functions on this unit.
Please Call Customer Service for assistance.
- NEVER tilt, move, or attempt to empty tank while it is operating. Ensure the air
cooler is in an upright position.
- NEVER cover or restrict airflow to the air cooler whilst in use.
- Dispose of used water, this is NOT suitable for drinking.
- When the appliance is not in use for a prolonged period, please turn it off, unplug
it, pack it well, and store it in dry cool place. Please ensure water tank is always
emptied before storing the air cooler.
- DO NOT leave water in the unit when not in use. ENSURE fresh water is added
every use.
- DO NOT run the cord under throw rugs, runners, or similar coverings. Arrange cord
away from traffic area and where it will not be tripped over.
- DO NOT use the appliance for any other purpose than its intended use, as
described in the manual.
- This air cooler is for indoor use only. DO NOT use outdoors.
- Avoid the use of extension cables to prevent risk of overheating and fire risk.
- This air cooler may be utilized by children aged from 8 years and over and individu
als with reduced physical, sensory or mental capabilities or lack of experience and
knowledge HOW EVER they must have be supervised or instructed concerning use
of the appliance in a safely and understand the hazards involved.
SAFETY GUIDELINES
English | 1
Thank you for purchasing the innovative PureMate 5L Evaporative Air Cooler
PM 777. We wish you many years of healthy indoor air with this efficient and
effective product.

- This appliance is for domestic use only. It should not be used for commercial
purposes.
- ENSURE to follow the cleaning process detailed by the manufac turer. DO NOT
attempt to clean in any other way.
- DO NOT add any other liquid than water into the ice packs.
- Only fill the water tank with fresh water and-or ice cubes made with fresh water.
– Unplug the appliance when refilling and cleaning.
- In the rare occurrence the unit should malfunction, DO NOT attempt any repairs. All
repairs are required to be taken out by a professional. Please contact PureMate
Customer Services.
- When using ice packs, condensation may form on the surface of the unit. Ensure
condensation is wiped to prevent slipping hazard.
English | 2
SPECIFICATION
Model No: PM 777
Power supply: 220~240V 50Hz
Power Consumption: 65W
Water Tank Capacity: 5 litres
Wind Speed: 8.0 m/s
Evaporation Capacity: 500ml/hr
Noise Level: <60dB
Net Dimensions: 29 x 24 x 60 cm
Net Weight: 4.7 kg
COMPONENTS
Top Cover
Control Panel
Air Outlet
Water Level Window
Castor Wheels
Air Inlet
Air Filter
Wet Curtain
Water Tank

English | 3
CONTROL PANEL
REMOTE CONTROL
OPERATING INSTRUCTIONS
Before using the air cooler make sure that it is on a flat and stable surface. Damage may occur
if it is placed on an incline or decline.
- Set all the switches to OFF position, then insert the plug directly into a standard AC socket-
outlet. Be sure plug fits tightly into outlet.
POWER ON/OFF: Turns the air cooler power ON/OFF.
- Press the ON/OFF button.The device starts operating.
- Press ON/OFF again and the device will stop working.
MODE: Press to choose from 3 different breeze patterns:
- Normal
- Natural
- Sleep
POWER
COOL
SPEED MODE
TIMER SWING

English | 4
SPEED: Press to choose from 3 different breeze speeds:
- High
- Medium
-Low
TIMER: Press the timer button to activate the timer function. Each time the button is pressed
the timer will be increased by 1 hour up to a maximum of 12 hours.
SWING: Press the swing button to activate the vertical louvres oscillation. Press again to stop
the oscillation.
COOL: Press to activate the air cooling feature, reducing the surrounding air's temperature.
Note:The water tank must not be removed while the air cooling feature is activated.
Note:The air cooler is supplied with two ice packs, the cooling effect can last for
approximately four hours.
COOLING MODE
For the cooling mode to function, the water tanks requires filling, and the ice packs freezing
for enhanced cooling. Ensure fresh water is added to the water tank prior to every use.
- Turn off the air cooler and unplug from the power socket.
- Turn the water tank locking clip clockwise 90 degrees and gently pull the water
tank out until it stops.
- Fill the water tank with fresh water to the maximum water level.
- Carefully push the water tank back into position and turn the water tank locking
clip anti- clockwise 90 degrees to secure the tank.
- Add clean water to the ice packs and fill two-thirds of the way.
- Put the ice packs into the freezer until completely frozen.
- Open the top cover and place the frozen ice packs into the compartment for
enhanced cooling.
ICE PACKS
FILLING THE WATER TANK
- Turn off the air cooler and unplug from the power socket.
- Place the air cooler in a sink, bath tub or over a drain.
- Turn the water tank locking clip clockwise 90 degrees and gently pull the water
tank out until it stops.
- Remove the plug located in the bottom of the water tank and drain.
- Reinsert the plug into the water tank and push the water tank back into position
and turn the water tank locking clip anti-clockwise 90 degrees to secure the tank.
EMPTYING THE WATER TANK

English | 5
CLEANING & MAINTENANCE
Avoid all other types of detergents, cleaners, solvents that may contain chemicals,
which could damage parts of the unit
- Turn off the air cooler and unplug from the power socket.
- Pull the water tank out until it stops.
- Use mild detergent and warm water with a clean soft cloth to remove any dirt or mould.
- Dry the water tank with a clean soft cloth.
- Carefully push the water tank back into position and turn the water tank locking clip
anti-clockwise 90 degrees to secure the tank.
- Your appliance must be switched OFF via the main power supply and unplugged
before proceeding with any cleaning.
- To clean the exterior surfaces simply wipe over with a clean, dry soft cloth. Avoid all
other types of detergents, cleaners, solvents that may contain chemicals, which could
damage parts of the unit.
- Never use flammable or abrasive cleaning agents such as benzene or spirits to
clean the appliance.
- Never immerse the appliance in water.
- Never spray the appliance with liquids or submerge it in water or any other liquid.
- Do not stick any foreign objects or your fingers inside the unit.
CLEANING THE WATER TANK
The water tank should be cleaned regularly, every 2-3 weeks, to prevent the growth
and build up of mould and bacteria.
- Turn off the air cooler and unplug from the power socket.
- Unscrew and remove the filter from the rear of the unit.
- Use a firm brush and/or vacuum nozzle to remove any dust or loose debris from the filter.
- Wash with a mild detergent and rinse with clean water.
- Ensure the filter is completely dry before installing and operating the unit.
CLEANING THE AIR FILTER
- Turn off the air cooler and unplug from the power socket.
- Unscrew and remove the filter from the rear of the unit.
- Remove the Water Curtain.
- Rinse with clean tap water.
CLEANING THE WATER CURTAIN
At the end of the product life cycle, you should not throw this
machine into the normal household garbage but bring the product
to a collection point for the recycling of electrical and electronic
equipment.
DISPOSAL OF THIS DEVICE
