Thank you for purchasing the PT-SCREEN-200.
This manual serves as the operating manual for the PT-SCREEN-200 LCD monitors, and hence,
documents instructions and precautions in relation to this product.
Please read this manual carefully before using the product.
To prevent harm or damage to the user, product, property or other people, please adhere to
the safe and correct methods of using this product.
Safety Precautions - Please read this before using the product.
Ignoring the safety precautions documented here could result in serious injuries
or even death.
• Please adhere to the instructions documented in this user manual. PureLink GmbH shall not
be responsible for any damage, harm or injuries caused by improper use of our product not
documented in this manual.
• Use only the accessories (AC adapters, cables, etc.) bundled in the same package or those
provided by PureLink GmbH.
• Do not insert ammable or metal objects into the product. Also, do not apply or use near
water. Doing so could result in electrical shock or re. If any of the above occurs, stop using
the product immediately and contact our customer service.
• Do not use/place/install this product or its cable(s) near high temperature equipment.
Deformation or melting of the housing could occur, resulting in electrical shocks or re.
• Place/install this product in/on a stable location. In an unstable location, the product may
fall, causing injuries and the product could be damaged from the fall.
• Do not dismantle or modify the housing/product. Damage to the product, electrical shock
or re could occur. If smoke, strange smell or strange noises are emitted from the product
during use, stop using the product immediately, disconnect all cables and contact our
customer service.
• When disconnecting/connecting the AC adapter, hold the plugs properly while doing
so. Pulling the cords forcefully could result in the cable breaking. Malfunction of device,
electrical shocks or re could occur.
• Do not touch the product or cables with wet hands. Electrical shocks or equipment damage
could occur.
• Disconnect all cables before cleaning. Do not use liquid, aerosol cleaners or organic solvents
(benzene, thinner, etc.) to clean the product.
• Do not wash the product with water. Discoloration, deformation or damage could occur.
Please use neutral cleaners and a soft cloth to clean the product. Use a dry cloth to absorb
any remaining moisture after cleaning.
• When the product it not being used for extended periods of time, disconnect the AC adapter
and cables. Fire could occur or the equipment could be damaged.

User Manual
PT-SCREEN-200
3
• Do not place the product directly under sunlight, near air conditioners, higher temperature
equipment or places with condensation, dust, oil, drugs, or water.
Important - Please read before using the product.
• Do not use this product in an area with no ventilation or in the outdoors. Do not use the
product for overly long periods of time.
• Bundled AC adapter is certied for the bundled product only. Do not use with other products.
• During long periods of usage, the product housing might become hot. This is not a defect/
malfunction.
• Warranty support not provided for transferred or second-hand products.
• Bundled remote control battery and cables are considered consumable and sample goods
respectively. Thus, they are not covered under warranty.
• Warranty applies to defects only. Any damage caused by external factors (damage, water,
overcurrent, etc.), force majeure or acts of gods are not covered under warranty.
• For disposing of this product, please adhere to proper rules and laws of residing country/
city/area.
Regarding LCD display panels
• Brightness reduces a LCD panel’s lifetime. To reduce the eect of degradation, we
recommend using at a lower brightness level.
• Minor pixel defects may occur on the LCD panel and are part of LCD manufacturing
technology and are not covered under warranty.
• Do not press the LCD panel or bezels forcefully as this could damage the panel.
• When transporting the product between areas with a big dierence in temperature, conden-
sation could occur. Do not power up the product until the condensation has evaporated.
FCC (Federal Communications Commission) Statement
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant of Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
radiates radio frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference in the radio communications. There is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment o and on, you are encouraged to try to correct the interference by one or more of
the following measures:

User Manual
PT-SCREEN-200
4
1. Reorient / relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Connect the equipment into an outlet from a dierent circuit where the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modications that is not expressly approved by the manufacturer could
void the user‘s authority to operate the equipment.
Trademark Acknowledgements
• PureTools, PureLink and the PureTools as well as PureLink logos are trademarks or regis-
tered trademarks of PureLink GmbH.
• HDMI, HDMI logo, or High-Denition Multimedia Interface, are trademarks or registered
trademarks of HDMI Licensing LLC.
• Windows is either a registered trademark or trademark of Microsoft Corporation in the
United States and/or other countries.
• Other names and/or products not mentioned above may be trademarks or registered trade-
marks of their respective companies.

User Manual
PT-SCREEN-200
5
Contents
HDBaseT RX Embedded 10.1” LCD Monitor PT-SCREEN-200 User Manual . . . . . . . . . . . . . . . . . . 6
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts and Feature Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Input Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Menu Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 11
Input Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 14

User Manual
PT-SCREEN-200
6
HDBaseT RX Embedded 10.1” LCD Monitor
PT-SCREEN-200 User Manual
The PT-SCREEN-200 is HDBaseT CTS Class B certied 10.1” high resolution (1280x800),
high brightness (350cd/m2) and high contrast ratio (800:1) IPS LCD monitor. With a built-in
HDBaseT receiver, the PT-SCREEN-200 is able to display video/audio signals via HDBaseT and
be powered by just a LAN cable. The PT-SCREEN-200 is also able to extend the remote control
signales bi-directionally with a built-in IR receiver/transmitter. This HDBaseT transmission
range can be extended up to 60m. With downscan function, higher resolution (up to 1080p)
images are automatically adjusted to t the native 1280x800 screen.
The PT-SCREEN-200 utilizes an IPS panel with a high resolution of 1280x800 and a brightness
of 350 cd/m2. IPS panels boast wide view angles of 170°(V) / 170°(H), high contrast ratio
(800:1) and vibrant color display capability.
Package Contents
• PT-SCREEN-200 1pcs
• Remote Control 1pcs (battery included)
• AC Adaptor 1pcs
• User Manual 1pcs
NOTE: The Remote Control is used to control PT-SCREEN-200 from HDBT TX side.
It can NOT be used to control PT-SCREEN-200 locally.
PT-SCREEN-200
AC Adaptor Remote
Control

User Manual
PT-SCREEN-200
7
Parts and Feature Description
Front:
Rear:
10.1 inch 1280 x 800
IPS LCD Panel
Remote control receiver
& Power lamp
VESA 75x75mm
HDMI Input
HDBaseT Input
DC 48V
Power ON/OFF
Cursor
Menu
Cursor
Input

User Manual
PT-SCREEN-200
8
Front
Remote Control Receiver and
Power Lamp:
Remote Control Receiver: Use the remote control of
the signal source connected with HDBT TX to point
to this Remote Control Receiver to control the signal
source. Power Lamp: Lamp is red when power o.
Lamp is on when power is on.
Rear
A/V: Push A/V to select the input signal between HDMI
and HDBT
Menu:
Button for OSD menu
Keylock function: Press Menu key for 8 sec, OSD will
be locked. To unlock, press Menu key for 8 sec again
Curser:  move curser downward
 move curser upward
Power ON/OFF Button: Push button to ON/OFF display
HDBaseT (RJ-45): HDBaseT signal sent from HDBaseT Transmitter by
CAT 5E/6 cable
HDMI: HDMI Input。User can connect media player HDMI
output to this port.
DC Input: If no 48V PoE HDBaseTtransmitter used, user can use
AC Adaptor to power the display.
VESA 75x75mm: Screw hole for VESA mounting

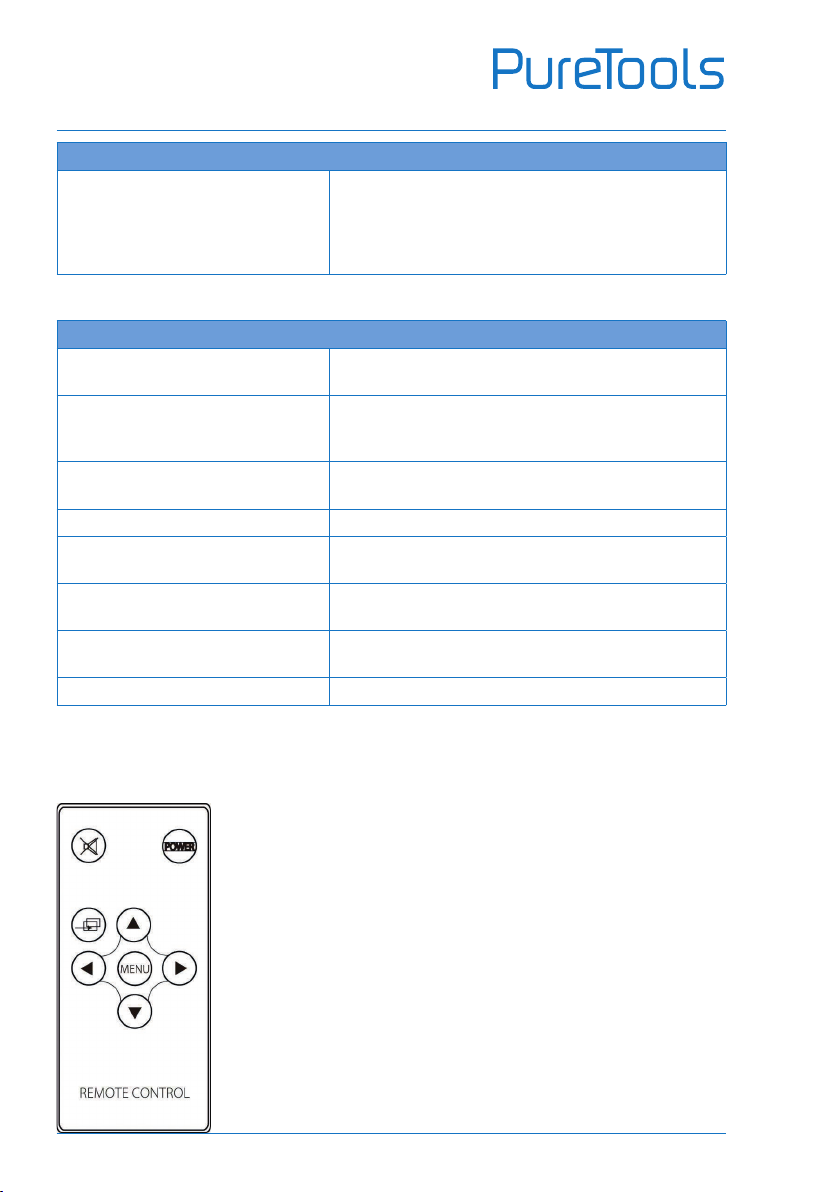

Remote Control
POWER: Power On / O
MUTE: Audio o
INPUT: Input Source Selection
MENU: Start Menu selection
: No function
: No function
: Move cursor up
: Move cursor down
NOTE: The Remote Control is used to control PT-SCREEN-200
from HDBT TX side. It can NOT be used to control PT-SCREEN-200
locally.

User Manual
PT-SCREEN-200
9
Input Signal
Use A/V key to select the input signal, HDBaseT or HDMI
HDBaseT:
Connect the LAN cable as indicated by the arrow
HDMI:
Connect the HDMI cable as indicated by the arrow
AC Adaptor:
If there is no 48V POE, please use provided AC Adaptor
and connect as indicated by the arrow
Note: If PT-SCREEN-200 will not be used for long time,
suggest remove the AC adaptor from PT-SCREEN-200.

User Manual
PT-SCREEN-200
10
Menu Setting
Main Menu Sub Menu Setting #1 Setting #2 Note
Display Setting
Color Temp
6500K -
Color Temp setting7300K -
9300K -
User
R Gain
Setting Color GainG Gain
B Gain
R Oset
Setting Color OsetG Oset
B Oset
Check Field
OFF - Mono: display output in
mono mode
R: display output in red
G: display output in green
B: display output in blue
Mono -
R -
G -
B -
Aspect Ratio
Full Screen -
Aspect ratio setting
4:3 -
16:9 -
1.85:1 -
2.35:1 -
Pixel to Pixel OFF - -
ON -
Zoom
OFF -
Display zoom out scale as
setting
2X -
4X -
6X -
8X -
Underscan
OFF - Underscan ON/OFF
setting
ON -
Exit - - -

User Manual
PT-SCREEN-200
11
System Setting
Language
English -
OSD language setting
簡体中文 -
日本語 -
Input Format
OSD
5 sec -
When making setting
in OSD menu, the time
duration that OSD Menu
will disappear
10 sec -
15 sec -
20 sec -
25 sec -
30 sec -
LOGO OFF - Display logo during
system boot up
ON -
Image Flip
OFF - No Flip
H - Display left and right ip
V - Display up and down ip
HV - Display both left/right
and up/down ip
RESET
OFF - Set ON to restore the
setting value as factory
setting
ON -
ISP
OFF - Please don’t change this
setting. It’s reserved.
ON -
Ver ADT
Ver1.0.0 - Firmware version
EXIT - - -
Exit - - - -

User Manual
PT-SCREEN-200
12
Input Signal
Resolution Frequency (Hz)
480i 59.94 / 60
480p 59.94 / 60
576i 50
579p 50
720p 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.976 / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Specication
Specications
Model No. PT-SCREEN-200
Color Black
LCD
Size 10.1“
Panel Type IPS
Resolution 1280x800
Brightness 350 cd/m²
Contrast 800:1
View Angle 170° (H) / 170° (V)
HDBaseT
Distance 60m
Max Input 1080p60
IR Bi-Directional
HDCP Rev 1.4
Input HDBaseT (RJ-45) x 1 / HDMI x 1
Speaker 2W x2
VESA (FPMPMI) 75 x 75 mm
Power DC 48V (PoE)
Power Consumption 16W
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 65°C
Dimension 245(W) x 168(H) x 29(D) mm
Weight About 630g - Stand included

User Manual
PT-SCREEN-200
13
Accessory Remote Control / AC Adaptor / User
Manual
Certicate HDBaseT CTS Class B/ FCC/ CE/ PSE
(AC Adaptor) / RoHS
Warranty
1. Limited warranty:
PureLink warrants that its products will be free from defects in materials and workmanship
for one year, starting from the date of shipment (As per recorded in the invoice or receipt).
This warranty covers only the main device. Accessories and consumables are not covered
under warranty.
Proof of purchase in the form of a bill of sale or receipted invoice to proof the validity of
the warranty as well as the corresponding product serial number must be presented during
servicing to obtain free warranty service within the warranty period.
Note: To ensure warranty validity, please retain the receipt or invoice during purchase.
2. Out-of-warranty Services:
PureLink provides paid servicing for products that are out-of-warranty or damages/malfunc-
tions occurring outside of warranty coverage such as:
a) Exceeded warranty period
b) Product seal with serial number has been altered or removed
c) No proof of purchase or invalid serial number
d) Delivery, installation or labor charges for installation or setup of the product
e) Damage or malfunction caused by:
• Wear and tear
• Incorrect usage
• Use of unauthorized equipment or accessories
• Use of third-party accessories not meeting product specications
• Damage caused by other connected faulty equipment
• Tempering
• Force majeure or Act of God
• Servicing not authorized by PureLink GmbH
• Any other cause of damage that is considered a defect
3. Warranty/Servicing delivery charges
Any delivery charges incurred from shipping the product for servicing within or after the
warranty period is to be covered by the user.

User Manual
PT-SCREEN-200
14
4. Technical support:
PureLinks technical support team is available via email or live telephone support to help
you with any problems regarding our products. To ease the process, please prepare the
following information before contacting us:
• Product model and name
• Details of the problem(s)
• Details leading up to the cause of the problem(s)
Remarks:
For any queries or problems, contact your nearest distributor or email us at:
[e-mail]

User Manual
PT-SCREEN-200
15

User Manual
PT-SCREEN-200
16
Asking for Assistance
Technical Support:
Phone: [phone] - 0
Fax: [phone] - 99
Technical Support Hours:
8:30 AM to 5:00 PM Monday thru Thursday
8:30 AM to 4:00 PM Friday
Write To:
PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
www.purelink.de
[e-mail]
