Pyle Pro PMDJAND12 User manual

Questions? Issues?
We are here to help!
Phone: [phone]
Email: suppor[email protected]

www.PyleUSA.com
2www.PyleUSA.com 3
WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines. This equipment should
be installed and operated with minimum distance of 20cm the radiator your body.
This device and its antenna(s) must not be co-located or operation in conjunction
with any other antenna or transmitter.

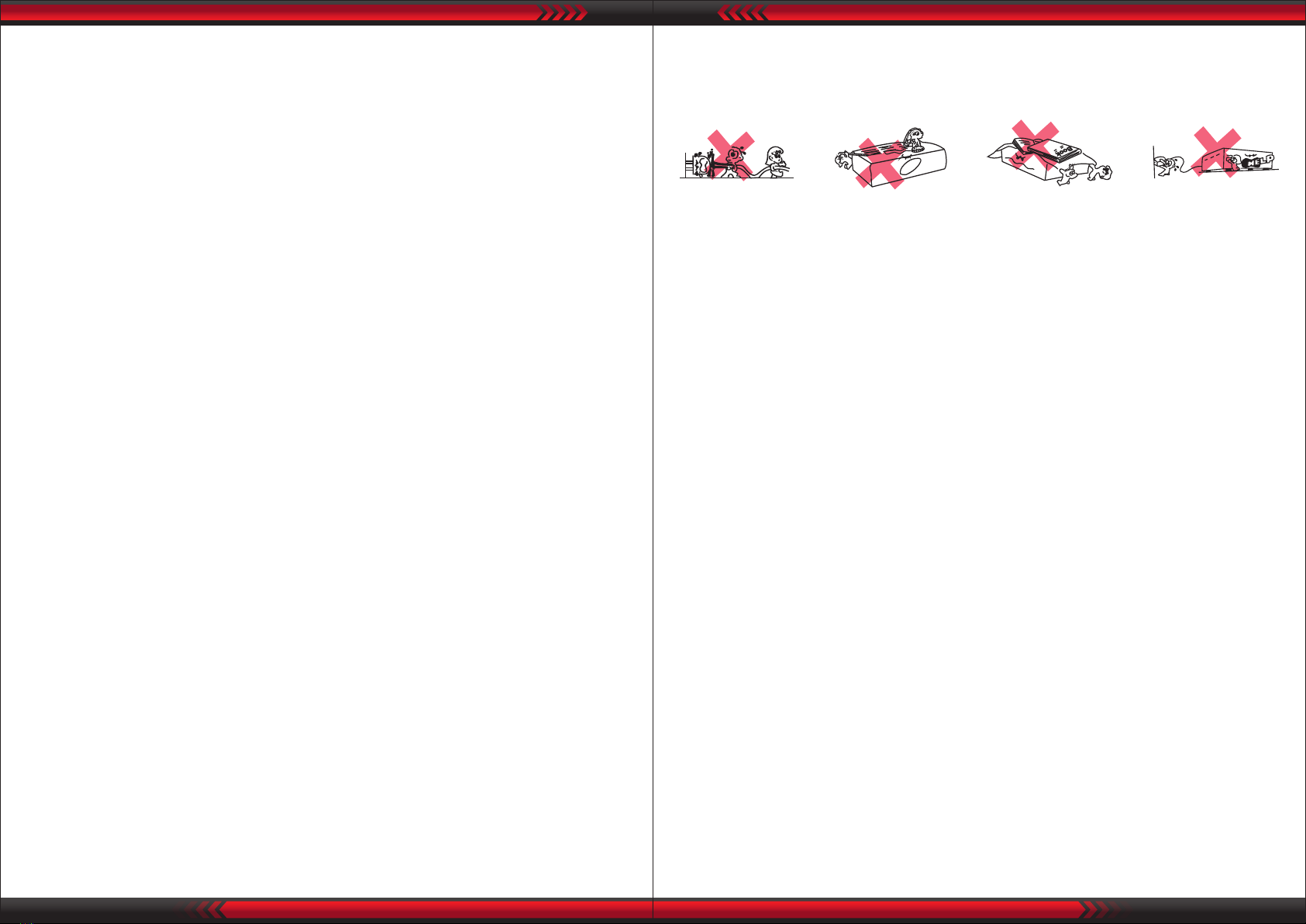

IMPORTANT SAFETY MEASURES
Before using this machine, please read all the safety and operating instructions.
Meanwhile, please observe all the indications about safe operating.
1. Protection of electric power supply line: Be aware that the electric power supply
line is not tramped, pressed by heavy objects. Pay special attention to the plug of
power supply line and outlet on the machine. DO NOT lengthen the electric shock,
DO NOT pull or drag or the power supply line.
2. Ventilation: This set must be put in ventilated place. DO NOT put disk on it or cloth
to cover it. The distance away from the wall should not be less than 10 centimeters.
DO NOT put this set on the bed, sofa, carpet or other objects with similar surface
in case of good ventilation.
3. Casing Dismantling: DO NOT dismantle the casing. If one touches the inner
components, he will probably get serious electric shock.
4. Unusual smell: When you discover unusual smell and smoke, cut power supplies
immediately and pulls out the plus from the outlet on the wall.
Contact the sell shop or nearest repairing center.
PRODUCT FEATURES
• Wi-Fi KTV Speaker
• Portable Karaoke Machine Wireless BT Streaming Speaker
• 18.5'' High-Denition Screen
• Support: USB/SD/MMC/PC/TV/MP3/Mobile Phone etc.
• Function: USB/Micro SD/BT/WIFI Touch Screen/Remote Control/HDMI/LINE IN/
LINE OUT/MIC/DC12V
• Application: Home Theater/ Karaoke/ Party/ Disco/ Outdoor Dancing
• Full-function Remote Control
• Stereo Surround, Durable, and Easy Maintenance
• Dual Wireless Microphone
• For Indoor/Outdoor Activities
• With Trolley and Rollers for Easy Transportation
• Record Voice, USB/Micro SD Card Compatible
• Built-in rechargeable 12V 9AH Lead Acid Battery

www.PyleUSA.com
4www.PyleUSA.com 5
1. :SELECT,MENU PLAY/REPEAT
ALL/SINGLE REPEAT
2. UP
3. :Home page
4. DOWN
5. :Previous song
6. LEFT
7. :PLAY/PAUSE Button
8. RIGHT
9. :Next song
10. ENTER
11. APP
12. RETURN: Returns to the previous screen
13. SETUP: Setting
14. MEDIA: MEDIA/VIDEO/MUSIC
15. VOL + : Increase volume
16. M.PRIORITY: Microphone priority
17. VOL - : Decrease volume
18. CHANNEL: Track
19. MUTE: Press to mute/unmute
20. BT: Wireless BT Streaming ON/OFF
21. INPUT DC 12V
GETTING STARTED
1. Ensure the Portable Loudspeaker is turned o. Ensure all volume controls are turned
all the way down. Next, connect one side of the included power cable to the
Portable Loudspeaker’s power inlet and the other to a grounded power outlet.
2. Ensure that the power supply complies with the power requirements listed on the
identication sticker located on the bottom of your product.
Turn ON the power to the Portable Loudspeaker using the power switch.
3. Slowly turn up the function keys until the desired level is reached.
REMOTE CONTROL FUNCTIONS
PANEL DESCRIPTION
1. SWITCH SCREEN: (Press and hold the Standby Power button)
2. MUTE: Mute the sound. Press again to restore the sound.
3. LIVE
4. VOD
5. APP
6. SET
7. PREVIOUS
8. NEXT
9. VOL - : Decrease volume
10. VOL +: Increase volume
11. MENU: select, menu play/repeat all/single repeat
12. MULTI MEDIA: Video/Audio
13. UP/DOWN/LEFT/RIGHT: Move the selection up, down, left
and right.
14. OK
15. RETURN: To return to the previous screen
16. HOME: Returns to the Home Screen
17. 0~9: 0~9 play video and input password
18. MIC PRI: MIC PRIORITY
19. TRACK: SOUND TRACK: audio tracks used in video playback
1 2
3 4 5 6
7 8 9 10
11 12
13
13
13
13
15
14
16
17
18 19
22. VOL: Master volume knob
23. TREBLE: Treble control knob
24. BASS: Bass control knob
25. ECHO: Echo eect knob
（for microphone）
26. M.TREBLE: Microphone Treble
control knob
27. M.BASS: Microphone Bass
control knob
28. MIC.VOL: Microphone Volume
control knob
29. MIC: Microphone
30. G. IN: Guitar input
31. MIC: Microphone input
32. LINE OUT: Audio output
33. LINE IN: Audio input
34. CHARGE: Charging indicator light
35. 15V IN: DC15V Charging interface
36. MICRO SD
37. USB: USB INTERFACE
38. HDMI: HDMI OUTPUT
39. POWER ON/OFF

www.PyleUSA.com
6www.PyleUSA.com 7
TECHNICAL SPECS:
• Power Supply: 60W
• Working Voltage: 110-240V 50/60Hz
• Speaker Type: Active
• Construction Material: Wooden & ABS
• Power Source (AC)110/240V-50/60 Hz±10%
• Direct Current: external input DC 12V
• Frequency Response:40Hz-18KHz
• Internal Storage: 1G RAM +8G ROM
• Android Version: 7.1
• Screen: 18.5'' -inches High-Denition Screen
• Resolution: 1366 x 768
• Remote Control Battery Operated, requires (2) x 'AAA' Batteries (Not Included)
• Battery Type: 12V 9AH Lead Acid Battery
• Battery Life: Up to 2+ Hours
• Mic Nominal Current Drain: < 100mAh
• Battery Operated Mics require (2) x ‘AA’ Batteries each (Not Included)
• Charging Time: 4-8 Hours
PMDJAND12:
• Sub-woofer Size: 12’’ -inches Woofer
• 40'' HQ quantity: 273pcs
• Speaker: 12'' -inches Bass + 4'' -inches Midrange Unit + 80 Magnetic Horn Treble
• Product Dimensions (L x W x H): 23.23’’ x 16.93’’ x 38.58’’ -inches
PMDJAND15:
• Sub-woofer Size: 15’’ -inches woofer
• 40'' HQ quantity: 247pcs
• Speaker: 15'' -inches Bass + 5'' -inches Midrange Unit + 80 Magnetic Horn Treble
• Product Dimensions (L x W x H): 23.23’’ x 16.93’’ x 42.72’’ -inches
WIRELESS BT CONNECTION
Switch the Portable Wireless BT Streaming Loudspeaker to MODE, then switch to
BT (BT MODE) pairing mode and connect to a new BT device using BT Network
Name: ‘PyleUSA’.
WARNING:
To prevent the risk of re or electric shock, do not expose this appliance to rain or
moisture. To prevent electric shock do not remove the cover. No user serviceable parts
inside. Refer servicing to qualied service personnel.
SAFETY:
Prior to connecting mains, ensure that the supply voltage is correct and the mains
lead is in good condition. Avoid ingress of water or particles into the enclosure.
PLACEMENT:
Keep the unit out of direct sunlight and away from heat sources.
Place the unit in an upright position during use and storage.
Keep the unit away from moisture or dusty environments.
CLEANING:
Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.
To avoid damage, do not use solvents to clean this equipment.
WHAT’S IN THE BOX:
• Portable Wireless BT Streaming Loudspeaker
• Remote control
• (2) Wireless Handheld Microphone
• 1 Set of Charger
