Q Experience Q DISPLAY 2 Series User manual

Q DISPLAY 2 SERIES
User guide

2
Welcome to the Q Experience 2.0. ...................................................................................................4
Important information.........................................................................................................................5
Introduction.........................................................................................................................................6
1 Sidebar..............................................................................................................................................6
Home button ...................................................................................................................................7
Pinned views ...................................................................................................................................7
Notification centre and Notifications............................................................................................8
System updates ..............................................................................................................................8
System status area.........................................................................................................................8
2 View..................................................................................................................................................9
3 Application .......................................................................................................................................9
4 Home menu....................................................................................................................................10
4.1 Views.........................................................................................................................................11
4.2 Utilities.....................................................................................................................................15
5 Map.................................................................................................................................................15
5.1 Map basics...............................................................................................................................16
5.2 Location properties ................................................................................................................18
5.3 Navigation/ Set a destination................................................................................................19
5.4 Map’s application menu .........................................................................................................19
Widgets..........................................................................................................................................21
5.5 Chart settings ........................................................................................................................ 22
5.6 Location and route properties.............................................................................................. 24
6 Dashboard application................................................................................................................. 25
Dashboard Settings ..................................................................................................................... 26
7 Compact dashboard widget.........................................................................................................27
8 Fishfinder ...................................................................................................................................... 28
Fishfinder menu ........................................................................................................................... 28
9 Radar ............................................................................................................................................. 29
Radar menu .................................................................................................................................. 29
10 Music............................................................................................................................................ 29
10.1 Music player area ................................................................................................................. 30
10.2 Music menu ....................................................................................................................... 30
10.3 Radio input and Favourites ..................................................................................................31
10.4 Bluetooth input......................................................................................................................31
10.5 AUX input.............................................................................................................................. 32
10.6 Equalizer ............................................................................................................................... 32

3
11 Weather........................................................................................................................................ 33
12 Info ............................................................................................................................................... 34
13 Settings........................................................................................................................................ 34
13.1 System settings.................................................................................................................... 35
13.2 Users..................................................................................................................................... 36
13.3 Display settings.....................................................................................................................37
13.4 Navigation settings.............................................................................................................. 39
13.5 Wi-Fi...................................................................................................................................... 39
13.6 Bluetooth .............................................................................................................................. 40
13.7 Mobile Data Settings ............................................................................................................41
13.8 Boat settings .........................................................................................................................41
13.9 Unit settings......................................................................................................................... 43
13.10 Audio settings..................................................................................................................... 44
13.11 System reset ....................................................................................................................... 45
14 Q Mobile App............................................................................................................................... 45
15 Glossary........................................................................................................................................47

4
Welcome to the Q Experience 2.0.
Make sure to read this guide to get the most out of your Q Experience!
The Q Experience produces easy-to-use smart navigation plotters, making boating and
navigation easier and smarter for everyone. This smart navigation system is more than just
a regular plotter. It brings together everything a plotter needs from navigation to
entertainment.
The Q Display 2 Series product family includes three plotter sizes:
•Q Display 210 (10”)
•Q Display 216 (16”)
•Q Display 210D (Double 10”)
They all have the same general functions, introduced in this user guide.
Making boating easier and smarter
Your new Q Display has been designed with good usability in mind. It has a clear and bright
waterproof touchscreen, and easy-to-read navigation menus. You can control your boat’s
navigation, heating, music, Fishfinder, radar, weather info etc. all with the same device.
The Q Display is also customizable to your own liking. You can pin the things you most need
to the sidebar on the right side of your Q Display, and you can create your own views of
applications to find them fast whenever needed. By creating split-views you can make
multitasking easier than it ever was before!
The Q Experience also focuses on safety. The Q Display’s bright screen will keep you on the
map, wherever you are going. It also has automatic weather warnings to give you a heads up
on approaching bad weather.
Keep your boat safe with the Q Mobile App
The
Guard -feature, that you can find on the Q Experience app, keeps your boat safe while
on the docks. It will alarm you if the boat is filling up with water or if there is a boat theft.
The Q Experience mobile app also always keeps all your boating info with you, wherever you
go. You can download it from your phone’s app store.
NOTE: Buster, Yamarin, and Yamarin Cross boats use their own Buster Q and Yamarin Q mobile apps.
Notice! You can access this guide any time from your plotter’s Home menu > Info >
Guides

5
Important information
FCC Compliance statement
Changes or modifications not expressly approved by Nextfour Solutions Oy could void the user's
authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
FCC Interference statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
ISED Canada compliance statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
Déclaration de conformité d'Innovation, Sciences et Développement économique Canada
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage.
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.

6
Introduction
The user interface of the Q Experience consists of three main components: Sidebar, View and
Application.
Whenever you are unsure about where to find the information you are looking for, see the
alphabetically ordered
Glossary for keywords at the end of this guide.
1 Sidebar
The Sidebar is the anchor of the Q Display’s user interface. It is accessible from every view
and provides instant access to all the essential functions and your favourite views. The
Sidebar consists of:
•Home button
•Pinned views
•Notification centre
•System status area

7
Home button
The Home button opens the Home menu . In the Home menu you will find all the available
views and utilities – everything essential to control and adjust your device.
Home icon
Pinned views
Beneath the Home button are Pinned views . Pinned views is a customizable collection of
views, that can be accessed directly from the sidebar.
Customize the Sidebar by pinning your favourite views to it:
1. Open the Home menu,
2. Open View properties by pressing the three dots (…) on the desired view
3. Select
Pin to Sidebar .
To unpin a view, repeat the process above, but in the last step select
Unpin from sidebar
instead. You can open the same contextual menu by long pressing the view icon in the
Sidebar.

8
Notification centre and Notifications
Beneath Pinned views you will find the Notification centre . Here you can view and manage all
the notifications that you have received.
Open the Notification centre from the Notification button (notification icon) in the Sidebar.
Notification icon
Every notification will first appear on the screen. All the notifications with normal or higher
priority will be stored in the Notification centre until they are dismissed. Minor and highly
contextual notifications, such as Bluetooth pairing success/fail, Wi-Fi connecting success/fail
etc. will not be stored.
The Notification centre icon (notification icon) will indicate you of unread notifications. The
highlight colour is based on the highest priority notification:
•(Red icon): Alert
•(Yellow icon): Warning
•(White icon): Notification
System updates
Available system updates will appear as notifications (see the notification icon above). You
must upload the available system updates from the notifications for them to be effective in
your display. The download might take a few minutes. After the upload has completed, the Q
Display will be restarted.
System status area
Below the Notification centre is the System status area . Here you can see Wi-fi, SIM card,
GPS positioning and Bluetooth status, plus a digital clock.
Status area icons
Wi-fi
SIM card (not installed when grey)
GPS

9
Bluetooth
2 View
View is an instance of one or more applications, shown on the screen at the same time. A
view may consist of a single application (Fullscreen view) or two applications (Split view).
Most of the application settings are view specific. For example, you may have two individual
Map views with different settings for different scenarios.

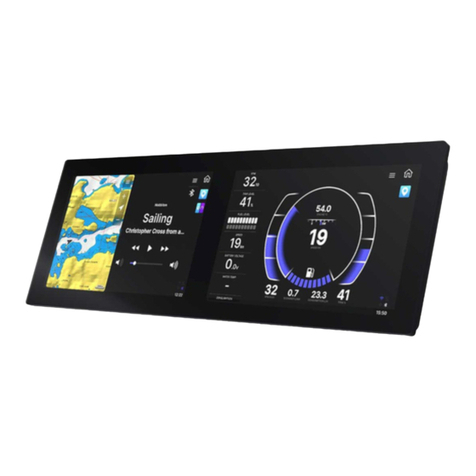

Two views in Q Display 210D
3 Application
Application is the actual program assigned into a view. Map, Fishfinder, Radar etc. are
applications.
The Application menu button can always be found in the top right corner of every
application. From the Application menu you can access all the application specific functions,
such as
Search for Map or Inputs for Music. Scroll the menu by dragging it up or down with
your finger.
To close the Application menu, press the (X) button in the top right corner, or tap on the
screen outside of menu area.

10
Application menu
See the application specific sections for more detailed instructions, starting from Chapter 5
Map .
4 Home menu
The Home menu is where you will find all the available views and utilities – everything
essential to control and adjust your device.
Open the Home menu from the Home button in the Sidebar. Press X to close the menu.
Scroll the menu by dragging it up or down with your finger.

11
Home menu
4.1 Views
The topmost section of the home menu features all the default and custom views for the
applications available to you. The available applications depend on your boat configuration
and installed peripherals, such as speakers, radar, or sounder/Fishfinder.
Map and Dashboard applications will always be available, with respective full-screen views.
To enable more applications for views, see Chapter 13.8.5
Extra packages .
Default and custom views
The first time you power up the Q Display, you will start with a selection of default views. You
are free to customize all of them and create your own custom views as you see fit.
To create a new view:
1. Open Home menu
2. Press on
New view
3. Select the view template (see list below)
4. Assign desired applications to the viewports
5. Press “checkmark” when done to save the view
6. Activate, pin and edit your new view from the Home menu.

12
Add new view
Available templates for custom views are:
-Fullscreen view
-Vertical split view
-Horizontal split view
-Picture-in-Picture

13
4.1.1 Manage views
If you would like to pin, launch or remove default or custom views:
1. Open View properties by pressing the three dots (…) on the desired view
View properties
2. Select the desired action:
a. Pin to Sidebar / Unpin from Sidebar
b. Launch
c. Remove from views
Pin/unpin a view

14
4.1.2 Reset views
If at some point you would like to go back to the factory set default views:
1. Open Home menu
2. Select
Settings
3. Select
System reset
NOTE,that this action is irreversible, and all your data and custom views will be removed.
4.1.3 Split view
When the view is split into two, it is called a “split view”. When you are using a split view, you
can adjust the split ratio anytime, by dragging the handle between the applications. The
handle will snap to the closest split point when released. The default split points are:
•75/25
•50/50
•25/75

15
4.2 Utilities
Under Utilities , you will find all the utility applications, like Settings, Weather, and Info. Utility
applications are opened on top of your current view, instead of a dedicated view. Press the
close button (X) in the top right corner, to close the utility application, and return to your main
view. Utility applications consist of a tab list on the left and a content area on the right.
Utility applications cannot be assigned into custom views.
Utilities
5 Map
Here you can navigate, explore, and save places and routes.
Launch the Map view by opening the Home menu and selecting
Map . The Map application
consists of the Chart area, Application controls in the top right corner and optional Compact
dashboard in the top left corner.

16
Chart/Map app
In Map controls, top right corner of the application you will find:
•Map menu button
•(+) Increase zoom button
•(-) Decrease zoom button
•Center map button
5.1 Map basics
5.1.1 Panning
Pan the Map by dragging it in the desired direction with your finger.
5.1.2 Centering
Center the view back to your position by pressing the button in Map controls.
5.1.3 Zooming
Zoom in by spreading two fingertips on the screen, pinch to zoom out. Alternatively use the
buttons in Map controls.

17
Zoom in
Zoom out
5.1.4 Measure distance
Measure distance by placing two fingertips on the screen at the same time, one on the start
point and other at the end of the distance you wish to measure.
5.1.5 View location information
Press long on the map area with one fingertip to view location information and open the
Location menu . See the next section Location properties for more information.

18
5.2 Location properties
The Location properties is where you will see the coordinates and distance information for
the selected position, as well as access location specific functions.
Open
Location properties by long pressing on a desired location on the chart with your finger.
You can also open the location properties by choosing a location from
My places , found from
the map’s application menu.
The Location properties include:
5.2.1 Location information
Location information displays the coordinates and your current distance, time and needed
fuel to the location.
5.2.2 Set as destination
Set the location/place as destination and start navigating.
5.2.3 Save to My Places/ Edit place
Save the location to
My Places by pressing the icon. Once a place has been added to My
places, it can be edited by the edit icon. You’ll find My places from the map’s application
menu.
5.2.4 What’s here?
Inspect nearby marine markers, chart notation and points of interest.
5.2.5 Move the position
Adjust the location/place position.
1. Press on the
Move position to activate move mode.
2. Pan the chart under the Marker to the desired location.
3. Press on
Move position again to end move mode and pin the Marker to the new
position.
5.2.6 Center to
Center the chart to the selected location/place.

19
5.3 Navigation/ Set a destination
The Q Experience provides robust auto-routing and navigation capabilities and is compatible
with Navionics marine charts. To start navigating, just set the destination or select an existing
route to use for navigating.
To set a destination, do one of the below:
A. Search for the place to use as destination
1. Open Search from Map’s application menu.
2. Type in the place you want to find.
3. Select the corresponding option from the search results.
4. Select
Set as destination from the Location properties menu.
B. Select the destination from chart
1. Long press on the location on chart where you want to go.
2. Select
Set as destination from the Location properties menu.
C. Select destination from My Places
1. Open
My Places from the Map’s application menu.
2. Select place you wish to go to.
3. Select
Set as destination from the Location properties menu.
To use an existing route, do the following:
1. Open
My Routes from Map’s application menu.
2. Select the route you wish to use for navigation.
3. Select
Start navigation from the Route properties menu.
Route direction and destination’s end is determined automatically, based on which way you
are currently heading, and how far you are from route end points.
Once you have set the destination or selected a route, the navigation route will remain visible
until the navigation is stopped by the user – even through Q Display reboot.
To end or pause navigation, open the Map application’s menu and press on the
stop or pause .
5.4 Map’s application menu
The Map’s application menu includes all the essential functions, to utilize and adjust the Map
application.
Open the map’s menu from the application menu button in the application’s top right
corner.
Press X to close the menu.

20
Map menu (found through the Map’s application menu )
5.4.1 Stop and pause
Stop or pause an active navigation.
5.4.2 Search
The Search function allows you to explore and find places.
5.4.3 Chart settings
Find detailed settings to use for navigation from the
Chart settings . Read more about chart
settings below in Chapter 5.5
Chart settings .
5.4.4 My Places
View and manage all your saved places.
Select an existing location to view and manage its position and properties. Select (+)
New
place
to create a new place on your current location – you can adjust the location while
creating a new place, for more accurate positioning.
5.4.5 My Routes
View and manage all your saved routes.
