Q Garden QG33-1200 User manual

33cm Electric
Lawnmower
Model No: QG33-1200
Product No: 1938283001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this
manual, our policy of continuous improvement determines the right to make modifications
without prior warning.
Images used are for illustration purposes only.
INSTRUCTION MANUAL

Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written
permission from Handy Distribution.
In all cases this copyright notice must remain intact.

CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
KNOW YOUR MACHINE
ASSEMBLY
OPERATION
MAINTENANCE & STORAGE
TROUBLE SHOOTING

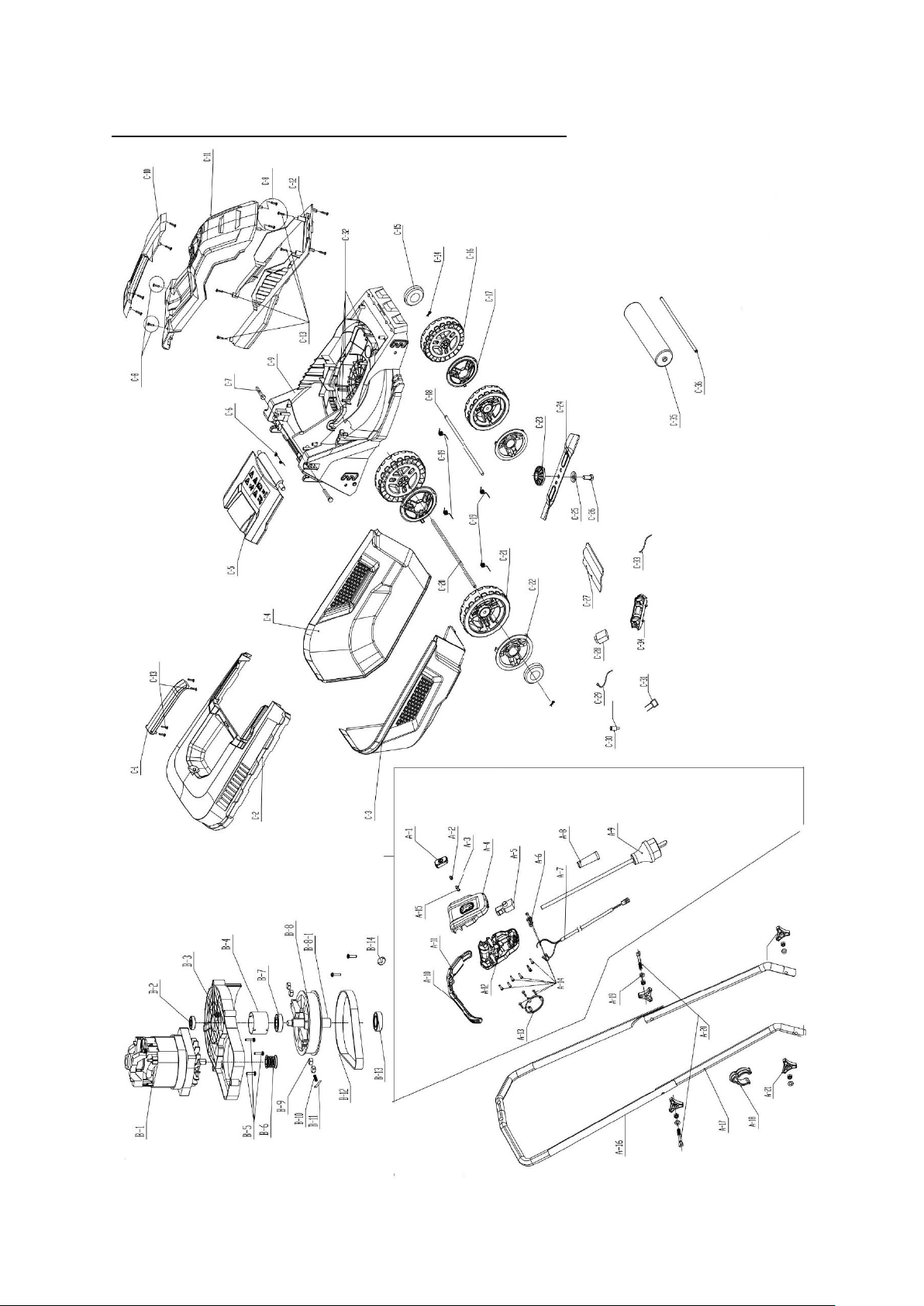

PARTS DIAGRAM & LIST
DECLARATION OF CONFORMITY
WARRANTY
If you require any assistance with regards to the contents or operation of your machine,
please contact us:
TEL: [phone]
EMAIL: [e-mail]
Opening hours weekdays: February to October 8:30am - 5:30pm / November to January
8:30am - 5:00pm (Closed Bank Holidays)
SPECIFICATION
The manufacturer reserves the right to change the product specification and livery
according to continued product improvements.
Model
QG33-1200
Product Number
1938283001
Voltage
220-240V, 50Hz
Power
1200W
Working Width
330mm
Drive Type
Hand Push
Cutting Heights
20-40-60MM
Collector Capacity
30L
Deck
Plastic
Front / Rear Wheel
140mm / 160mm
Guaranteed Noise Power Level (LWA)
96 dBA - uncertainty: 3.0 dB(A)
Emission Sound Pressure Level (LPA)
81.0 dB(A)
Vibration (ahv)
2.85 m/s2- uncertainty K: 1.5 m/s2

IMPORTANT INFORMATION
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are
familiar with the controls and properly operate the machine. Following these instructions can
reduce the risk of fire, electric shock and personal injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety
instructions must be followed to ensure reasonable safety and efficiency in using this product.
The operator is responsible for following the warning and safety instructions in this manual
and on the machine. Never use the product unless the grass box or guards are correctly
positioned.
DESIGNED FOR DOMESTIC USE ONLY.
This machine is to be used exclusively for cutting natural grass. Never use the mower for other
purposes. Any other use can endanger your safety and can involve damage to the mower.
Persons under 16 years of age and persons who are not familiar with the user instructions must
not use the mower.
The user is responsible for the safety of other people in the working area. Keep children and
domestic animals at a safe distance while the mower is in use.
Before mowing, remove all foreign objects from the lawn which may be thrown by the
machine, stay alert for any foreign objects which may have been missed.
These operating instructions must be kept and referred to in order to ensure that the
equipment is properly used and maintained. The instructions contain valuable information on
operating, maintenance and servicing conditions.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the
equipment.
Never allow children or people unfamiliar with these instructions to use the product. Local
regulations can restrict the age of the operator.
Never operate while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards involving the
machine that occur to other people or their property.
WARNING
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a
case of misuse. The user/operator and not the manufacturer will be liable for any damage or
injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications. Our warranty will be 90 days from the original date of sale for
commercial, trade or industrial businesses or for equivalent purposes.

GENERAL SAFETY INSTRUCTIONS
It is important that you read and understand the owner’s manual and labels affixed to the
machine. Learn its application and limitations as well as the specific potential hazards. Retain
these instructions for future reference. The operator is responsible for following the warnings &
instructions in this manual and on the product.
Read & understand operator’s
manual before using the
machine. Failure to follow
instructions could result in death
or serious injury.
Please keep in a safe place for
future reference.
Always wear eye
and ear protection
Keep all bystanders & animals
away from the machine during
operation. If approached, stop
the machine immediately.
Always wear gloves to protect your
hands.
SHARP ROTATING BLADES
Before working or undertaking
any servicing or cleaning of the
machine, ensure the electrical
cable is removed from the
power source.
Wear foot protection or sensible
shoes when using the machine
WARNING
Remove the plug from the
power source immediately if
the cable is damaged or cut.
Do not expose to rain or damp
conditions.
Keep electrical cable away
from cutting blade
Moving Parts
Rotating parts can contact or
entangle hands, feet, hair, clothing
or accessories.
Traumatic amputation or severe
laceration can result
Keep guards in place and in
working order. Replace
damaged, missing or failed
parts before using it.
Safety alert symbol. Used to alert you
to potential personal injury hazards.
Obey all safety messages that follow
this symbol to avoid possible injury.
DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in serious
injury
WARNING
Indicates a potentially hazardous
situation which, if not avoided,
could result in serious injury
CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
CAUTION
Used without the safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
CE Marking - the product meets
demand and regulations set by
the EU
Noise Level - See label on machine
According to the European directive 2012/19/EU for Waste Electrical and Electronic
Equipment and its implementation into national law, electrical and electronic
equipment that are no longer usable must be collected separately and disposed of in
an environmentally correct manner.

GENERAL SAFETY RULES
Before you put the machine into operation, you must read this instruction manual.
When using this machine, observe the following safety instructions to exclude the risk of
personal injury or material damage. Please also observe the special safety instructions in the
respective chapters. Where applicable, follow the legal directives or regulations for the
prevention of accidents in relation to the use of this machine.
WARNING
When using electric tools, basic safety precautions, should always be followed to reduce the
risk of serious personal injury and/or damage to the unit.
DANGER
Danger from contact with live parts!
Immediately disconnect the plug from the mains if the extension lead is damaged or
severed!
TRAINING
The operator must receive proper training in the use, adjustment and operation of the
machine, including prohibited operations.
1. Read the instructions carefully. Be familiar with the controls & proper use of the
equipment. Spend time to familiarise yourself with your machine before each use.
2. Never allow children or people unfamiliar with these instructions to use the machine.
Local regulations can restrict the operator age.
3. This machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the machine by a
person responsible for their safety.
4. Never work while people, especially children, or pets are nearby.
5. The operator or user is responsible for accidents or hazards occurring to other people or
their property.
ELECTRIC SAFETY
1. The domestic mains voltage must match the mains voltage specifications in the technical
data; do not use any other supply voltage.
2. The fuse must be a residual current circuit- breaker with a measured residual current of no
more than 30 mA.
3. Ensure any extension lead used with this product, meets the minimum requirements of the
machine and is suitable for outside use.
4. Damaged or brittle machine cables or extension leads must not be used.
5. Always check the condition of your cable or extension lead before operating the
machine.
6. Always keep cable & extension lead out of the cutting area and routed away from the
machine.
7. Never run over the cable or extension lead with the lawnmower.
8. Protect the machine against moisture.

SAFETY INSTRUCTIONS FOR WORKING WITH YOUR LAWNMOWER
1. Operate in daylight or good artificial lighting. If possible, do not use on overly wet ground.
2. Ensure good stability on slopes. Always operate across the slope, never up and down.
3. Be particularly careful if changing direction of travel on the slope.
4. Do not operate on steep slopes.
5. Operate whilst walking, do not run.
6. Be particularly careful when you turn or when you pull the machine towards you.
7. Stop the motor and blade, if it is to travel across other areas or must be transferred
to/from working area.
8. Never use the machine with damaged safety protection guards.
9. Do not change the motor regulation set up.
10. Carefully start the motor. Keep your feet clear of the blade.
11. Never reach behind or under the rotating parts with hands or feet.
12. Never lift or carry the machine while the motor is on.
13. Switch the motor off and remove electrical plug from the power source, before
unblocking or removing obstacles from the blade or exit chute:
−Before releasing blockages, inspecting, cleaning or working on the machine.
−After hitting an obstruction. Search for damage on the machine & make repairs as
necessary. If the machine starts vibrating unusually, it should be inspected by an
Approved Service Dealer.
WORK AREA
1. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
2. Check the landscape where the machine will be used and remove all objects such as
stones, toys, sticks and wires, which could be caught and thrown away from the work
area. Damage of the machine or operator’s injury could be caused.
3. Do not operate this machine in explosive atmospheres, in the presence of flammable
liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
4. Keep children & bystanders away while operating the machine. Distractions can cause
you to lose control.
PERSONAL SAFETY
1. This machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the machine by a
person responsible for their safety.
2. Children should be supervised to ensure that they do not use or play with the machine.
3. Stay alert, watch what you are doing and use common sense when operating this
machine.
4. Do not use this machine while you are tired, ill or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating this machine can cause you to lose
control & may result in series personal injury.
5. Do not overreach. Always keep proper footing and balance. This enables better control
of the tool in unexpected situations.
6. Remove any adjusting tools before turning the machine on. A tool that is left attached to
a rotating part of the machine may result in personal injury.
7. Use safety equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
condition will reduce personal injuries.
8. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing & gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts. Wear foot protection or sensible shoes when using the machine.
9. Prolonged use of the machine may lead to disorders of blood circulation in hands
caused by vibration. These effects can be worsened by low ambient temperatures
and/or by gripping the handgrips excessively tightly. Period of use you can extend with
appropriate gloves or regular breaks. Take frequent work breaks. Limit the amount of

exposure per day.
10. Do not force the machine. Use the correct machine for your application. The correct
machine will do the job better and safer at the rate for which it was designed.
11. Do not use the machine if the trigger levers do not work to turn the machine off. Any
machine that cannot be controlled with the trigger levers is dangerous and must be
repaired.
1. Turn machine off completely and the electrical plug removed from the power source
before making any adjustments, changing accessories, or storing. Such preventive safety
measures reduce the risks of starting the machine accidentally.
2. Store idle machines out of the reach of children and do not allow persons unfamiliar with
the machine or these instructions to operate. Electric machines are dangerous in the
hands of untrained users.
3. Maintain your machine. Check for misalignment or binding of moving parts, breakage of
parts & any other condition that may affect the operation. If damaged, have the
machine repaired by an Approved Service Dealer immediately. Many accidents are
caused by poorly maintained machines.
4. Use the machine, accessories and tool bits etc., in accordance with these instructions
and in the manner intended for the particular type of electric machine, taking into
account the working conditions and the work to be performed. Use of the machine for
operations different from intended could result in a hazardous situation.
PERSON PROTECTION
1. In case of any injury, always proceed in accordance with the principles of first aid.
2. If someone is cut, cover the wound with a clean cloth & press hard to stop the flow of
blood.
3. Individuals with poor circulation who are exposed to excessive vibration may experience
injury to blood vessels or the nervous system. Vibration may cause the following symptoms
to occur in the fingers, hands or wrists: numbness, tingling, pain, stabbing sensation,
alteration of skin colour or of the skin. If any of these symptoms occur, see a doctor.
Put safety first in the case of fire:
4. If fire comes from the motor appears, at first distance yourself from the product to ensure
your physical safety.
5. Use a dry powder fire extinguisher on the fire to prevent it from spreading.
6. A panicked reaction could result in the fire and other damage becoming more
extensive.

KNOW YOUR MACHINE
1. Trigger
2. Upper Handle
3. Lower Handle
4. Safety Button
5. Rear Wheel
6. Front Wheel
7. Cutting Deck
8. 30L Grass Collector
9. Handle Knob
1
2
3
4
5
6
7
8
9

ASSEMBLY
WARNING
Stop the motor and unplug the electrical cable before any repairs or maintenance
operations.
DO NOT attempt to start this machine without it first being FULLY assembled.
LOWER HANDLES
1. Insert the lower handle against the fixed bolt of the machine, located above the rear
wheel.
2. Secure with the handle knob.
3. Repeat on the opposite side of the lawnmower.
UPPER HANDLES
1. Position the upper handle over the lower handles, aligning the holes in the upper handle
with those in the lower handles.
2. Insert the bolt through the handle assembly.
3. Secure with the handle knob.
4. Repeat on the opposite side of the lawnmower.

CABLE TIDY
1. Place the cable into the fixed cable tidy.
GRASS COLLECTOR
1. Snap the handle into the collector top.
2. Attached the two lower halves of the collector together.
3. Attach the collector top to the assembled collector bottom.
4. Left the grass collector flap up, so that it opens past the handle assembly. Hold in position
and place the grass collector on the hooks on the back of the deck and place into
position.
5. Lower the grass collector flap to sit onto the grass collector.

HEIGHT OF CUT
The machine has been supplied with three cutting heights from 20-40-60 mm.
1. Adjusting the height of cut should only be undertaken when the motor is off, and the
electrical plug removed from the power source and the blade has come to a complete
standstill.
2. To adjust the cutting height, move front and rear axles up and down the height gauge.
3. Ensure both axles are located at the same cutting height, to ensure an even cut.
13

OPERATION
MOTOR STARTING & STOPPING PROCEDURE
NOTE:
Only start the lawnmower on even ground and not in long grass. The ground must be free of
foreign bodies, such as stones. Do not lift the lawn mower to start it.
STARTING THE MOTOR
1. Press the safety button. Do not release.
2. Lift the trigger lever the upper handle.
3. The motor will now begin, and the cutting blade rotates.
4. Release the safety button.
STOPPING THE MOTOR
1. Release the trigger lever. The motor will come to a stop and a couple of seconds later,
the blade will stop rotating.
MOWING WITH COLLECTOR
WARNING
Always observe the strictest safety procedures when using the lawnmower. Carefully read the
safety instructions of this manual before using the lawnmower.
Never open the rear flap when the grass bag has been detached (to be emptied) and the
motor is still running. The rotating blade can cause serious injuries!
1. Select your required height of cut setting.
2. Start the motor and allow it to run.
3. Keep a firm grip on the upper handle with trigger lever always engaged when
attempting to cut.
1
2

EMPTYING THE GRASS BAG
As soon as grass clippings start to trail the lawnmower, it is time to empty the grass bag.
NOTE:
Before taking off the grass collector, switch off the motor & wait for the blade has come to a
stop. Remove the electrical plug from the power source
1. To take off the grass collector, use one hand to lift the rear collector cover and the other
to grab onto the grass collector carry handle. The rear collector cover automatically falls
after removing the grass collector and closes off the rear chute opening.
2. Empty the grass debris from the grass collector and refit.
NOTE:
If any grass residue is caught in the discharge chute, clean it using a brush. Do not remove
grass debris in the mower deck or on the blade by hand or with your feet. Instead use
suitable tools such as a brush or broom. To ensure that the cut grass can be collected into
the grass collector, the discharge opening and inside the mower deck must be cleared of
any blockage.
MOWING TIPS
1. Start mowing as close as possible to the power socket.
2. Always keep the electrical cable and any extension lead on the section of lawn than has
already been mown.
3. Maintain a constant cutting height of 30–50mm; do not shorten the grass to less than half
its original height.
4. Do not overload the lawnmower! If the motor speed drops perceptibly due to long, heavy
grass, increase the cutting height and mow several times.
5. Mow in the morning or late afternoon to prevent the freshly cut grass from drying out,
especially in hot, dry seasons
6. During phases of strong growth, mow twice weekly; in periods of low rainfall, increase
intervals between mowing accordingly.
MOWING INSTRUCTIONS
1. Walk, never run with the mower, be very careful when mowing uneven or rough ground.
2. Be careful when changing the direction of the mower on a slope. Mow across the face
of slopes, never down or up.
3. Do not mow excessively steep slopes.
4. Best results will be achieved if the grass is dry. Wet grass will clog the blade & grass
collection system.
5. Grass grows at different rates at different times of the year. Never use the lowest cutting
height for the first cut of the season or in drought conditions.
6. Do not remove grass debris in the mower deck or on the blade by hand or with your feet.
Instead use suitable tools such as a brush or broom.
7. Check that all nuts, bolts and screws are well tightened.
8. Before mowing, place the grass collector in its position.
9. Before mowing make sure that the blade and the blade fixing screw are securely
fastened. When blade cutting edges require re-sharpening, this must be done evenly on
both sides, to prevent any imbalance. If you are unsure how to sharpen the blade,
please visit an Approved Service Dealer. If the blade is damaged, it must be replaced.
10. When mowing, always wear a long trousers and strong footwear.
11. Work only when there is enough light.
12. Turn off the motor and remove the electrical plug from the power source, if you must
leave the lawnmower unattended.
13. Never lift the rear of the mower while starting the motor. Never place your hands and
feet underneath the deck or into the rear discharge chute while the motor is running.
14. Never change in any way the rated speed of the motor.
15. Never lift or carry the mower while the motor is running.
16. Stop the motor and remove the electrical cable from the power source in these cases:
-Before any operation under the deck or the rear discharge chute.

-Before any maintenance, repairing or checking operations.
-Before carrying, lifting or removing the mower.
-If you leave the mower unattended or changing the cutting height.
-To remove and emptying the grass catcher.
-After hitting a foreign object, stop the motor and check thoroughly the mower in
order to see if it is damaged. Take the machine to a local Approved Service Dealer
for inspection if necessary. Repairs of this nature are not covered under the
Manufacturer’s warranty.
-If the mower vibrates in an abnormal way, find the reasons why, and take your
mower to a local Approved Service Dealer.
WARNING
After the motor has stopped, the blade will still rotate a couple of seconds.
CAUTION
Operating on gradients could cause the machine to tip over.
Allowing anyone to operate this machine without proper instruction may result in injury.
Wear sturdy, full coverage footwear. Operating this machine with bare feet, or with open toe
shoes or sandals increases your risk of injury.
Do not use the machine at night or in poor light.
Be sure to transport the machine from one place to another with the motor off.
Be sure to wear heavy gloves when cleaning underside of the deck or handling the blade.
To prevent damage, check the machine for any signs of damage or other faults when
operated.
MAINTENANCE & STORAGE
WARNING
Improper maintenance & storage of the machine may void your warranty. Keep the machine
clean for better and safer performance.
Turn off the motor and remove the electrical plug from the power source before performing
any maintenance.
MAINTENANCE
Use only original equipment replacement parts. Other parts may not perform as well, may
damage the unit and may result in injury. In addition, use of other parts may invalidate your
warranty.
•Before each use, check all nuts & bolts to be sure they are sufficiently tightened.
•We recommend only manufacturer original parts are used when maintaining this
machine. Failure to do so could invalidate your manufacturer’s warranty.
•The motor must be switched off and the electrical plug removed from the power source,
before the machine is unassembled, cleaned, serviced or maintained.

CLEANING
CAUTION
Do not use a water hose or pressure washer to clean the machine. Water can damage the
motor.
•Keep your machine clean. Thoroughly clean the machine at the end of each use.
•Clean the motor air vents with a cloth or brush. Motor air vents should be free from debris
to allow air circulation around the motor during use.
•Clean the underside of the deck with a stiff brush, before any maintenance is undertaken
to the blade.
•Remove the belt casing by removing the screws and clean around the transmission and
drive belts with a brush or compressed air once or twice a year.
GRASS COLLECTOR CLEANING
•Pores in the grassbox can become filled with dirt and dust, during use and will collect less
grass. To prevent this, regularly hose the catcher off with water and let dry before using.
STORAGE & TRANSPORT
The following steps should be taken to prepare your machine for storage.
STORING THE LAWNMOWER
•Always unplug the machine from the mains for storage.
•For trouble free service, make sure the machine is clean and dry before storing.
•Please ensure the machine is stored away from direct sunlight.
•Store indoors or in a safe, locked protected area during severe weather and winter
months.
•If storing for an extended period, inspect, clean and repair the machine if necessary.
Store in a clean, dry, dust free area.
•Ensure the machine is stored in a position, where any persons cannot step on to attempt
to reach items up high, due to risk of movement.
TRANSPORT
•Always unplug the machine from the mains for storage.
•Use the original packaging to ship whenever possible.

TROUBLE SHOOTING
WARNING!
Only perform the steps described in these instructions!
All further inspection, maintenance and repair work must be performed by an authorised
service specialist!
Contact your local authorised service dealer if the problem cannot be solved by yourself!
WARNING!
If the product does not perform properly, makes unusual sounds, the motor does not start or
stop as described, the cutting device does not work properly, or any other irregularity or
malfunction occurs, do not attempt to repair the product by yourself.
PROBLEM
POSSIBLE CAUSES
REMEDIAL ACTION
Motor does not start
No power supply
Check fuse / extension lead.
Machine cable defective
Contact Approved Service Dealer.
Blade jammed
Clean exit chute: the blade must rotate
freely. Start on low grass or on the
section of lawn that has already been
mown; correct the cutting height.
Loss of motor
performance
Too much grass in the exit
chute.
Clean exit chute: the blade must rotate
freely. Start on low grass or on the
section of lawn that has already been
mown; correct the cutting height.
Blade blunt
Contact Approved Service Dealer and
have the blade sharpened/replaced.
Grass collection box
does not fill up
sufficiently
Lawn wet
Allow the lawn to dry.
Grass collection box
clogged
Clean the vents grass collector.
Too much grass in exit
chute channel
Clean exit chute. Correct the cutting
height
Blade blunt
Contact Approved Service Dealer and
have the blade sharpened/replaced.

PARTS DIAGRAM - QG33-1200 (1938281001)

PARTS LIST - QG33-1200 (1938281001)
Item No.
Part No.
Description
Qty
A
QG123-ZAKGH360025
Switch Assembly
1
A-16
QG125-GKDA0000001
Upper Handle
1
A-17
QG125-GKDB0000001
Lower Handle
2
A-18
QG123-GHAB0000010
Cable Clamp
2
A-19
QG123-B5019W00000
Washer
4
A-20
QG125-B1084W08040
Bolt M8x41
2
A-21
QG125-G33C1100025
Knob
4
B
QG125-ZADJ12X0000
1200W Motor Assembly
1
C-1
QG125-GHD1000001R
Grassbox Handle
1
C-2
QG125-GHD20000010
Grassbox Top
1
C-3
QG125-GHD3R000010
Grassbox Bottom Right
1
C-4
QG125-GHD3L000010
Grassbox Bottom Left
1
C-5
QG125-GHD4000001R
Rear Flap
1
C-6
QG125-GHD50000000
Spring
1
C-7
QG125-B1098B08060
Bolt M8x60
2
C-8
QG123-B3056B00000
Screw ST4.0X20-F
4
C-9
QG125-GHD70000010
Cutting Deck
1
C-10
QG125-GKD10000010
Deck Handle
1
C-11
QG125-GKD3000001R
Upper Deck
1
C-12
QG125-GKJFL000010
Motor Housing
1
C-13
QG123-B3058B00000
Screw ST4.0X16-C
20
C-14
QG125-BB005W00000
Pin D1.6X27
6
C-15
QG123-B5019W00000
Washer
6
C-16
QG125-GHD80000010
Front Wheel
2
C-17
QG125-GHD9000001R
Wheel Trim
2
C-18
QG125-GHDA0000000
Front Axle
1
C-19
QG125-GHDB0000000
Spring
4
C-20
QG125-GHDC0000000
Rear Axle
1
C-21
QG125-GKDD0000010
Rear Wheel
2
C-22
QG125-GKDE000001R
Wheel Trim
2
C-23
QG123-GHDF0000000
Blade Adaptor
1
C-24
QG125-SH513300000
Blade
1
C-25
QG123-E10BM200000
Blade Washer
1
C-26
QG123-B1109B10025
Blade Bolt
1
C-27
QG125-GJPZK000000
Plate
1
C-28
QG125-GKH00000000
Current Protection
1
C-29
QG125-GKD60000000
Connection Wire
2
C-30
QG123-GKJYXM00000
Wire Cap
3
C-31
QG123-GLB30000000
Capacitor
1
C-32
QG125-B3063B00000
Screw ST4.0X25-F
5
C-33
QG123-G37B0000000
Nylon Cable Tie
2
C-34
QG123-GHA70000010
Switch Lower Cover
1
C-35
QG125-GHDH0000000
Rear Roller Shaft
1
C-36
QG125-GHDGN000000
Rear Roller
1

EC DECLARATION OF CONFORMITY
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product:
Designation: Electric Hand Push 330mm Lawnmower
Model(s): QG33-1200
Product Number: 1938283001
Type/Serial No. As per rating label on machine
Motor Power: 1200W
Voltage: 220-240V, 50Hz
Electrical Safety Class: Class II
Complies with the following directives:
2006/42/EC –Machinery Directive
2000/14/EC & 2005/88/EC - Outdoor Noise Directive
The conformity assessment procedure followed was in accordance with
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019, EN 60335-2-77:2010,
EN62233:2008
Guaranteed Sound Power Level:
(LWA) 96 dB(A)
Emission Sound Pressure Level:
(LPA) 81 dB(A)
Vibration Measurement:
(ahv) 2.85 m/s2- uncertainty K: 1.5 m/s2
Notified Bodies:
Intertek Testing Services Hangzhou
Address(es):
16 No.1 Ave., Xiasha Economic Development District, Hangzhou 3110018, P.R.C.
Authorised signatory & technical file holder
Date:
29/10/2020
Signature:
Name:
Mr Simon Belcher
Position:
Chairman
Company:
Handy Distribution Ltd
Address:
Murdock Rd, Dorcan, Swindon, Wiltshire, SN3 5HY.
