Q Garden QG38-1600 User manual

38cm Electric
Lawnmower
Model No: QG38-1600
Product No: 1938282001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this
manual, our policy of continuous improvement determines the right to make modifications
without prior warning.
Images used are for illustration purposes only.
INSTRUCTION MANUAL

Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written
permission from Handy Distribution.
In all cases this copyright notice must remain intact.

CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
KNOW YOUR MACHINE
ASSEMBLY
OPERATION
MAINTENANCE & STORAGE
TROUBLE SHOOTING

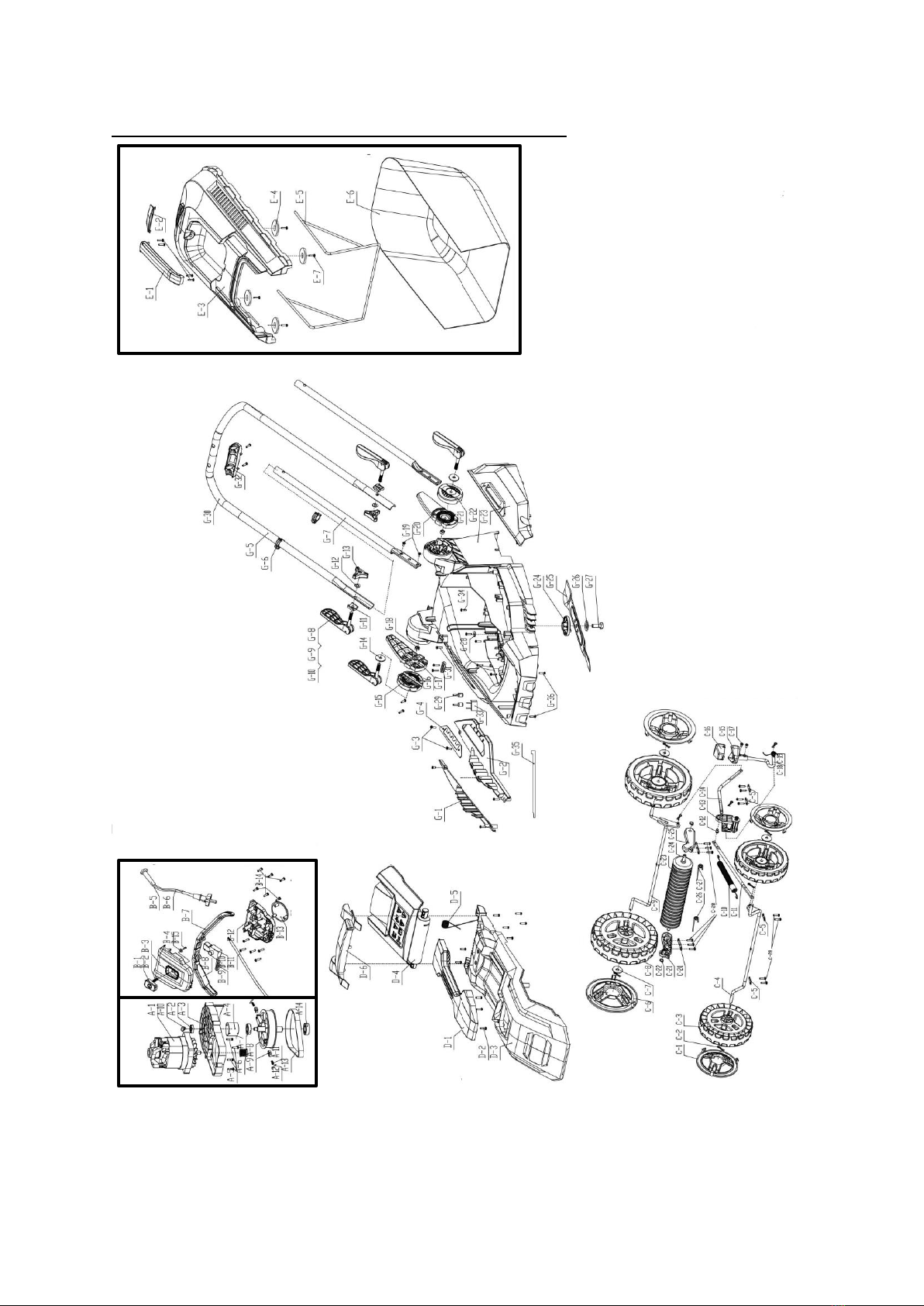

PARTS DIAGRAM & LIST
DECLARATION OF CONFORMITY
WARRANTY
If you require any assistance with regards to the contents or operation of your machine,
please contact us:
TEL: [phone]
EMAIL: [e-mail]
Opening hours weekdays: February to October 8:30am - 5:30pm / November to January
8:30am - 5:00pm (Closed Bank Holidays)
SPECIFICATION
The manufacturer reserves the right to change the product specification and livery
according to continued product improvements.
Model
QG38-1600
Product Number
1938282001
Voltage
220-240V, 50Hz
Power
1600W
Working Width
380mm
Drive Type
Hand Push
Cutting Heights
20-70mm - 5 levels
Collector Capacity
40L
Deck
Plastic
Front / Rear Wheel
160mm / 200mm
Guaranteed Noise Power Level (LWA)
96 dBA - uncertainty: 3.0 dB(A)
Emission Sound Pressure Level (LPA)
81.0 dB(A)
Vibration (ahv)
2.85 m/s2- uncertainty K: 1.5 m/s2

IMPORTANT INFORMATION
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are
familiar with the controls and properly operate the machine. Following these instructions can
reduce the risk of fire, electric shock and personal injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety
instructions must be followed to ensure reasonable safety and efficiency in using this product.
The operator is responsible for following the warning and safety instructions in this manual
and on the machine. Never use the product unless the grass box or guards are correctly
positioned.
DESIGNED FOR DOMESTIC USE ONLY.
This machine is to be used exclusively for cutting natural grass. Never use the mower for other
purposes. Any other use can endanger your safety and can involve damage to the mower.
Persons under 16 years of age and persons who are not familiar with the user instructions must
not use the mower.
The user is responsible for the safety of other people in the working area. Keep children and
domestic animals at a safe distance while the mower is in use.
Before mowing, remove all foreign objects from the lawn which may be thrown by the
machine, stay alert for any foreign objects which may have been missed.
These operating instructions must be kept and referred to in order to ensure that the
equipment is properly used and maintained. The instructions contain valuable information on
operating, maintenance and servicing conditions.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the
equipment.
Never allow children or people unfamiliar with these instructions to use the product. Local
regulations can restrict the age of the operator.
Never operate while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards involving the
machine that occur to other people or their property.
WARNING
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a
case of misuse. The user/operator and not the manufacturer will be liable for any damage or
injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications. Our warranty will be 90 days from the original date of sale for
commercial, trade or industrial businesses or for equivalent purposes.

GENERAL SAFETY INSTRUCTIONS
It is important that you read and understand the owner’s manual and labels affixed to the
machine. Learn its application and limitations as well as the specific potential hazards. Retain
these instructions for future reference. The operator is responsible for following the warnings &
instructions in this manual and on the product.
Read & understand operator’s
manual before using the
machine. Failure to follow
instructions could result in death
or serious injury.
Please keep in a safe place for
future reference.
Always wear eye
and ear protection
Keep all bystanders & animals
away from the machine during
operation. If approached, stop
the machine immediately.
Always wear gloves to protect your
hands.
SHARP ROTATING BLADES
Before working or undertaking
any servicing or cleaning of the
machine, ensure the electrical
cable is removed from the
power source.
Wear foot protection or sensible
shoes when using the machine
WARNING
Remove the plug from the
power source immediately if
the cable is damaged or cut.
Do not expose to rain or damp
conditions.
Keep electrical cable away
from cutting blade
Moving Parts
Rotating parts can contact or
entangle hands, feet, hair, clothing
or accessories.
Traumatic amputation or severe
laceration can result
Keep guards in place and in
working order. Replace
damaged, missing or failed
parts before using it.
Safety alert symbol. Used to alert you
to potential personal injury hazards.
Obey all safety messages that follow
this symbol to avoid possible injury.
DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in serious
injury
WARNING
Indicates a potentially hazardous
situation which, if not avoided,
could result in serious injury
CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
CAUTION
Used without the safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
CE Marking - the product meets
demand and regulations set by
the EU
Noise Level - See label on machine
According to the European directive 2012/19/EU for Waste Electrical and Electronic
Equipment and its implementation into national law, electrical and electronic
equipment that are no longer usable must be collected separately and disposed of in
an environmentally correct manner.
