Q Garden QGPM20ES Installation and maintenance instructions

OPERATOR’S MANUAL AND PARTS LIST

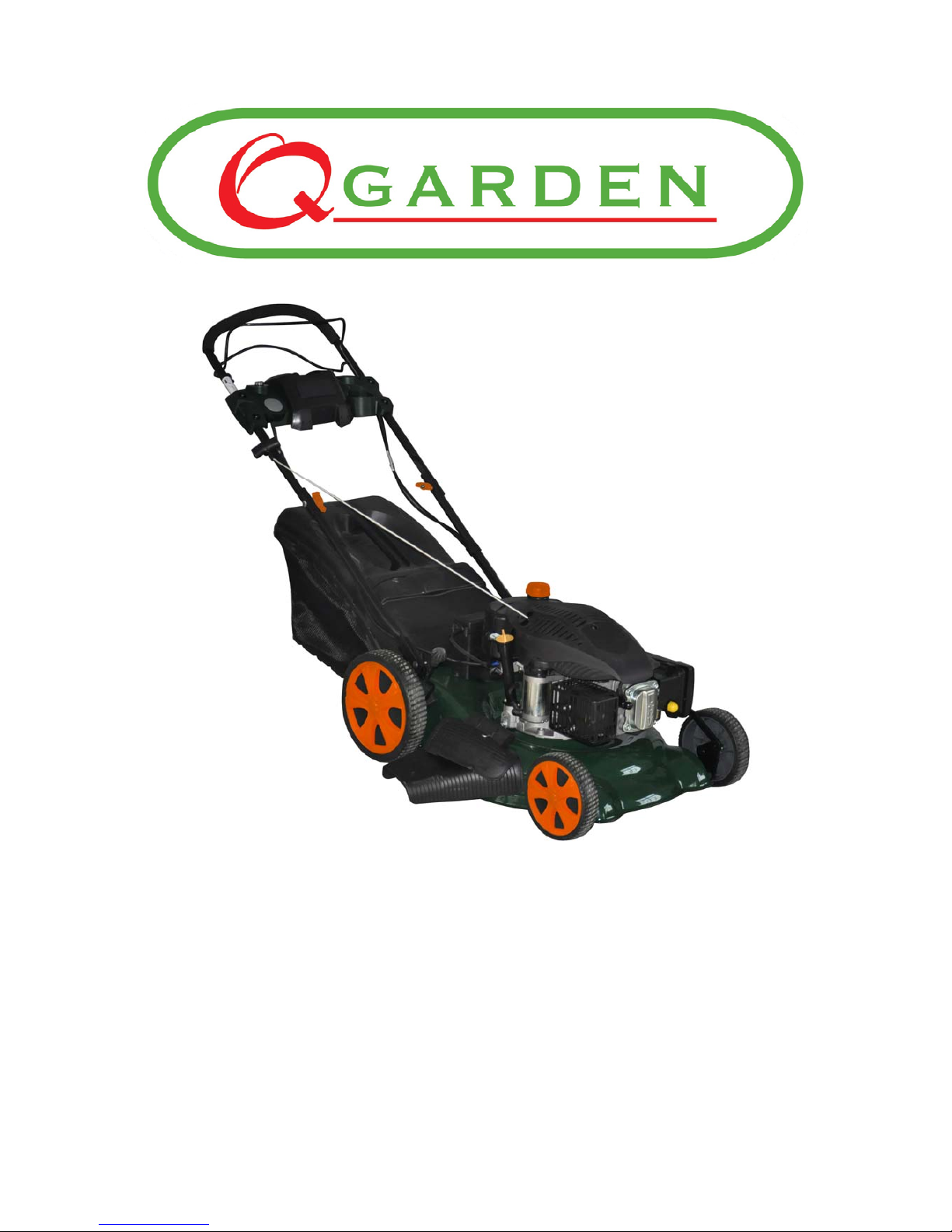

PETROL LAWNMOWER - QGPM20ES
Spares & Support: 01793 333212
Before use please read & understand this manual, paying particular
attention to the safety instructions.
01/05/2013v2

Page 2
CONTENTS
SAFETY INSTRUCTIONS 3
MAJOR PARTS 4
ASSEMBLY AND OPERATION 5-6
MAINTENANCE 7
PARTS DIAGRAM AND LIST 8-9
SPECIFICATIONS 10
EC DECLARATION OF CONFORMITY 11

Page 3
SAFETY INSTRUCTIONS
!"#$%#&$%'&$"()*#&$%*+"%,-&"(.)%/#&'#0%#&$%0#1"0)%#234"$%*,%
the lawn mower. Learn its application and limitations as well
#)% *+"% )5"6736% 5,*"&*7#0% +#8#($)9% !"*#7&% *+")"% 7&)*('6*7,&)% 2,(%
reference.
!" Use sturdy footwear - do not operate when barefoot or wearing
open sandals.
!" Do not put handsor feet near or under rotating parts. Keep clear
of the discharge opening at all times.
!" Do NOT operate the lawn mower if you are tired, ill or under the
!"#$%"&%'()'*+&(,(+'(-'.-$/01
!" Do NOT smoke when using the lawn mower and ensure caution
when handling fuel. We recommend you fuel the machine away
from where you wish to work to prevent any spilt fuel igniting
when you start the engine.
!" Ensure that bystanders, children and pets keep well away
when mowing and only allow persons familiar with these
instructions to use the lawn mower.
!" Inspect the lawn mower, and in particular the blade, before use for
any worn or damaged parts. Do not use until the parts are repaired
or replaced with parts approved by the manufacturer.
!" Before starting the engine make sure the lawn is clear of obstacles
such as stones, branches or children’s toys.
!" Always stop the engine when crossing gravel drives, walks or
roads. Stop the engine and allow the blade to stop rotating
before removing the grass bag for emptying.
!" Stop the engine and disconnect the spark plug before clearing
blockages, cleaning or inspecting the mower.
!" Do not operate when raining and take particular care on damp
grass which can prove slippery, particularly on slopes.
!" When mowing on a slope always mow across the slope, not up
and down. Take care when changing direction. The slope should
not exceed 20 degrees.
2' Clean the mower after each use and, if storing for a prolonged
period, drain down the fuel in the tank. Remove the spark plug
and put a few drops of oil into the cylinder before pulling the
starter a couple of times to distribute the oil evenly. Replace the
spark plug. If you need to tilt the mower while cleaning always tip
it backwards, towards the handles, do not tip it on its side as this
will cause oil to enter the carburettor or exhaust.

Page 4
MAJOR PARTS
Drive lever
Brake lever
Starter handle
Grass catcher
Height adjust handle
Oil dipstick
Quick fix handle
Fuel cap
Primerbutton
Air filter
Spark plug
Exhaust muffler
Push button start
Side discharge
Dash board
Motor

Page 5
ASSEMBLY
The lawn mower is shipped without oil or petrol in the
engine.
The mower has been assembled and tested in the factory and
only needs a small amount of assembly.
2' Remove the mower carefully from the box - it may be easier
to remove one side of the box and roll the machine out.
2' Depress the Operator Presence Control Bar Unfold
handles carefully so as not to pinchthe cables then raise
the lower handles. Fit the two bolts and wingnuts from the
parts bag, which will lock the lower handle into place. Raise
with the upper handle section so that it lines up with the lower
lower handle section. Tighten the wingnuts.

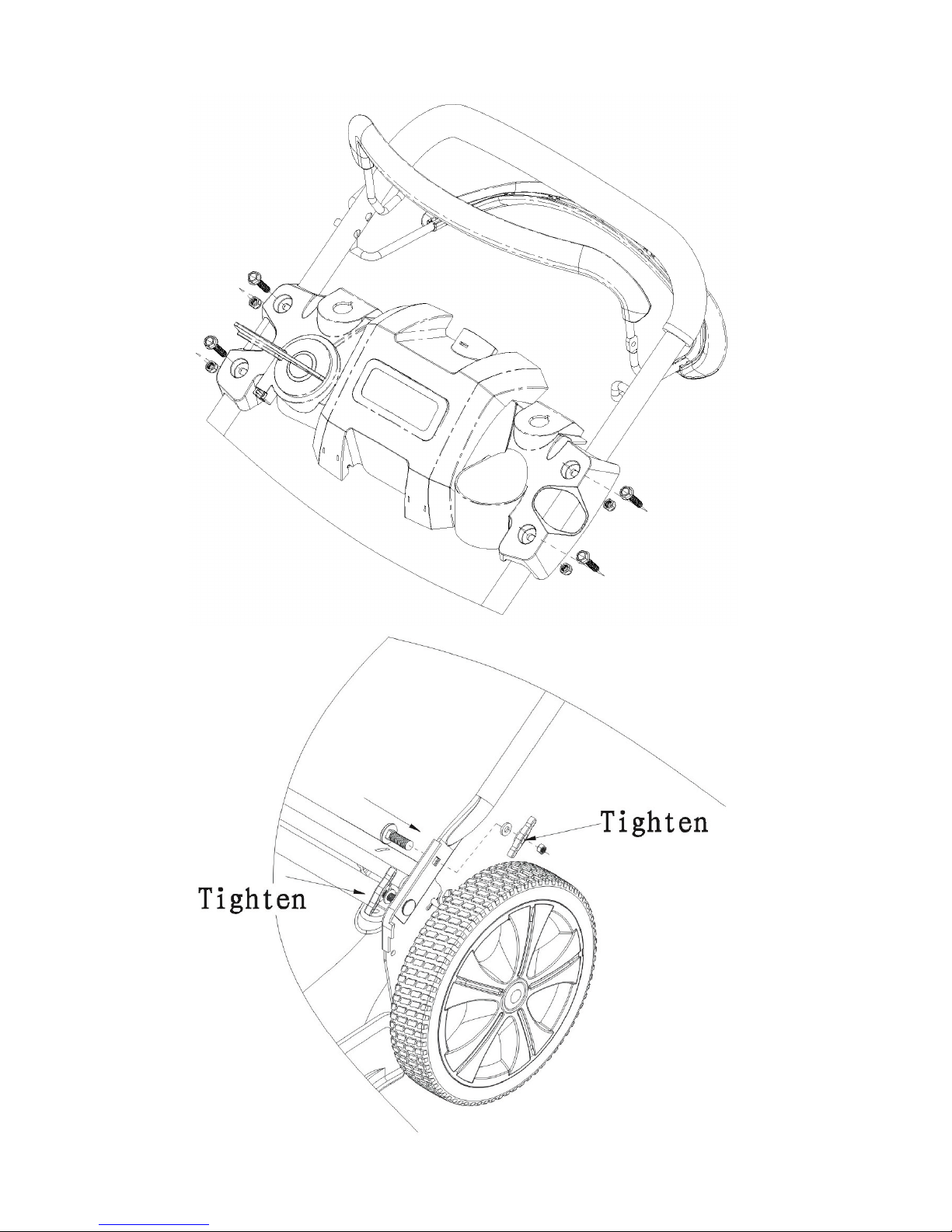

2' Fit the dashboard using the four bolts and nuts as shown in
the Fig.1 on page 6.
2' The diagram shows the position of the three parts of the
upper handle.
2' The brake lever (sometimes called the operator presence
control lever) must be pulled back towards the handle to
start the engine and during operation. If the lever is
released it will automatically stop the engine.
2' The drive control lever - pull this lever up towards the han-
dle to engage the self-propelled mode. If this is not engaged
the mower can be used in ‘push’ mode.
2' The engine speed has been set at the factory for optimum
performance - it is not adjustable.
Before your initial use of the mower and at the beginning
of every season, charge the battery for 5-6 hours.
2' The cutting height can be adjusted by a single lever through
5 positions from 25-75mm. The medium position is best for
most lawns. Under certain conditions, such as very tall grass,
it may be necessary to cut the grass twice, once on the highest
setting and then again on medium.
2' Fill the engine with SAE30 oil to the ‘full’ mark on the
dipstick. Check the level of the oil, it should be 500 to 600ml.
2' To connect the lower handle to the deck, insert a Bolt
M8x30/8.8 (QG105-19)into the lower hole from the outside of
the handle and secure with aFlat Washer (QG105-13), Knob
(QG105-18) and a Hex Nut M8x30/8.8 (QG105-15). Insert a
Carriage Bolt M8x25/8.8 (QG105-96) into the upper hole from
the inside of the handle and secure with a Flat Washer
(QG105-95), a Knob (QG105-10) and a Hex Nut M8/8.8
(QG105-15) as in Fig. 2 on page 6. If these steps are not
followed, your collection box may not fit correctly.

Page6
ASSEMBLYDIAGRAMS
Fig. 2
Fig. 1

Page 7
OPERATION
The mower has four different operating modes.
1. Collecting:
2' Ensure that the side cover is closed.
2' 3!4'4,%'/-*005(6'57'+!)4!"/'4,%'-%*-'#*8'("'4,%'9(:%-'*".',((;'
the front of the box to the shaft on the mower.
2' <(:%- the'#*8'4('+(&;'4,%'/-*005(6'!"'8(0!4!("1
2' When the box isfull, the grass will be visible through the viewing
window in the top of the box.
2' Stop the engine before emptying the grassbox.
2. Rear Discharge:
2' Ensure that the side cover is closed.
2' =!4,'4,%'/-*005(6'remov%.'*".'4,%'-%*-'#*8'!"'4,%'.(:"'8(0!ti-
on, the mower will cut and discharge the grass from the rear of
the machine.
3. Side Discharge:
2' Fit the mulch plug to the rear discharge opening of the mower
*".'&+(0%'4,%'-%*-'#*81
2' Lift the cover on the side of the mower and attach the side dis-
charge chute as shown in the diagram.
2' The mower will now eject grass from the side discharge chute.
4. Mulching:
2' Fit the mulch plug to the rear discharge opening of the mower
and close the rear flap.
2' Ensure that the side cover is in the closed position (with the
discharge &,$4% removed>1
2' The mower will now recycle the chopped grass into the lawn
surface.
2' ?('9$+&,'%)@&!%"4+7'("+7'&$4'("%'4,!-.'()'4,%'+%"/4,'()'4,%'/-*001
Operation:
2' Fill the engine with SAE30 oil to the ‘full’ mark on the
dipstick. Check the level of the oil, it should be 500 to 600ml.
2' Fill the fuel tank with unleaded petrol.
2' 3(-'a cold start'8-%00'4,%'8-!9%-'5$+5'ABC'4!9%0'to allow fuel
into the engine.
2' Pull the brake lever back to the push handle and press the
start button until the engine starts and runs.
2' The machine can also be started using the pull cord (if the
5*44%-7'!0'#*4>1'D$++'4,%'5-*;%'+%E%-'5*&;'4('4,%'8$0,',*".+%'
and pull starter cord until resistance is felt, then pull rapidly
to start the engine.
Note: if the brake lever is released the engine will stop.
2' Pull the drive control lever up towards the handle and the
lawnmower will self-propel.

Page 8
MAINTENANCE
Regular careful maintenance is essential for keeping the lawn-
mower in good condition.
2' Before each use, ensure that all bolts, nuts and screws are
tight.
2' After each use, allow the mower to cool down before clean-
ing off any grass and other debris. Use a brush or com-
pressed air and avoid getting water into the engine.
2' Never store the mower with petrol in the tank within an en-
closed area where it is possible for fumes to reach an open
#*9%'(-'08*-;1
2' When storing for a long period drain the mower of fuel after
the engine has cooled down. Do this outside to reduce any
-!0;'()'@-%')-(9'08!+4')$%+1
2' F,*"/%'4,%'(!+'*)4%-'4,%'@-04'C',($-0 of use'*".'*)4%-'every'
season or every 50 hours of use. The Sump Plug is
located on the underneath of the machine deck.
Dispose of waste oil at your local recycling centre.
2' Clean the spark plug regularly and change every season.
To change the blades:
2' Drain the fuel tank by running the mower until the fuel tank
is empty and the engine stops.
2' Allow the engine to cool and then tip on to its left hand side
(air cleaner side uppermost).

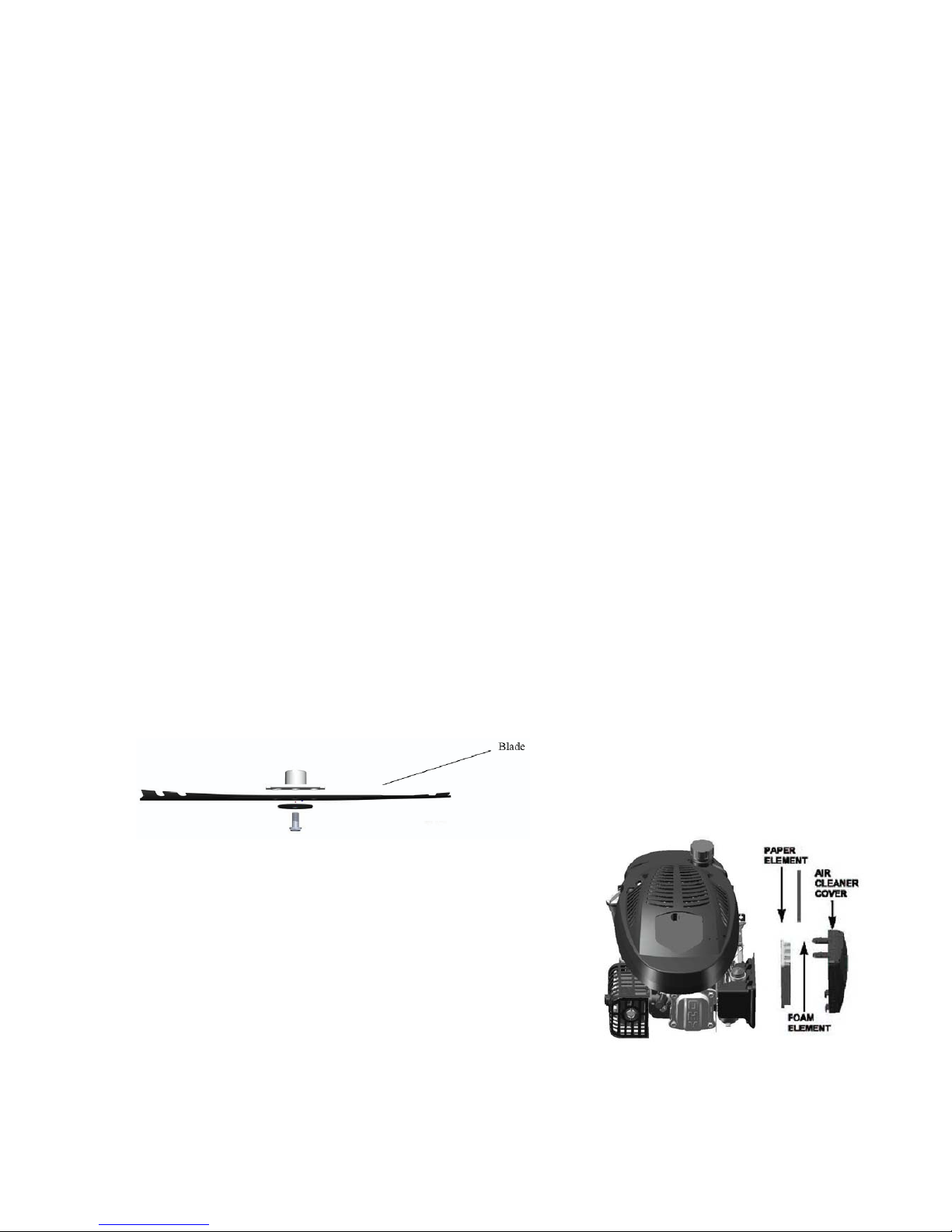

2' Using gloves to protect your hands, undo the screw and re-
move the old blade and replace with a new one in the order
shown on the diagram below.
2' ?!/,4%"'4,%'0&-%:1
A damaged blade that is out of balance will cause the
mower to vibrate and may break. Check the condition of
the blade regularly.
:,%6+#&;"%*+"%#7(%30*"(<
2' G"&+!8'4,%'@+4%-'&(E%-'*".'-%9(E%'4,%'08("/%'*".'8*8%-'
elements.
2' ?,%'08("/%'&*"'5%':*0,%.'!"'0(*87':*4%-H'.-!%.'*".'
refitted.
2' If the paper element is heavily contaminated it should be
replaced using a genuine part from your local dealer.

Page 9

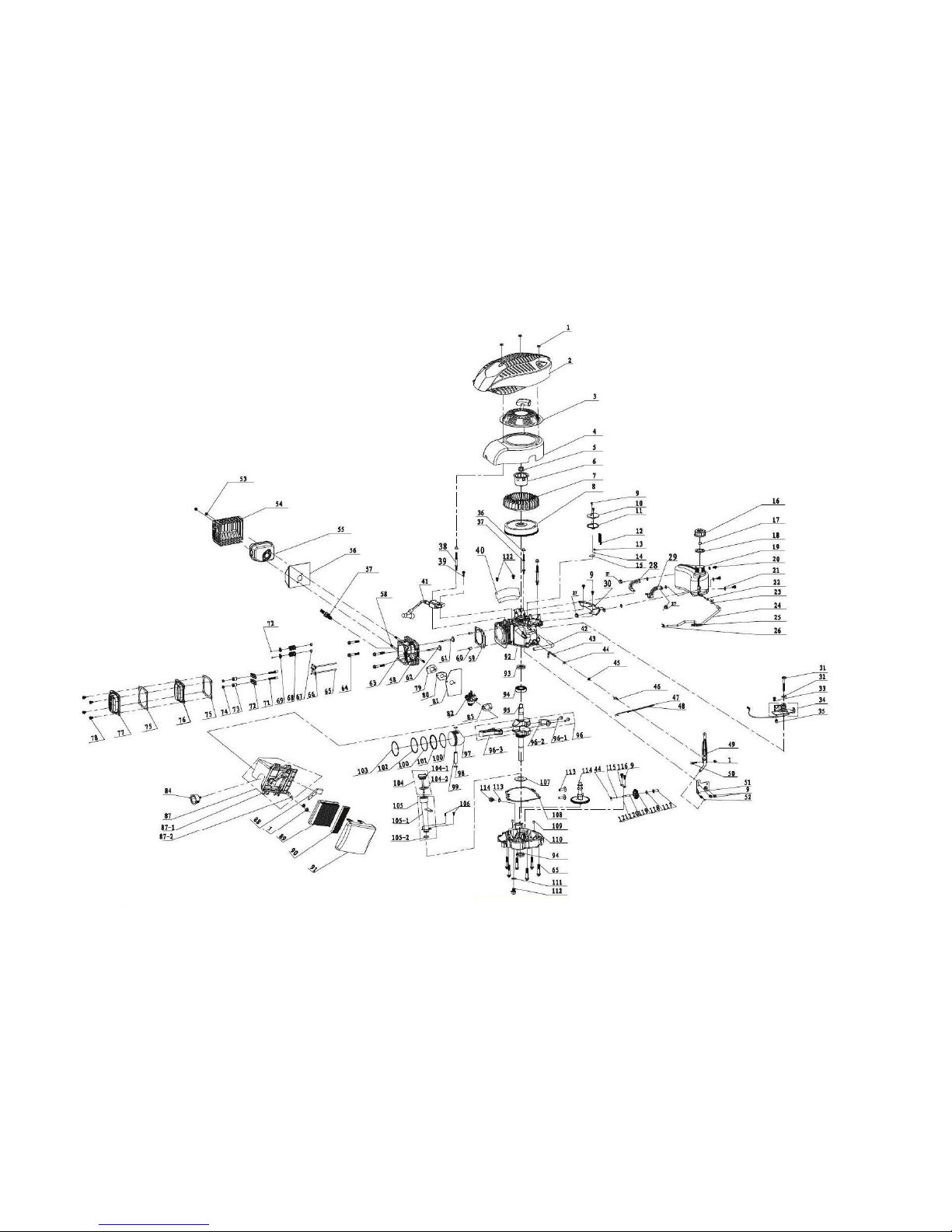

PARTS DIAGRAM

Page10
PA RT S LIST
No. Part No. Description QTY No Part No. Description QTY No Part No. Description QTY
1 QG105-01 Foam Pipe 1 36 QG105-36 Left Steel Wire Spring 1 71 QG105-71 Blade Washer 1
2 QG105-02 Brake Lever 1 37 QG105-37 Self-propel Cable Spring 1 72 QG105-72 510 Blade B 1
3 QG105-03 Drive Lever 1 38 QG105-38 Self-propelled Spring 1 73 QG105-73 Short Bush Blade
Adapter 1
4 QG105-04 Upper Handle for Dash
Board 1 39 QG105-39 S/P Rear Drive Shaft
Assy 1 74 QG105-74 Short Bush for Blade
Adapter 1
5 QG105-05 Hex Locknut M6/8.8 8 40 QG105-40 Right Steel Wire Spring 1 75 QG105-75 Long Key for Crankshaft 1
6 QG105-06 Hex Flange Bolt
M6x35/8.8 1 41 QG105-41 Pin 2 76 QG105-76 Small Belt Wheel 1
7 QG105-07 Rope Guide 1 42 QG105-42 Height Adj Handle Ball 1 77 QG105-77 V Type Belt 1
8 QG105-08 Brake & Self-propelled
Cable 1 43 QG105-43 Small Ratchet Gear Right 1 78 QG105-78 Hex Bolt M10x25/8.8 3
9 QG105-09 Shaft for Battery Box 1 44 QG105-44 Mulching Plug 1 79 QG105-79 Grassbox Assembly 1
10 QG105-10 Knob 2 45 QG105-45 Cross Head Tapping
Screw 4 79-1 QG105-79-1 60L Grassbox Bag 1
11 QG105-11 Plug for Handle 2 46 QG105-46 Rear Baffle 1 79-2 QG105-79-2 Grassbox Cover 1
12 QG105-12 Knob 2 47 QG105-47 Cross Head Tapping
Screw 5 80 QG105-80 Starter 1
13 QG105-13 Flat Washer/
Φ8.4xΦ16x1.6 4 48 QG105-48 Belt Cover 1 81 QG105-81 Dash Board 1
14 QG105-14 Carriage Bolt M8x50/8.8 2 49 QG105-49 Height Adj Pull Rod 1 82 QG105-82 Upper Cover for Dash
Board 1
15 QG105-15 Hex Nut M8/8.8 6 50 QG105-50 Hex Bolt M8×16/8.8 2 83 QG105-83 Circle Cover for Dash
Board 1
16 QG105-16 B Type Lower Handle 2 51 QG105-51 Left Side Board 1 84 QG105-84 Spring for Cover 2
17 QG105-17 Fastener 1 52 QG105-52 Hex Locknut M8/8.8 4 85 QG105-85 Shaft for Cover 2
18 QG105-18 Thin Knob 2 53 QG105-53 T675 Engine 1 86 QG105-86 Dash Board Pedestal 1
19 QG105-19 Bolt M8X30/8.8 2 54 QG105-54 Right Side Board 1 87 QG105-87 Hex Bolt M6X28/8.8 4
20 QG105-20 Fastener 1 55 QG105-55 Carriage bolt M8X15/8.8 2 88 QG105-88 Board for Rear Dis-
charge 1
21 QG105-21 Rear Discharge Cover 1 56 QG105-56 B o a r d f o r H e i g h t A d j u s t e r 1 8 9 Q G 1 0 5 - 8 9 Cross Head Tapping
Screw 1
22 QG105-22 Rear Discharge Cover
Shaft 1 57 QG105-57 Mulching Board 1 90 QG105-90 Spring for Pull Rod 1
23 QG105-23 Rear Discharge Cover
Spring 1 58 QG105-58 Mulch Spring 1 91 QG105-91 Cross Head Tapping
Screw 1
24 QG105-24 Lock Washer 2 59 QG105-59 Side Discharge Cover 1 92 QG105-92 Starter Button Housing 1
25 QG105-25 Pin 4 60 QG105-60 Mulch Shaft 1 93 QG105-93 Spring for Button 1
26 QG105-26 10" Outer Wheel Trim 2 61 QG105-61 Hex Bolt M5X10/8.8 4 94 QG105-94 Button 1
27 QG105-27 Flexible Washer 6 62 QG105-62 Hex Locknut M5/8.8 4 95 QG105-95 Flat Washer 2
28 QG105-28 Washer /Φ13xΦ20x1.5 6 63 QG105-63 Bracket Press Board 1 96 QG105-96 Carriage Bolt M8x25/8.8 2
29 QG105-29 Punching Bearing 8 64 QG105-64 Deck 1 98 QG105-98 Flat Washer 2
30 QG105-30 10" Wheel Assy 2 65 QG105-65 Hex Bolt M6X12/8.8 2 99 QG105-99 Cross Head Tapping
Screw 4
31 QG105-31 10" Inner Wheel Trim 2 66 QG105-66 7" Outer Wheel Trim 2 100 QG105-100 Battery Cover 1
32 QG105-32 Washer Φ39.3xΦ13.1x1 2 67 QG105-67 7" Wheel Assy 2 101 QG105-101 Hex Locknut M4/8.8 4
33 QG105-33 Flexible Washer 2 68 QG105-68 Front Drive Shaft Assy 1 102 QG105-102 Fastener 1
34 QG105-34 Small Ratchet Gear Left 1 69 QG105-69 Front Bracket Fastener 1 103 QG105-103 Battery Housing 1
35 QG105-35 Ratchet Gear Washer 2 70 QG105-70 Hex Flange Face Bolt A 1 104 QG105-104 Battery 1

PARTS DIAGRAM - ENGINE

Page12
PA RT S LISTENGINE
No. PartNo. Description QTYNo PartNo. Description QTY No PartNo. Description QTY
1QG1841NutM6 642 QG18442 WasteAirPipe 182 QG18482 CarburettorAssy 1
2QG1842EngineCover 143 QG18443 SpeedRegulatorSpindle 183 QG18483 SteelGasket 1
3QG1843RecoilStartAssy 144 QG18444 FlatWasher 184 QG18484 PrimeButton 1
4QG1844BlowerHousing 145 QG18445 OilSeal6x11x4 187 QG18487 AirFilterPedestal 1
5QG1845NutM14X1.5 146 QG18446 SpringnessSplitPin 1871QG184871AirFilterBush 2
6QG1846StartupHub 147 QG18447 HandspikeofValve 1872QG184872Washer 1
7QG1847Fan 148 QG18448 PullSpringofValve 188 QG18488 ExhaustGasCoverBoard 1
8QG1848FlywheelAssy 149 QG18449 SpeedRegulatorRocker 189 QG18489 PaperFilterElement 1
9QG1849BoltM6X12 850 QG18450 TTypeBoltM6×23 190 QG18490 FoamFilterElement 1
10 QG18410 respiratorcoverplate 151 QG18451 SpeedRegulatorBoard 191 QG18491 AirFilterUpperCover 1
11 QG18411 GasketofRespiratorCover 152 QG18452 SpeedRegulatorPullSpring 192 QG18492 CrankcaseAssy 1
12 QG18412 LubricateFilteringNet 153 QG18453 NutM6 293 QG18493 OilSeal 2
13 QG18413 BoltM3X6154 QG18454 MufflerCoverAssy 194 QG18494 BallBearing6205 1
14 QG18414 Springgasket3155 QG18455 MufflerAssy 195 QG18495 CrankshaftAssy 1
15 QG18415 ValveCover 156 QG18456 ExhaustGasket 196 QG18496 ConnectingRodAssy 1
16 QG18416 FuelTankCap 157 QG18457 SparkPlug 197 QG18497 Piston 1
17 QG18417 FuelTankCapSponge 158 QG18458 TwoStudBoltM6x94 498 QG18498 wristpinring 2
18 QG18418 FuelTankCapGasket 159 QG18459 CylinderHeadGasket 199 QG18499 PistonPin1
19 QG18419 FuelTank 160 QG18460 CylinderHeadLocatingPin 2100 QG184100 Doctorbarring 2
20 QG18420 BoltM6x22 361 QG18461 IntakeValve 1101 QG184101 BushingRing 1
21 QG18421 CushionBlocking 662 QG18462 ExhaustValve 1102 QG184102 PistonRingII 1
22 QG18422 FilteringNetDuctofFuel 163 QG18463 CylinderHeadAssy 1103 QG184103 PistonRingI1
23 QG18423 OilPipeCirclipI164 QG18464 BoltM8x50 10 104 QG184104 RubberSealGasket 1
24 QG18424 OilPipe 165 QG18465 Handspike 2105 QG184105 "O"Ring20x2.6 1
25 QG18425 TwistingClip 166 QG18466 GuideBoardofHandspike 1106 QG184106 ScrewM4X12 2
26 QG18426 OilPipeCirclipII 167 QG18467 OilSealAssembledofValve 2107 QG184107 GearGasket 1
27 QG18427 LocknutM6 368 QG18468 SpringofValve 2108 QG184108 SealGasketofCrankcase 1
28 QG18428 RightBracketofFuelTank 169 QG18469 SpringCoilofExhaustValve 2109 QG184109 DowelPin 2
29 QG18429 LeftBracketofFuelTank 170 QG18470 valvehood 2110 QG184110 CrankcaseCover 1
30 QG18430 MainBracketofFuelTank 171 QG18471 RockerSupportBoltofValve 2111 QG184111 FlatWasher 2
31 QG18431 Bolt 172 QG18472 RockerofValve 2112 QG184112 Bolt 2
32 QG18432 FlatWasher 173 QG18473 AdjustNutofValve 2113 QG184113 Pin 2
33 QG18433 Bolt 174 QG18474 CombinedNut 2114 QG184114 CamshaftAssy 1
34 QG18434 DetentAssy 175 QG18475 CylinderHeadCoverGasket 2115 QG184115 CirclipofGearShaft 1
35 QG18435 DetentBush 276 QG18476 CylinderHeadCoverI1116 QG184116 GearShaftHolddownPlate 1
36 QG18436 BlowerHousingBush 377 QG18477 CylinderHeadCoverII 1117 QG184117 SlidingSleeve 1
37 QG18437 AbnormityTwoStudBoltII 278 QG18478 BoltM6x14 4118 QG184118 FlatWasher 1
38 QG18438 AbnormityTwoStudBoltI179 QG18479 AirInletPipePaperGasketI1119 QG184119 GearShaftAssy 1
39 QG18439 BoltM6X25 180 QG18480 AirInletPipe 1120 QG184120 GearShaftofspeedlimit 1
40 QG18440 Baffle 181 QG18481 AirInletPipePaperGasketII 1121 QG184121 ColumnarPin2x8 1
41 QG18441 IgnitionAssy 1122 QG184122 BoltM6x16 2

Page13
SPECIFICATION
Model QGPM20ES
Engine T675 - 200cc OHV
Engine Speed 2950rpm
Cutting Width 501mm
Cutting Height 25-75mm
Grassbag Capacity 60 litre
Deck Steel High Wheel
Sound Pressure Level 82.4 dB(A) (K=3)
Guaranteed Sound Power Level 96 dB(A)
Vibration 5.86m/s²(K=1.5)
Spark Plug NGK BPR6ES or Champion RN9YCC
Fuel Tank Capacity 1.5 Litre

Page 14
EC DECLARATION OF CONFORMITY
Declaration of Conformity
Pursuant to the regulations of the following EC Directives:
- Electromagnetic Compatibility Directive 2004/108/EC
- Machinery Directive 2006/42/EC
- Noise Emissions Directive 2000/14/EC
Handy Distribution Ltd hereby declares that the product:
Machine Type: Petrol Lawn Mower
Machine Model: QGPM20ES
Engine Displacement: 200cm3
No Load Speed: 2950/min
Cutting Width: 501mm
Mass in kg: 41.6kg
F(")(-90'4('4,%'9*!"'0*)%47'-%I$!-%9%"40'()'4,%'JF'K!-%&4!E%0'+!04%.'*5(E%1
This conformity is based on the following standards and normative documents:
2006/42/EC/Annex I
EN 836: 1997+A1+A2+A3+AC
06/42/EC - Annex I/05.06
Sound Pressure Level: 82.4bB(A), K=3dB(A)
Guaranteed L
WA: 96dB(A)
?,%'-%08("0!5+%'8%-0("H'5*0%.':!4,'!"'4,%'JFH'!0'!.%"4!@%.'5%+(:L
Name: Mr Simon Belcher
Title: Managing Director
Company: Handy Distribution Ltd
Address: Hobley Drive, Stratton St Margaret, SWINDON, Wiltshire. SN3 4NS
Signature: Date: 15th Feb, 2010


Spares & Support: 01793 333212
Table of contents
Other Q Garden Lawn Mower manuals
Popular Lawn Mower manuals by other brands

LawnMaster
LawnMaster CLM2413A Operator's manual

Scag Power Equipment
Scag Power Equipment Liberty Z SZL48-18FR Operator's manual

Montgomery Ward
Montgomery Ward ZYJ-50A Owner's guide and parts list

McCulloch
McCulloch 96011013201 owner's manual

MTD
MTD 122-690 Operating/service instructions

Dolmar
Dolmar AM-3743 instruction manual
