Q Garden QG39-130 User manual

39cm Push Petrol
Lawnmower
Model No: QG39-130
Product No: 1938276001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this
manual, our policy of continuous improvement determines the right to make modifications
without prior warning.
Images used are for illustration purposes only.
INSTRUCTION MANUAL

VERSION 8 01-2020
Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written
permission from Handy Distribution.
In all cases this copyright notice must remain intact.

VERSION 8 01-2020
CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
KNOW YOUR MACHINE
ASSEMBLY
OPERATION
MAINTENANCE & STORAGE
TROUBLE SHOOTING
PARTS DIAGRAM & LIST
DECLARATION OF CONFORMITY
WARRANTY
If you require any assistance with regards to the contents or operation of your machine,
please contact us:
TEL: [phone]
EMAIL: [e-mail]
Opening hours weekdays: February to October 8:30am - 5:30pm / November to January
8:30am - 5:00pm (Closed Bank Holidays)
SPECIFICATION
The manufacturer reserves the right to change the product specification and livery
according to continued product improvements.
Model
QG39-130
Product Number
1938276001
Working Width
390mm
Drive Type
Hand Push
Cutting Heights
25-65mm - 3 levels
Collector Capacity
35L
Deck
Plastic
Front / Rear Wheel
6in / 6in
Engine
Petrol, 4-Stroke Air Cooled
Engine Displacement
132cc
Rated Engine Power
2.5kw
Rated Engine Speed
2800rpm/min
Full Tank Capacity
0.8L
Oil Tank Capacity
0.4L
Guaranteed Noise Power Level (LWA)
96 dBA - uncertainty: 1.93 dB(A)
Emission Sound Pressure Level (LPA)
79.7 dB(A)
Vibration (ahv)
8.125 m/s2- uncertainty K: 1.5 m/s2

VERSION 8 01-2020
IMPORTANT INFORMATION
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are
familiar with the controls and properly operate the machine. Following these instructions can
reduce the risk of fire, electric shock and personal injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety
instructions must be followed to ensure reasonable safety and efficiency in using this product.
The operator is responsible for following the warning and safety instructions in this manual
and on the machine. Never use the product unless the grass box or guards are correctly
positioned.
DESIGNED FOR DOMESTIC USE ONLY.
This machine is to be used exclusively for cutting natural grass. Never use the mower for other
purposes. Any other use can endanger your safety and can involve damage to the mower.
Persons under 16 years of age and persons who are not familiar with the user instructions must
not use the mower.
The user is responsible for the safety of other people in the working area. Keep children and
domestic animals at a safe distance while the mower is in use.
Before mowing, remove all foreign objects from the lawn which may be thrown by the
machine, stay alert for any foreign objects which may have been missed.
These operating instructions must be kept and referred to in order to ensure that the
equipment is properly used and maintained. The instructions contain valuable information on
operating, maintenance and servicing conditions.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the
equipment.
Never allow children or people unfamiliar with these instructions to use the product. Local
regulations can restrict the age of the operator.
Never operate while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards involving the
machine that occur to other people or their property.
WARNING
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a
case of misuse. The user/operator and not the manufacturer will be liable for any damage or
injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications. Our warranty will be 90 days from the original date of sale for
commercial, trade or industrial businesses or for equivalent purposes.

VERSION 8 01-2020
GENERAL SAFETY INSTRUCTIONS
It is important that you read and understand the owner’s manual and labels affixed to the
machine. Learn its application and limitations as well as the specific potential hazards. Retain
these instructions for future reference. The operator is responsible for following the warnings &
instructions in this manual and on the product.

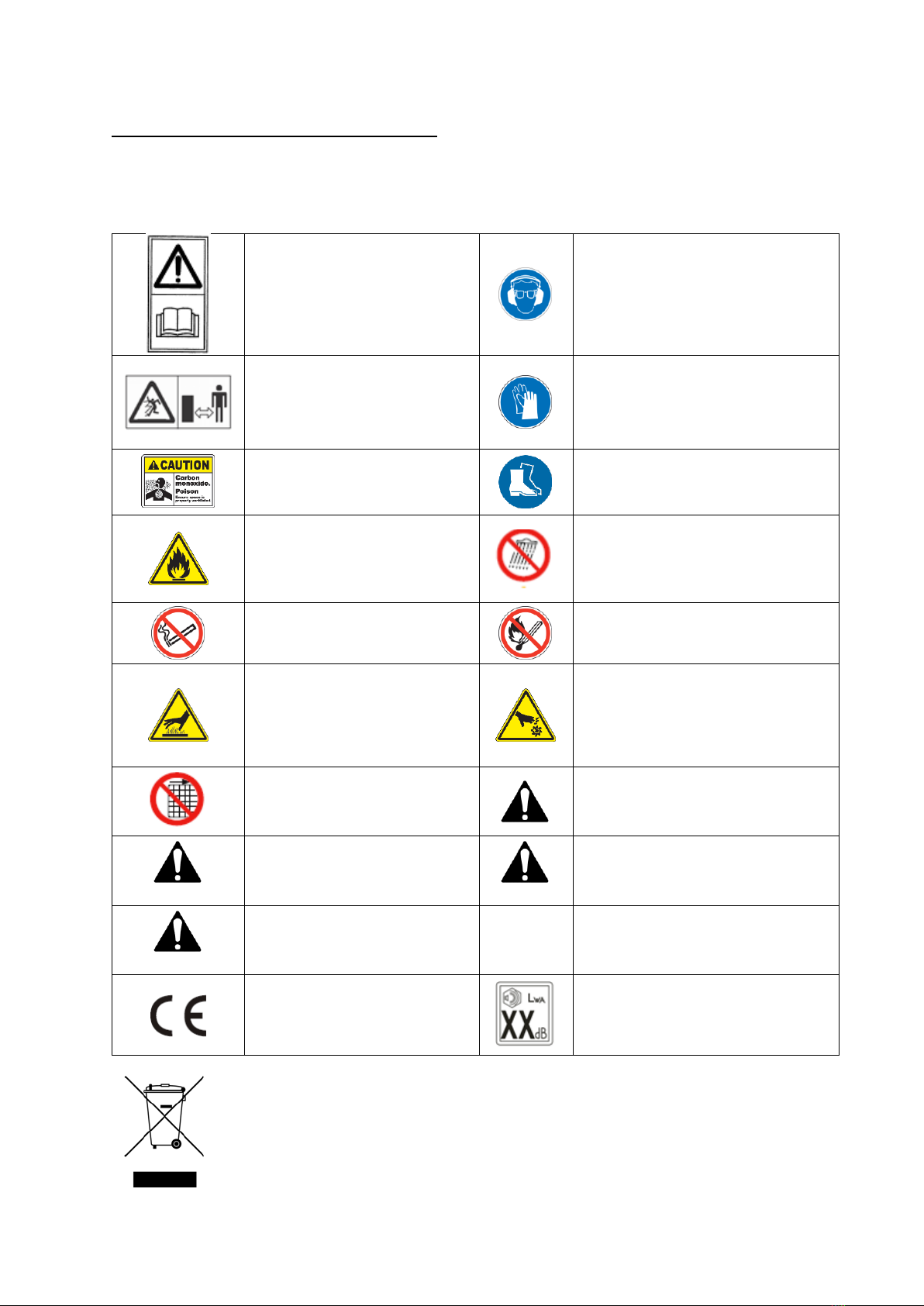

Read & understand operator’s
manual before using the
machine. Failure to follow
instructions could result in death
or serious injury.
Please keep in a safe place for
future reference.
Always wear eye
and ear protection
Keep all bystanders & animals
away from the machine during
operation. If approached, stop
the machine immediately.
Always wear gloves to protect your
hands.
SHARP ROTATING BLADES
Risk of Carbon Monoxide
Poisoning. Ensure working area
is correctly ventilated.
Wear foot protection or sensible
shoes when using the machine
Fire Risk
Fire and its vapors are extremely
flammable & explosive. Fire or
explosion can cause severe
burns or death.
Do not expose to rain or damp
conditions.
No smoking
Do not use near a flame, or sparks
Hot Surface.
Running engines produce heat.
Engine parts, especially the
exhaust, become extremely
hot. Severe thermal burns can
occur on contact
Moving Parts
Rotating parts can contact or
entangle hands, feet, hair, clothing
or accessories.
Traumatic amputation or severe
laceration can result
Keep guards in place and in
working order. Replace
damaged, missing or failed
parts before using it.
Safety alert symbol. Used to alert you
to potential personal injury hazards.
Obey all safety messages that follow
this symbol to avoid possible injury.
DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in serious
injury
WARNING
Indicates a potentially hazardous
situation which, if not avoided,
could result in serious injury
CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
CAUTION
Used without the safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
CE Marking - the product meets
demand and regulations set by
the EU
Noise Level - See label on machine
According to the European directive 2012/19/EU for Waste Electrical and
Electronic Equipment and its implementation into national law, electrical and
electronic equipment that are no longer usable must be collected
separately and disposed of in an environmentally correct manner.

VERSION 8 01-2020
GENERAL SAFETY RULES
Before you put the machine into operation, you must read this instruction manual.
When using this machine, observe the following safety instructions to exclude the risk of
personal injury or material damage. Please also observe the special safety instructions in the
respective chapters. Where applicable, follow the legal directives or regulations for the
prevention of accidents in relation to the use of this machine.
WARNING
When using petrol tools, basic safety precautions, should always be followed to reduce the
risk of serious personal injury and/or damage to the unit.
TRAINING
The operator must receive proper training in the use, adjustment and operation of the
machine, including prohibited operations.
1. Read the instructions carefully. Be familiar with the controls & proper use of the
equipment. Spend time to familiarise yourself with your machine before each use.
2. Never allow children or people unfamiliar with these instructions to use the machine.
Local regulations can restrict the operator age.
3. This machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the machine by a
person responsible for their safety.
4. Never work while people, especially children, or pets are nearby.
5. The operator or user is responsible for accidents or hazards occurring to other people or
their property.
SAFETY INSTRUCTIONS FOR WORKING WITH YOUR LAWNMOWER
1. Do not leave engines running in enclosed spaces, where dangerous carbon monoxide
could accumulate.
2. Operate in daylight or good artificial lighting. If possible, do not use on overly wet ground.
3. Ensure good stability on slopes. Always operate across the slope, never up and down.
4. Be particularly careful if changing direction of travel on the slope.
5. Do not operate on steep slopes.
6. Operate whilst walking, do not run.
7. Be particularly careful when you turn or when you pull the machine towards you.
8. Stop the engine and blade, if it is to travel across other areas or must be transferred
to/from working area.
9. Never use the machine with damaged safety protection guards.
10. Do not change the engine regulation set up. (This should only be undertaken by a skilled
technician).
11. Carefully start the engine. Keep your feet clear of the blade.
12. Never reach behind or under the rotating parts with hands or feet.
13. Never lift or carry the machine while the engine is on.
14. Switch the engine off and remove the spark plug cap from the spark plug, before
unblocking or removing obstacles from the blade or exit chute:
−Before releasing blockages, inspecting, cleaning or working on the machine.
−After hitting an obstruction. Search for damage on the machine & make repairs as
necessary. If the machine starts vibrating unusually, it should be inspected by an
Approved Service Dealer.

VERSION 8 01-2020
15. Switch the engine off:
−If you remove blockages from the machine.
−Before refueling.
WORK AREA
1. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
2. Check the landscape where the machine will be used and remove all objects such as
stones, toys, sticks and wires, which could be caught and thrown away from the work
area. Damage of the machine or operator’s injury could be caused.
3. Do not operate this machine in explosive atmospheres, in the presence of flammable
liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
4. Keep children & bystanders away while operating the machine. Distractions can cause
you to lose control.
PERSONAL SAFETY
1. This machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the machine by a
person responsible for their safety.
2. Children should be supervised to ensure that they do not use or play with the machine.
3. Stay alert, watch what you are doing and use common sense when operating this
machine.
4. Do not use this machine while you are tired, ill or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating this machine can cause you to lose
control & may result in series personal injury.
5. Do not overreach. Always keep proper footing and balance. This enables better control
of the tool in unexpected situations.
6. Remove any adjusting tools before turning the machine on. A tool that is left attached to
a rotating part of the machine may result in personal injury.
7. Use safety equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
condition will reduce personal injuries.
8. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing & gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts. Wear foot protection or sensible shoes when using the machine.
9. Prolonged use of the machine may lead to disorders of blood circulation in hands
caused by vibration. These effects can be worsened by low ambient temperatures
and/or by gripping the handgrips excessively tightly. Period of use you can extend with
appropriate gloves or regular breaks. Take frequent work breaks. Limit the amount of
exposure per day.
PETROL TOOL USE AND CARE
WARNING!
Petrol is highly flammable and explosive.
1. Store petrol in containers specifically designed for this purpose.
2. Refuel outdoors only and do not smoke while refueling.
3. Add fuel before starting the engine. Never remove the cap of the tank or add petrol
while the engine is running or when the engine is hot.
4. If petrol is spilled, do not attempt to start the engine. Move the machine away from the
spillage area & avoid creating any source of ignition until petrol vapors have dissipated.
5. Replace fuel tank & container caps securely.
6. Do not operate the engine in a confined space where dangerous carbon monoxide can
collect.
7. Do not force the machine. Use the correct machine for your application. The correct

VERSION 8 01-2020
machine will do the job better and safer at the rate for which it was designed.
8. Do not use the machine if the main OPC/Brake lever does not work to turn the machine
off. Any machine that cannot be controlled with the OPC/Brake lever is dangerous and
must be repaired.
9. Turn machine off completely before making any adjustments, changing accessories, or
storing. Such preventive safety measures reduce the risks of starting the machine
accidentally.
10. Store idle machines out of the reach of children and do not allow persons unfamiliar with
the machine or these instructions to operate. Petrol machines are dangerous in the
hands of untrained users.
11. Maintain your machine. Check for misalignment or binding of moving parts, breakage of
parts & any other condition that may affect the operation. If damaged, have the
machine repaired by an Approved Service Dealer immediately. Many accidents are
caused by poorly maintained machines.
12. Use the machine, accessories and tool bits etc., in accordance with these instructions
and in the manner intended for the particular type of petrol machine, taking into
account the working conditions and the work to be performed. Use of the machine for
operations different from intended could result in a hazardous situation.
PERSON PROTECTION
1. In case of any injury, always proceed in accordance with the principles of first aid.
2. If someone is cut, cover the wound with a clean cloth & press hard to stop the flow of
blood.
3. Do not let petrol or oil come in contact with your skin. Keep petrol and oil away from the
eyes. If petrol or oil come into contact with the eyes, wash them immediately with clean
water. If irritation is still present, see a doctor immediately.
4. Individuals with poor circulation who are exposed to excessive vibration may experience
injury to blood vessels or the nervous system. Vibration may cause the following symptoms
to occur in the fingers, hands or wrists: numbness, tingling, pain, stabbing sensation,
alteration of skin colour or of the skin. If any of these symptoms occur, see a doctor.
Put safety first in the case of fire:
5. If fire comes from the engine or smoke appears from anywhere other than the exhaust
vent, at first distance yourself from the product to ensure your physical safety.
6. Use a dry powder fire extinguisher on the fire to prevent it from spreading.
7. A panicked reaction could result in the fire and other damage becoming more
extensive.

VERSION 8 01-2020
KNOW YOUR MACHINE
1. OPC/Brake Lever
2. Upper Handle
3. Lower Handle
4. Engine Primer Bulb
5. Wheel
6. Fuel Tank Cap
7. Plastic Deck
8. Exhaust (Muffler)
9. 35L Grass Collector
10. Spark Plug Cap
11. Air Filter Housing
12. Oil Filler Cap & Dipstick
1
2
5
12
4
9
11
6
10
7
3
8

VERSION 8 01-2020
ASSEMBLY
ATTENTION: IMPORTANT INFORMATION
NOTE: This product is a 4-stroke engine powered machine.
The engine MUST be filled with recommended 4-stroke SAE30 or 10W/30 air cooled
lawnmower engine oil BEFORE starting. Fresh unleaded petrol must be used in this unit. DO
NOT use Ethanol based fuels. DO NOT mix oil with fuel.
WARNING
Stop the engine and unplug the spark plug before any repairs or maintenance operations.
DO NOT attempt to start this machine without it first being FULLY assembled.
DO NOT attempt to start this mower without first adding 4-stroke SAE30 or 10W/30 air cooled
lawnmower engine oil to the engine.

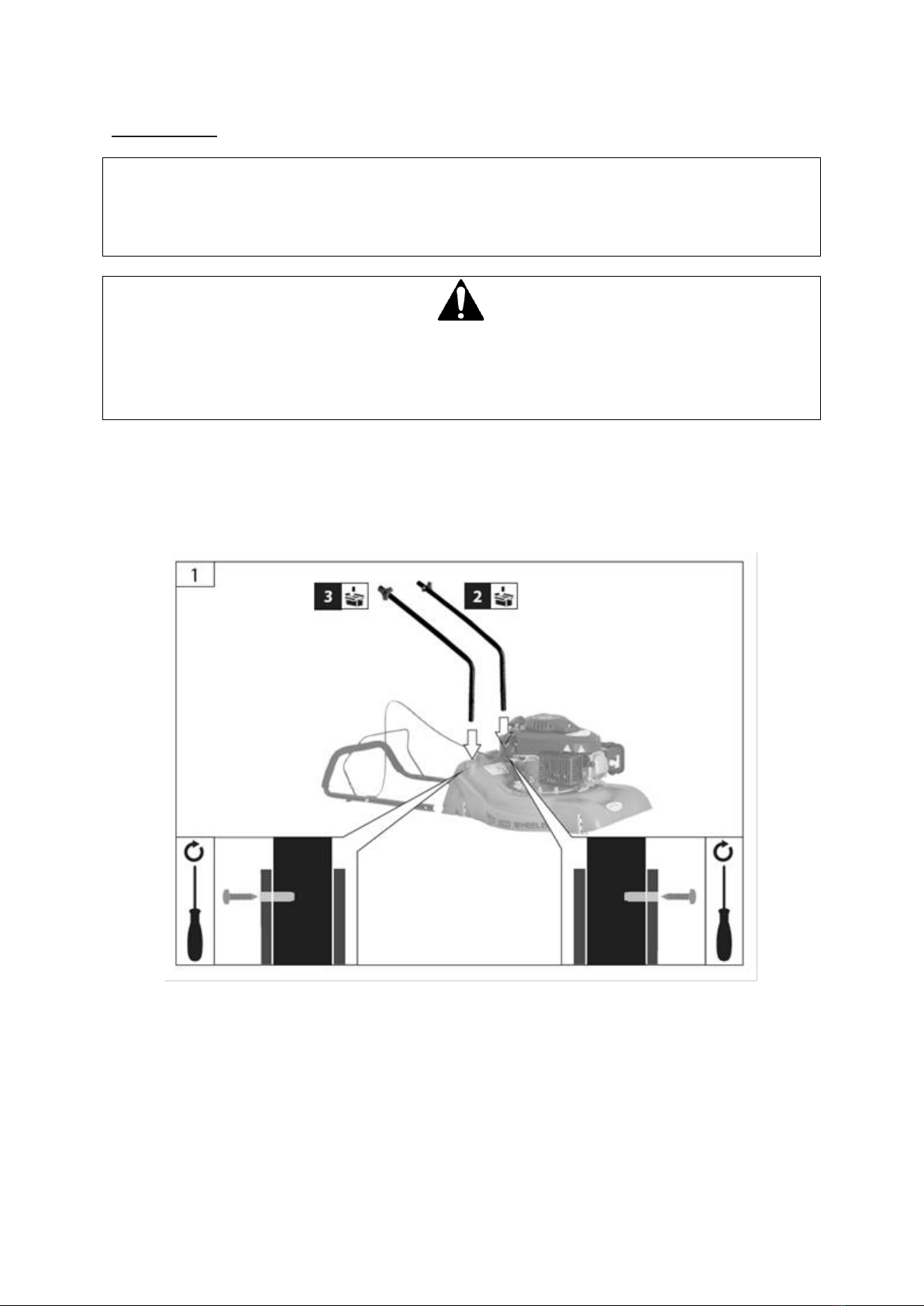

LOWER HANDLES
1. To attach the lower handles to the deck. Insert the right lower handle in the hole at the
rear of the cutting deck and align the fixing hole on the outside of the deck, with the hole
of the right lower handle. Secure with the supplied fixing screw, using a screwdriver (not
supplied).
2. Repeat with the left lower handle.
