Qanon TC15 User manual
- 1 -
TC15 PASSIVE 2-way COAXIAL
www.qanon-audio.com
- 2 -
SAFETY INSTRUCTIONS
1. Read this document
2. Pay attention to all safety instructions and hazards and obligatory warnings
3. Do not use equipment or accessories that are not approved by QANON AUDIO.
4. Attention to Sound Level
Do not approach the speaker when operating, and consider wearing earplugs.
Speaker system can produce very high sound pressure level (SPL), which can be instantaneous.
It results in permanent hearing impairment to performers, producers and audiences.
Listening can take place for a long time:
8 hours 90 decibels (A-weighted), 30 minutes 110 decibels (A-weighted), less than 4 minutes 130 decibels
(A-weighted).
5. Read the manual before operating the product.
Use speaker system components described in user manual and follow instructions
6. Read the rigging manual before installing the product.
Use the hanging accessories described in the installation manual and follow the relevant procedures.
7. Before repairing the product, please read the "Maintenance" section of this document.
8. Do not expose products to extreme conditions
Do not expose the product to rain or waves.
Do not expose the product to humidity (fog, steam, humidity, cooling, etc.) or overheating (direct sunlight,
radiator...) For a long time
9. Do not store products on unstable carts, brackets, tripods, brackets or tables.
10. Maintain this document as an integral part of the product
Put this document in a safe place.
Record any services of the product in the maintenance section of this document
Do not resell products without this update document
Thank you for purchasing QANON AUDIO #TC15. The container shall contain - 1 #TC15 enclosure. Each
QANON AUDIO #product has been tested and inspected before it leaves the factory and should arrive intact.
Carefully open the container and check for any apparent damage. If so, inform the transport company or
distributor immediately. Only the consignee can claim against the carrier for damage in transit. Cartons and
packing materials must be kept for inspection by carriers. Read this document carefully to familiarize
yourself with the product and identify external documents that contain basic information on correct and safe
installation and operation of the product. All the documents described below can be accessed free of charge
on the QANON AUDIO < website (www.qanon-audio.com).
As part of the continuous development of technology and standards, QANON AUDIO reserves the following
rights:
Change product specifications and document contents without prior notice. Please visit the
QANON AUDIO website regularly to download the latest updates of documents and software.
www.qanon-audio.com
- 3 -
TC15 PASSIVE 2-way COAXIAL
15” 2-way Full range coaxial monitor
Maximum SPL 138dB
1 x 15" Neodymium low driver unit
1 × 3" Neodymium Compression driver
40 degree horizontal coverage angle
60 degree vertical coverage angle
Monitor angle (1) 55° / 15°
Ground stacking integrated assembly system
Install ⌀35mm pole socket
13x M8 threaded insert
TC15
TC15 is 2-way full frequency coaxial structure and high performance stage monitor, provide the
frequency range of 60Hz-18kHz，Composed of a 15” low frequency and 1.75” high frequency
compression unit, the constant directional diffusion angle, with a custom unit and waveguide
technology,40° x 60° can accurately cover the stage area . The monitor is matched with two kind
angle.55 degrees and 15 degrees, TC15 also can be used a powerful PA system.
Each side panel has M10 threaded insert , used for quick and flexible install. The right part of the
box gas ⌀35mm pole socket can be used for the installation of the sound box support. The
bottom has rubber feet and provides antiskid function. The impedance of each loudspeaker for 8
ohms, and can be use 2-3 monitor for 1 group(4ohms / 2.7ohms)
The enclosure shall be fitted with internal hardware and connected via two parallel NL-4 speakOn.
Dimensions:width: 460mm,height: 600mm, depth: 360mm
weight:25kg / 55.1lb
www.qanon-audio.com
- 4 -
TC15 Technical Specification
TC15 Technical Specification
Type
Passive 2-way Coaxial Enclosure
Frequency Response(Preset)
55Hz - 18kHz(±3dB)
Horizontal
40°
Vertical
60°
Monitor Angle
55°(1)
15°(2)
Drivers
LF：1×15"（Ferrite）
HF：1×1.75"（Ferrite）
Handling Power (AES)
LF：350W
HF：60W
Maximum Peak SPL
133dB/1m
Nominal Impedance
LF:8Ω / HF:8Ω
Connections
2 x NL4 SpeakOn
Pin Connections
NL4=LF:+1-1
Width
460mm
Height
600mm
Depth
360mm
Weight
25kg / 55.1lb
Rigging and Handling
Handle
2 handles
Threaded
13x M10 threaded insert
Pole socket
1x 35mm Pole socket
stand bar
4x 10mm*38mm(H*⌀)
Physical Data
Material
Baltic Birch Plywood
Finish
Black
Front
Polyester powder-coated steel grill
Rigging
Steel
Protection rating
IP45
www.qanon-audio.com
- 6 -

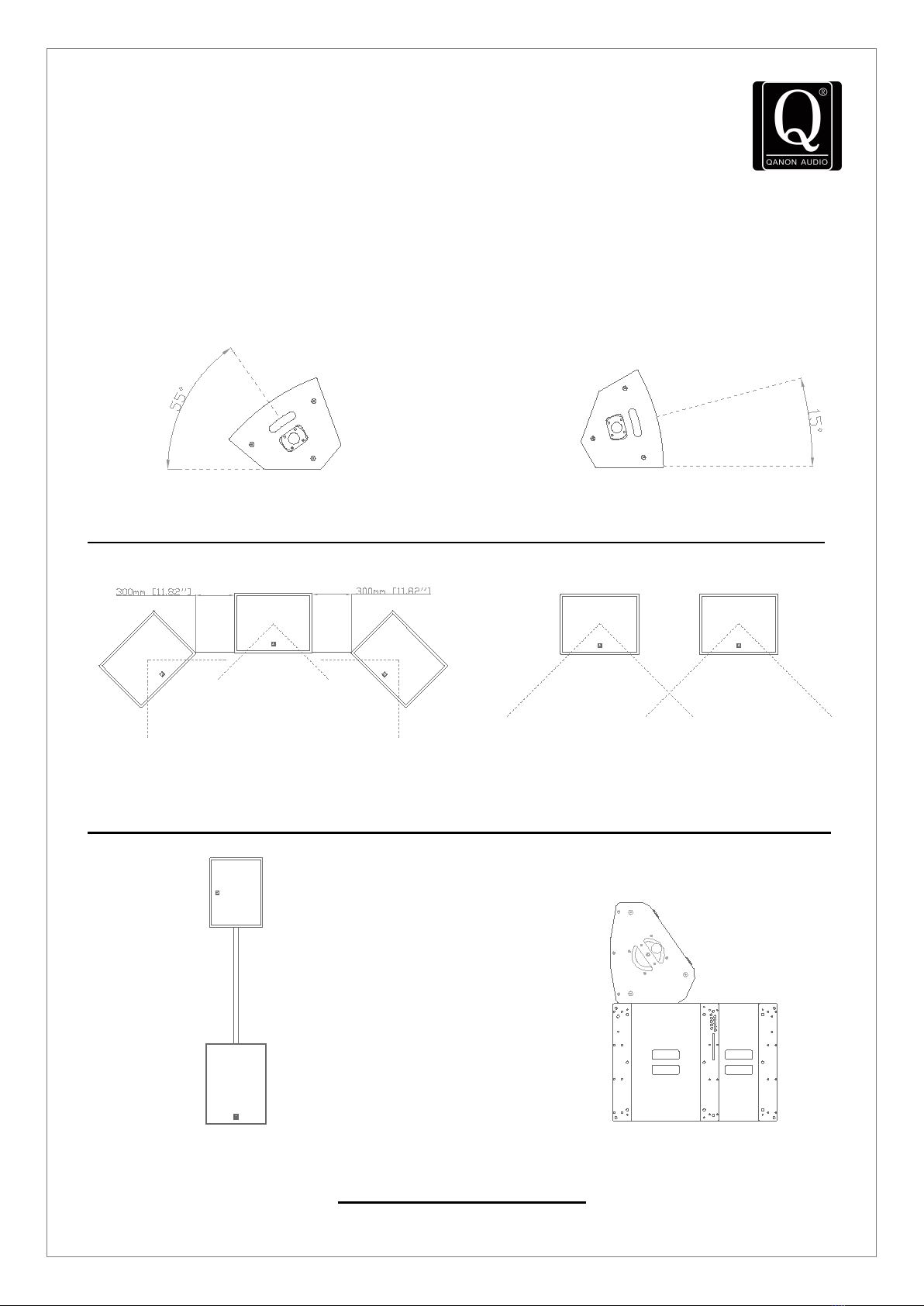

Application
The design and application of TC15 coaxial monitor system can be used in many functions. The
monitoring angle is matched with two kinds angles, 55 degrees and 15 degrees, TC15 and V18 /
Xiv18 ultra low frequency loudspeaker ground stack integration. The addition support ⌀35mm
pole socket can be used with Xiv18, providing fast and simple ground and stack application.
Monitor Angle 55°（Fig 1）Monitor Angle 0°（Fig 2）
_____________________________________________________
Separate Area（Fig 3）Parallel Use（Fig 4）
_______________________________________________ ______
FOH（Fig 5）Monitor+sub（Fig 6）
www.qanon-audio.com
- 8 -
VDA18 / C15 Maximum number of enclosures per Amp
H800 Maximum number of enclosures per Amp
Controller Recommend
VDA18 C15 H-800
4x1400w 8ohm 4x1500w 8ohm 2x800w 8ohm
Associated Enclosures
TC15 TC12 TC10
www.qanon-audio.com
Enclosure
Max enclosure in parallel
Max enclosure per controller
TC15
3
12
TC12
3
12
TC10
3
12
Enclosure
Max enclosure in parallel
Max enclosure per controller
TC15
2
4
TC12
3
6
TC10
3
6
Enclosure
1
2
3
TC15
LF :8 Ω
LF: 4 Ω
LF: 2.7 Ω
TC12
LF :8 Ω
LF: 4 Ω
LF: 2.7 Ω
TC10
LF: 8 Ω
LF: 4 Ω
LF: 2.7 Ω
Connectors
TC15
TC12
TC10
NL4 2-Pin 2*4²
LF = +1-1
LF = +1-1
LF = +1-1
