Qingqi QMGY User manual

es> 't;;( il~ IDJr
QlNGCJI =FZ:::JiiJ.=EJS ~
QMGY ~ 9"IJ llff$ ii ffl i.~JJJ~
Motorcycle Owner's Manual Model: QMGY
W1MNZA0201
~1fwHi~~U.H!j:mHaJ.j ~fl~
...I.NAN QINGQI MOTORCYCL.E CO. ,LTD.

Important Cautions
About running-in of a motorcycle
The first 1000 krn operation is very important in the entire service life of
a motorcycle. A correct running-in can guarantee both the longest service life
and the best performance of the vehicle. Running-in can polish machined
surfaces and form smooth engagement.
Careful and patient running-in can make the motorcycle stable in driving
and give a full play to its excellent performance. It is important not to do any
operation that may cause overheat to engine components.
For specific running-in method. please refer to "Running-in of a new
vehicle".
Please carefully read the manual and strictly observe all instructions or
descriptions.
Special attention shall be paid to the contents emphasized with the terms
of "warning" "caution" and "note". etc.
Warning······lt concerns with personal safety. Ignoring it may result in
accident.
Precaution+-v-It refers to operational methods that must be followed
or measures that should be taken, so as to prevent damage.
Note ... + It refers to special explanations to make maintenance or
important descriptions more explicit.
The operation manual shall be deemed as a permanent document of the
motorcycle. When transfer the vehicle to others. the instruction manual shall
also be transferred to the new owner.

The series includes the following models:
QM110GY QMI25GY
QMI25GY-2
QMI25GY-2C
QMI25GY-2B
QM200GY
-1-

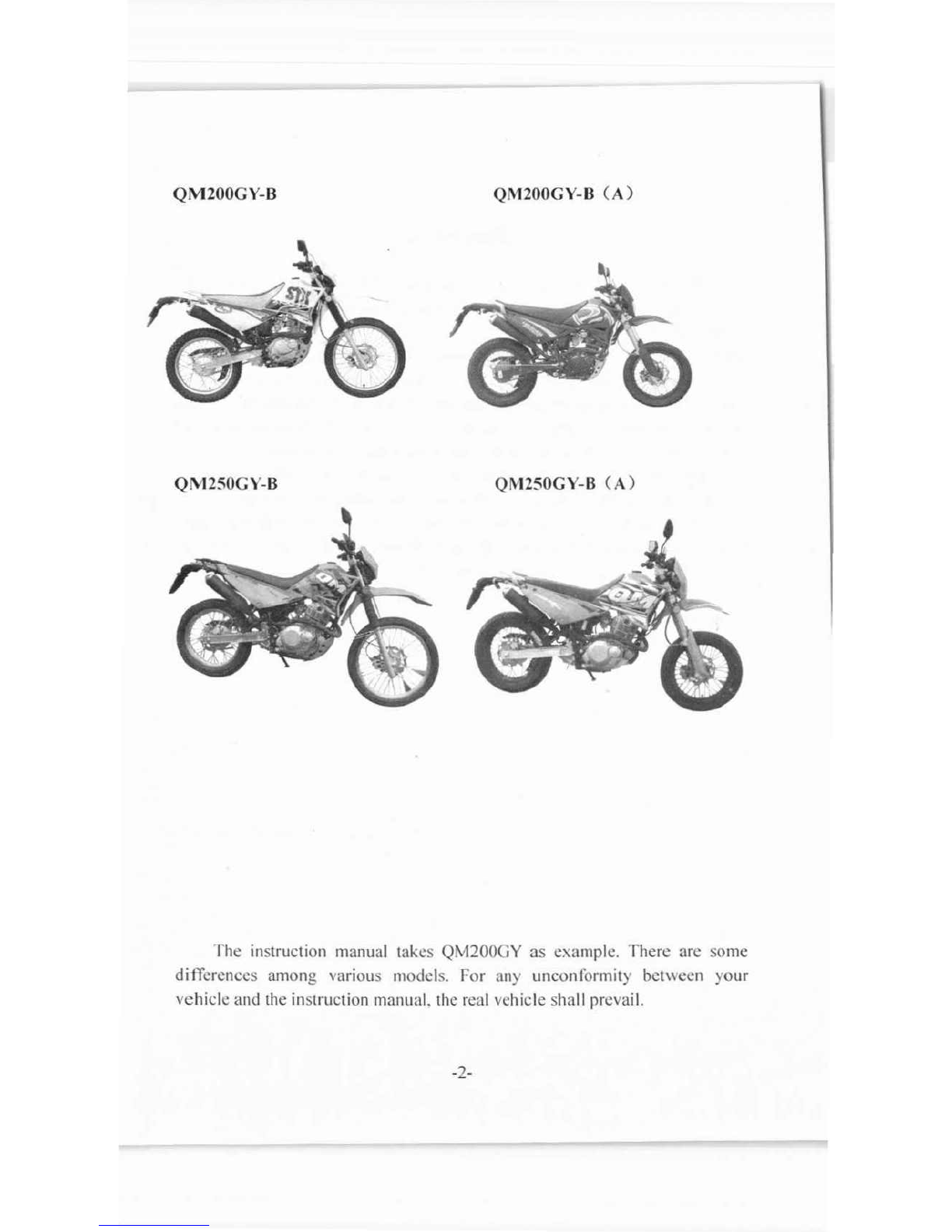

QM200GY-B
QM250GY-B
QM200GY-B (A)
QM250GY-B (A)
The instruction manual takes QM200GY as example. There are some
differences among various models. For any unconformity between your
vehicle and the instruction manual. the real vehicle shall prevail.
-2-

Foreword
Thank you for your choosing Qingqi brand QMGY series motorcycle. In
design. development and manufacture of the series motorcycle, our company
applies the latest advanced technology and equipment to provide you with a
motorcycle that is reliable in performance. novel in design and elegant in
appearance. Motorcycle driving is one of the most exciting sports. The
motorcycle is an ideal means of transport. It can give you infinite driving
pleasure. Before driving your motorcycle, please be familiar with all
stipulations and requirements mentioned in the instruction manual.
The instruction manual deals in the correct use, maintenance and
maintenance of the motorcycle. Observing the following stipulations will
provide a guarantee to your motorcycle for a long time use without trouble.
l'hc distributor has skillful and well trained technical professionals to provide
the best maintenance and service to your motorcycle.
Executed standards:
Q/QM021021-2007
Jinan Qingqi Motorcycle Co. Ltd.
-3-

Chapter I
Chapter 2

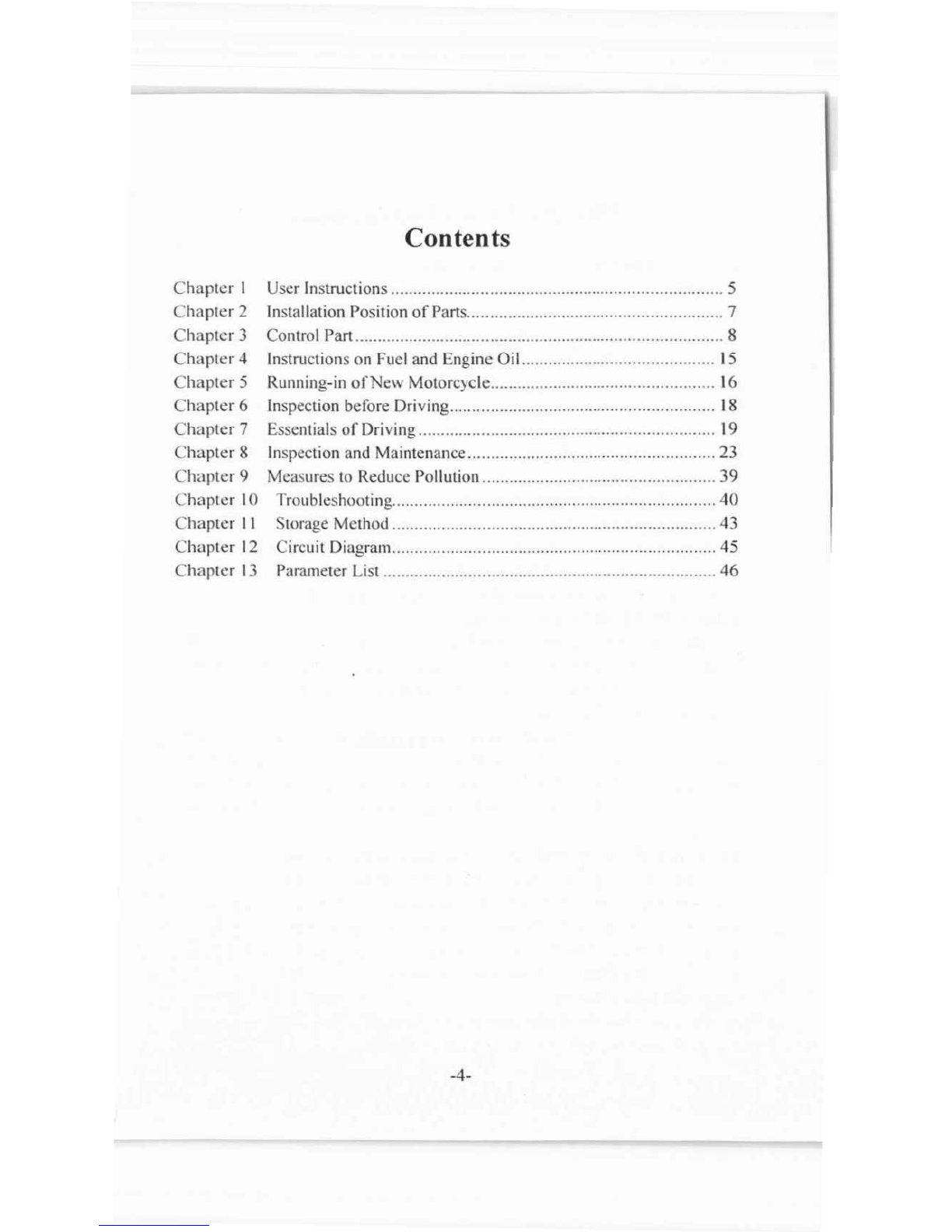

Contents
User Instructions 5
Installation Position of Parts 7
Chapter 3 Control
Chapter 4 Instructions on Fuel and Engine Oil 8 15
Chapter 5
Chapter 6
Chapter 7
Chapter 8
Chapter 9
Chapter 10
Chapter II
Chapter 12
Chapter 13
Running-in of New Motorcycle 16
Inspection before Driving 18
Essentials of Driving 19
Inspection and Maintenance 23
Measures to Reduce Pollution 39
Troubleshooting 40
Storage Method 43
Circuit Diagram 45
Parameter List 46
-4-

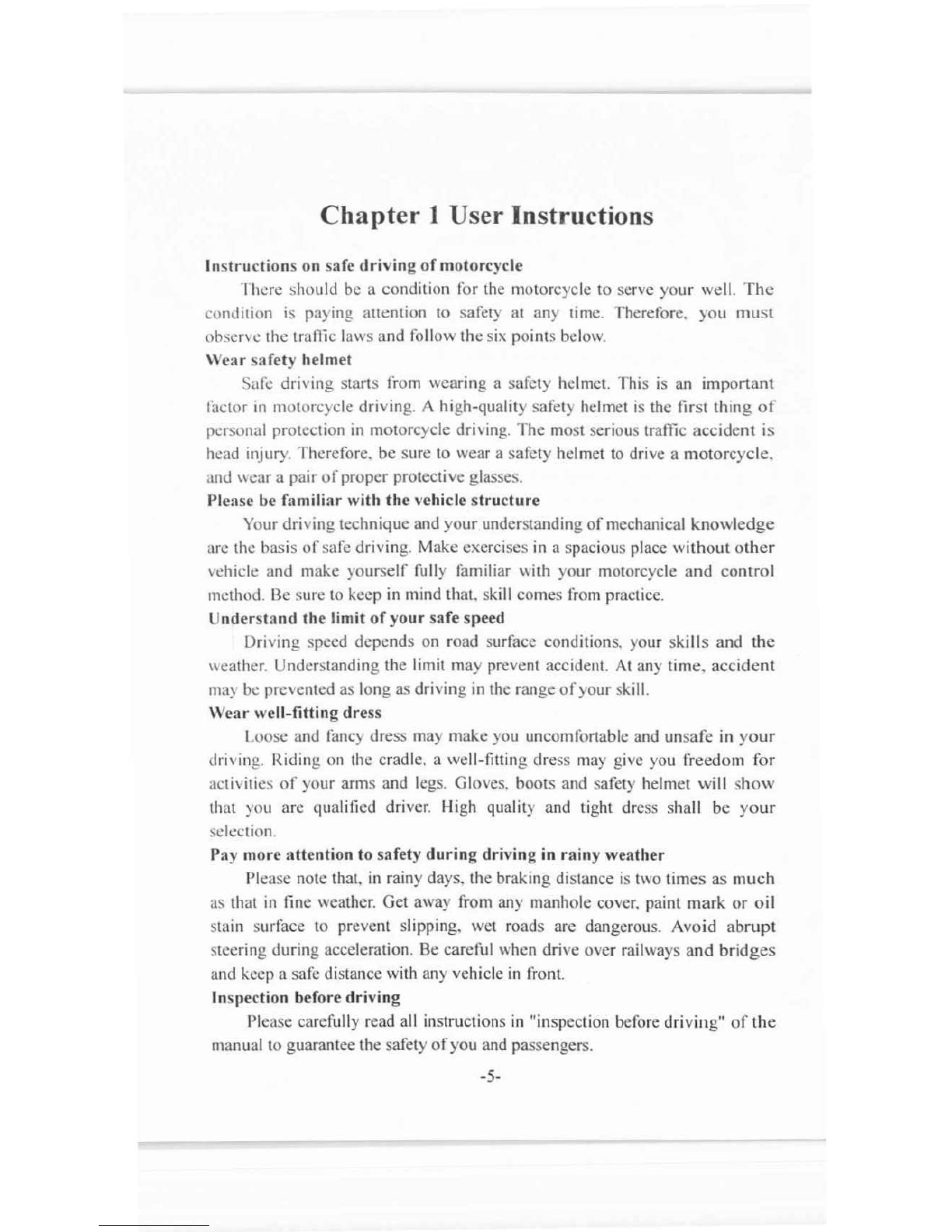

Chapter 1 User Instructions
Instructions on safe driving of motorcycle
There should be a condition for the motorcycle to serve your well. The
condition is paying attention to safety at any time. Therefore. you must
observe the traffic laws and follow the six points below.
Wear safety helmet
Safe driving starts from wearing a safety helmet. This is an important
factor in motorcycle driving. A high-quality safety helmet is the first thing of
personal protection in motorcycle driving. The most serious traffic accident is
head injury. Therefore. be sure to wear a safety helmet to drive a motorcycle,
and wear a pair of proper protective glasses.
Please be familiar with the vehicle structure
Your driving technique and your understanding of mechanical knowledge
are the basis of safe driving. Make exercises in a spacious place without other
vehicle and make yourself fully familiar with your motorcycle and control
method. Be sure to keep in mind that. skill comes from practice.
Understand the limit of your safe speed
Driving speed depends on road surface conditions. your skills and the
weather. Understanding the limit may prevent accident. At any time. accident
may be prevented as long as driving in the range of your skill.
Wear well-fitting dress
Loose and fancy dress may make you uncomfortable and unsafe in your
driving. Riding on the cradle. a well-fitting dress may give you freedom for
activities of your arms and legs. Gloves. boots and safety helmet will show
that you are qualified driver. High quality and tight dress shall be your
selection.
Pay more attention to safety during driving in rainy weather
Please note that. in rainy days. the braking distance is two times as much
as that in fine weather. Get away from any manhole cover, paint mark or oil
stain surface to prevent slipping, wet roads are dangerous. Avoid abrupt
steering during acceleration. Be careful when drive over railways and bridges
and keep a safe distance with any vehicle in front.
Inspection before driving
Please carefully read all instructions in "inspection before driving" of the
manual to guarantee the safety of you and passengers.
-5-

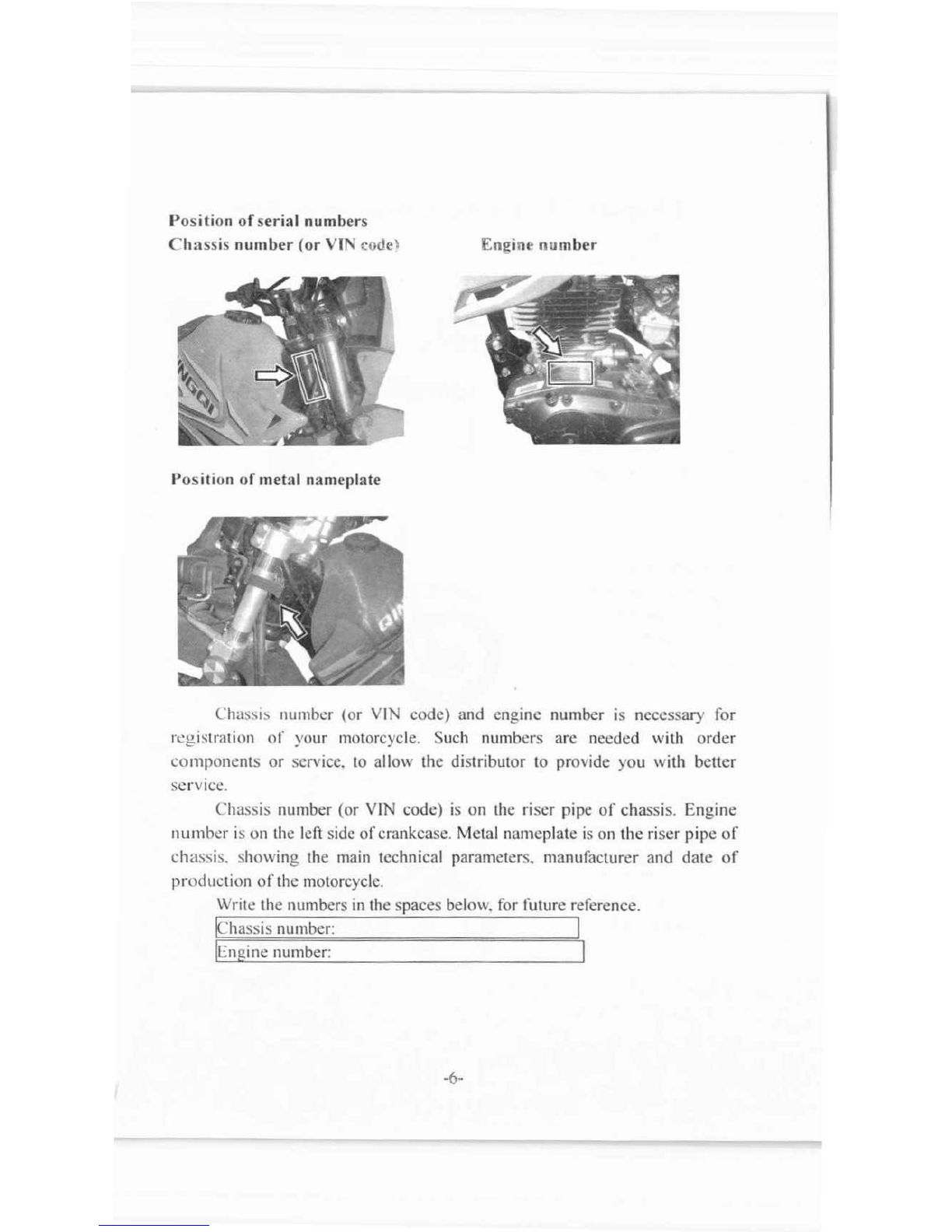

Position of serial numbers
Chassis number (or VIN code)
Position of metal nameplate
Engine number
Chassis number (or YIN code) and engine number is necessary for
registration of your motorcycle. Such numbers are needed with order
components or service, to allow the distributor to provide you with better
service.
Chassis number (or YIN code) is on the riser pipe of chassis. Engine
number is on the left side of crankcase. Metal nameplate is on the riser pipe of
chassis. showing the main technical parameters. manufacturer and date of
production of the motorcycle.
Write the numbers in the spaces below. for future reference.
!Chassis number: I
IEngine number: I
-6-

Chapter 2 Installation Position of Parts
Handle bar instrument
Clutch grip
2Left handlebar switch
3Speedometer
4Ignition switch
5Tachometer
6Right handlebar switch
7 Accelerator
8
Front brake grip
9Rearview mirror
Left side view
I Fuel tank switch
2 Carburetor
3 Gear lever
4 Side stand
Right side view
I Rear brake pedal
2 Kickback start lever
3 Spark plug
-7-

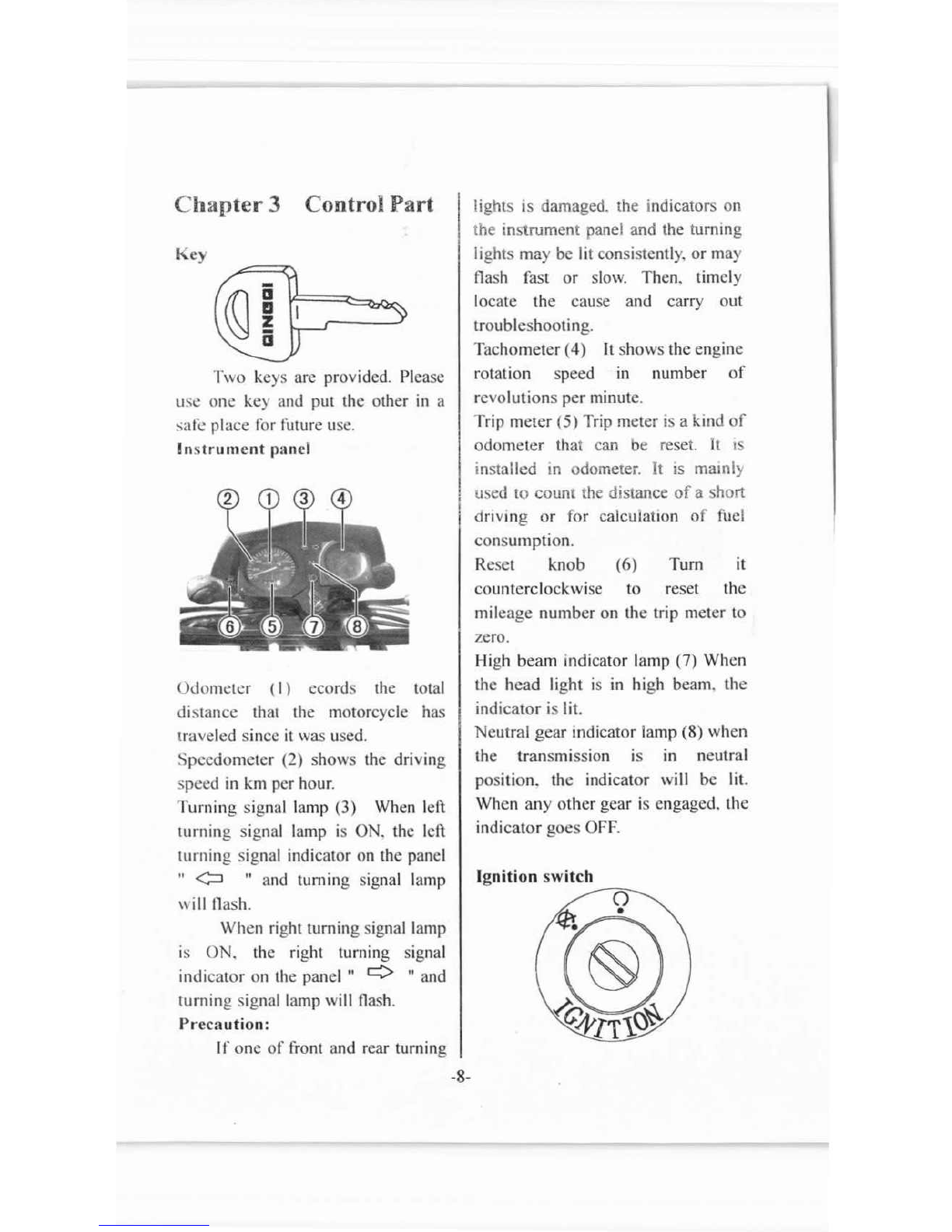

Chapter 3 Control Part I lights is damaged. the indicators on
the instrument panel and the turning
Key __ I lights may be lit consistently, or may
flash fast or slow. Then. timely
locate the cause and carry out
troubleshooting.
Tachometer (4) It shows the engine
Two keys are provided. Please rotation speed in number of
use one key and put the other in a revolutions per minute.
safe place for future use. Trip meter (5) Trip meter is a kind of
Instrument panel odometer that can be reset. It IS
installed in odometer. It IS mainly
used to count the distance of ashort
driving or for calculation of fuel
consumption.
Reset knob (6) Turn it
counterclockwise to reset the
mileage number on the trip meter to
zero.
High beam indicator lamp (7) When
the head light is in high beam. the
indicator is lit.
Neutral gear indicator lamp (8) when
the transrrussion is in neutral
position. the indicator will be lit.
When any other gear is engaged. the
indicator goes OFF.
Odometer (I) ecords the total
distance that the motorcycle has
traveled since it was used.
Speedometer (2) shows the driving
speed in krn per hour.
Turning signal lamp (3) When left
turning signal lamp is ON. the left
turning signal indicator on the panel
"Q "and turning signal lamp
will nash.
When right turning signal lamp
is ON. the right turning signal
indicator on the panel" Q "and
turning signal lamp will flash.
Precaution:
I f one of front and rear turning
Ignition switch
o
~
('~4'ITl\)~
-8-

The ignition s\\ itch has two
positions:
" !5<l "(OFF) position All circuits
are disconnected and the key can be
removed.
"0 "( ON) position All igniting
circuits are ON and the engine can
be started. The key cannot be
removed in this position.
Steering lock
1'0 lock the steering handlebar.
torn the handlebar to left. insert the
key and turn it clockwise.
Warning:
When the steering handlebar is
locked. never move the motorcycle
or you may lose balance.
Left handlebar control system
Dimmer switch (I) When dimmer
switch is turned LIpto" liD "(high
beam) position. the head light is in
high beam and the high beam
indicator lamp on the instrument
panel is lit. On contrary. when it is
turned down to" ~D "(low beam)
position. the low beam is lit.
Lighting switch (2)
"-t;J; "ON position When the
switch is turned to this position. the
head light. front position light.
instrument panel light and rear tail
light will be lit.
P= " parking light position
When the switch is turned to th is
position. the front position light.
instrument panel light and rear tail
light will be lit.
"e" OFF position All the head light.
front position light. instrument panel
light and rear taillight go OFF.
Turning signal operation (3) When
the switch is turned to left" ¢::l "
position. the left turning signal lamp
is lit and the indicator lamp all
instrument panel flashes. When the
switch is turned to right "c::> ..
position. the right turning signal
lamp is lit and the indicator lamp on
instrument panel flashes.
Warning:
Whenever you are going to
change lane or make a turning.
timely turn ON the turning signal
lamp. After lane change or turning.
-9-

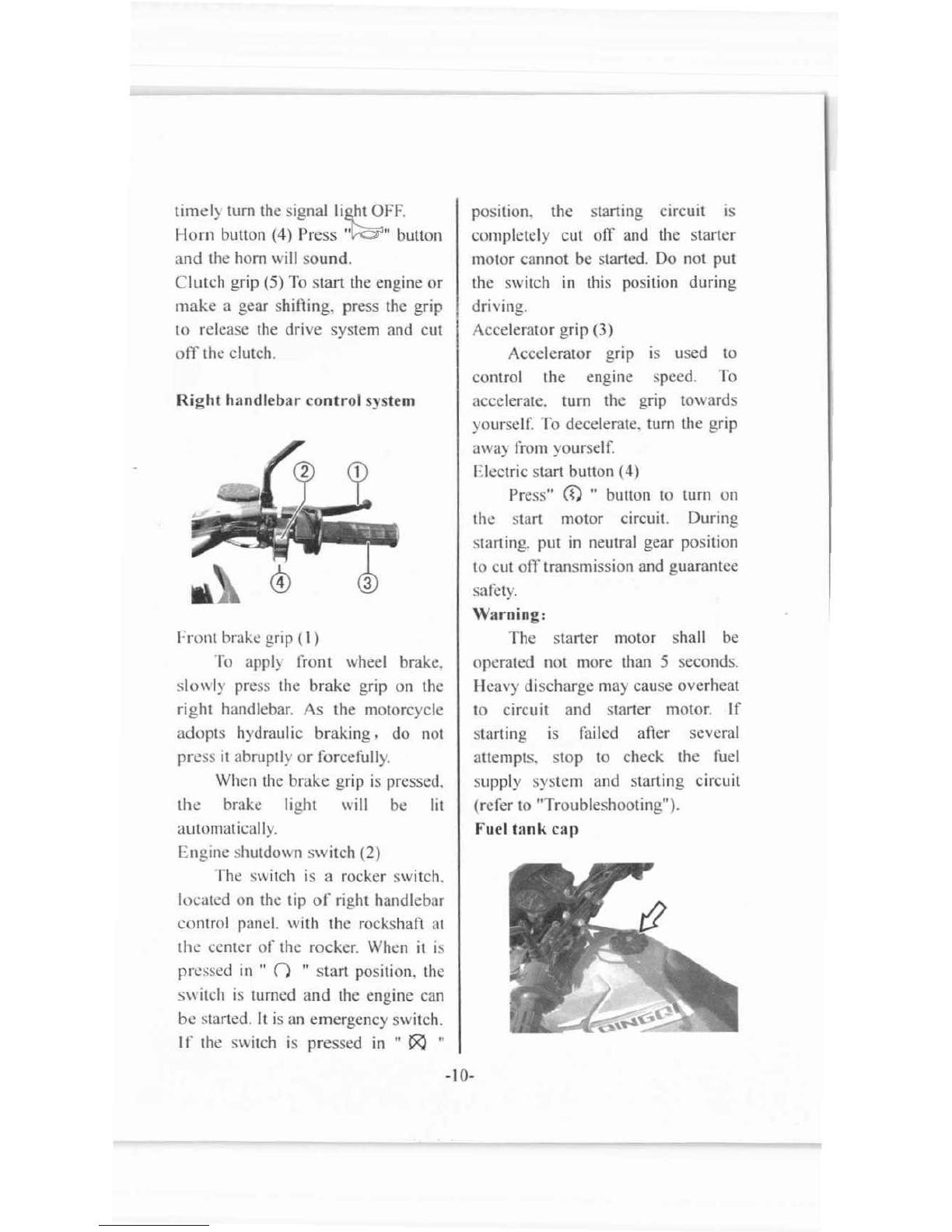

timely turn the signal lig_htOFF.
Horn button (4) Press "R5r''' button
and the horn will sound.
Clutch grip (5) To start the engine or
make a gear shifting, press the grip
to release the drive system and cut
off the clutch.
Right handlebar control system
Front brake grip ( I)
To apply front wheel brake.
slowly press the brake grip on the
right handlebar. As the motorcycle
adopts hydraulic braking, do not
press it abruptly or forcefully.
When the brake grip is pressed.
the brake light will be lit
automatically.
Engine shutdown switch (2)
The switch is a rocker switch.
located on the tip of right handlebar
control panel. with the rockshaft at
the center or the rocker. When it is
pressed in " (') " start position. the
switch is turned and the engine can
be started. It is an emergency switch.
I I' the switch is pressed in " lS<.) "
position. the starting circuit is
completely cut off and the starter
motor cannot be started. Do not put
the switch in this position during
driving.
Accelerator grip (3)
Accelerator grip is used to
control the engine speed. To
accelerate. turn the grip towards
yourself. To decelerate. turn the grip
away from yourself.
Electric start button (4)
Press" ® " button to turn on
the start motor circuit. During
starting. put in neutral gear position
to cut off' transmission and guarantee
safety,
Warning:
The starter motor shall be
operated not more than 5 seconds.
Heavy discharge may cause overheat
to circuit and starter motor. If
starling is failed after several
attempts. stop to check the fuel
supply system and starting circuit
(refer to "Troubleshooting").
Fuel tank cap
-10-

To open fuel tank cap. insert the
key and tum it clockwise. Then. the
fuel tank cap can be removed
together with the key To replace the
cap. align the arrow on the cap and
press the cap. together with the key.
into the fuel tank cap hole until a
click sound is heard. Then. remove
the key.
(I) Gasoline level (2) Filler
Warning:
Do not fill the tank excessively.
Never splash fuel to hot engine. No
fuel shall be left on the upper pan of
the filler. or the fuel may overflow
when fuel temperature risess and
expands. causing hazard.
During fuel refilling, shutdown
the engine and turn the key to OFF
position. Smoking or lighting fire is
strictly forbidden during fuel
refilling.
Gear lever
The motorcycle is provided
with a 5-speed gear transmission.
The gear lever' connects to a ratchet
mechanism in the transmission.
After selecting a gear, the gear lever
returns to the home position, so that
the next gear can be selected. The
neutral gear is between the low gear
and two speed gear. From neutral
position. press downs the gear lever
to engage a low gear. Raise the gear
lever one step to move forward a
gear. Owing to the ratchet
mechanism, it cannot move two or
more gears up or down in one
operation. To shift from 2-speed gear
to low gear, or from low gear to
2-speed gear, it passes the neutral
position but not stays there. To
engage to neutral gear, stop it in the
middle of moving from low gear to
2-speed gear.
Precaution:
When the rransmissron is in
neutral position. the neutral indicator
lamp is lit on the instrument board.
-11-

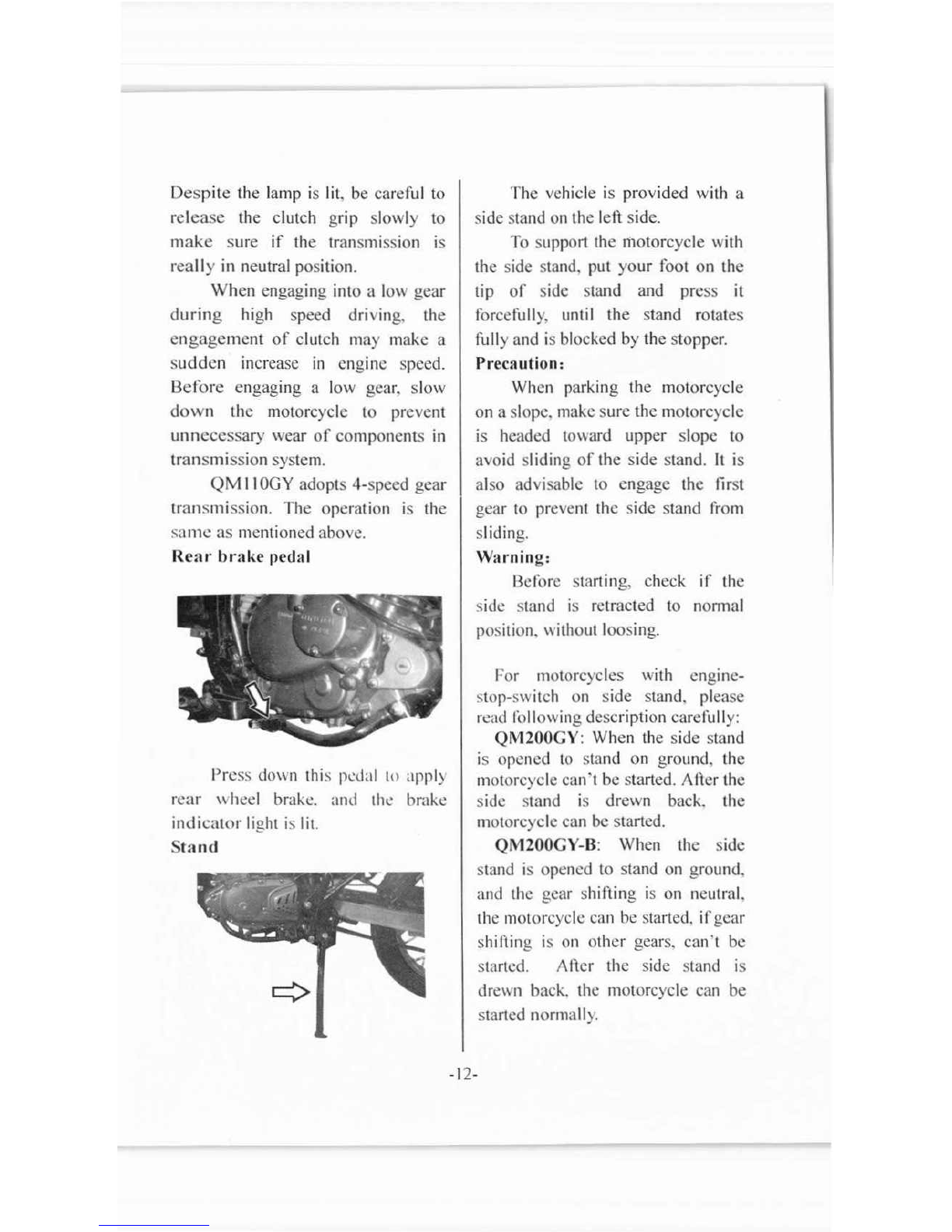

Despite the lamp is lit, be careful to
release the clutch grip slowly to
make sure if the transmission is
really in neutral position.
When engaging into a low gear
during high speed driving, the
engagement of clutch may make a
sudden increase in engine speed.
Before engaging a low gear, slow
down the motorcycle to prevent
unnecessary wear of components in
transmission system.
QM II OGY adopts 4-speed gear
transmission. The operation is the
same as mentioned above.
Rear brake pedal
Press down this pedal III apply
rear wheel brake. and the brake
indicator light is IiI.
Stand
The vehicle is provided with a
side stand on the left side.
To support the motorcycle with
the side stand, put your foot on the
tip of side stand and press it
forcefully, until the stand rotates
fully and is blocked by the stopper.
Precaution:
When parking the motorcycle
on a slope. make sure the motorcycle
is headed toward upper slope to
avoid sliding of the side stand. It is
also advisable to engage the first
gear to prevent thc side stand from
sliding.
Warning:
Before starting, check if the
side stand is retracted to normal
position. without loosing.
For motorcycles with engine-
stop-switch on side stand, please
read following description carefully:
QM200GY: When the side stand
is opened to stand on ground. the
motorcycle can't be started. After the
side stand is drewn back. the
motorcycle can be started.
QM200GY-B: When the side
stand is opened to stand on ground,
and the gear shifting is on neutral.
the motorcycle can be started, if gear
shifting is on other gears. can't be
started. After the side stand is
drewn back. the motorcycle can be
started normally.
-12-

Carburetor enrichment lever
To help starting. the vehicle is
provided with carburetor enrichment
system: Q) Equivalent vacuum
diaphragm carburetor: To start a cold
engine. pullout the enrichment lever.
Alter starting, push the lever to a
hair way and allow the engine to
warm up to a proper temperature.
before pushing the enrichment lever
to its home position. ®Plunger
carburetor: To start a cold engine.
raise the enrichment lever to the
highest position. After starting,
lower the lever to a half way and
allow the engine to warm up to a
proper temperature. before returning
the enrichment lever to its home
position. (3) Wire type enrichment
plunger carburetor: To start a cold
engine, put the wire handle forward
to the end position. After starling,
put the handle to a middle position
and allow the engine to warm up to a
proper temperature, before returning
the enrichment handle back to its
home position.
Note:
The enrichment system is
designed for starting a cold engine.
When temperature is low, the
warming time shall be extended
properly (if no warming is made, the
speed transition may become poor).
During driving, the enrichment
system shall be shutoff otherwise
the fuel consumption may be
increased. The correct enrichment
shutoff status is: For vacuum
carburetor. fully push in the lever;
For plunger carburetor, lower the
lever to the end; For wire type
enrichment carburetor. turn it to the
front end.
Warning,
Alter using the enrichment
system, shutoff it timely to prevent
overheat that may damage the
silencer elbow.
Kickback start lever
If your motorcycle has this
device, please refer to the following
contents.
-13-

The kickback start lever is
installed on the right side of the
motor. Owing to motorial kickback
starting mechanism. the engine can
be started in any gear position
provided the clutch is released.
Warning:
After the engine is started.
check if the start lever has returned
to its normal position.
Do not use the kick starter and
electric starter at the sametime.
Fuel switch
The vehicle is provided with
manual fuel valve. There arc three
positions: "tJ.. (Open)
..Y"(Reserve)" .'. (Close).
"D" Open position
Generally, the fuel switch is in
this position. When the accelerator
grip is rotated, fuel flows from valve
to carburetor.
.. '-='" Reserve position
I r the fuel level is too low. turn
the fuel switch to this position and a
certain amount of' fuel ill reservecan
beavailable.
..... Close position
Turn the tuel switch to this
position after the engine is
shutdown.
Precaution:
If the luel switch is in "0"
Open position for a long time, fuel
may overflow from carburetor to
engine. Fuel in engine may cause
serious mechanic damage during
engine starting
Note:Every time after turning the
fuel switch to reserve position. ref II
the fuel tank immediately to the
nearest gas station and return the
fuel S\~ itch to openposition.
Tool kit
The tools box is below the
cradle on the rear len side of' the
motorcycle.
-14-

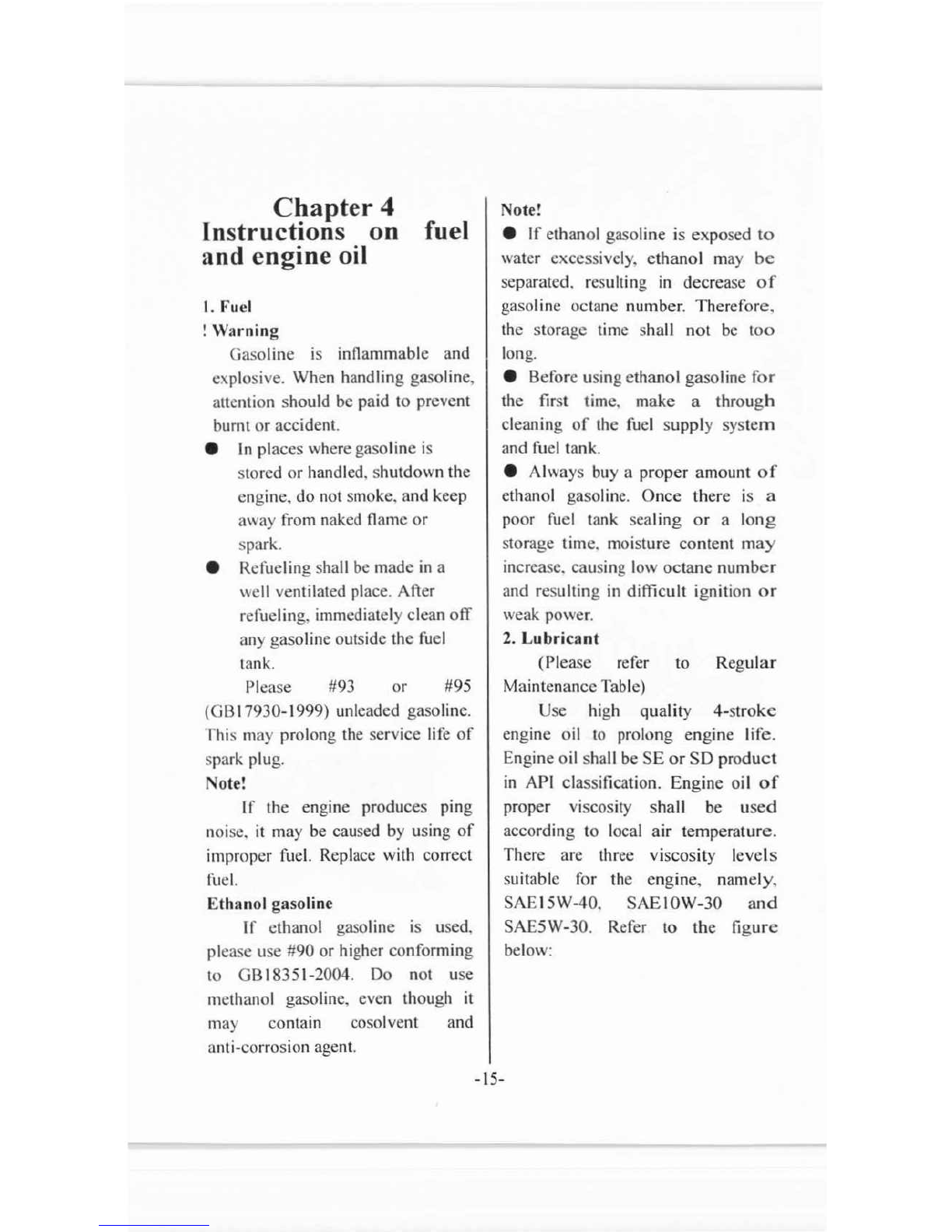

Chapter 4
Instructions on fuel
and engine oil
I. Fuel
! Warning
Gasoline is inflammable and
explosive. When handling gasoline,
attention should be paid to prevent
burnt or accident.
• In places where gasoline is
stored or handled, shutdown the
engine, do not smoke, and keep
away from naked flame or
spark.
• Refueling shall be made in a
well ventilated place. After
refueling, immediately clean off
any gasoline outside the fuel
tank.
Please #93 or #95
(GS 17930-1999) unleaded gasoline.
This may prolong the service life of
spark plug.
Note!
If the engine produces ping
noise, it may be caused by using of
improper fuel. Replace with correct
fuel.
Ethanol gasoline
If ethanol gasoline is used,
please use #90 or higher conforming
to GBI8351-2004. Do not use
methanol gasoline, even though it
may contain cosol vent and
anti-corrosion agent.
Note!
• If ethanol gasoline is exposed to
water excessively, ethanol may be
separated, resulting in decrease of
gasoline octane number. Therefore,
the storage time shall not be too
long.
• Before using ethanol gasoline for
the first time, make a through
cleaning of the fuel supply system
and fuel tank.
• Always buy a proper amount of
ethanol gasoline. Once there is a
poor fuel tank sealing or a long
storage time, moisture content may
increase. causing low octane number
and resulting in difficult ignition or
weak power.
2. Lubricant
(Please refer to Regular
Maintenance Table)
Use high quality 4-stroke
engine oil to prolong engine life.
Engine oil shall be SE or SD product
in API classification. Engine oil of
proper viscosity shall be used
according to local air temperature.
There are three viscosity levels
suitable for the engine, namely,
SAEI5W-40. SAEIOW-30 and
SAE5W-30. Refer to the figure
below:
-15-

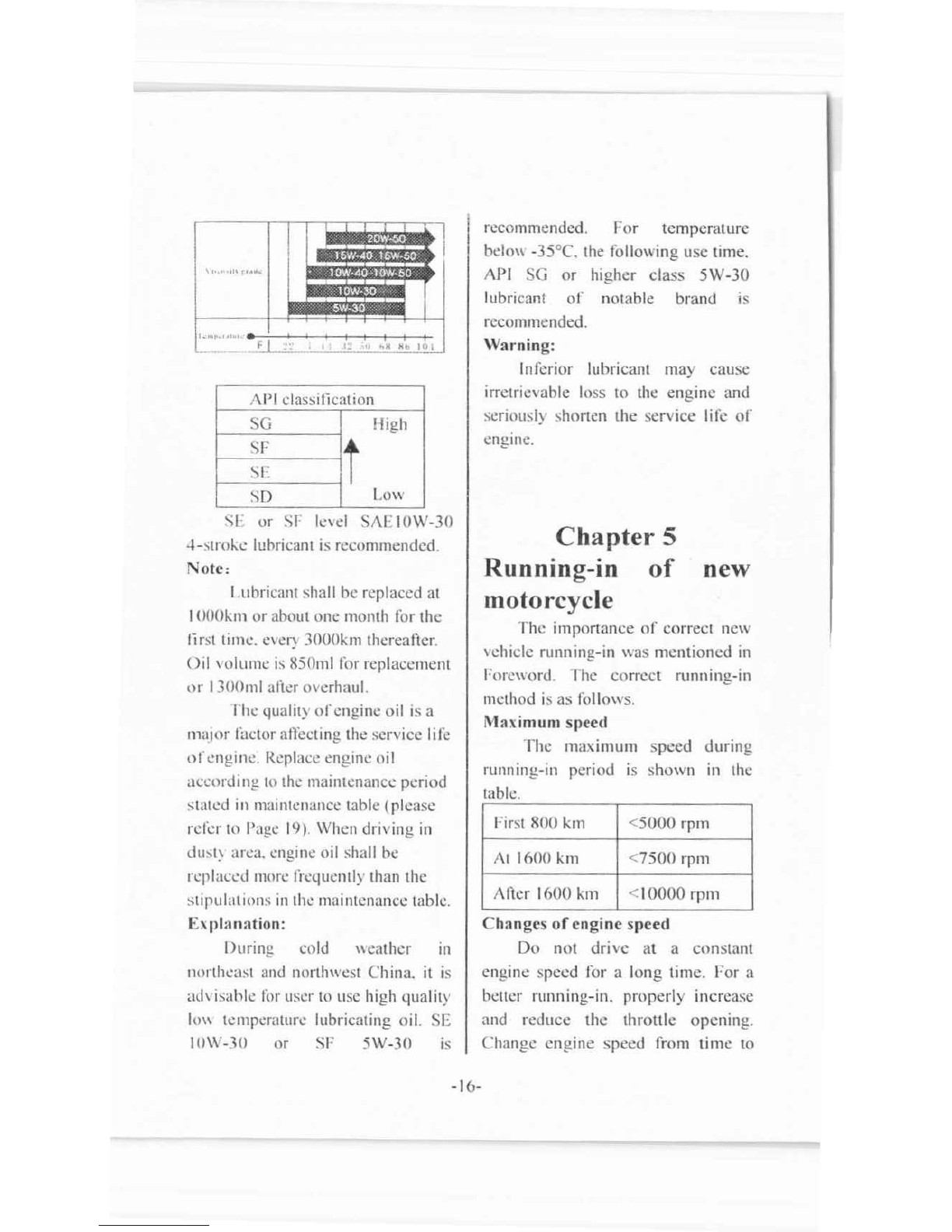

\1.,".,.''' ......
4~;n:"li'
-.
_.,
1~·-I"r~.~.. I1".:-7-__.-+--+---r-t-+---+--1
L- __ ~,_ I, J:'; .;u nil Nb 101
API classification
SG High
SF
t
SE
SD
Low
'iE or sr level SAEIOW-30
-l-strokc lubricant is recommended.
Note:
Lubricant shall be replaced at
1000kl11 or about one month lor the
first time. ever: 3000km thereafter.
Oil volume is 850ml fer replacement
or 1300ml after overhaul.
The quality of engine oil is a
major factor affecting the service life
of engine. Replace engine oil
according to the maintenance period
stated in maintenance table (please
refer to Page 19). When driving in
dusr, area. engine oil shall be
replaced more frequently than the
stipulutions in the maintenance table.
Explanation:
During cold weather in
northeast and northwest China. it is
advisable for user to use high qual it)'
10\\ temperature lubricating oil. SE
IOW-30 or SF 5W-30 is
I
I
recommended. For temperature
below -35°C. the following use time.
API SG or higher class 5W-30
lubricant of notable brand is
recommended.
Warning:
Inferior lubricant may cause
irretrievable loss to the engine and
seriously shorten the service life of
engine.
Chapter 5
Running-in of new
motorcycle
The importance of correct new
vehicle running-in was mentioned in
Foreword. The correct running-in
method is as follows.
Maximum speed
The maximum speed during
running-in period is shown in the
table.
First 800 km <5000 rpm
At 1600 krn <7500 rpm
Aller 1600 krn <10000 rpm
Changes of engine speed
Do not drive at a constant
engine speed for a long time. For a
better running-in. properly increase
and reduce the throttle opening.
Change engine speed from time to
-16-

lime 10 Ict various engine parts get
"bearing" pressure. When the
pressure is "unloaded". the engine
parts will cool down. helping the
fitting of different pans. During
running-in period. engine load may
be properly increased. Apply some
load to cngine parts to guarantee
good fining. This is every important.
but do not apply excessive load to
the engine.
Avoid driving at a low speed
Running at a certain low engine
speed (with light load) can only
polish the parts but cannot get a
good running-in. So long as the
upper limit of recommended throttle
opening is not exceeded. drive the
\ chide in various gears wuh proper
accelcranon. l lowever, never drive
at the maximum acceleration during
the lirst 1600 krn.
Make oil circulating before
driving
After starting or warm or cold
engine and before applying load or
driving. let the engine run at idle
speed for an adequate time. This
allows lubricant to flow to all import
engine parts. so as to reduce wearing
and increase the service life. This
also helps the engine to warm-up
sufficiently.
First maintenance inspection
The maintenance of the first
1000 km is the most important.
During running-in period. all engine
parts have been run-in and other
parts engaged. Then. all parts shall
be adjusted. all fasteners be
tightened. contaminated engine oil
be replaced and filter element be
replaced.
Timely making 1000 kin
maintenance can guarantee a long
engine life and the best engine
performance.
Precaution:
1000 krn maintenance shall be
carried out according to the
"Troubleshooting" in the manual.
Pay special attention to the
"precaution" and "warning" in the
section.
-17-

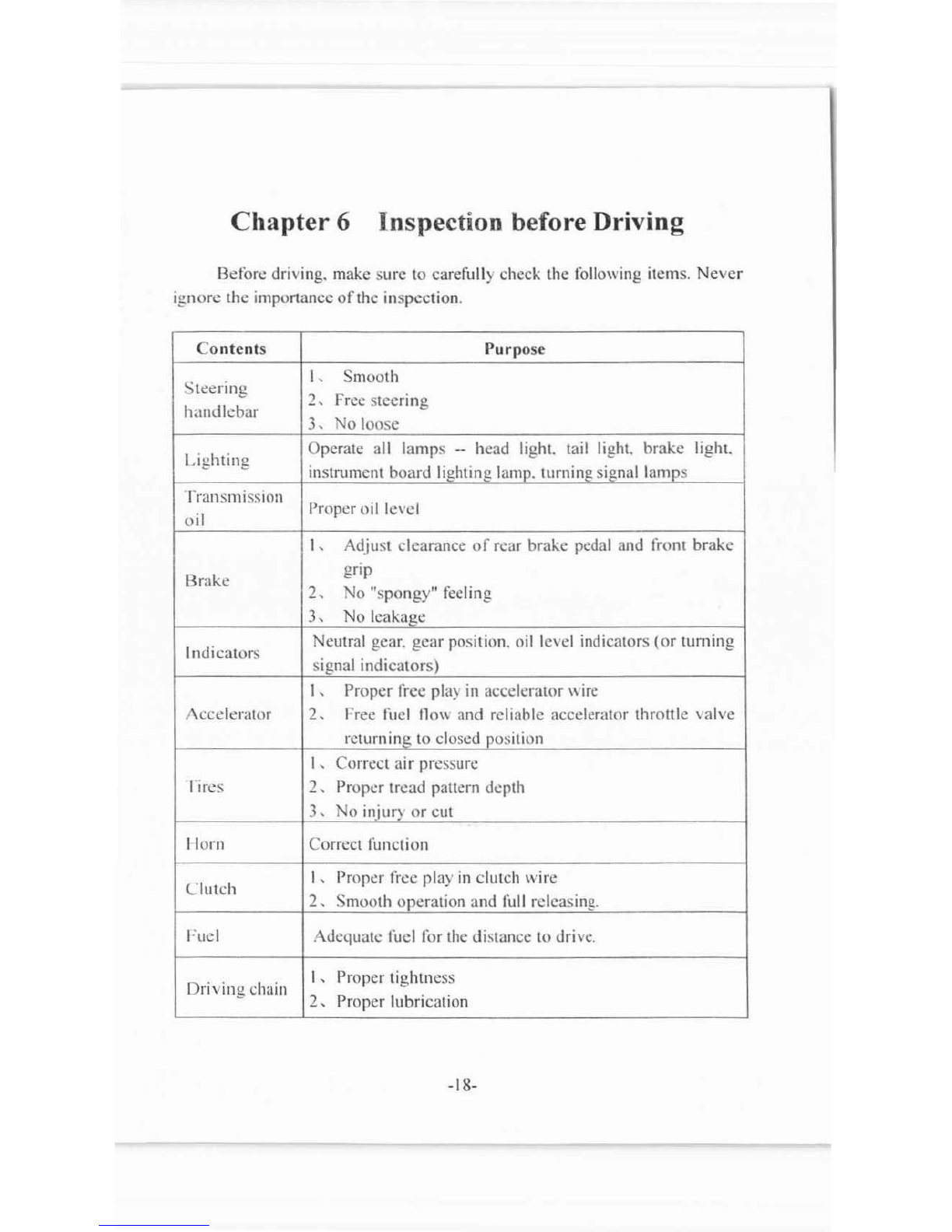

Chapter 6 Inspection before Driving
Beton: driving. make sure to carefully check the following items. Never
ignore the importance of the inspection.
Contents Purpose
I
Steering
L Smooth
2. Free steering
handlebar 3. No loose
Lighting Operate all lamps - head light. tail light. brake light.
instrument board lighting lamp. turning signal lamps
Transmission Proper oil level
oil
I. Adjust clearance of rear brake pedal and front brake
Brake grip
2. No "spongy" feeling
3,
No leakage
Indicators Neutral gear. gear position. oil level indicators (or turning
signal indicators)
I. Proper free play in accelerator wire
Accelerator 2. Free fuel flow and reliable accelerator throttle valve
returning to closed position
I, Correct air pressure
l'ires 2. Proper tread pattern depth
3. No injury or cut
110m Correct function
Clutch I. Proper free play in clutch wire
2. Smooth operation and full releasing.
Fuel Adequate fuel for the distance to drive.
Driving chain I. Proper tightness
2. Proper lubrication
~~---
-18-
