Qipai QP1200DT User manual

PREFACE
Thank you for choosing QIPAI battery-operated motorcycle. May you enjoy riding all the time.
The manual contains the necessary instructions and guidance with respect to the operation and maintenance of the powered vehicle, and BE
SURE TO READ IT CAREFULLY BEFORE YOU RIDE THE VEHICLE. Proper operation and maintenance can guarantee a safe riding to
minimize troubles of the vehicle and keep it in a sound condition, which can extend the motor service life.
All rights reserved. No part of this publication may be reproduced without our prior written permission.
IMPORTANT NOTICES
●Operator and Passenger
The vehicle is designed to carry the operator and one passenger. Never exceed the maximum weight capacity as following:
Maximum load: 150kg including 5kg for rear carrier.
●On-road
NOTE:Indicates a possibility of equipment damage if instructions are not followed.
Environmental Protection (EP): Indicates special precautions that must be taken to meet environment protection laws and
regulations. Improper use of a motorcycle may cause environment pollution.
If the operator fails to follow safe operating and maintenance practices, Co. will not take any responsibility to any injury or damage
occurred.
This manual should be considered as a permanent part of the motorcycle and should remain with the motorcycle when resold.

CONTENTS
VEHICLE SAFE RIDING…………………….…………………………………………………………1
GENERAL INFORMATION……………………………………………………….………………….3
CONTROLLING PARTS……………………………………………………………………………...6
OPERATION GUIDE……………………………………..……………………….…………………10
MAINTENANCE………………………………………………..……..………………………………13
TROUBLESHOOTING, VEHICLE SAFETY AND OPTIONAL PART……………………………23
MILEAGE RANG……………………………………………………………………………….26
ELECTRIC DIAGRAM………………………………………………………………………………..27
SPECIFICATIONS……………………………………………………………………………………28

1
VEHICLE SAFE RIDING
SAFE RIDING RULES
WARNING Vehicle riding requires special efforts on your part to ensure safety. Know these requirements
before you ride.
●Always make a pre-ride inspection before you start the engine. You may prevent accident or equipment damage.
●Most countries require a special vehicle riding test or license. Make sure you are qualified before you ride. NEVER
lend your vehicle to an inexperienced rider.
●Make yourself conspicuous to help avoid the accident that wasn’t your fault:
●Wear bright or reflective clothing.
●Don’t ride in another motorist’s “blind spot”.
●Don’t speedily cross another’s way.
●Obey all national and local laws and regulations.
●Obey the speed limits, and NEVER travel faster than conditions warrant.
●Signal before you make a turn or lane change to draw other motorist’s attention.
●Use extra caution at intersections, parking lot entrances and exits.
●Always remember to ride with both hands and keep both feet on the rider footrest while the passenger grasps the handrail with both
feet on the rear footrest.
PROTECTIVE CLOTHS
●For the safety sake, always wear a helmet, a face shield, dust glasses and protective clothing. Your passenger needs the
same protection.
●The exhaust system becomes hot during operation, and it remains hot for a while after stopping the engine. Take care
not to touch the exhaust system while it is hot. Wear clothing that fully covers your legs.
●Do not wear loose clothing that could catch on the control levers, wheels, etc.

2
REFITTING
WARNING Arbitrarily refitting the vehicle or removing the original parts may make riding unsafe, and is
illegal also. The user must obey all national and local laws and regulations in relation to vehicle and traffic. If you
have a good proposal concerning refitting of the motorcycle, please write us. The refitment can be done with
permission of the Co. Otherwise, the user will take the consequences.
LOADING
WARNING Addition of accessories and cargo may reduce the vehicle’s stability, performance and safe
operating speed.
●Keep cargo and accessory weight lower and close to the center of the vehicle. Load weight equally on both sides to
minimize imbalance. As weight is located further from the vehicle’s center of gravity, handling is proportionally
affected.
●Adjust tyre pressure and rear suspension to suit load weight and riding conditions.
●Make sure that cargo is fastened on the vehicle.
●Do not attach items to the handlebars, fork or fender. Otherwise, unstable handling or slow steering response may
occur.
●The maximum load weight of the motorcycle is 150kg. Please do not overload.
ACCESSORIES
Genuine accessories of LIFAN Vehicles have been specifically designed and tested on the motorcycle. Because the
factory cannot test all other accessories, you are personally responsible for selection, installation and use of accessories
not produced by the Co. Always follow Safe Riding Rules and these below:
●Carefully inspect the accessory to make sure that it does not obscure any lights, reduce ground clearance or banking
angle, or limit suspension travel, steering travel or control operation.
●Do not add electrical equipment that will exceed the vehicle’s electrical system capacity.

3
GENERAL INFORMATION

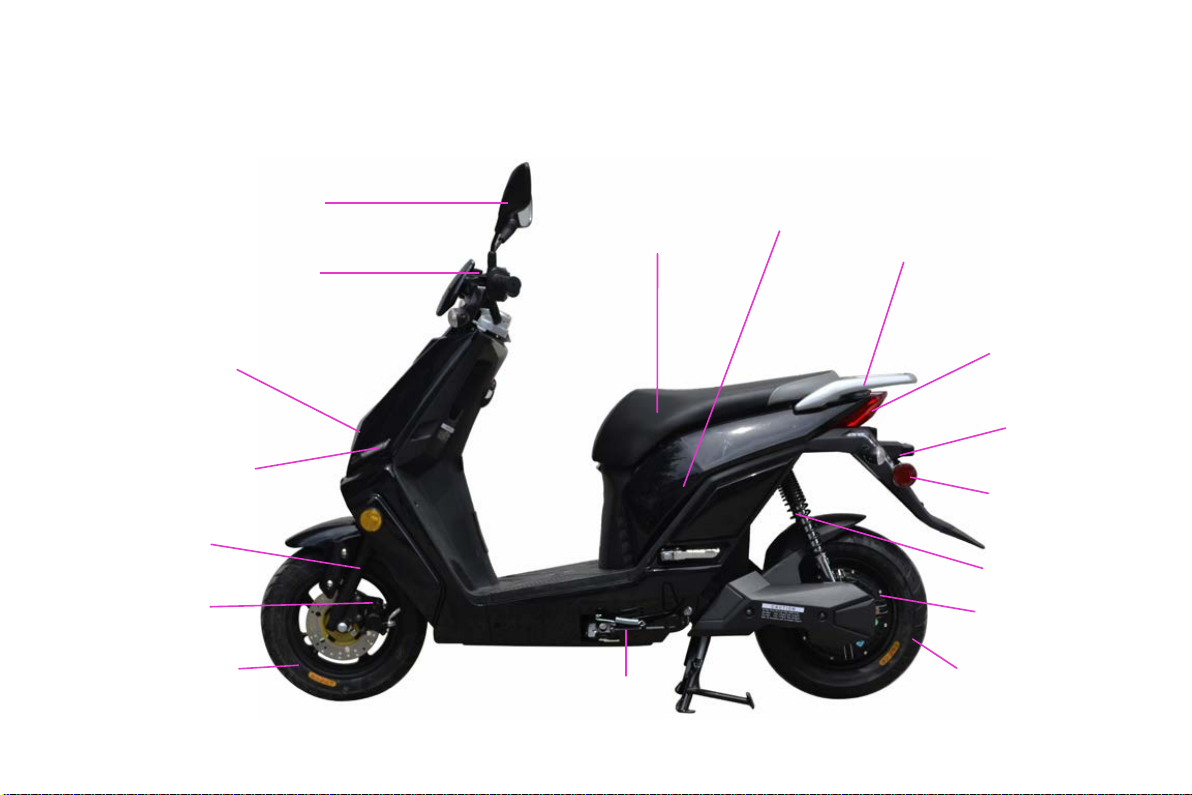

PARTS LOCATION
BATTERY
REARVIEW
MIRROR
RR. RAIL
SEAT
METER
TAILLIGHT
HEADLIGHT
RR. LICENCE
LIGHT
SIDE
REFLECTOR
FR. WINKER
FR. SHOCK
ABSORBER
RR. SHOCK
ABSORBER
MOTOR
FR.BRAKE
RR. WHEEL
SIDE
STAND
FR. WHEEL

4
VIN RECORD
VIN：☆□□□□□□□□□□□□□□□□□☆
Please fill the VIN and engine code of your vehicle in the blank above. They will help order spare parts and find
out the vehicle when stolen.
The VIN is stamped into the lower of front stem. The vehicle nameplate is fixed under the front storage box.
GRIP, LH METERTHROTTLE THROTTLE
HANDLEBAR CONTROLS, LH HAND LEBAR CONTROLS, RH

5
CONTROLLING PARTS

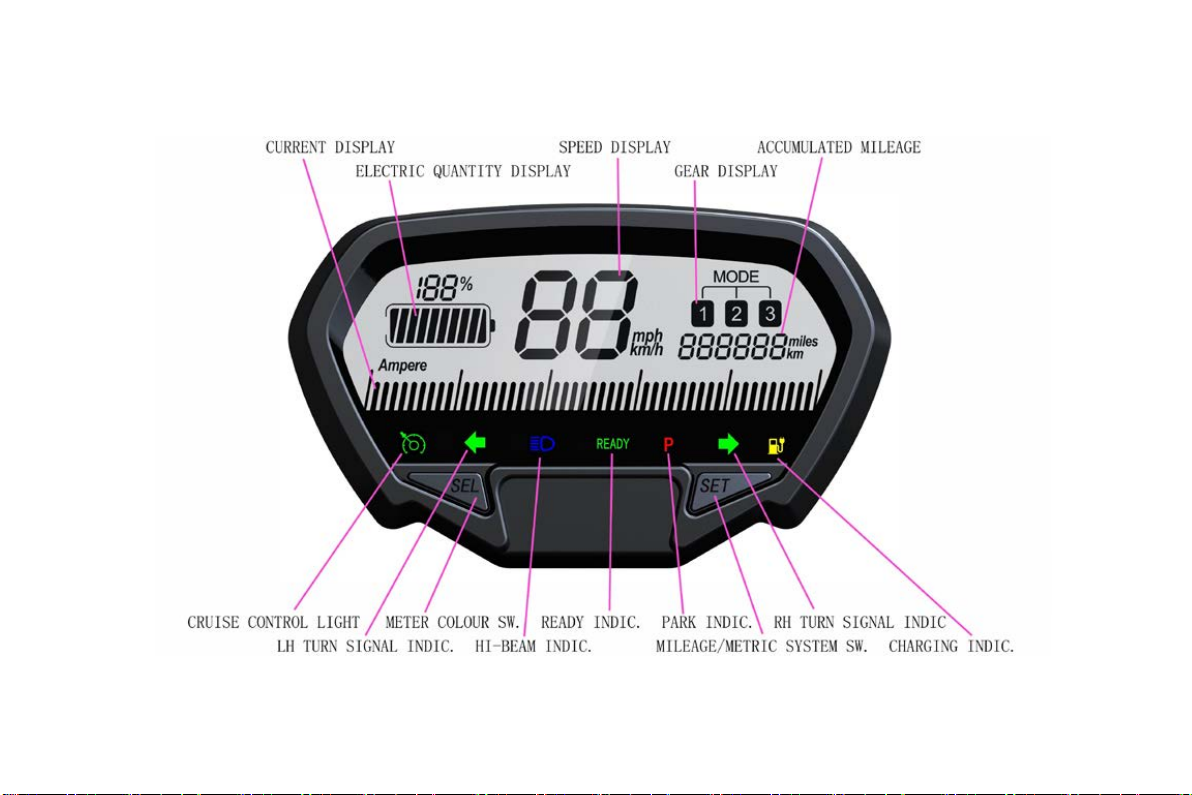

METER

6
Electric quantity, %
Electric quantity, 10% of battery per scale
Shows riding speed of vehicle within 88km/h. Fault code is showed when the vehicle fails in operation.
Gear shifter levergear 1: Economy gear 2: Normal gear 3: Sport
Shows accumulated mileage with a total of 6 digits (including 999999). A trip mileage can be showed
by operating the switch.
Shows current with 50 scales.
Cruise control light
Left turn signal indicator
High-beam indicator
READY
READY indicator
P
PARKING indicator
Right turn signal indicator
Charging indicator The indicator is green when battery charging reaches 100%. Power is lower than 10%,
the charge indicator keeps flashing (red). The indicator shows yellow when the battery is charging.

7

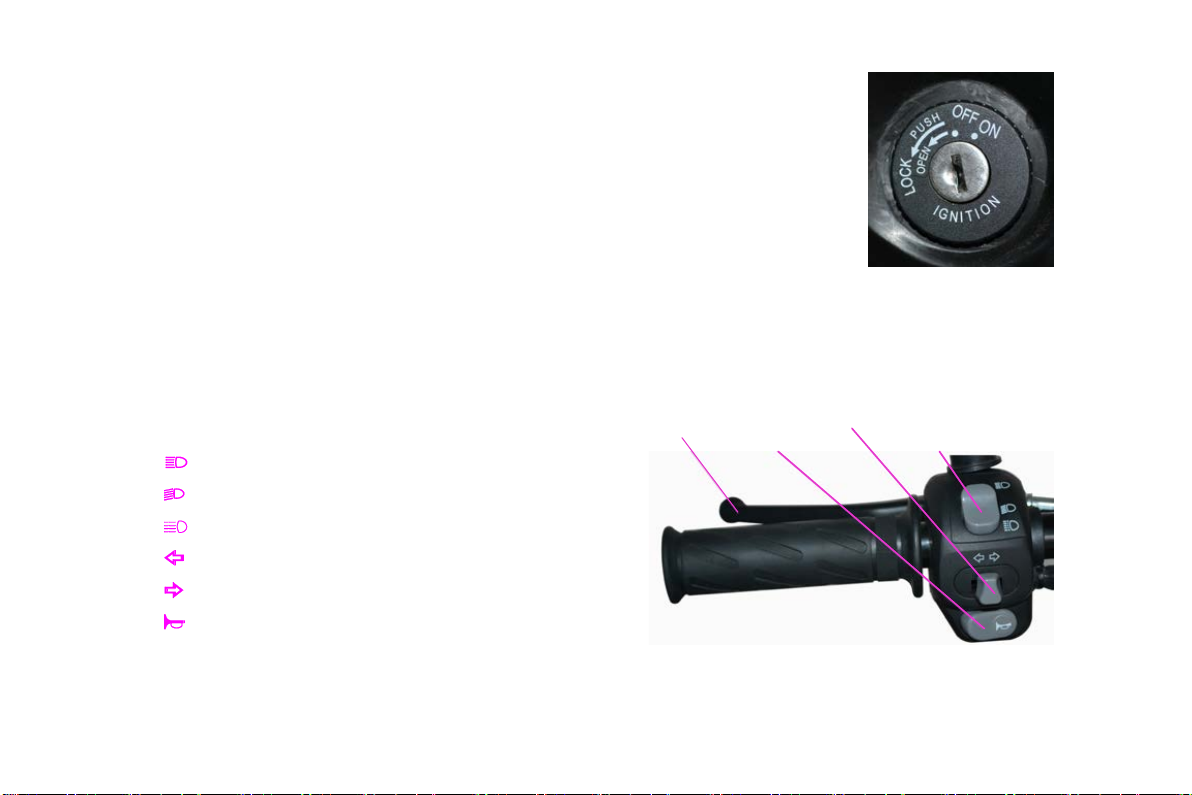

IGNITION SWITCH
“ON”: The circuit of vehicle can be operated, power indicator on the dashboard is lit and
the key cannot be removed.
“OFF”:The circuit of vehicle cannot be operated and the key can be removed.
“LOCK”:To lock the steering head, turn left or right the steering bar as far as it will go,
insert the key into the ignition switch slot, turn to “OFF”position, then depress and turn
counterclockwise to “LOCK”position, at last remove the key. To unlock the steering
head, turn the key clockwise.
“OPEN”: Open the seat lock.
CAUTION: As a rule, in order to ensure safety，please quickly shut down the main ignition switch in abnormal
situation, cut off power supply.
LEFT HANDLEBAR CONTROLS
“ ”: Hi-beam
“ ”: Lower-beam
“ ”: Overtaking light; Hi-beam light flashing for warning
“ ”: Left turn signal light
“ ”: Right turn signal light
“ ”: Press the button to sound the horn.
Rear Brake Lever: Grasping in the lever will apply the rear
brake.
RR. BRAKE LEVER TURN SIGNAL SW.
HORN BUTTON DIMMER SW.

8

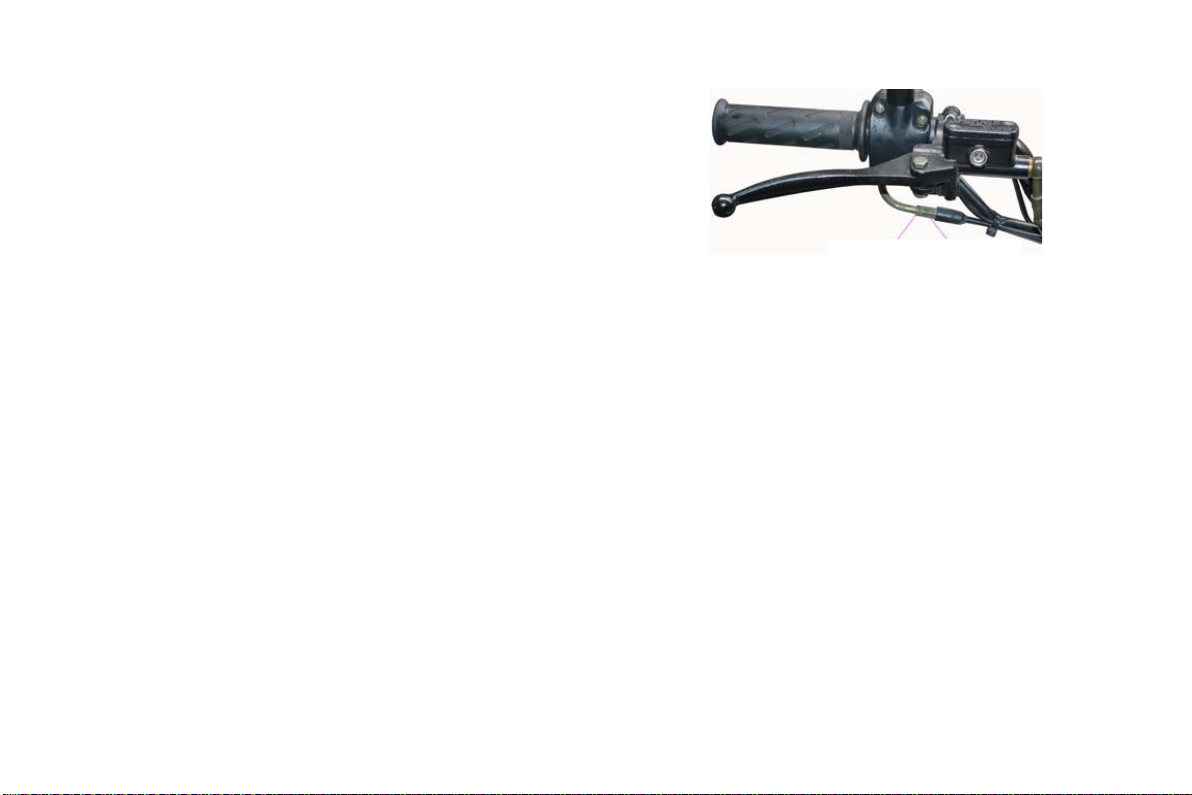

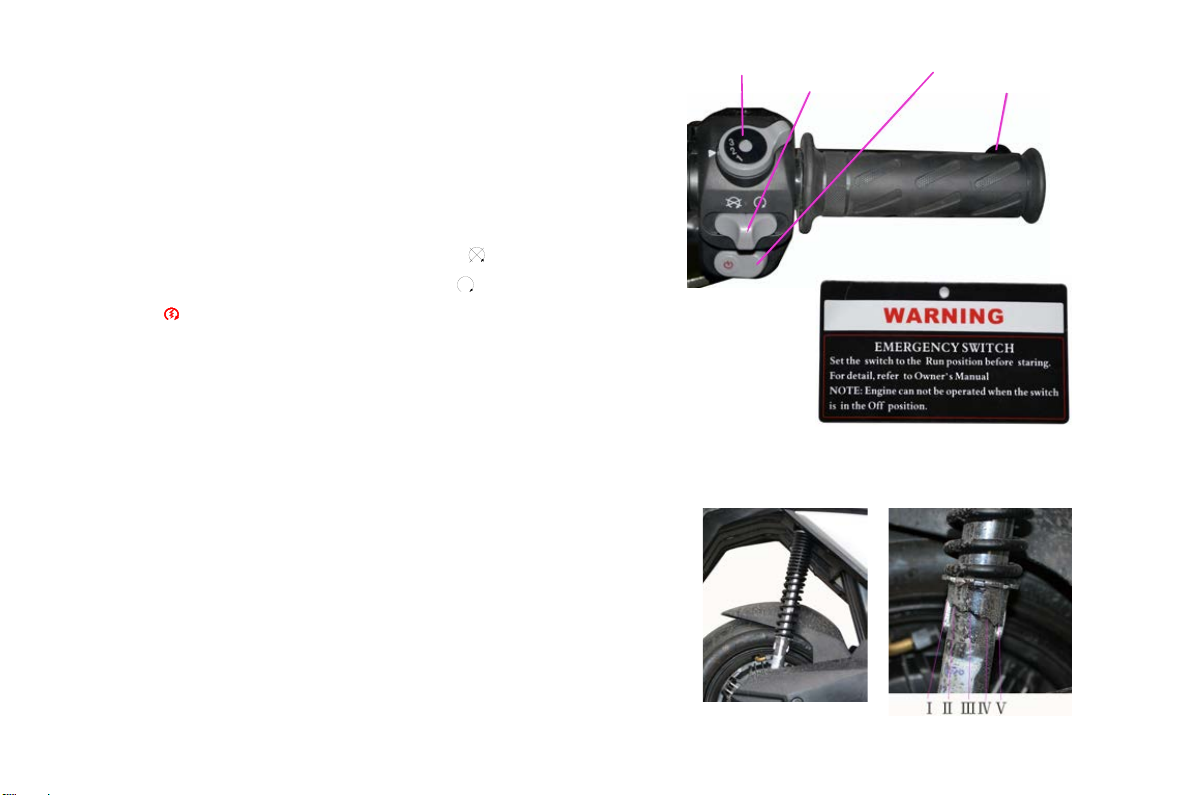

RIGHT HANDLEBAR CONTROLS
Gear shifter lever
Gear 1: ECONOMY is suitable for the farthest trip.
Gear 2: NORMAL is the most suitable for spacious road
Gear 3: SPORTHigh speed mode
Emergency Switch
In an emergency, setting the switch to “ ” will stall the motor at
once. Innormal cases, always set it at “ ”.
“ ”: Start the vehicle by key, set the side stand in the running position. Press and
hold the switch for 3 seconds to turn off “P” light and turn on “READY” light.
Operate the throttle grip to run the vehicle.
Press the button when the vehicle runs more than “5km/h” to put the vehicle in
“Cruise control” mode. Turn or operate the brake lever or throttle grip, disengage
the “Cruise control” mode.
Front Brake Lever: Grasping in the lever will apply the front brake.
REAR SHOCK ABSORBER
STANDARD
The shock absorber has 5 adjustment positions for different loads
and riding conditions. Position I is for light loads and smooth road
conditions. Position II to V increase spring preload for a stiffer rear
suspension, and can be used when the motorcycle is heavily
GEARSHIFER STARTER BUTTON
EMERGENCY SW. FR. BRAKE LEVER

9
loaded or ridden in rugged roads.
NOTE Be certain to adjust the shock absorbers both left and right to the same level.

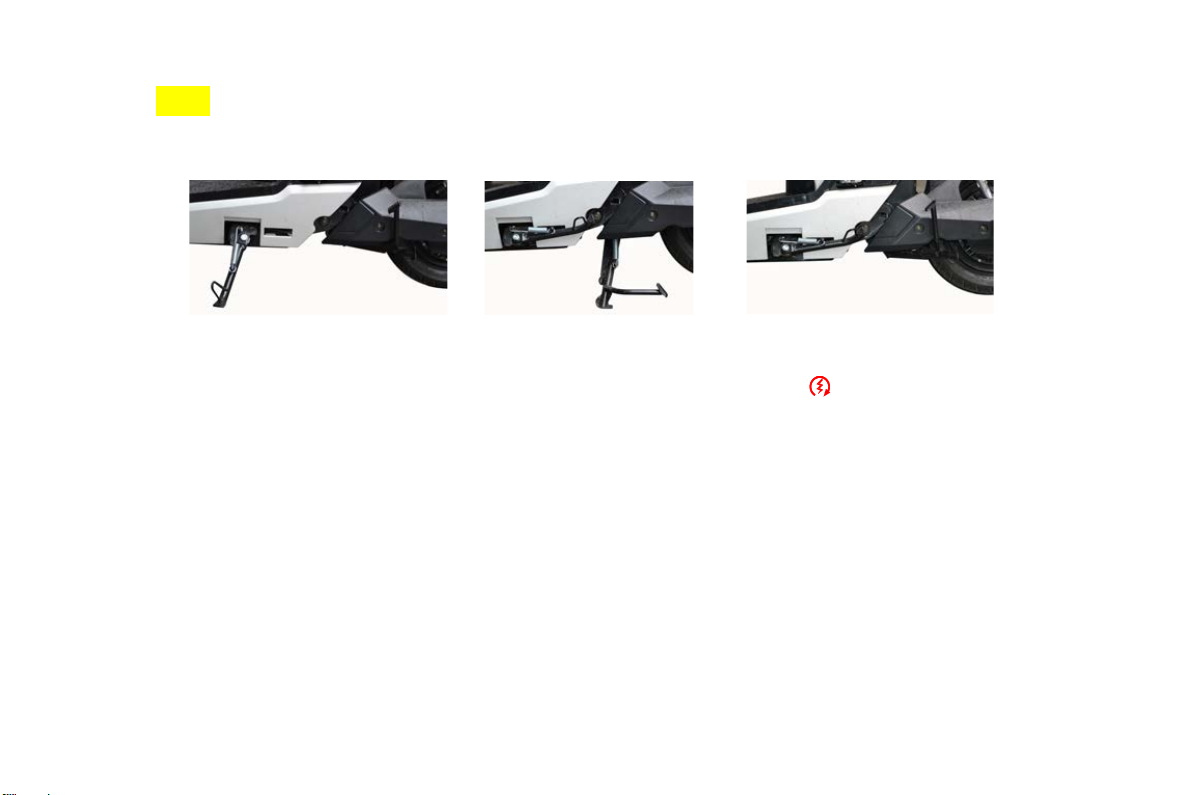

STANDS
Side Stand
When parking the vehicle, turn the side stand clockwise along the frame to position. Before driving the vehicle,
turn the stand to the initial position. After returning the side stand, press and hold button for 3 seconds to
switch “P” to “READY” position.
Center Stand
When parking the vehicle, step on the center stand at the left of body while raising the rear portion of body with
right hand so as to support the vehicle. Before driving the vehicle, move the steering head forward to let the
center stand return automatically.

10
OPERATION GUIDE
PRE-RIDE INSPECTION
Inspect your vehicle every time before you ride it. The items listed here will only take a few minutes to inspect,
and in the long run they can save time, expense, and possibly your life.
S/N Check Item Contents
1 Tyres Check condition and pressure
2 Front/rear brakes Check operation
3 Horn Check function
4 Lights Check function
5 Meter Check function
6 Ignition switch Check function
7 Rearview mirror Check clean
8 Grips Check for its smoothness and reliability
9 Steering bearings Check for looseness. Repack with all-purpose grease
10 Front/rear axles Check all fasteners. Tighten and adjust as needed.
11 Fasteners Check all fasteners and fittings. Tighten and adjust as needed.
12 Electric quantity Check that electric quantity if suitable. Recharge if needed.
13 OL protection sw. Check to see that the device is on, or switch to "ON"

11
ATTENTIONS TO RIDING
1. Developing your riding skills in an ongoing process. Even if you have ridden other motorcycles, take time to
become familiar with how this vehicle works and handles. Practice in a safe area until you build your skills and
get accustomed to the vehicle’s size and weight. Because accidents often involve inexperienced of untrained
riders.
2. When using the vehicle, make sure that the OL protection switch is set to
ON, then turn on the ignition switch and set the travel switch to ON. When P
indicator switches into READY indicator, slowly turn the throttle grip to
activate the motor, thus, speed of vehicle achieves the best state. Do not turn
the grip fast.
3. It is a normal phenomenon when starting the motor with a "buzzing" sound,
due to the voice of high magnetic field work. The voice will disappear as the motor speed achieves the best state,。
4. Do not overload driving. In the case of security, try not to brake, starting frequently.
5. Do not accelerate on downhill road; do not clench handle brake or else it is easy to slip to sideways and fall
over the vehicle.
6. When riding at night, please open the headlight. Please slow down and turn on the winker when turning the
corner; do not make sharp turn.
7. Please use caution in rain days. Don’t drive the vehicle in deep water area avoid the damage of motor.
8. Please don't operate the vehicle with one hand. We urge all riders to take a government-certified riding course.
NOTES OF POST-RIDE
1. After using the vehicle, set the travel switch to OFF position. Turn off power, and remove the key.
2. Please pay attention to support the vehicle smoothly when parking.

12
3. Check the battery and recharge if necessary.
4. Optimized methods to utilize the lithium battery: put it in a cool and dry place,
and recharge it every three months to maintain its capacity.
5. When the charging indicator turns from red to green, the charging mode
switches to trickle charge and the battery need to be charged for another 2 hours or so in general. The electric
quantity is subject to the readings of meter. MAINTENANCE
TOOL KIT
Some roadside repairs, minor adjustments and parts replacement can be performed with the tools available in the
kit.
MAINTENANCE SCHEDULE
Initial Maintenance work should be performed at 500km’s drive or 1 month after buy the vehicle whichever
comes first. Then we recommend that maintenance should be done once every 6 months to lifan service stations
to evaluate the vehicle performance.
Open-ended spanner, 8 × 10
Double-end screw driver
Screw driver grip
Tool bag

13
S/N ITEMS CONTENTS
Conventional security and performance
1 Tyres Check air pressure, tread depth
2 Brake system Check operation, fluid level, cable, etc.
3 Horn Check the lines and insulation
4 Rearview mirror Check the mirror functions properly
5 Lights Make sure all lights are working properly
6 Meter Check indicators, lines, circuit
7 Fasteners Tighten up nuts
8 Throttle grip Twist the throttle to ensure smooth action
Structural Inspection
1 Front/rear wheel hubs Check end gag, etc.
2 Grips Twist the grip to ensure smooth action
3 Frame, rear fork Check all welded points and fasteners.
4 Front fork Check fasteners, bearings
5 Shock absorber Check the absorber works properly
6 Lock set Check the lock functions properly
Importance Parts
1 Battery Voltage balancing, normal charging and discharging
2 Motor End cover, bearings, hall, signal lines, electrical circuits and casing
insulation
3 Controller Undervoltage, over-current protection
4 Charger Check charging current, voltage
5 Main cable Check the welded points of lines and insulation
NOTES 1. Such parts as front axle, rear axle, etc, should be lubricated with grease (No. 3, lithium base grease).
2. Clean more frequently when riding in unusual wet or dusty area.

14
OPERATION OFTHROTTLE GRIP
Check for smooth rotation of the throttle grip from the fully open to
the fully closed position at both full steering position.
Measure the throttle grip free play at the throttle grip flange. The
standard free play should be approx. 2-6mm.To adjust the free play,
loosen the locknut,turn the adjuster. Adjustment over, fasten the
locknut.
MAINTENANCE OF LITHIUM BATTERY
Battery capacity will gradually decrease as the use of time and mileage increases. The correct use and
maintenance can effectively extend the life of the battery.
1. Please charge lithium battery fully before first using newly purchased electric motorcycle. First requirement
when using battery recharged again after use controller under-voltage protection. Pay attention as follows:
charging the battery for first 5 times should be not less than 8 hours, but not more than 12 hours. When charging,
bear in mind that the charger operation method.
2. The battery should be fixed reliably to avoid damaging. Never throw, roll and weight the battery when
transferring it.
3. Keep the battery dry, clean to prevent the self-discharge too much.
4. Avoid losing electricity for a long time. As a rule, charge the battery in time after using the vehicle every day.
During long-term storage of vehicle, remove the battery from the vehicle, and charge it, then put it in a cool and
LOCKNUT ADJUSTER

15
dry place（-10℃~25℃. Then recharge it（after stored for 10~15days）. The optimized electric quantity of lithium
battery for storage is 50%. If the electric quantity is less than 10% or more than 90% for long-term storage, the
battery capacity will fade irreversibly.
5. To protect the battery from damage, slowly start the vehicle to avoid instantaneous discharging too much.
6. Battery discharges to the termination voltage, and continue to discharge, called as over-discharge. Pay
attention to not let the battery discharge during riding. In order to maximize the life of the battery, charge it when
the battery discharged to 50%.
7. Battery applicable ambient temperature: 15-45 ℃. Optimum charging environment: 25 ℃.
Reduce temperature of battery as far as possible when charging battery temperature, ensure
good heat dissipation, and away from heat source.
8. Avoid large current discharging for a long time. Prevent it from exposure in the sun.
9. After discharge of the lithium battery, charge it in time. Do not put discharged battery over
12 hours.
NOTE Please dispose of used battery in a manner that is compatible with the environment.
We suggest you take it to local recycling center or service station for reclamation. Do not throw it in the rubbish.
At the same time to remove the lithium battery is prohibited.
ELECTRIC QUANTITY
DISPLAY BUTTON

16

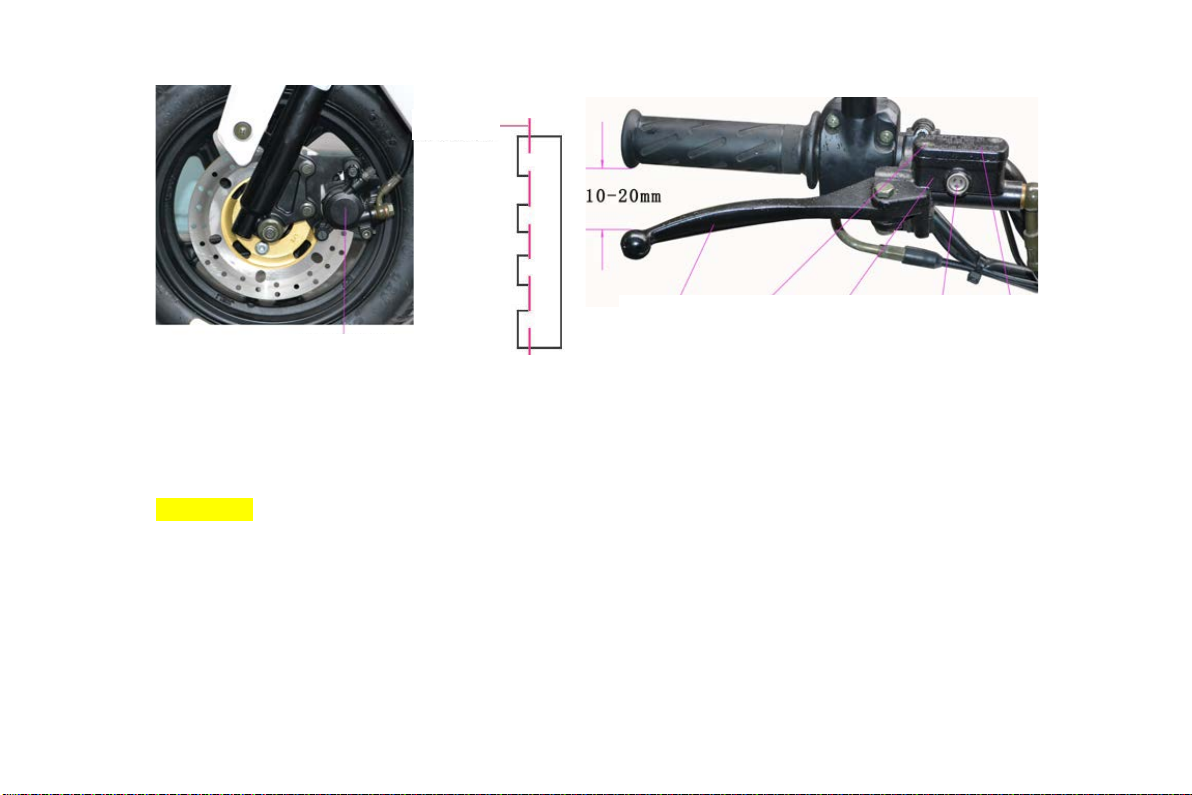

FRONT BRAKE
Check
The brake fluid level and brake pads shall be checked regularly. If any pad is worn to its limit depth, replace both
pads as a set in no time.
Check the brake fluid level through the sight glass. If the fluid level is below the LOWER, loosen the cylinder
cover screws, remove the cover, add brake fluid up to UPPER level mark. If any doubt, see your dealer for help.
WARNING Apply the specified brake fluid, or braking effectiveness and riding safety will be affected
adversely. Brake fluid may case irritation. Avoid contact with skin or eyes. In case of contact, flush
thoroughly with water and call a doctor if your eyes were exposed. Do not allow contaminants such dirt or
water to enter the brake fluid tank.
Adjustment
1. Measured at the tip of the front brake lever moves before the brake starts to engage is called free play.
The free play should be maintained within 10～20mm.
WEAR LIMIT
FR. BRAKE CALIPER
FR. BRAKE LEVER MAIN CYLINDER COVER
SCREW SIGHT GLASS

17
2. If the brake lever free play becomes excessive and the brake pads are not worn beyond its minimum
depth, there is probably air in the brake system and bleed it. For which purpose, see your dealer for help.
3. Apply the brake several times and check for free wheel rotation after the brake lever is released.
NOTEIf such adjustment is still unsatisfactory, see your dealer for help.

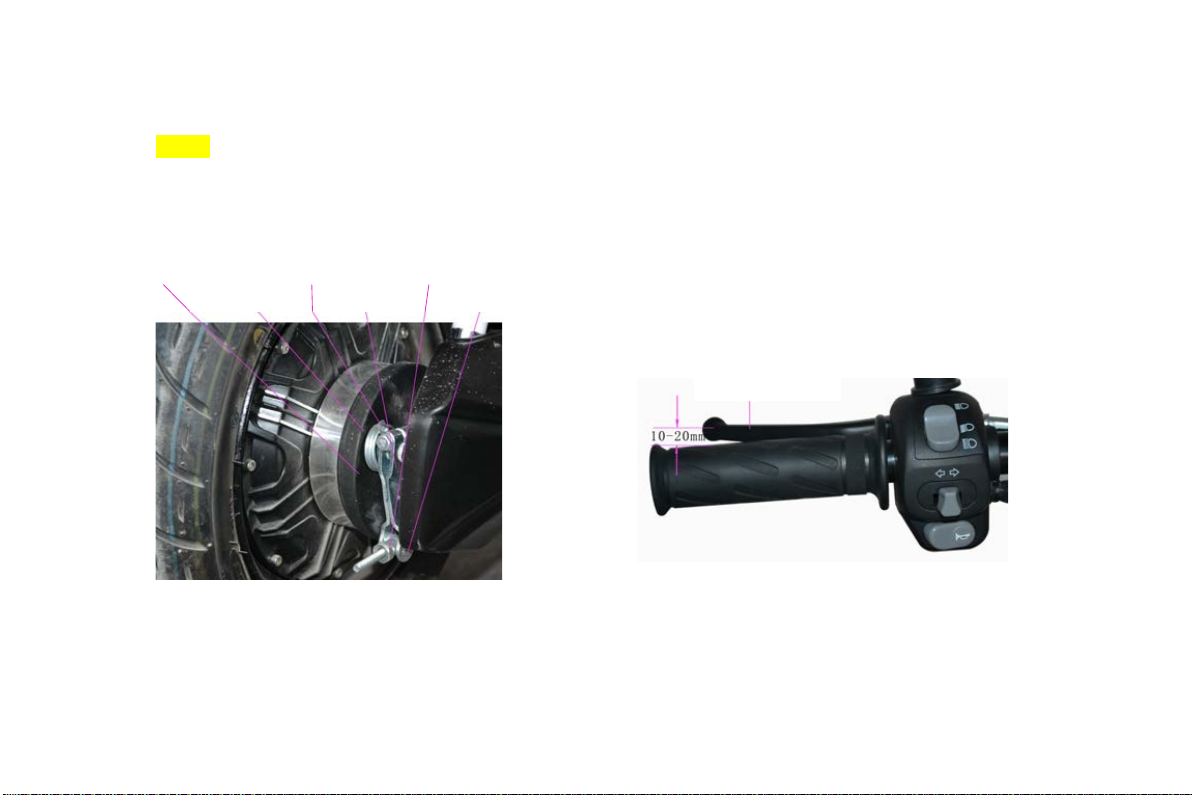

REAR BRAKE
STANDARD
Check
The brake is equipped with a brake wear indicator. If the pointer aligns with the reference mark on full
application of the brake, replace the pads as a set at the first opportunity.
BRAKE PANEL INDICATOR ADJUSTING NUT
REFERENCE MARK BRAKE ARM PIN
RR. BRAKE LEVER
