Qiyangtech QY-9263S User manual

QY-9263S Single Board Computer
Hardware Manual
Version No.: 1.0
2008.07
QIYANG INTELLIGENT TECHNOLOGY CO., LTD
Copyright Reserved

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[email protected]m Page 2 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Company Profile:
Hangzhou Qiyang Intelligent Technology Co., Ltd. is located at the bank of
the beautiful West Lake. It is a high and new technology enterprise which is
specializing in R&D, manufacture and sell embedded computer main board with
high performance, low power consumption, low cost, small volume, and provides
embedded hardware solutions.
We Offer:
Research & develop, manufacture and sell embedded module products◆
which have independent intellectual property rights, and cooperate with TI,
ATMEL, Cirrus Logic, Freescale, and other famous processor manufacturers. It
has launched a series of hardware products, such as ARM development board,
ARM core module, ARM industrial board, sound/video decoding transmission
platform, supporting tools and software resources which support user for their
next embedded design.
We give full play to th◆e technical accumulation in ARM platform and
Windows CE, Linux, Android operating system for many users providing custom
service (OEM/ODM), to realize embedded products into the market stably,
reliably and quickly.
Tel:[phone]
Fax: [phone]
Technology Support E-mail: [email protected]
Website: http://www.qiytech.com
Address: 5F, Building 3A, No.8 Xiyuanyi Road, West Lake Science Park, Hangzhou, China
Post code: 310030

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 3 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Catalogue
Ⅰ. Preface.................................................................................................................................... 4
1.1 Company Profile ............................................................................................................ 4
1.2 Suggestion for Using QY-9263S Single Board Computer ............................................. 5
Ⅱ. System Composition .............................................................................................................. 6
2.1 Mainboard Resource: ..................................................................................................... 6
2.2 Mainboard Interface Basic Function .............................................................................. 8
Ⅲ. Hardware Specification ........................................................................................................10
3.1 SDRAM........................................................................................................................ 10
3.2 DataFlash...................................................................................................................... 10
3.3 NandFlash..................................................................................................................... 10
3.4 USB .............................................................................................................................. 10
3.5 Ethernet ........................................................................................................................ 10
3.6 Audio ............................................................................................................................ 11
3.7 LCD.............................................................................................................................. 11
3.8 Matrix Keyboard .......................................................................................................... 11
3.9 PIO ............................................................................................................................... 12
3.10 MISC .......................................................................................................................... 12
3.11 CAN Bus ....................................................................................................................13
3.12 RTC ............................................................................................................................ 13
3.13 UART ......................................................................................................................... 13
3.14 Power.......................................................................................................................... 14
Ⅳ. Remark ................................................................................................................................. 14

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 4 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Ⅰ. Preface
1.1 Company Profile
Hangzhou Qiyang Technology Co., Ltd. is located at the bank of the beautiful
West Lake. It is a high and new technology enterprise which is specializing in
R&D, manufacture and sell embedded computer main board with high
performance, low power consumption, low cost, small volume, and provides
embedded hardware solutions.
We Offer:
Research & develop, manufacture and sell embedded module products◆
which have independent intellectual property rights, and cooperate with TI,
ATMEL, Cirrus Logic, Freescale, and other famous processor manufacturers. It
has launched a series of hardware products, such as ARM expanding board, ARM
core module, ARM industrial board, sound/video decoding transmission platform,
supporting tools and software resources which support user for their next
embedded design.
We give full play to the technical accumulation in ARM platform and◆
Windows CE, Linux, Android operating system for many users providing custom
service (OEM/ODM), to realize embedded products into the market stably,
reliably and quickly.

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 5 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
1.2 Suggestion for Using QY-9263S single board computer
1. Please read the instructions first, before using the single board computer;
2. Before using, please check the packing list and see whether there is a
missing file in the CD;
3. Please understand the basic structure and composition of the SBC,
including the hardware resource allocation etc.;
4. If you need to develop on Linux system and burn program into the
development board, in addition to this document, we also suggest reading another
document QY-9263S Linux User Manual.

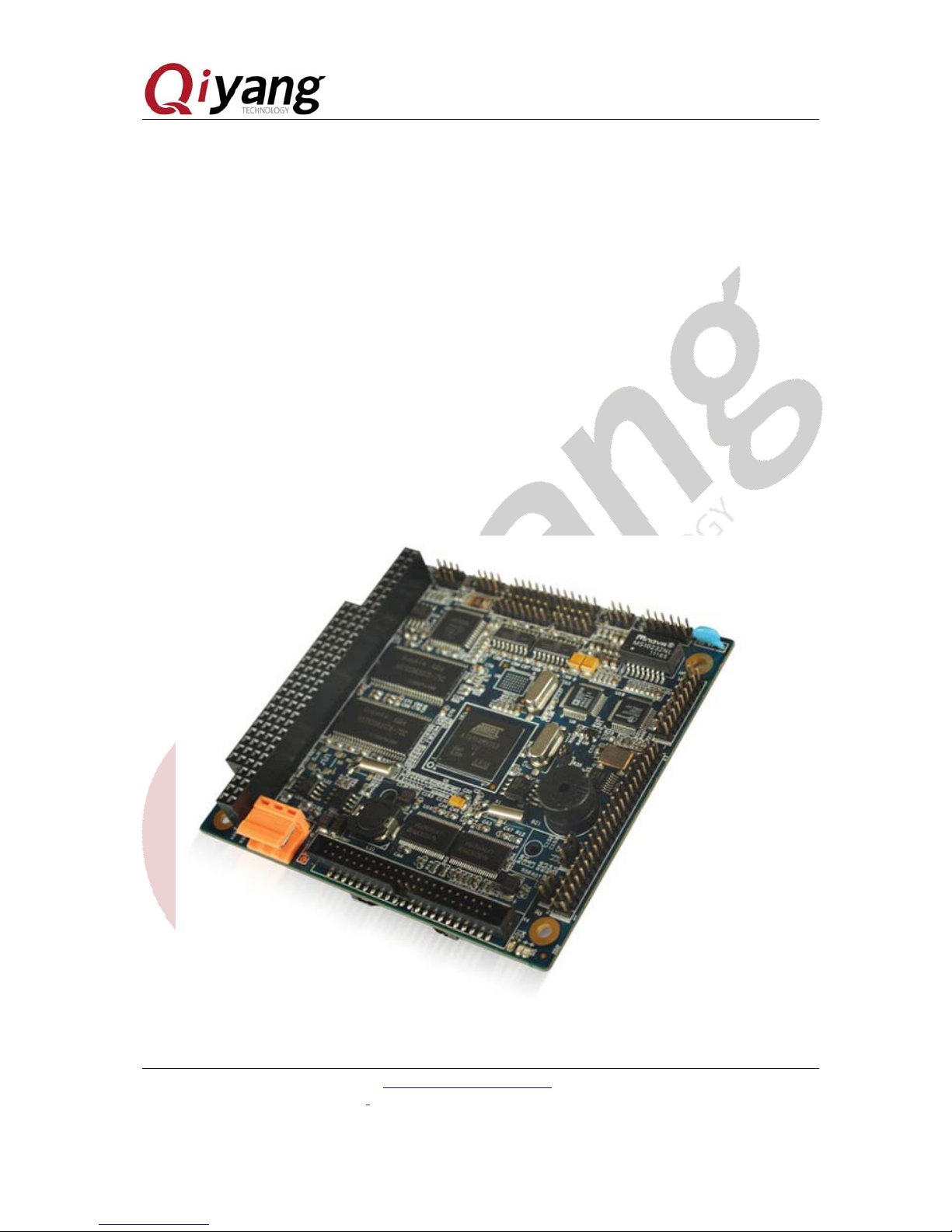

Picture 1

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 6 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Ⅱ. System Composition
2.1 Mainboard Resource:
QY-9263S is of a high performance of ARM9 CPU structure single board
computer based on standard PC104.
Products Introduction :
Chip Specification: ATMEL AT91SAM9263 ARM9, 200MHz
Core: ARM926EJ-S
SDRAM: 64MB
Flash: 128 MB NandFlash ,2 MB DataFlash
OS: Linux 2.6.30
External interface
Storage IDE & CF Card
USB 2* USB2.0 Host,1 USB2.0 Device
Debugging Port
1-ch Debugging port, 3-ch common port，supporting hardware
flow control and RS485 Bus standard
LCD Support 1-ch TFT-LCD interface, 3.5’-17’TFT-LCD ,resolution
up to 2048x 2048
Touch Panel 4-wire resistive touch panel
Input Interface 8 * 8 matrix keyboard
CAN Support CAN2.0A and CAN2.0B
Audio AC97 Audio output, provide dual-track line input interface
LAN 10/100M Ethernet interface
Other JTAG/Reset circuit/ Real-time clock/

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 7 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Power +6V～+23V wide range power supply
Power Consumption ≤1W
Mechanical and Environmental
Size 96mm * 90mm, standard PC104
PCB Specification 8-layer
Operating Temperature -20℃~+70℃
Relative Humidity 5%～95%,Non-Condensing；

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 8 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
2.2 Mainboard Interface Basic Function
Picture 2
Basic Interface Function
Label Name Function Specification
J1
Burning
Jumper
Burning Program Burning Program
J2 AUDIO Audio input and output For audio application
J3 LCD LCD LCD with touch panel
J4 LCD Level
Jumper
+3.3V/+5V For all sizes of LCD level requirement

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 9 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
J5 PIO GPIO Function For all I/O Function
J6 UART
Debugging port and
Common port
Debugging Port and Common Port
Application
J7 USB Device USB Download program, Communication
J8 2*USB
HOST
USB Host USB Host application
J9 IDE Connect to IDE device Used for mounting IDE Bus device
J10 MISC Combo Interface SPI、PWM、Timer
J11 Power System power supply +5V DC Power Supply
J12(back)
SD card
socket
SD card interface
Expand storage application
conveniently and stably
J13 Ethernet 10/100MEthernet Program download,communication
J14 PC104 PC/104
Suitable for all PC/104 external
module
J15 JTAG CPLD Download CPLD Program downloading
J16 Reset Pin Reset Function Reset Function
J17 IDE Jumper 5V/3.3V Hard disk and CF Card select
J18 Keyboard 8*8 keyboard interface For keyboard input or I/O
J19 CAN CAN 2.0 CAN2.0 A/B,

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 10 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Ⅲ. Hardware Specification
3.1 SDRAM
QY-9263S mainboard includes 64M SDRAM, used for running mainboard.
3.2 DataFlash
QY-9263S mainboard includes 2M Data Flash, for storing Boot Code.
3.3 NandFlash
QY-9263S mainboard provides with 128MB NAND Flash storage, can satisfy
client’s storage requirements and also can be adjusted by client’s requirement.
This NAND Flash is used for storing Linux kernel Image file, root file system.
3.4 USB
QY-9263S development board with 3-ch USB interface provides 1-ch USB
Device (J17) to download program and USB communication, other 2-ch USB
Host (J8) is used for Host Application ,support all kinds of USB Device (mouse,
keyboard, USB Drive etc).
3.5 Ethernet
AT91SAM9263 integrated MAC circuit with PHY Chip DM9161.
QY-9263S can set IP and MAC(address can be changed) when making net
communication.
PIN style interface, connect to Internet with matched net expanding wire.
Ethernet port Pin definition is as follows:

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :support[email protected]m Page 11 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
1 NET_TX+ 2 NET_TX-
3 NET_RX+ 4 NET_CT
5 NET_CT 6 NET_RX-
7 NET_CT 8 NET_CT
9 LED_LNK 10 LED_LNK
11 LED_SPD- 12 LED_SPD+
3.6 Audio
It adopts AD1981B chip, provides 1-ch audio input and 1-ch audio output.
Mainboard with PIN style interface can connect to audio signal with matched
audio expanding wire.
3.7 LCD
QY-9263S provides 44 pin LCD/touch panel interface (J3). Support 16-bpp
and 24-bpp TFT-LCD with different sizes screen 640*480, 800*600, 800*480. J4
is LCD power supply interface, clients can choose by yourselves:
PIN1 connect PIN2, LCD power supply voltage is 3.3V
PIN2 connect PIN3, LCD power supply voltage is 5V
3.8 Matrix Keyboard
QY-9263S mainboard brings out 16 pin 8*8 Matrix keyboard interface(J18),
clients can use according to requirements. It can also used as I\O interface. Pin
definition as follows:
1 KEY_X0 2 KEY_Y0
3 KEY_X1 4 KEY_Y1

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 12 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
5 KEY_X2 6 KEY_Y2
7 KEY_X3 8 KEY_Y3
9 KEY_X4 10 KEY_Y4
11 KEY_X5 12 KEY_Y5
13 KEY_X6 14 KEY_Y6
15 KEY_X7 16 KEY_Y7
3.9 PIO
QY-9263S development board provides PIO interface(J5), clients can use it as
I\O interface according to requirements. J5 Pin definition as follows:
1 ＋3.3V 2 PIO_D0
3 PIO_D1 4 PIO_D2
5 PIO_D3 6 PIO_D4
7 PIO_D5 8 PIO_D6
9 PIO_D7 10 PIO_D8
11 PIO_D9 12 PIO_D10
13 PIO_D11 14 PIO_D12
15 PIO_D13 16 PIO_D14
17 PIO_D15 18 GND
3.10 MISC
QY-9263S development board provides MISC combo interface(J10),
including SPI interface, PWM interface and timer I/O, PIN definition as follows:
1 SPI_MISO 2 TIOA0
3 SPI_MOSI 4 TIOB0

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 13 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
5 SPI_SPCK 6 PWM1
7 SPI_nCS0 8 PWM2
9 GND 10 GND
3.11 CAN Bus
AT91SAM9263 integrated CAN Bus controller. QY-9263S development
board provides 1-ch CAN Bus interface, which can meet CAN2.0A and
CAN2.0B.Pin definition is as follows:
1 CANH
2 CANL
3 GND
3.12 RTC
QY-9263S development board provides 1 RTC with DS1337, adopts 1*
button battery CR1220 to make RTC keep working after the power off. When
power on, power supply provides RTC.
3.13 UART
QY-9263S development board provides UART(J5), including 1-ch debugging
port and 3-ch common port. 3-ch common port can used as RS232 Port while
2-ch can used as RS485 port.
1 RXD0 2 TXD0
3 CTS0 4 RTS0
5 GND 6 GND
7 RXD1 8 TXD1

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 14 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
9 GND 10 GND
11 RXD2 12 TXD2
13 GND 14 GND
15 DRXD 16 DTXD
17 GND 18 GND
19 RS485-B1 20 RS485-A1
21 GND 22 GND
23 RS485-B2 24 RS485-A2
3.14 Power
J11 is QY-9263S development board power supply interface with 3 Pins
The pin definition is as follows:
1 ＋12V
2 GND
3 +5V
5V interface can supply power for chip and other external interface. Forbid to
connect 12V power to 5V power interface(Please refer to schematics for details).
Ⅳ. Remark
1. Before connect to LCD, confirm LCD power specification.
2. Please use the original connecting accessories, avoid damaging the main
board.
3. We ensure offering communication technology support through E-mail,
telephone for lifelong technical support service.
4. We ensure offering 6 months repair service for free, if malfunction occurs

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 15 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
in warranty because of quality problem, contact our retailer or our company with
purchase receipt in warranty period, we will repair or replace it.
5. Under these circumstances, we do not offer repair for free:
●Over warranty time;
●Do not have purchase receipt;
●Liquid inlet, Damp or Mold;
●Malfunction and damage is not due to product quality but drops, intense
sharking, arbitrarily modify, disoperation after purchase;
●Damage of force majeure.
6. We reserve intellectual property for the software and hardware technical
data of IAC-335X-Kit; users can only use them for teaching, testing, researching.
Shall not be engaged in any commercial purpose. Shall not distribute them on the
Internet. Shall not intercept, modify them to tamper copyright.
7. We accept batch order; we can offer technical support and service.

QY-9263S Single Board Computer Hardware Manual
Any question, please send E-mail :[e-mail] Page 16 of 16
Sales E-mail :[email protected] [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Hangzhou Qiyang Intelligent Technology Co., Ltd
Tel: [phone]
Fax: [phone]
Technology Support：0571-89935913
E-MAIL：[email protected]
Website：http://www.qiytech.com
Address：5F, Building 3A, NO.8 Xiyuanyi Road, West Lake
Science Park, Hangzhou, China
Post Code：310030
