QMAXZ Lighting QME700P User manual

USER MANUAL
ENGLISH
Version 1.0
ME700PQ
QMAXZ Lighting©2009,
all rights reserved
www.qmaxz.com

QME700P v1.0 QMAXZ 2009
- 1 -

QME700P v1.0 QMAXZ 2009
- 2 -
TABLE OF CONTENTS
1. Introduction Page 3
2. Unpacking Page 3
3. Safety operation Page 3
4. Rigging the fixture Page 4
5. Lamp replacement Page 5
5.1 Lamp installation Page 5
5.2 Lamp adjustment Page 6
6. Power and Signal connection Page 6
6.1 AC Power Page 6
6.2 Fuse replacement Page 7
6.3 Signal connection Page 7
6.4 Fixture start up Page 9
7. Fixture function menu Page 10
7.1 Function menu navigation Page 10
7.2 Function menu QME700P Page 11
7.3 Menu Functions Page 19
7.4 Function overview Page 21
8. Gobo and gobo size Page 22
8.1 Fixed metal gobos Page 22
8.2 Rotating glass gobos Page 22
8.3 Gobo positions Page 23
8.4 Gobo replacement Page 23
9. Maintenance Page 24
10. QM-series technical data Page 24
10.1Technical data Page 24
10.2 Photometric data Page 25
10.3 Dimensional drawings Page 26
11. DMX Protocol Page 27
11.1 QME700P channel list Page 27
12. Troubleshooting Page 29
13. Info Page 30

QME700P v1.0 QMAXZ 2009
- 3 -
1. INTRODUCTION
Thank you for choosing a QMAXZ QME-series product. The design & production are passed through
quality control to ensure the superior liability. This manual provides necessary information regarding
product safety, installation and operation of this product.
It is important to read ALL accompanying safety instructions, installation notes and instructions to
avoid damage to the product and potential injury to yourself or others.
For the latest updates of product documentation, please visit the user support area of the QMAXZ website
at www.qmaxz.com
NOTE: Information and Specifications in this document are subject to change without notice.
QMAXZ Lighting assumes no responsibility or liability for any errors or inaccuracies that may appear
in this manual.
2. UNPACKING
Open the box according to the instructions on the out side of the box to avoid damage of the fixture!
Please check if the following items are packed together with the fixture:
•User Manual
•2 mounting brackets
•Powercable with Neutrik Powercon™
•Safety Cable
•Light Bulb
3. SAFETY INFORMATION
Warning! Read the safety instructions in this manual before installing and operating the fixture.
This product is for professional use only and was designed for indoor use.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold
the fixture at the transport handles.
Protection from burns and fire
•The minimum distance between the light-output and a flammable retarding object must be at least
0,8 meter. Keep flammable materials well away from the fixture.
•Do not illuminate surfaces within 2 meter of the fixture.
•Provide a minimum clearance of 0.1 meters around fans and air vents.
•The ambient temperature (Ta) must be within 2°C (36°F) and 43°C (102°F)
•Under normal conditions, the highest sectional surface temperature may be up to 90°C (194°F).
•Allow the fixture to cool for at least 15 minutes before handling.
•Never place filters or other materials over the lens or air entrances.

QME700P v1.0 QMAXZ 2009
- 4 -
Protection from electric shock
•Keep the fixture away from rain and moisture.
•Disconnect the fixture from AC power before removing or installing the lamp, fuses, or any part,
and when not in use.
•This device falls under protection class I. Therefore always ground (earth) the fixture electrically.
•Make sure that the power cord is not damaged. Check the fixture and the power cord from time to
time.
•Make sure that the available voltage is not higher than stated on the power panel.
•Make sure that the power-switch is set to OFF-position before you connect the device.
•Connecting the main power supply should be done by a qualified professional person.
•Refer for any service operation not described in this manual to a qualified technician.
Protection from UV radiation and lamp explosion
•Never operate the fixture with missing or damaged lenses and/or covers.
•When replacing the lamp, allow the fixture to cool for at least 30 minutes before opening the fixture
or removing the lamp. Protect your hands and eyes with gloves and safety glasses.
•Do not stare directly into the light. Never look at an exposed lamp while it is lit.
•Replace the lamp if it becomes defective or worn out, or before usage exceeds the maximum life
time.
4. RIGGING THE FIXTURE
Mounting bracket Fixture base
Attach both of the supplied mounting brackets to the fixture base by placing the brackets on the fixture
base matching the mounting holes and turning the twist locks by 90 degrees clockwise until they are
mounted tightly. Always use both brackets when rigging the fixture.
When hooks or clamps are connected to the brackets for rigging, verify that the hooks or clamps are
undamaged and can bear at least 10 times the weight of the fixture.
To un-mount the brackets turn the twist lock by 90 degrees counter clockwise and release the brackets
from the fixture base.

QME700P v1.0 QMAXZ 2009
- 5 -
Requirements for the rigging place:
•For safety the fixture should have a secondary fixing with a safety cord through the truss and
safety bracket of the fixture. The safety cord must bear at least 10 times the weight of the fixture.
•When rigging, de-rigging or servicing the fixture make sure that no people are staying in the area
below the fixture and other endangered areas.
•Check that the tilt lock is released.
•Verify that there are no combustible materials or surfaces to be illuminated within 2 meters (78
inches) of the fixture and that there are no flammable materials nearby.
•Check that there is no possibility of heads or yokes colliding with other fixtures.
•If any accidents happen due to not following the above instructions, the manufacturer will not be
responsible for it.
5. LAMP REPLACEMENT
Installing any other lamp then advised by the manufacturer may create a safety hazard or damage
the fixture!
Model Bulb
QME700P MSR Gold 700/2 Fast-Fit (7.500°K)
QMAXZ fixtures are tested with PHILIPS bulbs. QMAXZ also advises to use the same bulbs for
replacement. QMAXZ is not responsible for any damage to the fixture when using other bulbs!
5.1 Lamp Installation
Switching the lamp off before it’s warmed up will decrease the lamp’s life time.
To reduce the risk of explosion, replace the lamp when it reaches the limit of its average life time. Never
exceed the lamp’s average life time by more than 10%. To read running hours from the control panel,
please refer to display function menu chapter 7. Replace the lamp immediately if it is deformed or in any
way defective.
1. Disconnect the fixture from power and let it cool down for at least 30 minutes.
2. Loosen the 2 fastening screws on the lamp housing back cover plate.
3. Carefully pull the cover-plate backwards and turn it clockwise to clear the lamp socket area.
4. Remove the old lamp by turning it counter clockwise and then pulling it out of the lamp socket.
5. Insert the new lamp into the socket. Make sure that the lamp is installed tightly into the lamp
socket.
6. Close the lamp housing back cover and fasten the 2 screws again.
Never run the device without lamp!
Do not touch the quartz bulb with bare fingers. Wear safety glasses and gloves
when handling lamps.

QME700P v1.0 QMAXZ 2009
- 6 -
NOTE: All bulbs have a maximum lifetime, check lifetime regularly to avoid exceeding lifetime, otherwise it
may result in deformation or explosion of the bulb, what may cause damage on the reflector or other parts
of the fixture.
5.2 Lamp Adjustment
The lamp holders of all QMAXZ fixtures are aligned at the factory. Due the difference between lamps, fine
adjustment may increase the light output.
QMAXZ advises to always re-adjust the lamp position when installing a new bulb
1. Strike the lamp and project an open white beam on a flat surface (wall).
2. Use the 3 screws (see picture) to centre the brightest part of the lamp (hot-spot).
3. Turn the screws one by one clockwise and/or counter clockwise until the hotspot is in the centre of
the beam. If you cannot detect the hotspot, adjust the lamp until the output is evenly spread over
the beam and the output is the brightest.
6. POWER AND SIGNAL CONNECTION
6.1 AC Power
Do not connect the fixture to a dimmer system; doing so may damage the fixture.
Make sure the fixture is earthed (grounded). The AC mains supply must be fitted with a
circuit breaker and earth fault switch (ground fault).
Check that the power supply voltage and frequency are corresponding with the AC mains supply needed
by the fixture (check AC mains panel on the fixture).
Before switching on the fixture verify that the pan & tilt lock is released.

QME700P v1.0 QMAXZ 2009
- 7 -
Power requirements:
QME700P 180V ~ 260V AC - 50Hz ~ 60Hz - 725Watts
Power lead Connection.
Wire Colour Pin connection Symbol
Yellow / Green AC Earth (ground) ╧
Blue AC Neutral N
Brown AC Live L
6.2 Fuse replacement
When the fixtures main fuse is blown it can be replaced with a new 31x 6.35mm fuse, 15A/250v.
1. Disconnect the fixture from the mains supply.
2. Open the fuse holder on the fixture power panel by turning the cap counter clockwise using a
Philips head screwdriver.
3. Replace the defective fuse and close the fuse holder by putting the cap back in and turning it
clockwise until it is locked tightly.
4. Connect the mains power again and turn on the fixture to check proper operation.
There are also two fuses on the main PCB board inside the fixture, for how to replace this please contact
your dealer.
6.3 Signal Connections
The QMAXZ QME700P fixtures have both 5 pin XLR and Ethercon RJ45 sockets. For the pin-layout see
the following table.
Pin-Layout
Pin 5 pin XLR
1 Earth
2 Signal – (Cold)
3 Signal + (Hot)
4 No connection
5 No connection

QME700P v1.0 QMAXZ 2009
- 8 -
DMX512 connection
Use a shielded twisted pair cable suitable for RS485 (120Ω) operation at 250 baud
Microphone type and other general purpose cabling such as two core audio or signal cables are not
suitable for use with DMX512.
Connect the DMX output from the controller to the closest fixture input and connect the fixture DMX output
to the next fixture DMX input until all fixtures are connected.
The fixtures DMX address can be set in the Fixture Function Menu (see chapter 7)
Do not overload the link. A maximum of 10 devices may be connected on a serial link.
Insert a male 120ΩXLR termination plug, in the last fixture. This to avoid signal reflection and
interference.
DMX Terminator DMX connection panel

QME700P v1.0 QMAXZ 2009
- 9 -
Ethernet connection
When connecting the fixture to a network using the Ethercon RJ45 socket use standard Ethernet CAT5
cable. When connecting more then one fixture use of a Ethernet switch is necessary.
Always use a professional Ethernet Switch 10/100Mbit (for example ELC lighting type switch8LX) and set
Broadcast storm protection to off, the QME700P fixtures are auto MDIX so do not use “crossed” cables.
The fixtures DMX-address, Art-Net universe and Network address can be set in the Fixture Function Menu
(see chapter 7).
6.4 Fixture Start-up
After finishing the above operations and making sure all the fixtures have been installed with suitable
bulbs and connected to a proper mains supply.
1. Release the tilt and pan locks.
2. Turn on the power switch.
3. The display on the fixture will show the QMAXZ logo, fixture model number, the software version
number and then “Initialize…..” and starts the reset procedure.
4. After the reset procedure the LCD display will show the DMX address and “DMX input OK” when a
DMX signal is detected or “DMX input FAIL” and the display starts flashing when no DMX signal is
detected.
5. The fixture default DMX source is set to “DMX512 input”(XLR socket), this can be changed into
“Art-net”(RJ45 socket) in the Fixture Function Menu(see chapter 7).
6. When DMX is detected the fixture is ready to use.
In default menu the lamp will strike automatically, this can be set in the function menu. See chapter 7.
If a start-up without Pan/Tilt reset is required press and hold the [UP] button while turning on the
power switch.

QME700P v1.0 QMAXZ 2009
- 10 -
7. FIXTURE FUNCTION MENU
7.1 Function Menu Navigation
To enter the function menu, press [MENU], then press [UP] / [DOWN] to scroll, [MENU] to select and
[ESC] to return to previous menu.
When no button on the control panel is touched for more then 30 seconds the display will turn off and the
menu will go back to the DMX start address, to turn it on simply press a button and repeat the above steps
to enter the menu.

QME700P v1.0 QMAXZ 2009
- 11 -

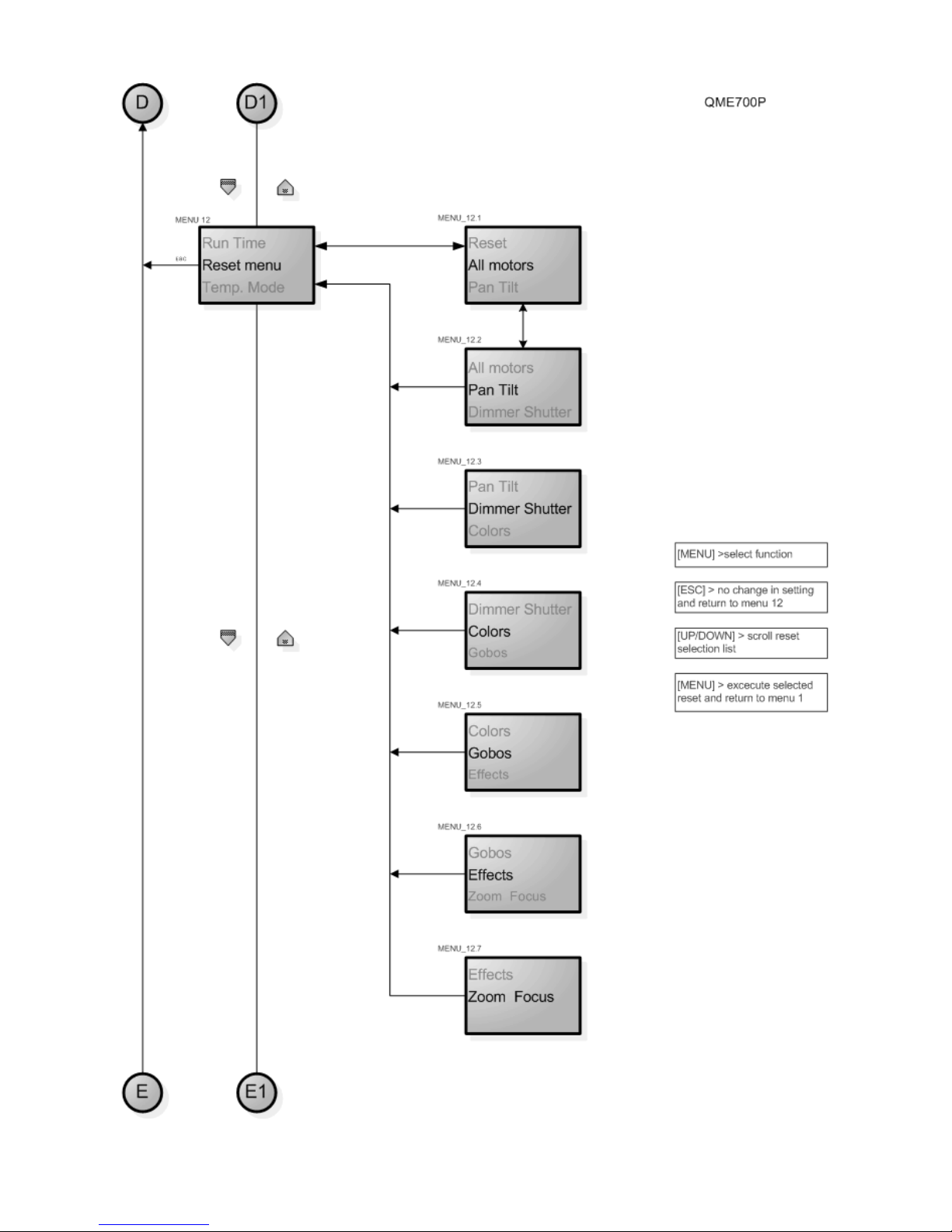

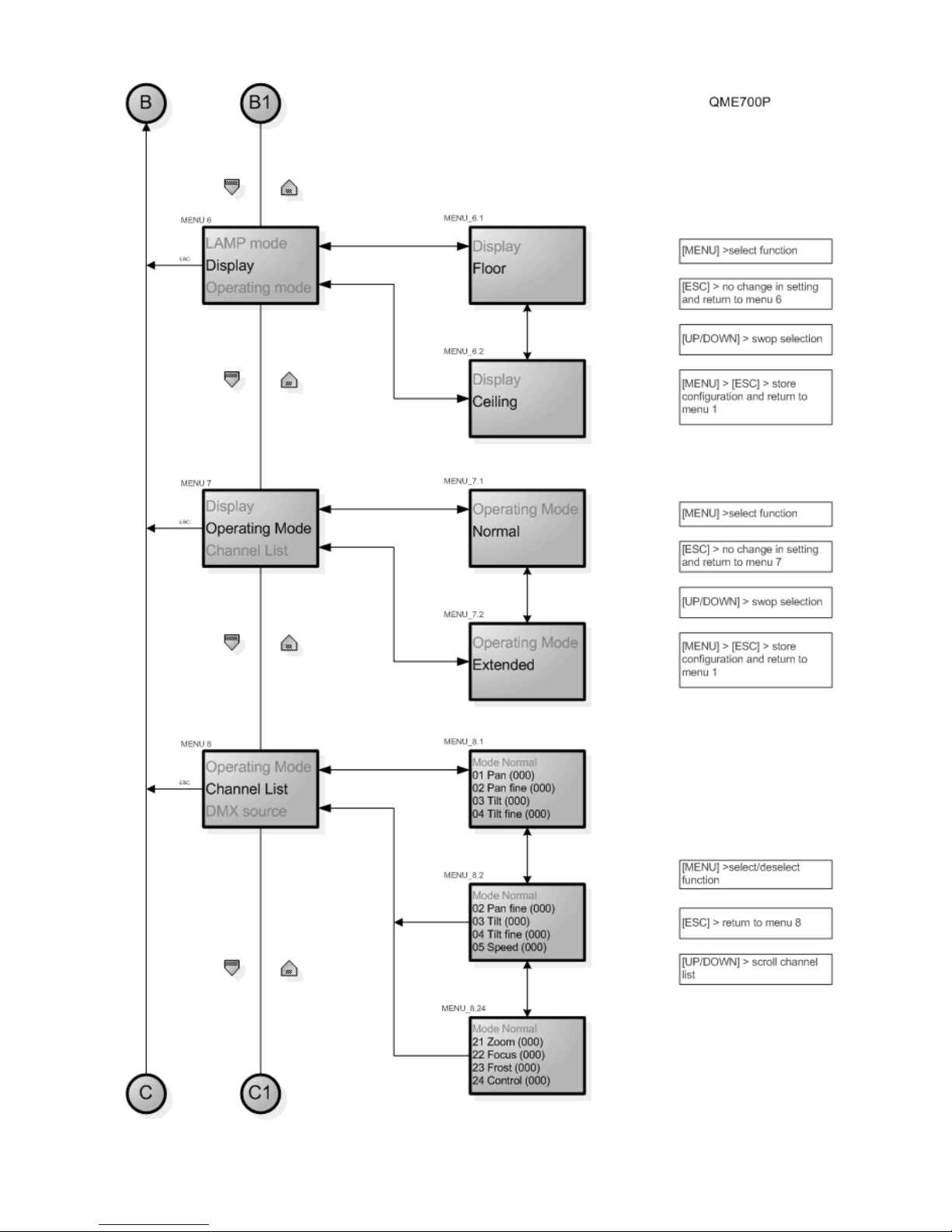

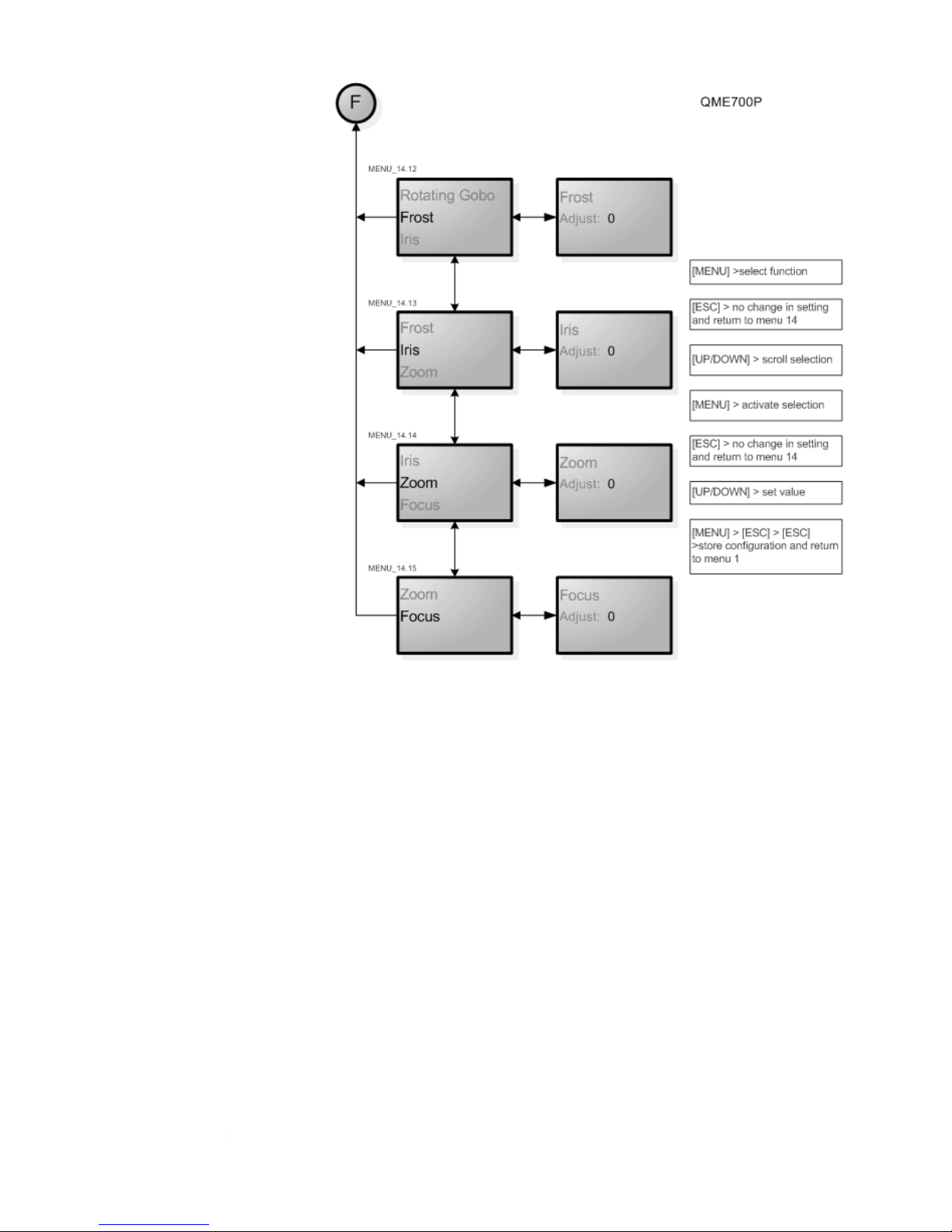

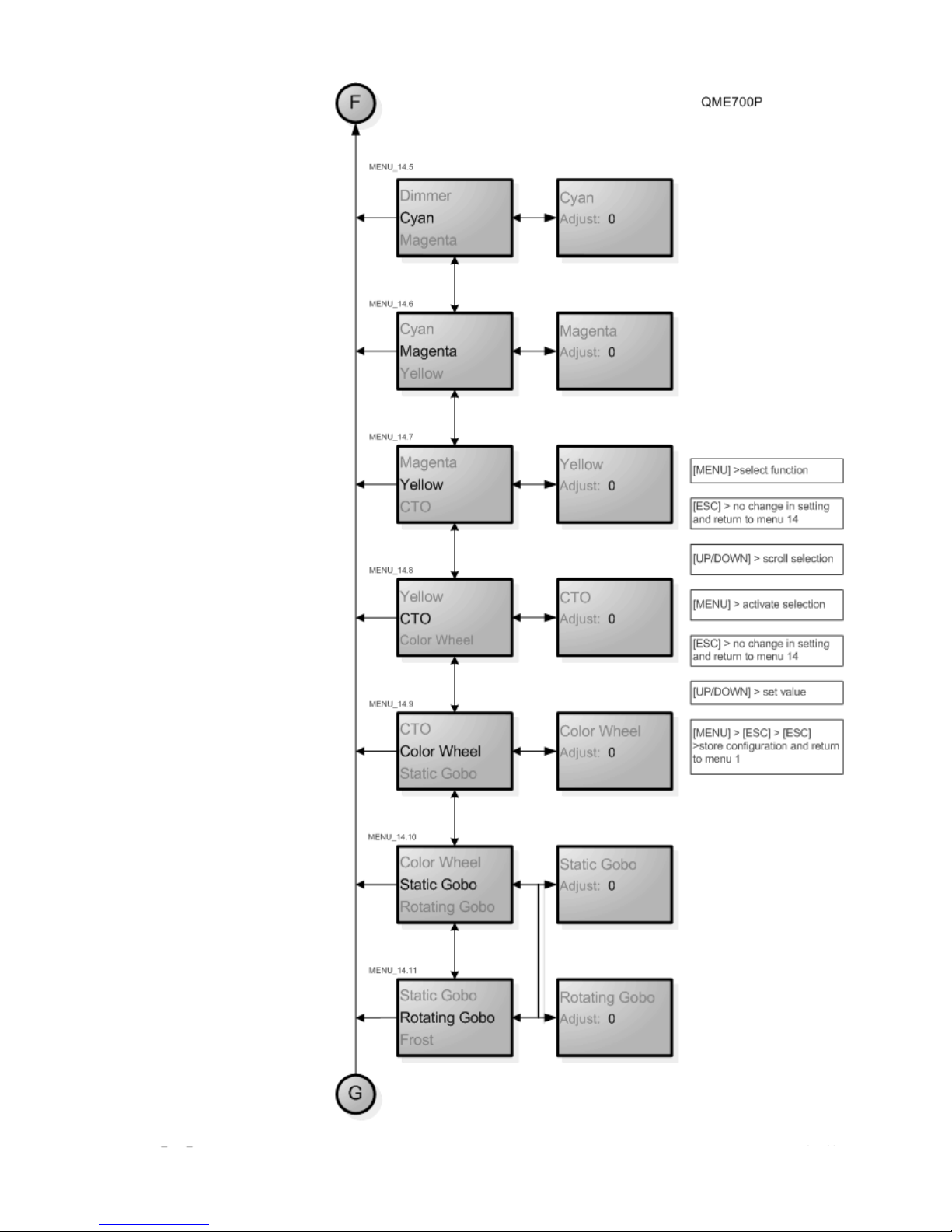

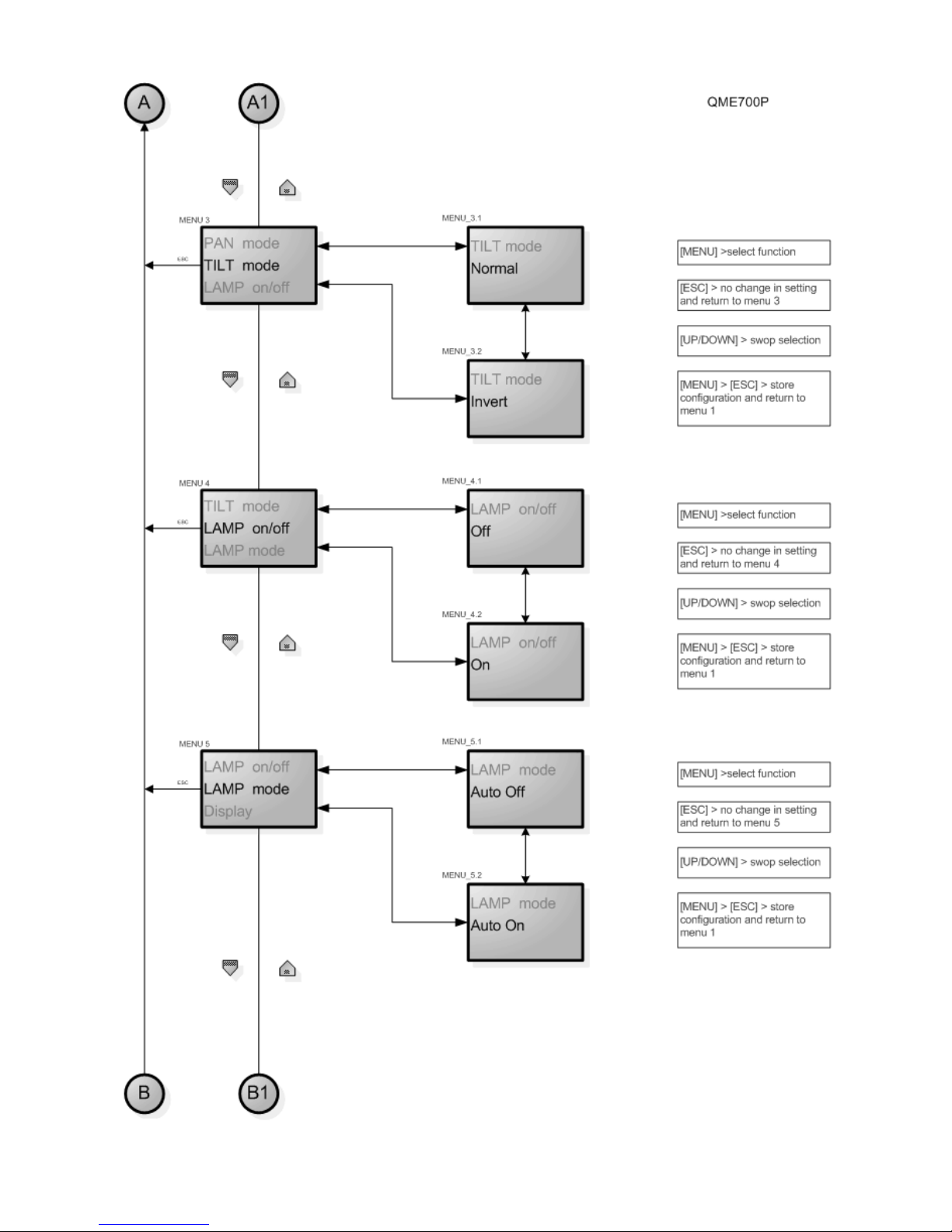

7.2 Function Menu QME700P.

QME700P v1.0 QMAXZ 2009
- 12 -

QME700P v1.0 QMAXZ 2009
- 13 -

QME700P v1.0 QMAXZ 2009
- 14 -

QME700P v1.0 QMAXZ 2009
- 15 -

QME700P v1.0 QMAXZ 2009
- 16 -

QME700P v1.0 QMAXZ 2009
- 17 -

QME700P v1.0 QMAXZ 2009
- 18 -

QME700P v1.0 QMAXZ 2009
- 19 -
7.3 Menu Functions
DMX ADDRESS
Setting the DMX start address, use [UP] or [DOWN] buttons to select, press [MENU] to store the
configuration and return to the menu(display will show “Storing Configuration”).
To make sure every fixture reacts to the control signal a start address should be given to every QMAXZ
fixture. This start address is the first channel used to receive instructions from the controller. To ensure
independent control it is important that every fixture has a unique address. However they may share the
same addresses if identical behaviour is desired.
When the address of the first fixture is 001, the start address of the next fixture depends on the number of
DMX channels used by the previous one. QME700P fixtures are 24 channels@16Bit in “Normal” mode
and 26 channels@16Bit in “Extended” mode, default the fixture is in “Normal” mode, “Extended” mode can
be set in the “Operating mode” menu.
Example: First fixture QME700P @ normal mode (24 ch) start address 001
Second fixture QME700P @ normal mode (24 ch) start address 025
Third…. start address 049
PAN MODE
Setting the PAN rotation direction, use [UP] or [DOWN] buttons to select, after selection press first
[MENU] then [ESC] to store configuration(display will show “Storing Configuration”) .
Default value is Normal.
TILT MODE
Setting the TILT rotation direction, use [UP] or [DOWN] buttons to select, after selection press first
[MENU] then [ESC] to store configuration(display will show “Storing Configuration”) .
Default value is Normal.
LAMP ON/OFF
Setting the lamp status, use [UP] or [DOWN] buttons to select, after selection press first [MENU] then
[ESC] to store configuration(display will show “Storing Configuration”) .
Default value is Off.
LAMP MODE
Setting the lamp power up status, use [UP] or [DOWN] buttons to select, after selection press first [MENU]
then [ESC] to store configuration(display will show “Storing Configuration”) .
Default value is Auto Off.
DISPLAY
Setting the display mode, use [UP] or [DOWN] buttons to select, after selection press first [MENU] then
[ESC] to store configuration(display will show “Storing Configuration”) .
Default value is Ceiling.
OPERATING MODE
Setting the fixture channel mode, use [UP] or [DOWN] buttons to select, after selection press first [MENU]
then [ESC] to store configuration(display will show “Storing Configuration”) .
Default value is Normal.
CHANNEL LIST
Viewing the fixture channel list (for the current Operating mode) and actual receiving DMX values, use
[UP] or [DOWN] to scroll the channel list, [MENU] or [ESC] to exit.
