Qomo WIPS2 User manual

1
WIPS2
Wireless Interactive
Presentation Solution
User’s Manual
(Model Name: TWP-1500)
Version:2.0
Date: Jan 24, 2014

2
Table of Contents
1) Overview .................................................................................................5
2) Package Contents ................................................................................6
3) USB Token Contents ...........................................................................7
4) Physical Details ....................................................................................7
5) Wireless Tablet ...................................................................................10
6) What You Might Need ......................................................................13
7) Quick Installation ..............................................................................13
8) TWP-1500 Receiver Device ...........................................................14
8.1 PC-List ...................................................................................................14
8.2 Setup Page ...........................................................................................16
8.3 Remote Touch Control (UST/UoIP) ............................................16
8.4 Whiteboard ..........................................................................................16
8.5 Pen drawing ........................................................................................17
9) DoWiFi for Windows .........................................................................20
9.1 Install the application .....................................................................20
9.2 Start the application ........................................................................21
9.3 Quick Connect .....................................................................................21
9.4 Connect to WiFi Network ...............................................................22
9.5 Connect to Receiver Device ...........................................................22
9.6 Login .......................................................................................................23
9.7 Main User Interface ..........................................................................24
9.8 Screen Projection ..............................................................................24
9.9 Audio Projection ................................................................................25
9.10 Menu ..................................................................................................25
9.10.1 Show Receiver Information ..................................................26
9.10.2 Web Admin ...................................................................................26
9.10.3 Search Receiver Device ...........................................................27
9.10.4 Launch SidePad ..........................................................................27
9.10.5 Enable WebSlides ......................................................................28
9.10.6 Select Projection Desktop ......................................................28
9.10.7 Projection Quality .....................................................................29
9.10.8 Select Projection Mode ...........................................................29
9.10.9 Resolution Settings ..................................................................29
9.10.10 Projection Aspect Ratio ..........................................................30
9.10.11 Enable USB IWB Bridge ..........................................................30
9.10.12 Advanced Screen Capture ......................................................30

3
9.10.13 Send Audio to Display ..............................................................31
9.10.14 Auto Power Manager ...............................................................31
9.10.15 Auto WiFi Connect .....................................................................32
9.10.16 Make WIPS
2 TWP-1500 Token
...........................................32
9.10.17 Copy Application to desktop .................................................33
9.10.18 Hot Key ..........................................................................................33
9.10.19 About ..............................................................................................33
9.10.20 Exit ..................................................................................................34
10) DoWiFi for Mac ...................................................................................35
10.1 Install the application .................................................................35
10.2 Start the application ....................................................................35
10.3 Quick Connect .................................................................................35
10.4 Connect to WiFi Network ...........................................................36
10.5 Connect to Receiver Device .......................................................37
10.6 Login ...................................................................................................37
10.7 Main User Interface ......................................................................38
10.8 Screen Projection ..........................................................................38
10.9 Audio Projection ............................................................................39
10.10 Menu ..................................................................................................39
10.10.1 Show Receiver Information ..................................................41
10.10.2 Web Admin ...................................................................................41
10.10.3 Search Receiver Device ...........................................................41
10.10.4 Launch SidePad ..........................................................................41
10.10.5 Enable WebSlides ......................................................................42
10.10.6 Select Projection Desktop ......................................................42
10.10.7 Projection Quality .....................................................................43
10.10.8 Select Projection Mode ...........................................................43
10.10.9 Resolution setting .....................................................................43
10.10.10 Projection Aspect Ratio ......................................................44
10.10.11 Send Audio to Display ..........................................................44
10.10.12 Auto WiFi Connect .................................................................44
10.10.13 Hot Key ......................................................................................44
10.10.14 About ..........................................................................................45
10.10.15 Exit ..............................................................................................45
11) Web Management .............................................................................45
11.1 Home Page .......................................................................................45
11.2 Download .........................................................................................46
11.3 Conference Control .......................................................................47

4
11.4 WebSlides .........................................................................................48
11.5 Admin .................................................................................................49
11.5.1 System Status .............................................................................49
11.5.2 Device Setup ...............................................................................50
11.5.3 Network Setup ...........................................................................51
11.5.4 OSD Setup ....................................................................................53
11.5.5 Change Passwords ....................................................................54
11.5.6 Reset to Default .........................................................................55
11.5.7 Firmware Upgrade ....................................................................56
11.5.8 WebSlides Setup ........................................................................57
11.5.9 Reboot System ...........................................................................57
11.5.10 Logout ............................................................................................58
12) Q&A of WIPS2 .....................................................................................59
13) Appendixes ..........................................................................................60
14) Product Specification .......................................................................61

5
1) Overview
WIPS2stands as Wireless Interactive Presentation Solution. WIPS2 includes a
professional wireless presentation system (TWP-1500) and a full-functional
interactive portable wireless tablet. By enabling the Revolutionary “interactive”
and “UST/UoIP” functions, you can throw your presentations wirelessly from a
PC, Mac, iPad, iPhone, or Android devices to a projector, and use the touch
screen/IWB, mobile phone or Pad to control the presentation remotely.
TWP-1500 Features Highlight:
Icon
Feature
Description
DoWiFi
Wireless Display-over-WiFi for Windows
and Mac
WiFi-Doc
High quality presentation via iPhone/iPad
or Android devices (Word, Excel, PPT,
PDF , Photo , Screenshot)
SidePad
Control the presentation on PC or Mac via
iPhone/iPad or Android devices
WebSlides
Broadcast slides to your devices with WiFi
and web browser
Wireless Tablet
Advanced pen annotation and
presentation controller
Drawing /
Whiteboard
Free drawing on projecting content or
interactive whiteboard
4-to-1 projection
Project four PC/Mac screens to one
projector at once.
Conference
Control / PC-List
Control projection from WIPS2's web
page, or use mouse/keyboard to select a
PC from the standby screen.
SNMP
Use the SNMP manager to manage WIPS2
devices across the network.

6
Basic Features
High performance screen/audio projection for Windows/Mac
(Windows8 and Mac Mountain Lion)
Remote desktop control from Wireless Tablet, Touch Screen or
Mouse/Keyboard for Windows/Mac
Plug&Show: launching the projection application from a USB thumb
drive without installation
High performance 4-to-1 Quadrant Screen Projection
Support up to 64 concurrent login users
Conference Control: Mediator function through the device web page or
standby screen
Support Wireless Multi-touch control (Win7/8 standard HID compatible
device)
Support drawing feature for projecting sender screen, or drawing on
whiteboard without PC
Security design: Session Login Code, WEP/WPA WiFi Security, and
GateKeeper
HDMI and VGA dual video interfaces
WiFi AP and AP-Client mode support
WiFi 802.1b/g/n
2) Package Contents
TWP-1500 Box
TWP-1500 USB Token
Power Adapter (DC +5V, 2.5A)
2 WiFi Antenna
Wireless Tablet
Wireless Tablet Dongle
Pen
Pen tip taker set
Quick Installation Guide
Wall Mount Kit

7
3) USB Token Contents
Windows Installer (TWP-1500 Windows Installer)
MAC Installer (TWP-1500 Mac Installer)
VAC Driver (For Windows XP Audio Projection)
VDD Driver (For Windows XP/Vista Virtual Extended Screen)
USBoIP Driver (For USB IWB Bridge)
User Manual
Utility
PtG Converter (For MobiShow PtG function)
SNMP Manager (For SNMP Management)
4) Physical Details

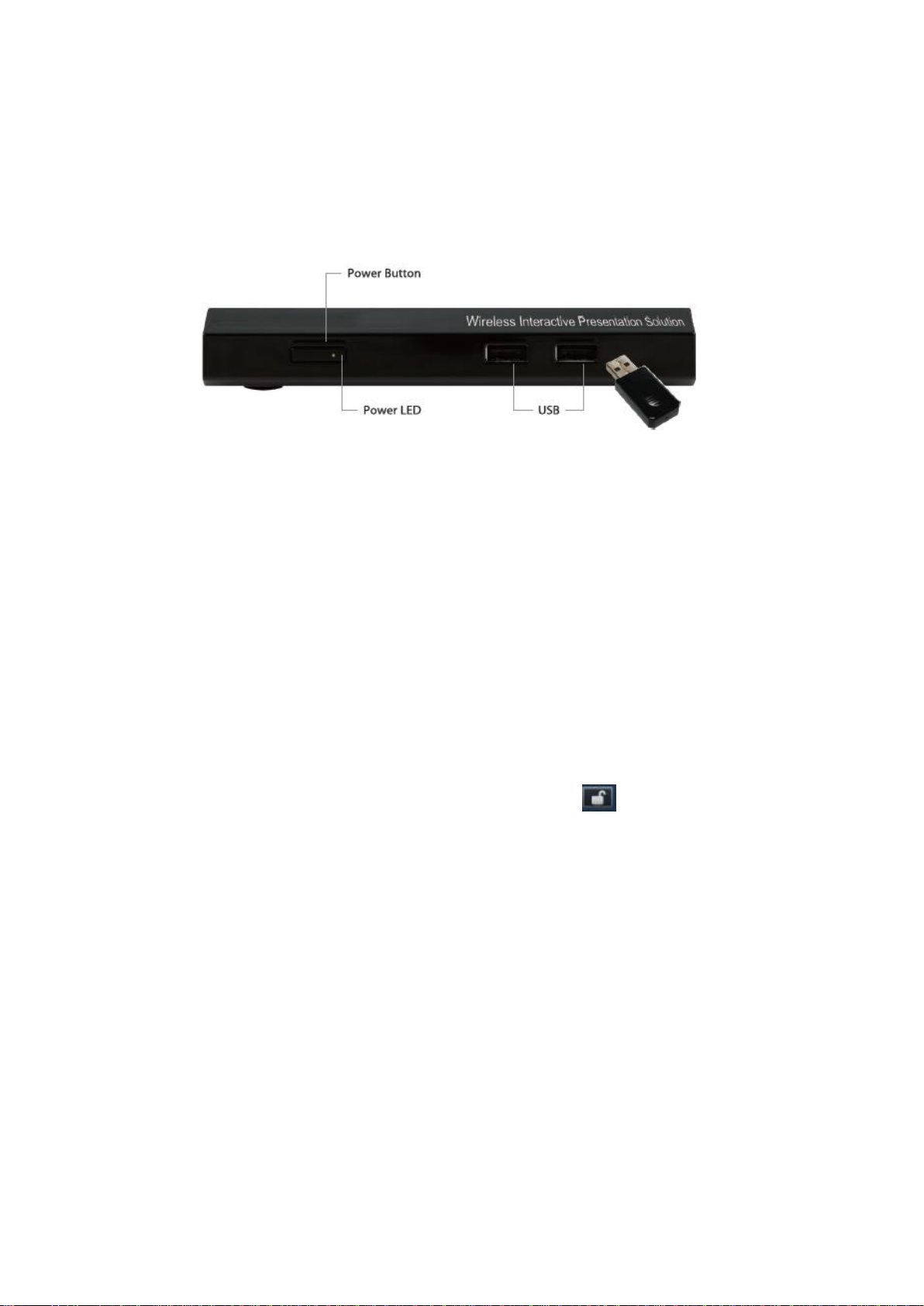

Front Panel
Description
Power Button and LED
Power on/off button.
LED Indicator: System Loading(Red),
Ready(Yellow)
Power Button and LED
USB Port

8
USB Port (Front)
USB port for Wireless Tablet or USB mouse
and keyboard
Rear Panel
Description
Antenna
WiFi Antenna
USB Port (Rear)
*USB port for USB IWB device (HID type )
RJ-45
10/100M RJ-45 port
VGA Connector
VGA connector
HDMI
HDMI Connector
Audio Jack
Audio Jack (3.5mm)
Power Jack
Power Jack (5V/2.5A)
* Please adopt the USB cable less than 2m length to link
TWP-1500 and IWB.
Power Jack
VGA Connector
RJ-45
Antenna
Audio Jack
HDMI
Antenna
USB Port

9
Bottom Side
Description
Screw Hole
Screw Hole for Wall Mount Kit
Reset Button
Press reset button and power on the device to
execute Hardware Reset.
Reset Button
Screw hole
(Optional kit for Wall Mount)

10

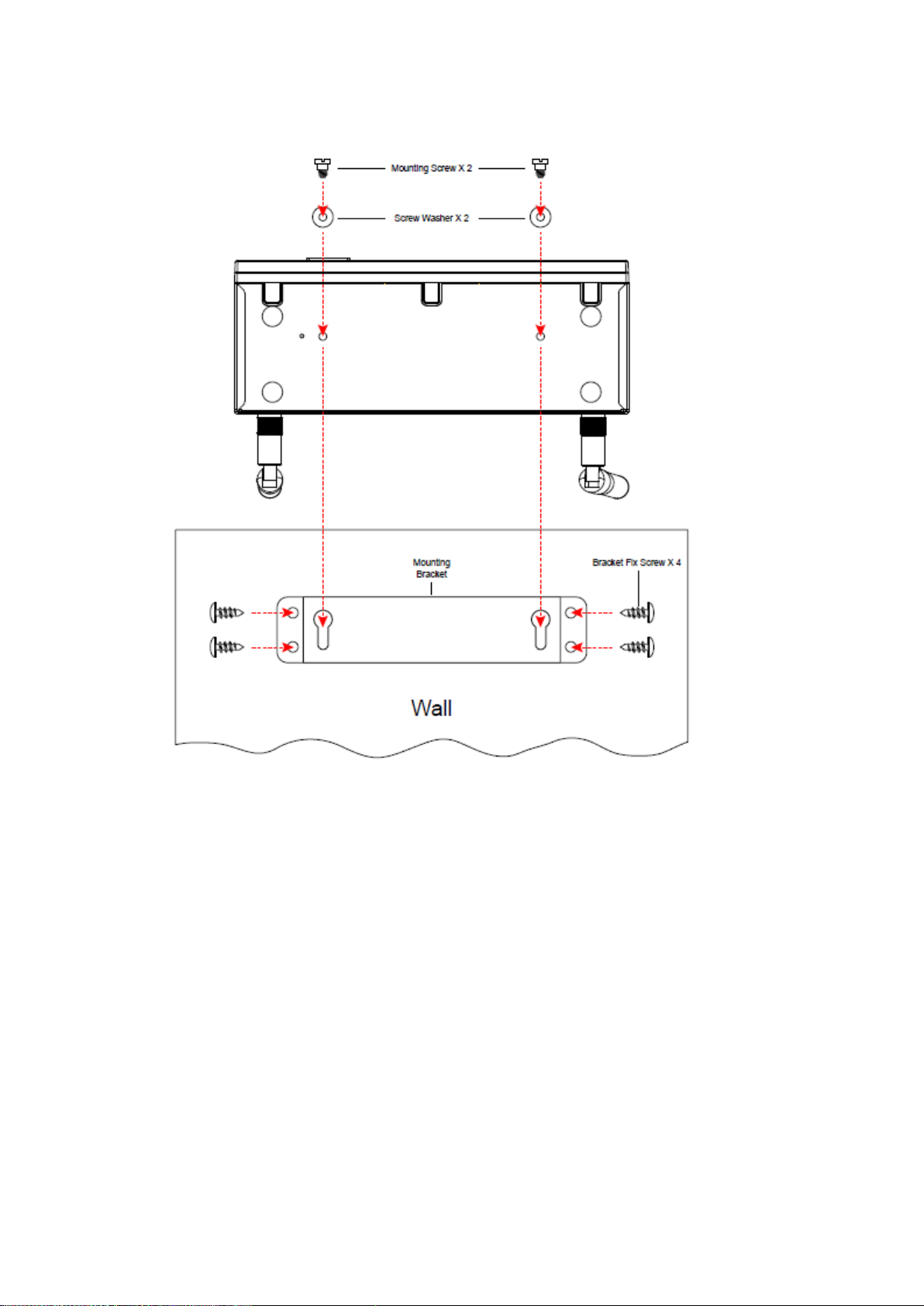

Wall Mount Instruction

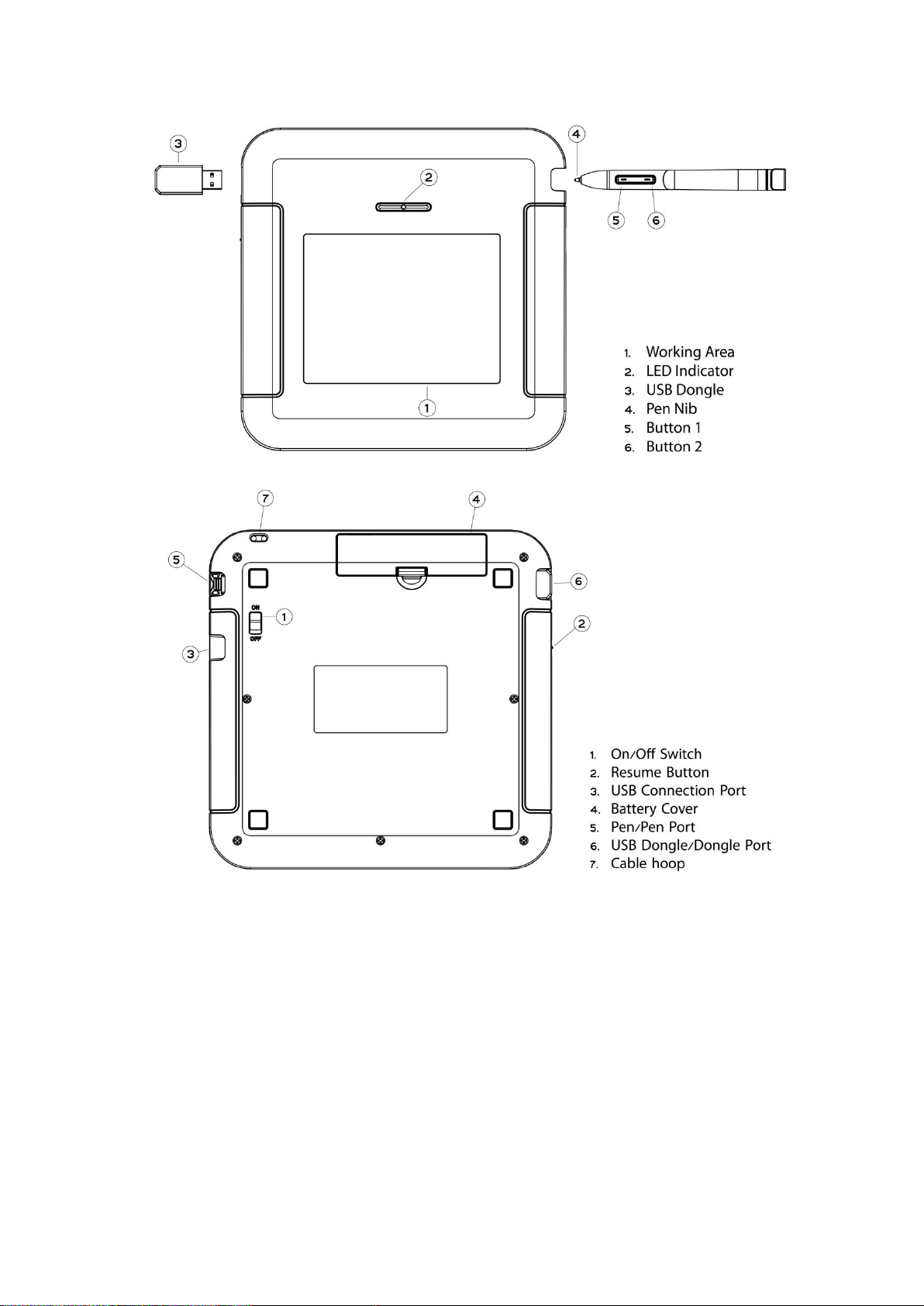

5) Wireless Tablet
Wireless Tablet is a wireless pen annotation and presentation remote controller.
It can control the TWP-1500 device and projecting PC/Mac remotely.

11
The green LED light on the Wireless Tablet is the main indicator for
hardware operation and depending on your Wireless Tablet model
may be located at a different place that shown in the above diagram.
This LED normally stays off, and will only turn it on or off in response
to various conditions. Watch the state of the LED on the wireless
Tablet as you go through these test steps:
1. Tap on any surface with the tip of the pen, or press the left button of the
mouse, to “wake it up” if it has gone into standby mode. A built-in power
saving function may have forced the pen or mouse into the standby mode if
either of them is not used for a period of time.

12
2. As soon as the Wireless Tablet itself activates, the LED will be light briefly,
and will then go and stay off again.
3. When the Wireless Tablet detects the presence of the digital pen or mouse,
the LED will be blinked slowly. This happens either when pen tip is hovering
or placing within the working area which above the Wireless Tablet.
4. When you press a button on the pen barrel, or click on a mouse button, the
LED will be lighted up.
5. Hovering and moving the pen or the mouse in the working area will cause
the cursor on the screen to move accordingly.

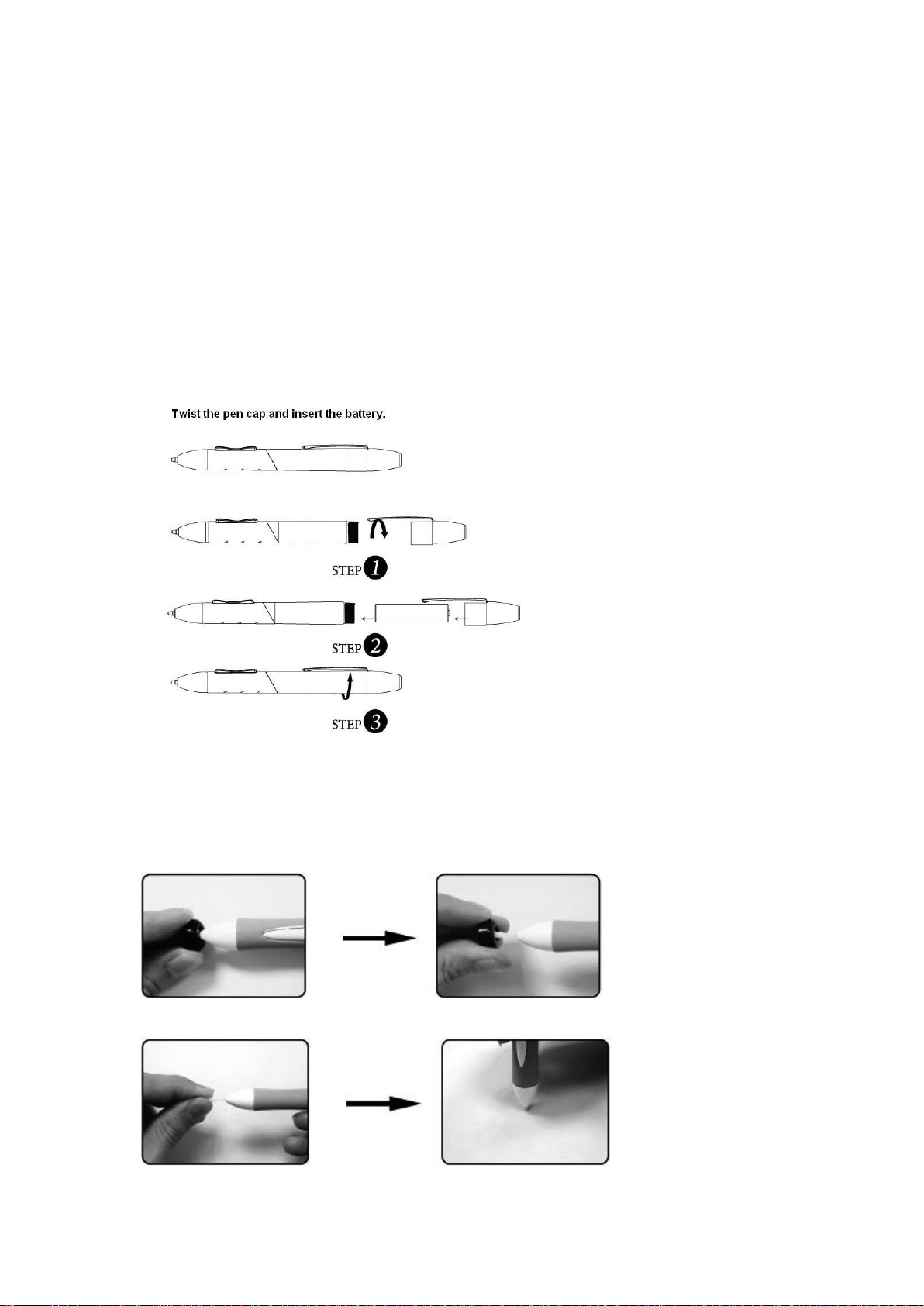

6. Changing the wireless stylus pen tip
Pull out the pen tip from Digital pen by using a Pen Clip
Penholder and Pen Clip (2 in 1)
Normal Pen Clip
Push the pen tip into the Digital pen

13
6) What You Might Need
Projector or HDTV with VGA/HDMI interface
Windows or Mac PC/Laptop
Apple iPhone, iPad or iPod-touch device
Android Phone or Tablet device
Speaker (Optional, for audio projection feature)
USB Mouse and Keyboard (Optional, for remote desktop feature)
USB HID Touch Screen/IWB Device (Optional, for UST or IWB over IP
feature)
7) Quick Installation
1) Connect TWP-1500 device to Projector through VGA/HDMI port and turn on
projector power.
2) Connect the power adaptor to TWP-1500 device and press the power button
to turn on TWP-1500 device.
It will show the default standby screen as below when system is ready.

14
3) Attach the speaker cable to TWP-1500 phone jack for audio output
4) Attach the Wireless Tablet Dongle to TWP-1500 front USB port for OSD
control and remote desktop control. Power on the wireless tablet. You may
use the pen to control the OSD or launch virtual whiteboard function now.
5) Attach the USB IWB/Touch Screen cable to TWP-1500 rear USB port for
UST/IWB remote touch control
8) TWP-1500 Receiver Device
8.1 PC-List
1) If there are sender connected to TWP-1500 device, it will show the available
PC-List on standby screen, conference moderator can use the USB
mouse/keyboard/Touch Screen/IWB to select the PC and control it remotely.

15
2) You can also click the feature Icon to browse the Quick Guide for each
highlight feature.

16

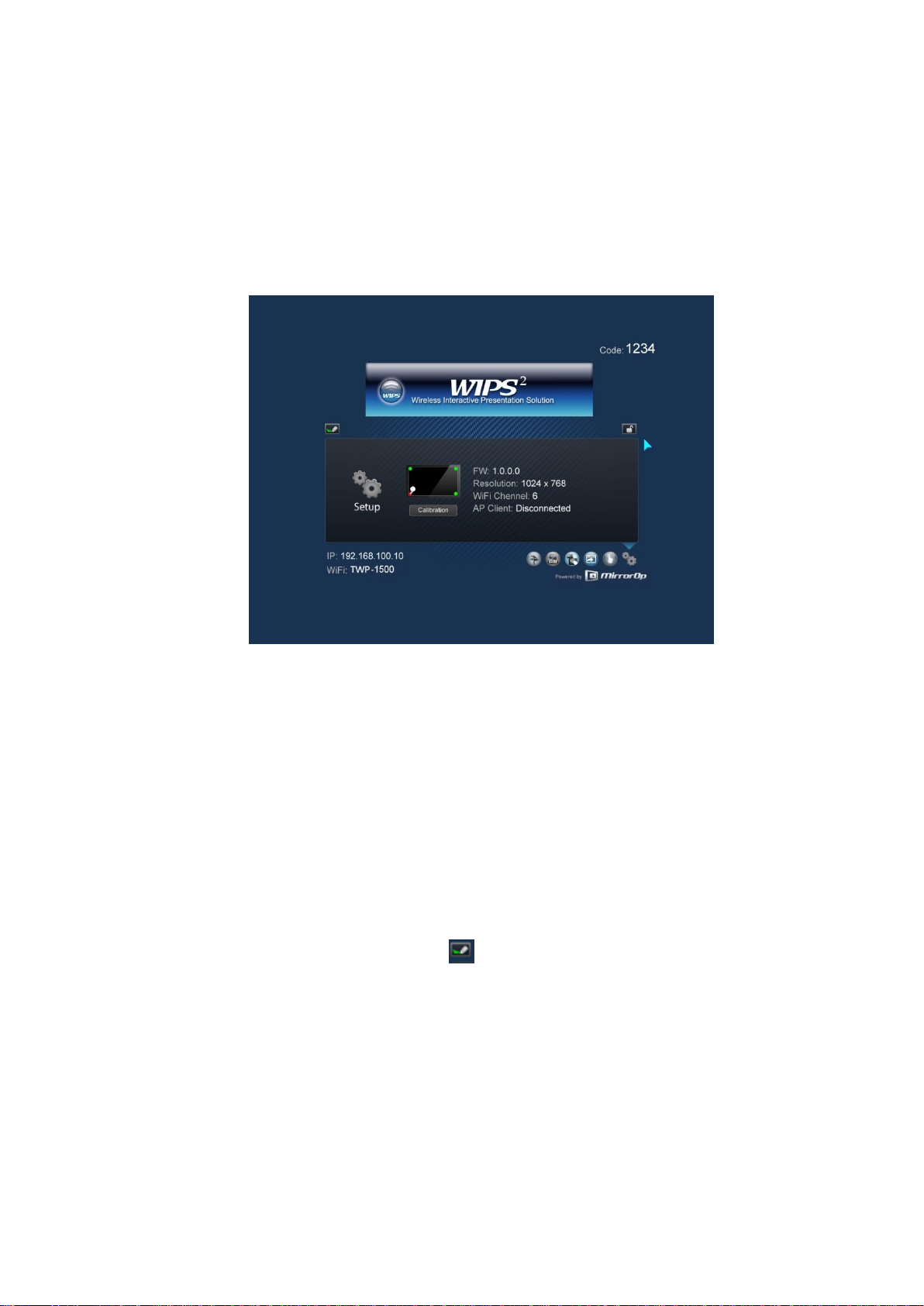

8.2 Setup Page
1) Click the “Setup” icon, you can find the FW version, resolution and WiFi
security information. Meanwhile, you can also calibrate the attached Touch
Screen/IWB screen coordination by “Calibration” function.
8.3 Remote Touch Control (UST/UoIP)
1) TWP-1500 can support standard Win7/8 compatible HID touch device. By
attaching the HID touch screen/IWB device, you can operate the standby
screen, White Board feature and the projecting PC/mobile remotely from
the Touch Screen/IWB device.
8.4 Whiteboard
1) Click on the “Whiteboard” button to enable the virtual Whiteboard
feature, you can make the free drawing on device screen through wireless
Tablet , Mouse, Touch Screen or IWB device.

17
Home
Click to go back to WIPS2 Standby Screen.
Whiteboard
Click to create a white background page
Blackboard
Click to create a black background page
Red
Red color pen: click cyclically to change the size of pen
wide. There are three different type of pen size.
Green
Green color pen, click cyclically to change the size of pen
wide. There are three different type of pen size.
Blue
Blue color pen, click cyclically to change the size of pen
wide. There are three different type of pen size.
Eraser
Erase part of the pen drawing.
Trash can
Clean the entire pen drawing on the screen.
Open /Minimize all pen menu bar
8.5 Pen drawing
1) When user are projecting through Windows, Mac, Android and iOS sender
application, you can use the Wireless Tablet/Mouse/IWB/Touch Screen to
enable the Pen feature and add free drawing on top of projecting screen.

18
Pointer
Change to Pointer mode.
Smart pointer: Long press for over 1 second, it will
Change to Pen Mode automatically. After releasing
the finger, it will change back to Pointer mode. And it
will clear all annotation first when it start the Smart
Pointer.
Pen Mode
Click the button to enable pen drawing function.
Mouse Mode
Click the button to enable mouse mode for remote
control function.
Zoom
Click the button to enable 2X magnifier function.
Red Pen
Red color pen: click cyclically to change the size of
pen wide. There are three different type of pen size.
Green Pen
Green color pen, click cyclically to change the size of
pen wide. There are three different type of pen size.
Blue Pen
Blue color pen, click cyclically to change the size of
pen wide. There are three different type of pen size.
Eraser
Erase part of the pen drawing.
Trash can
Clean the entire pen drawing on the screen.
Home
Click to go back to WIPS2 Standby Screen.

19
Page Up
Press this button to go to previous page.
Page Down
Press this button to go to next page.
Slide Show
Press this button to enable Slide show
function of PPT.
ESC
Press this button to quite Slide show mode.
Conference Moderator
Click the icon to enable WIPS2 moderator
mode. Remote control the PC-list and select
the device through Wireless tablet /Mouse
/Keyboard/ IWB which are connected to
TWP-1500.
Whiteboard Mode
Open/Minimize all Pen menu bar.

20
9) DoWiFi for Windows
9.1 Install the application
1) Make sure your PC WiFi is enabled already, and connect your PC to WIPS2
TWP-1500 box through WiFi.
2) Open your browser and enter the Device Host Name (SSID) or IP address in
the browser. You can find the IP address and Host Name (SSID) on the
projector screen. (Default Host Name (SSID) is TWP-1500, Default
IP is 192.168.100.10)
3) Download the client software for “Windows 8 / 7/Vista / XP” and install on
your PC. (Ps. You can also launch the application from PnS token
directly.)
