ShowTex HiSpeed Roll Up User manual

ShowTex User Manual
HiSpeed Roll Up

Table of Contents
Introduction 03
Safety Instructions 04
Component 05
Assembly 07
1 Connect the motor to the axis 07
2 Suspend the roll up 07
3 Connect the cables 08
4 Power up the HSRU system 09
5 Set the soft limits 10
5.1 Program with the remote unit 10
5.2 Program with the control panel on the motor-unit 11
6 Switch to DMX 11
7 Test the general system operation 12
8 Uninstall the HSRU system 12
Care and Maintenance 13
Trouble shooting 14
02 ShowTex User Manual HSRU

Introduction
· The HiSpeed Roll-Up (HSRU) is a motor driven roll up system with a fast roll up speed of
2m/second.
· The screen is attached to a 3m, 6m or 9m cylinder and installed in a 20/40 truss.
· The screen height extends to 15m.
· The unique step-less positioning system is compatible with DMX, easy to install and
handy for touring.
· When trusses are connected together, the cylinders can be connected through built in axis
connectors.When used in the Venetian configuration, the width can be extended every
3m or 6m and steered by one motor.
ShowTex User Manual HSRU 03

Safety Instructions
· Read this user manual carefully.
· The roll up system may only be used to move curtains and screens.
Never use this system to move people, animals, or any other heavy objects.
· Make sure that no people or objects are in the area under the system during use.
· The operator must keep eye contact with the system during use.
· Do not hang lighting or any other heavy weight objects on the truss.
The truss is for mounting the HiSpeed Roll-Up only.
04 ShowTex User Manual HSRU

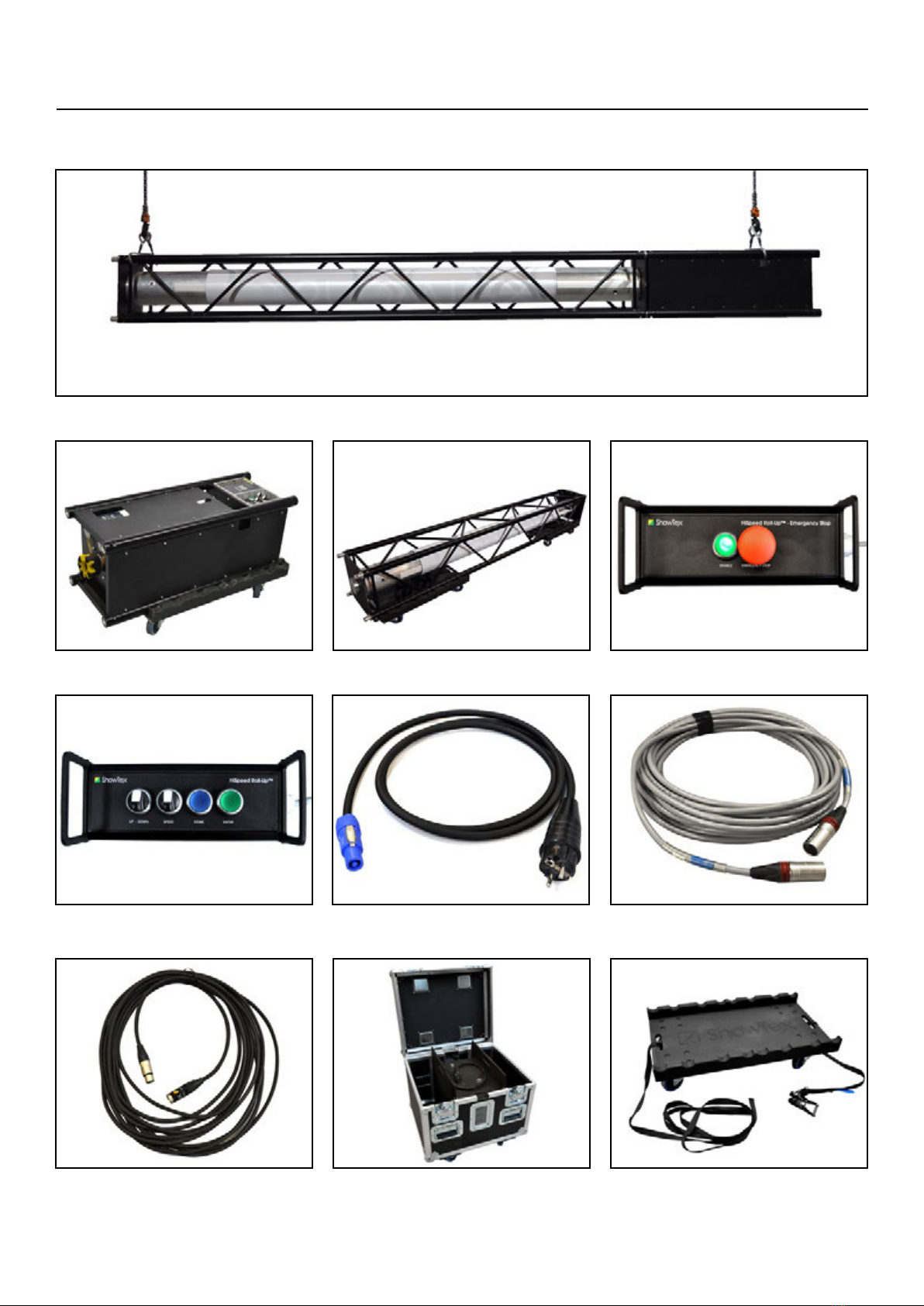

Component Parts
The HSRU system consists of the following parts:
HSRU System
Motor Unit Truss Emergency Unit
Remote Unit Power Supply Cable Emergency Stop Cable
DMX Cable Isolation Transformer Truss-Trolley
ShowTex User Manual HSRU 05

Component Parts
Specifications
Name Art.nr. Colour Weight Information Diameter As
Motor Unit 8140 3112 0017 100 kg/piece
Truss 8140 3115 3007 125 kg/piece Length: 300 cm 200 mm
8140 3115 6007 160 kg/piece Length: 600 cm 200 mm
8140 3115 9007 225 kg/piece Length: 900 cm 250 mm
Emergency Unit 8140 0768 0010 2,46 kg/piece Length: 25m
Remote Unit 8140 0766 0010 5,75 kg/piece Length: 25 m
Power Supply Cable 8150 0912 0027 0,41 kg/piece Length: 2 m
Emergency Stop Cable 8140 7202 1000 0,87 kg/piece Length: 10 m / Verlengkabel
8140 7202 2500 2,64 kg/piece Length: 25 m / Verlengkabel
DMX Cable 8050 7220 5107 0,69 kg/piece Length: 10m
8050 7220 5127 0,85 kg/piece Length: 12,5 m
Isolation Transformer 8140 7260 0010 40,40 kg/piece
Truss-Trolley 8140 6050 0407 15,20 kg/piece For 30 cm and 40 cm trusses,
including 5 stack elements
+ 1 fastener with ratchet.
Length cylinder Roll-Up- and drop speed Max. screen width Comments
3 m 1,5 m/s 285 cm
6 m 1,5 m/s 585 cm
9 m 2 m/s 885 cm On request
06 ShowTex User Manual HSRU

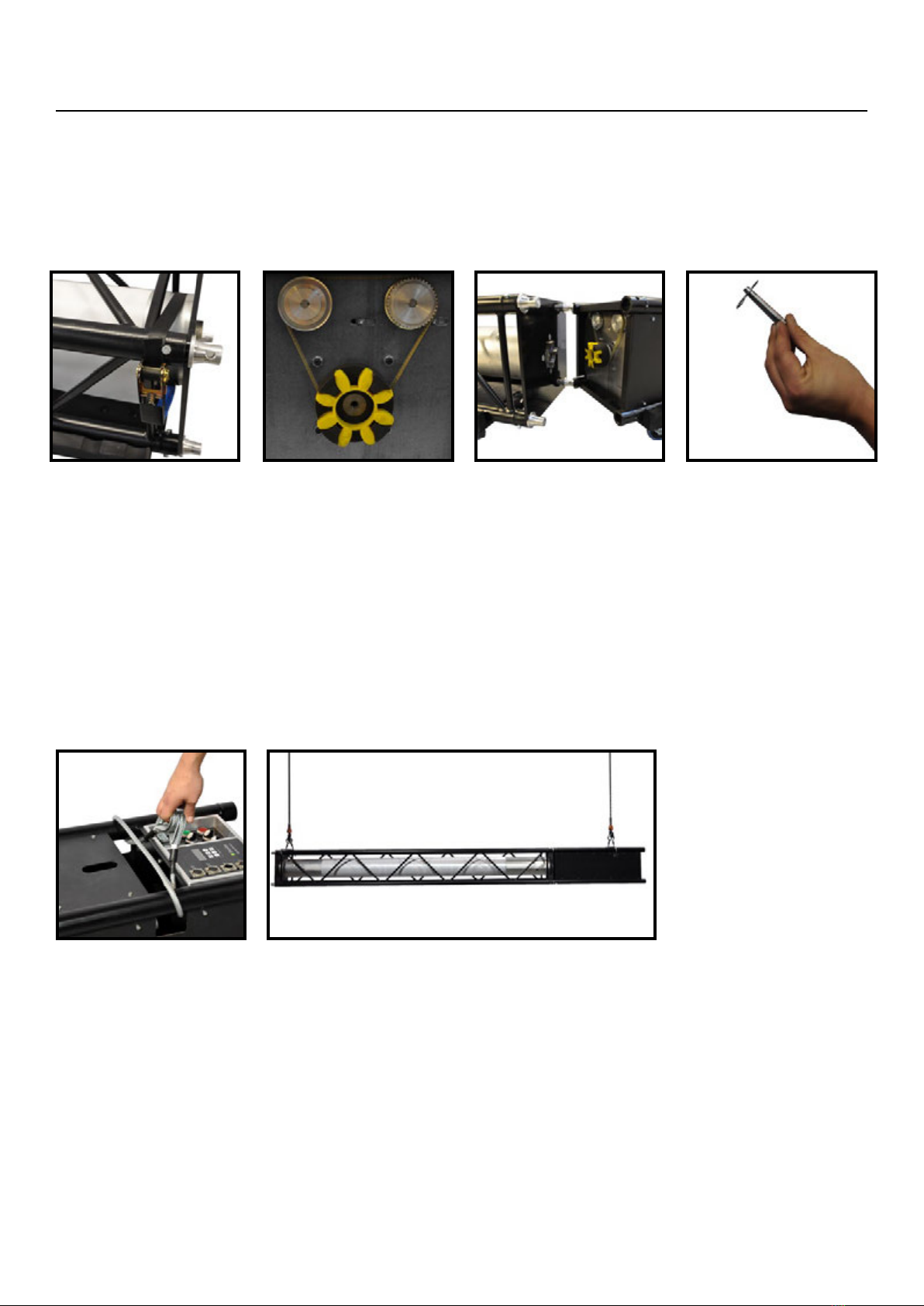

Assembly
In order for the system to operate correctly the following steps should be taken:
1 Secure the screen with a ratchet strap so that it can’t drop from its own weight
2Check that the rubber part is inserted in the jaw clutch coupling. If this is not done correctly, the screen will roll
up or drop too far or not far enough. Never run the motor without a screen attached to the unit.
3 Slide the motor part and the axis connectors into each other.
4 Secure with the spigot and R-spring safety. Always position the spigot opening to the front to ensure an easy fit
of the safety R-spring.
1Connect the motor to the axis
1 Attach the roll-up system to the hoists with steel cables or clamps at the position of the motor on one side (and
insert in the opening provided) and on the other side at the position of the bearing
Attention: If the span of het roller is larger than 3m, then the steel cables or clamps must be attached at both ends at
the position of the bearings (and not at the motor position).
2Hang the truss horizontally and at working height.Then remove the elastic strap that secures the screen.
2‘Installing’ the roll-up system
If these are already connected go to step 2.
23 4
1
1
2
ShowTex User Manual HSRU 07

Assembly
• Plug the Emergency Stop Unit into the “Emergency Stop Input” (7 pin XLR)
• Plug in the power cable and connect to a 230V 16A circuit with a 300mA differential
switch. At less than 300mA the safety device will eject and the motor will not start.
In this case, connect the power cable to the isolation transformer and connect the
isolation transformer to the power source.
• The DMX may only be connected after the soft limits have been set!
• When several motors are used, the Emergency Stop Unit can be connected by means
of the ‘Emergency Stop Link’ socket (7-pin XLR).

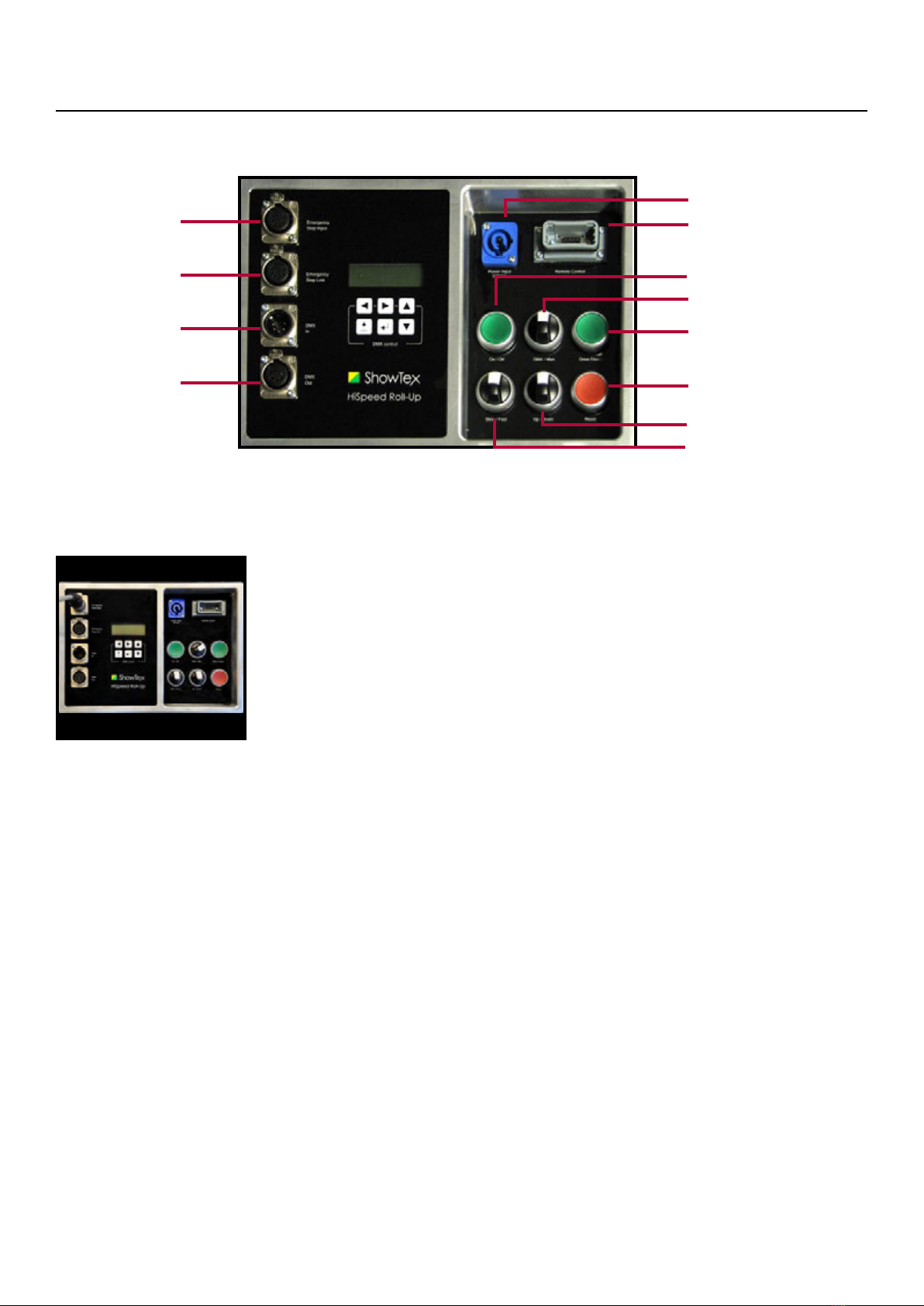

3Connecting the cables
Emergency
Stop Input
Emergency
Stop Link
DMX In
DMX Out
Power Input
Remote Control
On / O
DMX / Man
Drive Ready
Reset
Up / Down
Slow / Fast
08 ShowTex User Manual HSRU

Assembly
1 Disengage the “Enable”-button and release the Emergency Stop on the Emergency Stop Unit.
2 Set the switch on the motor unit to‘Manual’ and press the ‘On/Off’ button to start up the motor.
When the roll-up system has started, the green ‘On/Off’ button will light up and after several seconds the ‘Drive
Ready’ button will also light up (if not, press ‘Reset’).
Activate ‘Enable’ on the Emergency Stop Unit; this green button will light up.
The “Enable” button serves as a safety mechanism to stop the roller immediately when the screen is rolling up or
dropping. By pushing the button again, the roller will continue to the programmed position.
Attention: The emergency stop may only be used in case of emergency. Wait 30 seconds before releasing the emer-
gency stop to prevent regulator damage
3 If the screen is still suspended inside the structure (transport position), one meter must first be unrolled in order
to release the hard limits.This is done using the‘Up/Down’button on the motor unit.

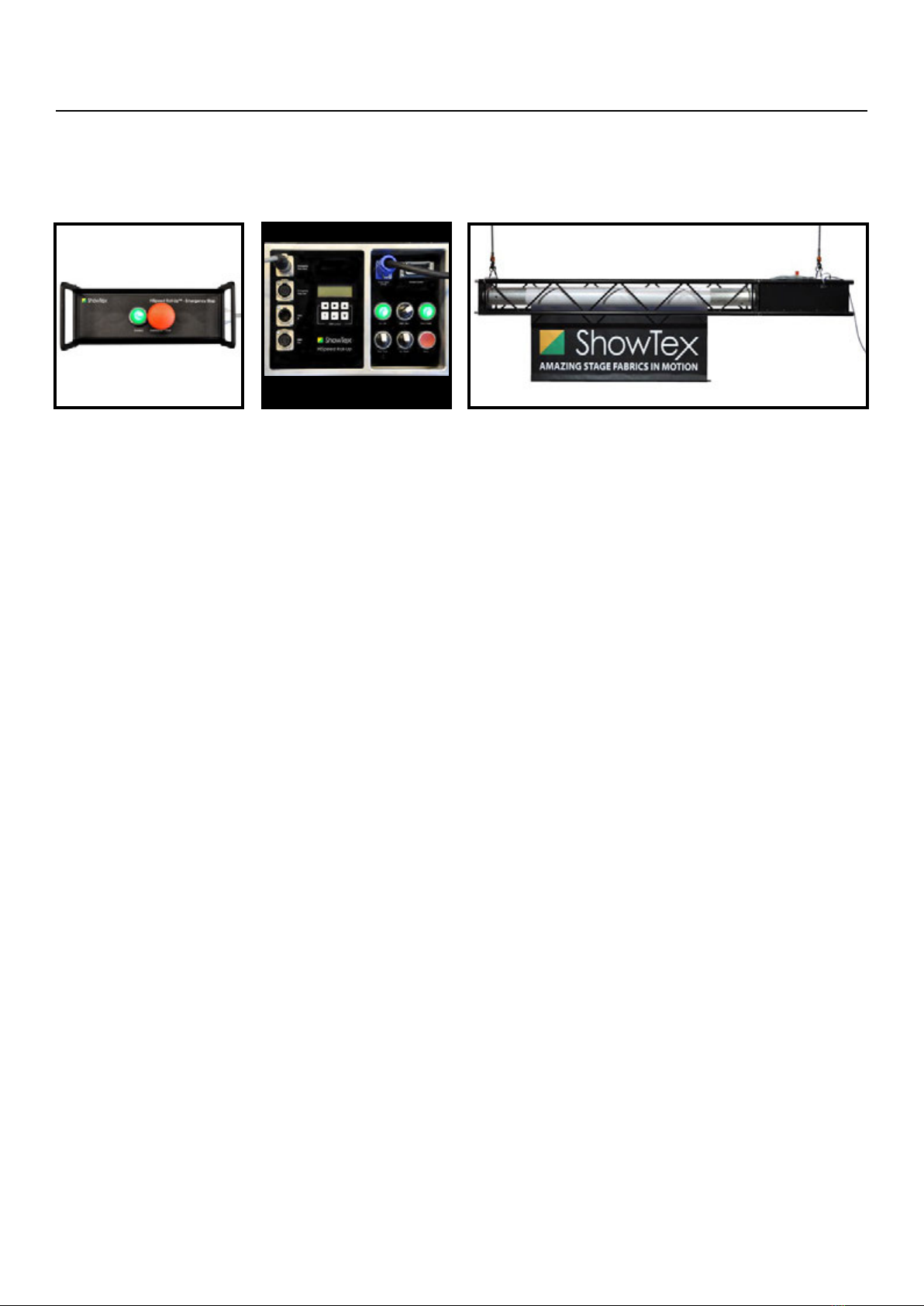

4Starting the HSRU system
3
2
1
ShowTex User Manual HSRU 09

Assembly
5.1 Setting the soft limits with the remote control unit.
• Plug in the Remote control.
• Hoist the HiSpeed Roll-Up system up to the desired height.
• Roll the screen down, using the “Up/Down” button on the remote-unit until the
screen is at the desired bottom point. Now press the “STORE” button (blue) and keep it
pressed in. Conrm the position by pressing on “Enter” button (green).
Attention: Do not release the “STORE” button.
• First go to the top position without releasing the “STORE” button.
• Then, press the “ENTER” button when you reach the desired top position.
Now you can release the “STORE” button.
• Both soft limits are now set at the correct height. Go to step 6.

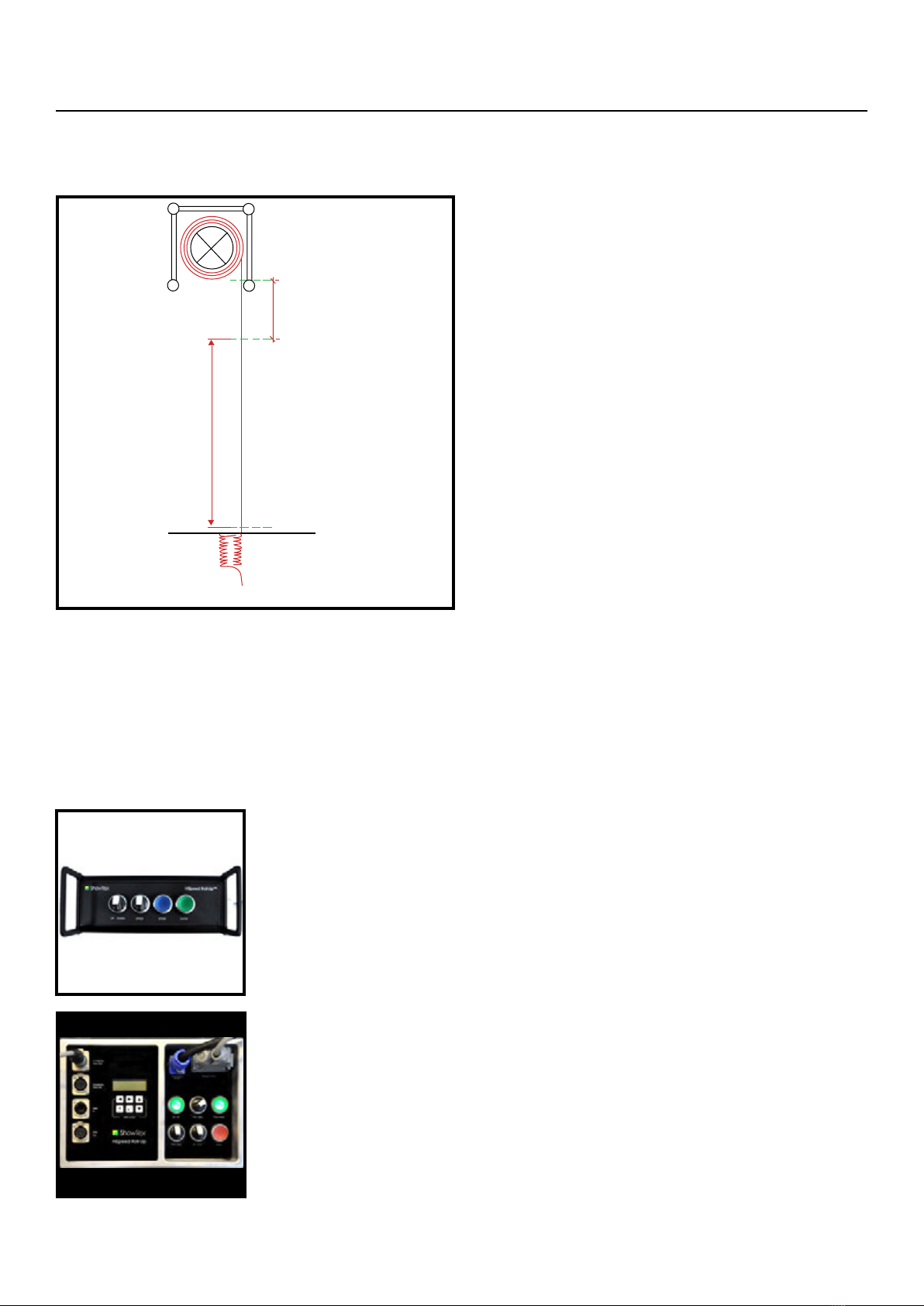

5Setting the soft limits
• The system has soft limits and hard limits. The hard
limits determine the absolute safe limits (UP/DOWN)
allowed by the system.The soft limits are always within
the boundaries of the hard limits and are determined
and set by the user.
• The hard limits have been set by the manufacturer
during installation of the screen or curtain on the
roller.When the curtain or screen is adjusted or replaced,
please contact our technical dept. for advice to prevent
damage to the hard limits.
• When adjusting the soft limits make sure the screen
or curtain never rolls up into the truss, reaching the top
hard limit. If this happens, the system will not respond
to DMX.In this case use the manual control by adjusting
the “Up/Down” button on the motor-unit. The standard
soft limit is at 30cm below the truss.
30 cm
Hard Limit UP
( default settings)
Soft Limit UP
Soft limit DOWN
Hard limit DOWN
(default settings)
DMX-Range
Attention: The soft limits should only be considered when the system is connected to DMX.In case of manual operation,
make sure the system doesn’t surpass the hard limits. If this should occur, roll out the screen to 1m length to release
the hard limits.
There are 2 ways to set the soft limits: by using the remote control or on the control panel of the motor-unit.
10 ShowTex User Manual HSRU

Assembly
• Press the “enable” button on the Emergency Stop Unit (so that it is no longer lit up) to
keep the system from reacting instantly to DMX.
To prevent damage and irregularity to the system, the DMX addresses must first be
correctly entered.
• The roll-up requires 3 DMX channels, channel 1 and 2 for the 16 bit positioning and
a third channel to regulate speed.
• Set the correct DMX address by pushing the and buttons on the control board
of the motor-unit until “DMX address” appears on the screen. (the DMX address can
be adjusted by using the and buttons).When you arrive at the desired address
push the button to confirm.The DMX address is now set.
• If the remote control unit isn’t necessary for the show, remove it and move the switch
on the motor-unit to DMX.
• Plug in the DMX-cable to the “DMX In” outlet on the control panel of the motor-unit.
Attention: Make sure the system is hung at the desired height and that no one is
standing under the load.Always keep the Emergency Stop control within arm’s length.
• When you activate the “Enable”-button on the Emergency Stop unit, the roll-up will
respond to DMX.
Attention: The third channel (speed) must always be at least 5% open. Otherwise, speed
will be set to 0 and the system won’t respond.
6Switching to DMX
5.2 Setting the soft limits with the control panel of the motor-unit
1 Roll the screen down, using the “Up/Down” button on the motor-unit until the screen is at the desired
lowest point.
2 Press the button or until “soft limit min” appears on the screen. Then press the and the button at the
same time, and confirm the position by pushing the button.The bottom soft limit is now set.
Use the “Up/Down” button on the motor-unit to move the screen to the desired top point.
3 Press the button or until “soft limit max“ appears on the screen. Then press the and button at the
same time, and confirm the position by pushing the button.
Both soft limits are now set at the correct height. Go to step 6.
123
ShowTex User Manual HSRU 11

Assembly
7Test the system’s general operation.
Attention: Always ensure that the Emergency stop controller “Enable”-button is disengaged before performing system
maintenance.
8Disassembling the HSRU system
1Set the switch on the motor-unit to manual.
2Position the screen to the transport position.To do this, roll up the screen to its top hard limit by using the
“Up/Down”-button.
3 Disengage the “Enable”-button of the emergency stop controller.
4 Push the “On/Off”-button of the motor-unit to disengage the motor.
5 Now the rest of het system can be safely disassembled.
12 ShowTex User Manual HSRU

Care and Maintenance
· The High Speed Roll Up system has components that must be regularly checked,
maintained, and replaced in order to ensure safety and keep it in good condition.
· The best way to maintain the HSRU system is to use it often. Each mechanical part should
be used at least once a week. In this way, residue and dirt can’t collect in the bearings and
irregular noises can be discovered in time.
· More frequent maintenance is recommended in case of frequent use or in case the system
is installed in a space with a high degree of moisture, dust, or differences in temperature.
· When necessary, disassemble the system in the same way it was installed.
ShowTex User Manual HSRU 13

Trouble Shooting
What to do if the system stops working?
· Verify that the system is correctly connected to the power supply.
· Verify that all cables are connected to the correct outlets and that none
of them are damaged.
· In case of DMX: The third channel (speed) must always be at least 5% open.
Otherwise, speed will be set to 0 and the system won’t respond.
If the soft limits were incorrectly set and the screen has reached the hard limits,
perform the following steps·
· The system may only be operated manually in this case. (see STEP 4).
· Roll out 1m of screen to release the hard limits. (see STEP 4).
· Reset the soft limits (STEP 5).
· Attention:The soft limits should only be considered when the system is connected to DMX.
The emergency stop was activated and the system stopped responding?
· Wait 30 seconds before releasing the emergency stop to prevent regulator damage
(see STEP 4).
For more technical assistance please contact your local ShowTex office.
(see back cover of manual )
HAVE A GREAT SHOW!
