QUBINO ZMNHZD1 User manual

Qubino
The INNOVATIVE and SMALLEST
Weather Station
ORDERING CODE
Z-WAVE FREQUENCY
ZMNHZD1
868,4 MHz
ZMNHZD2
921,4 MHz
ZMNHZD3
908,4 MHz
ZMNHZD4
869,0 MHz
ZMNHZD5
916,0 MHz
ZMNHZD8
865,2 MHz
Weather Station is used for measuring temperature,
humidity, wind & rain properties and sending the
measurement values to your Z-Wave network.
The Weather Station can measure 10 different values: two
sets of temperature/humidity sensors, wing gauge with 5
sensors (direction, velocity, wind gust, temperature and
wind chill) and a rain sensor. With the use of the included
Weather Station USB KEY all 10 values (end points) are
sent and rendered in your home Z-Wave network.
Qubino Weather Station Key is used for receiving Wireless
data packages (from Thermo/ Hygro Sensor Ch1, Thermo/
Hygro Sensor Ch2, Rain Gauge, Wind Gauge) and sends
it to the Z-Wave Controller.
The Key is designed to be plugged into the USB Power
Adapter. Module receives data for Temperature, Wind
Chill, Velocity, Wind Gust, Wind Direction, Humidity, Rain
Rate and Battery Level for each Sensor.
It is designed to act as repeater in order to improve range
and stability of Z-wave network.
Package contents:
Weather Station USB Key
2 x Thermo-Hygro Sensor
Anemometer (Wind Sensor with Solar panel)
- Wind cups
- Wind vane
- Anemometer arm
- Anemometer base
- 4 screws
Rain Sensor
- Funnel shaped lid with battery hatch
- Sensor base
- Bucket see-saw mechanism
- Protective screen
- 4 screws

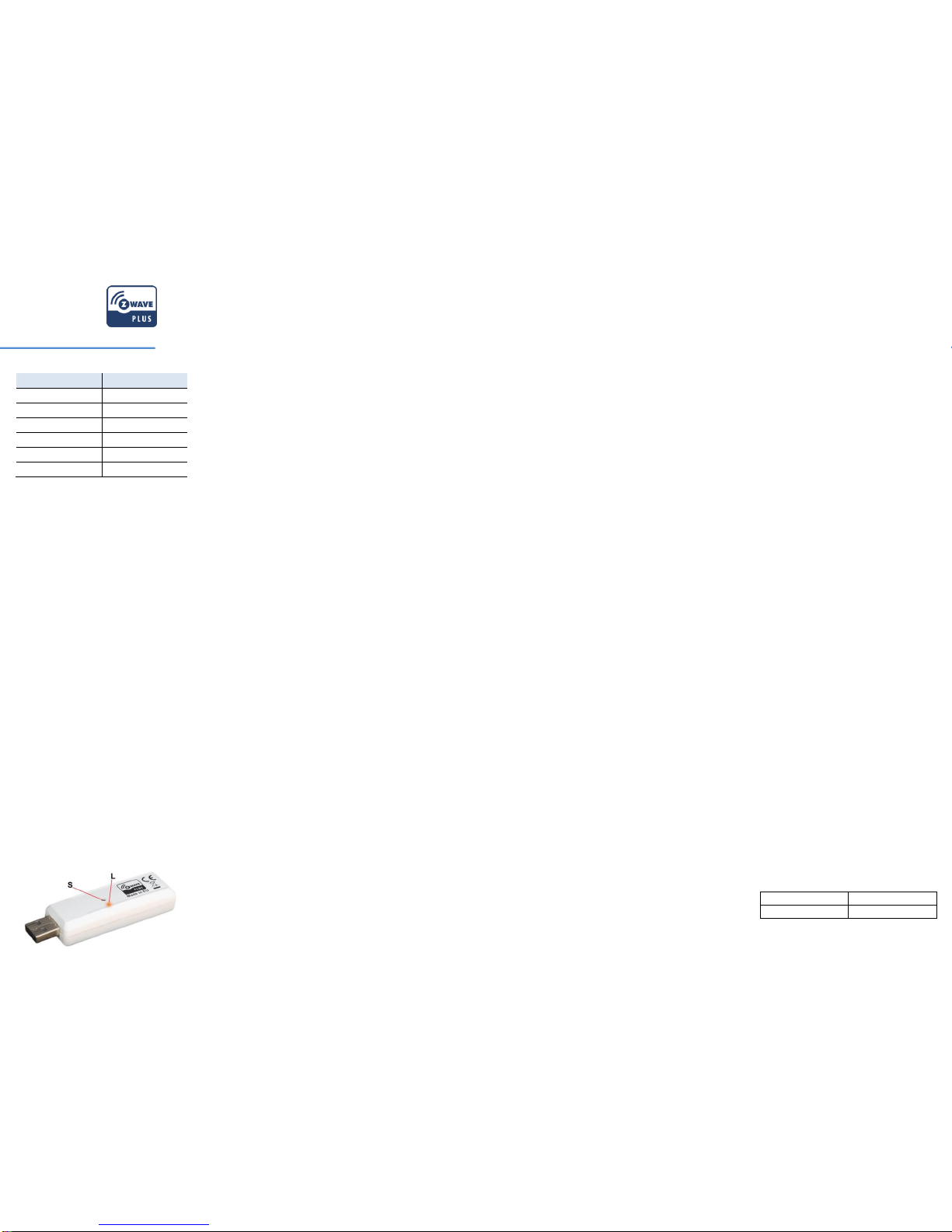

Weather Station USB Key
Installation
Connect the Weather Station Key into the USB
Power Supply.
Locate the module far from metal elements.
Locate the module in the range of Z-Wave Network
and in the range of all 433 MHz sensors.
S
Service button (used to add or remove module
from the Z-Wave network).
L
LED
LED Blinking Meaning
LED is 1 second ON and 1 second OFF
The module is in exclusion mode
LED is ON
The module is in inclusion mode
LED Blinks 1 time fast
The module received data from Thermo/Hygro Sensor Ch1
LED Blinks 2 time fast
The module received data from Thermo/Hygro Sensor Ch2
LED Blinks 3 time fast
The module received data from Wind Sensor
LED Blinks 4 time fast
The module received data from Rain Sensor
Module Inclusion (Adding to Z-Wave
network)
Connect module to USB Power Supply
auto-inclusion (works for about 5 seconds after
connected to power supply) or
enable add/remove mode on main controller
hold service button Sbetween 1.5 and 4 seconds
NOTE: For auto-inclusion procedure, first set main
controller into inclusion mode and then connect module to
USB power supply.
Module Exclusion/Reset (Removing from
Z-Wave network)
Connect module to power supply
enable add/remove mode on main controller,
hold service button Sbetween 4 seconds and 8
seconds
By this function, all parameters of the module are set to
default values, own ID is deleted and the module will
include as unsecure next time.
If service button S hold more than 1.5 and less than 4
seconds module is excluded, but configuration parameters
are not set to default values and the module will include
next time as it was set into the Configuration Parameter
250.
Association
Association enables Weather Station module to transfer
commands inside Z-Wave network directly (without main
controller) to other Z-Wave modules.
Associated Groups:
Group 1: Lifeline group (reserved for communication with
the main controller), one node allowed.
Group 2: basic on/off (triggered when the Wind Gust of the
Wind Gauge exceed the Configuration Parameter 1 Value)
up to 16 nodes.
Group 3: basic on/off (triggered when the Rain rate exceed
the Configuration Parameter 2 Value) up to 16 nodes.
Endpoint 1: Thermo/ Hygro Sensor Ch1 –Temperature
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 1 receives Temperature data from Thermo/
Hygro Sensor on Channel 1. It is capable of receiving data
in range of -199.0 °C and 199.0 °C. However, the
operating temperature of the 433 MHz sensor is from -10
°C to 60 °C.
Endpoint 2: Wind Gauge –Direction
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 2 receives Direction data from Wind Gauge. The
data is in range of 0.0° to 360.0°.
Endpoint 3: Wind Gauge –Velocity
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 3 receives wind speed data from Wind Gauge. It
is capable of receiving data in range of 0.00 m/s to 88.00
m/s.
End point 4: Wind Gauge –Wind gust
Group 1: Lifeline group, 0 nodes allowed.
Group 2: basic on/off (triggered when the Velocity exceed
the Value of Configuration Parameter 1) up to 16 nodes.
Endpoint 4 receives wind speed data from Wind Gauge. It
is capable of receiving data in range of 0.00 m/s to 88.00
m/s.
End point 5: Wind Gauge –Temperature
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 5 receives Temperature data from Wind Gauge.
It is capable of receiving data in range of -199.0 °C and
199.0 °C. However, the operating temperature of the
sensor is from -10 °C to 60 °C.
End point 6: Wind Gauge –Wind Chill
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 6 receives Temperature data from Wind Gauge.
It is capable of receiving data in range of -199.0 °C and
199.0 °C. However, the operating temperature of the
sensor is from -10 °C to 60 °C.
End point 7: Rain Sensor
Group 1: Lifeline group, 0 nodes allowed.
Group 2: basic on/off (triggered when the Rain rate exceed
the Configuration Parameter Value 2) up to 16 nodes.
Endpoint 7 receives and calculates rain rate. The rain rate
is in range of 0.00 mm/h and 300.00 mm/h.
End point 8: Thermo/ Hygro Sensor Ch1 –Humidity
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 8 receives Humidity data from Thermo/ Hygro
Sensor on Channel 1. The data is in range of 0% and
100%.
End point 9: Thermo/ Hygro Sensor Ch2 –
Temperature
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 9 receives Temperature data from Thermo/
Hygro Sensor on Channel 2. It is capable of receiving data
in range of -199.0 °C and 199.0 °C. However, the
operating temperature of the sensor is from -10 °C to 60
°C.
End point 10: Thermo/ Hygro Sensor Ch2 –Humidity
Group 1: Lifeline group, 0 nodes allowed.
Endpoint 10 receives Humidity data from Thermo/ Hygro
Sensor on Channel 2. The data is in range of 0% and
100%.
Configuration parameters
Parameter No. 1 –Wind Gauge, Wind Gust Top Value
Available configuration parameter (data type is 2 Byte
Dec):
default value 1000 (10,00 m/s)
0 –8800 = value from 0.00 m/s to 88.00 m/s -
if the Wind Gust is Higher than the Parameter Value,
a device triggers an Association.
Parameter No. 2 –Rain Gauge, Rain Rate Top Value
Available configuration parameter (data type is 2 Byte
Dec):
default value 200 (2,00 mm/h)
0 –30000 = value from 0.00 mm/h to 300.00 mm/h -
if the Sensor Rain Rate is Higher than the Parameter
Value, a device triggers an Association
Parameter No. 3 –Wind Gauge, Wind Gust
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 - If the Wind Gust is Higher than the Parameter No.
1 Value, then a Device sends Basic Set = 0x00.
1 - If the Wind Gust is Higher than the Parameter No.
1 Value, then a Device sends Basic Set = 0xFF.)
Parameter No. 4 –Rain Gauge, Rain Rate
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 - If the Rain amount is Higher than the Parameter
No. 2 Value, then a Device sends Basic Set = 0x00.
1 - If the Rain amount is Higher than the Parameter
No. 2 Value, then a Device sends Basic Set = 0xFF.)
Unsolicited Report
If you enable Unsolicited Reports on the End Points, the
USB Key will send data to the controller every time it
receives data from the 433MHz sensors, which are
different from the precious data.
Parameter No. 5 –End point 1 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 6 –End point 2 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 7 –End point 3 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 8 –End point 4 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 9 –End point 5 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 10 –End point 6 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 11 –End point 7 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 12 –End point 8 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 13 –End point 9 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 14 –End point 10 –Unsolicited Report
Available configuration parameter (data type is 1 Byte
Dec):
default Value 1
0 –Unsolicited Report disabled
1 –Unsolicited Report enabled
Parameter No. 15 –Random ID Enable
Available configuration parameter (data type is 1 Byte
Dec):
default Value 0
0 –Random ID disabled
1 –Random ID enabled
If Random ID is disabled, the Weather Station USB Key
can receive data from multiple 433 MHz Sensors on the
same Channel. If the Random ID is enabled, the USB Key
can receive data from only one sensor on the same
channel. If the USB Key does not receive a data from a
sensor on a specific channel for more than 2.5 hours, it
clears the Random ID of the device and waits for a new ID.
If you replace the batteries in the modules, the Random ID
will change. If you want that the USB Key accept a module
immediately, set the Parameter No. 15 to “0” and in the
next step again to “1”.
Parameter No. 250 –Unsecure / Secure Inclusion
Available configuration parameter (data type is 1 Byte
Dec):
default Value 0
0 –Unsecure Inclusion
1 –Secure Inclusion
The Weather Station Key supports both, the secure and
unsecure inclusion. Even if the controller does not support
security command classes, the Key could be included as
unsecure and keep all the functionality.
By default, the Key includes as unsecure. To include the
Key as secure follow the procedure:
1. Include the Key into the controller
2. Set the parameter 250 to the value “1”
3. Enable add/remove mode on main controller,
4. Hold service button S between 1.5 and 4 seconds
to exclude the module
5. If the exclusion of the module was successful, the
LED on the module starts blinking
6. Unplug the module out of the power supply
7. enable add/remove mode on main controller
8. Plug the module into the power supply to star auto-
inclusion
9. Now the module should be included as secure
The same procedure is to include the module as unsecure.
Safety Procedure
In the case of lost connection between the 433 MHz
Wireless Sensor and the Weather Station USB Key (more
than 15 minutes of lost connection), the module will set
Sensor values to extreme values. (Temperature =
-199.0 °C, Velocity = 88.00 m/s, Rain = 300.00 mm/h,
Humidity = 100 % or Direction = 0.0°), so that the
associations and scenarios are triggered to lower the
chance of potential damage.
If the Weather Station USB Key lose the power supply (or
any other reason reset the Key), the Key will not report
Sensor Values to the controller until new data is received
or maximum 240 seconds. If after 240 seconds, the Key
still does not have new data from the sensor, it will set the
sensor values to extreme values.
On each End point we can get battery level from
corresponding sensor. On the Root device is a battery
level from the sensor with the lowest battery level.
Technical Specifications
Weather station
Dimensions (WxHxD)
460x120x430mm
Weight
2 kg
USB Key

Power supply
USB Power Supply, 5V DC
Operation temperature
-10 ~ +40°C
Distance to Z-Wave
up to 30 m indoors
(depending on building
materials)
Distance to 433Mhz
Sensors
up to 100 m (depending on
building materials)
Dimensions (WxHxD)
79x16x24mm
Electricity consumption
0,3 W
433MHz Sensors
Battery’s
2 x UM-3 or “AA” size 1.5 V
Operation temperature
-10 ~ +60°C
Distance to USB Key
up to 100 m (depending on
building materials)
Receiving Cycle
Remote Thermo/Hygro -
Sensors cca. 45s Rain
Gauge cca. 183s Wind
Sensor cca.33s
Temperature Accuracy
+/-1°C or +/-2°F
Humidity Accuracy
+/-5%
Wind Speed Accuracy
+/- ( 2mph + 5% )
Wind Direction Accuracy
+/-11.25°
Z-Wave Device Class:
ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_AL
WAYS_0N
GENERIC_TYPE_SENSOR_MULTILEVEL
SPECIFIC_TYPE_ROUTING_SENSOR_MULTILEVEL
Z-Wave Supported Command Classes:
COMMAND_CLASS_ZWAVEPLUS_INFO_V2,
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
Z-Wave Securely Supported Command
Classes:
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V7
COMMAND_CLASS_MULTI_CHANNEL_V4
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_
V3
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_BATTERY
COMMAND_CLASS_MARK
COMMAND_CLASS_BASIC
Endpoint 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Device Class:
ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_AL
WAYS_0N
GENERIC_TYPE_SENSOR_MULTILEVEL
SPECIFIC_TYPE_ROUTING_SENSOR_MULTILEVEL
Command Classes:
COMMAND_CLASS_ZWAVEPLUS_INFO_V2,
Securely Supported Command Classes:
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V7
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_
V3
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_MARK
COMMAND_CLASS_BASIC
This product can be included and operated in any Z-Wave
network with other Z-Wave certified devices fromany other
manufacturers. All constantly powered nodes in the same
network will act as repeaters regardless of the vendor in
order to increase reliability of the network.
Remote Weather Sensors
The remote weather sensors include a thermo-hygrometer,
anemometer (wind sensor) and rain sensor. All data
collected by the sensors are transmitted to the Weather
Station Key by wireless RF, with a range up to 100 meters
(open area). The Weather station Key supports a
maximum of 2 thermo-hygrometers, allowing 2 channels of
temperature/humidity display (Ch1 and Ch2).
Setting up the Remote Weather Sensors
Before starting up the Weather Station Key, setup all the
remote sensors first.
When placing the sensors, make sure that they are within
receiving range of the console unit.
Ideally, they should be within the line of sight of the
console unit. Transmission range may be affected by
trees, metal structures and electronic appliances. Test
reception before permanently mounting your weather
station.
Also make sure that the sensors are easily accessible for
cleaning and maintenance.
The remote sensors should be cleaned on a weekly basis,
since dirt and debris will affect sensor accuracy.
Setting up the Thermo-Hygro Sensor(s)
1. Open the latch at the base of the thermo-hygro sensor.
2. Set the channel with a slide switch to Ch1 or Ch2
(Channel has to be selected before inserting a battery’s)
3. Insert two 2 x UM-3 or “AA” size 1.5 V batteries.
4. Use a pin to press the “RESET” key which is in the
battery compartment of thermo-hygro sensors after LED
flash.
5. Replace the latch and mount the unit at desired location.
Placement Tips:
- The thermo-hygro sensor should be in an area with free
air circulation and sheltered from direct sunlight and other
extreme weather conditions. Place the unit in a shaded
area, such as under a roof.
-Avoid placing the sensor near sources of heat such as
chimneys.
-Avoid any areas which collect and radiate heat in the
sun, such as metal, brick or concrete structures, paving,
patios and decks.
-Ideally, place the sensor above natural surfaces such as
a grassy lawn.
- The international standard height for measurements of air
temperature is at 1.25m (4 ft) above ground level.
Setting up the Rain Sensor
1. Unlock the funnel-shaped top of the rain sensor by
turning both knobs on the sides of the rain sensor in an
anti-clockwise direction.
2. Lift the top off the base and insert two 2 x UM-3 or “AA”
size 1.5 V batteries into the battery holder.
3. Replace the lid and secure into place by turning the
knobs clockwise.
4. Place the rain sensor in a location such that
precipitation can fall directly into the sensor, ideally 2-3 ft
above the ground. It may be secured into place by using
the four screws provided.
5. The sensor must be accurately levelled for optimum
performance. To check if the sensor is levelled, remove the
lid and check if the ball bearing inside is at the midpoint of
the leveller. Additionally, a bubble level or carpenter’s level
may be used.
6. Attach the protective screen onto the top of the lid. The
screen will prevent any debris entering the sensor.
Placement Tips:
- The rain sensor should be placed in an open area away
from walls, fences, trees and other coverings which may
either reduce the amount of rainfall into the sensor, deflect
the entry of wind - blown rain, or create extra precipitation
runoff. Trees and rooftops may also be sources of pollen
and debris.
- To avoid rain shadow effects, place the sensor at a
horizontal distance corresponding to two to four times the
height of any nearby obstruction.
- It is important that rain excess can flow freely away from
the sensor. Make sure that water does not collect at the
base of the unit.
- The rainfall measurement mechanism utilizes a magnet;
hence do not place any magnetic objects around the
proximity of the sensor.
Setting up the Anemometer (Wind Sensor)
1. Assemble the wind cups and wind vane to the
anemometer arm
2. Attach the assembled anemometer to the base.
3. Insert two 2 x UM-3 or “AA” size 1.5 V batteries into the
battery holder in the base and connect the second battery
to the solar panel connector.
4. Mount the anemometer onto a vertical surface, using
the fittings provided.
Placement Tips:
- Check that wind can travel freely around the anemometer
and is not distorted by nearby buildings, trees or other
structures.
- For better results, place the anemometer at least 3 m
above local structures and obstacles. The ground creates
a frictional effect to wind flow and will attenuate readings.
- Aim for maximum exposure of the anemometer to the
commonest wind directions in your area.
- The official mounting location for anemometers is 10m
(33 ft) above ground level in a clear unobstructed location.
Maintenance
Changing Batteries
The battery statuses of the sensors are checked every
hour. If the low battery indicators light up, replace the
batteries for the corresponding unit immediately.
Changing Batteries for the Remote Sensors
1. Replace the batteries following the setup instructions for
the corresponding sensor.
2. When the batteries are properly installed, the sensor will
resume sending signals to the main console unit.
Cleaning
The Weather Station Key and outer casings for the remote
sensors can be cleaned with a damp cloth. Small parts can
be cleaned with a cotton tip or pipe-cleaner.
Never use any abrasive cleaning agents and solvents. Do
not immerse any units with electronic parts in water or
under running water.
Anemometer
- Check that the wind vane and wind cups can spin freely
and are free from dirt, debris or spider webs.
Rain Sensor
Like all rain gauges, the rain sensor is prone to blockages
due to its funnel shape. Checking and cleaning the rain
sensor from time to time will maintain the accuracy of rain
measurements.
- Detach the protective screen and lid. Remove any dirt,
leaves or debris by cleaning the items with soapy water
and a damp cloth. Clean small holes and parts with a
cotton tips or pipe-cleaner.
- Look out for spiders or insects that might have crawled
into the funnel.
-Also clean the swinging mechanism with a damp cloth.
Troubleshooting
The Weather Station Key will not receive any data when
the wireless link with the Sensor is lost.
Check or replace the batteries for the corresponding
sensor.
If the above does not solve the problem, check the
wireless transmission path from the corresponding sensor
to the main console unit and change their locations if
necessary.
Although wireless signals can pass through solid objects
and walls, the sensor should ideally be within the line of
sight of the console unit.
The following may be the cause of reception
problems:
- Distance between remote sensor and Weather Station
Key is too long. (Maximum transmission distance in open
area conditions is up to 100 m.)
- Signal shielding materials such as metal surfaces,
concrete walls or dense vegetation in the path of
transmission.
- Interferences from wireless devices (such as cordless
phones, radio headsets, baby listening devices) and
electronic appliances.
The weather readings do not correlate with
measurements from TV, radio or official weather
reports
Weather data can vary considerably due to different
environmental conditions and placement of weather
sensors.
Check the placement tips included in this manual to site
your sensors in the best possible way.
PRECAUTIONS
This product is engineered to give you years of satisfactory
service if you handle it carefully. Here are a few
precautions:
1. Do not immerse the unit in water.
2. Do not clean the unit with abrasive or corrosive
materials. They may scratch the plastic parts and corrode
the electronic circuit.
3. Do not subject the unit to excessive force, shock, dust,
temperature or humidity, which may result in malfunction,
shorter electronic life span, damaged battery and distorted
parts.
4. Do not tamper with the unit‘s internal components.
Doing so will invalidate the warranty on the unit and may
cause unnecessary damage. The unit contains no user-
serviceable parts.
5. Only use fresh batteries as specified in the user‘s
manual. Do not mix new and old batteries as the old ones
may leak.
6. Always read the user‘s manual thoroughly before
operating the unit.
CAUTION
- The content of this manual is subject to change without
further notice.
- Due to printing limitation, the units shown in this manual
may differ from the actual units.
- The contents of this manual may not be reproduced
without the permission of the manufacturer.
This user manual is subject to change and improvement
without notice.
NOTE: User manual is valid for module with SW version
S2 (SW version is part of P/N)! Example: P/N: ZMNHZDx
HxS2Px
Important disclaimer
Z-Wave wireless communication is inherently not always
100% reliable, and as such, this product should not be
used in situations in which life and/or valuables are solely
dependent on its function.
As well, Weather Station Sensors can lose communication
with the Weather Station Key. The caution should be taken
when using the data from the sensors for controlling other
devices using scenarios or associations.
Warning!
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact your local government for information regarding
the collection systems available. If electrical appliances
are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the
food chain, damaging your health and well-being. When
replacing old appliances with new once, the retailer is
legally obligated to take back your old appliance for
disposal at least for free of charge.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates,
uses and can radi-ate radio frequency energy and, if not
in-stalled and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV
technician for help.
Qubino
Goap d.o.o. Nova Gorica
Ulica Klementa Juga 007
5250 Solkan
Slovenia
E-mail: [email protected]
Tel: [phone]
Web: www.qubino.com
Date: 18.10.2016
Document: Qubino_Weather Station
user manual_V1.2_eng
