Qudo QUDOC200BK User manual

INSTRUCTION MANUAL
1/10
Model: QUDOC200BK
CLOCK RADIO WITH
WIRELESS CHARGING

• Bluetooth Standard: 4.2
• Output Power: 5W*2
• S/N Ratio: ≥70dB
• FM Range: 87.5-108.0MHz
• Power Supply: DC 14V/1.0A
• Wireless Charging Power: 5W (Output Voltage: 5V
Output Current: 1A)
• Functions: Bluetooth playing, Aux-in Playing, FM, Wireless
charging, USB charging, Clock and Alarm
1. Clock Radio
2. Instruction Manual
3. 3.5mm Auxiliary Audio Cable
4. AC adaptor 14V/1.0A
2/10
Officeworks Ltd. | 236-262 East Boundary Road | Bentleigh East VIC 3165 | AUSTRALIA
Packing Contents
Product Specifications

3/10
Functions
1 2 3 4
9 10
5 6 78
11 12 13 14 15

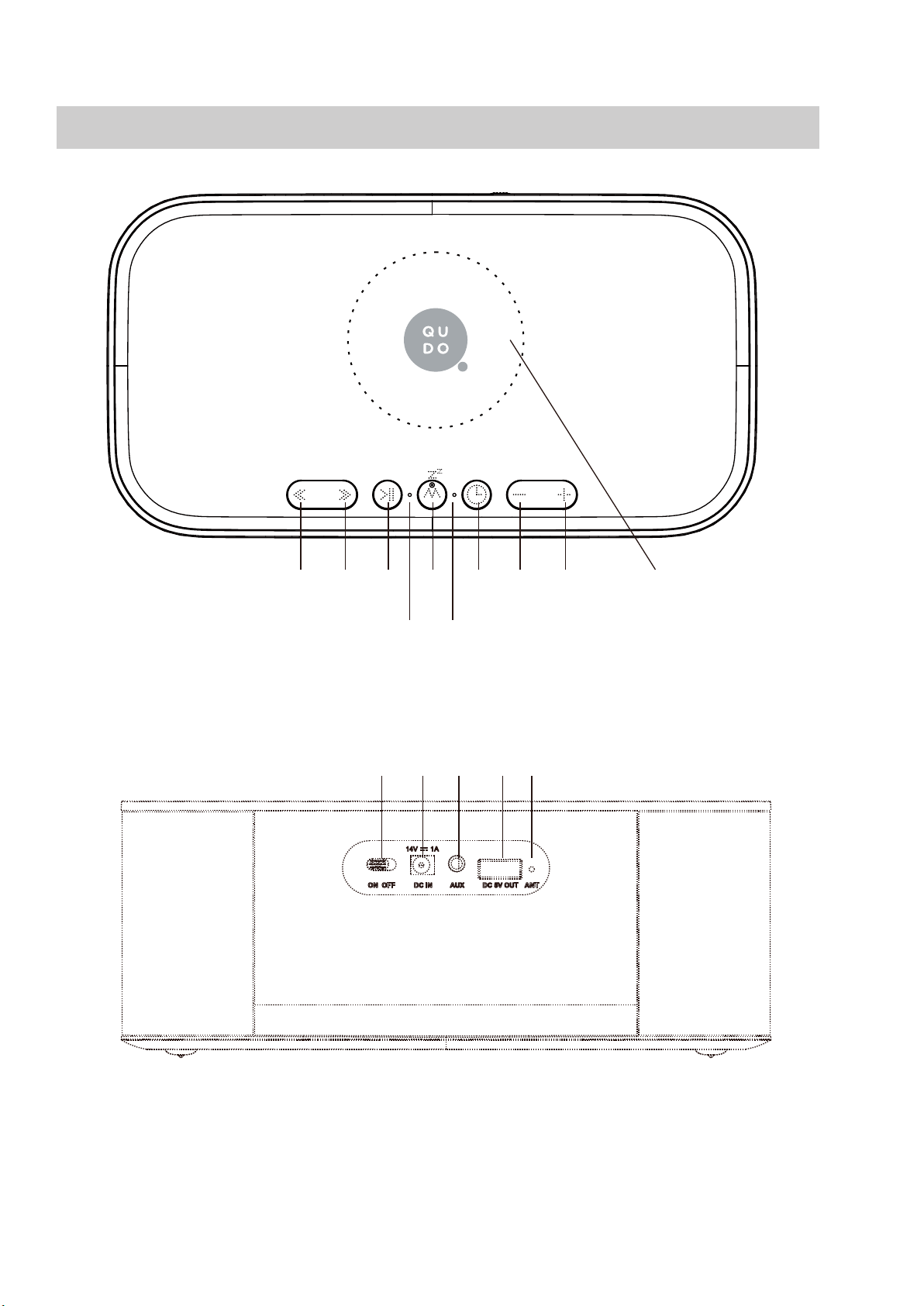

(top panel)
(back panel)

4/10
(front panel)

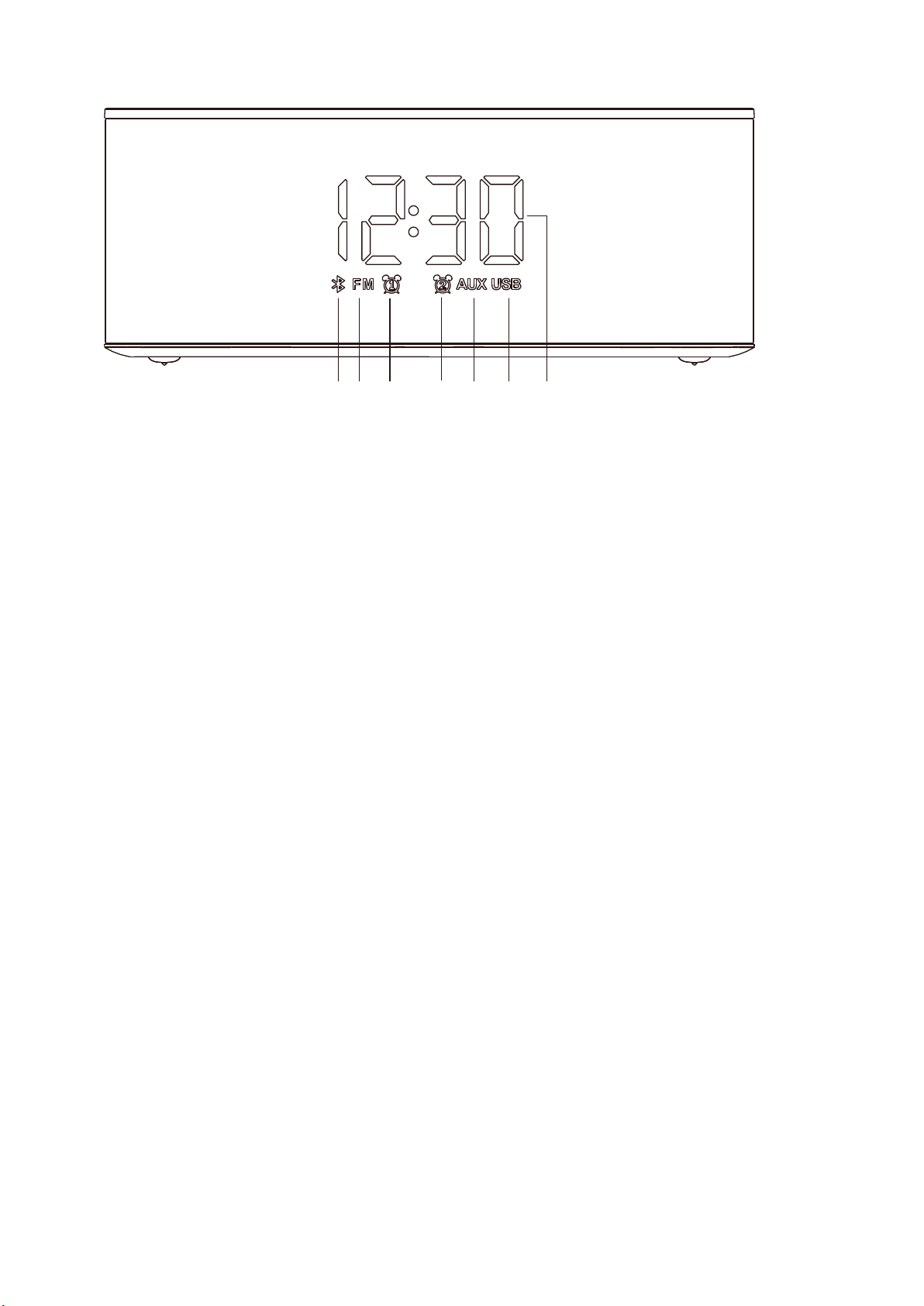

16 17 18 19 20 21 22
1. Previous Track in Bluetooth Mode(Short Press)/Previous
Memorised Channel in FM Mode (Short Press)
2. Next Track in Bluetooth Mode (Short Press)/Next Memorized
Channel in FM Mode (Short Press)
• Remarks for button 1 and 2: if at the mode of Aux-in, the track
could only be changed through your device.
3. Play/Pause, Phone Answer/Reject/Dial, Auto Searching of FM
Channel
• When playing music, press the button to pause or play.
• When you receive a call, short press the button to answer or
long press to reject the call. When you are on the phone through
Bluetooth mode, press the button shortly to end. When the call
ends, music will resume playing. At the status of Bluetooth
connection, short press twice to dial number of last call.
• When at the status of FM mode, long press the button, it will
search for channels automatically and memorizes the channels
as P01, P02, P03, P04…
4. 4. Mode Switch Button/Snooze Button (Short Press)
5. Clock Setting (Short Press)
• Short press to switch setting of Bluetooth, clock, alarm 1 and alarm 2
6. Volume – (Short Press)
• Reduce volume.
• The number reduces when setting clock or alarm.

Insert the DC power jack of AC adaptor (included) to the DC 14V
input port located at the rear of the unit and the other end into a
suitably rated wall outlet.
5/10
Power Supply
7. Volume + (Short Press)
• Increase volume.
• The number adds when setting clock or alarm.
8. Location of wireless charging area.
9. Wireless charging indicator green indicator
• The green indicator is on when the speaker is wireless charging
to your device.
10. Wireless charging indicator red indicator
• The red indicator is off when speaker at the status at wireless
charging to other devices, otherwise it will be on once the
speaker is turned on.
11. Power on/off (Slide the Switch)
12. Power input DC 14V 1A
13. Auxiliary Line-in Port
14. USB Charging Output 5V 1A
• Connect device to this socket with a charging cable, the speaker
would charge the device if the speaker turns on.
15. Mouth for FM Signal Collection Cable
16. Bluetooth Icon
17. FM Icon
18. Icon of Alarm 1
19. Icon of Alarm 2
20. Aux-in Icon
21. USB Icon
22. Clock/Alarm Display

Wireless charging
USB Charging
1. Place the equipment to be charged on the top circle of the stereo.
2. Device will now start charging.
• Remarks: Check with your device manufacturer for Qi wireless
compatibility.
Power ON & OFF Functions
Pairing the Device
AUX
1. Push the power switch to the ON position to turn on. The
contents of the clock will be displayed.
2. Push the power switch to OFF position to turn off the screen.
1. Place your device near the clock radio.
2. Search for Bluetooth according to your devices instructions.
3. The Speaker is named “QUDOC200BK”, enter the PIN “0000”
if needed.
4. The Speaker will beep at the completion of pairing.
1. Plug the 3.5mm audio cable into the audio input connector and
automatically switch from Bluetooth mode to AUX mode.
2. Unplug the 3.5MM audio cable from AUX and automatically
return to Bluetooth status.
6/10
Connect your device to USB output socket through a charging cable

Setting the Clock
Setting the Alarm
1. The CLOCK button cycles through clock, alarm 1, alarm 2
with each short press.
2. To set the time press and hold the CLOCK button when
time is showing.
3. The hour digits will now flash. Press VOLUME + or VOLUME –
to set the required hour and press CLOCK to confirm.
4. The minutes will now flash. Press VOLUME + or VOLUME -
to set the required minutes and press CLOCK to confirm.
The clock setting is completed.
7/10
1. Press the CLOCK button until AL1 icon is lit, Alarm time preview
will show.
2. Press once again AL2 icon is lit, Alarm time preview will show.
3. Press and hold the CLOCK button when on AL1 or AL2 for
3 seconds to start alarm setting.
4. The hour digits will now flash. Press VOLUME + or VOLUME –
to set the required hour and press CLOCK to confirm.
5. The minutes will now flash. Press VOLUME + or VOLUME -
to set the required minutes and press CLOCK to confirm.
6. The clock setting is completed.
7. OFF will now flash. Press VOLUME + or VOLUME - to select
ON /OFF and press CLOCK to confirm. Alarm is now set.
8. Select the rings of the alarm. After finishing he adjustment of
the minutes, short press the clock key, marks of ‘OFF’, ‘ON’ or
‘ ’ and Alarm 1 would flash on LED screen, you are entering the
mode of alarm ring setting. Sort press the button of previous
track or next track, to select the ring of alarm. Short press the
clock key when the mark of ‘OFF’, ‘ON’ or ‘ ’is flashing, then
the alarm ring is selected.

Safety and General Information
Carefully read this manual before using this appliance and keep for
future reference.
Do not use this appliance if it has been dropped or damaged in any
way, or if the supply cord is damaged.
Intended Use
• Indoor domestic use only: this appliance is intended for indoor
domestic use only. Do not use it outdoors. Do not use in moving
vehicles or boats.
• Intended Purpose: Do not use the appliance for anything other
than its intended purpose, and only use it as described in this
manual
• Accessories: Do not use any accessories with the appliance that
are not supplied or specifically recommended.
• Ensure that you know how the appliance functions and how to
operate it.
8/10
FM
1. To set the FM press the MODE button when FM icon is showing.
2. Frist time to select FM please Press and hold to search the
FM, Please wait a few minutes for automatic searching, when
the local radio stations have found will be save automatically.
Default FM range is 87.5-108MHz.
3. Press for FM mute.
4. Press / for FM select.
There are 3 options:
‘OFF’ indicastes to turn off of the alarm ring
‘ON’ indicates the default alarm ring of system
‘ ’ indicates to set the first FM channel P01 as the alarm ring
9. When alarm is triggered, press the MODE button to enter snooze
mode(the snooze time is 5 minutes); press the other any button
to turn off the alarm. There is 3 chances of snooze mode for each
alarm.

9/10
• Maintain the appliance in accordance with the instructions to
ensure that it functions properly.
• Keep this manual with the appliance. If the appliance is to be used
by a third party, this instruction manual must be supplied with it.
The safety instructions do not by themselves eliminate any danger
completely and proper accident prevention measures must always
be used.
1. Always unplug the adapter from mains supply when not in use.
Do not abuse or damage the power cord. If the supply cord is
damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
Ensure that the socket is located near the appliance and easily
accessible in order to quickly unplug the appliance from the
mains in the event of an operating problem. Always pull out the
plug from the socket (pull on the plug, not the cable)
2. Please do not expose this appliance to water, corrosive liquid
or gas. Store the appliance in a dry and clean place.
3. Do not install the appliance near windows, or any heat sources
such as radiators, heaters, gas stoves or other apparatus that
produces heat.
4. Do not place any naked flame sources, such as lit candles, on
or near the apparatus.
5. Clean only with dry cloth.
6. Do not place objects filled with any kind of liquid on the
speakers, such as vases. Do not expose to dripping or splashing.
7. To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture. Liquids can cause a failure and/or
fire hazard. Do not to handle the plug with wet hands.
8. Do not insert metal bars/wires or any other objects in the
speaker hole.
9. Protect the power cord from being walked on or pinched
particularly at plugs, and the point where they exit from the
apparatus.

10/10
10. Before moving the appliance, please pull out the power
adapter and disconnect from any other equipment.
11. Please do not block any ventilation openings of the device,
otherwise it will cause a rise in internal temperature of the
apparatus and thus cause damage to the circuit.
12. Please do not press the switches or other keys with force.
13. Unplug the power cable immediately if your device emits
smoke or acts abnormally. Seek professional help from
your nearest service centre.
14. When using electric appliances always observe safety
regulations where applicable to reduce the risk of fire, electric
shock and personal injury.
Troubleshooting
Trouble 1: Radio signal would be interferred when using wireless
charging.
Solution : Don't use wireless charging when listening to radio.
Then the radio function would be back to normal.
Trouble 2: The speaker enters standby mode 10 minutes later
if without any connection by Bluetooth or Aux-in or FM playing.
At the status of standby, only CLOCK button is functional.
Solution: Slide the ON/OFF button to awaken the speaker and all
buttons are back to normal functions.
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
Officeworks Ltd. is under license.
