Queled CW4 Series User manual

!
Queled Series
USER MANUAL
Thank you very much for choosing our product. For safety purpose, please
read this manual carefully before your operation. This manual included
installation and using information. Please install and operate it according to
this manual.
QR CW4_CW5_UV5 -V1.0 05.08.2015
U S E R M A N U A L
Please read over this manual before operation the light

Indexing
Part 1 Product (GENERAL)
1.1--PRODUCT INTRODUCTION
1.2--PRODUCT FEATURES
1.3--TECHNICAL SPECIFICATIONS
1.4--DIMENSION
1.5--SAFETY WARNING
PART 2 INSTALLATION
2.1--MOUNTING
2.2--SETTING UP WITH A DMX512 CONTROLLER
2.2-1--DMX512 ADDRESSING WITHOUT ID ADDRESSING
2.2-2-- DMX Channel instruction
2.2-3-- Basic instruction for DMX
2.2-4-- Special instruction of DMX connection
PART 3 LED DISPLAY PANEL OPERATION

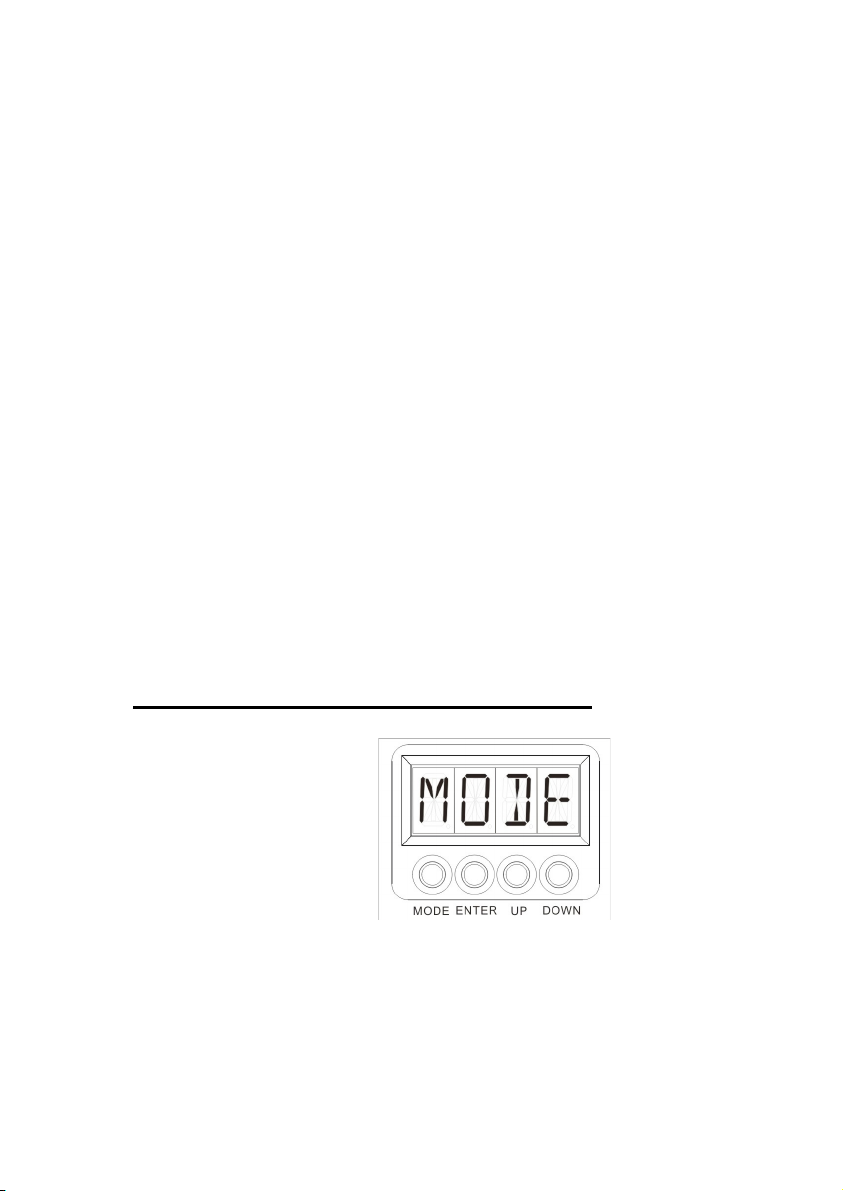

3.1 -- Basic instruction

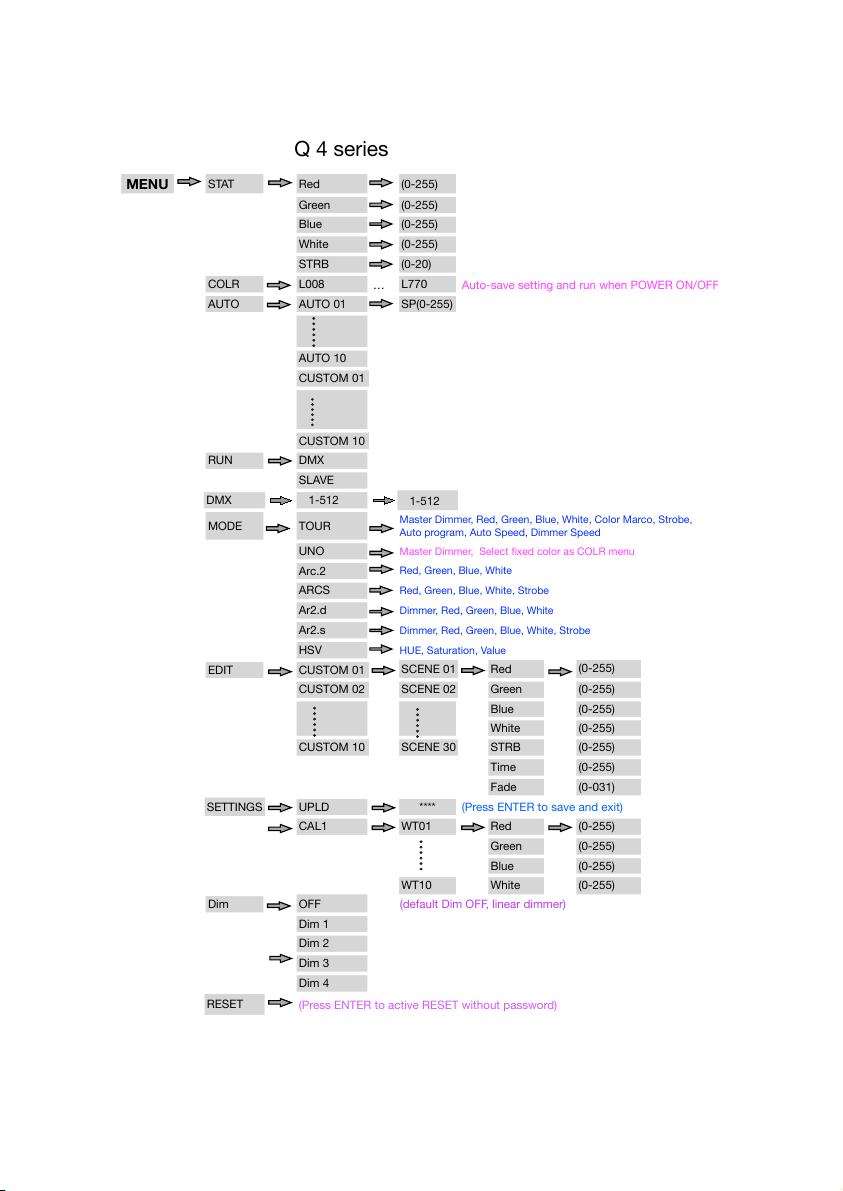

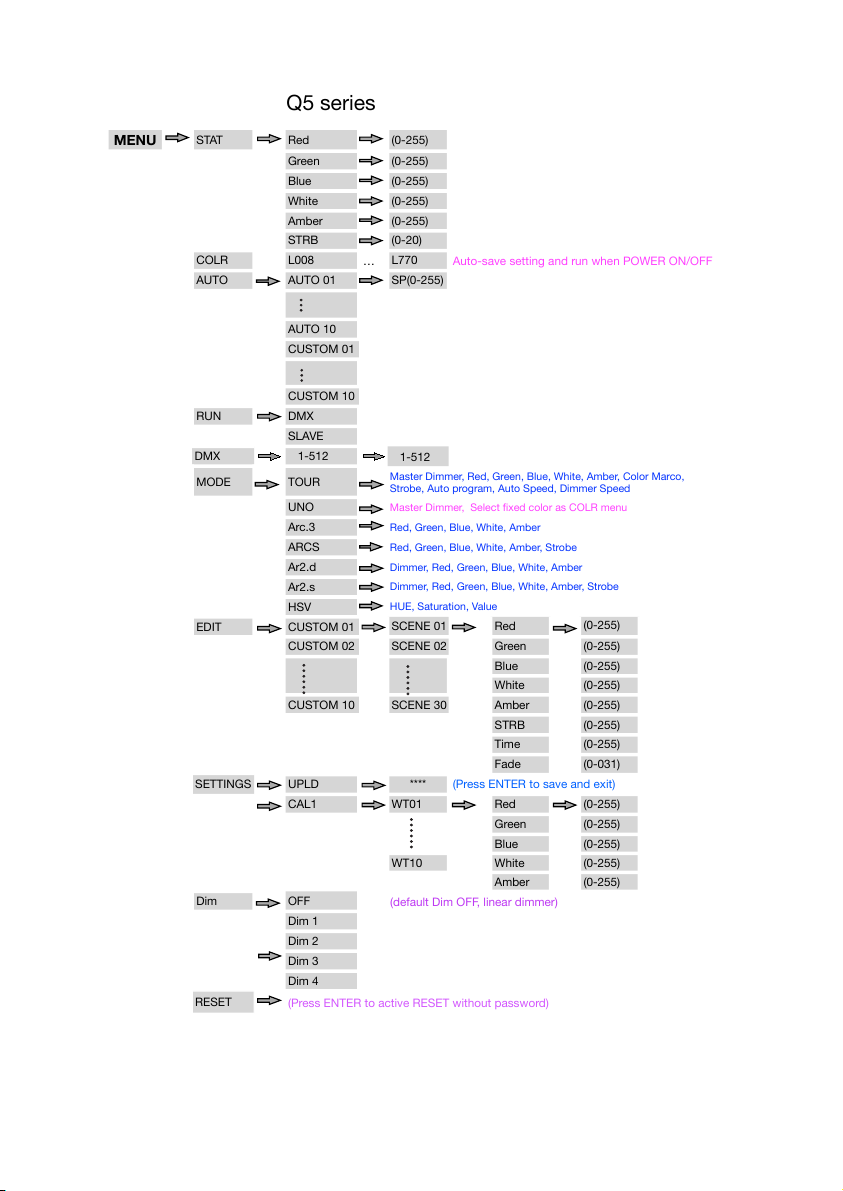

3.2 -- Display operation menu tree
3.3-12 Display operation instruction
PART 4 TROUBLESHOOTING LIST
PART 5 MAINTENANCE

Part 1 Product
1.1 Product introduction
This product is designed for Indoor and outdoor (with necessary
cover) use. Suitable applications include wash or effect lighting for
architectural, stage or nightclub applications. This product can also be
installed for use in signage and advertising using the dynamic functions
available with DMX512 control. Direct input of DMX512 signal allows the
units to be controlled from any DMX512 controller. This product can be
operated as a single unit or in multiple units for large applications.
1.2 Product Features
* Optical system: 1-256 grades electric adjustable, mini within 100ms
*Strobe: 0-20Hz Adjustable speed
*Color Marco: 9 preset colors, speed adjustable
* Working mode:
Standard DMX512 signal
(TOUR, UNO, Arc.2, ARCS, Ar2.d, Ar2.s, HSV - 7 modes)
Auto-mode
Master/Salve Mode
*Display panel: 4 digital led display
*White balance adjustable
* Auto-mode:
**10 preset color change programs, speed adjustable
**10 custom programs
1.3 Technical Specifications
Voltage: AC100-240V, 50/60Hz
AC230V—1.2A, AC115V—2.4 A (QR 4series)
AC230V—1.3A, AC115V-- 2.6A (QR 5series)
Light Source: QR CW4 series - 36PCS * RGBW 4in1 LED lamp
QR CW5 series - 36PCS * RGBWA 5in1 LED lamp
QR UV5 series - 36PCS * RGBW +UV 5in1 LED lamp
Beam Degree: D20, D30, D40, D60 (up to order)
LED Lifespan: around 30,000 ~ 50,000 hours (Rated by LED lamp factory)
Case: Die-casting aluminum
Net Weight：10.56Kg (non-IP), 10.94kg (IP67)
(Optional Barndoor & color filter holder up to order)
Size: 533 x 228 x 216mm

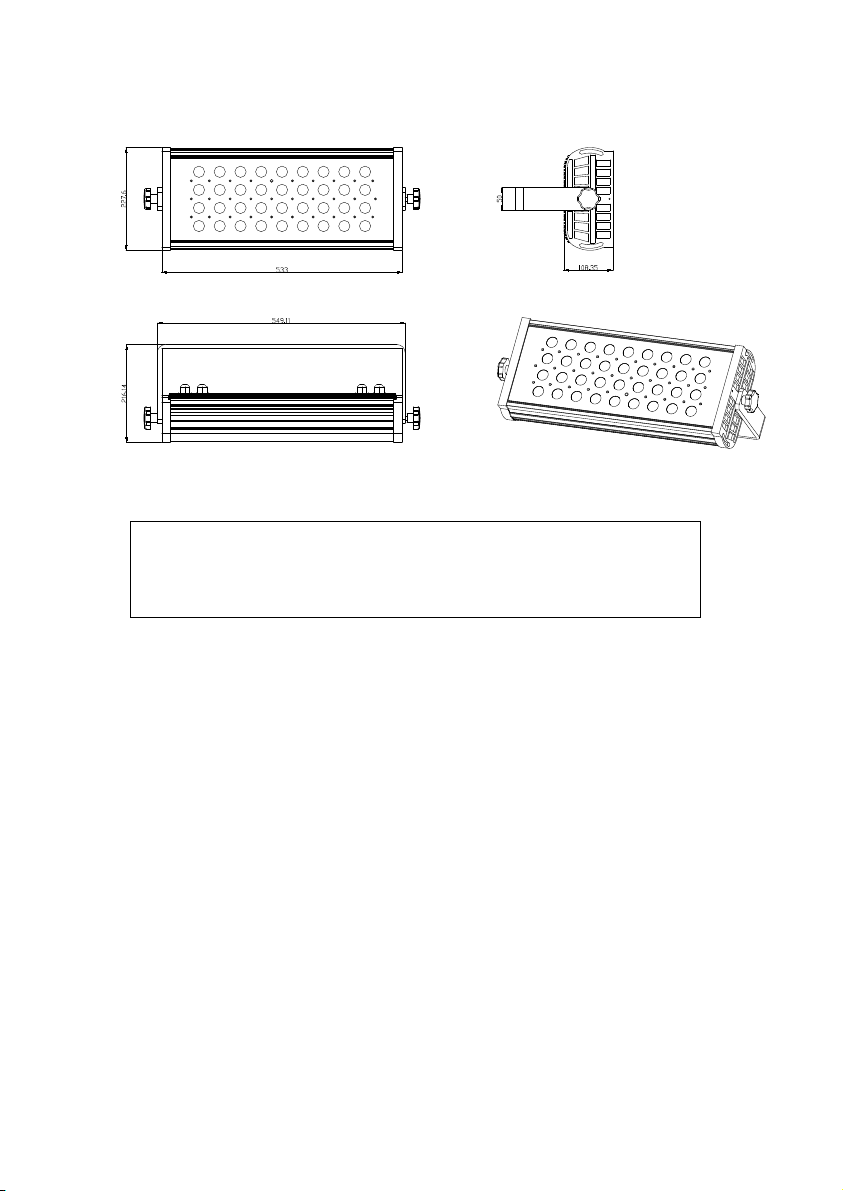

1.4 Dimension
1.5IMPORTANT:
ALWAYS READ THE USER MANUAL BEFORE OPERATION.
PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON
THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY
IN YOUR AREA.
☆ This product must be installed by a qualified professional.
☆ Always operate the equipment as described in the user manual.
☆ A minimum distance of 0.5m must be maintained between the equipment
and combustible surface.
☆ The product must always be placed in a well ventilated area.
☆ Always make sure that the equipment is installed securely.
☆ DO NOT stand close to the equipment and stare directly into the LED
light source.
☆ Always disconnect the power supply before attempting and maintenance.
☆ Always make sure that the supporting structure is solid and can support
the combined weight of the products.
☆ The earth wire must always be connected to the ground.
☆ Do not touch the power cables if your hands are wet.
ATTENTION:
☆ This product left the place of manufacture in perfect condition. In order to
maintain this condition and for safe operation, the user must always
follow the instructions and safety warnings described in this user manual.
☆ Avoid shaking or strong impacts to any part of the equipment.
☆ Make sure that al parts of the equipment are kept clean and free of dust.
☆ Always make sure that the power connections are connected correct and
secure.

☆ If there is any malfunction of the equipment, contact your distributor
immediately.
☆ When transferring the product, it is advisable to use the original packaging
in which the product left the factory.
☆ Shields, lenses or ultraviolet screens shall be changed if they have become
damaged to such an extent that their effectiveness is impaired.
☆ The lamp (LED) shall be changed if it has become damaged or thermally
deformed.
POWER CONNECTIONS
AC200V~ : 15 units may be connected in same series
AC100V~ : 8units may be connected in same series
PART 2 INSTALLATION
2.1 Mounting:
2.1-1 Hanging
The fixture can be mounted in a hanging position using the supporting
bracket. The bracket should be secured to the mounting truss or structure
using a standard mounting clamp. Please note that when hanging the unit a
safety cable should also be used.
2.1-2 Upright
The fixture can be mounted in an upright or sitting position using the
supporting brackets.
NOTE:
The fixture can be mounted at any angle and in any position. It is possible to
further adjust the angle of the fixture using the two adjustment knobs located
on the side of the fixture.
2.2 SETTING UP WITH A DMX512 CONTROLLER
2.1-1 Connect to DMX512 controller
☆Connect the DMX512 controller to the units in series.
☆When set TOUR mode -10 dmx channel, each unit will has 10 DMX
channels so the DMX Addresses should increase by increments of 10 (e.g.
1,11,21,31...)
☆Each DMX Address may be used as many times as required.
☆Any DMX address in the range from 001 to 512 may be used.

2.2-2 DMX Channel instruction
CW5
UV5
Series
CW4
Series
Function & Effect
DMX Value
DMX Mode 1- TOUR
CH1
CH1
Master Dimmer 0~100%
0<==>255
CH2
CH2
RED 0~100%，
(or STEP TIME when CUS.01-CUS.
10 in CH8 is activated)
0<==>255
CH3
CH3
GREEN 0~100%，
(or FADE TIME when CUS.01-CUS.
10 in CH8 is activated)
0<==>255
CH4
CH4
BLUE 0~100%
0<==>255
CH5
CH5
WHITE 0~100%
0<==>255
CH6
AMBER / UV 0-100%
0<==>255
CH7
CH6
COLOR MACRO
NO FUNCTION
RED 100%/GREEN UP/BLUE 0%
RED DOWN/GREEN 100%/BLUE
0%
RED 0%/GREEN 100%/BLUE UP
RED 0%/GREEN DOWN/BLUE
100%
RED UP/GREEN 0%/BLUE 100%
RED 100%/GREEN 0%/BLUE
DOWN
RED 100%/GREEN UP/BLUE UP
RED DOWN/GREEN DOWN/BLUE
100%
RGBW/(A)100％
White1: 3200k
White2: 3400k
White 3: 4200k
White 4: 4900k
White 5: 5600k
White 6: 5900k
White 7: 6500k
White 8: 7200k
White 9: 8000k
White 10: 8500k
White 11: 10,000k
0<==>5
11<==>30
31<==>50
51<==>70
71<==>90
91<==>110
111<==>130
131<==>150
151<==>170
171<==>200
201<==>205
206<==>210
211<==>215
216<==>220
221<==>225
226<==>230
231<==>235
236<==>240
241<==>245
246<==>250
251<==>255
CH8
CH7
Strobe speed from slow to fast
0<==>10 No Function
11<==>255 0－20HZ

CH9
CH8
AUTO PROGRAM
No Function
AUTO 1
AUTO 2
AUTO 3
AUTO 4
AUTO 5
AUTO 6
AUTO 7
AUTO 8
AUTO 9
AUTO 10
CUSTOM 1
CUSTOM 2
CUSTOM 3
CUSTOM 4
CUSTOM 5
CUSTOM 6
CUSTOM 7
CUSTOM 8
CUSTOM 9
CUSTOM 10
No Function
000<==>020
021<==>030
031<==>040
041<==>050
051<==>060
061<==>070
071<==>080
081<==>090
091<==>100
101<==>110
111<==>120
121<==>130
131<==>140
141<==>150
151<==>160
161<==>170
171<==>180
181<==>190
191<==>200
201<==>210
211<==>220
221<==>255
CH10
CH9
Auto speed adjustment
(Activated with AUTO 1-10 of CH8)
0<==>255
CH11
CH10
Dimmer Speed
Preset speed from display menu
Linear Dimmer
Non Linear dimmer 1 (Fastest)
Non Linear dimmer 2
Non Linear dimmer 3
Non Linear dimmer 4 (Slowest)
0<==>9
10<==>29
30<==>69
70<==>129
130<==>189
190<==>255
DMX Mode 2 - UNO (UV5 is same as CW4 under this mode)
CH1
CH1
Master Dimmer 0~100%
0<==>255

CH2
CH2
Fixed Color as COLR menu
No function
L008
L027
L075
L101
L106
L111
L113
L116
L117
L118
L119
L124
L126
L127
L134
L135
L136
L142
L147
L152
L153
L162
L170
L176
L180
L181
L193
L194
L201
L204
L219
L243
L323
L343
L363
L716
L770
0<==>3
4<==>6
7<==>13
14<==>20
21<==>27
28<==>34
35<==>41
42<==>48
49<==>55
56<==>62
63<==>79
70<==>76
77<==>83
84<==>90
91<==>97
98<==>104
105<==>111
112<==>118
119<==>125
126<==>132
133<==>139
140<==>146
147<==>153
154<==>160
161<==>167
168<==>174
175<==>181
182<==>188
189<==>195
196<==>202
203<==>209
210<==>216
217<==>223
224<==>230
231<==>237
238<==>244
245<==>251
252<==>255
DMX Mode 3
ARC.3
ARC.2
CH1
CH1
RED 0~100%
0<==>255
CH2
CH2
GREEN 0~100%
0<==>255
CH3
CH3
BLUE 0~100%
0<==>255
CH4
CH4
WHITE 0~100%
0<==>255
CH5
AMBER / UV 0-100%
0<==>255
DMX Mode 4 - ARCS
CH1
CH1
RED 0~100%
0<==>255
CH2
CH2
GREEN 0~100%
0<==>255

2.2-3 Basic instruction for DMX512 (TOUR mode)
MASTER DIMMER
CH1 controls the intensity of the currently projected color.
When the slider is at the highest position (DMX Value 255), the intensity of
the output is the maximum
RED, GREEN, BLUE & WHITE COLOR SELECTION
CH2, 3, 4, 5 control intensity of RED, GREEN, BLUE & WHITE each.
When the slider is at the highest position (DMX Value 255), the intensity of
the output is the maximum
COLOR MACROS
CH6 selects the required COLOR MACRO and has priority over CH2-5
CH1 is used to control the intensity of the COLOR MACRO
CH3
CH3
BLUE 0~100%
0<==>255
CH4
CH4
WHITE 0~100%
0<==>255
CH5
AMBER / UV 0-100%
0<==>255
CH6
CH5
STROBE 0-20Hz
0<==>255
DMX Mode 5 - Ar2. d
CH1
CH1
Master Dimmer 0~100%
0<==>255
CH2
CH2
RED 0~100%
0<==>255
CH3
CH3
GREEN 0~100%
0<==>255
CH4
CH4
BLUE 0~100%
0<==>255
CH5
CH5
WHITE 0~100%
0<==>255
CH6
AMBER / UV 0-100%
0<==>255
DMX Mode 6- Ar2. s
CH1
CH1
Master Dimmer 0~100%
0<==>255
CH2
CH2
RED 0~100%
0<==>255
CH3
CH3
GREEN 0~100%
0<==>255
CH4
CH4
BLUE 0~100%
0<==>255
CH5
CH5
WHITE 0~100%
0<==>255
CH6
AMBER / UV 0-100%
0<==>255
CH7
CH6
STROBE 0-20Hz
0<==>255
DMX Mode 7 - HSV
CH1
CH1
HUE - 256 colors
0<==>255
CH2
CH2
SATURATION 0-100%
0<==>255
CH3
CH3
VALUE 0-100%
0<==>255

STROBE
CH7 controls the strobe of CH1 to CH6
AUTO
CH8 selects the preset AUTO programs AT.01-AT.10 or the custom AUTO
programs CUS.01-CUS.10
When activating the custom AUTO programs CUS.01~10, it is possible to
control the STEP TIME/FADE TIME using CH2 and CH3 respectively.
CH8 has priority over CH2-7.
DIMMER SPEED
CH10 is for selecting the dimmer mode and dimmer speed. When
DIMMER is set to OFF, then RGBW and MASTER DIMMER are linear. The
Dim 1/2/3/4 are different speed of non linear dimmer.
2.2-4 Special construction for DMX connection.
☆At last fixture, the DMX cable has to be terminated with a terminator to
reduce signal errors. Solder a 120-ohm 1/4W resistor between pin
2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last fixture.
☆If the controller is 5-pin output, it’s necessary to use an adaptor to transfer
signal from 5-pin output to 3-pin XLR-plug or you can connect cables as
following:
3-pin XLR Pin 1 – 5-pin XLR Pin 1 GND
3-pin XLR Pin 2 – 5-pin XLR Pin 2 Negative signal (-)
3-Pin XLR Pin 3 – 5-pin XLR Pin 3 Positive signal (+)
5-pin XLR Pin4 & Pin 5 not used
PART 3 LED Display Panel Operation
3.1 Basic instruction:
MENU -- menu selection or return to previous menu
ENTER -- Confirm & Quit out current function setting
UP -- Press UP through the menu list to increase/change the value of the
current function
DOWN -- Press DOWN through the menu list to decrease/change the
value of the current function
