Quirky AIR User manual
QUICK START GUIDE
BT ID: D044966
Cool, you’ve got an Air by Quirky. Go you.
Let’s get you going so you can listen to all your favorite tunes like never before.
This little guide has all the answers you need about your new speakers. It’s super helpful, so
you should keep it around.
What’s Inside
1 AirBase Bluetooth® Speaker
4 AirConnect Bluetooth® Speakers
USB Charging Cable
Quick Start Guide (what you’re reading right now)
Aux Cable
Check Out These Features
Play your music wirelessly on all 5 speakers up to 75’ from the AirBase.
Speakers work together or on their own as Bluetooth® speakers.
Portable so your music goes where you do.
IPX4 water resistance (if they get splashed a little, no worries).
Works through most of the walls in your home.
Totally rechargeable. When speakers are connected they will charge from one cable.
SAFETY INSTRUCTIONS
Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. Do not
operate the unit if it has been exposed to water, moisture or any other liquids to prevent against
electric shock, explosion and/or injury to yourself and damage to the unit. Do not use the unit if it has
been dropped or damaged in any way. Repairs to electrical equipment should only be performed by a
qualified electrician. Improper repairs may place the user at serious risk. Do not puncture or harm the
exterior surface of the product in any way. Keep the unit free from dust, lint, etc. Do not use this unit
for anything other than its intended use or purpose. Doing so may damage the device. This product is
not a toy. Keep out of reach of children. Do not use the speaker at excessive levels as this may damage
hearing. Do not expose batteries, battery pack, or batteries to installed to excessive heat, such as
direct sunlight, or open flame.
1
1. Turn on your speakers. When the
speakers are connected to each other,
pressing any of the power buttons will
turn them all on. If separated you will
need to turn on each one individually.
Do you see a little green light on the
back of each one? Good. That means
they’re all on and connected.
2. Now it’s time to connect your
AirBase to whatever Bluetooth®
enabled device you’d like to
use. You’ll hear a friendly voice
telling you your speakers are in
“pairing mode.”
4. You’re all set. Now you can
separate the speakers and put
them wherever you want (just
so long as they’re within 75’ of
the AirBase).
3. Your smart phone or tablet
will show a list of devices
nearby; just choose “Air.” Now
you’ll hear a friendly voice
confirming you’re paired.
Charging Your Speakers
You’re anxious to take your new speakers out for a
spin. We get it. But before you do, charge them for
four hours. As long as the speakers are connected to
each other you can plug the cable into any micro
USB port.
Enjoying Your Speakers
The speakers work best if the AirBase is within 32’ of your smart device. If you’re out of range or your wireless connection is weak, your
music may cut out briefly. Don’t worry: Please make sure Bluetooth® is enabled on your device before you start the pairing process.
Air
*pairing
mode*
*pairing
mode*
2
1. While the speakers are o,
press and hold the power
button until you hear a chime and
then a beep.
2. Press the power button
again to switch to Bluetooth®
mode. The little indicator light
will turn blue.
3. Your smart phone or tablet will
show a list of devices nearby –
choose “Air Left” or “Air Right.”
You’ll hear another beep and,
presto!, it’s done.
Air Left
*chime
beep!*
Enjoying Your Speakers (continued)
But wait, there’s more. You can also pair each AirConnect speakers to its own Bluetooth® Source to use as a separate Bluetooth® Speaker. Whoa, sounds complex, right? It’s not. Just 3 little steps.
*Disclaimer: Please note there are circumstances that may restrict the wireless connection from working to it’s full 75’ wireless capability like interference or thick walls.
*Disclaimer: Both right speakers and
left speakers have the same pairing
names. Some devices may not allow
you to pair to one of the speakers
when you have already paired to a
dierent speaker with the same
name. You might need to delete the
pairing name and try to repair.
3
Enjoying Your Speakers (continued)
Audio output of the Air can be used to connect to an alternate audio system, such as a home theater system, or a TV, by plugging the audio cable into the “OUT” jack on the Air and to the “line
in” of the audio system of your choice.
Connection Lost?
If pairing to the speakers does not work, turn o the speakers and repeat the steps again in “Using Speakers.”
Make sure your speakers are within range of your smart device.
If you hear a long beep or a voice indicating low battery, you need to recharge your speakers. Connection may be lost due to low battery.
When charging your speakers, only use the enclosed USB cable.
4
*chime*
*chime*

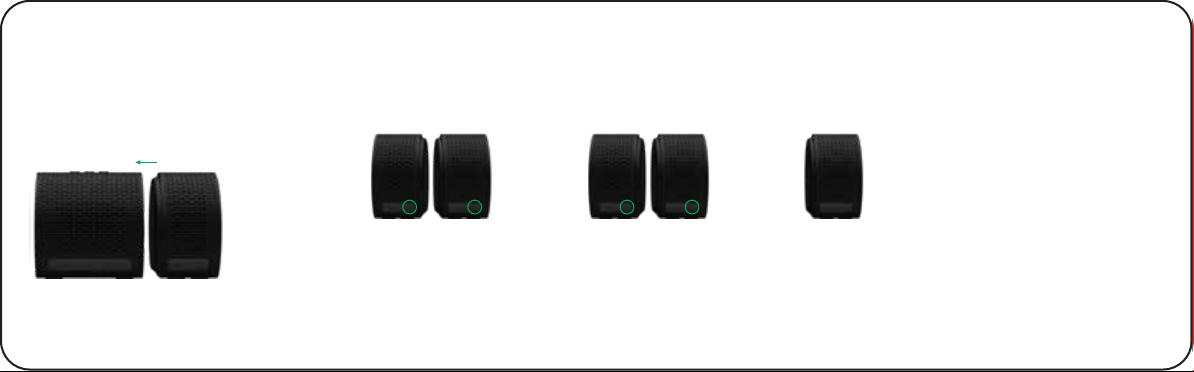

1. Turn o your AirConnect speakers. 2. Press and hold the power button
on your AirConnect speaker for
10-15 seconds. The AirConnect
speaker will power on and then
back o. Make sure you continue
to hold it until the AirConnect
speaker powers itself o.
3. Your AirConnect Speaker is
now disconnected from that
AirBase and can be paired to
any AirBase your heart desires.
Pairing Extra AirConnect Speakers
Your Air works great, but you’d like to expand your
sound even more. Air allows you to add up to
another 75 AirConnect speakers to your AirBase!
Pairing extra speakers is easy, all you need to do is
click your extra AirConnect speaker to the AirBase
and presto! You’ve just expanded your sound.
Disconnecting Your AirConnect Speaker from your AirBase
Air gives you the flexibility and versatilely to listen to audio the way you want to. This is why you’re able to disconnect
AirConnect speakers from your AirBase and reconnect them to other AirBases. To disconnect an AirConnect speaker from your
AirBase just follow these steps.
5
Specifications
Bluetooth Version: V 5.0
Power: AirBase: 2x4 W, AirConnect: 1x4 W
Battery: AirBase: 2200 mAh/3.7V, AirConnect: 1400 mAh/3.7V
Frequency: AirBase:88Hz-17KHz, AirConnect:100Hz-17KHz
Separated Speakers Connectivity Range: Up to75ft via 5.8ghz
Speaker Signal to Noise Ratio:（dB）≥60DB
Peak Noise at Max Volume（dB, distance 1M): AirBase:80DB, AirConnect:78DB
Dolby Support: No
Microphone Support: Yes
Play Time: AirBase: Up to 7.5H, AirConnect: Up to 6H
USB Cable Input Volt: 5V 2A
Charging Time: AirBase: Up to 4H, AirConnect: Up to 4.5H
Audio Input: AUX
Buttons: Mechanical buttons: Play/Pause; Vol+; Vol-; Mode/Power
Material: ABS + Rubberized Grill
Bluetooth®Names: AirBase: Air, AirConnect: Air left/Air right
Bluetooth®Range: ≤32.8ft
Water Resistance Grade: IPX4
Dimensions: 11.53” x 4.02” x 3.68”
Weight: AirBase: 0.753 lbs/0.341 kg, AirConnect (1 piece): 0.518 lbs/0.235 kg
6
WARRANTY
The Air By Quirky One-Year Limited Warranty is a voluntary manufacturer’s warranty. It provides rights separate to rights
provided by consumer law, including but not limited to those relating to non-conforming goods. As such, the Air By
Quirky One-Year Limited Warranty benefits are in addition to, and not instead of, rights provided by consumer law and it
does not exclude, limit or suspend a buyer’s rights arising from consumer law. Consumers have the right to choose
whether to claim service under the Air By Quirky One-Year Limited Warranty or under their consumer law rights.
Important: The Air By Quirky One-Year Limited Warranty terms and conditions shall not apply to consumer law claims.
Please note: All claims made under the Air By Quirky will be governed by the terms set out in this warranty document.
Your Air by Quirky-branded product (“Product”) is warranted against defects in materials and workmanship for a period
of ONE (1) YEAR from the date of original retail purchase (“Warranty Period”) when used in accordance with Air by Quirky
start up guide. Under this warranty, you will be able to direct your claims to Air by Quirky even in situations where you
purchased the Air by Quirky Product from a third party. If a defect arises during the Warranty Period, Air By Quirky, at its
option will (1) repair the Product at no charge using new parts or parts that are equivalent to new in performance and
reliability, (2) exchange the Product with a product with equivalent functionality formed from new and/or previously used
parts that are equivalent to new in performance and reliability or with your consent, a product that is at least functionally
equivalent to the product it replaces. This warranty excludes normal depletion of consumable parts such as batteries
unless failure has occurred due to a defect in materials or workmanship and, damage resulting from abuse, accident,
modifications, unauthorized repairs or other causes that are not defects in materials and workmanship.
Any limitations of liability in this warranty document shall not apply to (i) death or personal injury pursuant to any
mandatory law on product liability; (ii) fraud or fraudulent misrepresentation; (iii) intentional misconduct or gross
negligence; (iv) or a culpable breach of major contractual obligations. A damages claim based on a breach of major
contractual obligations or gross negligence will be limited to foreseeable damage typical for the sale contract concerned.
Proof of purchase may be required to verify eligibility.
WARNING
Keep away from water and moisture. Keep away from heat sources. Do not disassemble.
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Please note that changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC INSTRUCTIONS FOR A CLASS B DIGITAL DEVICE OR PERIPHERAL
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
