READ THIS MANUAL BEFORE OPERATING YOUR E-SCOOTER
STRONGLY SUGGEST THE OPERATOR OF THIS PRODUCT BE 16 YEARS OF AGE OR OLDER
For the most recent version of this user’s manual and for all updated product information, please
contact with the local dealer.
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING USE OF
THE E-SCOOTER. TO DETERMINE IF COVERAGE IS PROVIDED YOU SHOULD CONTACT YOUR
INSURANCE COMPANY OF AGENT

- 3 -
Introduction
Dear Customer,
Wow! You are excited! You have just received our brand new E-Scooter! We are excited too,
because as designers and developers of our e-scooters, we want to make you happy, and we
believe that your new e-scooters will give you lots of fun.
I know that you want to get this scooters on the road immediately, but please STOP!
Why? Well, first of all, you need to charge your batteries fully before using it. So, while your
e-scooters is charging, take the time to read this manual. We have worked hard to make it as
readable and fun as possible! This manual will help prevent injury and teach you how to care for
your new e-scooters.
►It is the Owner’s responsibility to carefully read all of the contents of this manual and to
comply with all laws pertaining to the operation of electric scooters in your local jurisdiction. If
you have any questions please consult with the Laws web page or consult your local
department of motor vehicles for clarification.
►To drive the vehicle on the roads,check local laws.
►We have worked hard to provide you a quality product, well designed, and without defects.
That is our responsibility. You too have a part to play with proper care and maintenance and
attention to e-scooters safety rules, our e-scooters will give you years of enjoyment.
►Please read the instructions carefully before using. Do not ride this bicycle until you have
read and thoroughly understand the Owner’s manual. It contains information critical to your
safety. If you have questions about the operation of this e-scooter, consult your authorized
dealer. It is extremely important that you follow the safety guidelines contained in this manual in
order to ensure your maximum safety. If you loan your e-scooters to anyone make sure they
also know how to operate it safely.
►When using, the load should not be greater than the maximum capacity, and please pay
attention to increase the braking distance during rainy or snowy days.
►This e-scooter is not afraid of the rain and snow, but it can't be submerged in water. It will
cause short circuit and damage to the electric apparatus, when water submerges the rear wheel
center.
►The exposed metal contact on the battery box is positive and negative , can't be touched at
the same time with wet hands, also it can’t be kept in touch with anything metal at the same
time, otherwise it will cause short circuit and accidents!
►Please don't dismantle and repair the spare parts by yourself, please go to the local
distributor or the servicing station to repair if necessary.

- 4 -
►Please take time to record the following information:
Recording Your Serial Number
VIN: _______________________________________________
Model: _ __
Color: ______________________________________________
Date of Purchase : ____________________________________
Distributor: _________________________________________

- 5 -
TABLE OF CONTENTS
Introduction ……………………………………………………………………………………………………………………3
Record Your Serial Number .......................................................................................4
Table of Contents ………………………………………………………………………………………………………….5
General safety guidelines ………………………………………………………………………………………….6-8
Before each ride …………………………………………………………………………………………………………….7
After each ride …………………………………………………............................................................8
Vehicle instructions………………………………………………..................................................9-11
Operating instructions……………………………………………………………………………………………12-17
Assembly Instructions ………………………………………………………………………………………………..18
Driving power system instructions …………………………………………………………………………19
Battery&charger instructions…………………………………………………………………………………20-22
General Usage Notes ………………………………………………………………………………………………….23
Maintenance …………………………………………………………………………………………………………………24
Troubleshooting …………………………………………………………………………………………………………..25
Warranty ……………………………………………………………………………………………………………………….26
Warranty Service ……………………………………………………………………………………………………….27
Electrical schematic diagram …………………………………………………………………………………28

- 6 -
UNDERSTANDING THIS MANUAL
This Manual contain many ▲WARNING notes concerning the consequences of failure to
maintain or inspect your E-SCOOTER. A ▲WARNING means that failure to follow the
instructions following it may result in injury to the rider or others during use, which may
include loosing control and falling. Because any fall can result in serious injury or even death,
we do not repeat the warning of possible injury or death whenever the risk of falling is
mentioned. A ▲CAUTION on the other hand means that failure to follow the instructions may
result in damage to the E-SCOOTER or component during installation or use. (I.e. risk or
property （product）damage only).
Thank you for the purchasing the electrical powered Moped, The Moped complies with the
Electric Motor Vehicle Safety Regulation.
GENERAL SAFETY GUIDELINES & RESTRICTIONS
1. Don't weave through traffic or make any moves that may surprise people with whom
you are sharing the road.
2. Never carry anything which obstructs your vision or your complete control of the
E-SCOOTER or which could become entangled in the moving parts of the E-SCOOTER.
3. Never hitch a ride by holding on to another vehicle.
4. By any physically or mentally challenged person
5. By any person with vision, balance, hearing or coordination impairments
6. By any person using headphones or a cellular phone [ They mask traffic sounds and
emergency vehicle sirens, distract you from concentrating on what's going on around you,
and their wires can tangle in the moving parts of the E-SCOOTER , causing you to lose
control ].
7. To carry more than 15kgs of cargo in the cargo compartment (in addition to the rider).
8. Don't running over 25 km/h (with or without the motor activated)
9. Don't using vehicle by barefoot or those wearing sandals, open toed, high heeled, platform
or slip on footwear
10. By any person who has ingested any alcohol or drug that could impair their ability to
operate the E-SCOOTER.
11. Without 2 hands on the handle bar.
12. Please seated on the seat while running.
13. Don't jump ramps, curbs, or objects or attempt any stunts.
14. Don't beyond your ability or prior experience.
15. Don't stopping with only the front brake. Use both brakes simultaneously.
16. Do not try to accelerate and have the brake (s) on at the same time.
[ This may cause damage to the motor or drive train or cause the motor or drive train to
overheat. ]

- 7 -
NEITHER MANUFACTURE NOR THE RETAIL SELLER OF THE E-SCOOTER IS RESPONSIBLE
FOR THE CONSEQUENCES OF FAILURE TO COMPLY WITH FEDERAL AND PROVINCIAL
ORDINANCES RELATING TO THE USE OF THE E-SCOOTER.
! WARNING
ALWAYS USE A HELMET WHILE RIDING THE E-SCOOTER.
The safety regulations require that you use a helmet like those used by human powered bike
riders while riding the E-SCOOTER.
E-SCOOTER should not be used under any circumstances without properly wearing a helmet.
! WARNING
IN ADDITION TO THE REQUIREMENTS ABOVE, THE E-SCOOTER IS NOT
TO BE RIDDEN / USED:
1. on any roadways where the speed limit is
in excess of 25 km/h
2. on any sidewalks or pedestrian walkways
3. on any bumpy, rough or unpaved surfaces
4. in darkness without lights on
5. on sandy or gravel covered surfaces
6. by any person weighing more than 150 Kgs
7. by any person with an inseam of less than 22"
BEFORE EACH RIDE:
!WARNING !CAUTION
1. Make sure you properly wear a helmet.
2. Wear protective clothing and gloves.
3. Wear eye protection that does not interfere with your peripheral vision.
4. Check local and state laws before operating the E-SCOOTER in any area.
5. Make sure all tail/brake lights, turn signals and headlight are operational.
6. Make sure the horn is operational.
7. Make sure the brakes are properly adjusted and working correctly (see further detailed
instructions).

- 8 -
8. Make sure you understand how the brakes work and that your hands can reach and squeeze
the levers comfortably and hard enough to stop the E-SCOOTER safely.
9. Make sure all parts of the E-SCOOTER are properly and securely fastened and adjusted,
including but not limited to wheels, all controls and cargo (Please refer to Assembly
Instructions).
10. Make sure the tires are not excessively worn, do not have tears or cuts, and are properly
seated on the rim and inflated to the proper pressure on the sidewall
11. Make sure the wheels spin straight and that the rims are not bent or damaged (front wheel
must be undamaged for front brake to work properly).
12. Make sure the throttle is in the "OFF" position before turning E-SCOOTER key on.
This will prevent the E-SCOOTER from moving forward without notice once the ignition key
is turned.
13. Make sure the “Air Switch” under the seat is in the “On” position before turning key on.
AFTER EACH RIDE:
!WARNING !CAUTION
1. Make sure that the ignition key is turned OFF and that all keys are removed and kept in a
safe place.
2. Make sure to plug the battery on charge.
3. Make sure the throttle is rotated to the off position
4. Ensure the E-SCOOTER is not kept outdoors or where moisture can damage it
5. Do not charge or store the E-SCOOTER closer than 20 feet from any flame (e.g. furnace,
fireplace, water heater, space heater).
6. Do not allow children under 16 to play on or near the unattended E-SCOOTER.
!WARNING FAILURE TO FOLLOW THESE OPERATION INSTRUCTIONS CAN RESULT IN
SERIOUS INJURY OR DEATH OR COULD RESULT IN AN ELECTRICAL SHORT AND OR FIRE.
!WARNING DO NOT MAKE ANY ALTERATIONS OR MODIFICATIONS TO THE MOTORINOTM ,
OR ADD ANY PARTS NOT AUTHORIZED BY Manufacturer EXCEPT THOSE DISCUSSED IN THIS
MANUAL OR THOSE REQUIRED BY LAW. DO NOT REMOVE ANY REFLECTORS, LIGHTS OR
OTHER STANDARD EQUIPMENT. DOING THAT WILL VOID YOUR WARRANTY.
All authorized replacement parts are listed on the parts list enclosed or by calling your local
dealer.

- 9 -
VEHICLE INSTRUCTIONS

- 10 -
VEHICLE INSTRUCTIONS

- 11 -
List
of Parts.
1 Head Light 18 Speed Meter 35 Frame
2 Rear Mirror 19 Head Light Switch 36 Upper Arm
3 Rear Brake Bar 20 Turning Light Switch 37 Lower Arm
4 Front Brake Bar 21 Horn Button 38 Rear Absorber
5 22 Grip 39 Motor
6 Front Turning Light 23 Head Light Switch 40 Differential
7 Front Wheel 24 TORQUE Switch 41 Controller
8 Seat 25 Throttle 42 DC-DC
9 Rear Box 26 REVERSE Switch 43 Battery Box
10 Rear Light 27 Ignition Lock 44 Brake Adjust Nut
11 Seat Lock 28 Hook 45 Rear Drum Brake
12 Rear License Light 29 Cup
13 Rear Anti-roll Wheel 30 Parking Brake Pin
14 Rear Wheel 31 Air Switch
15 Seat Back 32 Seat Adjust Holder
16 Seat Rest 33 Front Absorber

- 12 -
17 Charger Socket 34 Front Disk Brake

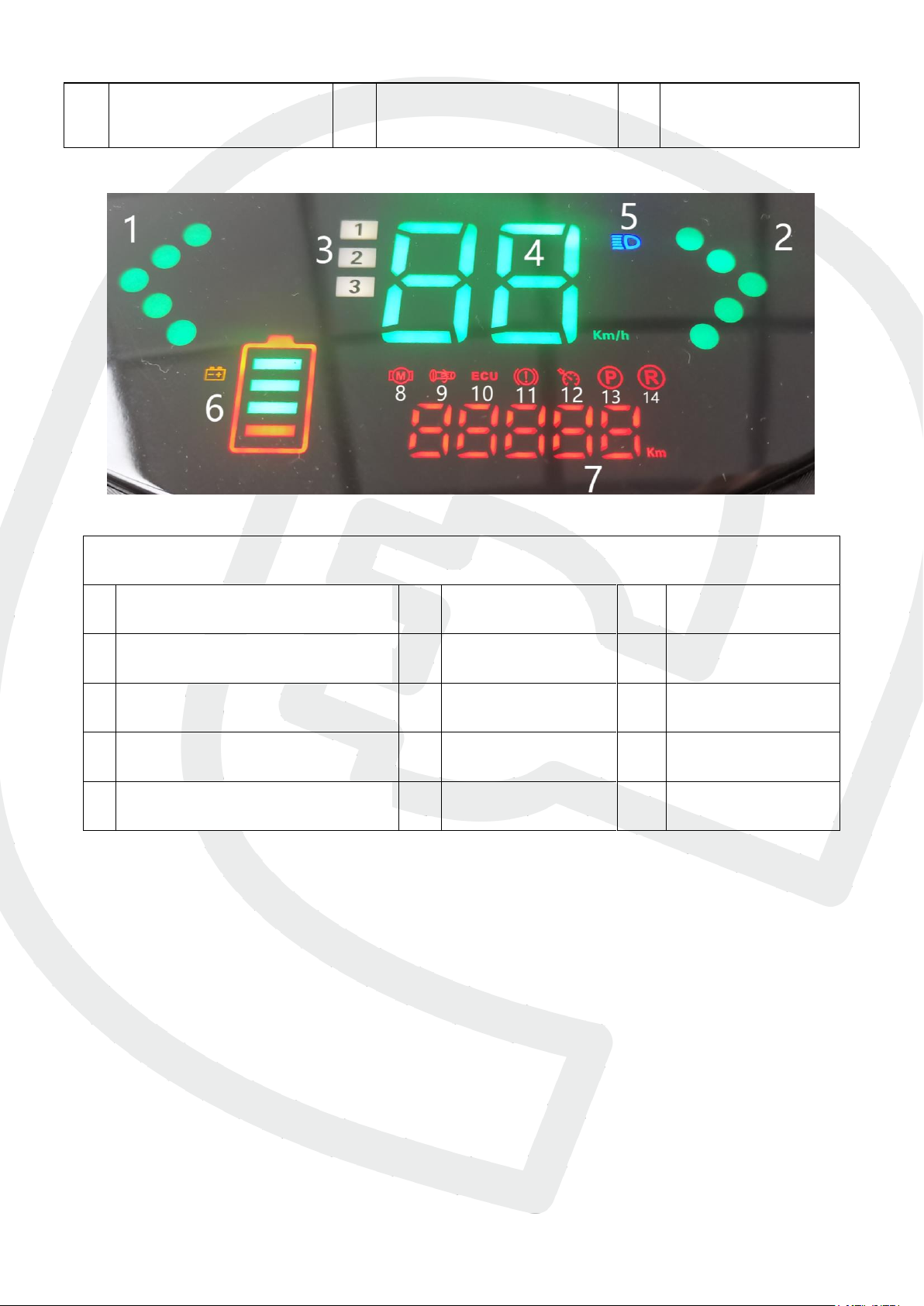

SPEED METER INSTRUCTIONS
SPEED METER INSTRUCTIONS
1 Left turning indicator 6 Battery lever 11 Brake fault
2 Right turning indicator 7 Range lever 12 uninvolved
3 Speed gear 8 Motor fault 13 uninvolved
4 Speed number 9 Throttle fault 14 Reverse gear
5 High beam indicator 10 Controller fault
1.Motor fault: Motor Sensor/Motor inner coil/Motor cable broken
2.Throttle fault: Throttle cable/Throttle sensor/Connector broken.Also may because the
throttle does not return to stop position.
3.Controller fault: Mosfet or other parts inside controller broken.
4.Brake fault: Brake switch/cable/connector broken.
If any of these fault logo shows on speed meter,at same time you are not
operating any thing,means something wrong with vehicle so you need check
vehicle or call you local dealer.
Brake fault logo also will be on when you pull the brake bar.

- 13 -

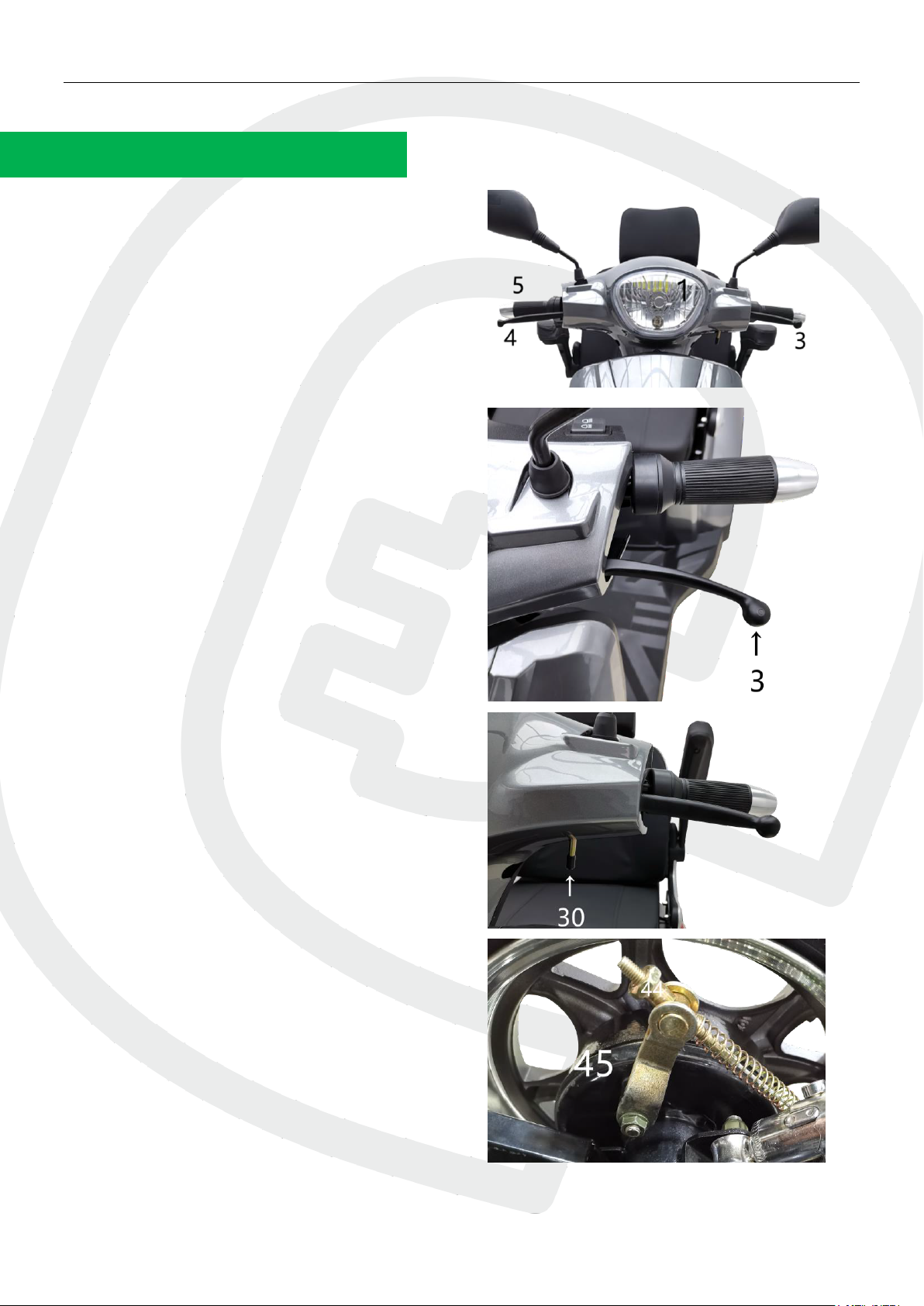

KEY OPERATION
ON/OFF/LOCK Switch: (ignition)
1. E-
SCOOTER is ON. Turn it ON only when you are
ready to go. Turn it OFF when you are not riding and
remove key.
2. E-SCOOTER is OFF. Turn it OFF when not in use to
preserve the battery. The key can be removed.
3. Push the key and turn from position “2” to position
“4” to lock the handlebar.
4. Handlebar is locked. The key also can be removed.
!CAUTION BEFORE OPERATING YOUR E-SCOOTER, MAKE SURE THAT THE THROTTLE GRIP
IS NOT ROTATED TO THE "ON" POSITION!!! MAKE ALSO SURE THAT YOUR THROTTLE IS NOT
"STICKY" AND ROTATES FREELY BACK TO THE INITIAL POSSITION SEE PICTURE FOR
CORRECT PLACEMENT OF LEVER BEFORE USAGE!!!
CONTROL SWITCHES
The Mobility Scooter uses a speed changing throttle grip. It is on the right side of the
handlebar. Rotate the throttle grip toward the seat to accelerate and rotate forward away from
the seat to slow down.
control switches
and throttle
It is suggested after acceleration to turn back 1/4 turn the throttle. This will increase your
range and increase your battery life.

- 14 -
THROTTLE OPERATING INSTRUCTIONS
1.Turn the key to the 'ON' position, then turn the
Throttle Gradually to accelerate.
2.To prevent losing control of the vehicle, please
turn the Throttle slowly until the speed
increases.
3. Do not turn the Throttle until you are in the
position to drive.
4.To stop, release the throttle and apply the front
and rear brake simultaneously. You can
decelerate by slightly pressing t
he brakes to
start regeneration mode.
5.To move, release the brakes and turn the
Throttle gradually.
6.When you turn move the turn signal switch left
or right and don't forget to press it to turn it off.
7.The Brush less motor
makes a small
electromagnetic noise when turning the Throttle
to start. This is normal.
8. Please, for your safety and security, take the
key out when you are not riding.
Reverse Gear
1. The Reverse Button is located beside the
throttle
2.When motor stopped you can push the button
change to reverse gear, and when you push
again the vehicle will go forward again.
3.If in the reverse gear all the turning light will
works,also buzzer makes some sound.
4.Some model speed meter will shows “R” when
system in reverse gear.
5.For safely when in reverse gear,speed will be
limited.
The distance and speed depend upon various elements of the rider's style and the road
conditions. A constant speed and less stops will ensure longer range. Other factors include
weather, vehicle condition, and battery charge. Drivers must be cautious when driving on
rough roads, in poor weather, or when the battery charge is low. Always check the battery
gauge while you are riding and be sure that it does not get too low too often.

- 15 -
TORQUE/GEAR OPERATING INSTRUCTIONS
The vehicle have three gears.
1.Gear 1 Less Speed and Less Torque (Economy
mode).
2.Gear 2 More Speed and More Torque
(Comfortable mode).
3.Gear 3 MAX Speed and MAX Torque
(Climbing mode).
The torque/gear switch is located beside the
throttle.
1.If you are driving on a flat or low hill road, you
can use Gear 1 to get maximum range.
2.When you ride on moderate hills, or you want
faster you can use Gear 2.
3.When you ride on steep hill you should switch
to high
torque for maximum performance(Gear 3).
For safely when you turn on the key,system
always set the Gear Option at Gear 1,you can
choose different gear as needed.
Speed Meter also shows different Gear Number
LIGHTS&HORN OPERATING INSTRUCTIONS
1.NO.23 is Head Light switch
5.NO.24 is TORQUE/GEAR switch
6.NO.26 is REVERSE/GEAR switch
2.NO.19 is High Beam switch
3.NO.20 is Turning Light switch
4.NO.21 is Horn button

- 16 -
BRAKE SYSTEM INSTRUCTIONS
Vehicle have three kinds brakes
1. Normal mechanical brake
2. Regenerative brake
3. Parking brake
Using front and rear brake bar to control the
front and rear mechanical brake.
Regenerative brake is Automatically activated
by using front or rear mechanical brake.
Parking brake can lock rear left and right side
wheels.
First pull the rear brake bar and push the
guide pillar ( Part No.30) and then release the
brake bar.
The parking function is effective at slopes
below 13°
Fasten the rear brake cable nut(part No.44)
while the parking brake can not hold the
vehicle

- 17 -
SEAT UNTI INSTRUCTIONS
SEAT SYSTEM INSTRUCTIONS
EASY 50
The seat back can move back and forth
Pull the holder (part No.32)to release the lock
for seat
PLEASE DO NOT MOVE THE SEAT AT
LAST POSTION WHILE IN MOUNTAION
AREA OR CLIMBING AREA.

- 18 -
ASSEMBLY INSTRUCTIONS
Instructions described below with supporting pictures.
STORAGE BOX
Locate the storage box and mount it on
the back of the seat back. With 4 pcs M6
screw.
REARVIEW MIRRORS
Locate the mirrors included with your SCOOTER . Use a
No.14 open spanner assembly the mirrors as shown in
the pictures. After that you can adjust the view for the
mirror.

- 19 -

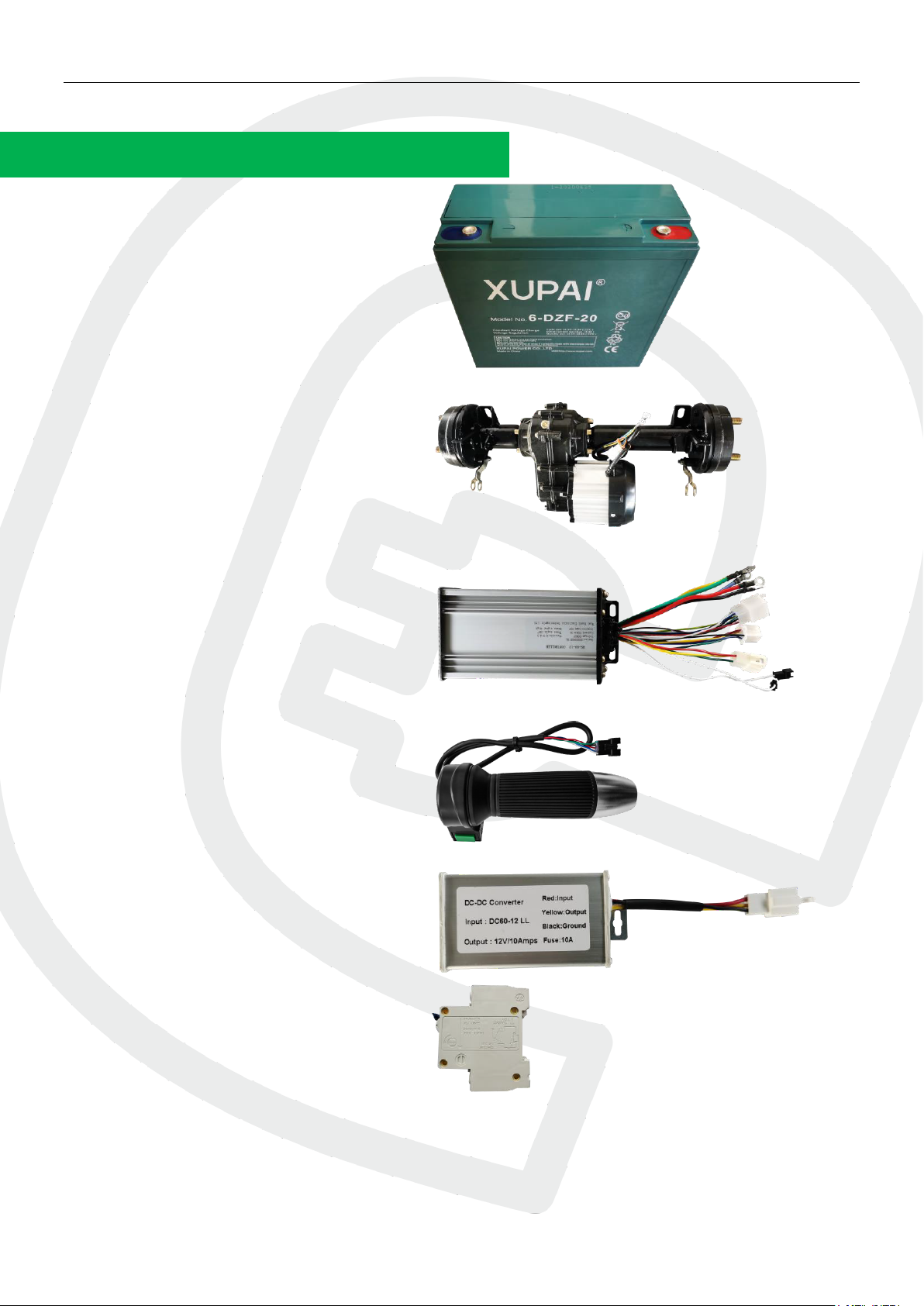

DRIVING POWER SYSTEM INSTRUCTIONS
scooters driving power system
consist of four main components:
- Battery
-Controller
- Throttle
-
Motor
When the throttle is twisted, a signal
goes to the controller, relevant to the
angle of turning. Then the controller
draws from the battery current, relevant
to the required speed, controlled by the
throttle and the power necessary to start
the scooter or drive it uphill.
The higher the driving speed is and the
steeper the hill is, the lower the range of
the E-SCOOTER is. A second battery can
be connected to the extra battery cable
to extend the range.
The main breaker under the seat works
as a high current protector.
60V DC to 12V DC converter
makes the
voltage to 12V. All light bulbs work on
12V.
When the E-SCOOTER is stored for a long
per
iod of time the main breaker to be
turned OFF.
Turning the throttle all the way up and
riding the scooter all the time on a full
throttle will aslo reduce the range and the
battery life. We suggest you to start
smoothly and turn the throttle 1/4 turn
down when you have built a momentum.
