Race Navigator RN ONE User manual

2
Thank you for choosing RN ONE!
Please read this manual before using the device for the first
time.
Visit the website for more information:
www.race-navigator.com
Manual updated: 08-11-2023
Release date: 11/05/2016

3
TABLE OF CONTENTS
DELIVERY SCOPE .............................................................................................................................................................................10
RN ONE INSTALLATION ..................................................................................................................................................................11
RN ONE PORTS DESCRIPTION ......................................................................................................................................................12
DEVICE CONFIGURATION WITH MULTIPLE CAMERAS ............................................................................................................16
RN ANALYZER APP ..........................................................................................................................................................................17
TECHNICAL PARAMETERS.............................................................................................................................................................19
1HOME ........................................................................................................................................................................................21
2STATUS BAR ............................................................................................................................................................................22
3DASHBOARD ...........................................................................................................................................................................23
3.1 DASHBOARD ·PANEL 1......................................................................................................................................................... 23
3.2 MANUAL CORRECTION OF CURRENT LAP NUMBER ................................................................................................................. 24
3.3 DASHBOARD ·PANEL 1ADDITIONAL SETTINGS................................................................................................................... 25
3.4 DASHBOARD ·PANEL 2......................................................................................................................................................... 26
3.5 DASHBOARD ·PANEL 3......................................................................................................................................................... 26
3.6 DASHBOARD ·PANEL 4......................................................................................................................................................... 27

4
3.7 DASHBOARD ·PANEL 5......................................................................................................................................................... 27
4MANUAL RECORDING............................................................................................................................................................28
5RECORDING WITH OBD-II DIAGNOSTIC DATA.................................................................................................................29
5.1 CONNECTING TO RN OBD LINK PLUG..................................................................................................................................... 30
5.2 CONNECTING TO RN PLUG BT LE............................................................................................................................................. 33
6LAPS HISTORY (LAPS)............................................................................................................................................................36
6.1 LAP DETAILS........................................................................................................................................................................... 37
6.2 REVIEW DRIVE....................................................................................................................................................................... 37
6.3 VIDEO PLAYER ....................................................................................................................................................................... 38
6.4 EVENTS.................................................................................................................................................................................... 38
7ANALYSIS..................................................................................................................................................................................39
8SETTINGS .................................................................................................................................................................................40
9DRIVER......................................................................................................................................................................................41
9.1 DRIVER ·ADD........................................................................................................................................................................... 41
10 CAR .......................................................................................................................................................................................43
10.1 CAR ·ADD.................................................................................................................................................................................. 43

5
10.2 CAR ·CONFIGURE CAN BUS..................................................................................................................................................... 45
10.3 CAN BUS DIAGNOSTICS AND TROUBLESHOOTING ................................................................................................................... 54
11 TRACK...................................................................................................................................................................................56
11.1 TRACK VARIANTS.................................................................................................................................................................. 59
11.2 TRACK VARIANTS ·EDIT ....................................................................................................................................................... 59
11.3 TRACK VARIANTS ·ADD ....................................................................................................................................................... 60
12 EVENT...................................................................................................................................................................................61
12.1 EVENT ·TRACKDAY/RACE ....................................................................................................................................................... 62
12.2 EVENT ·ENDURANCE ............................................................................................................................................................... 63
12.3 EVENT ·TAXI ............................................................................................................................................................................ 64
12.4 EVENT ·STREET MODE............................................................................................................................................................ 65
12.5 EVENT ·RCN MODE................................................................................................................................................................ 74
12.6 EVENT ·RALLY ......................................................................................................................................................................... 79
12.7 EVENT ·AUTO MANAGED........................................................................................................................................................ 83
12.8 EVENT ·AUTO MANAGED REC LIMIT..................................................................................................................................... 84
12.9 EVENT ·TOURISTENFAHRTEN/LIVE-LAP TIMING DEACTIVATED........................................................................................... 85
12.10 EVENT ·SIMULATION .......................................................................................................................................................... 90
13 NETWORK............................................................................................................................................................................94

6
14 CAMERA...............................................................................................................................................................................96
15 DEVICE .................................................................................................................................................................................98
15.1 DEVICE ·STATUS...................................................................................................................................................................... 99
15.2 DEVICE ·CLOCK ......................................................................................................................................................................100
15.3 DEVICE ·UPDATE ...................................................................................................................................................................101
15.4 DEVICE ·DIAGNOSTICS...........................................................................................................................................................104
15.5 DEVICE ·RN RESET ...............................................................................................................................................................105
15.6 RN RESET ·RESET EVENT DATA ............................................................................................................................................105
15.7 RN RESET ·FACTORY SETTINGS .............................................................................................................................................106
15.8 RN RESET ·RN RECOVERY.....................................................................................................................................................106
15.9 DEVICE ·HELP........................................................................................................................................................................107
15.10 DEVICE ·LOGO..................................................................................................................................................................107
15.11 DEVICE ·VIDEO,SOUND....................................................................................................................................................108
15.12 DEVICE ·ADDITIONAL SETTINGS ·UNITS /TIME..............................................................................................................110
15.13 DEVICE ·ADDITIONAL SETTINGS ·PIT LANE MONITOR ..............................................................................................111
15.14 DEVICE ·ADDITIONAL SETTINGS ·OBD-II SETTINGS ......................................................................................................111
15.15 DEVICE ·ADDITIONAL SETTINGS ·TPMS SETTINGS ....................................................................................................112
15.16 DEVICE ·ADDITIONAL SETTINGS ·AUTO REMOVE ...........................................................................................................113
15.17 DEVICE ·ADDITIONAL SETTINGS ·PIT LANE REC. ZONE ................................................................................................114

7
16 AUTOSTART ..................................................................................................................................................................... 116
17 LAYOUT ............................................................................................................................................................................. 118
17.1 LAYOUT SETTINGS .................................................................................................................................................................119
18 EXPORT IMPORT............................................................................................................................................................. 120
18.1 EXPORT VIDEO ....................................................................................................................................................................121
18.2 IMPORT VIDEO.....................................................................................................................................................................122
19 PIT LANE MONITOR........................................................................................................................................................ 123
19.1 SETTING UP PIT LANE MONITOR.............................................................................................................................................124
19.2 PIT LANE MONITOR SETTINGS ................................................................................................................................................125
19.3 PIT LANE MONITOR COUNTDOWN ..........................................................................................................................................126
19.4 PIT LANE MAXIMUM SPEED WARNING ..................................................................................................................................134
19.5 PIT LANE OVERALL TIME COUNTER.........................................................................................................................................135
19.6 MODIFYING PIT LANE MONITOR START AND END LINES.......................................................................................................136
19.7 MODIFY PIT LANE START/END ...............................................................................................................................................137
19.8 PIT LANE VISITS .......................................................................................................................................................................139
20 TIRE PRESSURE MONITORING SYSTEM ................................................................................................................... 140
20.1 SYSTEM MOUNTING .................................................................................................................................................................141

8
20.2 CONDITIONS FOR PRESSURE DATA TRANSMISSION.................................................................................................................142
20.3 CONNECTING TPMS TO RACE NAVIGATOR ............................................................................................................................143
20.4 SETTING UP TPMS SYSTEM ....................................................................................................................................................145
20.5 TPMS SETTINGS .....................................................................................................................................................................146
20.6 OPTIMAL TIRE PRESSURE SETTINGS.......................................................................................................................................148
20.7 PRESSURE DISPLAY .................................................................................................................................................................148
20.8 TIRE PRESSURE WARNING SETTINGS .....................................................................................................................................149
20.9 TIRE PRESSURE WARNING MESSAGES...................................................................................................................................150
21 TROUBLESHOOTING/RECOVERY................................................................................................................................ 151
22 MORE INFORMATION AND SAFETY PRECAUTIONS ............................................................................................... 152
23 REGULATORY INFORMATION ...................................................................................................................................... 154

2

10
Delivery scope
Take the Race Navigator ONE out of the box and
check the content:
•Race Navigator ONE
•External GPS antenna
•Windscreen holder with suction cup
•12 V car adapter cable and 230 V
charger.
Race Navigator ONE
The RN ONE appeals to all sports car drivers and motorsport professionals who
drive on race tracks and wish to be able to intuitively record and analyze their drives
without the need for technical expertise.
With its big touchscreen and compact, lightweight casing, the RN ONE is a system
designed for intuitive usage. Two integrated cameras for track and cockpit recording
render composite videos in HD quality. GPS, Wi-Fi and Bluetooth are integrated.
A number of functions are available including:
•HD (720p/30fps) video recording from 2 cameras in standard,
•Optional Full HD (1080p/30fps) video recording with additional
camera,
•Cameras with wide-angle lens,
•High dynamic range microphone,
•Recording starts and ends automatically, depending on the
speed,
•GPS position and speed (10 Hz),
•Acceleration sensor (20 Hz),
•Gyro sensor (roll/yaw/pitch) and compass,
•Engine speed, throttle position and more car-specific data via
OBD2 or CAN connectors,
•Wireless (Wi-Fi) data/video transfer,
•Export of data/video to USB stick (USB 3.0)

11
RN ONE Installation
Take the suctiopn cup mount and screw it to the device. In the vehicle, put the
suction cup of the mount below the rear-view mirror and fasten it tight to the
windscreen with the clamping lever.
Make sure that the mounted RN ONE can record videos properly. In general, the best
position is about 5−10 cm above the dashboard.
Adjust the RN ONE so that the top is approximately in balance. Check the position
by recording a test video.
NOTE: Before every ride, check the adherence of the mount. An incorrectly installed
device might get detached from the windscreen and get damaged, causing damage
to the car or serious injuries to the driver.
Turning on
Turn the RN ONE on by pressing the Power
button three seconds but no longer.
Turning off
Turn the RN ONE off by pressing the Power button
for abrief moment. Wait for powering off the
device.

12
RN ONE ports description
1. LAN port (service port)
2. USB ports
3. Microphone port
4. Speaker port
5. External GPS Antenna
6. HDMI port (service port)
7. Power connector
8. Track camera
9. Speakers







Back view



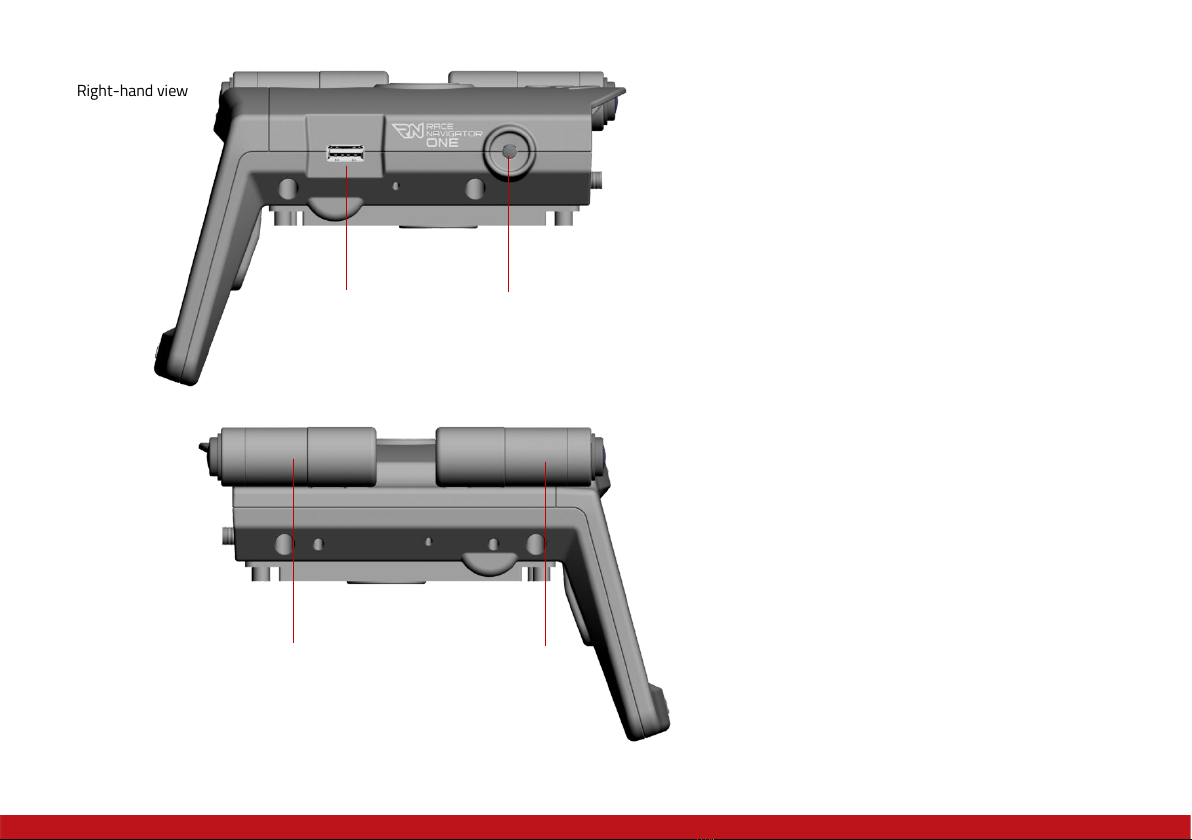

10. USB port
11. Power button
12. Track camera
13. Inside camera
Right-hand view




Left-hand view

14


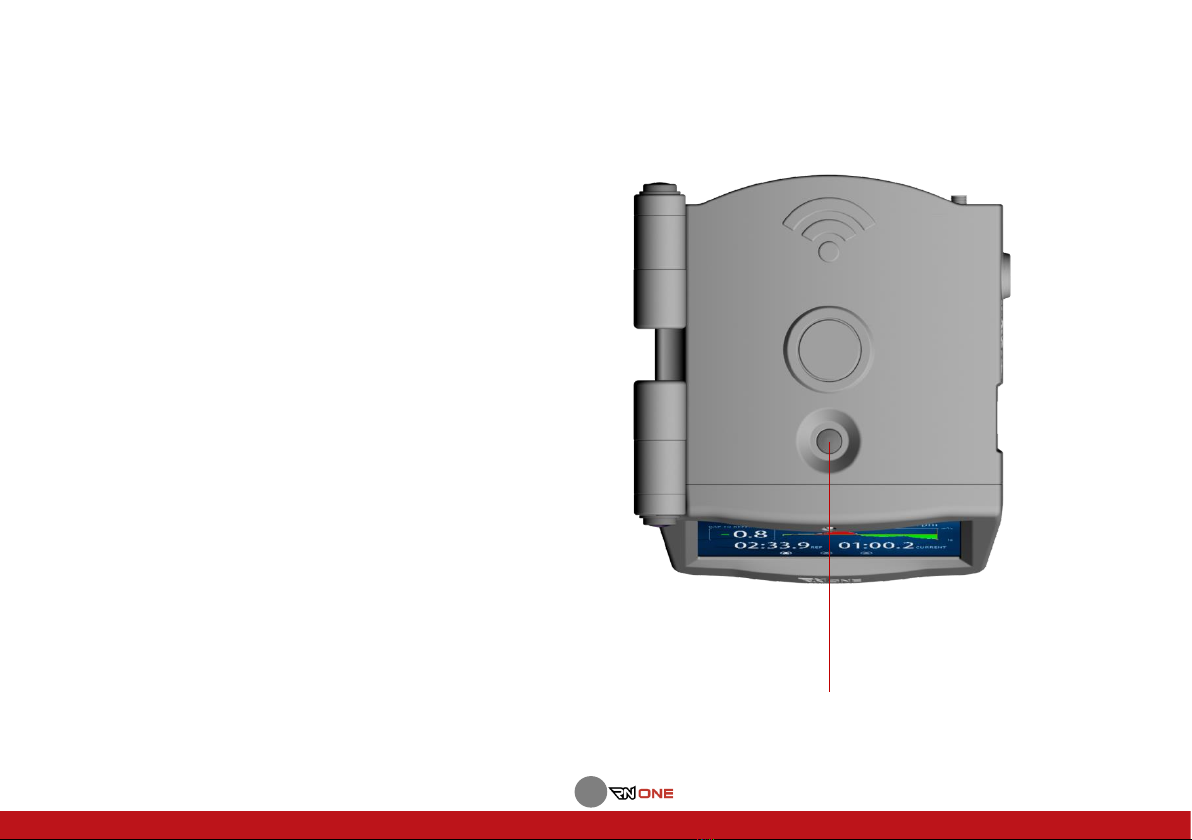

14. Home button
Clicking the Home button in any location opens the main
page of the RN ONE (the Home view, see 01. Home, page
17).
The Home button lights up green when the device is
turned on.
When the recording is activated, the Home button lights
up red.
Plan view

15


15. Control LED
16. Display
Front view

16
Device Configuration with Multiple Cameras
In this table it is defined what camera types can be connected to which ports depending on used cameras.
Please do not use different setups than defined below.
RN ONE Cameras
Configuration
Double USB port
back side, bottom blue
page 12 number 
Double USB port
back side, top black
page 12 number 
Single USB port
right side
page 13 number 
2x HD (build in)
-
-
-
2x HD (build in)
+ Full HD
Full HD
Use clamp: yes
-
-
2x HD (build in)
+ HD
-
-
HD
Use clamp: no
2x HD (build in)
+ SD
-
SD
Use clamp: yes
SD (optional)
2x HD (build in)
+ Full HD + SD
Full HD
Use clamp: yes
SD
Use clamp: no
SD/HD (optional)
2x HD (build in)
+ Full HD + HD
Full HD
Use clamp: yes
-
HD
Use clamp: no
PLEASE NOTE: it is not allowed to use third party extension cables with RN cameras. Additional intersection in cables can lead to recording
malfunctions. Only RN proprietary cables guarantee flawless operation.

17
RN Analyzer APP
RN Analyzer is an extended analysis tool of the data from all Race
Navigator devices.
The application is very easy to use and offers a wide range of
analysis options:
•The comparison of all selected laps, according to different
criteria (speed, distance, time, g-forces, OBD-II data). You
can analyze the entire track step by step by using the blue
slider. The videos and charts are immediately
synchronized according to the slider’s position.
•An aerial perspective of the race track based on Google Maps.
Your driving lines are displayed with maximum precision from
an overhead view.
•A video player. Multiple videoscan be played side by side in
the Analyzer view synchronously or a single video in full
screen mode.
•Social-networking services. You can easily share your laps
with friends on Facebook, YouTube and others.
Open to download laps from device List of available laps

18
•A possibility to compare two laps (or more!) and see exactly where
you are gaining or losing time.
•The section times analysis. It allows you to count your best
theoretical time and best continuous time.
•Laps overview. You can compare maximum and minimum values of
the data types gathered by the system.
•RN Cloud service. All laps with videos can be archived in the RN Cloud
service for later use and to get more free space on your device.
The cloud is also used to share whole laps between users and to
transfer data to a new iPad.
The RN Analyzer APP is available for free download from the iTunes
App Store. Use a QR code reader to access the iTunes App Store and
download the application.

19
TECHNICAL PARAMETERS
DISPLAY
Display size
5’’ (built-in)
VIDEO CAPABILITIES
Recording resolution
HD, 720p at 30fps
Stereo audio recording
✓
Manual/automatic start
✓
Wide viewing angle
✓
Real time overlay
✓
Built-in recording layouts
✓(up to 4 cameras)
Recording format
.mp4 or .mkv (depends on mode)
HARDWARE
WiFi
✓
Operating temperature
0°C to +70°C
3-axis Gyro and G-sensor
✓
Auto power on
✓(depends on version)
GPS/Glonass receiver
✓
Operating humidity
5%-85%
Bluetooth
✓
Height
155 mm
USB 2.0 port
✓
Width
115 mm
USB 3.0 port
✓
Depth
165 mm
HDMI port
✓
Weight
858 g
LAN port
✓
Supply voltage range
11-16V
Internal Disk
64 GB
Power (max)
23W

20
