PETROL LAWNMOWER
Model: RAC5675ES-1
Instructions manual
READ THOROUGHLY THESE INSTRUCTIONS BEFORE USE THIS LAWNMOWER
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
Made in PRC

2
SAFETY INSTRUCTIONS
Instructions
Read the instructions carefully. Be familiar with the controls and proper
use of the equipment.
Never allow children to use this mower. If the mower is given to an other
people, also give this manual. Also make sure that this person uses this
device only after receiving the necessary instructions. Local laws may
restrict the age of the user.
Never mow while people, especially children, or animals are nearby.
Keep in mind that the operator or user is responsible for accidents or
risks that may occur to other persons or their properties.
If necessary, have training with an experienced person in order to use in
a safe way this tool.
Preparation
During mowing, always wear slip-resistant foot protection and long pants.
Do not use the equipment barefoot or wearing sandals open.
Wear personal protective equipment including at least: clothes of
protection, gloves, foot protection, mask, ocular and hearing protection
Carefully inspect the area where equipment and remove all foreign
objects such as stones, toys, stick and wires.
WARNING - Gasoline is extremely flammable.
oAdd fuel before starting. Do not remove the fuel tank cap while the
machine is running or when it is hot.
oIf the fuel has spilled or leaked, do not attempt to start the machine
but move the machine away from the leakage area and avoid
creating a source of ignition until the gasoline vapours has dissipated.
oRefuel only outside and do not smoke during refuelling.
oStore fuel in tanks specifically designated for this purpose.
oReplace the fuel tank or the defective gasoline plug securely.
Replace defective mufflers.
Before use, always inspect visually that the blades, blade assembly and
blade lock are not worn or damaged. Replace blades and blade
assemblies that are not in good condition to maintain balance. Always
use recommended blades. Contact the manufacturer or your dealer in
order to have a list of recommended blades. Non recommended blades
can give a risk of malfunctions, injuries and accidents.
The blades must be balanced to ensure proper operation and to be able
to work safely.
Operation
Do not use the machine in a confined space or hazardous carbon

3
monoxide emissions can be collected.
Mow only under daylight or under good artificial light. Always have a good
visibility.
Avoid using the equipment on greasy grass, where possible.
Always be sure of your walking on the slopes.
Walk, never run.
For lawn mowers, mow across slopes, never from top to bottom.
Exercise extreme caution when changing direction on slopes.
Stop the blades if the mower is to be tilted during transport when crossing
surfaces other than grass, and when transporting the mower due to the
area to be mowed.
Do not mow on steep slopes.
Use extreme caution when tipping or pulling the mower towards you.
Never use the mower with defective guards, or without safety devices
such as baffles and or collection bins, which are not in place.
Do not change the motor configuration or increase the speed.
For starting, disengage all blades, the gears must be in neutral, the
traction control lever must be released. Set foot well away from the
blades.
Before starting the engine or starting the engine, carefully read and
understand all instructions.
Do not tilt the mower when starting the machine or turn on the engine,
unless the mower needs to be tilted for starting. In this case, do not tilt it
more than absolutely necessary and lift only the part that is furthest away
from the user.
Do not start the machine by standing in front of the ejection
Do not place hands or feet near or under rotating parts. Keep clean the
mouth of the grass extractor.
Never take or carry the mower while the machine is running.
Stop the machine and remove the ignition key, disconnect the spark plug
from the spark plug:
oBefore cleaning or unclogging the grass extractor.
oBefore checking, cleaning, and working on the mower.
oAfter hitting an object. Inspect the mower for damage and repair
before re-using the mower.
oIf the mower begins to vibrate abnormally, stop the engine
immediately and check according to previous recommendations.
The controls must be always checked if they are functioning correctly. In
case of malfunction, do not use the tool and bring to a service agent for
inspection.
Stop the engine immediately:
oEvery time you leave the tool alone and the working area.
oBefore refuelling.

4
When the tool is stopped, park it in a safe place.
Move slowly when moving.
The lawnmower should not be used in slopes and near drop-offs, ditches
or embankments; if the tool must be used in these kinds of emplacements,
take an extreme precaution and operate carefully the tool.
The lawnmower safety systems or features shall not be tampered with or
disabled;
The operator should not alter or tamper with any sealed adjustments for
the engine speed control.
Maintenance and storage
Check and tighten all bolts and screws to ensure that the equipment is in
safe operating condition.
Never keep the mower with gasoline in the tank in a building or vapours
can cause a bright flame or spark.
Allow the machine to cool before storing it in an enclosed area.
To reduce the risk of fire, keep the machine clean without grass, without
grease, the muffler and the engine cools, disconnect the battery if
necessary and empty the fuel tank
Check the grass catcher frequently, its condition or deterioration.
Replace worn and damaged parts for safety.
If the fuel tank is to be drained, it must be made outdoors.
Special safety instructions
The lawnmower shall not be operated without either the entire grass
catcher or self-closing discharge opening guard in place.
Switch off the engine before emptying the pick-up bag or before changing
the cutting height.
While the engine is running, never put your hands or feet under the
mower or under the grass ejection area.
Before mowing, remove all foreign objects from the grass that can be
propelled by the machine.
Keep children and pets at a safe distance while using the mower.
Never lift the mower when the engine starts.
Alcohol, drug, as well as illness, fever and fatigue affect your ability to
respond. Do not use power tools in such circumstances.
Never change the rated speed of the motor.
Never lift or carry the tool while the engine is running.
Before starting the engine, release the drawbar.
Before mowing, install the collection bag in its intended position.
Do not use the mower in the event of rain or when the grass is wet.
Never lift the rear of the mower when starting the engine and never place
your hands or feet under the mower deck or in the rear ejection port while

5
the engine is running.
Turn off the engine and remove the spark plug cap in the following cases:
oBefore operating under the mower deck or near the ejection opening.
oBefore any maintenance, repair or verification.
oBefore transporting, lifting or storing the mower.
oIf you leave the mower unattended or change the cutting height.
oTo remove and empty the collection bag.
After striking a foreign object, turn off the engine and carefully inspect the
mower for damage. Take the lawnmower to an authorized service center
for repair if necessary.
If the mower vibrates abnormally, try to understand the reason and bring
your lawnmower to an authorized repair center.
Regularly check that the bolts, nuts and screws are properly tightened for
safe use of the mower.
Do not use the tool where there is a risk of lighting.
During the operation, the lawnmower emits exhaust gases; these gases
are poisonous and care makes in danger the life of the operator. Do not
inhale them. Do not approach of exhaust gases and wear a protection
mask when using the tool.
The operator must have, before using the tool for the first time, an
adequate training with an experienced people.
Warning: do not use of the unit while being tired, ill or under influence of
alcohol or other drugs;
Park safely the tool before leave it. The tool must be switched off.
Wear adequate clothing such as long trousers and a protective equipment:
slip-resistant foot protection, hearing protection, eyes protection and
gloves.
To avoid health issues, limit the time of operation. Take enough rest.
Exposure to noise and vibrate can have bas consequences on health.
WARNING: There is a danger about moving blade assemblies. Always
handle blades when they are in a complete stop and wear protective
gloves.
Fuel Handling
Use caution when handling fuels. They are flammable and the vapours are
explosive.
Use only an approved container.
Never remove the fuel cap or add fuel while the machine is on. Turn off the
unit and allow the engine and exhaust components to cool down before
refuelling.
Do not smoke.
Never refuel inside a room.
Never store the tool and the fuel tank indoors where there is a naked flame,
such as near a water heater.

6
If fuel has spilled, do not attempt to start the machine, but move it away from
the spill before starting to use it. Please clean up any spills.
Replace and tighten the fuel tank cap after refuelling.
Follow strictly the instructions in this manual for filling the tool with fuel.
During maintenance and storage
Switch off the tool and wait until it stops completely. Make sure that all moving
parts are stopped.
Allow the machine to cool before performing inspection, adjustments,
maintenance, servicing and storage.
Store the tool where fuel vapour will not reach a flame or spark.
The transport of the tool must be secured in order to avoid fuel spillage,
accidents and injuries.
Residual risks
Even if you use this product in compliance with all safety requirements, the
potential risks of injury and damage remain. The following hazards may arise
in the structure and design of this product:
There are risks of injury and property damage due to attachments or broken
the sudden impact of hidden objects when using cutting.
There are risks of injuries and accidents caused by flying objects.
Prolonged use of this product exposes the operator to vibrations and can
produce so-called "white finger" disease. To reduce the risk, wear gloves and
keep your hands warm.
If any of the symptoms of "white finger syndrome" occur, seek immediate
medical attention.
Symptoms of "white finger" include numbness, loss of sensitivity, tingling,
pain, loss of strength, colour changes or skin condition. These symptoms
usually appear on the fingers, hands or wrists. Risk increases at low
temperatures.
A long exposition to noise can affect the health of the operator. A hearing
protection must be always used when operating the tool. The operation of the
tool must be limited and some rest must be taken between two sessions (e.g.
10min of operation and 20min of rest).
Intended use
This model of thermal mower is designed for natural grass mowing. Any other
use is prohibited.
It is suitable only for private use in a garden or plot. Lawnmowers designed
for private plots or gardens are those used for the maintenance of grassy
areas and private lawns and should not be used in public areas, parks, sports,
agricultural or forest areas.

7

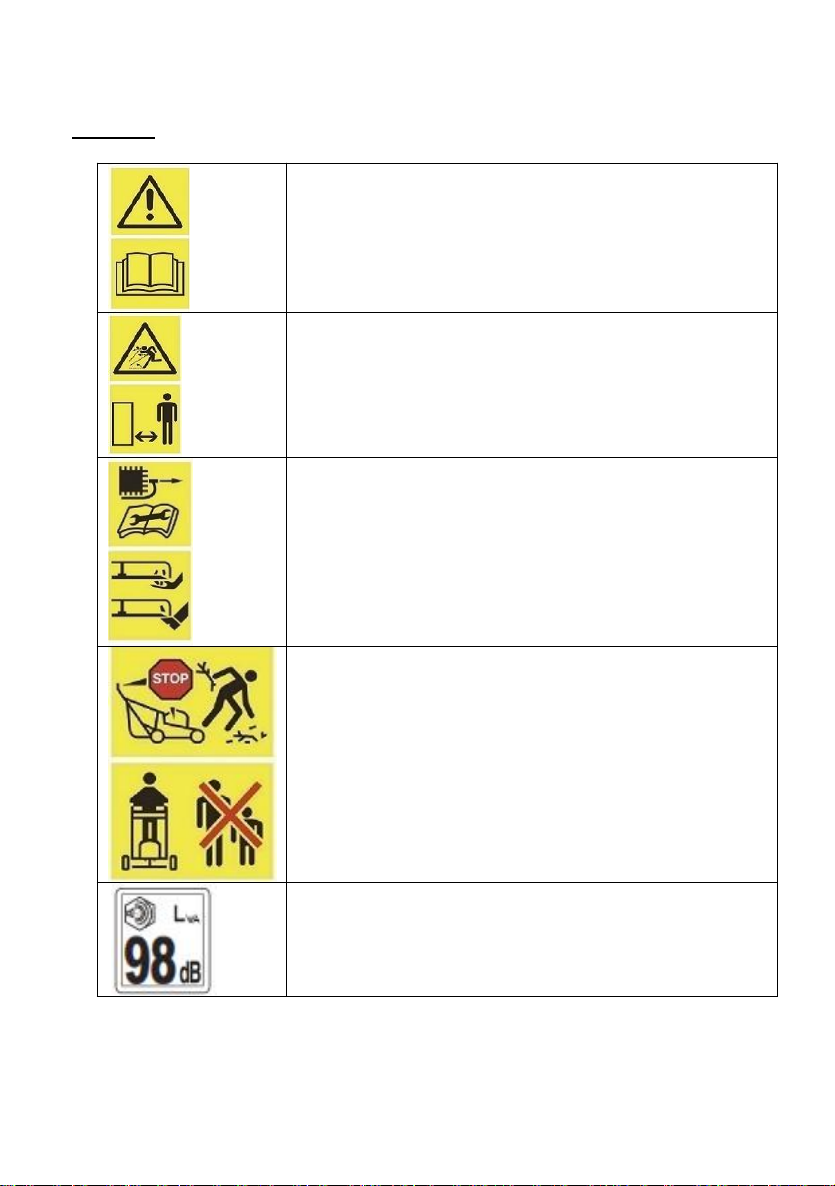

Symbols
Warning
Read the instruction manual
Warning! Risk of projections. Keep bystanders away
Risk of injury from sharp blades! Keep your feet and
hands away.
Stop the machine before removing any foreign
objects from the working area.
Never mow while people, especially children, or
animals are nearby.
Guaranteed sound power level

8
DESCRIPTION
1. Upper handlebar
2. Self-propelled bar
3. Operator control lever
4. Panel
5. Quick release clamp
6. Flap
7. Fuel tank
8. Starter rope
9. Engine
10. Air filter
11. Prime bulb
12. Carter
13. Side discharge device
14. Flap
15. Cutting height adjustment lever
16. Oil tank
17. Grass catcher

9
Technical information
MODEL
RAC5675ES-1
Nominal power
3,5 kW
Displacement (cm3)
196
Engine
XP200
Maximum operating engine speed
(rotational frequency)
2900/min
Cutting height (mm)
25-75
Number of cutting height
6
Cutting width (cm)
56
Volume of grass catcher (L)
75
Weight (kg)
38.4
Motor
4 strokes
Volume of fuel tank (L)
1,0
Volume of oil tank (L)
0,6
Sound pressure level (LpA)
Max. 84,9 dB (A); K =2,5 dB
Sound power level (LwA)
Max. 96,58 dB (A); K =0,64 dB
Guarantee sound power level
98 dB(A)
Vibration value
Uncertainty
Max. 5,822 m/s²; K=1,5 m/s²
Intended use
This model of gasoline lawnmower is designed for mowing natural grass. Any
other use is prohibited.
It is only suitable for private use in a garden or a plot. Lawn mowers designed
for private plots or gardens are those used for the maintenance of grassy
areas and private turf and should not be used in public areas, parks, sports,
agricultural or forestry areas.

10
ASSEMBLY
NOTE: The blade is delivered already assembled. This part cannot be
altered or changed by operator. In case that the blade needs to be
replaced or sharpened, it shall be done by a specialist.
Folding handle
Caution! When installing the handlebars, make sure that the cables are not
crushed.
Attach the bottom of the handlebar to one of the 3 holes, with the supplied
bolts, to adjust the tilt angle to the desired height
2. Unfold the handlebar and push the lock lever towards the bar.
Grass catcher
- To install: Lift the flap and hang the grass bag at the back of the mower.

11
- To remove: hold the baffle and lift up, then remove the collection bag.
Note: side discharge and mulching kit must be removed when using the
grass catcher
Cutting height adjustment
Push the lever outward to disengage it from the housing. Move it forwards or
backwards to adjust the height.
Side discharge
NOTE: remove the mulching kit and grass catcher when using the side
discharge
- Unlock the side cover by pulling the safety latch to the left and
opening the baffle at the same time.
- Lift the side cover.
- Fix the flap in the hooks reserved for this purpose. They hold the side
flap in position.
- Fold down the side cover.
Mulching kit
The mulching kit is already installed in the tool. It is localized in the rear of the
tool in the grass catcher location.
To remove it, hold the handle and pull to remove it.
To install it, put it in the location and check if it is well locked
1 2 3 4 5

12
Note: when using mulching function, the grass catcher and the side
discharge shall not be installed.
OIL AND FUEL FILLING
a. Oil filling
- Unscrew the oil tank cap with dipstick and pour oil into the tank. The
oil tank has a capacity of 600 ml. Use a brand name oil (SAE 30 for
example).
- To check the oil level, wipe the dipstick with a clean cloth and put it
back into the tank.
- Read the oil level on the dipstick after pulling it out. The oil level
must be between the two minimum and maximum marks.
- Wipe off any drops of oil you have dropped and close the oil
tank cap
- Check the oil level each time before mowing and readjust when
it is below the bottom mark.
b. Fill the fuel tank
Caution! Gasoline is flammable and toxic:
-keep the gasoline in suitable containers;
-refuel only in the open air and never when the engine is running
or the machine is hot;
-open the tank cap carefully so that no overpressure can develop;
-do not smoke when refuelling;
-avoid contact with the skin and inhalation of vapours;
-Clean the gasoline if you have spilled.
-Keep gasoline away from any spark, flame or other source of fire.
-Do not use gasoline and oil mixture.
-Use normal or super unleaded gasoline.
-Use only fresh and clean gasoline.
-Do not store gasoline for more than a month as its quality may
be reduced.
1. Unscrew the tank lid and pour gasoline to the lower edge of the filler
cap. Do not fill the tank flush so gasoline has room to expand.
2. Wipe the remaining gasoline around the tank cap and screw it back in

13
OPERATION
Start the device on a safe and flat ground, preferably not in tall grass. Make
sure that the cutting tools do not touch objects or the ground.
a. Start the engine
This lawnmower can be started electrically or manually.
Electrically
1. Press the priming button 3 times (red button)
2. Pull the operator control lever towards you and hold it.
3. Turn the key. The engine starts.
Manually
Take the starter rope with your right hand and pull slowly as far as to have
a resistance, and then pull energetically on the starter rope. (If the cold
start is not sufficient enough, repeat this operation 2 or 3 times).
Stop the engine
Release the operator control lever. The engine turns off and the blade is
slowed down. The blade should stop after 3 seconds.
b. Mowing
Self-propeller function
The self-propelled mechanism engages by pressing the safety lever on the
handle.
Self-propelled mechanism ceases when you release this bar.
Pull the safety lever back towards the handle to mow without the self-
propelled mechanism.
Work instructions
Mow dry grass as much as possible to save grass.
Adjust the cutting height so that the machine is not overworked.
Drive the machine at moderate speed (walking) along the belt as straight
as possible. For a perfect mowing result, the strips must always overlap
for a few centimetres
Do not back away.
Always work perpendicular to the slopes.
If the blades come into contact with a foreign object, immediately turn off
the engine. Wait for the blades to stop turning completely and check that
the unit has not been damaged. Only resume work if the unit has not

14
been damaged.
Turn off the appliance when taking long breaks during work and carrying
the appliance.
Wait for the blades to stop turning completely.
Clean the appliance after each use as described in the chapter "Cleaning
and maintenance".
MAINTENANCE
Carry out maintenance and cleaning work when the engine is off and the
spark plug are out.
Allow the tool to cool down before performing any maintenance or
cleaning work. The engine elements are hot. Lack of maintenance can
reduce the life of the tool, give bad result. In addition accidents and
injuries can happen if the tool and blades are not well correctly
maintained.
Wear gloves when handling the blades.
a. Cleaning and general maintenance tasks
- Do not tilt the unit sideways or forward. Service fluids may leak and
the engine may be damaged.
- Always keep the device clean. To clean it, use a brush or cloth but no
cleaning agents or acidic solutions. Do not use water to clean the
engine as it may clog the fuel system.
- After mowing, remove the remains of plants stuck with a piece of
wood or plastic. Clean all ventilation openings, expulsion and the
area around the blades. Do not use hard or sharp objects, you could
damage the device.
- Occasionally lubricate the wheels.
- Check before each use that the mower does not show visible damage
such as loose, worn or damaged parts. Check that all nuts, bolts and
screws are tight.
- Check that the covers and safety systems are undamaged and in
place. Change them if necessary.
- To clean the blade guard, it is possible to connect a hose to the top of
the housing.
b. Air filter
Never use the device without air filter. Dust and dirt enter the motor
and damage the machine. Keep the air filter clean.
- Push the tabs and then push out the air filter cover
- Remove the air filter.
- Clean the air filter or change it for a new one.
- Reinstall the air filter in place.

15
- Put the cover air filter and make sure that it is well installed.
c. Spark plugs
Worn spark plug or an excessive ignition interval can decrease the
engine performance.
- Remove the spark plug from the tool.
- Check the ignition interval using a template (available in specialized
stores). The electrode gap should be 0.75 mm.
- Adjust the gap as necessary by carefully bending the spark plug
ground electrode.
- Clean the candle with a wire brush.
- Replace the cleaned and adjusted spark plugs or replace the
d. Adjust the cable
If the control cable for the transmission is out of sync and has too
much play, you can fix it.
- Loosen the small lock nut.
- Turn the adjusting nut counter clockwise: The control cable is
shortened.
- Turn the adjusting nut in a clockwise direction: The cable is extended.
e. Sharpen/change the blades
- Remove the spark plug from its socket and inspect the blade for wear
or damage.
- Always make a blunt blade sharpened by a specialized garage as it
can perform an unbalance check.
- Always sharpen a blade or replace an unbalanced blade with a
specialist. Incorrect mounting may cause serious. The replacement
of the blade shall not be done by the operator.
Instructions for sharpening and changing the blade
WARNING: Wear gloves, turn off the engine and remove the
spark plug before proceeding.
damaged spark plugs (Torch F6RTC or LG F6RTC).

16
The blade is made of hardened steel. To get a clean job, sharpen
the blade frequently, about every 25 hours of use. Make sure the
blade is always well balanced.
Insert a small iron pin (2 or 3 mm in diameter) into the hole in the
middle of the blade: it must remain horizontal. If the blade does not
stay horizontal, balance it by sharpening it further on the side where
it is leaning.
WARNING: Use only original spare parts. Poor quality replacement
parts can cause serious damage to your mower and affect your
safety. Contact our service agent to get specifications about the
correct original spare parts.

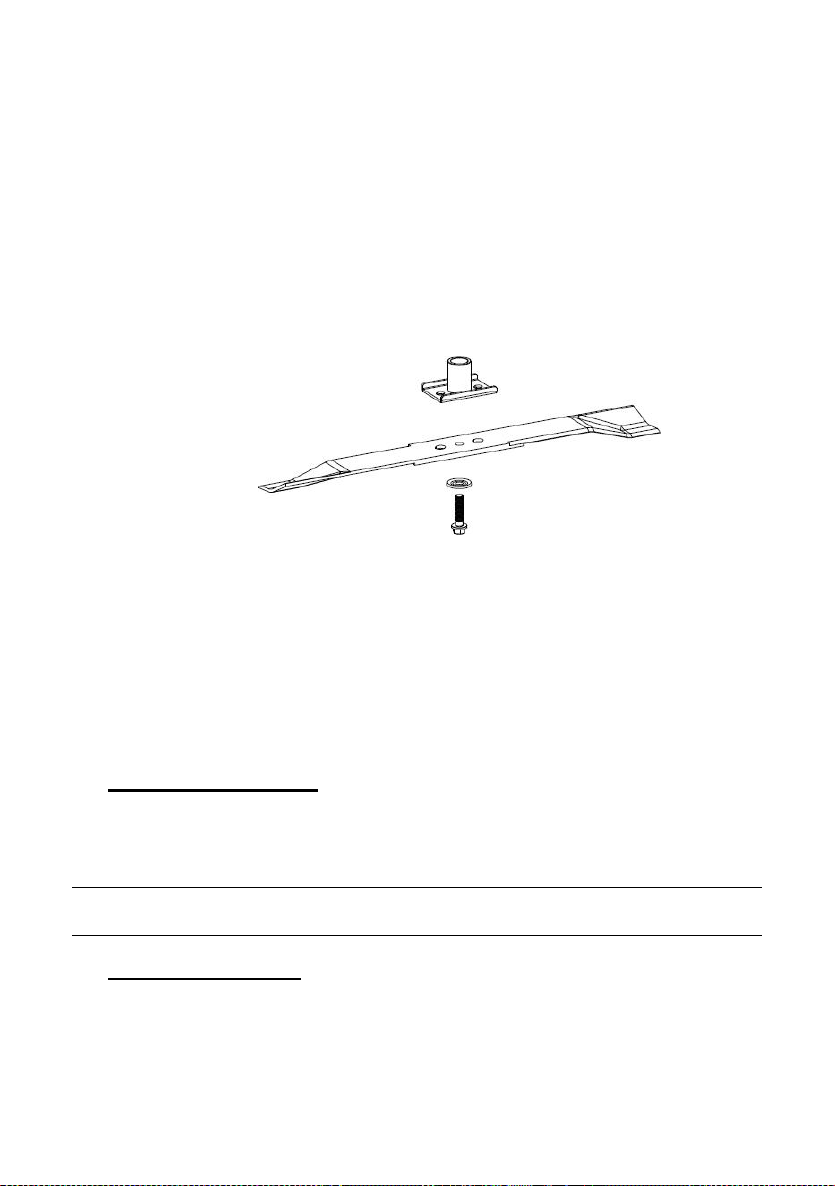

To remove the blade, loosen the screw, check the blade bracket,
and replace all parts if they are worn or damaged.
To sharpen the blade, place it in a clamp and file the sharp edges
evenly, checking the balance of the blade.
When reassembling the blade, make sure that the cutting edges are
in the same direction as the direction of rotation of the motor. The
tightening torque of the blade screw should be 3.7 kg * m / s 2 (37
Nm) and can be checked with a torque wrench.
f. Adjust the carburettor
The carburettor has been factory set for optimum performance. If
adjustments are necessary, have them performed by a specialist.
STORAGE
a. General storage tips
- Clean the appliance before cleaning.
- Let the engine cool down before store the unit in a closed room.
- Use suitable and authorized containers to conserve fuel.
- Store the device in a dry place away from dust and out of the reach of
children.

17
- To save storage space, you can fold down the upper handlebar.
Loosen the quick release lever and fold down the handlebar so that
the unit takes up less space. The control cables should not be stuck.
- Do not wrap the device in nylon bags as moisture and mould could
appear.
b. Storage and storage for long periods without use
Failure to follow the storage instructions may lead to start-up
problems due to gasoline residues in the carburettor or permanent
damage.
- Empty the fuel tank into a well-ventilated place. Start the engine and
let it run until it stops due to lack of fuel.
- Change the oil.
- Unscrew the spark plug (see "Cleaning and maintenance");
- Pour a tablespoon of motor oil into the engine space by opening the
spark plug;
- Pull the safety bar pulled slowly several times on the launcher rope to
spread the oil inside the engine;
- Screw in the spark plugs thoroughly.
- Dispose of used oil and gasoline residues correctly (see "Disposal /
environmental protection").
Elimination / protection of the environment
- Dispose the tool, its accessories and its packaging for ecological
recycling.
- Carefully empty the fuel and oil tanks and take your unit to a recovery
center. Plastic and metal parts can be sorted and recycled.
- Return used oil and petrol residues to the appropriate dump stations and
collection points and do not discharge them into sewers or sewers.
- Address your questions about this to our service center.
- Do not dispose of cut grass in a dumpster but use it to make compost or
spread it as mulch under bushes and trees.

18
DECLARATION OF CONFORMITY
BUILDER SAS
ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France
Declare that the machine:
PETROL LAWNMOWER
Ref：RAC5675ES-1
Serial number: 20210107681-20210107968
Responsible of technical file: Mr Olivier Patriarca
Is in conformity with the Directive 2006/42/CE and to the regulations
transposing it
Is in conformity with the following Directive:
EMC Directive 2014/30/UE
Emission directive (UE) 2016/1628 & 2017/656/EU
Directive noise emission 2000/14/CE Annex VI +2005/88/EC
Measured sound power level: Max. 96, 58 dB (A); K=0, 64 dB
Guarantee sound power: 98 dB (A)
Notified body:
In conformity with the following standards
EN ISO 5395-1:2013+A1:2018
EN ISO 5395-2:2013+A1:2016+A2:2017
EN ISO 14982:2009
Cugnaux, 01/01/2021
Philippe MARIE / CEO

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
WARRANTY
19

WHAT TO DO IF MY MACHINE BREAKS DOWN?
If you bought your product in a store:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
If you bought your product on a website:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping o󰀨 the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
PRODUCT FAILURE
20
