9C[&KUVTKDWVKQP
#ORNKHKGT
Install the amplifier near your VCR, computer,
or TV monitor using thescrews provided. The
amplifier can be attached to the wall, the
baseboard, or furniture.
1.Select a location for the amplifier. Mark the
mounting screw locations 97mm apart, one
above the other.
2.Drill two 1/16-inch holes for the screws.
3.Insert the suppliedscrews in the holes,
leaving about 1/8inch extended.
4.Positionthe amplifierwiththekeyholeslotsin
the back over the screw heads.
5.Slide the amplifier down until it is attached
securely to the mounting surface.
Note: Do not mount the amplifier on any other
electronic device. Stacking components may cause
overheating.
/QWPVKPIVJG#ORNKHKGT

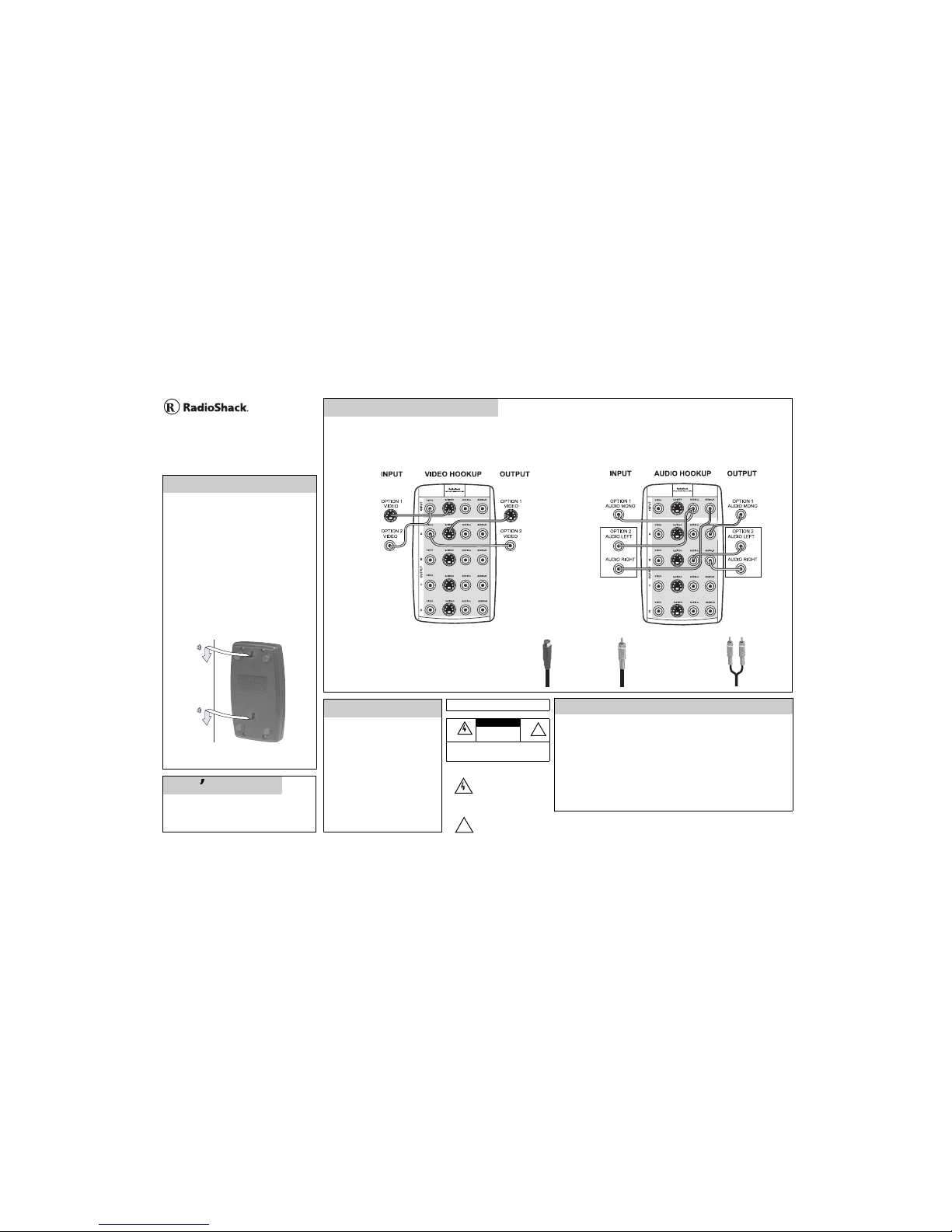

For the best possible video signal, use only video cablesto make the input andoutput connectionsfor your amplifier. To take advantage of the
color-coded jacks on the amplifier, use matching color-coded Stereo Audio/Video Cable. Several types of composite, S-video, and audio cables are
available at your local RadioShackstore. Sample connections are shown below. Important: Do not use both composite and S-video for input or output
signals at the same time. Only use either composite or S-video for input and either composite or S-video for output, not both of them.
Note: Always use the shortest possible cable for the connections. Do not coil extra cablenext to the amplifier.
1. Connect the input device video cable.
2. Connect the output device video cable.
3. Connect the input device audio cable.
4. Connect the output device audio cable.
5. Plug the AC adapter into the AC wall outlet and
into your 4-way distribution amplifier.
/CMKPIVJG%QPPGEVKQPU
This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from
RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRAN-
TIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MER CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE
DURATION OF THE WRITTEN LIMITED WARRANTIES CON TAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSI-
BILITYTOCUSTOMEROR ANYOTHERPERSONOR ENTITYWITH RESPECTTO ANYLIABILITY, LOSSORDAMAGE CAUSEDDIRECTLYORINDIRECTLYBYUSE OR
PERFORMANCEOFTHE PRODUCTOR ARISINGOUT OFANYBREACH OFTHISWARRANTY,INCLUDING,BUT NOT LIMITEDTO, ANYDAMAGESRESULTINGFROM
INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF
RadioShack HAS BEEN ADVISEDOF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or
exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack
will, at its option, unless otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or
similar design; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or recondi-
tioned parts and
products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will
be charged for repair or replacement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable toacts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions,
improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack Authorized
Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation,
set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102 12/99
/LPLWHG'D\:DUUDQW\
©2003 RadioShack Corporation. 15-1172
All Rights Reserved. Printed in China
RadioShack and RadioShack.com are trademarks 11A03
used by RadioShack Corporation. AO0198AAA1
TQWDNGUJQQVKPI
• If you have poor or no reception on
all the devices connected to the
output jacks, be sure the AC/DC
adapter is plugged into the amplifier
and into a working outlet.
• If you have poor or no reception on
a single unit, check the connections
to that unit. Exchange the cables to
locate either a defective cable or
connector.
• If you have poor picture quality, be
sure you are using video cables to
make all the connections.
S-Video Cable Composite Video Cabl
e
Mono Audio Cable Stereo
Audio Cabl
e
WARNING:To reduce the risk of fire or shock
hazard, do not expose this product to rain or moisture.
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT
OPEN.
CAUTION:TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER OR BACK. NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PERSONNEL.
This symbol is intended to alert you to
the presence of uninsulated dangerous
voltage within the product’s enclosure
that might be of sufficient magnitude to
constitute a risk of electric shock. Do
not open the product’s case.
This symbol is intended to inform you
that important operating and
maintenance instructions are included
in the literature accompanying this
product.
!
!
9JCV U+PENWFGF
4-WayAudio/VideoDistributionAmplifier
2 Screws • AC Adapter
Owner’s Manual
