RAMTONS RF/293 User manual

Refrigerator
Instruction Manual
MODEL:RF/293

CONTENTS
1Safety warnings
2 Proper use of the refrigerator
3 Structure and functions
4 Maintenance and care of the refrigerator
1.11
1.2Meanings of safety warning symbols·····················2
1.3Electricity related warnings··························2
1.4Warnings for using·······························3
1.5Warnings for placement ··························3-4
1.6······························4
1.7Warnings for disposal···························4
2.1Placement·································5
2.2Levelling feet································6
2.3r···························6-9
2.4Changing the Light······························9
2.5Starting···································9
2.6Energy saving tips·····························9
3.1Key components·····························10
3.2Functions·····························11
4.1Overall cleaning·····························12
4.2 Cleaning glass shelf····························12
4.3 ·············12
4.4 Defrosting································13
4.5 Out of operation·····························13
Warning··································
Warnings for energy
Door ight-left change
How to take out the humidity controlling glass shelf
5Trouble shooting·····························14

1 Safety warnings
1.1 Warning
Warning:risk of fire / flammable materials
RECOMMENDATIONS：
This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and
other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast
type environments; catering and similar non-retail applications.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Theappliance has to be unplugged after use and before carrying out user maintenance on the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING:Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.
WARNING:When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING:Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Do not use extension cords or ungrounded（two prong）adapters.
DANGER: Risk of child entrapment.Before you throw away your old refrigerator or freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.
Therefrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.Therefore, when the refrigerator is
scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding
qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
Childrenshould be supervised to ensure that they do not play with the appliance.
For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.)
1

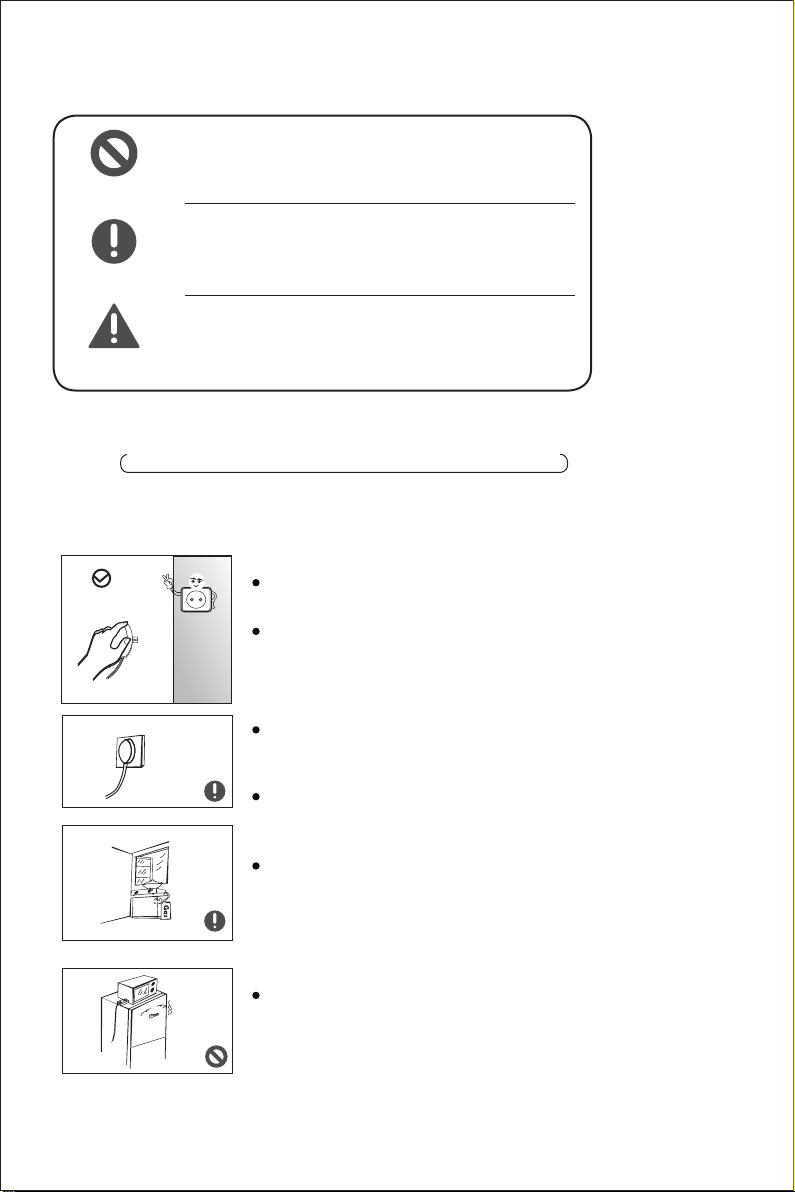

1 2. Meaning of safety warning symbols
Prohibition symbol
Warning symbol
Note symbol
1 3 Electricity related war nings.
2
This is a prohibition symbol.
Any incompliance with instructions marked with this
symbol may result in damage to the product or endanger
the personal safety of the user.
This is a warning symbol.
It is requi red t o ope rate in strict ob ser vance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. Insufficient caution may result in slight or
moderate injury, or damage to the product.
This manual contains lots of important safety information
which shall be observed by the users.
Do not pull the power cord when pulling the power plug of the
refrigerator. Please firmly grasp the plug and pull out it from the
socket directly.
To ensure safe use, do not damage the power cord or use the power
cord when it is damaged or worn.
Please use a dedicated power socket and the power socket shall
not be shared with other electrical appliances. The power plug
should be firmly contacted with the socket or else fires might be
caused.
Please ensure that the grounding electrode of the power socket is
equipped with a reliable grounding line.
Please turn off the valve of the leaking gas and then open the doors
and windows in case of leakage of gas and other flammable gases.
Do not unplug the refrigerator and other electrical appliances
considering that spark may cause a fire.
Do not use electrical appliances on the top of the appliance, unless
they are of the type recommended by the manufacturer.

1.5 Warnings for placement
1 4 War nings for using.
3
Do not arbitrarily disassemble or reconstruct the refrigerator, nor
damage the refrigerant circuit; maintenance of the appliance must
be conducted by a specialist
Damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid
danger.
The gaps between refrigerator doors and between doors and
refrigerator body are small, be noted not to put your hand in these
areas to prevent from squeezing the finger. Please be gentle when
close the refrigerator door to avoid falling articles.

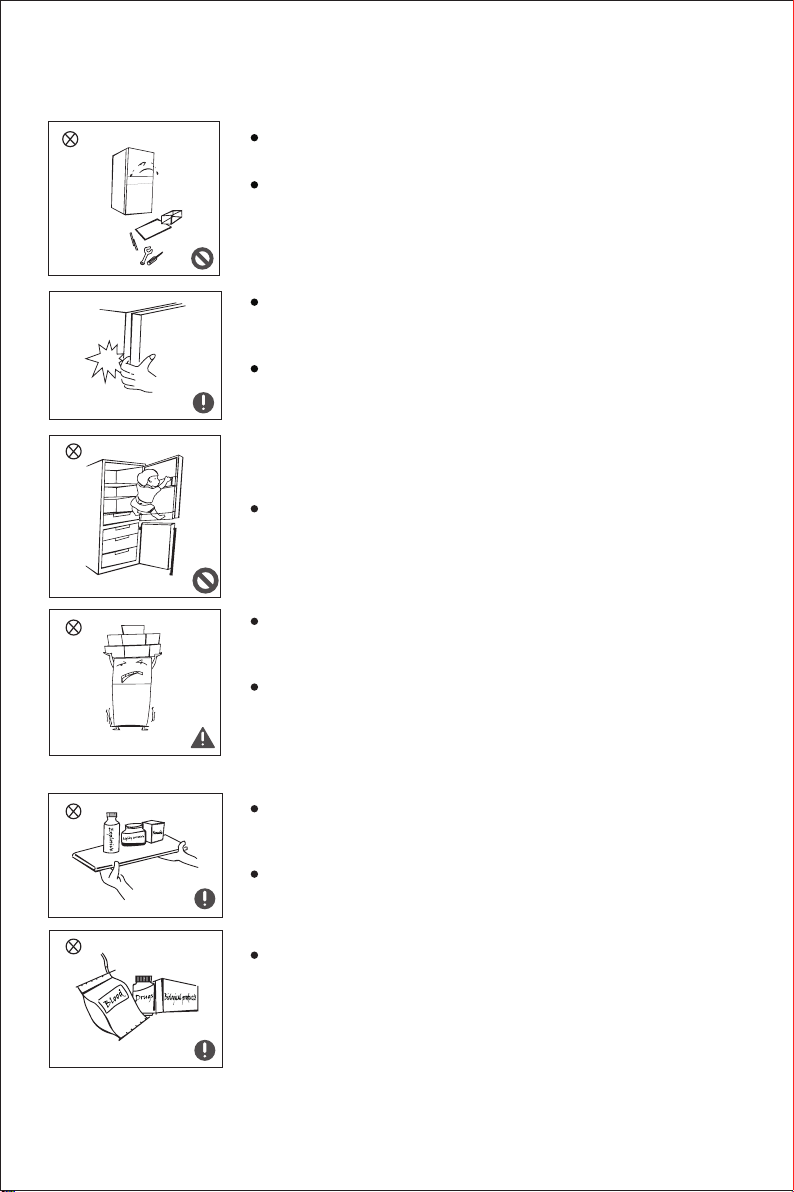

Do not pick foods or containers with wet hands in the freezing
chamber when the refrigerator is running, especially metal
containers in order to avoid frostbite.
Do not allow any child to get into or climb the refrigerator; otherwise
suffocation or falling injury of the child may be caused.
Do not place heavy objects on the top of the refrigerator considering
that objects may fall when close or open the door, and accidental
injuries might be caused.
Please pull out the plug in case of power failure or cleaning. Do not
connect the refrigerator to power supply within five minutes to
prevent damages to the compressor due to successive starts.
Do not put flammable, explosive, volatile and highly corrosive items
in the refrigerator to prevent damages to the product or fire
accidents.
Do not place flammable items near the refrigerator to avoid fires.
The refrigerator is intended for household use, such as storage of
foods; it shall not be used for other purposes, such as storage of
blood, drugs or biological products, etc.

1.6 Warnings for energy
Freezing chamber
1.7 Warnings for disposal
4
Do not store beer, beverage or other fluid contained in bottles or
enclosed containers in the freezing chamber of the refrigerator; or
otherwise the bottles or enclosed containers may crack due to
freezing to cause damages.
Warning for energy
1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an extended period
of time below the cold end of the range of temperatures for which the refrigerating appliance is
designed.
2)The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or
in low-temperature compartments or cabinets, and that some products such as water ices should not
be consumed too cold;
3)The need to not exceed the storage time(s) recommended by the food manufacturers for any kind
of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage
compartments or cabinets;
4)The precautions necessary to prevent an undue rise in the temperature of the frozen food while
defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of
newspaper.
5)The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or
cleaning could shorten the storage life.
6)The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of
children and not in the vicinity of the refrigerating appliance, in order to prevent children from being
locked inside.
Refrigerant and cyclopentane foaming material used for the refrigerator are
flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from
any fire source and be recovered by a special recovering company with
corresponding qualification other than be disposed by combustion, so as to prevent
damage to the environment or any other harm.
When the refrigerator is scrapped, disassemble the doors, and remove gasket of
door and shelves; put the doors and shelves in a proper place, so as to prevent
trapping of any child.
Correct Disposal of this product：
This marking indicates that this product should not be disposed with other
household wastes. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.

2 1 Placement.
2 Proper use of refrigerators
5
Before use, remove all packing materials, including bottom
cushions, foam pads and tapes inside of the refrigerator; tear off the
protective film on the doors and the refrigerator body.
Keep away from heat and avoid direct sunlight. Do not place the
freezer in moist or watery places to prevent rust or reduction of
insulating effect.
Do not spray or wash the refrigerator; do not put the refrigerator in
moist places easy to be splashed with water so as not to affect the
electrical insulation properties of the refrigerator.
The refrigerator is placed in a well-ventilated indoor place; the
ground shall be flat, and sturdy (rotate left or right to adjust the wheel
for levelling if unstable).
The top space of the refrigerator shall be greater than 30cm, and the
refrigerator should be placed against a wall with a free distance
more than 10cm to facilitate heat dissipation.
Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured that the refrigerator is
disconnected from power.
Precautions shall be taken to prevent fall of the handle from causing any personal injury.

2.2 Leveling feet

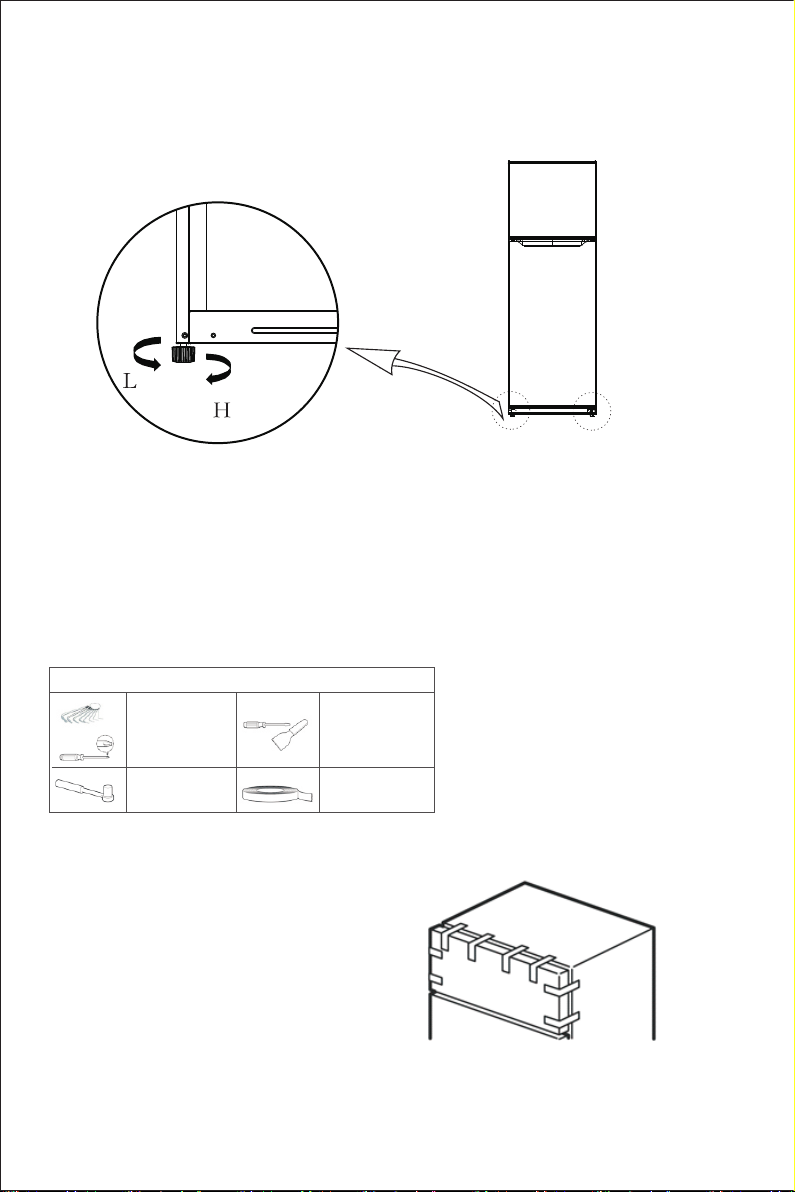

Schematic diagram of the leveling feet
Adjusting procedures:
a. Turn the feet clockwise to the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
raise

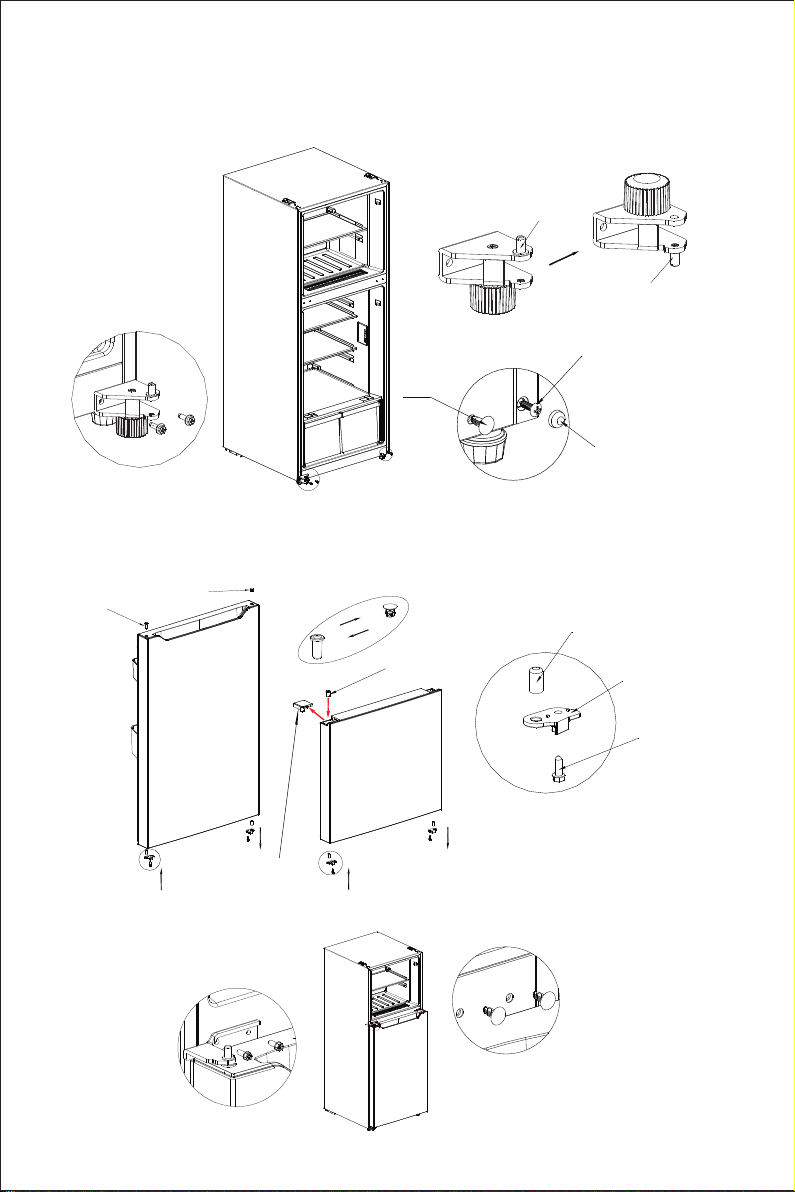

2.3 Door Right-Left Change
6
(The picture above is only for reference.The actual configuration will depend on the physical product
or statement by the distributor)
1)Please power off this appliance before conduct this operation. Remove all food from door shelves.
Fix the door by tapes.
Cross screwdriver
List of tools to be provided by the user
5/16
socket and ratchet
″Masking tape
Putty knife
thin-blade screwdriver

7

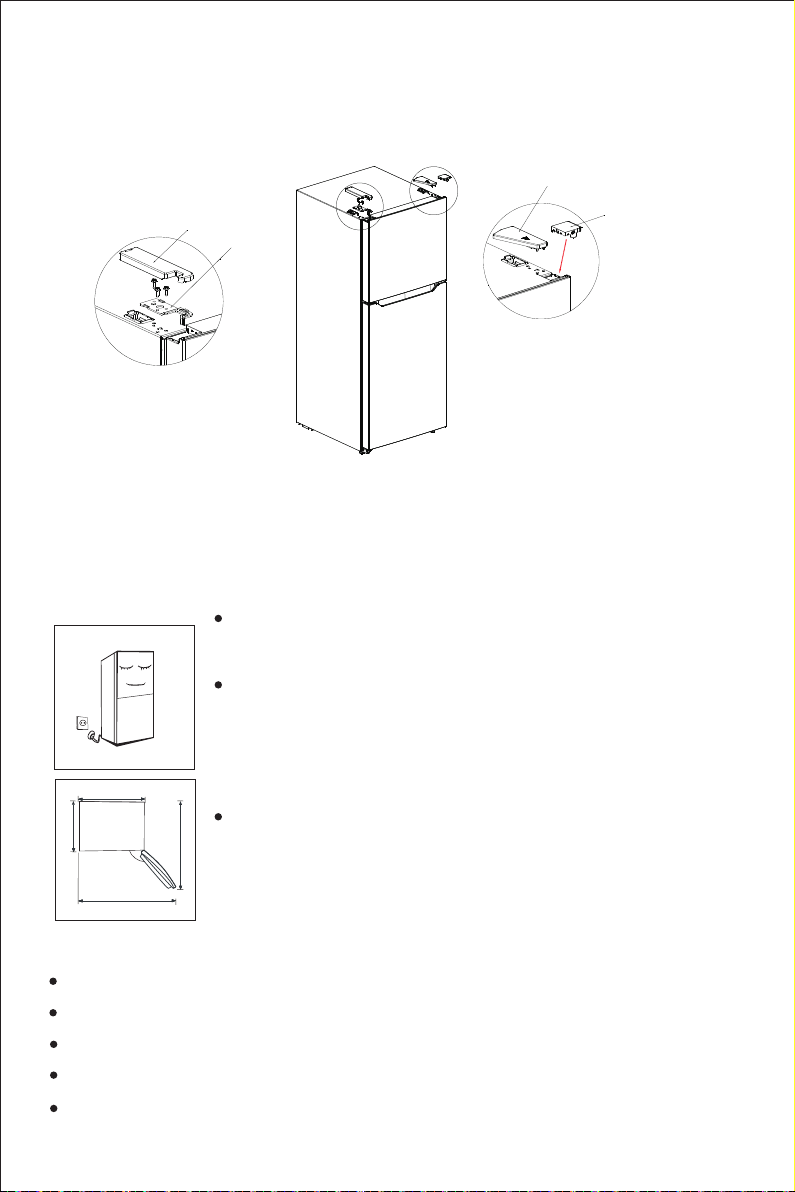

upper hinge cover
sleeve pipe
upper hinge
hole cap

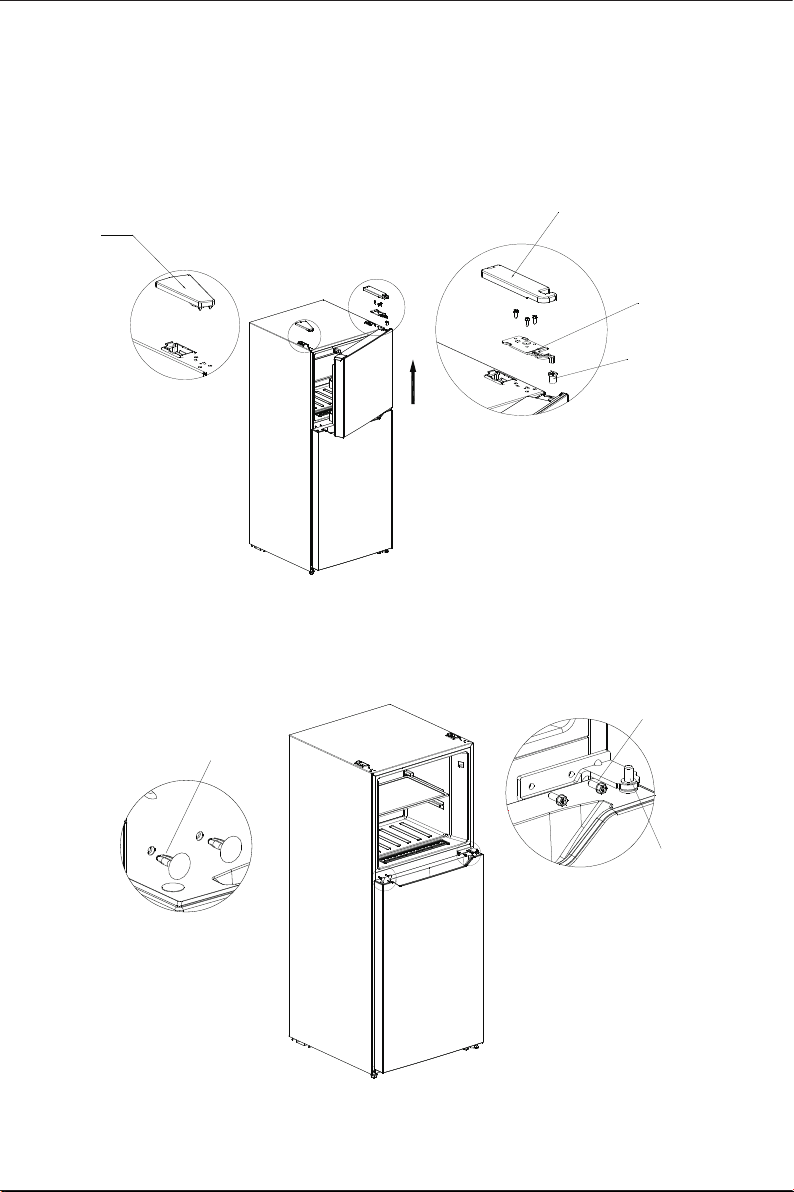

2)Remove hole cap, the upper hinge cover,fitting screws of upper hinge,upper hinge and sleeve
pipe,then uplift the freezer door until it is separated from cabinet completely.
screw
hole cap
3)Remove the hole caps, fitting screws of middle hinge and middle hinge, then uplift the refrigerator
door until it is separated from cabinet completely.
middle hinge

8
hole cap
screw
sleeve pipe
stopper
scerw
4)Remove the lower hinge assembly from lower right corner and remove the hole cap, screw cap from
lower left corner; Dismantle the hinge shaft and adjustable foot and install them on other side of lower
hinge; then install the lower hinge assembly on lower left corner by fitting screws, and install the hole
cap and screw cap on lower right corner.
screw cap
5)Dismantle the right stoppers,sleeve pipes of both refrigerator door and freezer door, and take out
the spare left stoppers, install them together with sleeve pipes on left side of both doors; exchange
the installation position of sleeve pipe and hole cap on upper end cap of refrigerator door; remove the
left decorative cover of freezer door, and move the sleeve pipe from right side to left side.
6) Install the compartment door on the lower hinge and then install the middle hinge
andhole caps.
Refrigerator
sleeve pipe
sleeve pipe hole cap
decorative cover
shaft
shaft

2 5 the Light. Changing
2.7 Energy saving tips
2 6. Starting
9
The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance
forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.This
cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners
interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items
as needed at one time, and close the door as soon as possible.
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its
service agent or similar qualified person.
(The picture above is only for reference.The actual configuration will depend on the physical product
or statement by the distributor)
Before putting any fresh or frozen foods, the refrigerator shall have run
for 2-3 hours, or for above 4 hours in summer when the ambient
temperature is high.
Spare enough space for convenient opening of the doors and drawers or
statement by the distributor.
Before initial start, keep the refrigerator still for two hoursbefore connecting it to
power supply.
997mm
595mm
1137mm
600mm
135°
right decorative cover
hole cap
upper left hinge
upper left hinge cover
7) Take out the left upper hinge, left upper hinge cover, and right decorative cover from the accessory
bag, install the freezer door on the middle hinge, and install the left upper hinge, hinge cover and
hole cap. Finally, install the right decorative cover on right side of end cap of freezer door..
left

3.1 Key components
3 Structure and functions
10
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)

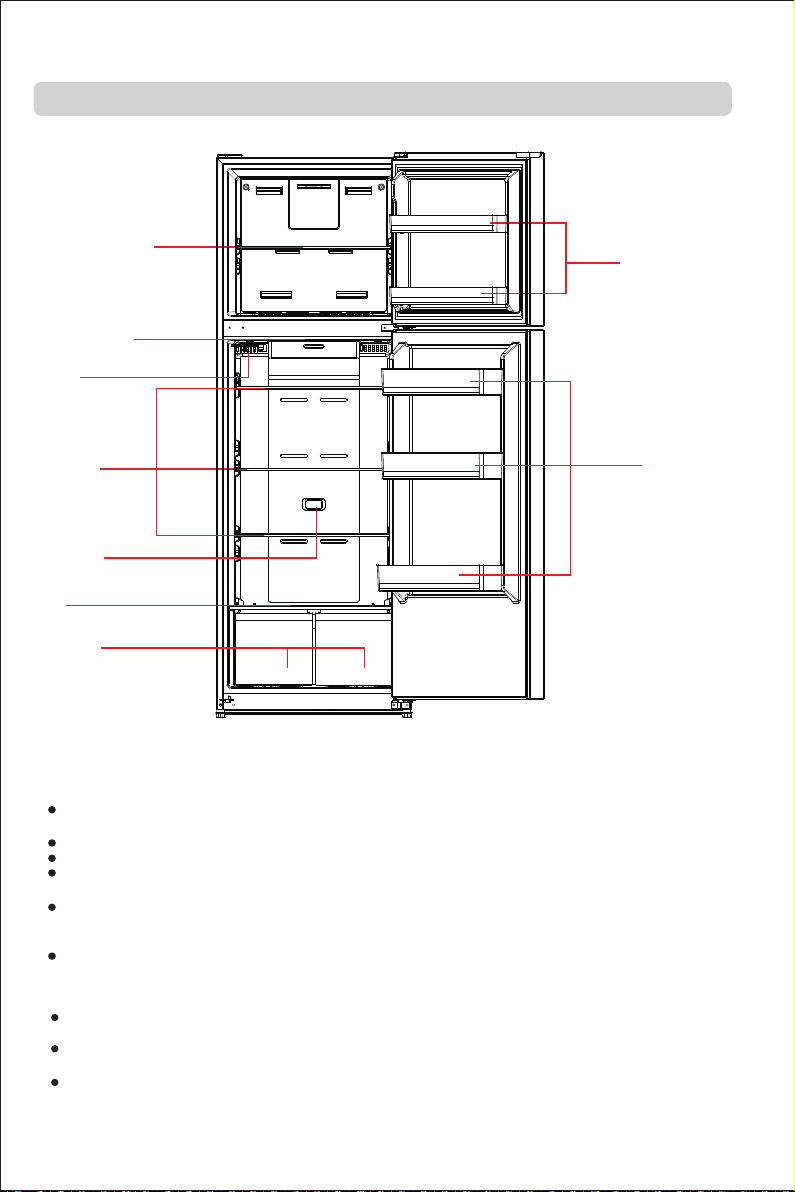

shelf
shelf
Door tray
Door tray
LED light
Fruits and
vegetables box
Humidity controlling
glass shelf
Manual air damper
Deoderizer
Refrigerating chamber
F re e zin g ch a m b e r
The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to
store frozen foods and making ice.
The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be
consumed in short term.
Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted
food shall be consumed within the shelf time.
The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and
other food consumed in the short term.
Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
Foods are recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy
use.
For better use of the refrigerator, it is recommended to push the slider of manual air damper to right
side; if it is not enough cool in refrigerator room, please check this slider and try to push it to right
side if not .
If push the slider of humidity controlling glass shelf to "Vegetables", the humidity inside the crisper
will be highest, if push the slider to "Fruit", the humidity inside the crisper will be lowest.

11
3 2 Functions.
(The picture above is only for reference.The actual configuration will depend on the physical product
or statement by the distributor)
1)Key
A.Temperature setting button of refrigerator compartment
2)Display screen
①setting 1：8℃
②setting 2：6℃
③setting 3：4℃
④setting 4：2℃
s e ttin g 1 s e ttin g 2 s e ttin g 3 s e ttin g 4
Fault Code
Indicator setting 1 and setting 2
Fault Description
Indicator setting 1 and setting 3
Indicator setting 1 and setting 4
.
A
①
②
③
④
3)Display
when electrify the refrigerator for first time,the display screen shines fully for 3 seconds, and then
the refrigerator runs according to setting 3. In case of a failure, the corresponding LED blinks. In
case of no failures, it shows the temperature setting of refrigerator.
4)Temperature setting
Each time the temperature setting button A is pressed once,the temperature setting changes one
time. After the temperature setting has been completed, the refrigerator will run according to the set
value after 15s.
The shift regulation is:
Refrigerator temperature sensor
Freezer defrost sensor
Ambient temperature sensor
5)Lock/Unlock
When the temperature control panel is in lock state, it needs to long press temperature setting key
for 3 seconds for unlocking the panel, all LEDs will blink for 2 seconds when panel is unlocked.
When the temperature control panel is in unlock state, if there is no operation on control panel within
15 seconds, it will enter into lock state automatically.

4. Maintenance and care of the appliance
4.1 Overall cleaning
Please unplug the refrigerator for defrost and cleaning.
detergent
4.2 the glass shelfCleaning
12
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling
effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor.
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for
cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for
natural drying before the power is turned on.
Do not use hard brushes, clean steel balls, wire brushes, abrasives,
such as toothpastes, organic solvents (such as alcohol, acetone,
banana oil, etc.), boiling water, acid or alkaline items clean
refrigerator considering that this may damage the fridge surface
and interior.
Do not rinse with water so as not to affect the electrical insulation
properties.
Lift up the front of glass shelf,and then pull out;
Remove the glass shelf and clean as needed;
The reverse operation is for installation of glass shelf.
Hold the front edge of humidity controlling shelf and lift up it about 45° ,then take out the humidity
controlling shelf;
4.3 How to take out the humidity controlling glass shelf

4 4 Defrosting.
13
The refrigerator is made based on the air-cooling principle and thus has automatic defrosting
function. Frost formed due to change of season or temperature may also be manually removed by
disconnection of the appliance from power supply or by wiping with a dry towel.
4 5 Out of operation.
The appliance shall run continuously once it is started. Generally, the operation of
the appliance shall not be interrupted;otherwise the service life may be impaired.
Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be
kept for several hours; during the power failure, the times of door opening shall be reduced, and no
more fresh food shall be put into the appliance.
Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left
open to prevent odor.
Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions,
vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close
the doors and fix them with tape. During moving, the appliance shall not be laid upside down or
horizontally, or be vibrated; the inclination during movement shall be no more than 45°.

5 Trouble shooting
14
You may try to solve the following simple problems by yourself. If them cannot be solved,
please contact the after-sales department.
Water pan overflows
There is too much food in the chamber or food stored contains
too much water,resulting in heavy defrosting.
The doors are not closed properly, resulting in frosting due to entry
of air and increased water due to defrosting.
Failed operation
Check whether the appliance is connected to power or whether the plug
is in well contact .
Check whether the voltage is too low.
Check whether there is a power failure or partial circuits have tripped.
Door seal fails to
be tight
Remove foreign matters on the door seal.
Heat the door seal and then cool it for restoration (or blow it with an
electrical drier or use a hot towel for heating).
Hot housing
Abnormal noise
Long operation of the refrigerator is normal in summer when the ambient
temperature is high.
It is not recommended having too much food in the appliance at the same time.
Food shall get cool before being put into the appliance.
The doors are opened too frequently.
Long-time operation
of the compressor
The door is stuck by food packages.
The refrigerator is tilted.
Doors cannot be
properly closed
Surface condensation
Condensation on the exterior surface and door seals of the refrigerator is
normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Buzz: The compressor may produce buzzes during operation, and the buzzes
are loud particularly upon start or stop. This is normal.
Creak: Refrigerant flowing inside of the appliance may produce creak, which
is normal.
Heat dissipation of the built-in condenser via the housing, which is normal.
When housing becomes hot due to high ambient temperature and
storage of too much food,it is recommended to provide sound ventilation
to facilitate heat dissipation.
Odor
Odorous foods shall be tightly wrapped.
Check whether there is any rotten food.
Clean the inside of the refrigerator.
Check whether the refrigerator is connected to power supply and whether
the illuminating light is damaged.
Light fails to get lit
Loud noise
Check whether the floor is level and whether the refrigerator is placed stably.
Check whether accessories are placed at proper locations.
