Range Master RMB45CFBL/SS Manual

RMB45CFBL/SS
ECL45CFBL/BL
User Guide
&
Installation & Service Instructions
U110868 - 02

1. Before You Start... 1
Before First Use 1
Personal Safety 1
Before the installation 1
Electrical Safety 2
Installation and Maintenance 2
Provision for Ventilation 2
Location of the appliance 2
Cleaning 2
2. Overview 3
Using the appliance for the rst time 4
Setting water hardness 7
Setting the clock for the rst time 8
Changing the time 8
3. Changing and Setting
the Parameters 16
Changing the units (not in menu list) 16
Setting auto-start time 17
Setting auto-o time 19
Reset 20
Number of use 21
Language 22
Emptying 23
4. Cleaning and Maintenance 24
Essential Information 24
Cleaning 24
Control Panel 24
Cleaning the drip tray 25
Cleaning the coee grounds container 25
Cleaning the infuser/clean brew 26
Manual operation of cleaning the infuser/
clean brew 27
Cleaning the water tank 28
Cleaning the spouts 28
Cleaning the pre-ground coee funnel 28
Cleaning the inside of the coee maker 28
Descaling 29
Contents
5. Troubleshooting 31
6. Installation 33
Installation warnings 33
Provision for Ventilation 33
Before the installation 33
Location of the appliance 33
Installation 34
Automatic cup tray light 34
Electrical Connection 36
7. Circuit Diagram 39
8. Technical Data 40
9. Warranty/After Sales Service 41

1
Thank you for buying a Rangemaster appliance. It should give
you many years trouble-free cooking if installed and operated
correctly. It is important that you read this section before you
start.
 CAUTION: This appliance is designed and made
to prepare coee and hot drinks. All other use is
considered improper. This appliance is not suitable
for commercial use. The manufacturer is not liable
for damage deriving from improper use of the
appliance.
Before First Use
Before using the appliance for the rst time clean it
thoroughly. Switch o the unit at the isolator or mains supply.
Remove all packing materials and accessories. Use hot water
and mild detergent to wipe the appliance and then rinse
carefully with a damp cloth.
Personal Safety
 Keep all packaging (plastic bags, polystyrene foam)
away from children.
 Do not immerse this machine in water.
 Accessible parts will become hot during use and will
retain heat even after use. Keep babies and children
away from the appliance.
 When the appliance is not in use, ensure that the
appliance is OFF.
 To minimise the possibility of burns, always be
certain that the controls are OFF position and that
the entire appliance is cool before attempting to
clean.
 Use dry gloves (e.g. oven gloves) when applicable –
using damp gloves might result in steam burns when
you touch a hot surface. Never operate the appliance
with wet hands. DO NOT use a towel or other bulky
cloth in place of a glove – it might catch re if it
touches a hot surface.
 Always keep combustible wall coverings or curtains,
etc., a safe distance away from your appliance, and
never wear loose-tting or hanging clothes while
using the appliance.
 DO NOT store or use aerosols, or any other
potentially combustible or ammable materials, in
the vicinity of the appliance.
 This appliance is heavy, so take care when moving it.
 The appliance is not intended to be operated by
means of external timer or separated remote-control
system.
 This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
 Children less than 8 years of age should be kept
away unless continuously supervised. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
 Do not place container of liquids, ammable or
corrosive materials on top of the appliance.
 When preparing the coee machine for use, please
use the special side holders.
 Do not rest large heavy objects on the appliance.
 Never make drinks, hot water or steam when the
appliance is extracted. Always make sure the
appliance is inactive before extracting it. Failure to
observe this precaution could lead to damage to the
appliance. The only exception is adjusting the coee
mill which must be done with the machine out Refer
to “Adjusting the coee mill” on page 4”.
 This appliance produces hot water and steam may
form while it is in operation. Avoid contact with
splashes of water or hot steam. Avoid touching hot
surfaces when the appliance is in use.
 Only a qualied service engineer should service the
appliance and only approved spare parts should
be used. It is recommended that this appliance is
serviced annually.
Before the installation
 Installation must be performed by a qualied
professional in compliance with legislation in force
in the country of installation.
 The packing elements (plastic bags. polystyrene
foam, etc.) should be kept out of reach of children as
they are a Safety hazard.
 You should set the water hardness as soon as
possible following the instructions in the “Setting
water hardness” on page 7.
After removing the packaging, make sure the product is
complete and undamaged and that all accessories are
present. DO NOT use the appliance if it is visibly damaged.
Contact Customer Services.
DO NOT use the appliance if the power cable or the plug
is damaged, if the appliance does not function correctly or
if it has been damaged or dropped. Put the appliance on a
at and stable surface. The appliance should not be installed
close to any heat source, radios or televisions.
During installation, make sure that the power cable does not
come into contact with any moisture or objects with sharp
edges and the back of the appliance. High temperatures can
damage the cable.
1. Before You Start...

2
 Warning: After the appliance is installed you should
make sure you can access the electrical isolation
point.
Electrical Safety
The electrical installation must be installed in accordance
with all relevant British Standards/Codes of Practice, BS 7671.
Or with the relevant national and local regulations and with
the local gas and electricity supply companies’ requirements.
Otherwise, all installations must be in accordance with the
relevant instructions in this booklet.
Read the instructions before installing or using this appliance.
The appliance may be installed in a kitchen/kitchen diner but
NOT in a room containing a bath or shower.
This appliance MUST be earthed.
The appliance MUST NOT be tted with plug and connected
to a wall socket. Refer to “Electrical Connection” on page
36.
The appliance must be installed in accordance with the
regulations in force and only in a well ventilated space.
Failure to install the appliance correctly could invalidate any
warranty or liability claims and lead to prosecution.
DO NOT install the appliance on a loose platform. The
appliance is heavy and may tip if not adequately secured.
Refer to “Installation” on page 33.
DO NOT manouvre the appliance while it is connected into
the electricity supply.
If the appliance does not operate successfully, DO NOT
attempt to repair. Turn it o using the main switch (Refer to
the overview chapter) unplug from the mains socket and
contact customer services.
If the plug or powder cable is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
Installation and Maintenance
 DO NOT install the appliance on a loose platform.
The appliance is heavy and may tip if not adequately
secured. Refer to “Installation”on page 33 before
proceeding installation of your appliance.
It is recommended that this appliance is serviced annually.
Only a qualied service engineer should service the
appliance, and only approved spare parts should be used.
Make sure that the appliance is wired in and switched on.
Always allow the appliance to cool and then switch it o at
the mains before cleaning or carrying out any maintenance
work, unless otherwise specied in this guide. Refer to
“Installation” on page 33 and “Electrical Connection”
on page 36 before proceeding installation of your
appliance.
Provision for Ventilation
The appliance housing used must provide adequate
ventilation.
For built-in installation, a minimum ventilation space of 85 –
90mm 40mm must exist between the rear of the appliance
and the back of the housing or an adjacent wall.
If a tall housing is to be installed ush with the ceiling, a
20cm² ventilation cut-out must be provided at the top of the
housing.
Location of the appliance
 Do not install the appliance in rooms where the
temperature may drop to 0°C or lower (the water in
the appliance could freeze and cause damage).
The appliance may be installed in a kitchen/kitchen diner but
NOT in a room containing a bath or shower.
This appliance is designed for domestic cooking only. Use for
any other purpose could invalidate any warranty or liability
claim.
Cleaning
In the interests of hygiene and safety, the appliance should
be kept clean at all times.
Clean only the parts listed in this guide.
Clean with caution. If a wet sponge or cloth is used to wipe
spills on a hot surface, be careful to avoid steam burns. Some
cleaners can produce noxious fumes if applied to a hot
surface.

3
12
12.00
456 783
A
K
LF
O
N
M
B
E
C
D D
J
I
H
G
milk jug

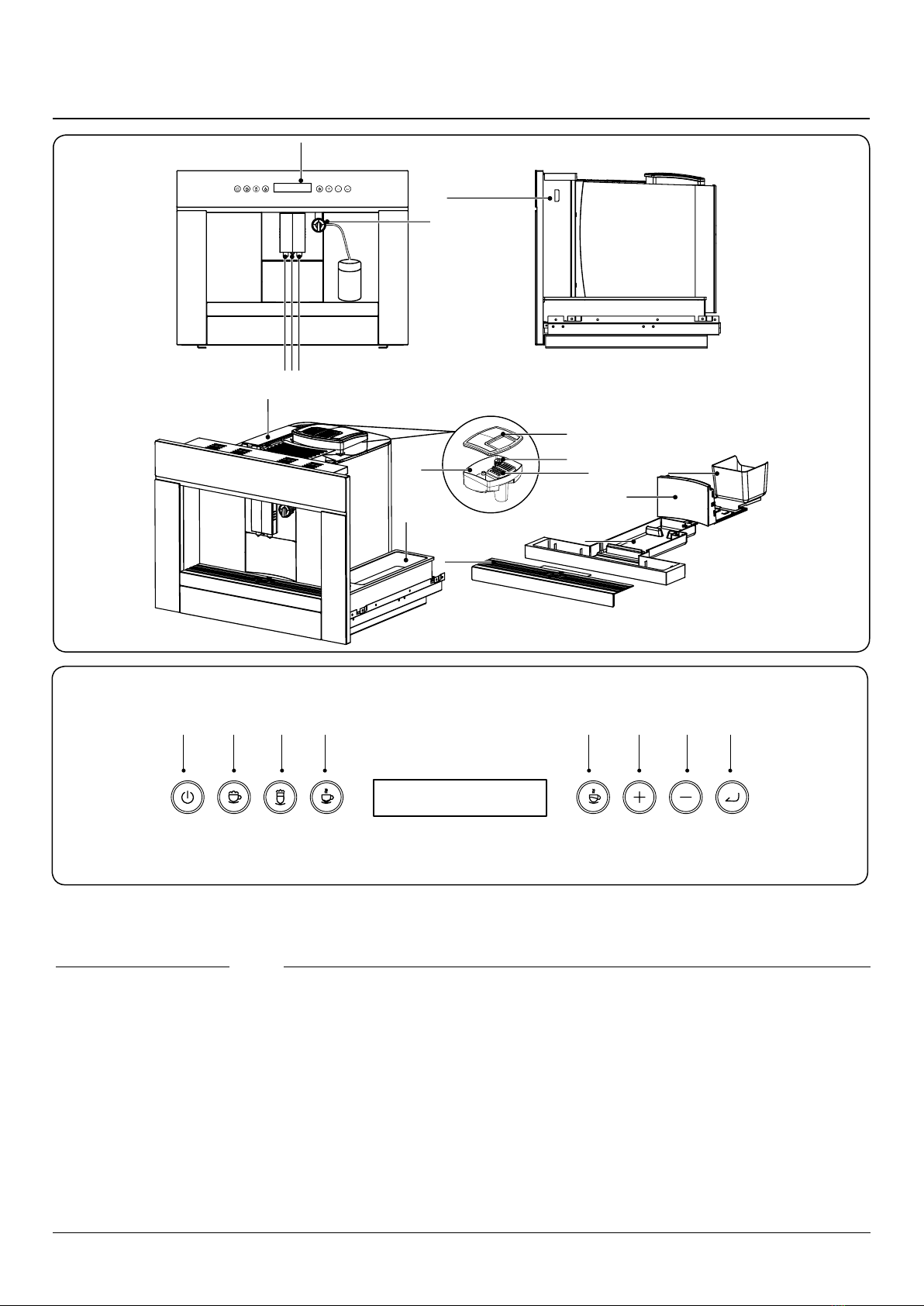

Fig. 2.1
Fig. 2.2
2. Overview
1. On / Standby
2. Cappuccino
3. Latte
4. Espresso
5. Coee
6. “+”button
7. “-”button
8. Pause / Enter
I. Drip tray
J. Metal drip tray
K. Tank
L. Coee bean container
M. Coee bean cover
N. Pre-ground coee
funnel
O. Storage for coee
bags
A. Display screen
B. Milk / Cream knob
C. Cream nozzle
D. Coee nozzle
E. Main switch
F. Adjustable mill knob
G. Used coee grounds
container
H. Load tray
Key: Fig. 2.1 Key: Fig. 2.1

4
 Important! To prevent malfunction, never introduce
pre-ground coee, freeze dried coee, caramelized
beans or anything else which could damage the
appliance.
Adjusting the coffee mill
NOTE: If the coee is delivered too slow or not at all, turn the
grinding adjustment knob (Fig. 2.3). Proceed one click at a
time until coee delivery is satisfactory.
NOTE: If the coee is delivered too fast and the cream is not
satisfactory, turn the grinding adjustment knob (Fig. 2.3). one
click anticlockwise (Fig. 2.3). Proceed one click at a time until
coee delivery is satisfactory.
The coee mill is preset in the factory to make coee
correctly and should not require adjusting initially.
However, if after making the rst few coees you nd that
delivery is either too fast or too slow, this can be corrected by
adjusting the grinding adjustment knob (Fig. 2.3).
 Important! The grinding adjustment knob (Fig.
2.3) must only be turned when the coee mill is in
operation. For slower delivery and creamier coee,
turn one click anticlockwise (ner, pre-ground
coee). For faster delivery (not a drop at a time),
turn one click clockwise (coarser pre-ground coee).
SELF CHECK
HEATING
RINSING
READY
Step 1. Once correctly installed, turn on the main switch.
Fig. 2.3
Step 2. Press the "On / Standby". The appliance will do a
self-check.
Step 4. Wait for some time, this appliance will
automatically start “rinsing".
Step 5. When rinse program is nished, the appliance will
display“ready”.
Step 3.
Using the appliance for the first time
AGA Rangemaster Limited
Leamington Spa
Warwickshire
CV31 2AD
England
Serial No.
Model
Frequency
Voltage
Power
RMB45CFBL/SS

5
Tips for a hotter coee
To make a small coee (less than 60 cc), rinse the cup with
hot water to preheat the cups. If you need to change the
temperature please refer to the "Change the temperature"
page 10.
• Unless preheated, do not use excessively thick cups as
they will absorb too much heat.
• Preheat the cups by rinsing them with hot water.
When the appliance displays“ll water", ll the tank with
water. It is normal for there to be a little water left in the tank
when the message is displayed.
 Do not ll the water tank with hot or boiling water.
 NOTE: Never extract the water tank while the
machine is delivering coee, if it is removed, it will
not be possible to make the coee and the appliance
will display “fill water”. If it is removed place the
water tank in its original position, the interrupted
program will continue to nish.
Note: The On / Standby button turns on your appliance from
standby. The appliance will automatically return to standby
mode after the coee is made.

6
Main Menu Purpose
Use powder This mode will force the appliance to make the coee from
the pre-ground coee container.
Hot milk Adjust milk capacity and settings.
Hot cream Adjust cream capacity and settings.
Menu Sub Menu
• Maintenance
Brew clean
Descale
Empty Ready
Back
• Temperature
Normal
High
Back
• Auto on Sets auto on time
• Water hardness Sets water hardness
• Filter Yes / No
• Auto off Sets auto o time
• Reset Resets factory default
• Information
Version
Number of uses
Back
• Language English
Back
• Exit Exit to main sub menu
Aroma Adjust aroma settings.
Display Adjust display settings.
Exit Exit out of menu mode
Table 2.1
Coffee Machine Menus

7
Setting water hardness
The descale message is displayed after the appliance has
been operated for a set period of time, calculated on the
basis of the maximum quantity of lime scale which may be
contained in the water used.
The operating period can be extended if required, making
descaling less frequent by programming the appliance on the
basis of the real lime content in the water used.
Proprietary water hardness strips can be used to establish
water hardness of your water. Once you have established the
hardness. Proceed to set your appliance.
Level PPM CaCo3Hardness
1 Below 50 ppm Very soft
2 50 - 120 ppm Soft
3 120-240 ppm Medium hard
4 240 - 360 ppm Hard water
5 Above 360 ppm Very hard
SELF CHECK
READY
WATER HARDNESS
WATER HARDNESS
LEVEL 4
LEVEL 4
Step 1. Press the "On / Standby" button. If the appliance has
not been used for awhile it will rinse.
Step 2. When the appliance displays "READY" press the
"Enter" button.
Step 3. Press the "+" button to scroll to "WATER HARDNESS".
Step 4. Press the "Enter" button.
Step 5. Press the "+" button to select water hardness level.
Step 6. Press the "Enter" button to conrm selection.
The appliance is now programmed to provide the
descale warning when necessary based on the actual
hardness of the water.

8
15.00
08.00
08.00
08.00
08.00
08.35
08.30
08.30
08.15
08.15
08.15
08.15

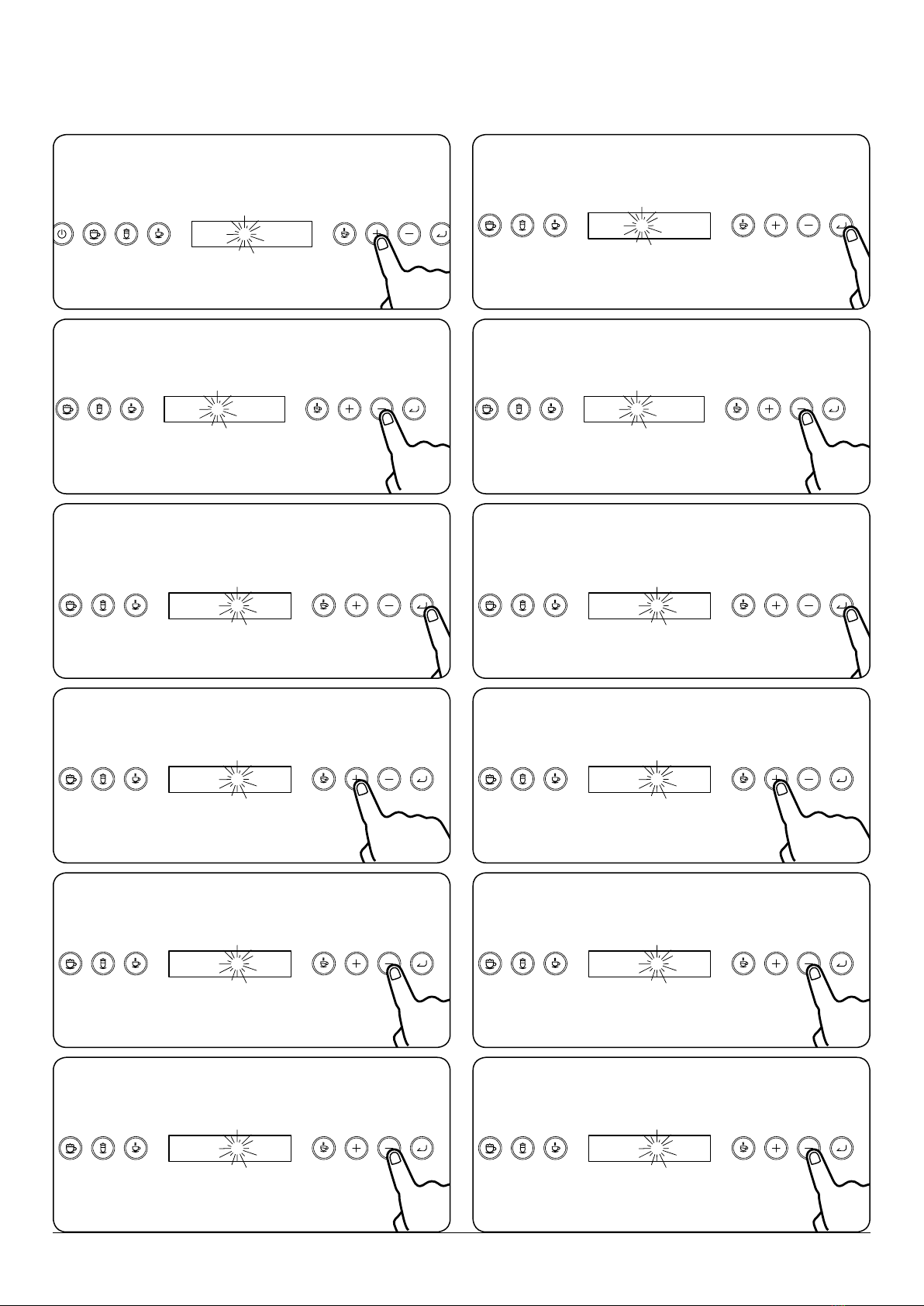

Step 1. While the hour is ashing, press the +.
Once the appliance is connected and switched on, the
display will start to ash. The clock must be set to the time
of day.
If the clock time needs to be reset or adjusted, please
follow the procedure below.
Step 3. Press "Enter" to conrm and set the minutes. Step 3. Press "Enter" to conrm and set the minutes.
Step 1. Press "Enter" the hour will ash.
Step 5. Decrease the minutes.
TIP. Press and hold "+" or "-" button to fast increase or
decrease hours / minutes.
TIP. Press and hold "+" or "-" button to fast increase or
decrease hours / minutes.
Step 5. Decrease the minutes.
Step 2. Decrease the hour. Step 2. Decrease the hour.
Step 4. Increase the minutes. Step 4. Increase the minutes.
Setting the clock for the first time Changing the time
No button needs to be pressed to conrm time. No button needs to be pressed to conrm time.

9
READY
RINSING
SELF CHECK
READY
AROMA
Mild
AROMA
Step 2. If the coee machine has not been used for awhile
it will rinse.
Step 1. Press the "On / Standby" button. Step 7. Machine displays
Step 3. When the machine displays "READY" press the "Enter"
button.
Step 4. Press the "+" button to scroll to "AROMA". Press the
"Enter" button.
Step 6. Press the "Enter" button to conrm selection.
Step 5. Use the "+" or "-" key to select "mild / normal /
strong".
How to change the aroma with coffee beans?

10
TEMPERATURE
TEMPERATURE
HIGH
Step 5. Press "ENTER"
Step 6. Press "+" and choose either "High" or "NORMAL"
Step 4. Use the "+" key to select "TEMPERATURE".
Change the temperature
SELF CHECK
HIGH
READY
MENU
If you want to adjust the temperature of your drink. Please
follow the below steps:
Step 1. Press the "On / Standby" button. If the coee
machine has not been used for awhile it will rinse.
Step 7. Press "Enter" to conrm selection.
Step 2. When the machine displays "READY" press the "Enter"
button.
Step 3. Press the "+" button to scroll to "MENU". Press the
"Enter" button.

11
READY
Step 4. When nished it will be display:
Making coffee using coffee beansIf an extra rinse is required
READY Press 2x
Step 2. When the appliance displays "READY" press the
"Enter" button twice.
SELF CHECK
SELF CHECK
Coffee 200cc
Coffee 100cc
Step 1. Press the "On / Standby" button. If the coee
machine has not been used for awhile it will rinse.
To follow a rinse cycle:
Step 1. Press the "On / Standby" button. If the coee
machine has not been used for awhile it will rinse.
Step 2. Place a clean mug under the spout. When the
machine displays "READY" press the "Coee" button.
Step 3. While brewing the volume can be adjusted. You can
adjust the volume using the "+" or "-".
Soon after the coee has stopped grinding the brewing will
commence. The coee machine will ll the mug.
Adjust the aroma, temperature, before making a coee.
If an extra rinse is required follow the process below. This will
force an extra rinse cycle.
NOTE: If the forced rinse cycle does not start, the coee
machine is too hot. Press "Pause" and "Enter" again to start
cooling down. When ready the machine will automatically
start the rinse cycle.
If the hot milk / hot cream, cappuccino, latte has been
completed the machine will automatically start rinse cycle.
RINSING
Step 3. Wait for some time, this appliance will
automatically start “rinsing".

12
Making espresso with pre-ground coffee (instead of beans)
SELF CHECK
READY
USE POWDER
FILL POWDER
Step 1. Press the "On / Standby" button. If the appliance has
not been used for awhile it will rinse.
Step 2. Press the "Enter" when the display states "READY"
Step 3. The appliance will state “use powder"
Step 4. The appliance will state “FILL powder"
Step 5. Pull the appliance out.
Step 6. Open the coee powder cap. Use the measuring
cup provided. Add one level measure to the powder unit.
Step 7. Once complete, recover the coee powder cap and
push the appliance in.
You can also use coee powder to make cappuccino latte
coee.
NOTE: Never introduce pre-ground coee when the machine
is o or before pressing any button. Otherwise the pre-
ground coee will spread through the inside of the appliance.
NOTE: Never add more than 1 level measure, otherwise the
appliance will not make the coee and the pre-ground coee
will be dispersed inside the appliance, making it dicult to
clean or the coee will be delivered too slow.
NOTE: Use the measuring cup provided to add the right
amount of coee.
NOTE: Introduce only pre-grounded coee for espresso
coee machines into the funnel. Never ll with coee beans,
freeze dried coee or other substance that could damage the
appliance.
NOTE: lf more than one measure of pre-grounded coee is
used and the funnel clogs, refer to Cleaning the infuser/
clean brew.
Adjust the aroma, temperature, before making a coee.

13
READY
milk
jug
Milk Froth Hot Milk
Step 2. Set up the appliance as shown below.
TIP. Hot milk froth is ideal for cappuccino.
Making cappuccino using coffee beans
SELF CHECK
Coffee 200cc
Coffee 100cc
STEAM HEATING
HOT CREAM 30s
HOT CREAM 10s
PRESS RINSE
Step 1. Press the "On / Standby" button. If the coee
machine has not been used for awhile it will rinse.
Step 3. Place a clean mug under the spout. When the
machine displays "READY" press the "Cappuccino" button.
Step 4. While brewing the volume can be adjusted. You can
adjust the volume using the "+" or "-".
Step 5. Once the brewing has ended, the appliance will
steam heat the milk.
Step 6. The appliance will dispense steam milk and will
display "HOT CREAM ##s". The milk will be added to the
cappuccino.
Step 7. While brewing the time can be adjusted. You can
adjust the time using the "+" or "-".
Step 8. Each time a cappuccino is made the machine will
display "PRESS RINSE". Press the "Enter" button to complete
display rinse cycle.
The machine will clean the tube and revert back to "READY".
Soon after the coee has stopped grinding the
brewing will commence. The coee machine will
ll the mug.
Adjust the aroma, temperature, before making a coee.

14
READY
milk
jug
Milk Froth Hot Milk
Step 2. Set up the appliance as shown below.
Adjust the aroma, temperature, before making a coee.
Making latte using coffee beans
SELF CHECK
Coffee 200cc
Coffee 100cc
Step 1. Press the "On / Standby" button. If the coee
machine has not been used for awhile it will rinse.
Step 3. Place a clean mug under the spout. When the
machine displays "READY" press the "Latte" button.
Step 4. While brewing the volume can be adjusted. You can
adjust the volume using the "+" or "-".
Soon after the coee has stopped grinding the brewing will
commence. The coee machine will ll the mug.
Adjust the aroma, temperature, before making a coee.
STEAM HEATING
HOT CREAM 30s
HOT CREAM 10s
PRESS RINSE
Step 5. Once the brewing has ended, the appliance will
steam heat the milk.
Step 6. The appliance will dispense steam milk and
will display "HOT CREAM ##s". The milk will pour into your
cappuccino.
Step 7. While brewing the time can be adjusted. You can
adjust the time using the "+" or "-".
Step 8. Each time a cappuccino is made the machine will
display "PRESS RINSE". Press the "Enter" button to complete
display rinse cycle.
The machine will clean the tube and revert back to "READY".
Note: Latte will take longer to make then cappuccino.
TIP. Hot milk is ideal for latte.

15
The machine will clean the tube and revert back to "READY".
READY
milk jug
READY
milk
jug
Milk Froth Hot Milk
Step 1. Set up the appliance as shown below.
Step 2. Turn the knob to either the hot milk or milk froth.
Making Hot milk or Milk froth
SELF CHECK
Step 3. Press the "On / Standby" button. If the coee
machine has not been used for awhile it will rinse.
HOT MILK
HOT MILK
STEAM HEATING 10s
Step 5. Press the "+" or "-" and select either the "Hot Milk" or
"Hot Cream".
Step 6. Press "Enter", “steam heating”will display.
Step 7. To adjust the cycle time. Press “+” or“-“ key, the cycle
time will increase or reduce by 1 second.
READY
Step 4. Press the "Enter" when the display states "READY"
PRESS RINSE
Step 8. Once complete the appliance will display "PRESS
RINSE" press the "Enter" button.
The machine will clean the tube and revert back to "READY".

16
3. Changing and Setting the Parameters
SELF CHECK
READY
MENU
Step 1. You can modify the parameters and functions of
your appliance.
Step 2. When the appliance displays "READY" press the
"Enter" button.
Step 3. Use the "+" button to scroll to "MENU" press the
"Enter" button.
DISPLAY
CC/OZ
OZ
Step 1. Follow the "Changing and setting the parameters"
steps. Scroll to "Display" using the "+" button and press
"Enter" button
Step 3. Press "+" to choose a unit and press "Enter" to
conrm.
The time can also be set here.
Step 2. Press "Enter" again to selct "CC/OZ".
Changing the units (not in menu list)

17
SELF CHECK
READY
MENU
MENU
AUTO ON
AUTO ON
Step 1. Press the "standby" button. If the appliance has not
been used for awhile it will rinse.
Step 2. When the appliance displays "READY" press the
"Enter" button.
Step 3. Press the "+" button to scroll to "MENU".
Step 4. Press the "Enter" button.
Step 5. Press the "+" button to scroll to "AUTO ON".
Step 6. Press the "Enter" button
Setting auto-start time
This function mean the machine will come on automatically
to be ready for use.
Before use please ensure:
• The correct time has been set.
• The drip tray is empty if auto-start time is set.
• The water tank is full.
• The coffee machine is ready with beans or pre-ground
coffee.
15.00
08.00
08.00
Step 7. While the hour is ashing, press the "+" button.
Step 9. Press "Enter" to conrm the hour and to set the
minutes.
Step 8. Decrease the hour.
08.30
Step 10. Increase the minutes.

18
08.15
08.15
Step 11. Decrease the minutes.
Step 12. Press“enter” key which conrms the "AUTO ON".
NOTE: Do not switch o from the main switch,
otherwise it will reset.
