Ransburg RCS Series User manual

SERVICE MANUAL
LN-9415-01
January— 2015
RCS Positive Displacement Pump Series
DLC Flushable Pump Series
A13622-00 3.5 cc/rev
A13623-00 6.0 cc/rev
A13624-00 9.7 cc/rev
DLC Non-Flushable Pump Series
A13619-00 0.3 cc/rev
A13620-00 0.6 cc/rev
A13621-00 1.8 cc/rev
A13635-00 3.0 cc/rev
IMPORTANT: Before using this equipment, carefully read all AFETY PRECAUTION , starting
on page 1, and all instructions in this manual. Keep this ervice Manual for future reference.
ervice Manual Price: $50.00 (U. .)
ervice Manual Price: $50.00 (U. .)ervice Manual Price: $50.00 (U. .)
ervice Manual Price: $50.00 (U. .)

Positive Displacement Pump
LN-9415-01
N O T E S

Positive Displacement Pump
LN-9415-01
CONTENTS
PAGE
SAFETY: 1-6
SAFETY PRECAUTIONS............................................................................................................1
HAZARDS / SAFEGUARDS.....................................................................................................2-6
INTRODUCTION: 7
DESCRIPTION ............................................................................................................................7
FLOW RATE ACCURACY ..........................................................................................................7
MODEL OFFERINGS..................................................................................................................7
FLUID PASSAGES......................................................................................................................7
WATER-BASED APPLICATIONS……………………………………………………………………..7
SPECIFICATIONS....................................................................................................................7-8
INSTALLATION: 9
GENERAL INFORMATION .........................................................................................................9
SYSTEM STARTUP ....................................................................................................................9
OPERATION: 10
PRINCIPLE OF OPERATION ...................................................................................................10
SERVICE & PARTS: 11
DISASSEMBLY FLUSHABLE ...................................................................................................11
REASSEMBLY FLUSHABLE ....................................................................................................12
PARTS LIST FLUSHABLE PUMP.............................................................................................13
DISASSEMBLY NON-FLUSHABLE ..........................................................................................14
REASSEMBLY NON-FLUSHABLE ...........................................................................................15
PARTS LIST NON-FLUSHABLE PUMP ...................................................................................16
MAINTENANCE: 17
CALIBRATION...........................................................................................................................17
TROUBLESHOOTING ..............................................................................................................17
SERVICING...............................................................................................................................17
WARRANTY POLICIES: 18
LIMITED APPLIED WARRANTY...............................................................................................18

Positive Displacement Pump - Safety
1 LN-9415-01
SAFETY PRECAUTIONS
Before operating, maintaining or servicing any
Ransburg electrostatic coating system, read
and understand all of the technical and safety
literature for your Ransburg products. This
manual contains information that is important
for you to know and understand. This infor-
mation relates to USER SAFETY and PRE-
VENTING EQUIPMENT PROBLEMS. To help
you recognize this information, we use the fol-
lowing symbols. Please pay particular attention
to these sections.
A WARNING! states information to alert you
to a situation that might cause serious inju-
ry if instructions are not followed.
A CAUTION! states information that tells
how to prevent damage to equipment or
how to avoid a situation that might cause
minor injury.
A NOTE is information relevant to the pro-
cedure in progress.
While this manual lists standard specifications
and service procedures, some minor devia-
tions may be found between this literature and
your equipment. Differences in local codes and
plant requirements, material delivery require-
ments, etc., make such variations inevitable.
Compare this manual with your system instal-
lation drawings and appropriate Ransburg
equipment manuals to reconcile such differ-
ences.
Careful study and continued use of this manual
will provide a better understanding of the
equipment and process, resulting in more effi-
cient operation, longer trouble-free service and
faster, easier troubleshooting. If you do not
have the manuals and safety literature for your
Ransburg system, contact your local
Ransburg representative or Ransburg.
SAFETY


 The user MUST read and be familiar
with the Safety Section in this manual and
the Ransburg safety literature therein
identified.


 This manual MUST be read and thor-
oughly understood by ALL personnel who
operate, clean or maintain this equipment!
Special care should be taken to ensure that
the WARNINGS and safety requirements
for operating and servicing the equipment
are followed. The user should be aware of
and adhere to ALL local building and fire
codes and ordinances as well as NFPA-33
SAFETY STANDARD, LATEST EDITION,
prior to installing, operating, and/or servic-
ing this equipment.
! W A R N I N G
! W A R N I N G


 The hazards shown on the following
pages may occur during the normal use of
this equipment. Please read the hazard
chart beginning on page 2.

Positive Displacement Pump - Safety
LN-9415-01 2
AREA
Tells where haz-
ards may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Spray Area Fire Hazard
Improper or inadequate opera-
tion and maintenance proce-
dures will cause a fire hazard.
Protection against inadvertent
arcing that is capable of causing
fire or explosion is lost if any
safety interlocks are disabled
during operation. Frequent Pow-
er Supply or Controller shut-
down indicates a problem in the
system requiring correction.
Fire extinguishing equipment must be present in
the spray area and tested periodically.
Spray areas must be kept clean to prevent the ac-
cumulation of combustible residues.
Smoking must never be allowed in the spray area.
The high voltage supplied to the atomizer must be
turned off prior to cleaning, flushing or mainte-
nance.
When using solvents for cleaning:
• Those used for equipment flushing should
have flash points equal to or higher than those
of the coating material.
• Those solvents used for general cleaning must
have a flash point at minimum of 5°C (9°F)
greater than the ambient temperature. It is the
end users responsibility to insure this condition
is met.
• Spray booth ventilation must be kept at the
rates required by NFPA-33, OSHA, country,
and local codes. In addition, ventilation must
be maintained during cleaning operations
using flammable or combustible solvents.
Electrostatic arcing must be prevented. Safe
sparking distance must be maintained between the
parts being coated and the applicator. A distance
of 1 inch for every 10KV of output voltage is re-
quired at all times.
Test only in areas free of combustible material.
Testing may require high voltage to be on, but only
as instructed.
Non-factory replacement parts or unauthorized
equipment modifications may cause fire or injury.
If used, the key switch bypass is intended for use
only during setup operations. Production should
never be done with safety interlocks disabled.
Never use equipment intended for use in water-
borne installations to spray solvent based materi-
als.
The paint process and equipment should be set up
and operated in accordance with NFPA-33, NEC,
OSHA, local, country, and European Health and
Safety Norms.

Positive Displacement Pump - Safety
3 LN-9415-01
AREA
Tells where haz-
ards may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Spray Area Explosion Hazard
Improper or inadequate opera-
tion and maintenance proce-
dures will cause a fire hazard.
Protection against inadvertent
arcing that is capable of causing
fire or explosion is lost if any
safety interlocks are disabled
during operation.
Frequent Power Supply or Con-
troller shutdown indicates a
problem in the system requiring
correction.
Electrostatic arcing must be prevented. Safe
sparking distance must be maintained between the
parts being coated and the applicator. A distance
of 1 inch for every 10KV of output voltage is re-
quired at all times.
Unless specifically approved for use in hazardous
locations, all electrical equipment must be located
outside Class I or II, Division 1 or 2 hazardous
areas, in accordance with NFPA-33.
Test only in areas free of flammable or combus-
tible materials.
The current overload sensitivity (if equipped)
MUST be set as described in the corresponding
section of the equipment manual. Protection
against inadvertent arcing that is capable of
causing fire or explosion is lost if the current over-
load sensitivity is not properly set. Frequent
power supply shutdown indicates a problem in the
system which requires correction.
Always turn the control panel power off prior to
flushing, cleaning, or working on spray system
equipment.
Before turning high voltage on, make sure no ob-
jects are within the safe sparking distance.
Ensure that the control panel is interlocked with the
ventilation system and conveyor in accordance
with NFPA-33, EN 50176.
Have fire extinguishing equipment readily available
and tested periodically.
General Use and
Maintenance
Improper operation or mainte-
nance may create a hazard.
Personnel must be properly
trained in the use of this equip-
ment.
Personnel must be given training in accordance
with the requirements of NFPA-33, EN 60079-0.
Instructions and safety precautions must be read
and understood prior to using this equipment.
Comply with appropriate local, state, and national
codes governing ventilation, fire protection, opera-
tion maintenance, and housekeeping. Reference
OSHA, NFPA-33, EN Norms and your insurance
company requirements.

Positive Displacement Pump - Safety
LN-9415-01 4
AREA
Tells where haz-
ards may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Spray Area / High
Voltage Equip-
ment
Electrical Discharge
There is a high voltage device
that can induce an electrical
charge on ungrounded objects
which is capable of igniting coat-
ing materials.
Inadequate grounding will cause
a spark hazard. A spark can
ignite many coating materials
and cause a fire or explosion.
Parts being sprayed and operators in the spray
area must be properly grounded.
Parts being sprayed must be supported on convey-
ors or hangers that are properly grounded. The
resistance between the part and earth ground must
not exceed 1 meg ohm. (Refer to NFPA-33.)
Operators must be grounded. Rubber soled insu-
lating shoes should not be worn. Grounding straps
on wrists or legs may be used to assure adequate
ground contact.
Operators must not be wearing or carrying any
ungrounded metal objects.
When using an electrostatic handgun, operators
must assure contact with the handle of the applica-
tor via conductive gloves or gloves with the palm
section cut out.
NOTE: REFER TO NFPA-33 OR SPECIFIC
COUNTRY SAFETY CODES REGARDING
PROPER OPERATOR GROUNDING.
All electrically conductive objects in the spray area,
with the exception of those objects required by the
process to be at high voltage, must be grounded.
Grounded conductive flooring must be provided in
the spray area.
Always turn off the power supply prior to flushing,
cleaning, or working on spray system equipment.
Unless specifically approved for use in hazardous
locations, all electrical equipment must be located
outside Class I or II, Division 1 or 2 hazardous
areas, in accordance with NFPA-33.

Positive Displacement Pump - Safety
5 LN-9415-01
AREA
Tells where haz-
ards may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Electrical
Equipment
Electrical Discharge
High voltage equipment is uti-
lized in the process. Arcing in
the vicinity of flammable or
combustible materials may oc-
cur. Personnel are exposed to
high voltage during operation
and maintenance.
Protection against inadvertent
arcing that may cause a fire or
explosion is lost if safety circuits
are disabled during operation.
Frequent power supply shut-
down indicates a problem in the
system which requires correc-
tion.
An electrical arc can ignite coat-
ing materials and cause a fire or
explosion.
Unless specifically approved for use in hazardous
locations, the power supply, control cabinet, and all
other electrical equipment must be located outside
Class I or II, Division 1 and 2 hazardous areas in
accordance with NFPA-33 and EN 50176.
Turn the power supply OFF before working on the
equipment.
Test only in areas free of flammable or combus-
tible material.
Testing may require high voltage to be on, but only
as instructed.
Production should never be done with the safety
circuits disabled.
Before turning the high voltage on, make sure no
objects are within the sparking distance.
Toxic Substanc-
es
Chemical Hazard
Certain materials may be harm-
ful if inhaled, or if there is con-
tact with the skin.
Follow the requirements of the Material Safety
Data Sheet supplied by coating material manufac-
turer.
Adequate exhaust must be provided to keep the
air free of accumulations of toxic materials.
Use a mask or respirator whenever there is a
chance of inhaling sprayed materials. The mask
must be compatible with the material being
sprayed and its concentration. Equipment must be
as prescribed by an industrial hygienist or safety
expert, and be NIOSH approved.

Positive Displacement Pump - Safety
LN-9415-01 6
AREA
Tells where haz-
ards may occur.
HAZARD
Tells what the hazard is.
SAFEGUARDS
Tells how to avoid the hazard.
Spray Area Explosion Hazard—
Incompatible Materials
Halogenated hydrocarbon sol-
vents for example: methylene
chloride and 1,1,1, Trichloro-
ethane are not chemically com-
patible with the aluminum that
might be used in many system
components. The chemical re-
action caused by these solvents
reacting with aluminum can be-
come violent and lead to an
equipment explosion.
Aluminum is widely used in other spray application
equipment - such as material pumps, regulators,
triggering valves, etc. Halogenated hydrocarbon
solvents must never be used with aluminum equip-
ment during spraying, flushing, or cleaning. Read
the label or data sheet for the material you intend
to spray. If in doubt as to whether or not a coating
or cleaning material is compatible, contact your
coating supplier. Any other type of solvent may be
used with aluminum equipment.

Positive Displacement Pump - Introduction
7 LN-9415-01
INTRODUCTION
GENERAL DESCRIPTION
These positive displacement pumps have
been developed for precise metering for use
in RCS and RCS-2 systems.
FLOW RATE ACCURACY
Flow rate accuracies of ± 5% can be expected
with use of these positive displacement
pumps.
CURRENT MODELS
OFFERED
Flushable Version:
A13622-00 3.5 cc/rev
A13623-00 6.0 cc/rev
A13624-00 9.7 cc/rev
Non-Flushable Version:
A13619-00 0.3 cc/rev
A13620-00 0.6 cc/rev
A13621-00 1.8 cc/rev
A13635-00 3.0 cc/rev
FLUID PASSAGES
Both pump versions employ a DLC (Diamond
Like Coating) for extended wear. The flusha-
ble pump series (when equipped with a 22-
337 by-pass valve) provides faster color
changes and minimizes solvent usage.
WATER-BASED APPLICATIONS
The DLC pumps can be used in waterborne
applications overall. It is highly recommended
that water-based materials be submitted to
our lab for evaluation to determine material
compatibility with these pumps.
SPECIFICATIONS
Flow Rate: See Pump Table 1
Accuracy: 95% Efficiency based on
testing with Wet-Sol Mat-
erial @ 50 RPM with 1 bar
differential on Pump Inlet /
Outlet.
(System Dependent )
Working Pressure: See Pump Table 1
Temperature: See Pump Table 1
Materials:
Body: See Pump Table 1
Gears: See Pump Table 1
Bushings: See Pump Table 1
Shafts: See Pump Table 1
Seal: 22-315 (Flushable)
22-383 (Non-Flushable)
Filtration: 100 Mesh (maximum)
Connections: 22-935-1 Color
(Flushable Manifold)
22-872 Catalyst
(Non-Flushable Manifolds)
Weight: See Pump Table 1

Positive Displacement Pump - Introduction
LN-9415-01 8
INTRODUCTION
Part No. A13619 A13620 A13621 A13635 A13622 A13623 A13624
Displacement (cc/rev) 0.3 0.6 1.8 3.0 3.5 6.0 9.7
Weight of Pump (lbs.) 3.6 3.8 3.8 4.4 6.4 6.6 8.2
Base Pump Material 440B 440B 440B 440B 440B 440B 440B
Pump Bushing Material 440B 440B 440B 440B 440B 440B 440B
Shaft & Gear Material 440B 440B 440B 440B 440B 440B 440B
Hardness DLC (Vickers) 2500 2500 2500 2500 2500 2500 2500
Working Pressure max
(PSI) 300 300 300 300 300 300 300
Input pressure max (PSI) 145 145 145 145 145 145 145
Working temp. (°C) -20 to 150° -20 to 150° -20 to 150° -20 to 150° -20 to 150° -20 to 150° -20 to 150°
Pump Style
Non-
Flushable
(Catalyst)
Non-
Flushable
(Catalyst)
Non-
Flushable
(Catalyst)
Non-
Flushable
(Catalyst)
Flushable
(Resin)
Flushable
(Resin)
Flushable
(Resin)
RCS GEAR PUMP TABLE 1 - SPECIFICATIONS -

Positive Displacement Pump - Installation
9 LN-9415-01
GENERAL INFORMATION
The displacement pump (Gear Pump) is used on the RCS and RCS-2 systems. Pumps are
mounting directly to either a resin manifold (for the flushable pump unit) or a catalyst
manifold (for the non-flushable pump). Typical torque applied to the mounting bolts should
not exceed 17 lb-ft (23 N-m). Excessive torque can lead to pump seizure and internal
pump damage. Always follow specified torque settings.

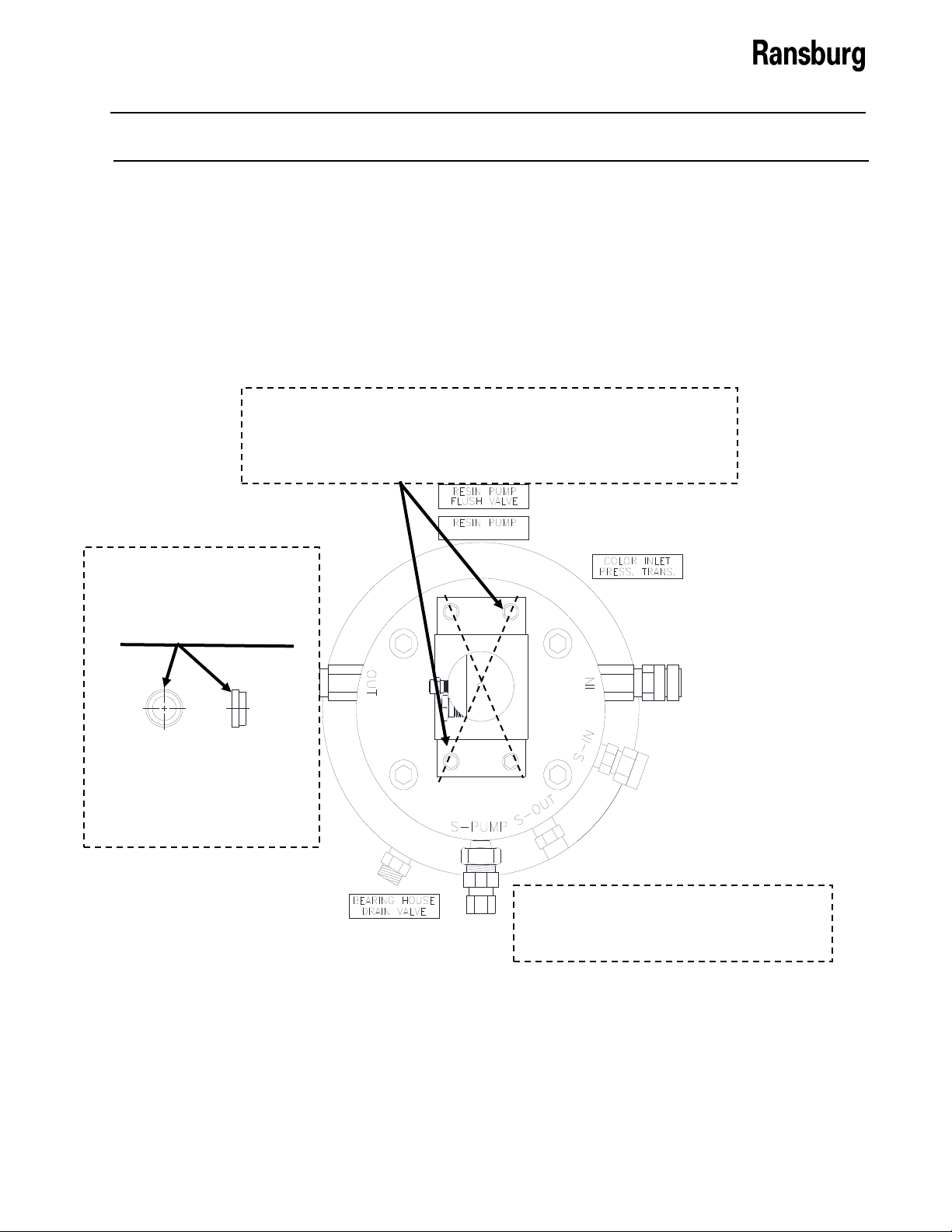

INSTALLATION
RCS RESIN PUMP MOUNTED ILLUSTRATION
- MAX TORQUE FOR MOUNTING BOLTS: 17 LB-FT ( 23 N-m) -
Note:
TORQUE REQUIREMENTS AND TIGHTENING
PROCEDURES HAVE THE SAME TORQUE
SPECIFICATIONS FOR BOTH CATALYST
(NON-FLUSHABLE) AND RESIN (FLUSHABLE)
PUMPS.
CAREFULLY TIGHTEN BOLTS DOWN IN
AN “X” PATTERN AS SHOWN IN ABOVE
ILLUSTRATION
Both Series of Gear Pumps
Require Four Bolts:
• Two SHCS (longest) bolts
use bushing A12304-XX
• Two bolts (shorter) are
standard SHCS
System Start-Up
Pump assemblies are shipped with Wet-sol materi-
al to protect pump inner workings. To remove Wet-
sol, flush and purge the system with solvent as
needed.

Positive Displacement Pump - Operation
LN-9415-01 10
OPERATION
If the inlet pressure of the pump is too low,
the pump will be starved for material and
will cavitate, resulting in lower flows than
expected. Additionally, if the outbound
pressure is significantly higher than the inlet
pressure, the gears will slip by the material,
also causing the flow to be less than ex-
pected.
On the other hand, if the inlet pressure is
too high (especially at low viscosities),
material can “blow by” the gears in the
meter and the resultant flow will be higher
than expected.
Positive displacement gear pumps are most
accurate when the pressure across the
pump (known as differential pressure) is
minimized. That is, if the inlet pressure can
be maintained at a pressure that is very
close to the outlet pressure, the most
accuracy will be realized. The RCS and
RCS-2 Systems have the ability to control
the inlet pressure automatically based on
the value of the outlet pressure. This,
however, is an optional feature. If you are
interested in enabling this feature on your
RCS or RCS-2 System, contact your
Ransburg representative.
PRINCIPLE OF OPERATION
The external gear pump is a positive dis-
placement (PD) type of pump generally
used for the transfer and metering of liq-
uids. The gear pump is a precision machine
with extremely tight fits and tolerances, and
is capable of working under high differential
pressures.
Typically there is a drive gear driven by a
motor that rotates an idler gear in the
opposite direction. When the gears rotate,
the liquid, which is trapped in the gear teeth
spaces between the housing bore and the
outside of the gears, is transferred from the
inlet side of the pump to the outlet side. The
pumped liquid moves around the outside of
the gears and not between the gears. The
rotating gears continue to deliver a fresh
supply of liquid from the suction (inlet) side
of the pump to the discharge (outlet) side of
the pump, with virtually no pulsations. The
meshing of the gears on the discharge side
of the pump forces the liquid out of the
pump and into the discharge port.
Flow rate through the pump is controlled
simply by varying the RPM of the motor
driving the pump. On RCS and RCS-2
Systems, it is recommended that the RPM
of the pump not be allowed to exceed 150
RPM’s.
The accuracy of the gear pump is directly
affected by both the viscosity of the material
being pumped and the differential pressure
across the pump.
If the material is too thin (e.g. viscosities
less than 30 centipoise), it will not be
properly metered by the pump and inaccu-
rate flow rates will result.

Positive Displacement Pump - Operation
11 LN-9415-01
DLC COATED FLUSHABLE PUMP
MODELS COVERED:
A13622-00 3.5 cc/rev
A13623-00 6.0 cc/rev
A13624-00 9.7 cc/rev
PUMP DISASSEMBLY
1. Carefully press out the alignment pins (#2).
2. Unscrew the M6 bolts (#1) from the bottom
of the pump.
3. Remove the top plate (#7), carefully.
4. Remove the center plate (#4) carefully.
5. Remove the drive shaft with gear (#6) &
idler gear (#5).
6. To remove gear from shaft, remove circlips
and slide gear off of shaft.
7. Pull seal (#10) from front plate (use seal
puller or drive from opposite side). Be
careful not to damage the pump bore dur-
ing removal.
Please Note: Driven shaft is fixed in the body
and cannot be removed. (DO NOT ATTEMPT
TO REMOVE THE FIXED SHAFT!)
PUMP CLEANING PROCESS
1. All parts should be cleaned with a suitable
cleaning agent. (CLEANING WITH ABRA-
SIVE MATERIALS WILL DAMAGE THE
PUMP AND VOID WARRANTY!)
2. Discard used O-rings (#10) and replace
with new ones during reassembly.
3. Pump plates should be dried with lint free
towel and lubricated before reassembly
with wet-sol or equivalent material.

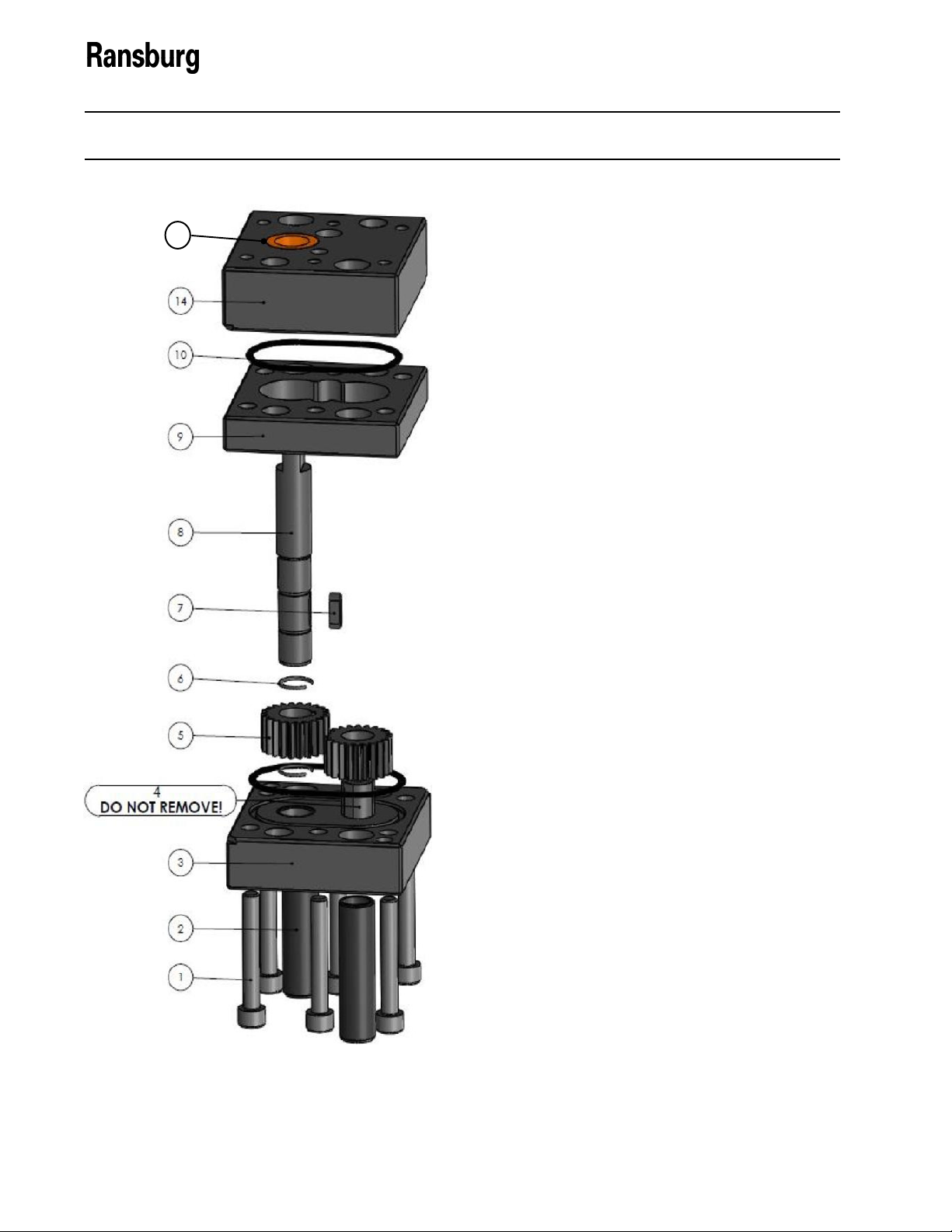

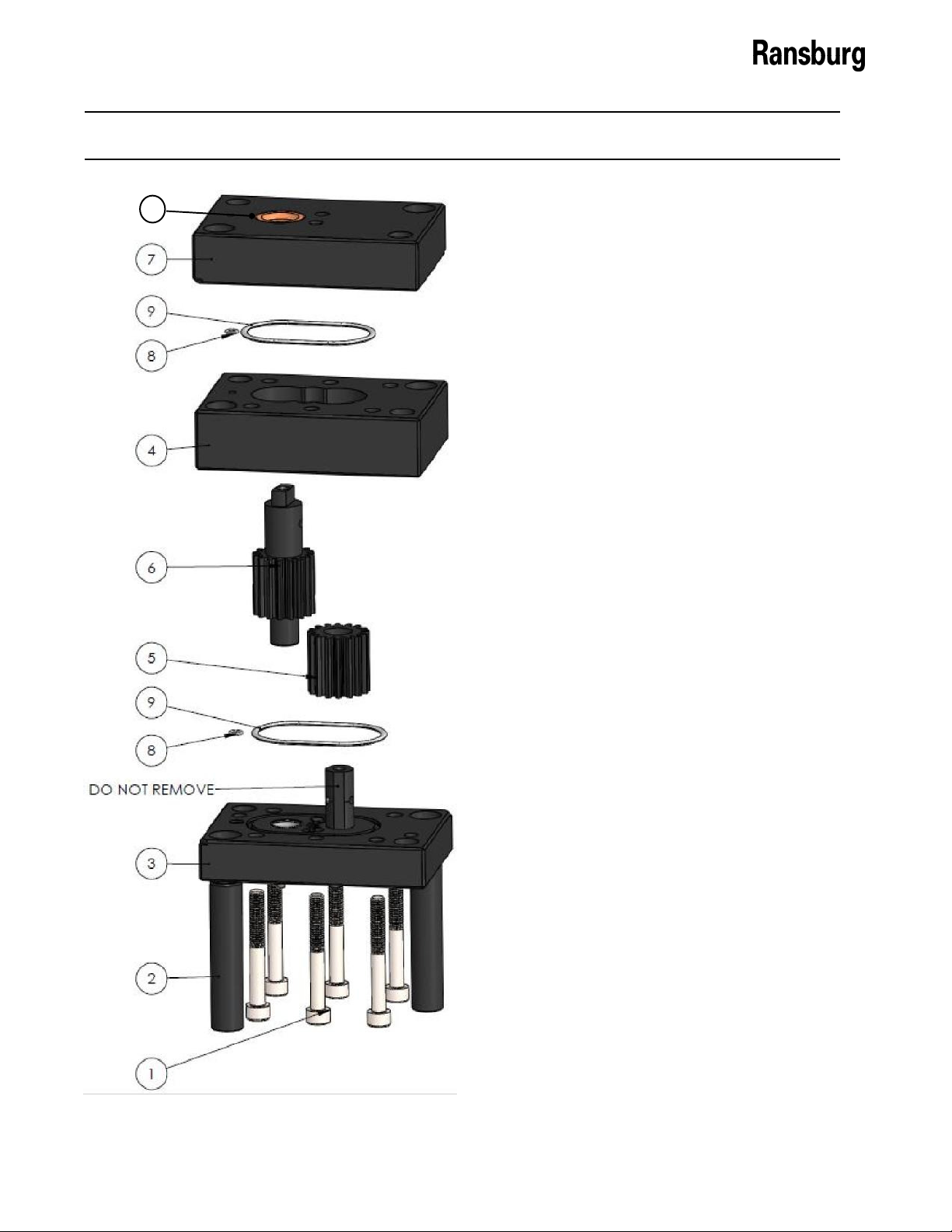

FIGURE 1-3 EXPLODED PUMP VIEW
10

Positive Displacement Pump - Operation
LN-9415-01 12
DLC COATED FLUSHABLE PUMP—Cont’d
PUMP REASSEMBLY
1. Install new seal (#10) into front plate.
Press seal into place using deep well
socket or equivalent press tool. Spring
side of seal faces down, press until flush.
2. Install new O-rings (#8 & #9) onto bottom
plate.
3. Place driven gear (#5) back onto fixed
shaft on bottom plate.
4. Install middle plate (#4).
5. Install drive shaft and gear (#6) into bot-
tom plate assembly.
6. Install O-rings (#8 & #9) into grooves on
top of plate.
7. Assemble top plate (#3) onto pump as-
sembly
8. Press alignment pins back into pump
carefully.
9. Reinstall bolts (#1), and tighten in a star
pattern. Torque to 13 Lb-Ft (15 Nm).
Note: Drive shaft of pump should be man-
ually turned during the bolt tightening pro-
cess to assure free spinning gears.
10. Set alignment pins so they protrude out by
2.5mm from front plate.
FIGURE 1-4 EXPLODED PUMP VIEW
10

Positive Displacement Pump - Operation
13 LN-9415-01
DLC Coated Flushable Pum —Cont’d
FLUSHABLE PUMP PARTS LISTING
ITEM QTY PART NUMBER DESCRIPTION COMMENTS
1 6 ---------------- M6 BOLT SOURCE LOCAL
2 2 ---------------- PIN, ALIGNMENT N/A
3 1 ---------------- PLATE, BOTTOM N/A
4 1 PLATE,CENTER SEE KIT CHART “B” BELOW
5 1 GEAR, DRIVEN SEE KIT CHART “B” BELOW
6 1 GEAR SEE KIT CHART “B” BELOW
7 1 ---------------- KEYWAY N/A
8 2 A13790-00* O-RING *INCLUDED IN A13790 KIT
9 2 A13790-00* O-RING *INCLUDED IN A13790 KIT
10 1 22-315* SEAL,RADIAL *INCLUDED IN A13790 KIT
SEE FIGURE 1-4 EXPLODED PUMP VIEW
FLUSHABLE PUMP KIT GEARS & SPACER PLATE
PUMP KIT # DESCRPTION USED ON PUMP # SIZE CC’S
A13792-05 KIT, GEARS & SPACER PLATE 3.5 CC DLC PUMP A13622-00 3.5
A13792-06 KIT, GEARS & SPACER PLATE 6.0 CC DLC PUMP A13623-00 6.0
A13792-07 KIT, GEARS & SPACER PLATE 9.7 CC DLC PUMP A13624-00 9.7
CHART “B” FIELD PUMP REPAIR KIT (HARD PARTS)

Positive Displacement Pump - Operation
LN-9415-01 14
DLC COATED NON-FLUSHABLE PUMP SERVICE
MODELS COVERED:
A13619-00 .3 cc/rev A13621-00 1.8 cc/rev
A13620-00 .6 cc/rev A13635-00 3.0 cc/rev
PUMP DISASSEMBLY
1. Carefully press out the alignment pins.
2. Unscrew item #1 (the 6 M6 bolts) from the
bottom of the pump.
3. Remove the top plate (#14) carefully with
drive shaft and gear.
4. To remove the drive shaft (#8) with gear
(#5), remove circlip (#6), slide gear off,
remove key, then remove second circlip.
Shaft will slide out though shaft seal (#15).
Note: it will only slide out in one direction.
5. Remove the center plate (#9) carefully.
6. Slide drive gear off of shaft.
7. Pull seal (#15) from front plate (use seal
puller or drive from opposite side). Be
careful not to damage the pump bore dur-
ing removal.
Please Note: Driven shaft (#4) is fixed in the
body and cannot be removed. (DO NOT AT-
TEMPT TO REMOVE THE FIXED SHAFT!)
PUMP CLEANING PROCESS
1. All parts should be cleaned with a suitable
cleaning agent. (CLEANING WITH
ABRASIVE MATERIALS WILL DAMAGE
THE PUMP AND VOID WARRANTY!)
2. Discard all used O-rings (#10) and replace
during reassembly.
3. Pump plates should be dried with lint free
towel and lubricated before reassembly
with wet-sol or equivalent material.
FIGURE 1-1 EXPLODED PUMP VIEW
15

Positive Displacement Pump - Operation
15 LN-9415-01
DLC COATED NON-FLUSHABLE PUMP—Cont’d
PUMP REASSEMBLY
1. Slide new seal (#15) onto drive shaft approximate-
ly to the position that balloon 8 points to in figure at
left. The spring side of the seal points down.
2. Bring shaft with seal down onto front plate.
3. Press seal into place using deep well socket or
equivalent press tool. Allow shaft to move with
seal while pressing into place. A 0.002” feeler
gauge may be used as a guide to get seal started
into housing.
4. Install circlip on drive shaft closest to front plate.
5. Install key (#7). Slide on drive gear (#5) and install
second circlip.
6. Install a new O-ring (#10) on bottom plate and top
plate in appropriate O-ring grooves.
7. Place driven gear back onto fixed shaft on bottom
plate.
8. Install middle plate (#9).
9. Assemble top plate (#14) onto pump.
10. Press alignment pins back into pump carefully.
11. Reinstall bolts (#1). Tighten them in a star pattern
and torque them to13 Lb-Ft (15 Nm). Note: Drive
shaft of pump should be manually turned during
the bolt tightening process to assure free spinning
gears.
12. Set alignment pins so they protrude out by 2.5mm
from front plate.
FIGURE 1-2 EXPLODED PUMP VIEW
15
8
14
10
9
7
5
4
2
1
6
Do Not Remove!

Positive Displacement Pump - Operation
LN-9415-01 16
DLC COATED NON-FLUSHABLE PUMP—Cont’d
NON-FLUSHABLE PUMP PARTS LISTING
ITEM QTY PART NUMBER DESCRIPTION COMMENTS
1 6 ---------------- M6 BOLT SOURCE LOCAL
2 2 ---------------- PIN, ALIGNMENT N/A
3 1 ---------------- PLATE, BOTTOM N/A
4 ---- ----------------- ---------------------
5 2 A13792-XX GEAR
SEE KIT CHART “A” BELOW
6 2 A13792-XX CIRCLIP
SEE KIT CHART ‘”A” BELOW
7 1 ---------------- KEYWAY N/A
8 1 ---------------- SHAFT,MAIN N/A
9 1 A13792-XX PLATE,CENTER
SEE KIT CHART “A” BELOW
10 2 A13791-00* O-RING *INCLUDED IN A13791 KIT
11 ---- ---------------- ---------------------
12 ---- ---------------- ---------------------
13 ---- ---------------- ---------------------
14 ---- ---------------- PLATE, TOP N/A
15 1 22-383* SEAL,RADIAL *INCLUDED IN A13791 KIT
SEE FIGURE 1-2 EXPLODED PUMP VIEW
NON-FLUSHABLE PUMP KIT GEARS & SPACER PLATE
PUMP KIT # DESCRPTION USED ON PUMP # SIZE CC’S
A13792-01 KIT, GEARS & SPACER PLATE 0.3 CC DLC PUMP A13619-00 0.3
A13792-02 KIT, GEARS & SPACER PLATE 0.6 CC DLC PUMP A13620-00 0.6
A13792-03 KIT, GEARS & SPACER PLATE 1.8 CC DLC PUMP A13621-00 1.8
A13792-04 KIT, GEARS & SPACER PLATE 3.0 CC DLC PUMP A13635-00 3.0
CHART “A” FIELD PUMP REPAIR KIT (HARD PARTS)

Positive Displacement Pump - Maintenance
17 LN-9415-01
MAINTENANCE
CALIBRATION
The calibration value will vary based on
viscosity, flow rate, temperature, and other
factors. Refer to appropriate associated
equipment for calibration procedure.
TROUBLESHOOTING
Gear Pump problems can be caused by
improperly filtered fluid. Particulates in the
fluid can cause gear binding. Maintain the fluid
filters according to the instructions from the
filter manufacturer. If repeated disassembly
and cleaning for removal of solids and particu-
lates occurs, inspect the entire fluid supply
system and evaluate the system cleaning
cycle.
SERVICING
Depressurize the gear pumps before attempt-
ing to remove from manifold. Remove the gear
pump for service to a suitable clean area to
perform maintenance. Using a hex key
wrench, remove all 4 bolts. See pages 11-15
for teardown and reassembly procedures for
both series of gear pumps.
