PPC™/ MPC™Vacuum Kit
P/N 3584473 (110V) - P/N 3584486 (220V)
Instruction Sheet
Vacuum Kit includes:
DESCRIPTION QTY PART NO.
Vacuum Pump Assembly 1
Adaptor 3/8 in. Swage x
1/8 in. NPTM 1 3141557
Adaptor 3/8 in. Swage x
3/8 in. NPTM 1 3480098
Adaptor 3/8 in. Swage x
1/4 in. NPTM 1 3134815
3/8 in. O.D. Tubing (200cm) 1 3232445

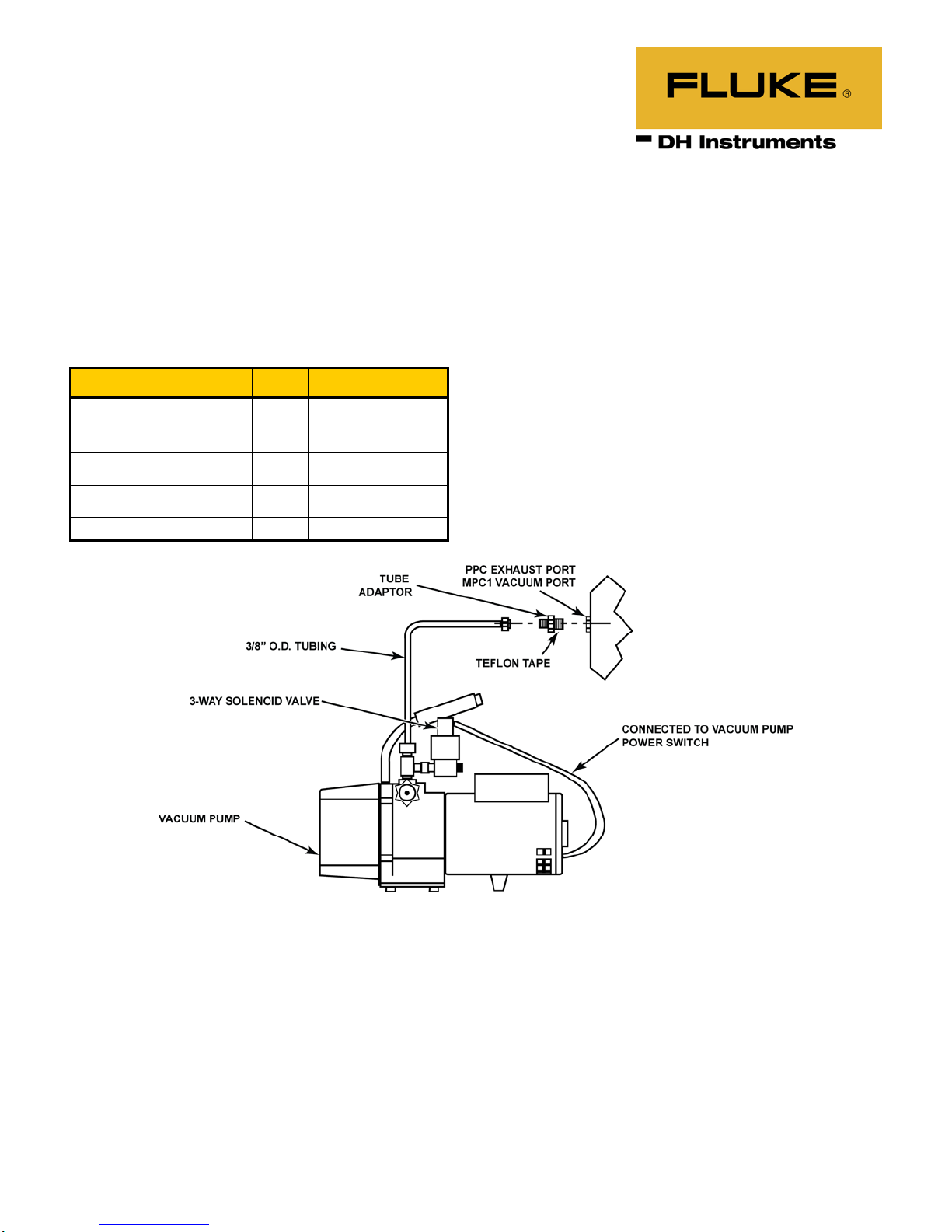

The PPC/MPC Vacuum Kit should be installed as illustrated
below. Fill the vacuum pump with oil before using. Read
the Fast Vac instruction sheet for additional information.
The solenoid valve protects the vacuum pump when turned
off. When the operator decreases pressure in a PPC, test gas
will be exhausted through the valve. This ensures that the
gas will not flow into the pump. The valve is electrically
connected to the vacuum pump power switch and actuates
automatically.
Figure 1: Fast Vac Vacuum Pump Illustrated Parts
