RAYNO GRILL RAYNO 800 User manual

Goal Reach Trading 39 (PTY) Ltd
Operation Manual

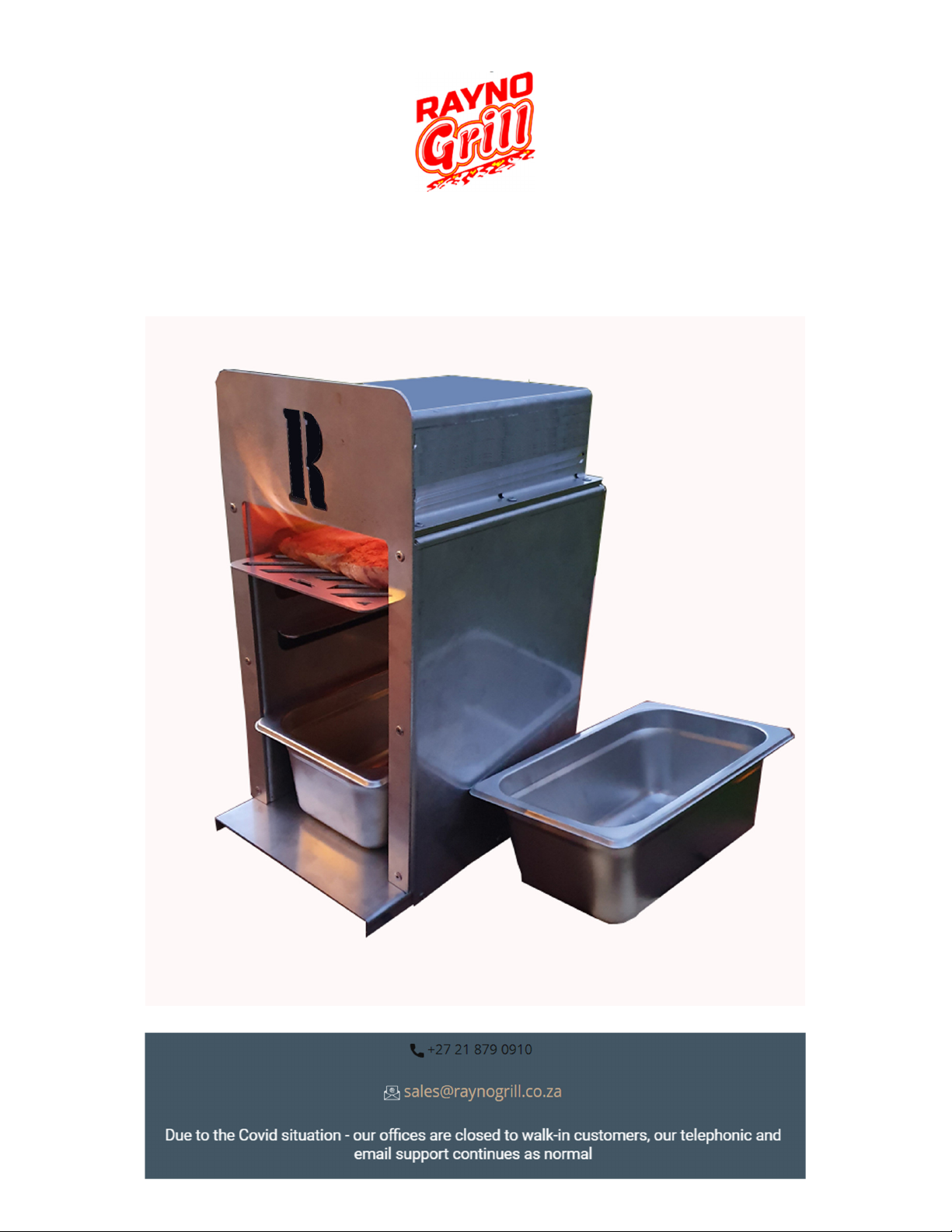

Rayno Top Heat Grill

2
The heat of up to 800 ° C gives you the guarantee that the Maillard reaction takes
place quickly ithout drying out your steak
Ready to Go Set with:
1x RAYNO 800 °C Top Heat Grill
1 x Grill Grid
1 x Burger Grill Grid
2 x Gastro Tray
1 x Handle
1 x Gas Hose 120cm length ith Regulator to use ith 3 - 6 KG Gas Bottles
All Parts (except burner) made of SS304 2B Stainless Steel
Burner: 2-Panel Infrared Ceramic Burner, Heat input up to 800 °C | LPG consumption
202g/hr (est)
RAYNOGRILL, WITH UP TO 10 YEARS GUARANTEE
When you buy a Rayno High Temperature Steak Grill made from SS304 2B Stainless
Steel, you are getting a high quality product ith a premium guarantee.
And because e kno about the quality of our grills, e offer a guarantee of up to 10
years (except burners ith a 1 year guarantee).
HEALTH AND SAFETY
LPG gas cylinders must not be stored or used in horizontal position. A leak ould be
very serious and liquid could enter the gas line. Leak test all connections after each
gas cylinder refill.
SAFETY
Flames can escape at the top of the front of the box. Do not store any flammable
objects in the immediate vicinity of the grill.
Keep out of reach from children
STORAGE
Store undercover in dedicated area out of direct sunlight and rain
LENGTH 300 mm
WIDTH 216 mm
HEIGHT 420 mm
WEIGHT 12.5 kg
Desi ned and Made in South Africa

3
Before usin the Rayno Grill
After unpacking and before each use, check hether
the item sho s damage.
If this is the case, do not use the Rayno Grill, but rather
please notify your dealer
Intended Use
This grill is used for heating, cooking and grilling food.
It is only suitable for outdoor use and only intended for use in the private sector.
Use the article only as described in these operating instructions. Any other use is
considered improper and can lead to property damage or even to Cause personal
injury.
The manufacturer assumes no liability for damage caused by improper use has
arisen.
GENERAL SAFETY INSTRUCTIONS
- to be observed every time it is used!
-Flames can escape at the top of the front of the box
- Use outdoors only!
- Read the operating instructions before commissioning of the Rayno Grill.
- ATTENTION! Accessible parts can be very hot. Keep children a ay.
- Do not move the Rayno Grill during operation.
- Let the Rayno Grill cool do n before touching it
- After use, shut of the gas supply on the gas bottle.
The Rayno Grill is not intended for use by persons (including children) ith limited
physical, sensory or mental capabilities
or due to a lack of experience and / or a lack of kno ledge
to be used.
- Any changes to the Rayno Grill represent a big one Pose a safety hazard and are
prohibited. Do not undertake any unauthorized interventions yourself. In the event of
damage, repairs or other problems ith the grill, contact our service center or a local
specialist.
- Keep children and pets a ay from the Rayno Grill.
- If the Rayno Grill is operated on a table, be on it ensure that the Rayno Grill does not
protrude over the edge of the table.
- Place the Rayno Grill on a heat-resistant surface

4
Connect to the as bottle
This Rayno Grill is only suitable for lo pressure LPG
and must be used ith the lo -pressure regulator and
flexible hose. To operate this grill, you need a commercially available 3 - 6 kg bottle
of LPG
Stora e of the Rayno Grill
The Rayno Grill may only be stored indoors if the gas cylinder has been removed and
should be covered ith a protective hood and stored in a dry and dust-free
environment.
Connection to the Rayno Grill
Place the gas bottle next to the grill.
Caution!
Before the gas bottle is connected to the Rayno Grill,
it must be ensured that there is no dirt in the heads of the gas cylinder and the
regulator.
Connect the pressure regulator hand-tight to the gas cylinder valve.
Follo the instructions that came ith the Regulator.
Caution!
Before each use, check all connections for gas leaks!
Al ays perform the test ith soapy ater. Never one
Use an open flame to find leaks.
Preparation
-Take the Grill Grid out of the grill.
- Do not lean over the grill.
- Open the gas bottle valve and hold the flame of the “BBQ long reach lighter” directly
under the burner
Caution!
The grill reaches ithin a fe seconds a temperature of over 400 ° C and the
operating temperature of approx. 800 ° C in 5 - 7 minutes.

5
Grillin
1. Place the meat in the middle of a Grill Grid. For best grilling results, the meat
should be at room temperature.
2. Hook the Grill Grid handle into the Grill Grid and push the meat into the on the
highest possible level.
3. Remove the Grill Grid handle as soon as you have positioned the meat in the grill.
4. Turn the meat over after approx. 45 - 90 seconds
Rule: 30 seconds per 100 grams of steak per side
5. As soon as the second side is also crispy or has reached the desired bro ning
ridge, place the steak to rest for 4 - 7 minutes in one of the Gastro Tray and then
place it at the bottom of the grill so that it can pull through and, for example, cook to
medium.
6. When the desired cooking level (Rare, Medium, Well Done etc.) is reached, place
the Gastro Tray ith the meat to serve or simply to keep arm on top of the grill.
7. Important: never leave the Grill Grid in the Grill ithout food as long as the Grill is
at temperature, other ise the Grill Grid may arp
Switch off the rill:
To s itch off the grill, turn the regulator on the gas bottle to the OFF position. Then
turn the control dial on the Rayno Grill to OFF.
Let the grill cool do n before moving or touching it
Maintenance and cleanin
- Your Rayno Grill is made of high-quality materials.
- Protect your Rayno Grill from constant eather conditions.
- Clean the grill after each use. To clean and maintain the surfaces, please note the
follo ing:
- Wash the Grill Grid and Gastro Tray thoroughly ith soapy ater.
- Rinse ith clean ater and then thoroughly dry.
In general, clean the interior and surfaces ith arm soapy ater.
-Use a soft, clean cloth to dry it. Do not scratch the surfaces hile rubbing dry.
Care and protection of the Stainless-Steel surfaces Your grill as made of stainless
steel. All Stainless-Steel qualities require a certain amount of effort of protection and
care to preserve their appearance. Contrary to popular belief, stainless steel is not
one hundred percent safe from rust film and corrosion and is therefore not
maintenance free. Even the highest quality grades of stainless steel require regular
cleaning ith fresh ater in order to Avoid oxidation and corrosion.
Modern aesthetics require your grill to be outfitted ith a brushed Stainless-Steel
finish. This brushed finish is achieved by running Stainless-Steel sheets through

6
run a process in hich the mirror finish of the steel is removed and thus the sheet
metal in the brushed state Leave the process plant. Brushed Stainless-Steel requires
regular cleaning and care to maintain the appearance. Without proper care, it is
inevitable that after a period of time Rust or corrosion appear on the steel.
Thanks for buying the Rayno Grill. We ish you a lot of fun and the "Steak House
feeling"

7
RAYNOGRILL QUALITY STAINLESS STEEL GRILL
WITH UP TO 10 YEARS GUARANTEE
When you buy a Rayno High Temperature Steak Grill made from SS304_2B
Stainle Steel, you are getting a high-quality product with a premium guarantee.
And becau e we know about the quality of our grill , we offer a guarantee of up
to 10 year (except burner with a 1year guarantee).
To make a warranty claim, please send an email to sale[email protected]
When ending the e-mail, you mu t tate the rea on for the warranty claim;
Provide the product' erial number, located on the in ide bottom of the grill ,
and include a copy of your proof of purcha e along with picture of the product
defect.
Please keep your receipt, invoice and|or other valid proof of purchase.
In order to proce your guarantee, claim fa ter and better, we recommend that
you regi ter your grill with u .
Warranty information:
The warranty condition li ted below apply to model of the current year and
are for informational purpo e only.
The warranty condition that apply to your pecific product can be found in your
purcha e document .
Warranty:
Raynogrill Box - 10 year , no ru t through / burn through
Stainle teel Raynogrill grid - 1 year , no ru ting through / burning through
Burner - 1 year
All remaining part - 1 year
Important:
The guarantee expire in the event of improper handling or the u e of
un uitable cleaning agent
