Razor Dirt Quad User manual

Read and understand this entire manual before using!
For assistance contact Razor. DO NOT RETURN TO STORE.
Item Number:
25117460
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
Français .................. Page 8
Deutsch ................... Seite 16
Italiano .................... Pagina 24
Español ................... Página 32
DIRT QUAD
OWNER’S MANUAL
Version_EFIGS_1_6_09

WARNING: Riding an electric four wheeler can be a hazardous
activity. Certain conditions may cause the equipment to fail without
fault of the manufacturer. Like other electric products, the Dirt
Quad can and is intended to move, and it is therefore possible to
lose control, fall off and/or get into dangerous situations that no
amount of care, instruction or expertise can eliminate. If such things
occur you can be seriously injured or die, even when using safety
equipment and other precautions. RIDE AT YOUR OWN RISK AND
USE COMMON SENSE.
This manual contains many warnings and cautions concerning the
consequences of failing to maintain, inspect or properly use your
electric four wheeler. Because any incident can result in serious injury
or even death, we do not repeat the warning of possible serious
injury or death each time such a possibility is mentioned.
APPROPRIATE RIDER USE AND PARENTAL SUPERVISION
This manual contains important safety information. It is your
responsibility to review this information and make sure that all riders
understand all warnings, cautions, instructions and safety topics and
assure that young riders are able to safely and responsibly use this
product. Razor USA recommends that you periodically review and
reinforce the information in this manual with younger riders, and that
you inspect and maintain your children’s Dirt Quad to insure their
safety.
The recommended rider age of 8 years is only an estimate, and can
be affected by the rider’s size, weight or skills. Any rider unable to fit
comfortably on the Dirt Quad should not attempt to ride it.
A parent’s decision to allow his or her child to ride this
product should be based on the child’s maturity, skill and
ability to follow rules.
Keep this product away from small children and remember that this
product is intended for use only by persons who are, at a minimum,
completely comfortable and competent while operating the product.
DO NOT EXCEED THE WEIGHT LIMIT OF 120 pounds. Rider weight does
not necessarily mean a person’s size is appropriate to fit or maintain
control of the Dirt Quad.
Do not touch the brakes or electric motor on your electric four
wheeler when in use and/or immediately after riding as they can
become very hot.
Refer to the following section on safety for additional warnings.
ACCEPTABLE RIDING PRACTICES AND CONDITIONS
Always check and obey any local laws or regulations which
may affect the locations where the Dirt Quad may be used.
Ride defensively. Watch out for potential obstacles that could catch
your wheel or force you to swerve suddenly or lose control. Be careful
to avoid pedestrians, skaters, skateboards, scooters, bikes, children
or animals who may enter your path, and respect the rights and
property of others.
The Dirt Quad is meant to be used on private property and on closed
courses and not on public streets or sidewalks. Do not ride your
electric four wheeler in any areas where pedestrian or vehicle traffic
is present.
Do not activate the speed control on the hand grip unless you are on
the electric four wheeler and in a safe, outdoor environment suitable
for riding.
This product was manufactured for performance and durability but
are not impervious to damage. Jumping or other aggressive riding can
over-stress and damage any product, including the Dirt Quad, and the
rider assumes all risks associated with high-stress activity.
Be careful and know your limitations. Risk of injury increases as
the degree of riding difficulty increases. The rider assumes all risk
associated with aggressive riding activities.
Maintain a hold on the handlebars at all times.
Never carry passengers or allow more than one person at a time to
ride the electric four wheeler.
Never use near steps or swimming pools.
Keep your fingers and other body parts away from the drive chain,
steering system, wheels and all other moving components.
Never use headphones or a cell phone when riding.
Never hitch a ride with another product.
Do not ride the Dirt Quad in wet or icy weather and never immerse
the electric four wheeler in water, as the electrical and drive
components could be damaged by water or create other possible
unsafe conditions.
Wet, slick, bumpy, uneven or rough surfaces may increase risks of
use. Do not ride the electric four wheeler in mud, ice, puddles or
water. Avoid excessive speeds that can be associated with downhill
rides. Never risk damaging surfaces such as carpet or flooring by use
of an electric four wheeler indoors.
Do not ride at night or when visibility is limited.
PROPER RIDING ATTIRE
Always wear proper protective equipment such as an approved safety
helmet (with chin strap securely buckled), elbow pads and kneepads.
A helmet may be legally required by local law or regulation in your
area. A long-sleeved shirt, long pants and gloves are recommended.
Always wear athletic shoes (lace-up shoes with rubber soles), never
ride barefooted or in sandals, and keep shoelaces tied and out of the
way of the wheels, motor and drive system.
USING THE CHARGER
The charger supplied with the electric four wheeler should be
regularly examined for damage to the cord, plug, enclosure and other
parts, and in the event of such damage, the four wheeler must not be
charged until the charger has been repaired or replaced.
Use only with the recommended charger.
The charger is not a toy.
Always disconnect from the charger prior to wiping down and
cleaning your electric four wheeler with liquid.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE
WARNINGS INCREASES RISK OF SERIOUS INJURY. USE WITH
APPROPRIATE CAUTION AND SERIOUS ATTENTION TO SAFE
OPERATION.
SAFETY WARNINGS
1

BEFORE YOU BEGIN
2

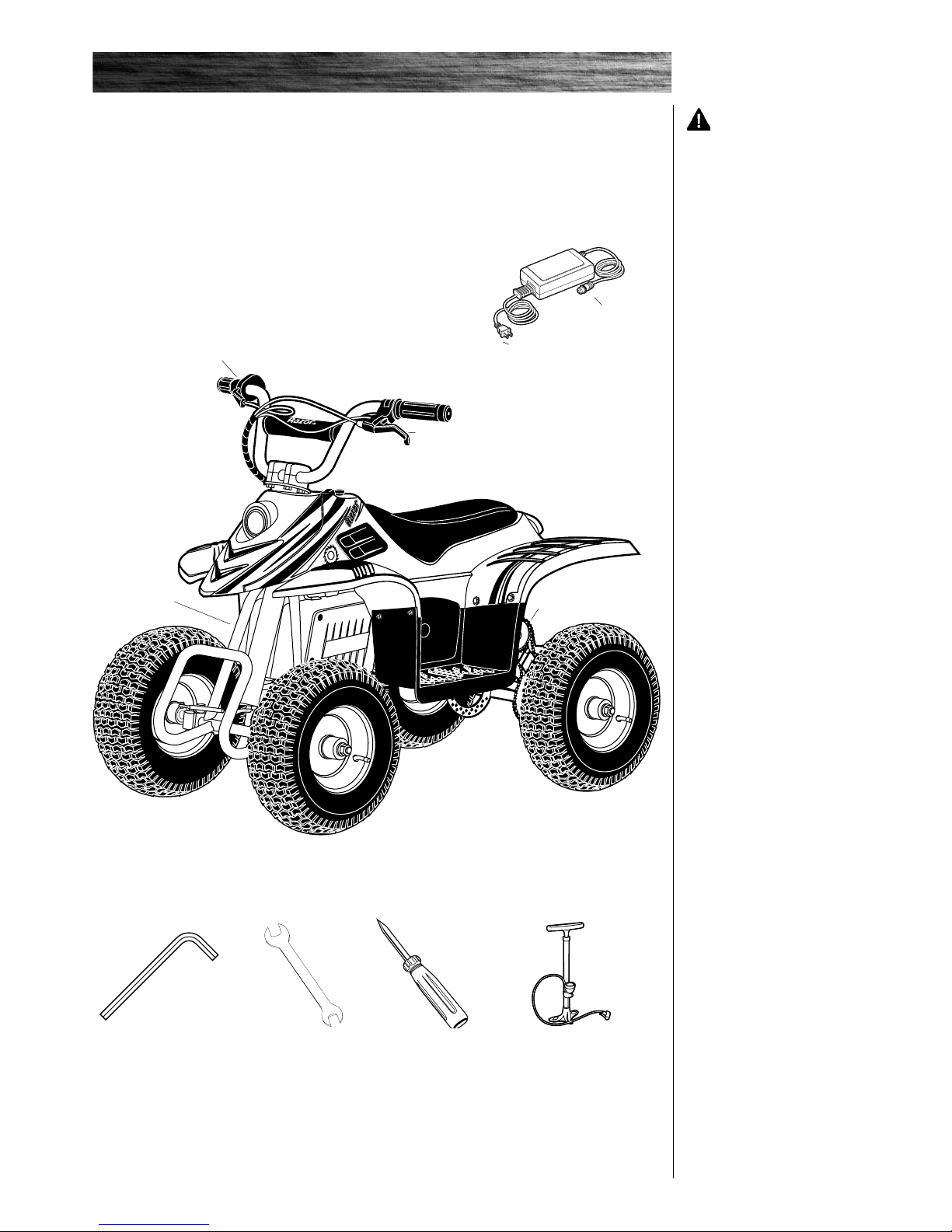

Required Tools
2.5mm, 5mm and 6mm
key wrenches
(included)
Brake Lever
Speed Control
Drive
Chain
Front Fork
Charger
Charger
Plug
Charger
Port
Phillips
screwdriver
(included)
8mm and 10mm
wrench
(included)
Bicycle-style tire pump for
Schrader valve tires, with
pressure gauge
(Not Included)
Inspect contents of box for scratches in paint, dents or kinked cables that may have occurred during
shipping.
MAKE SURE POWER SWITCH IS TURNED “OFF” BEFORE CONDUCTING ANY ASSEMBLY
OR MAINTENANCE PROCEDURES.
Razor recommends assembly by an adult.
WARNING:
DO NOT USE NON-
RAZOR PRODUCTS WITH
YOUR RAZOR ELECTRIC
SCOOTER.

ASSEMBLY AND SET-UP
1Using the 6mm key
wrench, remove bolts from
handlebar clamp.
Note: Handlebar clamps are
located in the plastic bag
with owner’s manual and
charger
2Place handlebars in handle-
bar clamp in upright, vertical
position.
3Insert bolts and tighten
securely. When properly
tightened, the handlebars
should not move forward or
back.
Note: The gap between the
upper clamp and lower clamp
should be equal on both sides of
handlebar.
WARNING:
Failing to properly adjust and
tighten the bolts that affix the
handlebars can cause you to
lose control and crash.

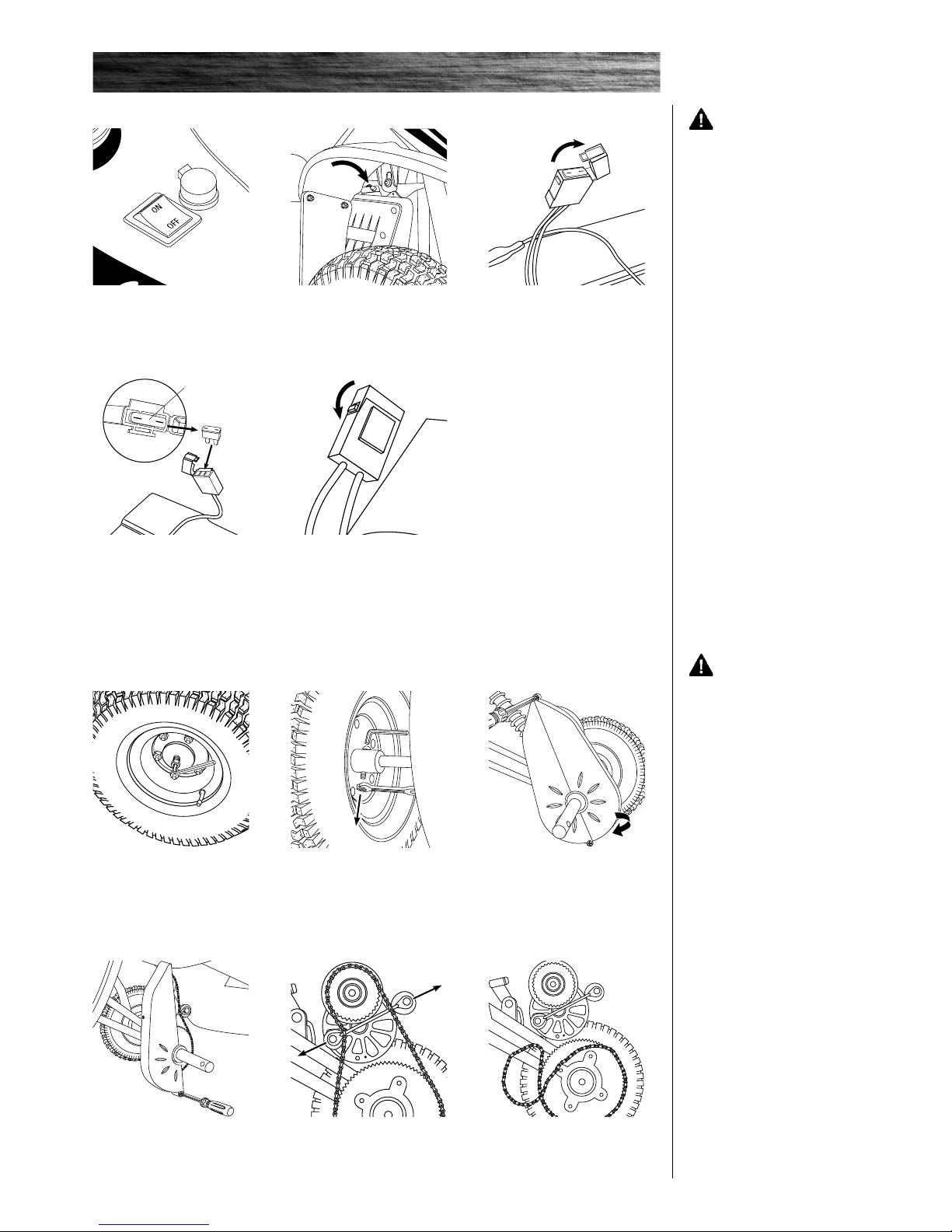

1Turn OFF power before
charging. 2
Charger
Plug
Charger
Port
3
Inflating the Tires
Tires are inflated when shipped, but they invariably lose some pressure between the point of
manufacturing and your purchase. Inflate the tires to the correct PSI before first time use.
Note: The pressurized air
supplies found at gasoline
stations are designed to inflate
high-volume automobile tires.
If you decide to use such an
air supply to inflate your tires,
first make sure the pressure
gauge is working, then use very
short bursts to inflate to the
correct PSI. If you inadvertently
over-inflate the tire, release the
excess pressure immediately.
Using a bicycle-style tire pump equipped for a Schrader-type valve, inflate the tires to the PSI indicated on
the sidewall of the tire.
qAttaching the Handlebars
q Charging Battery
Charge battery prior to use.
•Initialchargetime:18hours • Runtime:Upto40minutesofcontinuousridetime
•Rechargetime:upto12hours • Averagebatterylife:250charge/dischargecycles
When scooter is not in regular
use, recharge battery at least
once a month until normal use is
resumed.
WARNING: Always
disconnect scooter from charger
before cleaning with liquid.
Note: If your charger does not
look like the one illustrated,
your unit has been supplied
with an alternative charger.
The specifications and charging
procedure would not change.
The charger has a small window
with one LED or two LEDs to
indicate charge status.
Chargers have built-in
protection to prevent battery
from being over-charged.
Charger may get warm during
use. This is normal for some
chargers and is no cause for
concern.
WARNING: Failure
to recharge the battery at least
once a month may result in
a battery that will no longer
accept a charge.

CONNECTORS/HARDWARE MAINTENANCE
Do not use this product for the first time until you have inflated the
tires to the correct PSI and charged the battery for at least 18 hours.
Failure to follow these instructions may damage
your product and void your warranty.
Safety Gear
Always wear proper protective gear such as an approved
safety helmet. Elbow pads and kneepads are recommended.
Always wear athletic shoes (lace-up shoes with rubber
soles), never ride barefooted or in sandals, and keep
shoelaces tied and out of the way of the wheels, motor and
drive system.
Battery
Make sure power switch is turned off whenever the scooter
is not in use. Never store in freezing or below freezing
temperatures!
Brake
Check brakes for proper function. When you squeeze lever,
brake should provide positive braking action. When you
apply brake with speed control on, brake cut-off switch
should stop motor. Make sure that brakes are not rubbing.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although broken
frames are rare, it is possible for an aggressive rider to run
into a curb or wall and wreck and bend or break a frame.
Inspect regularly.
Tires
Periodically inspect the tires for excess wear, and regularly
check front tire pressure and re-inflate as necessary.
q
q
q
q
q
ÎÇ{{

ÎÇ{{

WARNING:
The brake is capable of causing
the electric four wheeler
to skid the tire throwing an
unsuspecting rider. Practice
in an open area free from
obstacles until you are familiar
with the brake function. Avoid
skidding to a stop as this can
cause you to lose control or
damage the rear tire.
REPAIR AND MAINTENANCE
Turn power switch OFF before conducting any maintenance procedures.

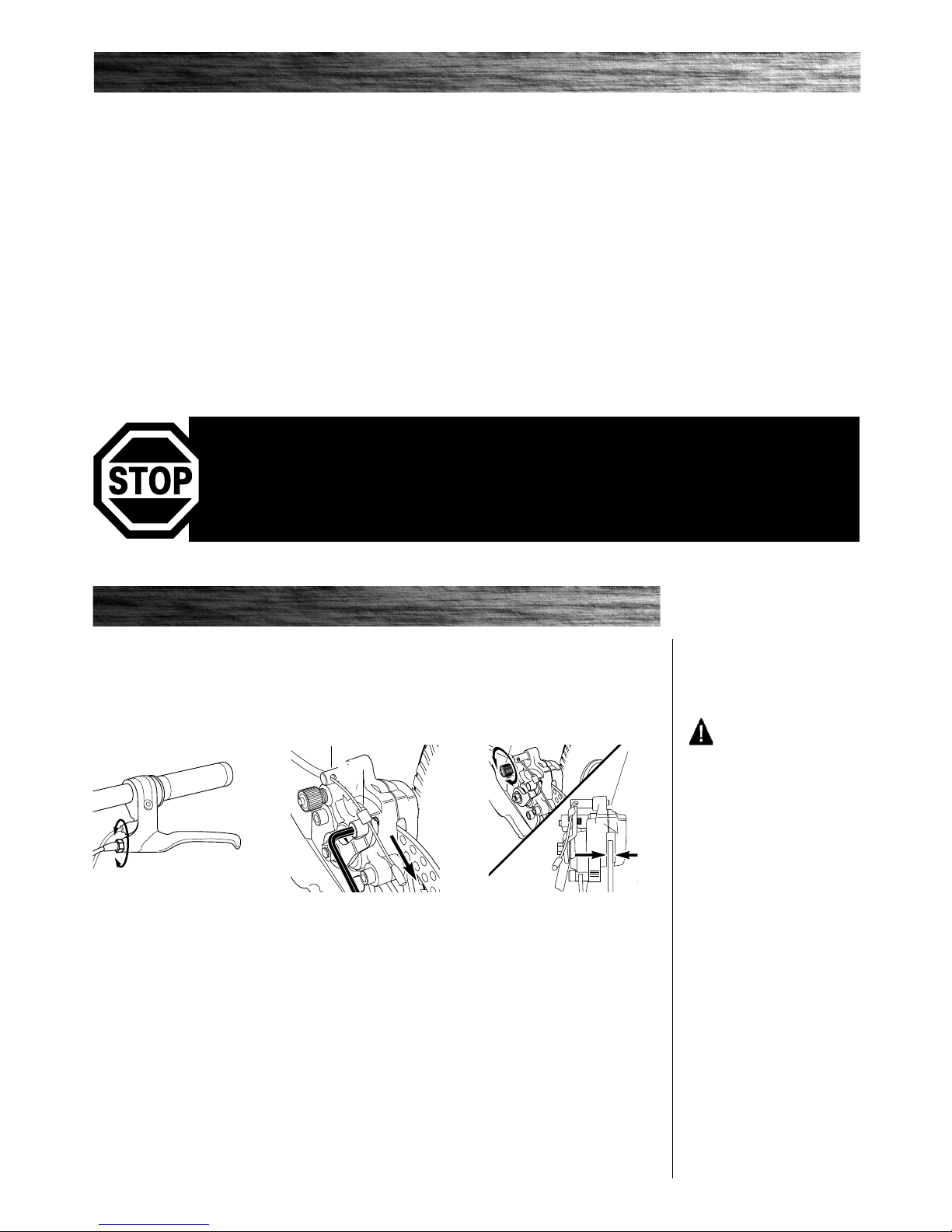

1To adjust the play, thread the
brake lever adjuster in or out
1/4 to 1/2 turn until the desired
brake adjustment is attained.
Most adjustments are complete
at this step. If brake still needs
further adjustment, proceed to
step 2 for rear brake.
2Locate the rear brake caliper
and disk brake behind the right
rear wheel. The distance of the
brake wire between the end of
the cable and the anchor bolt
should be between 37 and 44
mm. If the rear brake has too
much slack, loosen the rear
anchor bolt with a 5mm key
wrench and pull the brake wire
tighter (direction indicated with
arrow).
3If the brake rotor is
dragging on the brake pads
use your fingers to twist the
caliper adjuster in either
direction until rotor is
centered between pads.
Backside
view of
disk brake
Rotor
Pads
Caliper adjuster
qAdjusting the Brake
Tools required: 6mm key wrench
4
