Razor Dirt Quad User manual

Read and understand this entire manual before allowing
child to use this product! For assistance contact Razor.
DO NOT RETURN TO STORE.
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
Please have your product along with the 19 character product I.D. code with you
before contacting Razor for warranty assistance and/or replacement parts.
Product I.D. Code: _____________ - ____________ - ____________
OWNER’S MANUAL

1
WARNING: Riding a four-wheeled electric product like the the Dirt Quad
does present potential risks and caution is required. Like any riding product,
the Dirt Quad has inherent hazards associated with its use (for example,
falling off or riding it into a hazardous situation). Like any riding product,
Dirt Quads can and are intended to move, and it is therefore possible to lose
control or otherwise get into dangerous situations. Both children and adults
responsible for supervising them must recognize that if such things occur, a
rider can be seriously injured or die, even when using safety equipment and
other precautions. RIDE AT YOUR OWN RISK AND USE COMMON SENSE.
WARNING: PARENTAL AND ADULT RESPONSIBILTY AND
SUPERVISION IS NECESSARY: Because products like this product, can
and do present potential hazards plainly associated with their use, it is well
recognized THE NEED FOR EXERCISE OF PARENTAL RESPONSIBILITY IN
SELECTING RIDING PRODUCTS APPROPRIATE TO THE AGE OF A CHILD, OR
PARENTAL SUPERVISION IN SITUATIONS IN WHICH CHILDREN OF VARIOUS
AGES MAY HAVE ACCESS TO THE SAME RIDING PRODUCTS, IS IMPORTANT.
Not every product is appropriate for every age or size of child, and different
age recommendations are found within this category of product which are
intended to reflect the nature of the hazards and the expected mental or
physical ability, or both, of a child to cope with the hazards.
The recommended minimum rider age is 8 and older. Any rider unable
to fit comfortably on the Dirt Quad should not attempt to ride it. A parent’s
decision to allow his or her child to ride this product should be based on
the child’s maturity, skill and ability to follow rules. Do not allow children
under eight (8) years old to ride the Dirt Quad.
Keep this product away from small children and remember that this
product is intended for use only by persons who are, at a minimum,
completely comfortable and competent while operating the product.
Persons with any mental or physical conditions that may make them
susceptible to injury, impair their physical dexterity or mental capabilities
to recognize, understand, and follow safety instructions and to be able to
understand the hazards, should not use or be permitted to use products
inappropriate for their abilities. Persons with heart conditions, head, back
or neck ailments (or prior surgeries to these areas of the body), or pregnant
women, should be cautioned not to operate such products.
DO NOT EXCEED THE WEIGHT LIMIT OF 120 lb (54 kg). Rider weight
does not necessarily mean a person’s size is appropriate to fit or
maintain control of the Dirt Quad.
CHECK AND MAINTAIN PRODUCT CONDITIONS
Before use, check to confirm that any and all chain guards or other
covers and guards are in place and in serviceable condition. Check that
the brake is functioning properly, and that tires are inflated properly and
have sufficient tread remaining. The product should be maintained and
repaired in accordance with the manufacturer’s specifications, using
only the manufacturer’s authorized replacement parts, and should not
be modified from the manufacturer’s original design and configuration.
ACCEPTABLE RIDING PRACTICES AND CONDITIONS
Always check and obey any local laws or regulations which may
affect the locations where the Dirt Quad may be used.
Ride defensively. Watch out for potential obstacles that could catch your
wheel(s) or force you to swerve suddenly or lose control. Be careful to avoid
pedestrians, skaters, skateboards, scooters, bikes, children or animals who
may enter your path, and respect the rights and property of others.
The Dirt Quad is meant to be used on private property and on closed courses
and not on public streets or sidewalks. Do not ride your electric four wheeler
in any areas where pedestrian or vehicle traffic are present.
Do not activate the speed control on the hand grip unless you are on the
electric four wheeler and in a safe, outdoor environment suitable for riding.
The normal powered max speed of this product will be approximately 8 mph
(13 km/h), which can be affected by conditions, such as rider weight, inclines
and battery charge level. Avoid excessive speeds that can be associated with
downhill rides.
This product was manufactured for performance and durability, but is not
impervious to damage. Jumping or other aggressive riding can overstress and
damage any product, including the Dirt Quad, and the rider assumes all risks
associated with high-stress activity.
Be careful and know your limitations. Risk of injury increases as the degree
of riding difficulty increases. The rider assumes all risk associated with
aggressive riding activities.
Maintain a hold on the handlebars at all times.
Never carry passengers or allow more than one person at a time to ride the
electric four wheeler.
Never use near steps or swimming pools.
Do not allow hands, feet, hair, body parts, clothing, or similar articles, to come
in contact with moving parts of the Dirt Quad, including the brake, wheels or
drive train, while the motor is on. Do not touch the brake or electric motor on
your electric four wheeler when in use and/or immediately after riding, as
they can become very hot.
Never use headphones or a cell phone to talk or text when riding.
Never hitch a ride with another product or vehicle.
Do not ride the Dirt Quad in wet or icy weather and never immerse the
electric four wheeler in water, as the electrical and drive components could be
damaged by water or create other possible unsafe conditions.
Wet, slick, bumpy, uneven or rough surfaces may increase risks of use. Do not
ride the electric four wheeler in mud, ice, puddles or water. Avoid excessive
speeds that can be associated with downhill rides. Never risk damaging
surfaces, such as carpet or flooring, by use of an electric four wheeler indoors.
Do not ride at night or when visibility is limited.
PROPER RIDING ATTIRE
Always wear proper protective equipment, such as an approved safety helmet
(with chin strap securely buckled), elbow pads and kneepads. A helmet may be
legally required by local law or regulation in your area. A long-sleeved shirt,
long pants and gloves are recommended. Always wear athletic shoes (lace-up
shoes with rubber soles), and keep shoelaces tied and out of the way of the
wheels, brake, motor and drive system. Never ride barefooted or in sandals.
USING THE CHARGER
The charger supplied with the electric four wheeler should be regularly
examined for damage to the cord, plug, enclosure and other parts, and in the
event of such damage, the four wheeler must not be charged until the charger
has been repaired or replaced.
Use only with the recommended charger.
Use caution when charging.
The charger is not a toy. Charger should be operated by an adult.
Do not operate charger near flammable materials.
Unplug charger and disconnect from scooter when not in use.
Always disconnect from the charger prior to wiping down and cleaning your
Dirt Quad with a damp cloth.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE
WARNINGS FURTHER INCREASES RISK OF SERIOUS INJURY. USE
AT YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS
ATTENTION TO SAFE OPERATION. USE CAUTION.
SAFETY WARNINGS
Safety Warnings .............................................................................................. 1
Before You Begin..............................................................................................2
Assembly and Set-Up....................................................................................... 3
Charging the Battery/Pre-Ride Checklist......................................................... 4
Usage ............................................................................................................... 5
Repair and Maintenance...............................................................................5-7
Troubleshooting Guide ..................................................................................... 8

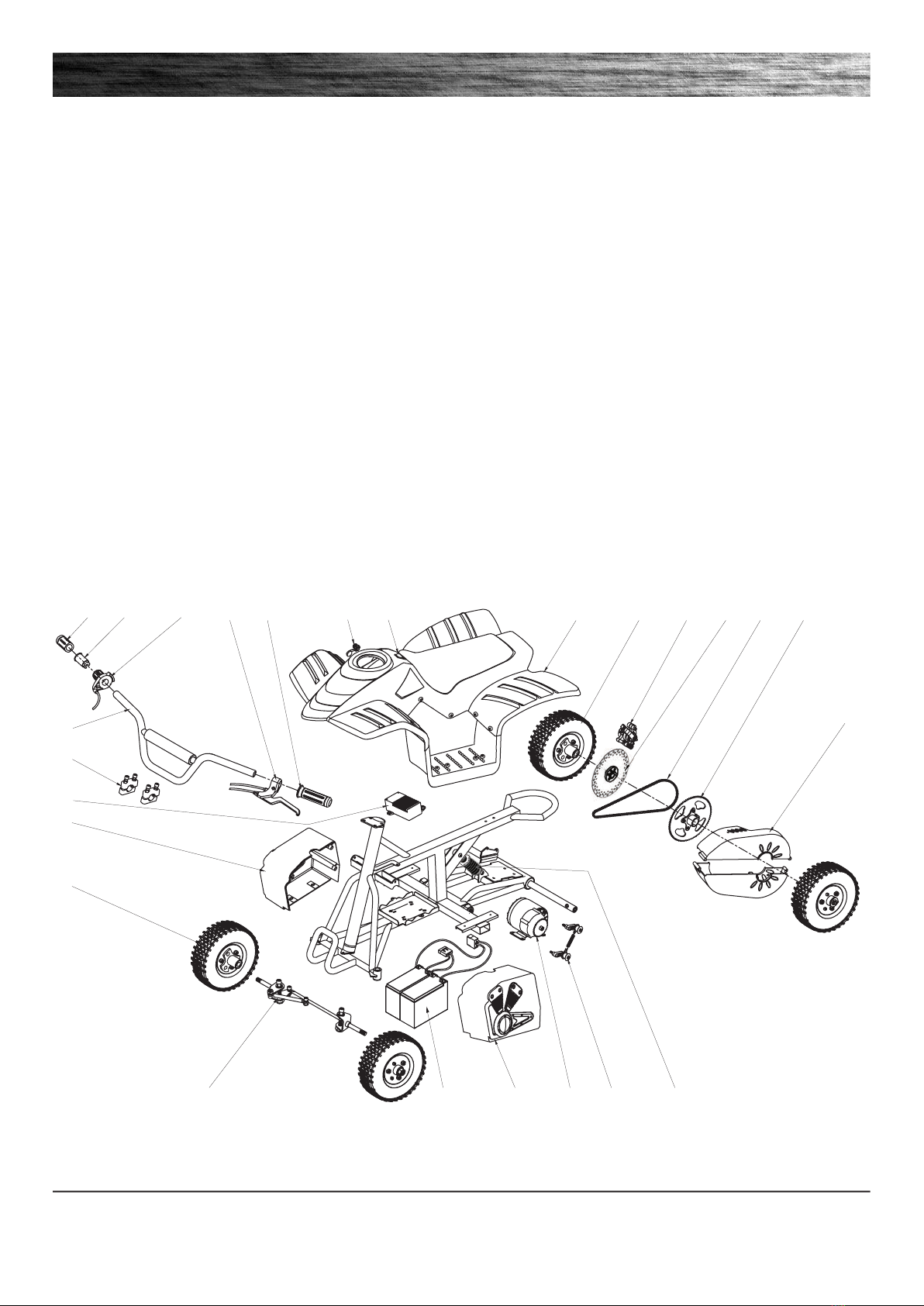

Dirt Quad Parts................................................................................................. 9
Warranty and Contact Information................................................................ 11
CONTENTS

2
Need Help? Visit our website for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer
Service contact information is listed at the back of this manual.
BEFORE YOU BEGIN
Remove contents from box. Remove the separators that protect the components from damage during shipping. Inspect
the contents of the box for scratches in the paint, dents or kinked cables that may have occurred during shipping.
Because the Dirt Quad is 95 percent assembled and packed at the factory, there should not be any problems, even if
the box has a few scars or dents.
MAKE SURE POWER SWITCH IS TURNED “OFF” BEFORE CONDUCTING ANY MAINTENANCE PROCEDURES.
Estimated Assembly and Set-Up Time
Razor recommends assembly by an adult.
Allow up to 20 minutes for assembly, not including initial charge time.
Allow up to 12 hours for initial charge (see page 4 for charging information).
WARNING:
DO NOT USE NON-RAZOR PROD-
UCTS WITH YOUR RAZOR DIRT
QUAD. The Dirt Quad has been built
to certain Razor design specifica-
tions. The original equipment
supplied at the time of sale was se-
lected on the basis of its compatibil-
ity with the frame, fork and all other
parts. Certain aftermarket products
may or may not be compatible and
may void your warranty.
Product ID Locations:
(See locations to the left)
1. Footstep (Right Side)
2. Charger
3. Box (Not Shown)
4. Bottom of the Frame
(Underneath the Unit)
Required Tools
5 mm and 6 mm
Allen Wrenches
Brake Lever
Throttle
ON/Off Switch
Charger Port
Charger
(Note: Charger design may vary
from one shown)
Plastic Bag Contents:
• Charger
• Allen Wrenches
• Owner’s Manual
2.
4.

3
Need Help? Visit our website for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer
Service contact information is listed at the back of this manual.

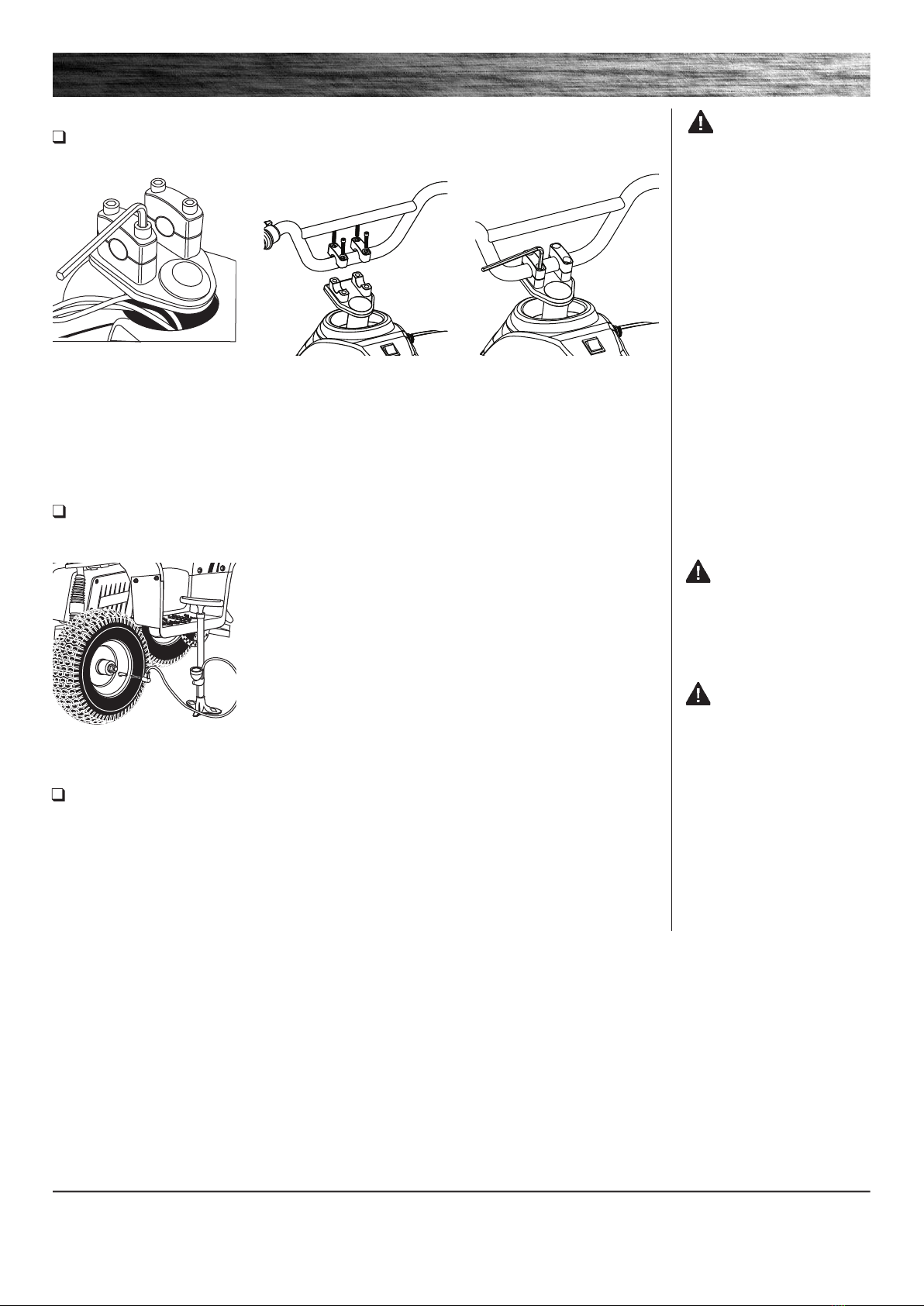

1Using the 6 mm Allen
wrench, remove bolts from handle-
bar clamp.
Note: Handlebar clamps are located
in the plastic bag with owner’s
manual and charger.
3Insert bolts and tighten securely.
When properly tightened, the
handlebars should not move
forward or back.
Note: The gap between the upper
clamp and lower clamp should be
equal on both sides of handlebar.
Using a bicycle tire pump equipped for a Schrader valve, inflate the tires to the PSI indicated on the sidewall of the tire.

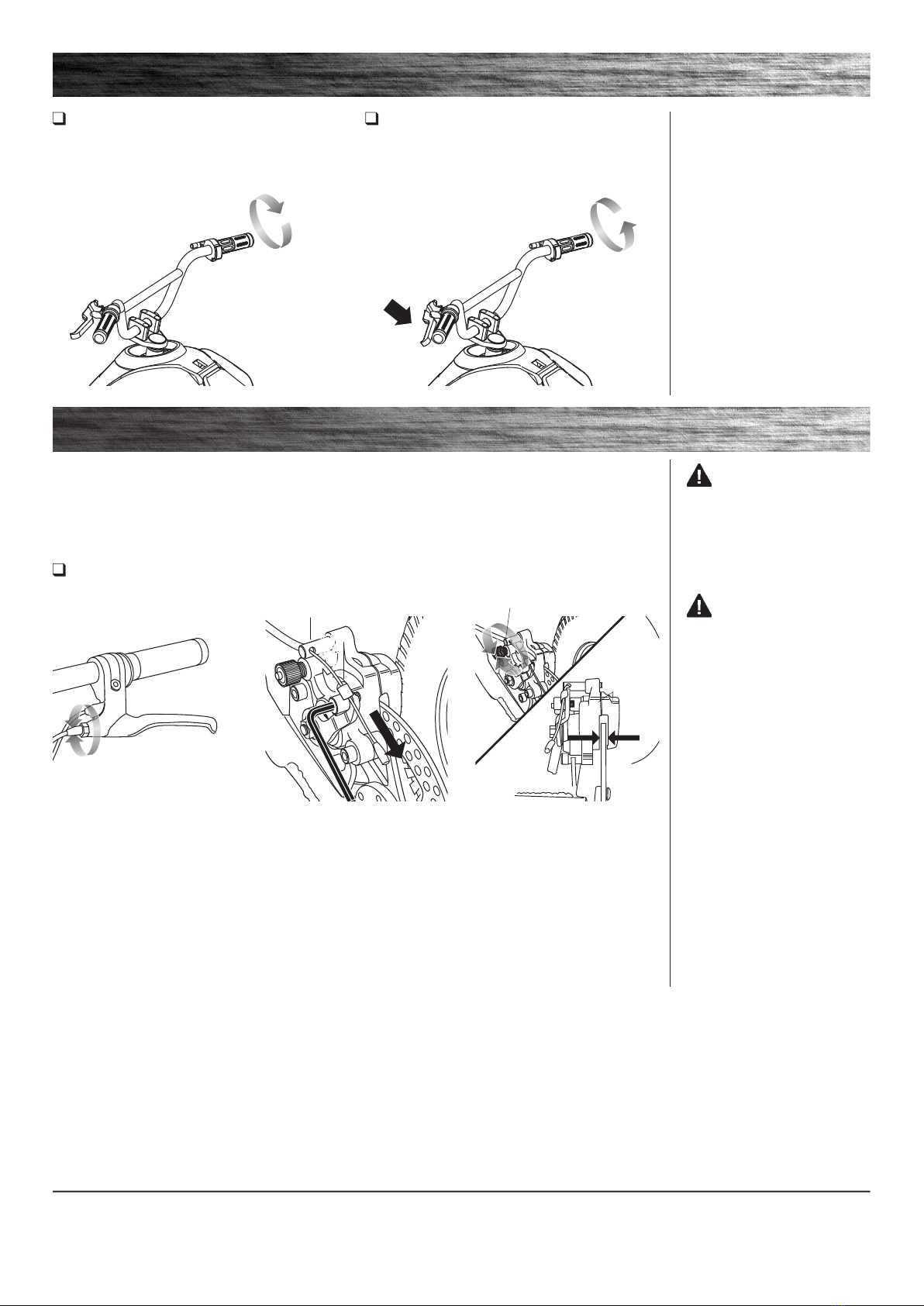

Testing the Brake
To use the brake, squeeze the lever to increase the pressure on the brake. The brake lever is fitted with a cable adjuster
to compensate for cable stretch and/or to fine-tune the lever movement to brake engagement. If brake is not engaging
properly, follow instructions for adjusting the brake outlined on page 5.
WARNING:
Failing to properly adjust and
tighten the bolts that affix the
handlebars can cause you to lose
control and crash.
Turn power switch off before conducting any maintenance
Attaching the Handlebars
Tool Required: 6 mm Allen Wrench
ASSEMBLY AND SET-UP
2Place handlebars in handlebar
clamp in upright, vertical position.
Inflating the Tires
Tires are inflated when shipped, but they invariably lose some pressure between the point of manufacturing and your
purchase. Inflate the tires to the correct PSI before first time use.
Lower air pressure can result in a shorter ride time.
Periodically check all four tires. Reinflate when needed.
WARNING:
Do not use the Dirt Quad for the
first time until you have inflated the
tires to the correct PSI. Failure to
do so may damage your Dirt Quad
and void your warranty.
WARNING:
Do not over inflate, as this could
damage the tire or wheel.
Note: The pressurized air supplies
found at gasoline stations are
designed to inflate high-volume
automobile tires. If you decide to
use such an air supply to inflate
your tires, first make sure the pres-
sure gauge is working, then use very
short bursts to inflate to the correct
PSI. If you inadvertently over inflate
the tire, release the excess pressure
immediately.

4
CHARGING THE BATTERY
Charger
LED
WARNING:
Use ONLY with the recommended
charger. Batteries are only to be
charged under adult supervision.
The charger is not a toy. Always
disconnect the charger before
wiping down and/or cleaning the
Dirt Quad with a damp cloth.
The charger supplied with the Dirt
Quad should be regularly examined
for damage to the cord, plug,
enclosure and other parts. In the
event of such damage, the Dirt
Quad must not be charged until it
has been repaired or replaced.
Chargers have built-in overcharge
protection to prevent battery from
being overcharged.
Note: If the charger gets warm
during regular use, this is a
normal response and is no cause
for concern. If your charger does
not get warm during use, it does
not mean that it is not working
properly.
Wall outlet - Green (Stand By)
Wall outlet and Unit - Red (Charging)
Charging complete - Green (Charged)
Note: Continue charging unit even
if light turns green prior to 12 hours.
WARNING: Battery
charge can deplete over time.
Periodically recharge battery when
not in use.
PRE-RIDE CHECKLIST
Your Dirt Quad may not have a fully charged battery; therefore you must charge the battery prior to use.
• Initial charge time: 12 hours.
• Recharge time: up to 12 hours, even if the light turns green.
Recommended maximum charging time is 24 hours.
• Always charge the battery immediately after riding.
• Fully charge battery before storing for extended
periods of time.
• Unplug charger from the wall outlet when not in use.
• Failure to recharge battery periodically may result in a
battery that will not accept a charge.
• Make sure the Dirt Quad’s power switch is turned OFF
when unit is not in use. If the power switch is left on
for an extended period of time, the battery may reach a
stage at which it will no longer hold a charge.
• To ensure long battery life, never store the product in
freezing or below freezing temperatures! Freezing will
permanently damage the battery.
• Run time: Up to 40 minutes of continuous ride time.
Run time may vary depending on riding conditions, rider
weight, climate, and/or proper maintenance.
• Constant stopping and starting may shorten ride time.
• Battery life can vary depending on proper maintenance
and usage of the unit.
Charger
(Note: Charger design may vary from
one shown)
1Plug the charger plug into wall
outlet. The light on the charger
should be green.
Note: If green light (LED) does not
turn on, try a different outlet.
2Make sure the power switch
is in the OFF position. Plug the
charger into the charger port on the
Dirt Quad. The light on the charger
should turn red during charging. The
light will turn green again when
charging is complete.
Brake
Check the brake for proper function. When you squeeze the
brake lever, the brake should provide positive braking action.
When you apply the brake with the speed control on, the brake
cut-off switch will stop the motor.
Tires
Periodically inspect the tires for excess wear and replace as
needed. Regularly check the tire pressure and inflate as needed.
If you get a flat tire, the inner tube can be patched or a new tube
can be purchased from Razor or an authorized repair center.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although broken frames
are rare, it is possible for an aggressive rider to run into a curb
or object and wreck, bend or break the frame. Get in the habit of
inspecting your product on a regular basis.
Hardware/Loose Parts
Check and secure all fasteners before every ride. There should
not be any unusual rattles or sounds from loose parts or broken
components. If the unit is damaged, do not ride. Reference
“Safety Warnings” on page 1 of this manual.
Safety Gear
Always wear proper protective gear, such as an approved safety
helmet. Elbow pads, kneepads, pants and long sleeves are
recommended. Always wear closed toe shoes (lace-up with
rubber soles) and keep shoelaces tied and out of the way of
the wheels, motor and drive system. NEVER RIDE BAREFOOTED
OR IN SANDALS.
Laws and Regulations
Always check and obey any local laws or regulations.
Insurance
Do not assume that your existing insurance policies necessarily
provide coverage for electric product use. Check with your
insurance company for information regarding insurance.
Storage
Prolonged exposure to UV rays, rain and the elements may
damage the enclosure materials, store indoors when not in use.
