RCA RFRF1049 User manual

Chest Freezer
User Manual
RFRF1049
“This product is manufactured and sold by Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are
registered trademarks or trademarks of RCA Trademark
Management and are used under license by Curtis International Ltd.
Any other product, service, company, trade or product name and logo
referenced herein are neither endorsed nor sponsored by
RCA Trademark Management or its affiliates.”

1
GENERAL SAFETY RULES
WARNING: Read all of the instructions before using this appli-
ance. When using this appliance, always exercise
basic safety precautions, including the following:
NOTE: If the freezer has been placed in a horizontal or tilted position
for any period of time wait 24 hours before plugging the unit in.
1. Use this appliance only for its intended purpose as described in this use and
care guide.
2. This freezer must be properly installed in accordance withthe installation
instructions before it is used. See grounding instructions in the installation
section.
3. Never unplug your freezer by pulling on the power cord. Always grasp the plug
firmly and pull straight out from the outlet.
4. Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion
damage along its length, the plug or the connector end.
5. Unplug your freezer before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly recommend
that a certified technician performs the service.
6. Do not use any electrical device or any sharp instrument in defrosting your
freezer.
7. If your old freezer is not being used, we recommend that you remove the
doors. This will reduce the possibility of danger to children.
8. WARNING: After your freezer is in operation, do not touch the
cold surfaces in the freezer compartment, particularly when hands
are damp or wet. Skin may adhere to these extremely cold
surfaces.
9. Do not refreeze foods, which have been thawed completely. The United States
Department of Agriculture in Home and Garden Bulletin No. 69
reads: “…You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40˚F”.
“…Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed
ice cream should be discarded. If the odor or color of any food is
poor or questionable, discard it. The food may be dangerous to eat.”

2
“…Even partial thawing and re-freezing reduce the eating quality of foods,
particularly fruits, vegetables, and prepared foods. The eating quality of red
meats is affected less than that of many other foods.
Use refrozen foods as soon as possible, to save as much of its eating quality
as you can.
10. This freezer should not be recessed or built-in an enclosed cabinet. It is
designed for freestanding installation only.
11. Do not operate your freezer in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves in
place so that children may not easily climb inside.
Staple your receipt to your manual.
You will need it to obtain warranty service.

3
Parts And Features
1. Interior Drain Plug (See Insert)
2. Hinges
3. Vinyl Coated Wire Basket
4. Temperature Control
5. Exterior Drain Plug
6. Compressor On Indicator
1
2
6
5
4
3

4
Installing Your Freezer
Unpacking Your Freezer
1. Remove all packaging material. This includes the foam base and
all adhesive tape holding the freezer accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or
printed materials before powering on the freezer.
Adjusting Your Freezer
• Your freezer is designed for freestanding installation only.
It should not be recessed or built-in.
• Place the freezer on a floor strong enough to support it fully loaded.
• When moving the freezer, never tilt it more than a 45-degree angle.
This could damage the compressor and the sealed system.
• If the freezer is tilted let it stand in an upright position for at least 24
hours prior to plugging. This is to allow the refrigerant tosettle.
Proper Air Circulation
• To assure your freezer works at the maximum efficiency it
was designed for, you should install it in a location where there is
proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the freezer:
Sides……………4” (102mm)
Back...................4” (102mm)
Top....................Do not block

5
WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the freezer.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the freezer and may result in
shock hazard.
Use of Extension Cord
• Avoid the use of an extension cord because of potential safety haz-ards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a 3-
slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rat-ing of the
appliance. DO NOT USE EXTENSION CORD LONGER
THAN 12 FT.
Install Limitations
• Do not install your freezer in any location not properly insulated or
heated e.g. garage etc. Your freezer was not designed to operate in
temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the freezer on a hard even surface
away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor
unevenness should be corrected.

6
Freezer Features and Use
Operating Your Freezer
• Once the freezer is in its proper place, plug it in an electrical outlet
having 115 volts and 15 amps.
• Set the temperature, on the temperature control knob. “1” being the
warmest and “7” being the coldest. Initially set the temperature on “4”.
Place food inside the freezer. After using the freezer for 24 hours set
the freezer to your desired setting.
• In case you unplug your freezer or experience an electrical outage,
allow 5 minutes before plugging it back in.
General Features
Adjustable temperature dial: (see fig. # 1)
Your freezer will automatically
maintain the temperature level you
select. The temperature control dial
has 9 settings plus OFF. “1” is the
warmest, “MAX” is the coldest. Set the
dial to “4” and allow 24 hours to pass
before adjusting the temperature to
your needs.
fig. # 1
For faster freezing capability:
The first time you turn the unit on,
turn the temperature control dial to
“ON” and run for at least 2 hours,
then turn dial to “4”.
(Note: If the freezer has
been placed in a horizontal
or tilted position for any
period of time wait 24
hours before plugging the
unit in.)
Compressor on
indicator (green)
Normal Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of the
refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
OFF
4
3
5
6
7
RUN
1
2
MIN MAX
MED

7

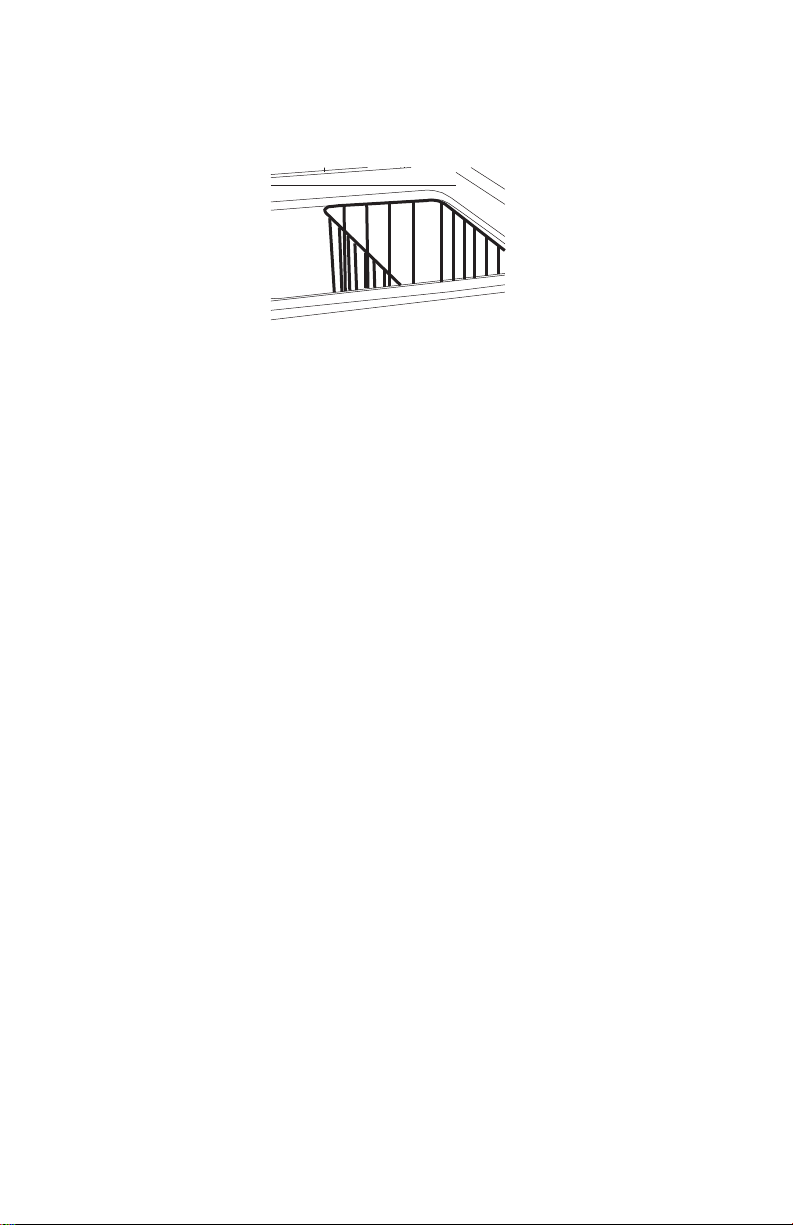

Food Storage Basket
• Your freezer has a basket. Removable basket allows you
• to store food more accessibly or you can remove it if not needed.
Defrosting and Draining
• For most efficient operation and minimum energy consumption, defrost
whenever the frost becomes 1/4” thick. Never use a sharp or metal-lic
instrument to remove the frost, as it may damage the cooling coils.
(A punctured coil will void the warranty). Do not use boiling water as
it may damage the unit. It is advisable to let ice and frost melt
• Remove frozen food from the freezer and place it in a cooler to
protect the food.
• Unplug the unit. Defrosting usually takes a few hours. To defrost
faster keep the freezer door open.
• For draining, place a tray beneath the outer drain plug. Unscrewand
remove drain plug. This will let the water flow out in the tray. When
done, screw on the drain plug in place.
Note: monitor the container under the drain to avoid overflow.
• When draining is complete, wipe the interior of the freezer with a soft
cloth. Plug in power cord back into the electrical outlet.
• Reset the temperature control to the desired setting.
• Return the food into the freezer.

8
Food Storage Information
Frozen Food:
• Wipe containers before storing to avoid needless spills.
• Hot food should be allowed to cool before storing in the freezer.
This will prevent unnecessary energy use.
• When storing meats, keep in the original
packaging or rewrap as necessary.
• Proper freezer storage requires correct packaging. All foods must be
in packages, which do not allow the flow of air or moisture in, or out.
Improper storage will result in odor and taste transfer and will result
in the drying out of the improperly packaged food.
• Follow package or container instructions for proper storage.
• Packaging Recommendations:
Plastic containers with air tight lids
Heavy duty aluminum foil
Plastic wrap made from saran film
Self-sealing plastic bags
• Do not refreeze defrosted/thawed foods.
• It is recommended that the freezing date be marked on
the packaging.
These are some suggestions for safe storage:
• TV Dinners 3 - 4 Months
• Fresh Shrimp, scallops, crawfish 3 - 6 Months
• Hamburger & stew meats 3 - 4 Months
• Ground Turkey, veal, pork 3 - 4 Months
• Chops 4 - 6 Months
• Steaks 6 - 12 Months
• Chicken or turkey, whole 1 year
For detailed storage chart visit FDA website:
www.cfsan.fda.gov/~dms/fttstore.html

9
Proper Freezer Care and Cleaning
Cleaning and Maintenance
Warning: To avoid electric shock always unplug your freezer before
cleaning. Ignoring this warning may result in death orinjury.
Caution: Before using cleaning products, always read and follow
manufacturer’s instructions and warnings to avoid personal
injury or product damage.
General: • Prepare a cleaning solution of 3-4 tablespoons of baking
soda mixed with warm water. Use sponge or soft cloth,
dampened with the cleaning solution, to wipe down your
freezer.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach, concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your freezer.
Door Gaskets:
• Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets will
keep the gasket pliable and assure a good seal.

10
Power Interruptions
• Occasionally there may be power interruptions due to
thunderstorms or other causes. Remove the power cord from AC
outlet when a power outage occurs. When power has been restored,
replug power cord to AC outlet. If outage is for a prolonged period,
inspect and discard spoiled or thawed food in freezer. Clean freezer before
reusing.
Vacation and Moving Care
• For long vacations or absences, empty food from freezer, unplug
the unit and clean the door gaskets according to “General cleaning”
section. Prop doors open, so air can circulate inside. When moving
always move the freezer vertically. Do not move with the unit lying
down. Possible damage to the sealed system could occur.
WARNING: IF OUTAGE IS FOR A PROLONGED PERIOD, INSPECT
AND DISCARD SPOILED OR THAWED FOOD IN
FREEZER. CLEAN FREEZER BEFORE REUSING.

11
Troubleshooting
Freezer Does Not Operate:
• Check if freezer is plugged in.
• Check if there is power at the ac outlet, by checking
the circuit breaker.
• Wait for 30-40 minutes to see whether freezer will start.
Compressor cycle must be complete to operate.
Food temperature appears too warm:
• Frequent door openings.
• Allow time for recently added warm food to reach
freezer temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Too much frost build-up inside unit:
• Make sure temperature control is not set to “ON”
setting for extended period of time.
Food temperature is too cold:
• If temperature control setting is too cold, adjust to a warmer
setting and allow several hours for temperature to adjust.
Compressor runs too frequently:
• This may be normal to maintain constant temperature
during high temperature and humid days.
• Doors may have been opened frequently or for an
extended period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
• Check freezer compartment for blockage
from frozen food packages, containers, etc.
Freezer has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.

12
PRODUCT SPECIFICATIONS
• CAPACITY OF FREEZER IN CU FT ：10.3
• SHELF MATERIAL：WIRE
• TEMPERATURE CONTROL TYPE: MANUAL DEFROST
• TEMPERATURE RANGE IN FAHRENHEIT AND CELSIUS: -12-24℃10.4-11.2℉
• DIMENSIONS
DEPTH (EXCLUDING HANDLES) (IN)
DEPTH (INCLUDING HANDLES) (IN)
DEPTH (LESS DOOR) (IN) 31-1/2"
DEPTH WITH DOOR OPEN 90 DEGREES (IN) 56"
HEIGHT TO TOP OF DOOR HINGE (IN.) 33"
PRODUCT DEPTH (IN.) 44"
PRODUCT HEIGHT (IN.) 25"
PRODUCT WIDTH (IN.) 34"

13
To make a warranty claim, do not return this product to the store. Please email
[e-mail] or call 1-800-968-9853.
1 Year Warranty
This product is warranted to be free from defects in material and workmanship for a
period of one (1) year from the date of original purchase. During this period, your
exclusive remedy is repair or replacement of this product or component found to be
defective, at our option; however, you are responsible for all costs associated with
returning the product to us. If the product or component is no longer available, we
will replace with a similar one of equal or greater value. Prior to a replacement being
sent, the product must be rendered inoperable or returned to us.
This warranty does not cover glass, filters, wear from normal use, use not in
conformity with the printed directions., or damage to the product resulting from
accident, alteration, abuse, or misuse. This warranty extends only to the original
consumer purchaser or gift recipient. Keep the original sales receipt, as proof of
purchase is required to make a warranty claim. This warranty is void if the product is
used for other than single-family household use or subjected to any voltage and
waveform other than as on the specified rating on the label (e.g., 115V~60Hz).
We exclude all claims for special, incidental, and consequential damages caused by
breach of express or implied warranty. All liability is limited to the amount of the
purchase price. Every implied warranty, including any statutory warranty or
condition of merchantability or fitness for a particular purpose, is disclaimed
except to the extent prohibited by law, in which case such warranty or
condition is limited to the duration of this written warranty. This warranty gives
you specific legal rights. You may have other legal rights that vary depending on
where you live. Some states or provinces do not allow limitations on implied
warranties or special, incidental, or consequential damages, so the foregoing
limitations may not apply to you.
For faster service, locate the model, type, and serial numbers on your appliance.
For service assistance and product information, please call: 1-800-968-9853.
Pour obtenir assistance et information appelez: 1-800-968-9853.
Curtis International Ltd.
7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3 www.curtisint.com

Congélateur Bahut
Guide de l’Utilisateur
RFRF1049
“Ce produit est fabriqué et vendu par Curtis International Ltd.
RCA, le logo de la RCA, le logo de deux chiens (Nipper et Chipper), sont
des marques déposées ou des marques déposées de marque RCA
Gestion et sont utilisés sous licence par Curtis International Ltd.
Tout autre produit, service, entreprise, commerce ou produit nom et le logo
mentionnés aux présentes ne sont ni approuvés ni sponsorisés par
Gestion de marque RCA ou de ses filiales.

Français
1
INSTRUCTIONS DE
SECURITE IMPORTANTES
Lisez toutes les instructions avant d’utiliser cet appareil. Lorsque vous utilisez
cet appareil, respectez les consignes de securite de base y
compris les suivantes:
1. Utilisez cet appareil uniquement pour l’usage auquel il est destine
comme indique dans ce manuel d’utilisation et d’entretien
2. Cet appareil doit etre installe proprement et conformementaux
instruc-tions d’installation avant d’etre utilise . Consultez les
instructions de mise a terre dans la section d’installation.
3. Ne debranchez jamais votre congelateur / refrigerateur convertible
en tirant sur le cordon d’alimentation . Saisissez la fiche fermement
et tirez tout droit de la prise murale.
4. Reparez ou remplacez immediatement , toutes les cordeselectriques qui
sont devenues frangees ou autrement endommagees .N’utilisez
pas un cable representant des craquelures ou des abrasions a la longueur
du cordon, de la fiche ou de l’extremite du connecteur.
5. Debranchez votre congelateur / refrigerateur avant de le nettoyer ou avant
de le reparer. Note: Si pour n’importe quelle raison cet
appareil exige un service de reparation, nous recommandons avec force
qu’un technicien certifie execute le service.
6. N’utilisez aucun dispositif electrique ou aucun instrument aigu
pour degriver votre congelateur / refrigerateur convertible.
7. Si vous n’utilisez plus votre congelateur /refrigerateurconvertible,
nous vous recommandons de retirer les portes. Cela reduira les
risques d’accident aux enfants.
8. Apres avoir mis en marche votre congelateur / refrigerateur , ne tou-
chez pas aux surfaces froides specialement si vos mains sont mouillees
ou humides. La peau peut adherer aux surfaces extremement froides.
9. Ne congelez pas de nouveau la nourritue qui a ete degelee com-
pletement . Le service des Etats Unis d’Agriculture dans le bulletin de
Maison et Jardin N0 69 lisent “……Vous pouvez sans risque congeler
de nouveau la nourriture degelee si elle contient des cristaux de glace
ou si la temperature est restee froide au dessous de 40degres F.

Français
2
“La viande hachee, le volaille,ou le poisson degeles, qui ont n’importe quelle
odeur ou couleur ne doivent pas etre congeles de nouveau ou manges. La
glace degelee doit etre jetee . Si l’odeur ou la couleur de n’importe quelle
nourriture est incertaine, jetez la. Il peut etre dan
geureux de manger cette nourriture.
“Meme une decongelation partiale et recongelation peuvent reduire la qualitee
de la nourriture, particulierement, les fuits, les vegetables et les plats prepares
en avance. La qualitee de la viande rouge est moins affectee que celle que
d’autres nourritures. Utilisez la nourriture qui a ete recongelee au plus tot
possible pour garder sa qualite.
10. Ce refrigerateur ne doit pas etre encastre ou incorpore dans un plac- ard
enclos . Il est concu pour une installation sans encastrement.
11. N’operez pas votre unite en presence des fumees explosives.
VEUILLEZ CONSERVER CES INSTRUCTIONS
DANGER
Risque d’occlusion d’enfant. Avant que vous jetiez votre vieux
réfrigérateur ou congélateur, enlevez les portes. Laissez les
étagères en place de sorte que les enfants ne puissent pas
facilement s’élever à l’intérieur. Selon Des Normes UL 250
Nous vous remercions d’avoir
choi-si ce produit . Ce guide
d’utilisation facile d’emploi permet
une utilisation optimum du
dégivrage.
Ne pas oublier de prendre note du
numéro de modèle et de série. Ils
sont inscrits sur une plaquette appo-
sée sur l’arrière
du dégivrage.
Numéro de modèle
Numéro de série
Date d’achat
Agrafer le ticket de caisse au guide. Il devra être présenté pour tout ser-vice
après-vente sous garantie.

Français
3
Sommaire
PAGE
Mesures de Sécurité.................................................................................1
Pièces et Caractéristiques ........................................................................4
Installer le Congélateur .............................................................................5
Déballer le Congélateur ............................................................................5
Régler le Congélateur ...............................................................................5
Assurer une Bonne Circulation de L’air.....................................................5
Installation Électrique................................................................................6
Limitations d’installation ............................................................................6
L’usage de Rallonge .................................................................................6
Caractéristiques du Congélateur et Utilisation..........................................7
Utiliser le Congélateur...............................................................................7
Caractéristiques Générales.......................................................................7
Casiers de Rangement pour Aliments ......................................................8
Dégivrage et évacuation de l’eau..............................................................9
Informations sur le Rangement des Aliments ...........................................9
Bruits de Fonctionnement lors d’une Exploitation Normale ................. 9-10
Entretien et Nettoyage du Congélateur...................................................10
Nettoyage et Maintenance ......................................................................10
Coupures de Courant..............................................................................11
Entretien lors des Vacances ou d’un Déménagement............................11
Guide de Dépannage..............................................................................12

Français
4
Piéces et Caractéristiques
1. Le Bouchon intérieur
d’Egout (Voir l’insertion)
2. Charnières
3. Le vinyle A Revêtu le Panier de Fil
4. Ajustement de Régulation de
la température
5. Le Bouchon extérieur d’Egout
6. Compresseur sur l’indicateur
1
2
6
5
4
3

Français
5
Installer le Congélatuer
Déballer le Congélatuer
1. Retirez tout le matériau d’emballage y compris la base en mousse et
le ruban adhésif retenant les accessoires du congélateur à l’intérieur
et à l’extérieur.
2. Examinez et retirez tous les restes de l’emballage, de la bande ou des
matériaux imprimés avant d’actionner sur le congélateur.
Régler le Congélatuer
• Ce congélateur a été conçu en tant qu’appareil autostable. Il ne doit pas
être encastré ni être placé en retrait dans une niche ou unrenfoncement.
• Placez le congélateur sur un sol suffisamment résistant et
capable de le soutenir lorsque ce dernier est complètement rempli.
• Lorsque vous déplacez le congélateur, veillez à ne jamais le pencher
plus de 45∞. En effet, vous risquez d’endommager le compresseur et le
dispositif scellé.
• Si le congélateur a été penché, laissez-le debout (en position verticale)
pendant au moins 24 heures avant de le brancher afin qu’il revienne à son
état de fonctionnement normal.
Assurer une bonne circulation de l’air
• Afin de vous assurer que le congélateur fonctionne à plein rendement,
installez-le dans un endroit largement ventilé et où il existe des prises pour
le raccordement électrique et la plomberie.
• Les dimensions suivantes sont les distances recommandées autour du
congélateur.
Côtés...........4 po. (102 mm)
Derrière.......4 po. (102 mm)
