RCI RPTZ1080-10X User manual

HD-AHD Intelligent High Speed Dome
User Manual
Thank you for purchasing our produdts . Please do not hesitate to contact us if there is any question.
Please read this manual careful before instation or application
(Note：This manual is subject to change without notice)

HD-AHD Intelligent High Speed Dome User Manual
1
Contents
Safeguards…………………………………………………………………………………………………. ...3
Chapter 1 Introduction
1.1 Product Introduction …………………………………………………………………………………..6
1.2 Appearance……………………………………………………………………………………………..6
1.3 Functions……………………………………………………………………………………………….8
1.4 Technical Data…………………………………………………………………………………………9
1.5 Short-cut Commands…………………………………………………………………………………..11
1.6 Glossary………………………..………………………………………………………………………14
Chapter 2 Precautions to Installation
2.1 Preparation…………………………………………………………………………………………….18
2.2 Precautions to Installation……………………………………………………………………………..18
Chapter3 Installation
3.1 Packing Checking ……………………………………………………………………………………..21
3.2 Installation………………………………………………………………………………………….….22
3.3 Dip Switches( DomeAddress, Protocol and Baud Rate)……………………………………………...28
Chapter 4 Installation Method of Different Brackets
4.1 Dimensions…………………………………………………………………………………………….31
4.2 Wall Mount…………………………………………………………………………………………….33
4.3 Pending Mount ………………………………………………………………………………………..34
4.4 Corner Adapter ………………………………………………………………………………………..37
Chapter 5 Operation Guidance
5.1 Wiring ………………………………………………………………………………………………...41
5.2 Protocol and Baud Rate Setting ………………………………………………………………………42
5.3 Dome Address Setting………………………………………………………………………………....42
5.4 Install the Camera Module …………………………………………………………………………....42
5.5 Connect to Power……………………………………………………………………………………...44
5.6 Controller Setting……………………………………………………………………………………...44
5.7 Testing ………………………………………………………………………………………………...45
5.8 Finish Testing ………………………………………………………………………………………....45

HD-AHD Intelligent High Speed Dome User Manual
2
Chapter 6 OSD Menu Operation
6.1 Operation in Enlish OSD
6.1.1 Main Menu ………………………………………………………………………………………. . 47
6.1.2 Menu Tree(Submenu)………………………………………… …………………………………… 47
Appendix 1 Lightning and Surge Protection…………………………………………………………………55
Appendix 2 RS485 BUS Connection…………………………………………………………………………55
Appendix 3 Common Problems and Solutions……………………………………………………………….57
Note 1: The key “IRIS+” mentioned in this manual is equal to “OPEN”, and “IRIS-“ is equal to “CLOSE”;
“PRESET” is equal to “SET” (i.e., to edit preshot), while” PREVIEW” is equal to “ACK” (i.e.,
call preshot); “FOCUS-” is equal to “ FAR”.

HD-AHD Intelligent High Speed Dome User Manual
3
Safeguards:
This is to assure the right application of this product and to avoid danger or property loss.The precaution
measures are divided into “Warnings” and “Cautions”, as shown in the following picture;
Warnings: Ignorance of Warings may cause serious injury or death
Cautions: Ingnorance of Cautions may cause injury or property loss.
Warning Follow this safe guard to
avoid serious injury or death
Caution Follwing this precaution to avoid
potential injury or property loss
Warning
1、All the national and regional electrical safety regulations must be strictly followed during the installation
and application of this product.
2、Please use standard power adapter DC12V/2A
3、Do not connect several devices to one power adapter, as adapter overload may cause over-heat or fire
hazard.
4、Please disconnect power during wiring and disassembling. Operation is not allowed when connected to
power.
5、When the product is installed on wall or ceiling, the devices should be firmly fixed.
6. If there is smoke, severe smell or noise in the dome, turn off the power and disconnect the cable
immediately, then contact our after-sales staff.
7. If the product does not work properly, please contact your dealer of our after-sale sevice center。Never
attempt to disassemble the camera yourself.
（We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.）

HD-AHD Intelligent High Speed Dome User Manual
4
Cautions
1、Do not drop the dome or subject it to physical shock, and do not expose it to high electromagnetism
radiation. Avoid the equipment installation on viberating surface or shocking places(ignorance can demage
the equipment).
2、Do not install the dome in extremely hot( onver 60℃)or cold( below-40℃) or damp locations.
3、Indoor domes should be kept away from rain and moisture.

HD-AHD Intelligent High Speed Dome User Manual
5
Chapter 1 Introduction
1.1 Product Introduction
1.2 Appearance
1.3 Functions
1.4 Technical Data
1.5 Short-cut Commands
1.6 Glossary

HD-AHD Intelligent High Speed Dome User Manual
6
1.1 Product Introduction
For this series of dome cameras, the 32-bit ARM processor, built-in zoom lens and the decoder
controller are used together. It’s driven by precise stepper motor, and thus responsive, stable, and trembling-free
at any speed.The excellent performance and complete functions has made it a high-tech security product.

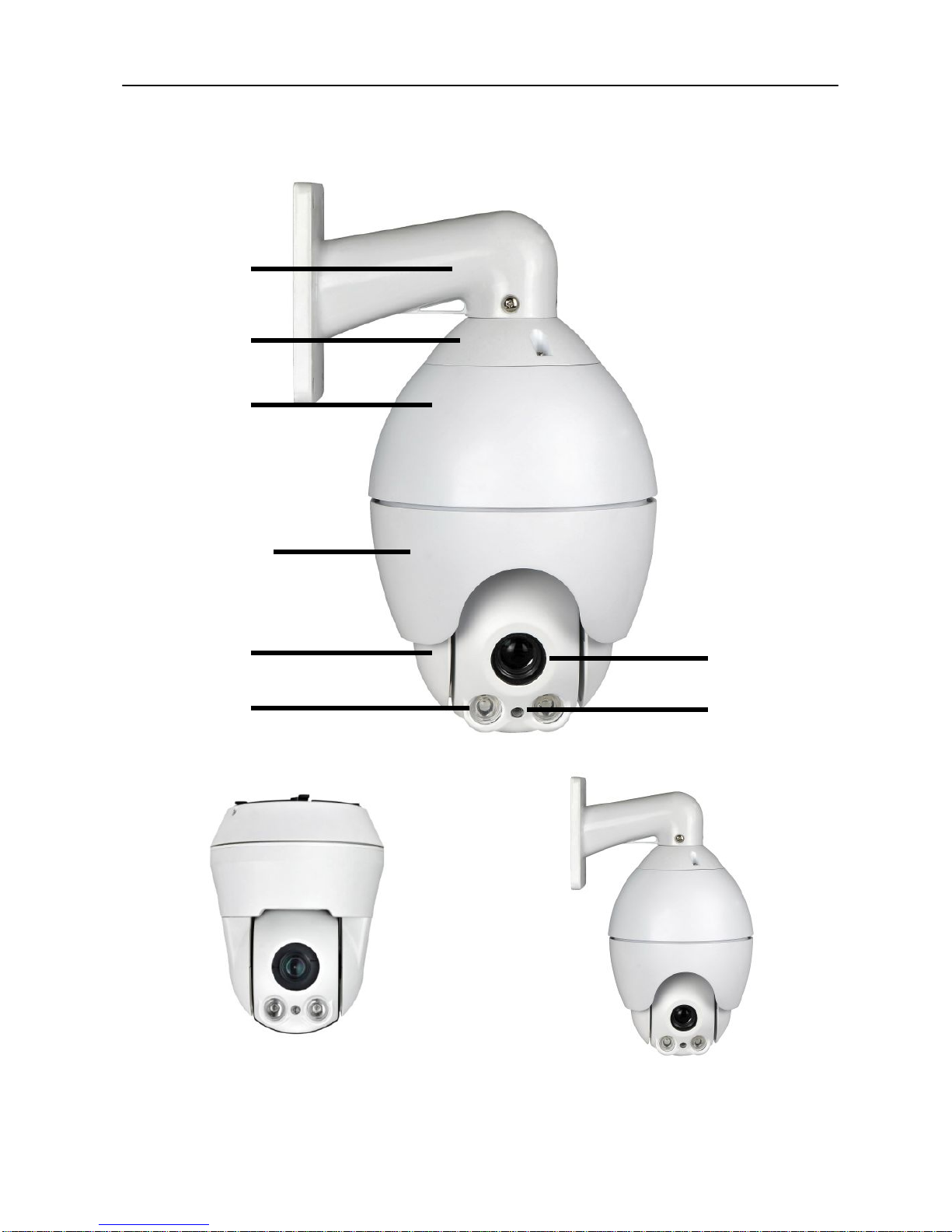

1.2 Appearance
Top Housing
Camera Module
Side cover
Connector
Bracket
Camera frontal cover

HD-AHD Intelligent High Speed Dome User Manual
7
Top extemal Housing
Infrared light
Side cover
Connector
Bracket
Down extamal Housing
Camera Module
Light sensor
RPTZ1080-10X-427 Dome
RPTZ1080-10X-428 Dome

HD-AHD Intelligent High Speed Dome User Manual
8
1.3 Functions
lAluminum-alloy housing, 4-inch dome cover, black rotating dome, integrated design
lCeiling-mount, wall mount, pending (indoor/outdoor) bracket available
lPrecise stepper motor driven, smooth and tremble-free rotation, noise-free
l32-bit ARM processor, large storage capacity, higher speed, better performance, higher integration, lower
consumption
lSoft address and hard address optional
lCan restore factory default settings
lSimutaneous zoom and speed limit
lAuto restore――in the menu,User can set how the camera rotates after start
lColor/ B/W can be set to be Color, B/W, or Auto
l6 PTZ Pattern：can record all P/T/Z tour
lAutomatic changing of P/T speed: the P/T speed reduces proportionally according to zoom times.
l128 presets, accuracy less than 0.1º（the dome targets a specific location, can be set and changed
lFlexible and resettable auto-scan speed (1-9 degree optional)
l16 presets in each tour: dwell time 1-99 seconds at each preset position settable in OSD menu
lPan 360°endless，Tilt 0---90°
lPan manual speed: 0.1°～180°/S, Tilt manual speed：0.1°～100°/S
l3 degress of lightning and surge protection
lVideo Transmitting Distance 400 m
lSupport coaxitron function
lWith CE, FCC and ROHS

HD-AHD Intelligent High Speed Dome User Manual
9
1.4 Technical Data
Items Model Name
RPTZ1080-10X
Camera CTU10AH72 CTU10AH108
Sensor 1/2.8 IMX238" CMOS
1/2.8 IMX322 CMOS
Effective Pixels 1.3MP 2.0MP
Resolution 720P/30fps，720P/25 fps 1080P/30 fps，1080P/25 fps，720P/30 fps，
720P/25 fps
Min. Illumination 0．1 Lux
Optical Zoom 10 X f=5mm～50mm
White Balance Auto
D/N ICR
IR light Source Varical focal IR-Ⅲgeneration
IR Wave Length 850nm
IR Control Auto/Manual
IR life more than 20,000 hours
IR LED QTY 2 X ∮18
Infrared Distance 50 M
IR Angle 30°，45°
Proccessor 32-bit ARM
Address 0----255（Compatible with hard address and soft address）
Pan Range 360°Endless
Pan Speed 0.1°/S－240°/S（1-64 degree optional）
Tilt Range 0-----90°
Tilt Speed 0.1°/S－100°/S
2-
Poin Auto Scan Yes
Horizontal 360 °Scan
Yes
Preshot 128
Preshot Speed 240°/S
Dwell Time at Preshot
1----99 S

HD-AHD Intelligent High Speed Dome User Manual
10
Pattern 6 Groups
Tour 7Groups
Temperature -10℃-+60℃
Humidity ≤80% No condensation
Communication RS485 BUS ，Coaxitron control
Baud Rate 2400／4800／9600 /19200bps Optional
Input Power DC12V/2A
Consumption 15W
Video Out AHD-BNC
Video Transmitting
Distance 400 m
Weight 1.2Kg
Installation L type bracket and Ceiling Mount forRPTZ1080-10X-427
Wall-mount bracket and Pendent bracket for RPTZ1080-10X-428
Certificates ROHS，CE，FCC

HD-AHD Intelligent High Speed Dome User Manual
11
1.5 Short-cut Commands
PREVIEW
/
PRESET No Functions Remark
PREVIEW
65 Camera Power ON NA
PRESET Camera Power OFF NA
PREVIEW
66 BLC ON
PRESET BLC OFF
PREVIEW
67 ICR Auto
PRESET ICR Color
PREVIEW
68 ICR B/W
PRESET Home Position
PREVIEW
69 OSD ON/OFF
PRESET Screen ON/OFF
PREVIEW
70 Digital Zoom ON NA
PRESET Digital Zoom OFF NA
PREVIEW
71 Auto Focus
PRESET Manual Focus
PREVIEW
72 Auto Iris NA
PRESET Manual Iris NA
PREVIEW
73 White Balance Auto
PRESET White Balance Manual
NA
PREVIEW
74 Indoor Mode NA
PRESET Outdoor Mode NA
PREVIEW
75 ATW NA
PRESET one push WB NA
PREVIEW
76 Image Freeze ON NA
PRESET Image Freeze OFF NA
PREVIEW
77
Reserved
PRESET
Reserved
PREVIEW
78
Reserved

HD-AHD Intelligent High Speed Dome User Manual
12
PRESET
Reserved
PREVIEW
79 1080P/30 fps
PRESET 720P/30 fps
PREVIEW
80 1080P/25 fps
PRESET 720P/25fps
PREVIEW
81
Home Position in 1
Minute
PRESET Home Position in 2
Minute
PREVIEW
82
Home Position in 4
Minute
PRESET Home Position in 8
Minute
PREVIEW
83
Home Position in 10
Minute
PRESET Home Position
OFF
PREVIEW
84 Run 1st 2-Point Scan
PRESET
PREVIEW
85 Run 2nd 2-Point Scan
Default is 1st one
PRESET Set 2nd 2-Point Scan
Reserved
PREVIEW
86
Run 3rd 2-Point
Scan Reserved
PRESET Set 3rd 2-Point
Scan Reserved
PREVIEW
87
2-point scan at low
speed
When speed is 64 degree, this command is to record the
speed
PRESET Set start position of
2-point scan
PREVIEW
88 2-point scan at
medium speed Reserved

HD-AHD Intelligent High Speed Dome User Manual
13
PRESET Set end position of
2-point scan
PREVIEW
89
2-point scan at high
speed Reserved
PRESET
Reserved
PREVIEW
90 2-point scan big circle
mode(﹥180°
PRESET
2-point scan big circle
mode(﹤180°)
PREVIEW
91 Administrator logo in
Reserved
PRESET User log in Reserved
PREVIEW
92
Run Pan Scan
PRESET Dome information
dispaly Will disappear in 3 S or when joystick moved
PREVIEW
93 Run 16 preshots
PRESET Restart Press PRESET 93 three times continually
PREVIEW
94
PRESET
PREVIEW
95 Open OSD Menu
PRESET
PREVIEW
96
PRESET
PREVIEW
97 Run 1nd Pattern
PRESET
PREVIEW
98 Run 2rd Pattern
PRESET
PREVIEW
99
PRESET
PREVIEW
100
Run 1st Tour
PRESET Run 2nd Tour
PREVIEW
101
Run 3rd Tour

HD-AHD Intelligent High Speed Dome User Manual
14
PRESET Run 4th Tour
PREVIEW
102
Run 5th Tour
PRESET Run 6th Tour
PREVIEW
103
IR Auto
PRESET IR ON
PREVIEW
104
IR OFF
PRESET
Reserved
PREVIEW
105
Reserved
PRESET
Reserved
PREVIEW
106
Reserved
PRESET
Reserved
PREVIEW
107
Reserved
PRESET
Reserved
PREVIEW
108
Reserved
PRESET
Reserved
PREVIEW
109
Reserved
PRESET
Reserved
PREVIEW
110
Return to factory
setting
Press PREVIEW 110 once，then press PRESET 110
twice，and press PREVIEW 110 once
PRESET
1.6 Glossary
Soft Address
User can set soft address in this dome, thus make it easier in installation and application.
General Address
Address 0 is the general address, which menas the controlling devices can control any dome in a system by
this address, no matter what the current dome address is.
OSD Menu
The dome provides OSD menu for display of system information and information and setting of dome
parameters.
Proportional Pan/Tilt Speed

HD-AHD Intelligent High Speed Dome User Manual
15
Proportional pan/tilt automatically reduces or increases the pan and tilt speeds in proportion to the amount of
zoom. The dome slows down at a larger amout of zoom, and it speeds up at a small amount of zoom.
AUTO Pan SCAN
The dome rotates horizontally 360º continually at a set speed in the set direction . User can also set the starting
and ending position,between which the camera can move back and forth.
Two-point PAN SCAN
The domes moves horizontally from the starting point to the ending point at a set speed in the set direction.
AUTO FLIP
In manual tracking mode, when a target object goes directly beneath the dome, the dome will automatically
rotate 180 degrees in horizontal direction to maintain continuity of tracking. When the dome rotates (flips), the
camera starts moving upward as long as you continue to hold the joystick in the down position. This function can
be realized by image center flip depending on different camera models. The feature can be enabled/disabled
through the menu.。
PRESET (PRESHOT)
Each of the user-definable presets can be programmed to use pan, tilt, camera settings and other settings.
When preset is called, the dome will automatically move to the defined position. User is allowed to add, modify,
delete and call each preset.
PRESET TOUR (Vector Scan)
The dome will moves the continually from the 1st preset to the 16th. If one preset is not set, it skips and
moves directly to the next preset.
PATTERN (PTZ Tour)
A pattern is a memorized, repeating series of pan, tilt, zoom, and preset functions that can be recalled with a
command from a controller or automatically by a configured function (alarm, park, time task, or power-up). By
default the focus and iris are in auto status during the pattern is being memorized.
IR Cut Filter

HD-AHD Intelligent High Speed Dome User Manual
16
The IR cut filter can be set to Auto, Day and Night. In auto mode, the camera is capable of automatically
switching Black & White mode (Night) and Color mode (Day) with regard to environment lightening conditions.
In manual switch mode, user can increase sensitivity in low light conditions by switching to Black & White
mode, while the Color mode is preferred in normal lighting conditions(depends on the camera).
Auto Focus
The auto focus enables the camera to focus automatically to maintain clear video images
User can also press FAR and NEAR to focus. It will resume auto focus when user do P/T/Z controlling.
Auto Iris
The auto iris enables the camera to iris automatically to maintain clear video images
User can also press OPEN and CLOSE to focus. It will resume auto iris when user do P/T/Z controlling.
Backlight Compensation
When there is bright light source in the background, the subject will be dark, like a blackshadow. Backlight
compensation video gain done either manually or automatically to correct the exposure of subjects that are in
front of a bright light source, avoid unclearness of the target in bright background.

HD-AHD Intelligent High Speed Dome User Manual
17
Chapter 2 Precautions to installation
2.1 Preparation
2.2 Precautions to installation

HD-AHD Intelligent High Speed Dome User Manual
18
2.1 Preparation
1.Regulations
1）All electrical safety and fire regulations should be strictly followed.
2）Please check if your camera and accessories are all included in the product package, make sure the location
is suitable for installation and application of the dome,as specified in the manual.
2. Location checking
Make sure there is enough space for the dome and accessories in the chose location.
3. Check the supporting strength of the chose location
Make sure the ceiling or wall where the dome will be installed is strong enough to support 4 times of the
weight of domes and its accessories.
4. Preparing of cables
Select video cable according to required transmitting distance. Basic requirements of coaxial cable:
1）75Ω；
2）Brass cable；
3）95% copper braid, tinned
2.2 Precautions to installation
1．Read the this manual carefully before installation.
2．The power supply and the voltage should be the same as indicated on the cable. Standard voltage is
DC12V, the voltage should be within DC12V±10%。Long-time working of dome under too low or too high
voltage will cause unnormal working. Keep the power consumption above 40W, otherwise, the restart or
controlling of dome will be unnormal.
3．Continuing exposure of camera to strong light will damage CCD and result in bad image or no display.
4．The outdoor dome is water-proof as well as moisture resistant ( IP66). If the dome is wired improperly, the
rain will enter the dome along the cable, thus damaging the circuit board and even the camera. The right
and wrong wiring are shown in the following pictures:

HD-AHD Intelligent High Speed Dome User Manual
19
Right Wiring
Wrong Wiring
