Renaissance Cooking Systems RJC Series Instructional Book
CARE & USE/INSTALLATION
INSTRUCTIONAL BOOK
Model RJC26 Propane/NG
Model RJC32 Propane / NG
Renaissance Cooking Systems Gas Grills
ATTENTION INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
ATTENTION CONSUMER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
www.RCSGasGrills.com
Revised 01.2011

Renaissance Cooking Systems RJC Series Instructional Book
THIS MANUAL APPLIES TO THE FOLLOWING
Model: RJC32P / RJC32RN 4 BURNER

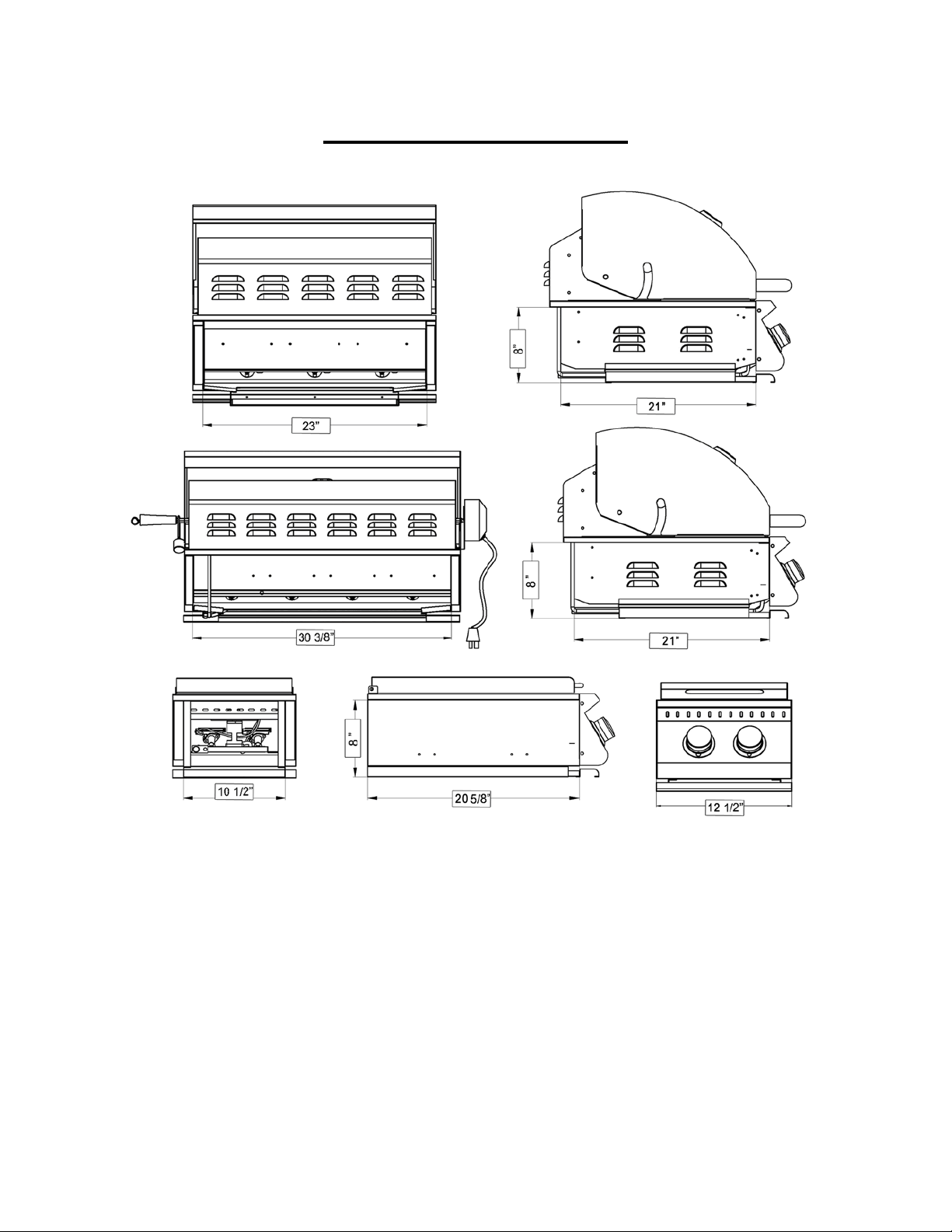

BBQ Dimensions
30 3/8” x 8” x 21”
BTU Output：12,000 BTU per Burner x4
Infra Back Burner
12,000 BTU x1
Pilot Flame Ignition
Pilot Flame Ignition
Cooking Area
740sq. in. Including warming
area
Drip tray
Stainless Steel
Flame Tamer Stainless Steel w/ ceramic
briquettes Included
Soft Cover Optional
Rotisserie Kit (Motor
& Forks) Optional
Burner
Stainless Steel Tube
Igniting Instruction
On Drip Tray
Warranty
10 yrs on burners and cooking
grids, 1 year on all other parts.
Gas Type
LPG or NG Conversion
Model: RJC26P / RJC32N 3 BURNER
BBQ Dimensions
23” x 8” x 21”
BTU Output：12,000 BTU per Burner x3
Infra Back Burner None
Pilot Flame Ignition
Pilot Flame Ignition
Cooking Area 560sq. in. including warming
area
Drip tray
Stainless Steel
Flame Tamer
Stainless Steel w/ ceramic
briquettes Included
Soft Cover Optional
Rotisserie Kit
(Motor & Forks) Optional
Burner
Stainless Steel Tube
Igniting Instruction On Drip Tray
Warranty
10 yrs on burners and cooking
grids, 1 year on all other parts.
Gas Type
LPG or NG Conversion

Renaissance Cooking Systems RJC Series Instructional Book
Safety and Installation Instructions
When using your RCS Grill, please read and follow these basic precautions:
GRILL INSTALLATION
This gas grill must be installed in accordance with all local codes.
If installation is planned in an area with no local codes, the gas grill must be installed in
accord with the National Fuel Gas Code ANSI Z223.1 and storage and handling of
liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural gas and propane
installation code.
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some by-products which are on the list of
substances which are known by the State of California to cause cancer or reproductive
harm. California law requires businesses to warn customers of potential exposure to
such substances. To minimize exposure to these substances, always operate the unit
according to the use and care manual, ensuring you provide good ventilation when
cooking with
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this equipment.

Renaissance Cooking Systems RJC Series Instructional Book
Safety and Installation Instructions
Location of your Barbecue
Most importantly, this is an outdoor appliance. Ensure your barbecue is
positioned safely away from anything that can catch fire.
Under no circumstances is this barbecue to be used indoors. This includes
garages or any other enclosed area.
Clearance from Combustibles: Ensure your barbecue remains at a distance of at
least 18” from any combustible material such as wood, gyprock, paper and plants. Do
not store combustible materials, gasoline or flammable liquids or vapors within 18” of
the barbecue. Do not locate under unprotected combustible materials.
Adequate Ventilation: Ensure there is adequate ventilation for both the barbecue and
cylinder. This is required for proper combustion and to prevent gas build up.
Firm Level Surface: Use your barbecue only on a firm level surface. This barbecue is
not designed for recreational vehicles, and shall not be installed on a boat or any marine
craft.

Renaissance Cooking Systems RJC Series Instructional Book
Protection from Weather: Keep the barbecue protected from adverse weather,
including rain and high winds. Polyvinyl covers are available that have been specially
designed for this range of barbecues. Allow clear access to the entire gas supply hose
and regulator.
Maintenance Access: When your barbecue is installed, you should be able to access
the gas supply line including the gas piping or hose, gas regulator, gas cylinder and any
shut off valves.
Partial Enclosures: Many backyards have areas that are partially closed off, such as
balconies and pergolas. In some cases, it is hard to decide whether these partially
enclosed areas should be classified as indoor areas, particularly in terms of permanent
(non-closable) ventilation. The gas safety authorities have agreed on the definition of
partial enclosures below.

Renaissance Cooking Systems RJC Series Instructional Book
Grill Location
Do not use or locate your gas grill in garages, porches, breezeways, sheds, enclosed
areas or under overhead unprotected combustible construction.
Do not store or use your grill or gas tanks indoors; this gas grill is designed for outdoor
use only.
This gas grill cannot be used on or in recreational vehicles or boats.
Clearances to combustible materials must be a minimum of 24" from the back and 24"
on each side.
The grill must be installed using only non-combustible materials. Do not obstruct
the flow of combustion and ventilation air around the grill housing. Refer to the
minimum clearances stated above and keep free and clear of debris.
Safety and Installation Instructions
Please read all instructions before installing or operating your gas grill to prevent injury
and appliance damage.
All gas grills will get hot during use. Use extreme caution when operating the grill.
Do not touch hot surfaces. Always use the handle to open or close the grill.
Close supervision is necessary when this or any appliance is used near children. Keep
children away from the grill during operation and until the grill has cooled off.
Do not store any LP cylinder or tank not connected for use with the grill, in the area of
this grill or any other appliance. Never store an LP cylinder or tank indoors, or within
the reach of children.
Keep any electrical supply cord and fuel supply hose away from any heated surfaces
and dripping grease.
Do not twist the gas supply hose. Before each use, visually inspect the gas supply hose
for cracks, cuts or excessive wear. Replace the hose if necessary.

Renaissance Cooking Systems RJC Series Instructional Book
Never test the grill for gas leaks using a lighted match or any other open flame; see leak
test procedures using soap/water solutions - included in following pages of this manual.
The use of accessories, regulators, or components not recommended by the appliance
manufacturer may cause injuries and will void warranty.
Never light the grill with the hood closed and be certain that the burners are positioned
and seated over the gas valves and on the burner support.
Never lean over the cooking surface when lighting or operating the grill.
Use barbecue tools with sturdy handles & insulated oven mitts when operating the grill.
IF YOU SMELL GAS:
I - Shut off the gas supply to the appliance at its source.
2 - Extinguish any open flames.
3 - Open grill hood to release any accumulation of gas vapor.
4 - If a gas odor persists, contact your gas supplier immediately.
Gas Specifications: Be sure that the gas supplied to the grill conforms to the model you
purchased. A Natural Gas grill requires natural gas to operate; an LP grill requires liquid
propane gas to operate. Check the rating label on the bottom left side of the of the unit.
Never connect the appliance to an unregulated gas supply line. Grills operated without a
regulator are unsafe and will not be serviced until installed properly and safely, unsafe
operation without a gas regulator will void warranty of the grill.
Grills operated with NG (natural gas) gas must be installed with the NG regulator
supplied with the unit set to 5.0" water column pressure.
Grills operated with LP (liquid propane) gas must be installed with an LP regulator
supplied with the unit set to 10.5" water column pressure.
The gas valves used in the grills are preset at the factory for Natural Gas or Liquid
Propane operation. Please contact your dealer and use a licensed contractor or installer
to convert your grill to a different gas type.

Renaissance Cooking Systems RJC Series Instructional Book
The self-contained LP system barbeque grill is design certified to be used with a
standard 20 lb, 12 1/4" diameter, 18" high cylinder with fight handed connection threads.
The cylinder must be marked in accordance with the latest U.S. Department of
Transportation specifications for LP gas cylinders. (DOT. CFR49 or National Standards
Of Canada CAN/CSA-B359 Cylinders, Spheres and Tubes for the Transportation of
Dangerous Goods) The LP hose supplied by the manufacturer has a shut-off valve as part
of the hose assembly and should be turned to the OFF position when not in use.
Natural Gas Requirements
Always check the rating plate to make sure the gas supply you are hooking up to is the
gas type the grill is manufactured for.
The installation of this appliance must conform with local codes or, in the absence of
local codes, to the national fuel gas code, ANSI Z223.1a-1998. Installation in Canada
must be in accordance with the standard CAN/CGA-B149.2, Propane Installation Code.
IMPORTANT: Never connect the grill to an unregulated gas supply.
A licensed contractor or local gas company representative must perform all natural gas
connections.
Ensure that the service supplying the grill is fitted with a shut off valve conveniently
positioned near the grill and giving ease of access.
The grill must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 0.5 psi (3.5 kPa).
The grill and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressure in excess of
0.5 psi (3.5 kPa).

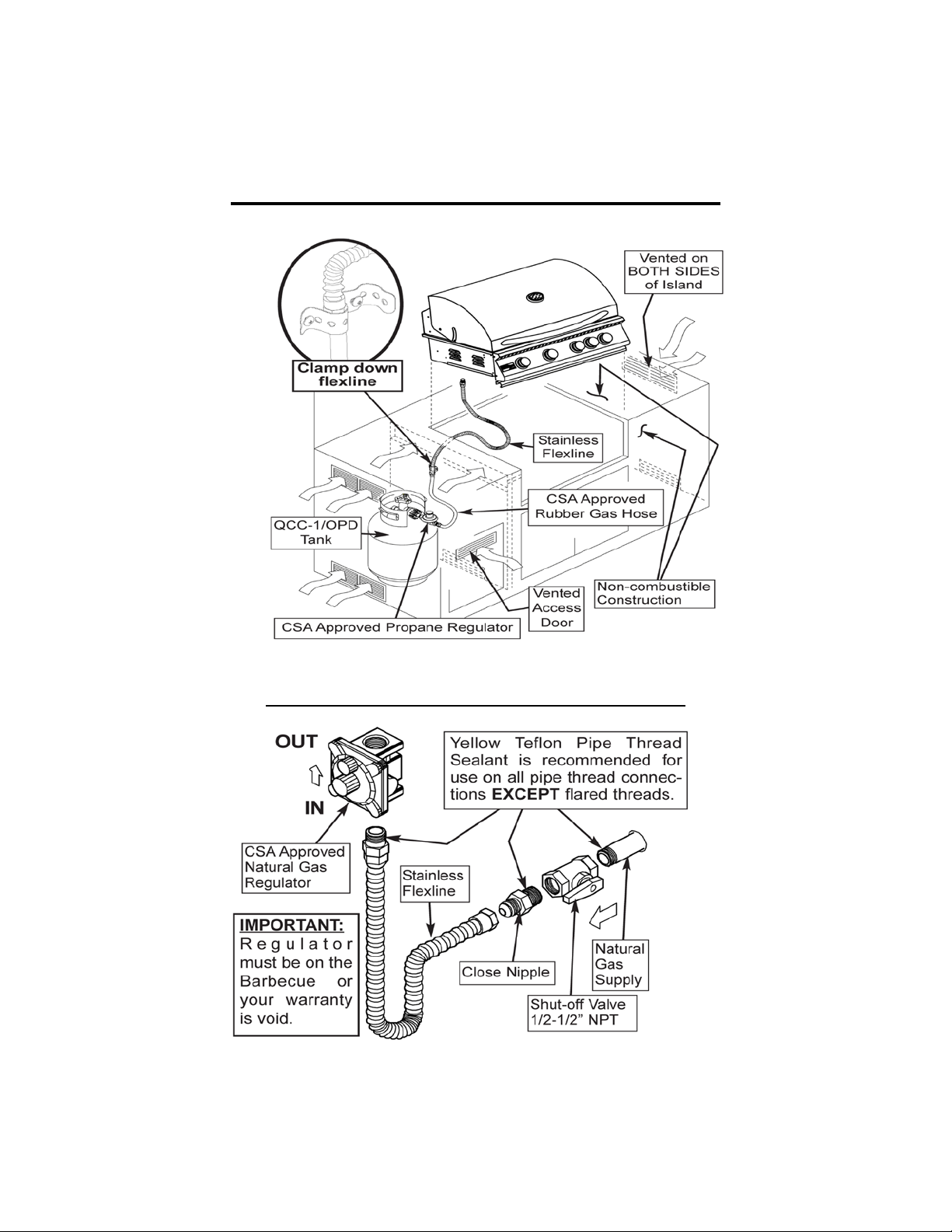

Slide the grill forward to gain access to the regulator and gas connection point in the
Connection
rear. Connect a suitable natural gas flex connector to the grill regulator.
Check the grill controls to ensure all control valves are in the full OFF position.
Turn on the main gas supply and check all connections for leaks using soapy water as
described in the leak testing procedure section.
Warning: If you see bubbles in the soapy solution at any of the connections, turn
off the gas supply and tighten the connection. If tightening the connection does
not seal the leak, it may be necessary to replace the flex hose.

Renaissance Cooking Systems RJC Series Instructional Book
Perform a leak test at least once a year whether the gas supply cylinder has been
disconnected or not. In addition, whenever the gas cylinder is connected to the regulator
or whenever any part of the gas system is disconnected or replaced, perform a leak
test.
Checking for Gas Leaks
As a safety precaution, remember to always leak test your grill outdoors in a well-
ventilated area. Never smoke or permit sources of ignition in the area while doing a
leak test. Do not use a flame, such as a lighted match to test for leaks. Use a solution
of soapy water.
Prepare a leak testing solution of soapy water by mixing in a spray bottle one part liquid
soap to one part water. Make
sure all the control knobs are
in the OFF position. Turn on
the gas
+On natural gas systems
+On
,
turn the main feed valve to
the grill.
LP systems
, turn the
cylinder valve knob counter
clockwise one turn to open.
Apply the leak-testing solution by spraying it on joints of the gas delivery system.
Blowing bubbles in the soap solution indicates that a leak is present.
Stop a leak by tightening the loose joint or by replacing the faulty part with a
replacement part recommended by the manufacturer. Do not attempt to repair the

Renaissance Cooking Systems RJC Series Instructional Book
cylinder valve if it is damaged. The cylinder must be discarded to a proper LP tank
location and then replaced.
Turn all control knobs back to the full OFF position If you are unable to stop a leak
Shut off the gas supply to the grill and release pressure in the hose and manifold by
pushing in and turning any of the control valves one quarter turn counter-clockwise.
On LP systems, remove the cylinder from the grill. Call an authorized gas appliance
service technician or an LP gas dealer. Do not use the appliance until the leak is
corrected.
Liquid Propane (LP) Gas
Requirements
LP TANK REQUIREMENTS:
-a collar to protect the cylinder threads on the customer supplied tank,
-an arrangement for gas vapor withdrawal,
-a safety relief device having direct communication with the vapor space of the
cylinder,
-a method of mounting,
-when not in use, the tank shut off valve should be turned off.
Filling and Refilling LP Gas Cylinders:
WARNING
All purging and refilling of LP gas cylinders must be performed by qualified
personnel in the LP gas industry. Never store a spare LP gas cylinder under or near
this appliance.
Never fill the LP gas cylinder beyond 80 percent full. Failure to follow these
instructions may result in explosion, personal injury or death.
- Turn control knobs and cylinder valve to the OFF position. Unscrew valve.
- Remove cylinder and have it filled at your local qualified propane dealer.

Renaissance Cooking Systems RJC Series Instructional Book
- Once filled, carefully connect the valve and make sure it is secure and not leaking.
- With the control knobs in the OFF position, turn on the cylinder valve.
If you smell gas or hear a hiss of gas escaping from the tank, get away from the tank
and do not attempt to correct the problem yourself. Call the Fire Department
immediately.
If your grill has no leak at the cylinder, then recheck for loose connections and retest for
leaks using the method detailed in the following pages with soapy solution.
Do not subject your LP gas cylinder to excessive heat, and always store the cylinder in
an upright position. Never store your LP cylinders indoors.
Make sure that when attaching components, all connections are secured and fully
tightened to prevent leakage.
If one is not already available, it is recommended that an ON-OFF shutoff valve be
installed at the gas supply source, and that the gas supply be turned off when either
Natural Gas or LP Gas grills are not in use.
Cylinder Specification
Any LP gas supply cylinder used with this grill must be:
Constructed and marked in accordance with the Specifications for LP-Gas
Cylinders of the U.S. Department of Transportation or the National Standard
of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and Commission, as applicable.
Approximately 12 inches in diameter and 18 inches high.
The maximum fuel capacity is 20 lbs. of propane, or 5 gallons. Full cylinder weight
should be approximately 38 lbs. (43.7 lbs. nominal water capacity.) Never fill the
cylinder beyond 80% full.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only
install the type of dust cap on the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage of propane.
Transporting and Storing LP Gas
Transport only one cylinder at a time. Ensure the cylinder is secured in an upright
position with the control valve turned off and the dust cap in place. Store cylinders
outdoors and out of reach of children. Do not store cylinders in a building, garage, or

Renaissance Cooking Systems RJC Series Instructional Book
any other enclosed area.
Leak Testing
All gas piping and connections must be tested for leaks after installation or service. All leaks must
be corrected immediately. Remember-before exchanging an empty bottle for a new one, make
sure all control valves are in the “off” position.
Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid soap solution to all joints.
Bubbles forming indicate gas leak.
NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.

Renaissance Cooking Systems RJC Series Instructional Book
Installing the Grill in a BBQ Island
You will need a second person to help you to avoid damaging the grill or your
barbecue island.
Before installing a grill in any island or cut out, make sure that the opening is not bigger
than the outside frame of the grill unit. The grill should rest on the lip of the frame.
Pay careful attention to the location of the gas line. It should be routed away from
sources of heat and should make as few bends as possible.
Check to see if the gas line connection will be accessible when grill is installed.
If the gas line connection is not easily accessible when the grill is installed, support the
grill above counter level and attach the gas line to the grill. When the gas connection is
made, slide the grill into the cut out. If the gas line connection is accessible when the
grill is installed, slide the grill into the cut out and then attach the gas line.
Be very careful not to kink the gas line when lowering the grill into the cut out. Keep
your fingers away from where the grill will be supported on counter. Your fingers could
become trapped and serious injury could occur.
Check to make sure the grill is level and is supported around the entire outside edge. If
the grill is not level or is unstable, use non-combustible shims under the outside lip to
stabilize it.
Perform the leak test procedure as described earlier in this manual.

Renaissance Cooking Systems RJC Series Instructional Book
MODEL
DESCRIPTION
WIDTH
DEPTH
HEIGHT
RJC26
3 Burner
23 3/4
20 ¾”
8 ½”
RJC42
4 Burner
30 5/8
20 ¾”
8 ½”

Renaissance Cooking Systems RJC Series Instructional Book
Installation Method For Propane (LP) Gas
Installation Method For Natural Gas

Renaissance Cooking Systems RJC Series Instructional Book
If adding a side burner to your connection:

Renaissance Cooking Systems RJC Series Instructional Book
BBQ SPECIFICATIONS
NOTE: Check with City and Fire department for Local Building Codes. A Permit
may be required for outdoor Kitchen Construction

Renaissance Cooking Systems RJC Series Instructional Book
ELECTRICAL PRECAUTIONS:
Extension cords may be used if care is exercised in their use.
If an extension cord is used:
the marked electrical rating of the cord set or extension cord should be at
least as great as the electrical rating of the appliance, and,
the cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally
or touch hot surfaces.
Outdoor extension cords should be used with outdoor use products. They are surface
marked with suffix letters "W" or "W-A" and with a tag stating "Suitable for Use with
Outdoor Appliances"
To protect against electrical shock, the power cord and plug should be kept dry and off
the ground.
Do not clean this product with water spray; do not spray cleaners into the lamp socket
area.
Do not operate any appliance with a damaged power cord or power plug or after the
appliance malfunctions or has been damaged in any manner. Return the appliance to
the nearest authorized service facility for examination, repair, or adjustment.
This appliance conforms to all uniform electrical safety codes and electrical grounding
regulations, install unit to I.A.W. local codes or in their absence, with National Electrical
Code, ANSI/NFPA 70 or CSA C22.1.

Renaissance Cooking Systems RJC Series Instructional Book
GENERAL USE AND CARE:
NOTE: The manufacturer cannot be held responsible for damage or injury caused by
improper use of this appliance.
Be certain your appliance is properly installed and grounded by a qualified
technician in accordance with applicable codes. To guarantee the electrical safety of
this appliance, continuity must exist between the appliance and an effective
grounding system. It is imperative that this basic safety requirement be met. The
manufacturer cannot be held responsible for damages caused by the lack or
inadequacy of an effective grounding system.
Installation, repair and maintenance work should be performed by an authorized
service technician. Work by unqualified persons could be dangerous and will void
the warranty. Before installation or service, disconnect the power supply to the work
area by removing the fuse, "tripping" the circuit breaker, or unplugging the unit.
Gasoline, lighter fluid or other flammable liquids and vapors should never be stored
in the area of this grill or any other appliance.
Do not store anything in the grill. Make sure food is not forgotten in the grill,
forgotten items could melt or catch fire when the appliance is turned on.
To prevent injuries, do not use accessories not recommended by the manufacturer.
Before cleaning the appliance, "trip" the circuit breaker and allow the appliance to
cool.
Always open the grill hood carefully, using only the handle - as the hood may be
hot.
Children should not be left alone or unattended in an area where any appliance is in
use. They should never be allowed to touch, sit or stand on any part of the
appliance.
Do not store items of interest to children in cabinets above or in the grill. Children
climbing on the appliance to reach these items could be seriously injured.
Wear proper clothing when operating appliances. Loose-fitting or hanging garments
should never be worn while using the grill.
Do not leave the grill unattended while in use.
Do not use water on grease fires! A violent steam explosion may result. Smother the
fire with a dry chemical or foam fire extinguisher.

Renaissance Cooking Systems RJC Series Instructional Book
Safety and Installation Instructions
UNIT INSTALLATION:
Your RCS Grill comes pre-assembled and requires very little set-up. We do however;
recommend the use of professional help during the installation of your unit as improper
installation may affect your warranty.
Remove the unit from the carton along with all accessories and check that no damage
has occurred to any parts or the unit.
Burners: Check the burner tubes and remove any obstructions that may be in the ports
or holes. Using cold water and a brush will be sufficient. Make sure all foreign particles
are removed from the burner before use. Make sure the air shutter on the burners is
slightly opened to about 1/8".
WARNING
For proper operation, burners must be aligned with the valve orifice and seated in
the bracket slot.
This is accomplished by first placing the burner tube shutter hole securely over the
valve orificeand then sliding the burner bracket into the positioning slot. Care
should be exercised to maintain the burner hole/orifice mating assembly.
