Red Heating PERFORMA 15 EasyClean Plus User manual

INSTALLATION GUIDE GB
Instructions in English
PELLET BOILER
PERFORMA 15 EasyClean Plus
PERFORMA 20 EasyClean Plus
PART 2 - OPERATION AND CLEANING

II
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................. II
12CONTROL PANEL ....................................................................................................3
13FIRST STARTUP.....................................................................................................4
14MENU STRUCTURE .................................................................................................8
15INFORMATION MENU ...........................................................................................11
16SETTINGS MENU ..................................................................................................14
17TECHNICAL MENU ................................................................................................31
18SAFETY DEVICES AND ALARMS..............................................................................32
19RECOMMENDATIONS FOR SAFE USE.......................................................................38
20CLEANING AND MAINTENANCE..............................................................................39
21FAULTS/CAUSES/SOLUTIONS .................................................................................46
22CIRCUIT BOARD ...................................................................................................49

MENU
A
B C DE
3
12-CONTROL PANEL
Technical Dept. - All rights reserved - Reproduction prohibited
CONTROL PANEL DISPLAY
KEY
A - DISPLAY; indicates a series of information on the boiler, as well as the identication code of any malfunction.
B - Function selection key indicated by the upper display (i.e. start-up/shutdown)
C - Function selection key indicated by the upper display (i.e. increase/scrolling)
D - Function selection key indicated by the upper display (i.e. decrease/scrolling)
E - Function selection key indicated by the upper display (i.e. menu)

REV.SOFTWARE NUM BANCA DATI
ITALIANO
ENGLISH
ESPANOL
CDE
OK
LANGUAGE
4
13-FIRST START-UP
FIRST START-UP
At initial start-up, after connecting the power cable and pressing the I/O button, the boiler display will show wording for the software
version and database number (after a few seconds it will move on to the next screen).
If the language has already been set, the next screen will be OFF, otherwise one enters the following parameter.
SELECT LANGUAGE
At initial start-up, if it has never been set, the LANGUAGE choice screen appears.
The system displays all possible languages.
Using the arrow keys (C, D) scroll the languages and conrm the desired language using the“E”(OK) key.
SETTING TIME AND DAY
The keys that are active for this function are:“C”,“D”,“E”.The C-D keys are used to choose time or day while the E key is used to conrm.
21.25
CDE
OK
TODAY IS MONDAY AND IT IS
CHANGE
DAY
TIME
ORA
21.25
CDE
OK
TODAY IS MONDAY AND IT IS
21.25
CDE
OK
TODAY IS MONDAY AND IT IS

MENU
BE
25° OFF
ON
ECOTIMER110:13
TEMP
63°
23°
MENU
BE
OFF
ECOTIMER110:13
TEMP
D
25° 63°
23°
75°
5
13-FIRST START-UP
Technical Dept. - All rights reserved - Reproduction prohibited

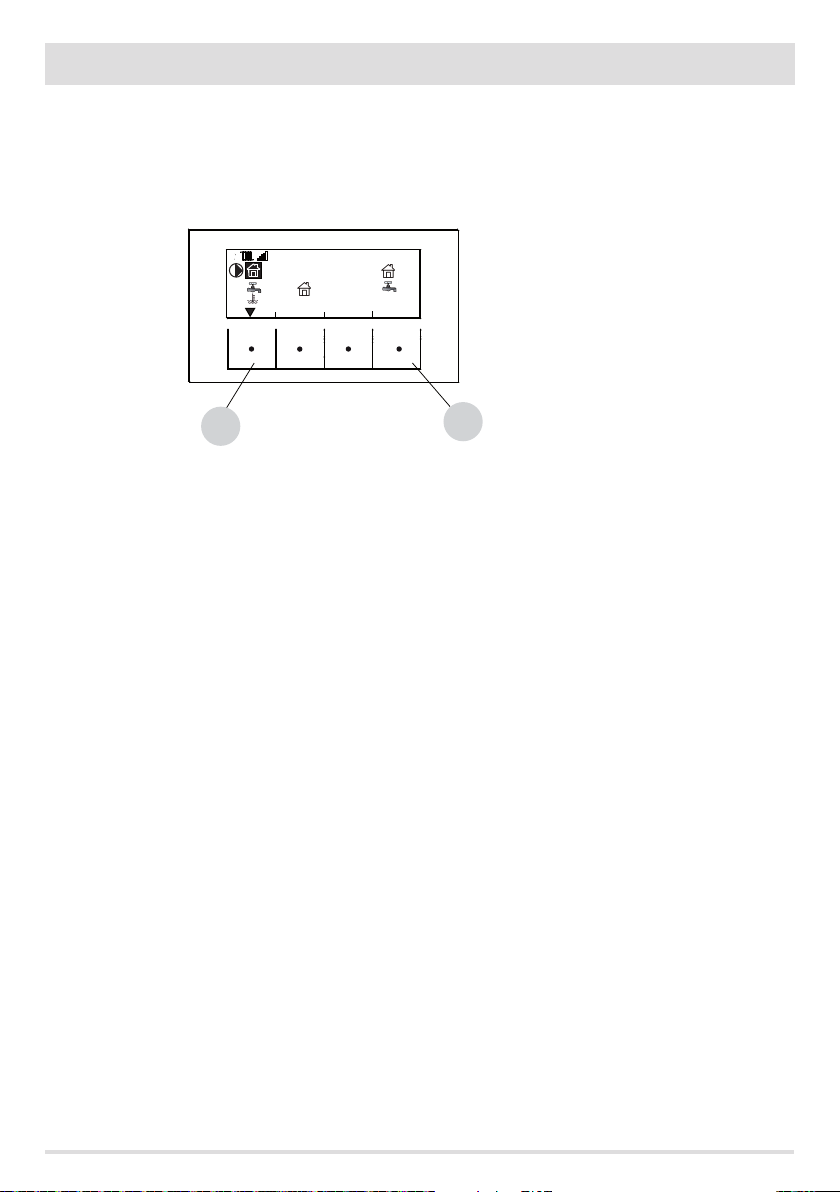

SCREEN OFF
If a LANGUAGE has already been set, the display will go to OFF.
By pressing any one of the keys (B, C, D, E) the rst screen will appear with the wording OFF displayed. From this screen, pressing keys“B”
and“E”(respectively corresponding to ON and MENU) will make it possible to access the panel or the menu. If no key is pressed, the display
will once again show OFF after 5 seconds.
SCREEN ON
ACTIVATED COMPACTOR
ACTIVATED TURBOLATORS
WATER TEMPERATURE WATER SETPOINT OR OFF IF OPEN
SANITARY TEMPERATURE OR
FLOW SWITCH STATE
OFF ON
ENABLED ECOSTOP
TEMPERATURE OR
THERMOSTAT STATE
OFF ON
TIMER 1 OR
TIMER 2 OR
SLEEP
CURRENT TIME OR
COUNTDOWN
OF SLEEP OR ECOSTOP
POWER BAR
HEAT REQUEST
HEATING
SANITARY
PUFF.
FLAME PRESENCE
PUMP ACTIVATION
SEASON
SUMMER
WINTER
OFF-DISPLAY OFF
OFF-DISPLAY ACTIVE

MENU
BE
25° OFF
ON
ECOTIMER110:13
TEMP
63°
23°
6
13-FIRST START-UP

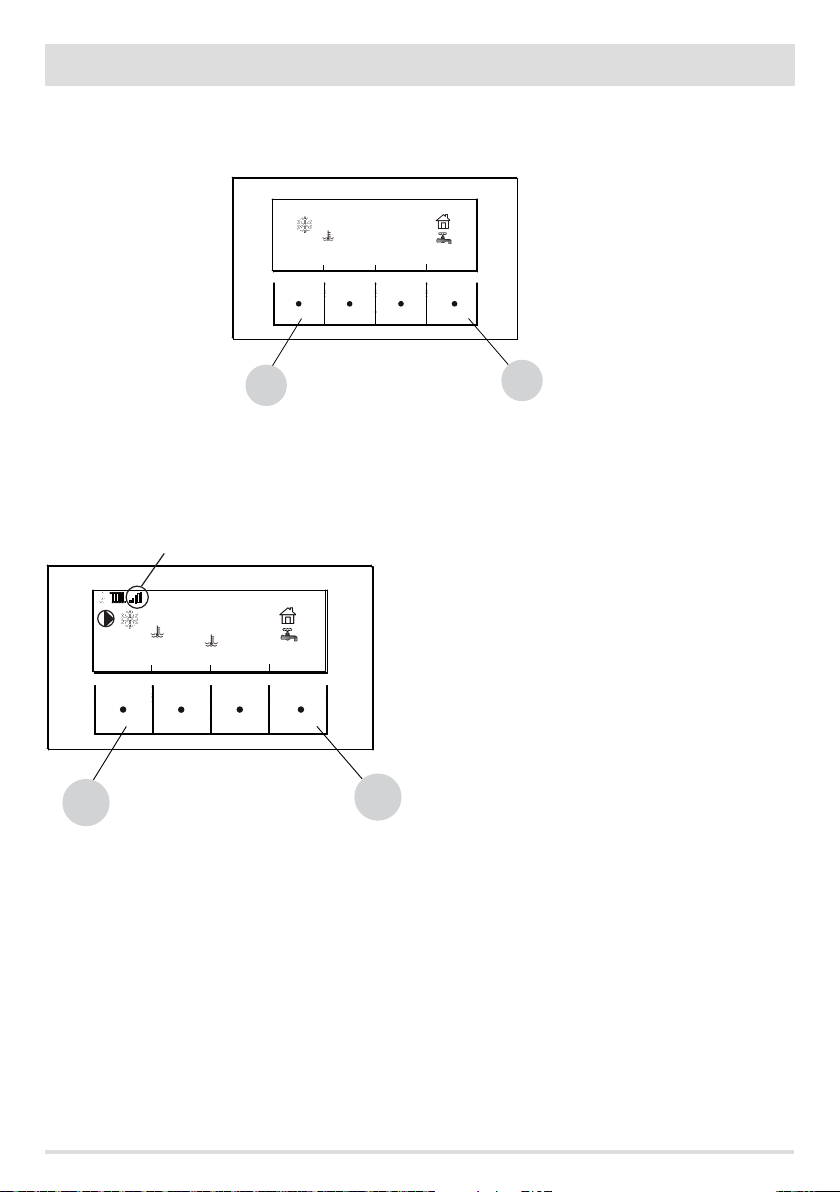

Start-up
To switch on the boiler, keep the “B” (ON) key on the panel pressed. The boiler starts an ignition procedure that brings the ame to a
suitable level to Supply Power.
Supplying power
The power supply of the boiler is indicated by “power level bars”: one bar corresponds to minimum power, 5 bars to maximum power;
this level is determined by the heating system heat requirements, the boiler adjusts pellet loading parameters, fumes extraction, and
combustion air ow to comply with this requirement.
UPPER BAR: active requirements, active programmes, power bar,
functions
CENTRAL BAR: room temperature, room set, room fan bar
LOWER BAR/KEYS: shut-o“B”, temperature set modify“C”and fan set
“D”, menu“E”
1 = power level bars
MENU
BE
80°
ON
ECOTIMER110:13
TEMP
63°
23°
75°
1

7
13-FIRST START-UP
Technical Dept. - All rights reserved - Reproduction prohibited
TEMPERATURE
Press the“D”TEMP button (see the image on the previous page) to set the temperature of the heating and possibly the domestic water (if
the storage cylinder with probe is congured - see the menu settings input aux).
Select what is to be set and then using the C and D keys increase/decrease the temperature, use the E key to conrm while the B key is
used to exit and return to the main MENU.
FUNCTIONS
The FUNCTIONS menu lets you:
• Enable or disable the DHW
• Set the season (summer/winter)
If the summer season is set, the boiler will not receive any heat requests from the heater.
EXIT
BE
25°
ECOTIMER110:13
-
63°
23°
+
PRIMARY SET

MENU
BE
25° OFF
ON
ECOTIMER110:13
TEMP
63°
23°
8

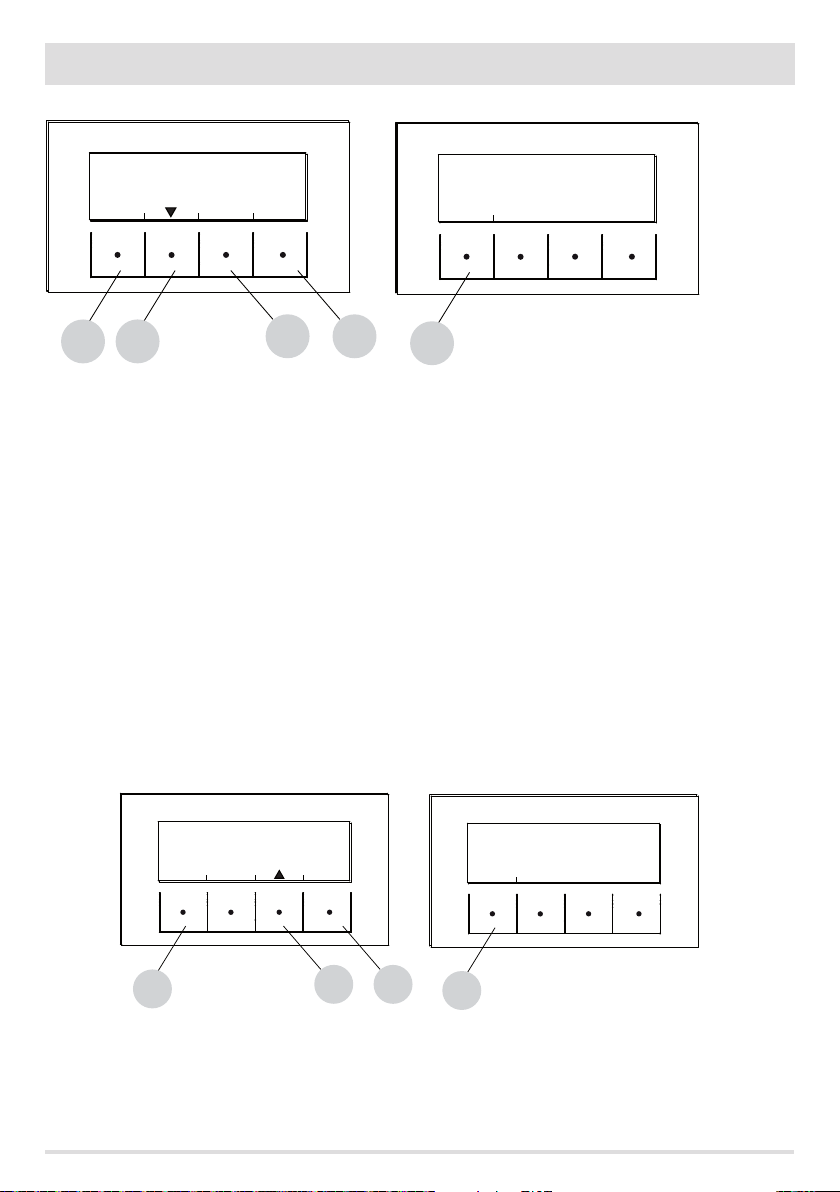

14-MENU STRUCTURE
MENU STRUCTURE
To enter MENU press the“E”key (MENU).
Next, this screen with the following functions is displayed:
Sub-menu
FUNCTIONS
PROGRAMMES
INFORMATION
SETTINGS
PROGRAMMES
In this case it is possible to choose the programme to be set.
Programme selection makes it possible to choose between one of the following options (one choice excludes the other):
TIMER 1 - TIMER WITH REFERENCE TO THE AMBIENT TEMPERATURE
TIMER 2 - TIMER WITH REFERENCE TO THE DELIVERY WATER TEMPERATURE
MANUAL
TEMP. LEVELS
SLEEP FUNCT.
BE
FUNCT.
INFORMATION
PROGRAMAS
SETTINGS
EXIT OK
CD
BE
FUNCT.
INFORMATION
PROGRAMAS
SETTINGS
EXIT OK
CD
PROGRAM SELECTION
EXIT ON
TIMER 1 TIMER 2
TEMPERATURE LEVELS
FUNCT. SLEEP
ATCTIVATE

MENU
BE
25° OFF
ON
ECOTIMER110:13
TEMP
63°
23°
9
14-MENU STRUCTURE
Technical Dept. - All rights reserved - Reproduction prohibited

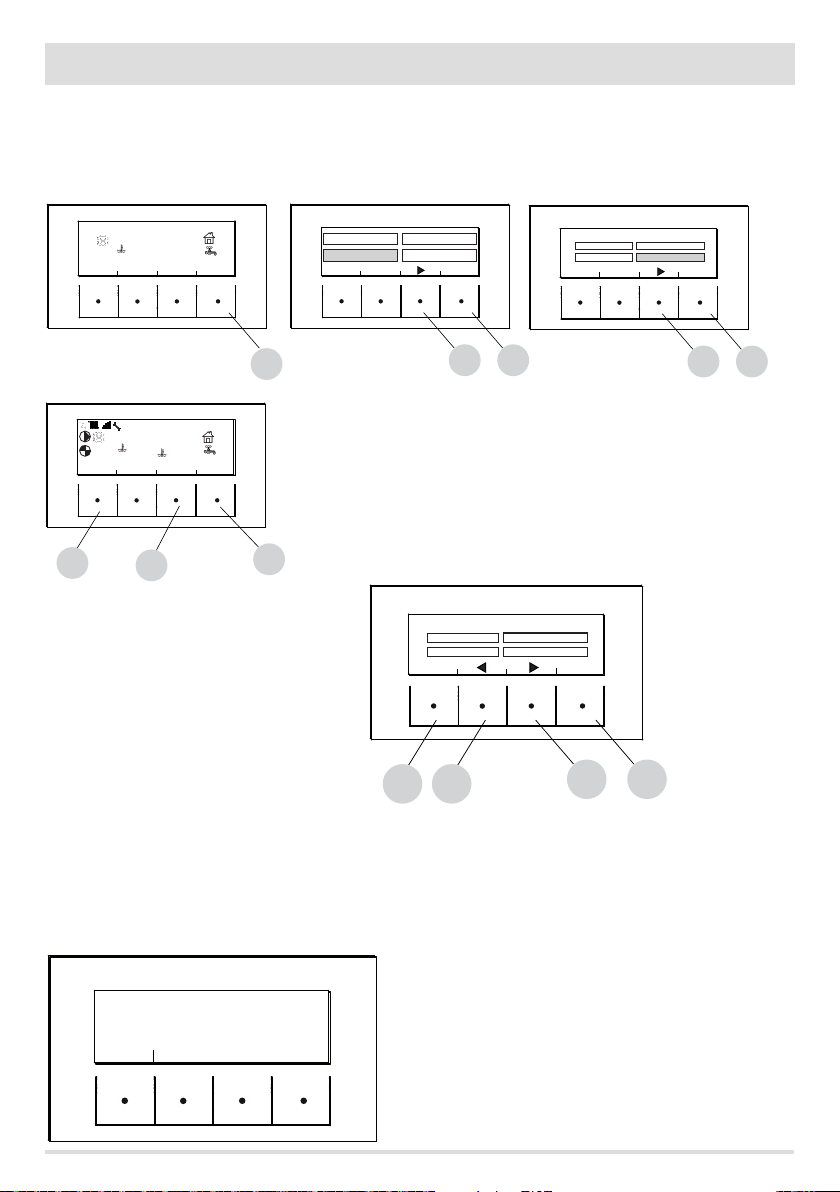

In the MENU screen, move the cursor with arrows“C”-”D”and select PROGRAMS, press ok“E”to conrm. Next select the programme you
wish to set.
Once completed, always press “ACTIVATE” to conrm the choice of programme.
The TIMER 1 and 2 programs are freely programmable for each 1/2 hour of the day on three dierent temperature indicators (T1-T2-T3)
and in dierent ways for each day of the week.The OFF level requires that the boiler is switched o in that interval.
Example of temperature programming for Monday.
Select the TIMER 1 item from the PROGRAM menu and press the ENTER “E” key, using arrow“D”highlight Monday and press OK (“E”) to
enter programming.
Using the centre arrow keys “C” and “D” select the half hour interval to be selected and use the “E” key to set the temperature T1-T2-T3
(depending on whether the key is pressed 1-2-3 times, the corresponding temperature can be read in the bottom right of the display).
Once temperature programming for Monday is complete press the ‘’B’’ SALVA (SAVE) key. If the same temperature scale of Monday is
desired for other weekdays, after saving (“E” key) press the “C” key (COPIA-COPY), select the day where the programme is to be copied
using the“D”key and press the“C”key (INCOLLA-PASTE). Repeat the same procedure until the programmes for all weekdays are complete.
At this point the boiler is programmed according to your temperature needs, which can be modied at any time.
ATTENTION:
In order to facilitate using the boiler, RED provides Timer 1 with preset weekly temperatures and times (according to the table below),
whereasTimer 2 is empty. In any case, it is possible to change times and temperatures ofTimer 1 at any time.
PANEL OFF DISPLAY FROM TIMER
When timer 1 (for example) has no set temperature, the panel highlights that the boiler is in OFF.
If the boiler is o from the MANUAL command, the
timer will have no eect.
For the boiler to come on with the timer, the panel
must display the image shown on the side; if this
should not be the case, it may be necessary to press
the ON (“B”) key.
COPY OK
MONDAY TUESDAY WEDNESDAY
0 246 12 18
SAVE
MONDAY
0 246 12 18
TIMER 1
EXIT
10:00 20°C
TIMER 1
DE
C
B
6 12
10:00
T3
T1
T2

10
14-MENU STRUCTURE
MANUAL
This function can be activated from the menu PROGRAMME by pressing the key“C” ACTIVE. When this function is activated, the boiler no
longer follows time programming of TIMER 1 or 2 programs, but it keeps the temperature set in the main screen throughout the 24-hour
time period. It is possible to switch to programmes at any time.
TEMPERATURE LEVELS
It is possible to change the 3 temperature levels referenced by timers in this menu.
From the PROGRAMS menu use arrow key “D” to move and select TEMP LEVELS, press the “E” key, and enter the temperature settings
screen. Choose which temperature you want to set: AMBIENT or DELIVERYWATER.
With the centre arrow keys “C”and “D”, it is possible to increase/decrease the temperature value, while the “B”key is used to move to the
next temperature. With the“E”key (OK), the set values are conrmed.
SLEEP FUNCTION
The sleep function is only activated when the boiler supplies power and makes it possible to programme a boiler shut-o time. Shut o
can be delayed up to a maximum of 8 hours from current time and with a 10-minute resolution.
To activate, enter the PROGRAM menu, scroll using arrow key“D”up to Funct. SLEEP press the ATTIVA (ACTIVATE)“C”key. In the next screen,
using keys“C”and “D”, increase or decrease the minutes (10 minutes each time the key is pressed) and press OK (“E”key) to conrm the
boiler shut o time.
NOTE: If the boiler is not supplying power the display shows the wording“NOT AVAILABLE”.
TEMP. LEVELS
OK
T1
T2
T3
16°
20°
22°
TEMP. LEVELS
EXIT ON

11
15-INFORMATION MENU
Technical Dept. - All rights reserved - Reproduction prohibited
INFORMATION
To enter the INFORMATION menu, proceed as follows:
from the main/initial screen, press the “E” Menu button, scroll using the “D” arrow key, up to the Information item, press the“E”ok key,
scroll again using the“D”arrow key up to software/data memory/all.memory/boiler state and select the desired item, press OK using the
“E”key to enter the chosen information menu.
The available information is:
• Software
• Data memory
• All. memory
• Boiler state
SOFTWARE INFORMATION
The available data in this function are:
CODE
FIRMWARE
DATABASE
INTERFACE
It is information that can be used to identify the electronic part of the boiler.
EXAMPLE
E
FUNCT.
INFORMATION
PROGRAMS
SETTINGS
EXIT OK
DE
EXIT OK
D
SOFTWARE
ALARM HYSTORY
DATA HYSTORY
STOVE STATE
INFORMATION
D
MENU
25° OFF
ON
ECOTIMER110:13
TEMP
63°
23°
E
MENU
BE
25°
ECOTIMER110:13
TEMP
63°
23°
75°
OFF
BE
EXIT OK
CD
SOFTWARE
ALARM HYSTORY
DATA HYSTORY
STOVE STATE
INFORMATION
ESCI
INFORMAZIONI-SOFTWARE
CODICE = MDUO
FIRMWARE = 140.7.08.08 [07]
BANCA DATI = 000.022
PANNELLO = 14040613A/1000313B

12
15-INFORMATION MENU
DATA MEMORY-INFORMATION
The available data in this function are:
WORKING HOURS
TOTAL IGNITIONS
TEST DATE
ALARM MEMORY-INFORMATION
It gives information about the last alarms detected.
EXIT
INFORMATION-DATA HYSTORY
WORKING HOURS = 100
TOTAL IGNITIONS = 20
TEST DATE = 15/01/2013
EXIT
INFORMATION-ALARM HYSTORY
ALARM 02 - 28/06/13 13:44 1
ALARM 02 - 21/06/13 08:03 2
ALARM 02 - 21/06/13 08.02 3
ALARM 02 - 21/06/13 09.46 4

13
15-INFORMATION MENU
Technical Dept. - All rights reserved - Reproduction prohibited

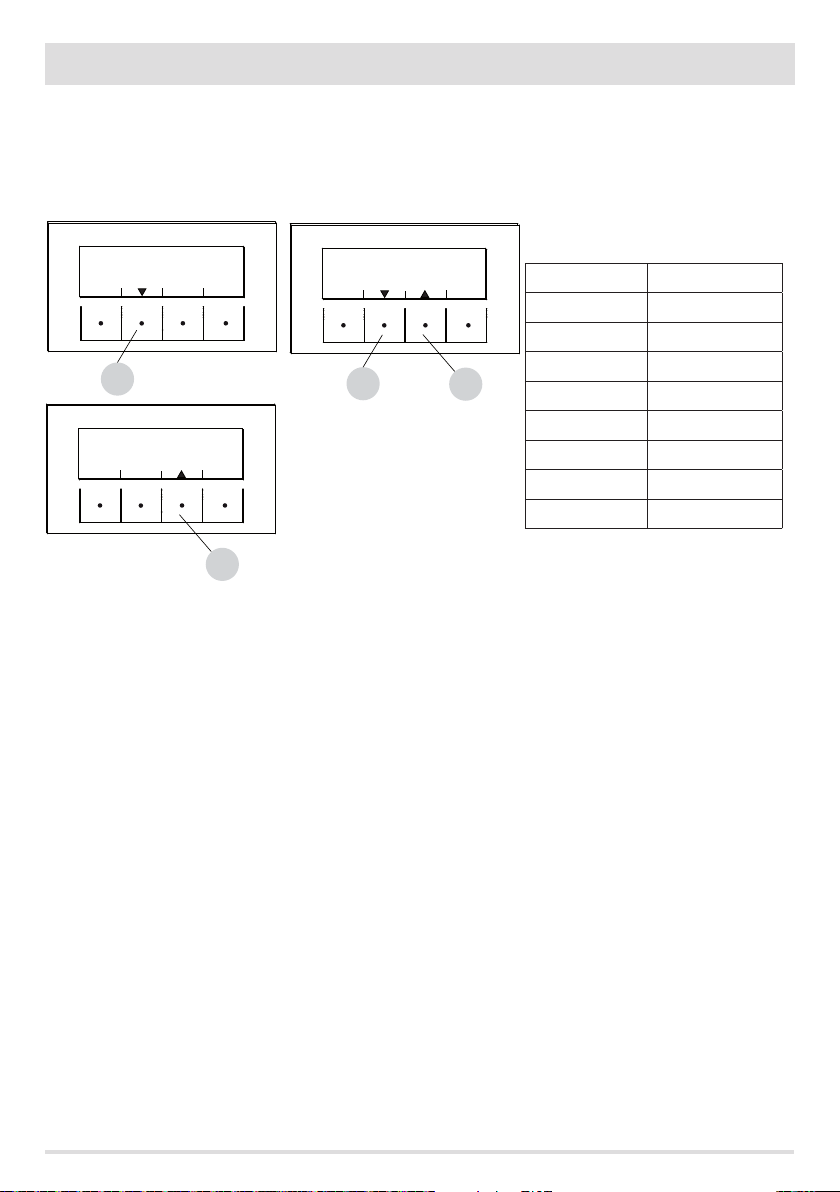

BOILER STATE-INFORMATION
This menu is particularly useful if you want to verify the boiler’s working condition (State).
From the OFF screen, press the“E”Menu button, scroll with the“D”arrow key, up to the Information item, press the ok“E”key, scroll again
with the“D”arrow key up to boiler state, press OK with the“E”key and one enters the boiler State-information menu.
The items available within BOILER-STATE INFORMATION can be viewed using the“C”and“D”arrow keys and are:
state
water temp. set
aux sensor set
active+ set
fumes fan set
feed screw set
fumes temp. req
relay aux spark plug
modbus com add.
• The main boiler states that can be read on the display are:
STATE 1-9 various ignition phases
STATE 20-40 work state (power supply)
STATE 60-79 alarm state
STATE 80-84 shut o/cooling/autoeco state
STATE 85-93 auxiliary functions
STATE 94-95 cleaning state
• WATER TEMP.: Water temperature detected by the probe inside the boiler and related SET
• AUX: PROBE: detects the value measured by the aux sensor (external/storage cylinder/puer)
• ACTIVE+.:Value read by the Active Plus system and related SET
• FAN FUMES: Number of fumes fan revolutions and related SET
• FEED SCREW: number of feed screw revolutions and related SET
• FUMES TEMP.: temperature value read by the probe inside the boiler
• REQ: (Heating/Domestic) signals if system requires heat
• AIR FAN: Room fan operation level
• PUMP: signals if the boiler’s internal pump is turned on (ON) or turned o (OFF)
• AUX: RELAY: signals activation (ON) or the OFF state of Auxa relay
• SPARK PLUG: Signals if spark plug is turned on or o
• MODBUS COM. External interface communication state
• ADD.: Address for communicating with modbus
EXIT
INFORMATION-STOVE STATE
STATE = 0-OFF
WATER TEMP = -43°C SET = 70°C
ACTIVE+ = 471 SET = 400
SMOKE TEMP = 0 SET = 0
D
C
EXIT
INFORMATION-STOVE STATE
FEED SCREW = 0 SET = 0
SMOKE FAN = 30°C REQ = BOLL
AIR FAN = 0% POMP. = OFF
3 WAY VALVE = NO HY. IGNIT. =OFF
C
D
EXIT
INFORMATION-STOVE STATE
MODBUS COM. = OFF IND.=4

14
16-SETTINGS MENU
SETTINGS
To enter the menu SETTINGS, proceed as follows:
from the OFF screen, press the“E”Menu key, scroll with the“D”arrow key up to Settings item, press the ok“E”key, scroll again with the“D”
and/or“C”arrow key up to the chosen setting, press OK with the“E”key to enter the chosen menu.
It is possible to set the listed parameters from this screen. Each parameter has an info key to obtain brief information about the chosen
function.
• SETTINGS
• Auto Eco (default activated)
• Feed screw loading
• Pellet recipe
• Active +
• Cleaning cycle
• Language
• date - time
• Aux Input
• aux output
• Room Input
• T. on Pump
• Pump pwm
• Antifreeze function
• Plt sensor (not available)
• Modbus com. (not available)
• Display
• Technical menu (accessible by a specialised RED technician - password required)
• Active +
• Fume Analysis F
• Calib.Active
• Calib.S.fumes
• Diagnostics
• Parameters
• Boll advance
• Hour reset
E
FUNCT.
INFORMATION
PROGRAMS
SETTINGS
EXIT OK
DBE
AUTOECO
EXIT OK
CD
FEED SCR LOAD
ACTIVE+
HYDRO-AIR
PELLET RECIPE
CLEANING
SETTINGS
MENU
E
25° OFF
ON
ECOTIMER110:13
TEMP
63°
23°

15
16-SETTINGS MENU
Technical Dept. - All rights reserved - Reproduction prohibited
AUTOECO (factory activated)
The Auto eco mode turns the boiler o when heating the system does not require heat, depending on the menu-settings-input aux
conguration.
AUTO ECO ACTIVE
The AutoEco active parameter (factory settings) is shown on the top right on the control panel display in the main screen. If heat is not
required, the boiler turns o after the set time, switching to Auto Eco (State 84 - it is possible to see Auto eco in the Information Menu,
boiler state).
NOTE:With the boiler o, if T is set less thanT room, or other heat request settings are fullled, the boiler does not turn on.
1 = no heat request (T room >T set)
heat request:
heating
sanitary
puer
AUTO ECO DEACTIVATED
With the boiler on, if Auto eco is deactivated and there are no heat requests (dierent based on menu-settings-aux input settings) the
boiler operates at minimum power.
The required condition for restarting is for there to be heat request for at least consecutive 10’’; it is possible to restart if:
• at least 5 s have elapsed from when shutdown began
• the TH2O in the boiler is < T set H2O
To modify the function:
from the Settings menu - using the arrow keys, select the AUTOECO function, press ok (E key) and press D or C key (arrow key) and select:
Activate = to modify the set time from 0 to 30 minutes (factory default 5 minutes)
Deactivate = to deactivate Auto Eco
BE
INFO OK
CD
ACTIVATE
AUTOECO
DEACTIVATE
AUTOECO
B
EXIT
IF YOU ACTIVATE THE AUTOECO,
THE STOVE GOES OFF WHEN THERE
ARE NO MORE HEAT REQUESTS
SETTINGS-AUTOECO
1
MENU
BE
25° ECO
ON
ECOTIMER110:13
TEMP
63°
23°
D

16
16-SETTINGS MENU
FEED SCREW LOADING (only with the boiler o)
This function is for lling the pellet loading system. It can only be activated with the boiler o.
To enter the function:
from the Settings menu - press ok (E key), press the D key (arrow key) and scroll up to load feed screw, press OK (E key) and activate/
deactivate the function, press ok (“E”key) to conrm.
MAXIMUM POWER
This feature allows you to set the maximum power percentage at which the boiler can operate.
BE
INFO OK
CD
DEACTIVATE
LOAD
B
EXIT
USE THE 'FEED SCREW LOADER' WHEN
THE FEED SCREW IS EMPTY AND
YOU MUST LOAD IT QUICKLY
SETTINGS-FEED SCR LOAD
ACTIVATE
LOAD

17
16-SETTINGS MENU
Technical Dept. - All rights reserved - Reproduction prohibited
PELLET RECIPE
This function is for adapting the boiler to the type of pellet in use. As there are many types of pellet available on the market, boiler
operation can vary considerably according to the quality of the fuel. When the pellets clog up the brazier due to excess loading of fuel,
vice-versa if the ame has a tendency to shut-o, it is possible to decrease/increase the amount of pellets in the brazier:
The available values compared to factory settings are:
+15% +10% + 5%; 0%; -10% -20% -30%
To modify the pellet recipe, in sequence, press:
from the Settings menu- press ok (E key), press the D key (arrow key) scroll up to pellet recipe and press OK (E key) and enter the function,
using the“C”and“D”keys to modify the parameter and press Ok (“E”key).
ACTIVE +
The pellet type is not a problem because the stoves are equipped with the Active system and automatically adapt to pellet of any length
with a diameter of 6-8 mm. Eective and ecient combustion is independent from any type of connection to the ue which, with
traditional systems, may constitute a problem during the installation phase.
Thanks to an internal sensor, the boiler is extremely reliable and precise, combustion air is constantly adjusted based on the quantity of
pellets present in the brazier, thus guaranteeing an eective and ecient combustion that is translated into decreased consumption,
emissions, and less frequent cleaning.
Thanks to Active plus, it is possible to control and communicate with the boiler, even by way of Smartphone and tablet. Since it is possible
to manage more evolved gear motors (with continuous operation), the new pellet stoves equipped with active plus are more silent.
This function is used to adjust combustion air if the ame is too high or too low.
It can be activated from the SETTINGS menu, scroll using the“D”arrow key up to the“Ricetta Aria”(Air recipe) function, press OK using the
“E”key, and, using the“D”arrow key modify the parameter and press“ok”“E”key.
The xed parameters that can be set are: +10; +5; -5; -10
BE
INFO OK
CDB
EXIT
CHANGE BY PERCENT THE FEED SCREW
SPEED TO ADAPT THE STOVE TO THE
TYPE OF PELLET
SETTINGS-LOAD-RECIPE
+15%
BE
INFO OK
DB
EXIT
CORRECT THE LEVEL OF
COMBURENT AIR
SETTINGS-ASPIRAT.
0%

18
16-SETTINGS MENU
CLEANING CYCLE
This function can only be activated with the boiler in OFF supply:
from the Settings menu- press ok (E key), press the D key (arrow key), scroll up to the “ciclo pulizia” (cleaning cycle) press OK (E key)-
Activate/deactivate cleaning.
This procedure activates the fumes extraction fan at the maximum level in order to clean the brazier and expel soot.
This function also activates: mechanical cleaning of the brazier, turbolators and compactor.
LANGUAGE
This function is used to choose the desired language among those set in the control panel.
To enter the function, from the Settings menu - press ok (E key), press the D key (arrow key) and scroll up to language item, press OK (E
key) and choose the language among the various ones set and nally press Ok (“E”key) to conrm.
The available languages are: Italian/English/French/German/Spanish/Dutch/Danish
TIME-DATE
This function is used to set date and time.
To enter the function, from the Settings menu - press ok (E key), press the D key (arrow key) and scroll up to the date-time item, press OK
(E key) to enter the function. Next, press the“E” (ok) key again to modify day/month/year/hour and minutes.To modify the parameters,
use the“C”and“D”(arrow keys) keys and press the“E”key to conrm.
BE
INFO OK
CB
EXIT
IMMEDIATELY ACTIVATE A CLEANING
CYCLE OF THE BRAZIER
SETTINGS-CLEANING
DEACTIVATE
CLEANING
ACTIVATE
CLEANING
BE
OK
CD
SETTINGS-LANGUAGE
ITALIANO
ENGLISH
FRANCAIS
BE
OK
CD
SETTINGS-TIME-DATE
TODAY IS MONDAY
AND IT IS
24/06/13
14:14
EXIT

19
16-SETTINGS MENU
Technical Dept. - All rights reserved - Reproduction prohibited
AUX INPUT (using one of the following parameters excludes the other)
The auxiliary input allows you to choose the system conguration type based on which the boiler is connected.
To enter the function press:
from the Settings menu- press ok (E key), press the D (arrow) key and scroll up to the Aux Input item and press OK (E key). Using the“C”
and“D”keys select the desired heating system type and press ok with the“E”key.
It is possible to connect the following to the auxiliary input:
Room thermostat 2
External probe
Storage cylinder probe
Storage cylinder thermostat
Puer Probe
Puer Thermostat
None
Note:The storage cylinder probe/thermostat choice implies the three-way aux output designation.
The puer probe/thermostat choice implies the pump aux output designation.
• Room Therm.2
The boiler heat request may take place from any part of the room probe or from the “Termostato Amb 2”(Room thermostat 2) installed
in a room that is dierent from the one where the boiler is positioned and is connected to terminals 1 and 2 of the back terminal board.
Closing the contact of the terminals kicks o the heat request.
Notes: Installation of this thermostat is optional, the boiler can also operate without it. Since the contact is N.O., the room probe is the
only heat request command.
Possible active weekly programming does not act on Room Thermostat 2 but rather on the probe on board the boiler.
Attention! The room input contact (terminal board contact 3-4) leaves the factory jumpered, so as to always have
heat request from heating.
When installing room probe or thermostat, remove the jumper (see page 22 “puer thermostat”).
BE
INFO OK
CD
TERMOST AMB 2
SETTINGS-INPUT AUX
EXT.SENSOR
W.CYLIN.PROB.
BUFFER PROBE BUFFER THERM.
W.CYLIN.THERM.

20
16-SETTINGS MENU
• External probe
It makes it possible to work with system temperature adjustment. If installing an external probe on terminals 1 and 2 (NTC 10KOhm at
25°C b=3435) water temperature is automatically calculated by the electronics based on external temperature according to the curves
shown below:
The external probe must be installed on an external wall exposed towards North or North-West. If necessary, it is possible to correct the
value read by the probe by + 5 -5°C.
• Storage cylinder probe
To activate this option, connect a probe (NTC 10KOhm at 25°C b=3435) to points 1 and 2 of the back 9-pole terminal board.
The heat request occurs when the storage cylinder probe reads a temperature that is 2°C below the one set by the accumulation
temperature marked by a tap in the temperature menu.
In this conguration the 3-way valve must be connected to contacts 10-11-12.
• Storage cylinder thermostat
To activate this option, connect a Normally Open (N.O.) contact thermostat to points 1 and 2 of the back 9-pole terminal board.
The heat request occurs when the storage cylinder thermostat closes the contact.
In this conguration the 3-way valve must be connected to contacts 10-11-12.
• Puer probe
To activate this option, connect a probe (NTC 10KOhm at 25°C b=3435) to points 1 and 2 of the back 9-pole terminal board.
The heat request occurs when the storage cylinder probe reads a temperature that is 2°C below the one set by the accumulation
temperature marked by a radiator in the temperature menu.
During installation with the puer, boiler operation is only and exclusively determined by the puer probe and not by the room probe.The
room probe on the boiler is only to control the heating system pump controlled by the NO potential-free contact: if the system pump is
activated in Aux out mode (max 5 ampere, not suitable for brushless pumps with upper start-up current) on terminals 8-9.
