Red Heating PERFORMA 25 EC User manual

PERFORMA 25/30 EC ASH TROLLEY
INSTALLATION GUIDE GB
Instructions in English

II
TABLE OF CONTENTS GB
TABLE OF CONTENTS .................................................................................................. II
INTRODUCTION ..........................................................................................................1
1  WARNINGS AND WARRANTY CONDITIONS................................................................2
2  CONTENTS OF THE KIT.............................................................................................5
3  DISASSEMBLING BOILER SIDES .............................................................................10
4  TROLLEY KIT ASSEMBLY ........................................................................................13
5  ELECTRICAL CONNECTION .....................................................................................32

1
INTRODUCTION GB
Technical Assistance - All rights reserved - Reproduction prohibited
Dear Customer,
our products are designed and manufactured in compliance with European reference standards for construction products (EN13240 for
wood-burning stoves, EN14785 for pellet-burning appliances, EN13229 for replaces/wood-burning inserts and EN 12815 for wood-
burning cookers), with high quality materials and extensive experience in transformation processes.
We recommend that you carefully read the instructions contained in this manual to obtain the best performances.
This installation and use manual forms an integral part of the product: ensure that the manual is always supplied with the appliance, even
if it changes owner. If the manual is lost, you can request another copy from the local Technical Department or download it directly from
the company website.
All local regulations, including those referring to national and European standards, must be observed when installing the appliance.
In Italy, for the installation of systems with biomass below 35KW, refer to ministerial decree D.M. 37/08, and the qualied installation
technician with the appropriate requisites must issue a certicate of compliance for the system installed. (By system we intend
Stove+Flue+Air vent)
REVISIONS TO THE PUBLICATION
The content of this manual is strictly technical and the property of RED.
No part of this manual may be translated into other languages, adapted or reproduced, even in part, in other mechanical or electronic
forms, photocopies, recordings or other, without the prior written authorisation from RED.
The company reserves the right to make changes to the product at any time without prior notice. The proprietary company reserves its
rights according to law.
CARE OF THE MANUAL AND HOW TO CONSULT IT
• Take care of this manual and keep it in an easily and rapidly accessible place.
• Should the manual be misplaced or ruined, request a copy from your Retailer or directly from the Manufacturer, specifying the
product identication data.You can also download it directly from the company website.
• “Bold text”requires particular attention.
• “Italicised text”is used to call your attention to other paragraphs in the manual or for any additional clarications.
• “NOTE”provides the reader with additional information.
SYMBOLS USED IN THE MANUAL
ATTENTION:
Read the corresponding message with care because failure to observe the information provided could
result in serious damage to the product and danger to the persons who use it.
INFORMATION:
failure to comply with these provisions will compromise use of the product.

2
1-WARNINGS AND WARRANTY CONDITIONS GB
SAFETY WARNINGS
• Installation, electrical connection, operating test and maintenance
must only be carried out by authorised and qualied personnel.
• Installtheproductinaccordancewithalllocalandnationalregulations
in force in the region or state.
• The instructions provided in this manual must always be complied with to
ensure the product and any electronic appliances connected to it are used
correctly and accidents are prevented.
• This appliance can be used by children aged 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have are supervised or have been
given instructions on how to use the appliance safely and understand
the hazards involved. Children must not play with the appliance.
Cleaning and user maintenance shall not be carried out by children
without supervision.
• The user, or whoever is operating the product, must read and fully understand
the contents of this installation guide before performing any operation. Errors
or incorrect settings can cause hazardous conditions and/or poor operation.
• All liability for improper use of the product is entirely borne by the user and
relieves the Manufacturer of any civil and criminal liability.
• Any type of tampering or unauthorised replacement with non-original spare
parts could be hazardous for the operator's safety and relieves the company of
any civil and criminal liability.
• The product must be powered by an electrical system that is equipped with an
eective earthing system.
• Do not wash the product with water.
• Install the product in a location that does not present a re hazard and is
equipped with power and air supplies and smoke outlets.
• The product and the cladding must be stored in a dry place and must not be
exposed to weathering.
• Live electrical parts: only power the product once it has been fully assembled.
• Disconnect the product from the 230V power supply before performing any

3
1-WARNINGS AND WARRANTY CONDITIONS GB
Technical Assistance - All rights reserved - Reproduction prohibited
maintenance operations.
• Improperuseorpoormaintenanceoftheproduct cancausehazardoussituations
to arise.
• Themanufacturerreservestherighttomodifyitsproductandrelativeinstruction
manuals without prior notice in order to improve their features and use.
WARRANTY CONDITIONS
The company guarantees the product, excluding the components which are subject to normal wear, for a
period of two years from the date of purchase, as proven by a supporting document which gives the name of the vendor and the
date on which the sale took place. The warranty is conditional on the warranty certicate being lled in and returned within 8 days, and
requires that the product be installed and tested by a specialised installer, according to the detailed instructions given in the instruction
manual supplied with the product.
The warranty covers the replacement or free repair of parts recognised as being faulty at source due to
manufacturing defects.
EXCLUSIONS
The warranty does not cover any part that may be faulty as a result of negligence or careless use, incorrect maintenance or installation that
does not comply with the company's instructions (see the relative chapters in this user manual).
The company declines all liability for any damage which may be caused, directly or indirectly, to persons, animals or objects as a
consequence of non-compliance with all the prescriptions specied in the manual, especially warnings regarding installation, use and
maintenance of the product.
If the product does not work correctly, contact your local retailer and/or importer.
Damage caused during transport and/or when handled is excluded from the warranty.
The supplied installation guide is the only reference for installation and product use.
The warranty will be rendered null and void in the event of damage caused by tampering, atmospheric agents, natural disasters, electrical
discharges, re, defects in the electrical system and maintenance not being performed at all or as indicated by the manufacturer.

4
1-WARNINGS AND WARRANTY CONDITIONS GB
WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT.
The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws
related to safety and environmental protection in force in his/her country.
At the end of its working life, the product must not be disposed of as urban waste.
It must be taken to a special dierentiated waste collection centre set up by the local authorities or to a retailer that provides this service.
Separating and recycling prevents potential negative eects on the environment and health (often caused by inappropriately disposing of
product parts). It also allows materials to be recovered in order to obtain signicant savings in energy and resources.

A
x
x
C
B
DEDE
S1
5
2 - CONTENTS OF THE KIT GB
Technical Assistance - All rights reserved - Reproduction prohibited
TROLLEY UNIT
A TROLLEY 1 PIECE
x TROLLEY HANDLE NO.2 PIECES
CHARACTERISTICS
Total volume 58 litres
Upper collection compartment volume (brazier) 33 litres
Lower ash collection compartment volume (ue) 25 litres
Cleaning frequency* 2 months*
* Data related to tests performed with class A2 pellets
CHUTE UNIT
B UPPER CHUTE 1 PIECE
C LOWER CHUTE 2 PIECES
DCHUTE FASTENING WASHER 8 PIECES
E CHUTE FASTENING SCREW 8 PIECES
S1 REAR ASH COLLECTION CHUTE 1 PIECE

F
G
H
I
N
O
M
OD
6
2 - CONTENTS OF THE KIT GB

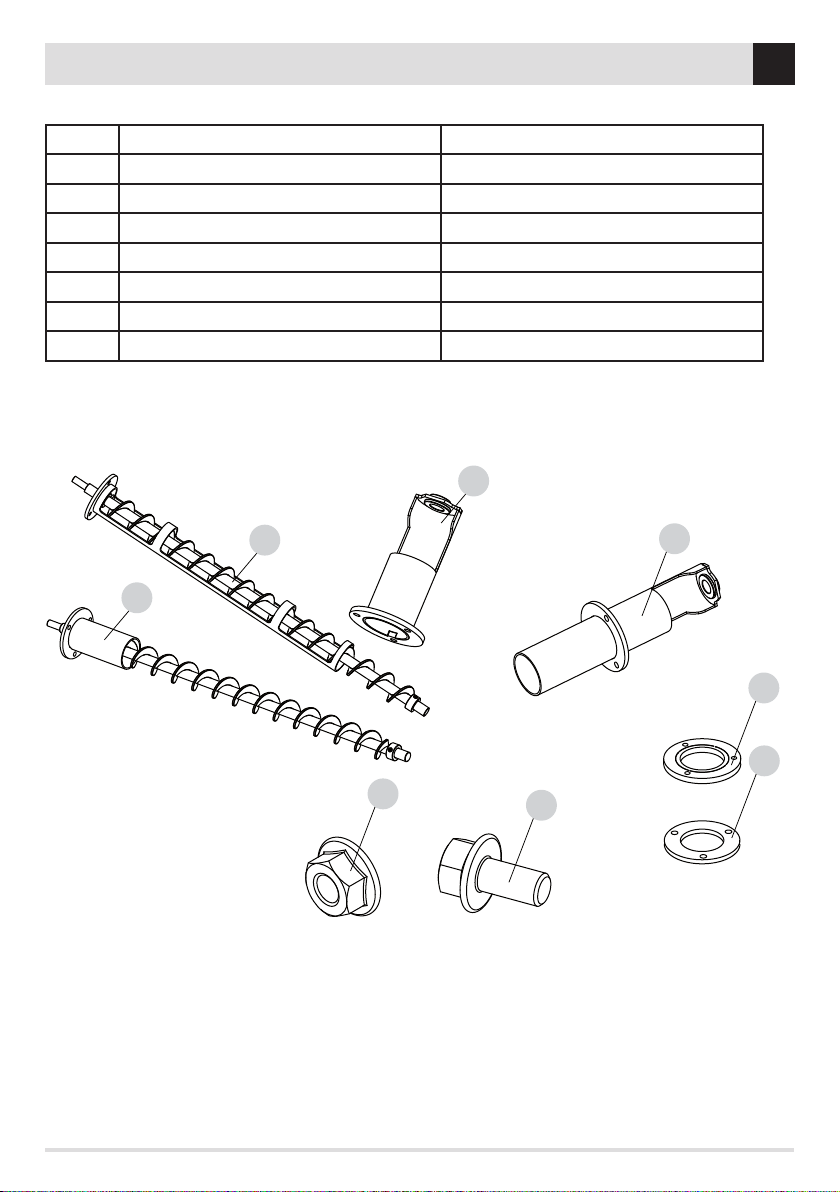

AUGER UNIT
F UPPER AUGER 1 PIECE
G LOWER AUGER 1 PIECE
H LOWER AUGER RIGHT CYLINDER 1 PIECE
I UPPER AUGER RIGHT CYLINDER 1 PIECE
M M5 FLANGED NUT 12 PIECES
NM5*10 TE SCREW 6 PIECES
0 CAP GASKET 6 PIECES
0D AUGER DISC 2 PIECES

P
QR
S
U
T
SS
7
2 - CONTENTS OF THE KIT GB
Technical Assistance - All rights reserved - Reproduction prohibited

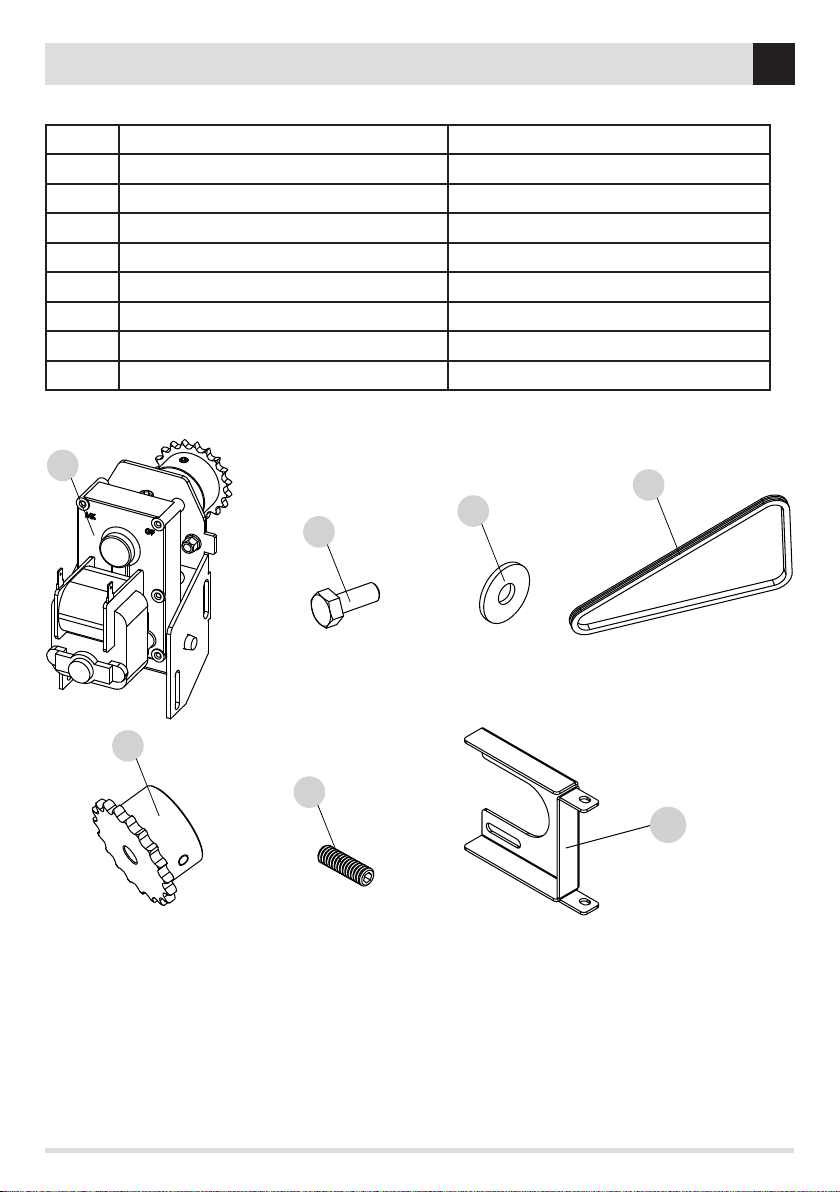

TROLLEY TRANSMISSION UNIT
P TROLLEY MOTOR 1 PIECE
QM6*16 TE SCREW 2 PIECES
RM6 FLAT WASHER 2 PIECES
S CHAIN 1 PIECE
T CHAIN PINION 2 + 1 PIECES
U M6*20 STEI SCREW 2 + 1 PIECES
SS GEAR MOTOR BRACKET 1 PIECE
M6X12 SCREW 1 PIECE
M6 WASHER 1 PIECE

INTERRUTTORE TROLLEY
PRESSOSTATO ARIA
MOTORE TROLLEY
VZ
XKJ
8
2 - CONTENTS OF THE KIT GB

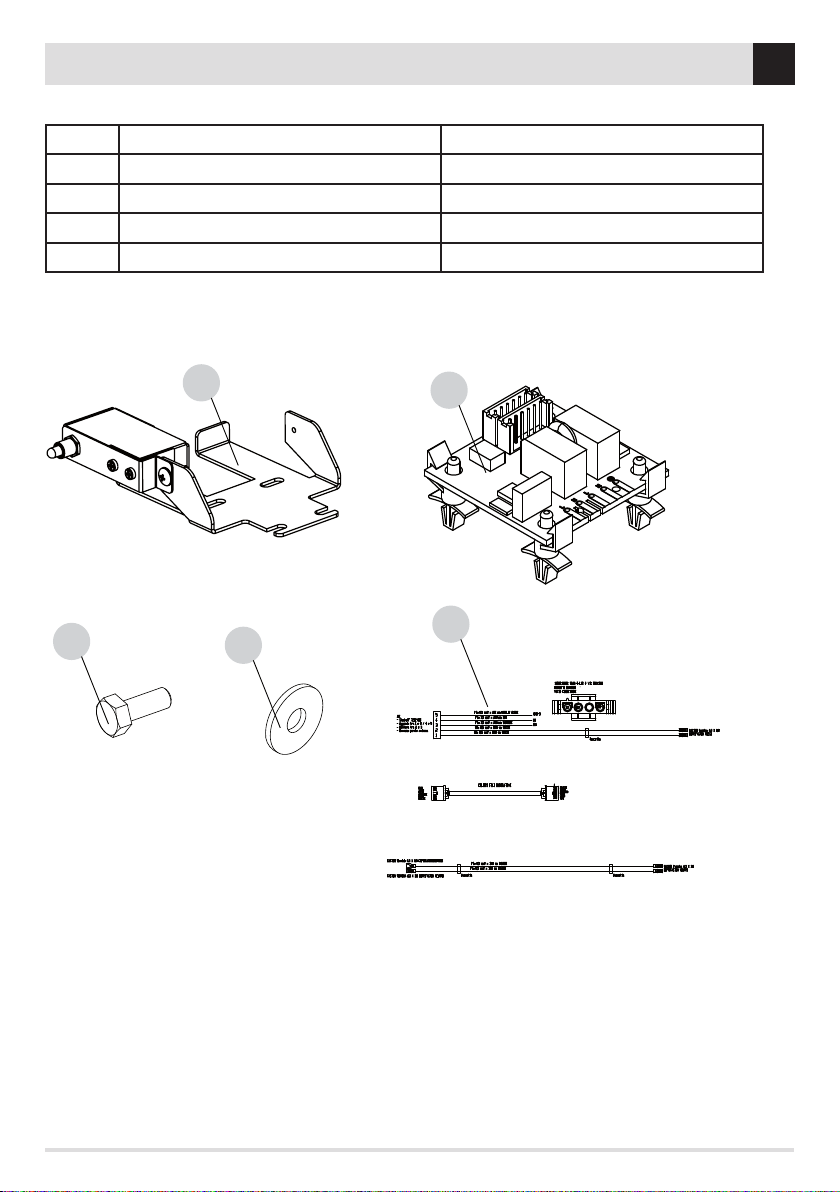

ELECTRIC UNIT
V TROLLEY MICRO 1 PIECE
Z ADDITIONAL MINI BOARD 1 PIECE
XM6*16 TE SCREW 2 PIECES
KM6 FLAT WASHER 2 PIECES
J WIRING 1 PIECE

W
YA1
A2
A3
A4 A5
A6
A7
9
2 - CONTENTS OF THE KIT GB
Technical Assistance - All rights reserved - Reproduction prohibited

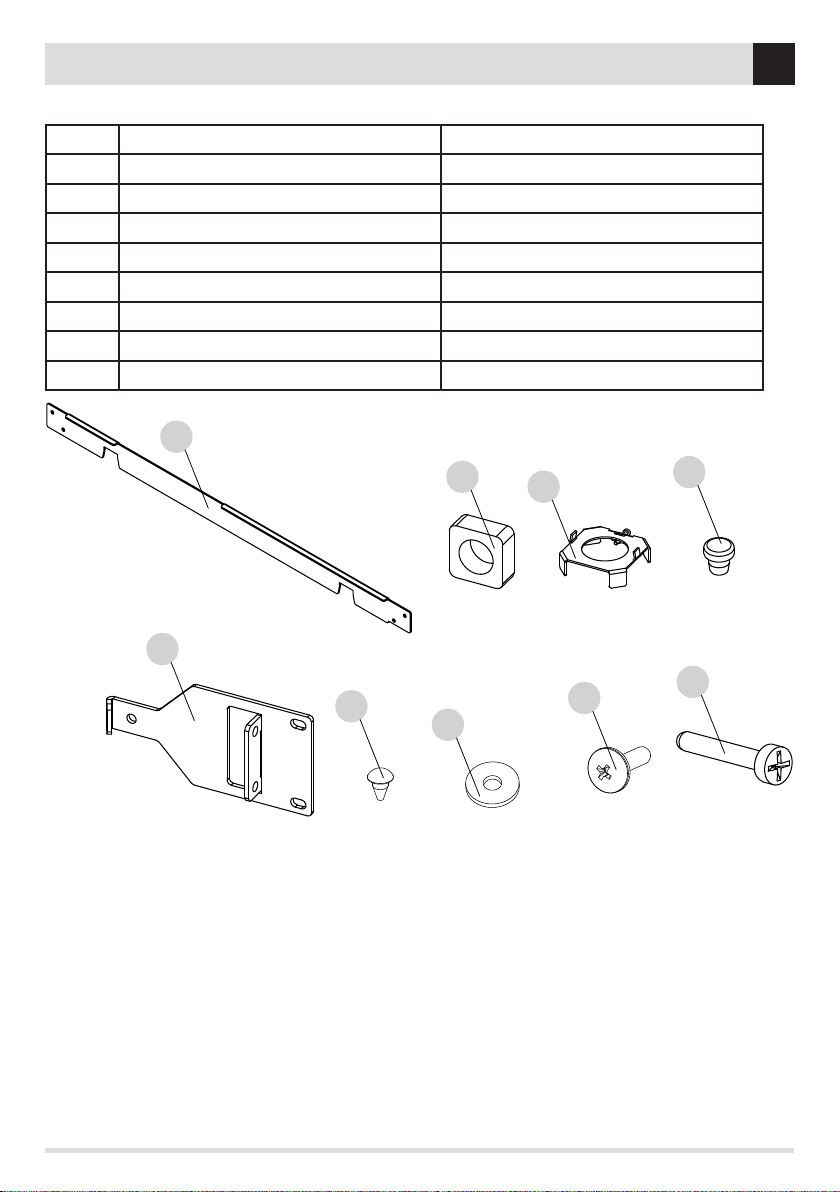

TROLLEY COMPLETING UNIT
W PERFORMA SIDE CROSSPIECE 2 PIECES
Y AUGER GASKET 2 PIECES
A1 AUGER GASKET PLATE 2 PIECES
A2 CLOSING BRACKET 2 PIECES
A3 M5 WASHER 2 PIECES
A4 4.2*16 SCREW 8 PIECES
A5 M4*25 SCREW 2 PIECES
A6 BUMPER RUBBER WASHER 2 PIECES
A7 SILICONE BUMPER 2 PIECES
Other materials
• material for product packaging
• manual

A
B
C
x
D
y
10
3 - DISASSEMBLING BOILER SIDES GB
Live electrical parts: only power the product once it has been fully assembled.
Before beginning to install the trolley, you must decide whether you wish to install it to the left or to the right of the structure.
In any case, for safety and to work well, remove both sides of the Performa boiler.

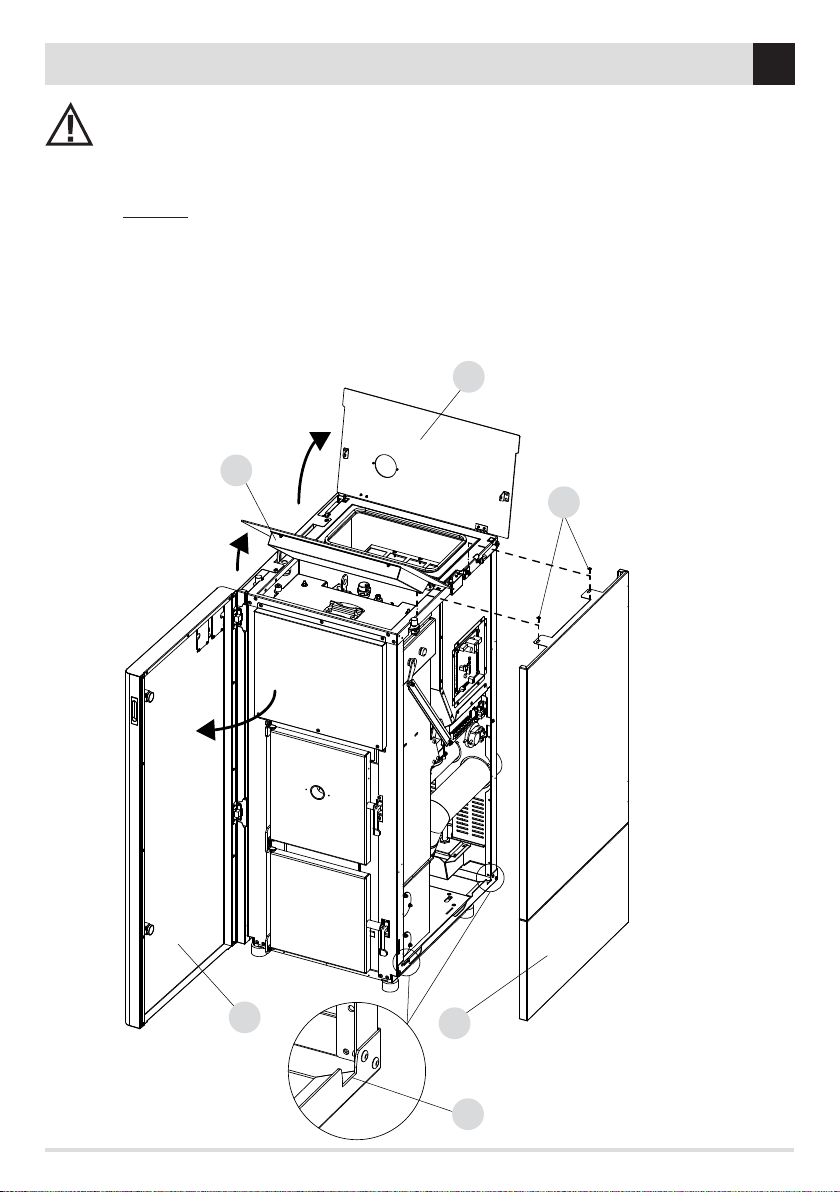

To remove the right panel“D”proceed as follows:
• lift the tank cover“C”
• lift the front cover“B”
• open the decorative door“A”
• remove the two top screws“x”that secure the panel“D”to the boiler
• lift the panel“D”and let the joints“k”come out of the holes“y”on the structure of the boiler (see image on the following page)
GB

k
D
11
3 - DISASSEMBLING BOILER SIDES GB
Technical Assistance - All rights reserved - Reproduction prohibited

D1
D2
D
D
D1
D2
t
A
12
3 - DISASSEMBLING BOILER SIDES GB
Technical Assistance - All rights reserved - Reproduction prohibited
REMOVING THE SIDE PANEL TO INSERT THE TROLLEY
The right side panel “D” consists of two parts - “D1” and “D2”. The parts “D1” and “D2” can be separated to allow the trolley “A” to be
assembled. Separate the two parts by removing the three screws“t”and proceed as described in the instructions on the following pages.
Trolley“A”is an accessory used to prolong the cleaning intervals of the boiler. This type of cleaning and emptying of the boiler allows the
ashes to be emptied after about three months instead of every week, as per the standard version.
To better adapt to the spaces and requirements, trolley“F”can be installed on the right or left of the boiler. The decorative panels“D”and
“E”are reversible.
GB

W
A4
A4
13
4 - TROLLEY KIT ASSEMBLY GB
Technical Assistance - All rights reserved - Reproduction prohibited

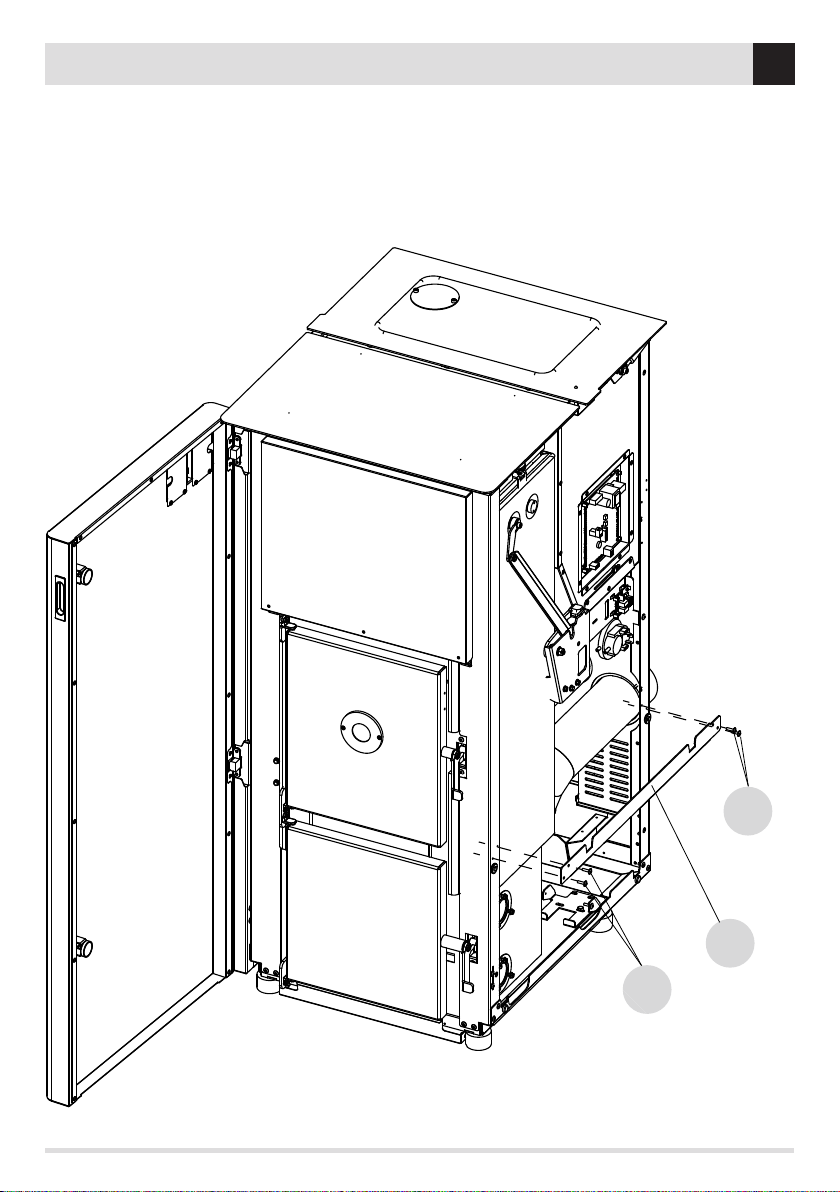

Let’s assume the trolley is to be installed to the right of the boiler.
The operations to be done are:
• take the crosspiece“W”and secure it to the boiler using the four“A4”screws.
GB

2
1
14
4 - TROLLEY KIT ASSEMBLY GB

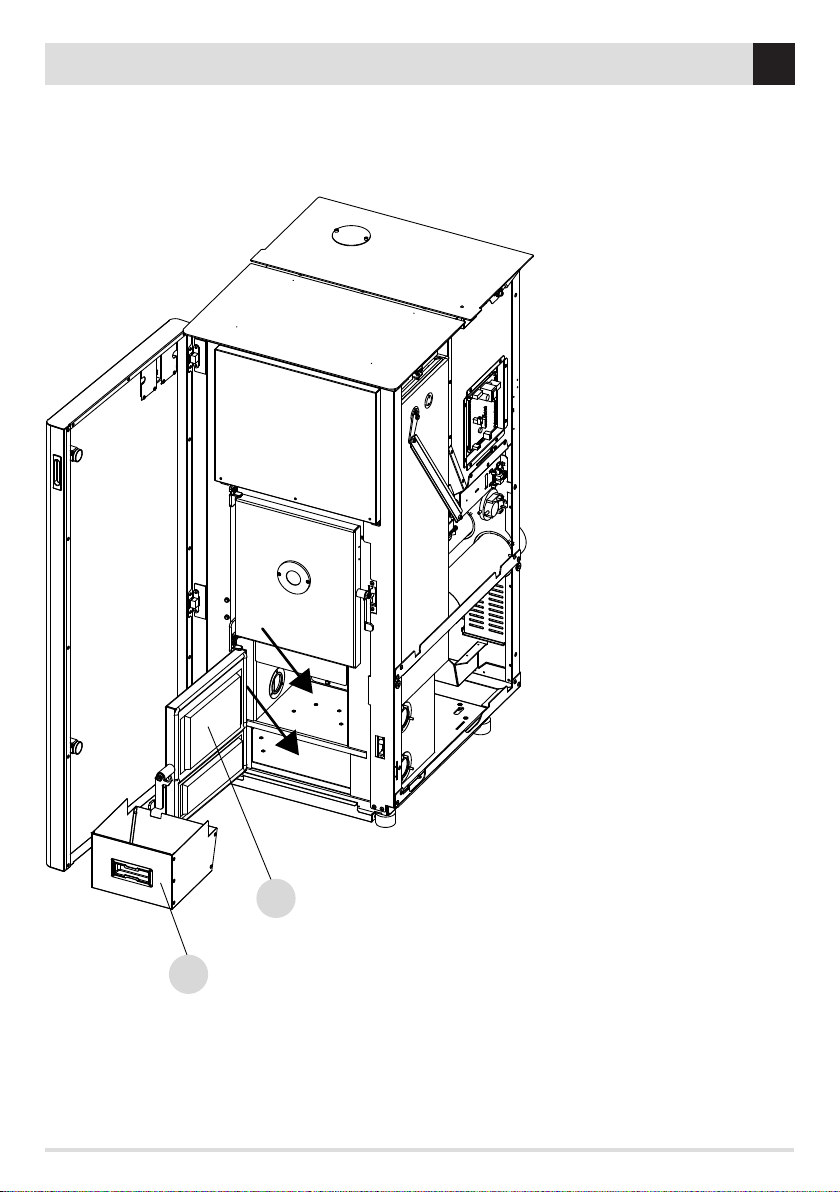

• Open the ash holder“1”
• remove the ash pan“2”
Thoroughly clean the lower and upper ash compartment (if the boiler has already been used)

3
3
OD
O
N
OOD
15
4 - TROLLEY KIT ASSEMBLY GB
Technical Assistance - All rights reserved - Reproduction prohibited

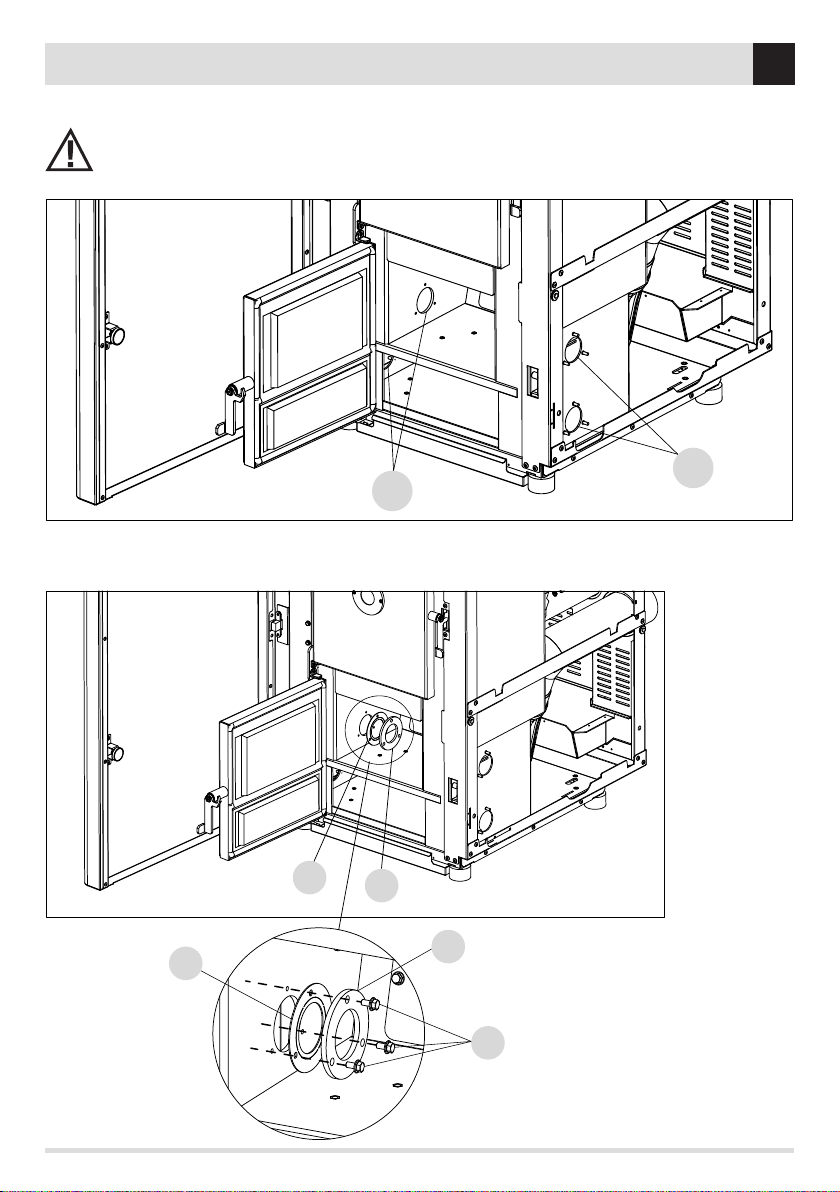

Remove the covers“3”on the structure; two on the right side, two on the left side and 2 on the inside.
Attention!! The supplied gaskets “O” have a knockout to be able to remove the central part based on the position in
which they are assembled.
On the inner part (in the left ash pan position in the gure), assemble the ring“OD”and gasket“O”and secure everything with screws“N”.

OD O
16
4 - TROLLEY KIT ASSEMBLY GB
Do the same also for the right inner side, assembled the ring“OD”, gasket“O”and secure everything with the three“N”screws.

B
E
D
s
B
17
4 - TROLLEY KIT ASSEMBLY GB
Technical Assistance - All rights reserved - Reproduction prohibited
Position the ash compartment chute“B”in the upper part and secure it to the structure using the four screws“E”and the four washers“D”.
Attention!! The part of the pipe that protrudes “s” from the chute “B” must be positioned towards the trolley (in the
image to the right “s”)
The image below shows the chute“B”assembled.

O
F
M
M
18
4 - TROLLEY KIT ASSEMBLY GB

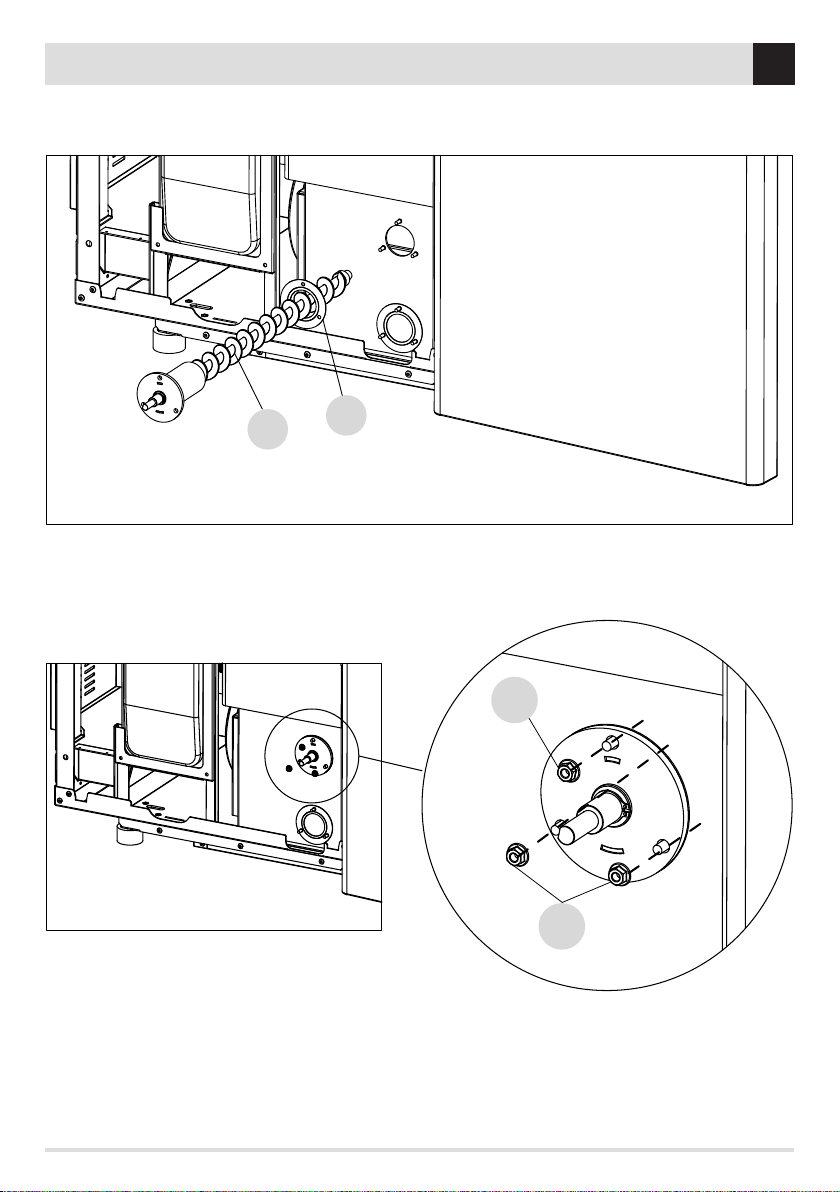

Insert the gasket “O” on the upper auger “F”and insert all of it from the side opposite the position chosen for the trolley; in this case, to
the left of the boiler.
Secure the upper auger assembly to the boiler structure with the three nuts“M”.
