red roo C100 User manual

Online Demonstration Available at:
www.redroo.com/products/chipper
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT622
GARDEN
TILLER
OPERATION
1) Remove the garden tiller
from its trailer/carrier. Use caution.
2) Familiarize yourself with the machine and its
controls.
3) Ensure the safety clutch control lever is in the
disengagedposition. The safety clutch
control lever is located on the left handle bar.
The disengaged position of the lever is down.
4) Remove the shaft locking pin located behind
the wheel axle. Store pin in hole provided on
left hand side of handle bar.
5) The wheel axle will now pivot. Lift up on the
handle to allowwheelaxle to pivot. For
transport, keep the wheel axle forward. When
cultivating, keep the wheel axle rearward for
added stability and control.
DO NOT transport the tillerwith the wheel
axle in the rear position.
6) Adjust depth shoe(ifequipped) by removing
shaft locking collarand slidingdepth shoe to
desired position. Replace shaft locking collar.
7) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
8) Wheninposition to begingarden tilling,
engage the safety clutch controllever. The
tyneswillbeginrotating. Wheel axle must be in
the rearpositionwhile tilling.Release the
safety clutch controllever to stop the tynes
rotating. Tynespeed is governed by engine
throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
9) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed.
WARNING! –IN CASE OF DIFFICULTY,
DISENGAGE THE SAFETY CLUTCH
CONTROL LEVER. ALL TILLING ACTION
STOPS.Press the engine"STOP"button
located on the engine.
10) Stop Engine: Release the safety clutch control
lever.Move throttle to Slowposition. Set engine
stop switch to Stop or Offposition.DO NOT move
choke control to Choke
or Start position to stop
engine.Backfire or
enginedamagemay
occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheelaxle to forwardposition for
transport. Replace shaft locking collar.
6) Returndepth shoe(ifequipped) to full Up
position.
© Copyright 2001, Red Roo Sales & Service Company Pty. Ltd. 1301-0018
Commercial Environmental Equipment
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT622
GARDEN
TILLER
OPERATION
1) Remove the garden tiller
from its trailer/carrier. Use caution.
2) Familiarize yourself with the machine and its
controls.
3) Ensure the safety clutch control lever is in the
disengagedposition. The safety clutch
control lever is located on the left handle bar.
The disengaged position of the lever is down.
4) Remove the shaft locking pin located behind
the wheel axle. Store pin in hole provided on
left hand side of handle bar.
5) The wheel axle will now pivot. Lift up on the
handle to allowwheelaxle to pivot. For
transport, keep the wheel axle forward. When
cultivating, keep the wheel axle rearward for
added stability and control.
DO NOT transport the tillerwith the wheel
axle in the rear position.
6) Adjust depth shoe(ifequipped) by removing
shaft locking collarand slidingdepth shoe to
desired position. Replace shaft locking collar.
7) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
8) Wheninposition to begingarden tilling,
engage the safety clutch controllever. The
tyneswillbeginrotating. Wheel axle must be in
the rearpositionwhile tilling.Release the
safety clutch controllever to stop the tynes
rotating. Tynespeed is governed by engine
throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
9) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed.
WARNING! –IN CASE OF DIFFICULTY,
DISENGAGE THE SAFETY CLUTCH
CONTROL LEVER. ALL TILLING ACTION
STOPS.Press the engine"STOP"button
located on the engine.
10) Stop Engine: Release the safety clutch control
lever.Move throttle to Slowposition. Set engine
stop switch to Stop or Offposition.DO NOT move
choke control to Choke
or Start position to stop
engine.Backfire or
enginedamagemay
occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheelaxle to forwardposition for
transport. Replace shaft locking collar.
6) Returndepth shoe(ifequipped) to full Up
position.
© Copyright 2001, Red Roo Sales & Service Company Pty. Ltd. 1301-0018
Commercial Environmental Equipment
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT622
GARDEN
TILLER
OPERATION
1) Remove the garden tiller
from its trailer/carrier. Use caution.
2) Familiarize yourself with the machine and its
controls.
3) Ensure the safety clutch control lever is in the
disengagedposition. The safety clutch
control lever is located on the left handle bar.
The disengaged position of the lever is down.
4) Remove the shaft locking pin located behind
the wheel axle. Store pin in hole provided on
left hand side of handle bar.
5) The wheel axle will now pivot. Lift up on the
handle to allowwheelaxle to pivot. For
transport, keep the wheel axle forward. When
cultivating, keep the wheel axle rearward for
added stability and control.
DO NOT transport the tillerwith the wheel
axle in the rear position.
6) Adjust depth shoe(ifequipped) by removing
shaft locking collarand slidingdepth shoe to
desired position. Replace shaft locking collar.
7) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
8) Wheninposition to begingarden tilling,
engage the safety clutch controllever. The
tyneswillbeginrotating. Wheel axle must be in
the rearpositionwhile tilling.Release the
safety clutch controllever to stop the tynes
rotating. Tynespeed is governed by engine
throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
9) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed.
WARNING! –IN CASE OF DIFFICULTY,
DISENGAGE THE SAFETY CLUTCH
CONTROL LEVER. ALL TILLING ACTION
STOPS.Press the engine"STOP"button
located on the engine.
10) Stop Engine: Release the safety clutch control
lever.Move throttle to Slowposition. Set engine
stop switch to Stop or Offposition.DO NOT move
choke control to Choke
or Start position to stop
engine.Backfire or
enginedamagemay
occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheelaxle to forwardposition for
transport. Replace shaft locking collar.
6) Returndepth shoe(ifequipped) to full Up
position.
© Copyright 2001, Red Roo Sales & Service Company Pty. Ltd. 1301-0018
Commercial Environmental Equipment

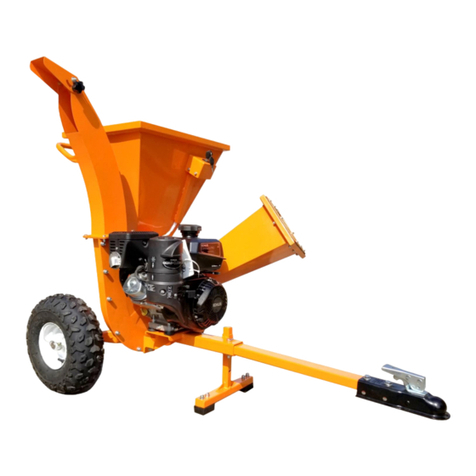

C100
WOODCHIPPER
safety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...now
6) When feeding branches into woodchipper, make
sure to feed, the large end of the branch first.
Place the branches into the material intake hopper
from the operator zone. Branches should not be
forced into the intake hopper. If branches are
extremely long it is recommended that they be cut
into shorter lengths to achieve best results.
Note: Side branches should be pruned off to avoid
clogging the intake hopper. Light / Bushy / Spongy
matertial should not be forced into the chipping unit.
The woodchipper should feed itself.
If the machine does not self feed, the chipper
knives may be dull or the anvil to blade setting
may require adjustment.
1) Wear either safety
glasses or helmet & visor
combination, loose fitting
gloves, & hearing protection.
2) Familiarize yourself with the woodchipper and its
controls.
3) No foreign objects such as stones, steel, cans,
glass, sweepings, wire, rope or nails should be fed
into the chipper chute, as damage will occur.
4) Open fuel shut-off valve, if engine is
equipped. Move choke control to CHOKE
or START position.
Note: choke must fully
close. Move throttle
control to RUN or FAST
position. If engine is
equipped with rocker
style stop switch, push RUN,
or I (I=Ignition) before starting.
Manual Rewind Starter: Grasp rope handle
and pull slowly until resistance is felt to prevent
kickback. Then pull cord rapidly to overcome
compression and start engine. Repeat if necessary
with choke off and throttle control in FAST position.
Operate engine in FAST position.
5) After the engine is cranked slowly increase the
engine RPM to approximately halfway on the
throttle control lever whilst engaging onto the belts.
Rapid engagement may stall the engine. Release
handle when fully engaged. Allow engine to reach
maximum operating speed of approximately 3000
RPM and operating temperature.
7) CAUTION: If the woodchipper discharge clogs with
material, stop the engine immediately, disengage
the engine engagement handle, clear blockage,
then restart engine.
CAUTION: If the chipping disc jams and the engine
stalls, disengage the engine engagement handle.
Make sure all obstructions are clear and the chipper
disc spins freely. Restart engine.
8) When unit is in operation, approach chipper from the
operator zone side (See Figure 1.)
KEEP CLEAR OF DISCHARGE AREA.
Pay attention to discharge direction.
9) The chipping disc will take several seconds to stop
after engine has been turned off.
WARNING: Do not go near the chipping disc for any
reason during this period.
10) Stop Engine: Do not move choke control to CHOKE
position to stop engine. Backre or engine damage
may occur. Move throttle control to SLOW position,
then push rocker switch to O (STOP) or turn key to
OFF, if equipped.
1) Turn fuel tap to “OFF” position.
2) Allow machine to cool down. Clean
with warm soapy water. Ensure no water enters the
carburettor.
Open fuel shut-off valve. Move choke
control to CHOKE or START position.
Note: Choke must fully close. Move throttle
controlto RUN or FAST position. If engine is
equipped with rocker style stop switch, push
RUN or I (I = Ignition) before starting. Rewind
Starter: Grasp rope
handle and pull slowly
until resistance is felt
to prevent kickback.
Then pull cord rapidly
to overcome compression, and start engine.
Repeat if necessary with choke off and throttle
control at maximum rpm (FAST position). Operate
the engine at maximum rpm (FAST position).
OPERATING INSTRUCTIONS FOR C100 USERS
AFTER USE
© Copyright 2017, Red Roo Sales & Service Company Pty. Ltd.
DANGER
Discharge Area
Stay clear of this
area at all times
Operator Zone
Figure 1.
Discharge Chute
Make sure this is
down and secure
during transit
Chipper
Intake Hopper
Marterial not to
exceed 4”
or 100mm

safety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...now
SAFETY INSTRUCTIONS FOR RH918 USERS
OPERATING
INSTRUCTIONS
USE COMMON SENSE
AND PLENTY OF IT
TRANSPORT
BEFORE USE
1) DO NOT allow any person operate the
rotary hoe without first reading and
understanding the safety instructions and
operating instructions.
2) NEVER allow children to operate the rotary hoe.
8) ALWAYS make certain the Tyne Control Lever is
set at neutral while loading and unloading the
rotary hoe, or moving to and away from working area.
9) NEVER run the machine in reverse while the tynes
are rotating. Always move the tyne control lever to
“OFF” before reversing the wheels.
11) DO NOT leave the machine unattended while the
engine is running.
12) DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will
shorten engine life.
13) NEVER operate the rotary hoe in an
enclosed area. Engine exhaust contains
carbon monoxide, an odourless and
tasteless poison.
14) STOP the engine and disconnect the
spark plug lead(s) and allow engine to
cool before inspecting or performing
maintenance on the rotary hoe.
15)
1)
REFUELLING
* Shut off the engine. DO NOT REFUEL
AN ENGINE WHILE OPERATING!
* Allow engine to cool. Minimum 5 minutes
* USE UNLEADED FUEL ONLY.
Use clean, fresh unleaded fuel.
* Do not mix oil with unleaded fuel.
* Do not over-fill fuel tank. Allow space
for fuel expansion.
10) NEVER operate the unit without the safety
guards in place and in working order. Keep
the unit well maintained and in good
working order.
4) ALWAYS use the rotary
hoe in a well lighted area.
7) NEVER operate the rotary hoe when fatigued.
ALWAYS BE ALERT! If you get tired while
operating the rotary hoe, take a break. If you have
any type of physical or mental condition that may
be aggravated by strenuous work, consult with
your physician before you operate this equipment.
NEVER operate the rotary hoe under the influence
of medication, alcohol or drugs.
6) DO NOT allow other persons near the
rotary hoe. It is up to the operator to keep
bystanders and animals a minimum of 6
5) ALWAYS operate the rotary
hoe on level ground only.
Police the area before rotary
hoeing. Remove any foreign objects in the digging
area - bricks, rocks, wire and sticks. Locate and mark
any sprinkler heads, water pipes, gas lines,
electrical and telephone cables or any other hazard
either below or above ground.
3) ALWAYS wear protective clothing when operating
the rotary hoe. This includes, but is not limited to;
safety glasses, loose fitting gloves, steel capped
boots and hearing protection. NEVER wear loose
fitting clothing or jewellery when operating the
rotary hoe. Keep all clothing away from moving
parts. Items could become caught in the machine,
resulting in injury.
KNOW THE CONTROLS AND HOW TO STOP
THE ROTARY HOE QUICKLY IN AN EMERGENCY.
metres (20’) away from the machine while in
operation.
ALWAYS KEEP YOUR HANDS,
FEET AND BODY AWAY FROM
THE DIGGING ZONE WHILE
ENGINE IS RUNNING.
* Do not smoke.
* Allow no naked flame or hot material in refuelling area.
* Use only approved fuel containers and funnels.
Remember, fuel is a potential hazard .
Be sure Tyne Control Lever is set to “Neutral”
while loading and unloading the rotary hoe
and when moving to or from jobsite.
Ensure that all grass and weeds have been cut
as low as possible.
2) If the rotary hoe is to be used in clay or hard
ground conditions, it is recommended to water
the area thoroughly and allow sufficient time
for earth to soften.
3) Police the area. Remove any
foreign objects from the area.
4) Identify and mark the location of sprinkler heads,
gas pipes, telephone cables etc.
“The Right Way to Rent”
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
SAFETY PRECAUTIONS FOR C100 USERS
1) DO NOT allow any person to operate the
woodchipper without rst reading and
understanding the safety precautions
and operating instructions.
KNOW THE CONTROLS AND HOW TO STOP
THE WOODCHIPPER QUICKLY IN CASE OF AN
EMERGENCY.
2) NEVER allow CHILDREN or YOUNG ADULTS
UNDER 18 to operate the woodchipper.
3) PPE (PERSONAL PROTECTION EQUIPMENT)
IS MANDATORY
before operating this machine. ALWAYS wear
protective clothing when operating the
chipper .
This includes, but not limited to; safety glasses,
loose tting gloves, steel capped boots and hearing
protection. Never wear loose tting clothing or jewelry
when operating the
chipper . Keep all clothing away
from moving parts. Clothing could become caught in
the machine resulting in injury.
4) ALWAYS operate the woodchipper in a well-lighted
area.
5)
NEVER operate the woodchipper on
an angle that exceeds 15º degrees.
Keep your work area clear and free
of debris.
6) NEVER operate the woodchipper when fatigued.
AWAYS BE ALERT! If you get tired while operating
the
woodchipper take a break. If you have any
type of physical or mental condition that may be
aggravated by strenuous work, consult with your
physician before operating this piece of equipment.
NEVER operate the
woodchipper under the
inuence of medication, alcohol or drugs.
7) DO NOT allow other adults, individuals
under the age of 18 or animals near the
woodchipper. IT ISTHE RESPONSIBILITY
OF THE OPERATOR to keep bystanders
& animals a minimum of 6 metres (18ft) away from
the woodchipper while in operation.
USE COMMON SENSE & PLENTY OF IT
OPERATOR MUST BE TRAINED
MAXIMUM ANGLE
OF OPERATION
DO NOT EXCEED
15º ANGLE
USE COMMON SENSE
AND PLENTY OF IT
SAFETY INSTRUCTIONS FOR HT912USERS
INSTRUCTIONS
DO NOT allow any person to operate the
hydraulic trencher without first reading and
understanding the safety instructions and
NEVER allow children to operate the hydraulic trencher.
ALWAYS use hydraulic trencher in a well lighted area.
ALWAYS make certain that all control clutches are in
the “disengaged” position prior to starting the engine.
The safety clutch lever/Operator Presence Control on
the left handlebar is for operator protection. DO NOT
tape down or otherwise bypass this Safety Device.
NEVER wear loose fitting clothing or jewellery when
operating the hydraulic trencher. Keep all clothing
away from moving parts. Item could become
caught in the machine, resulting in injury.
ALWAYS wear protective
clothing when operating
the hydraulic trencher.
This includes, but is not limited to, safety glasses, hard hat
loose fitting gloves, steel capped boots and hearing protection.
operating instructions. KNOW THE CONTROLS AND
HOW TO STOP THE HYDRAULIC TRENCHER QUICKLY
IN AN EMERGENCY.
1)
2)
3)
4)
Police the area before trenching. Remove any foreign
objects in the digging area eg bricks, rocks, wire and
sticks. Locate and mark any sprinkler heads, water
pipes, gas lines, electrical and telephone cables or any
other hazard either below or above ground.
5)
DO NOT leave the machine unattended while the engine
is running. DO NOT park on incline or park
perpendicular to slope. DO NOT freewheel down incline.
7)
DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will
shorten engine life
8)
NEVER operate the hydraulic trencher when fatigued.
ALWAYS BE ALERT! If you get tired while operating
the hydraulic trencher, take a break. If you have any
type of physical or mental condition that may be
aggravated by strenuous work, consult with your
physician before you operate this equipment. NEVER
operate the hydraulic trencher under the influence of
medication, alcohol or drugs.
9)
NEVER operate the unit without the safety
guards in place and in working order. Keep
the unit well maintained and in good working order
Remove the hydraulic trencher from its
trailer. Use caution.
Police the area. Remove any
foreign objects from the area.
Identify and mark the location of sprinkler heads,
gas pipes, telephone cables, etc.
IGNITION: Must be in “ON” position to start. “OFF”
to stop.
ENGINE: Throttle cable controls engine speed.
Operate at full throttle (all the way forward).
WHEEL DRIVE CONTROL LEVER: Controls wheel
speed forward or reverse after clutch lever is engaged.
DIGGING BOOM CONTROL LEVER: Raises and lowers
the digging boom.
DIGGING CHAIN CONTROL LEVER: must be in “ON”
position BEFORE clutch lever is depressed in order
to start chain in motion. Chain moves in a forward
direction after clutch lever is engaged.
SAFETY CLUTCH LEVER/OPERATOR PRESENCE
CONTROL: (At left handle grip) Activates WHEEL
DRIVE and DIGGING CHAIN controls when depressed.
Stops all motion when released.
FORWARD/REVERSE DIGGING CHAIN CONTROL
LEVER: Allows manual operation of chain in forward
or reverse rotation to dislodge objects or dig difficult
terrain. (This control can be used with the clutch lever
released.) To reverse chain, DIGGING CHAIN control
must be in “OFF” position.
Familiarize yourself with the hydraulic
trencher and its controls.
10)
1)
1)
2)
1)
Free Wheel Hub Feature - Operation:
Pull one free wheeling pin slightly, using the split
ring. Rotate the pin until the 3mm (1/8”) diameter roll
pin aligns with the slot in the mounting plate. Allow
the pin to slide through the slot. Repeat for the other
wheel. Roll the trencher until each pin drops into a
hole in the hub. The wheel hubs are now locked.
Reverse the procedure to unlock the wheels.
2)
DO NOT allow other persons near the hydraulic
trencher. It is up to the operator to keep
bystanders and animals a minimum of 6 metres
(20ft) away from the machine while in operation.
12)
NEVER operate the hydraulic trencher in an
enclosed area. Engine exhaust contains carbon
monoxide, an odourless and tasteless poison.
13)
WARNING: Hydraulic oil is under extreme
pressure and can get under skin and burn
or poison. Check for leaks with cardboard.
14)
STOP the engine and disconnect the spark
plug lead(s) and allow engine to cool before
inspecting or performing maintenance on
the hydraulic trencher.
15)
REFUELLING
* Shut off engine. DO NOT REFUEL AN ENGINE
WHILE OPERATING!
* Allow engine to cool. Minimum 5 minutes
* Do not smoke. *Allow no naked flame
or hot material in refuelling area.
* Use only approved fuel containers and funnels.
Remember, fuel is a potential hazard.
* Do not over-fill fuel tank. Allow space for
fuel expansion.
* USE UNLEADED FUEL ONLY. Use clean,
fresh unleaded fuel.
* Do not mix oil with unleaded fuel.
16)
ALWAYS KEEP YOUR HANDS, FEET AND BODY
AWAY FROM THE DIGGING CHAIN AND OTHER
MOVING PARTS WHILE ENGINE IS RUNNING.
11)
ALWAYS operate
hydraulic trencher
on level ground only.
6) MAXIMUM
ANGLE OF
OPERATION
DO NOT EXCEED 15ºANGLE
BEFORE USE
OPERATION
TRANSPORT
8) ALWAYS KEEP YOUR HANDS, FEET &
BODY AWAY FROM THE MATERIAL INTAKE
HOPPER AND DISCHARGE CHUTE WHEN
THE MACHINE IS IN OPERATION OR THE
CHIPPER DISC IS TURNING.
9)
SAFETY FIRST – Stay Alert, Do Not Get Hurt
Read this section before use!
The HT912 Hydraulic Trencher is designed to dig trenches and therefore is potentially
dangerous. Careless or improper use may cause serious or even fatal injury.
It is important that you read and understand the contents of this manual and that you allow only
mature,adultindividuals to operate yourHT912 Hydraulic Trencher. It is yourresponsibility to
ensure that any individual who operates your Trencher have read and understood this manual.
Never use the Hydraulic Trencher for any other purpose than digging trenches. The machine is
designed for this purpose only. Any other use may cause serious or even fatal injury and/or damage
to the machine.
ABOUT THIS MANUAL
The information contained in this manual has been prepared to assist you in the safe operation, the routine
maintenanceandgeneralcare of yourRedRooproduct. By following theseguidelines,youmaylook
forward to years of reliableservice fromyourRedRoo. Information is categorisedanddenoted by the
following symbols and phrases:
SAFETY Identifies general safety practices.
FIRST
DANGER! An instruction which, if not followed, could result in serious or fatal injury.
WARNING! An instruction which, if not followed, could result in personal injury.
CAUTION! An instruction which, if not followed, could damage machine components.
4
HAZARD SYMBOLS & MEANINGS
Before operatingthisMachine read
andobserve all Warnings, Cautions
andInstructions on theMachineand
in theOperatorsManual. Although the
reading of information contained in
thismanualdoesnoteliminatethe
risk involved in operatingthis
machine,yourunderstanding of this
information will promotethe correct
andsafeuse of yourmachine.Failure
to followInstructionsandSafety
Informationcould result in serious
injury or death.
Read Hearing
Protection
Eye
Protection
Wear
Gloves
Cut Hand
No
Bystanders
High Pressure
Fluid
Moving
Parts
Hot
Surfaces
Don’t Refuel
Hot Engine
Check Before
Digging
Explosion
Electrical
Shock
Toxic
Fumes
Remove Spark
Plug Leads
Identifies general safety practices.
An instruction which, if not followed, could result in serious or fatal injury.
An instruction which, if not followed, could result in personal injury.
An instruction which, if not followed, could damage machine components.
SAFETY FIRST – Stay Alert, Do Not Get Hurt
Read this section before use!
The HT912 Hydraulic Trencher is designed to dig trenches and therefore is potentially
dangerous. Careless or improper use may cause serious or even fatal injury.
It is important that you read and understand the contents of this manual and that you allow only
mature,adultindividuals to operate yourHT912 Hydraulic Trencher. It is yourresponsibility to
ensure that any individual who operates your Trencher have read and understood this manual.
Never use the Hydraulic Trencher for any other purpose than digging trenches. The machine is
designed for this purpose only. Any other use may cause serious or even fatal injury and/or damage
to the machine.
ABOUT THIS MANUAL
The information contained in this manual has been prepared to assist you in the safe operation, the routine
maintenanceandgeneralcare of yourRedRooproduct. By following theseguidelines,youmaylook
forward to years of reliableservice fromyourRedRoo. Information is categorisedanddenoted by the
following symbols and phrases:
SAFETY Identifies general safety practices.
FIRST
DANGER! An instruction which, if not followed, could result in serious or fatal injury.
WARNING! An instruction which, if not followed, could result in personal injury.
CAUTION! An instruction which, if not followed, could damage machine components.
4
HAZARD SYMBOLS & MEANINGS
Before operatingthisMachine read
andobserve all Warnings, Cautions
andInstructions on theMachineand
in theOperatorsManual. Although the
reading of information contained in
thismanualdoesnoteliminatethe
risk involved in operatingthis
machine,yourunderstanding of this
information will promotethe correct
andsafeuse of yourmachine.Failure
to followInstructionsandSafety
Informationcould result in serious
injury or death.
Read Hearing
Protection
Eye
Protection
Wear
Gloves
Cut Hand
No
Bystanders
High Pressure
Fluid
Moving
Parts
Hot
Surfaces
Don’t Refuel
Hot Engine
Check Before
Digging
Explosion
Electrical
Shock
Toxic
Fumes
Remove Spark
Plug Leads
4
NEVER operate the woodchipper without the
safety guards in place and in good working order.
Always keep the woodchipper well maintained
and in good working order.
10) DO NOT LEAVE THE MACHINE UNATTENDED
WHILE THE ENGINE IS RUNNING.
11) DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will shorten
engine life.
12)
NEVER OPERATE THE WOODCHIPPER
IN AN ENCLOSED AREA.
Engine exhaust contains carbon monoxide, an
odourless and tasteless poison that can kill.
13) STOP the engine, disconnect the spark
plug lead(s) and allow engine to cool before
inspecting or performing maintenance on the
woodchipper.
14) REFUELIING
  • Shutoffengine.DONOTREFUELAN
ENGINE WHILE OPERATING MACHINE!
  • ALLOW engine to cool down.
Minimum 5 minutes.
  • USEUNLEADEDFUELONLY.
  • USECLEANFRESHUNLEADEDFUEL.
•Do not mix oil with unleaded fuel.
• Do not over-ll fuel tank. Allow space for
fuel expansion.
•Do not smoke.
• Allow no naked ame or hot material in
refuelling area.
•Use only approved fuel containers and
funnels.
REMEMBER FUEL IS A POTIENTIAL
FIRE HAZARD/HANDLE WITH CAUTION
OPERATING
INSTRUCTIONS
FOR C100 USERS
TRANSPORT
1) DO NOT exceed 80kms per hour (50mph) when towing
the C100. Always use extreme caution when towing.
2) WARNING: Make sure discharge chute is tightened,
secure and in the down position before towing.
(See Figure 1.)
BEFORE USE
1) WARNING: Before starting engine, inspect the
material intake hopper and remove any foreign
debris or branches. Perform a thorough visual
inspection of the woodchipper and the chipper disc drive
system.
2) Set discharge chute to desired direction and angle.
© Copyright 2017, Red Roo Sales & Service Company Pty. Ltd.
OPERATOR ZOnE
DISCHARGE ZOnE
Discharge
Chute
Chipper Hopper
Belt
Engagement
Handle
Pull Cord
Throttle
Cable
Jockey
Wheel Safety Tow
Chain
To w
Coupling
Engine Exhaust
Engine
SAFETY INSTRUCTIONS FOR RH918 USERS
OPERATING
INSTRUCTIONS
USE COMMON SENSE
AND PLENTY OF IT
TRANSPORT
BEFORE USE
1) DO NOT allow any person operate the
rotary hoe without first reading and
understanding the safety instructions and
operating instructions.
2) NEVER allow children to operate the rotary hoe.
8) ALWAYS make certain the Tyne Control Lever is
set at neutral while loading and unloading the
rotary hoe, or moving to and away from working area.
9) NEVER run the machine in reverse while the tynes
are rotating. Always move the tyne control lever to
“OFF” before reversing the wheels.
11) DO NOT leave the machine unattended while the
engine is running.
12) DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will
shorten engine life.
13) NEVER operate the rotary hoe in an
enclosed area. Engine exhaust contains
carbon monoxide, an odourless and
tasteless poison.
14) STOP the engine and disconnect the
spark plug lead(s) and allow engine to
cool before inspecting or performing
maintenance on the rotary hoe.
15)
1)
REFUELLING
* Shut off the engine. DO NOT REFUEL
AN ENGINE WHILE OPERATING!
* Allow engine to cool. Minimum 5 minutes
* USE UNLEADED FUEL ONLY.
Use clean, fresh unleaded fuel.
* Do not mix oil with unleaded fuel.
* Do not over-fill fuel tank. Allow space
for fuel expansion.
10) NEVER operate the unit without the safety
guards in place and in working order. Keep
the unit well maintained and in good
working order.
4) ALWAYS use the rotary
hoe in a well lighted area.
7) NEVER operate the rotary hoe when fatigued.
ALWAYS BE ALERT! If you get tired while
operating the rotary hoe, take a break. If you have
any type of physical or mental condition that may
be aggravated by strenuous work, consult with
your physician before you operate this equipment.
NEVER operate the rotary hoe under the influence
of medication, alcohol or drugs.
6) DO NOT allow other persons near the
rotary hoe. It is up to the operator to keep
bystanders and animals a minimum of 6
5) ALWAYS operate the rotary
hoe on level ground only.
Police the area before rotary
hoeing. Remove any foreign objects in the digging
area - bricks, rocks, wire and sticks. Locate and mark
any sprinkler heads, water pipes, gas lines,
electrical and telephone cables or any other hazard
either below or above ground.
3) ALWAYS wear protective clothing when operating
the rotary hoe. This includes, but is not limited to;
safety glasses, loose fitting gloves, steel capped
boots and hearing protection. NEVER wear loose
fitting clothing or jewellery when operating the
rotary hoe. Keep all clothing away from moving
parts. Items could become caught in the machine,
resulting in injury.
KNOW THE CONTROLS AND HOW TO STOP
THE ROTARY HOE QUICKLY IN AN EMERGENCY.
metres (20’) away from the machine while in
operation.
ALWAYS KEEP YOUR HANDS,
FEET AND BODY AWAY FROM
THE DIGGING ZONE WHILE
ENGINE IS RUNNING.
* Do not smoke.
* Allow no naked flame or hot material in refuelling area.
* Use only approved fuel containers and funnels.
Remember, fuel is a potential hazard .
Be sure Tyne Control Lever is set to “Neutral”
while loading and unloading the rotary hoe
and when moving to or from jobsite.
Ensure that all grass and weeds have been cut
as low as possible.
2) If the rotary hoe is to be used in clay or hard
ground conditions, it is recommended to water
the area thoroughly and allow sufficient time
for earth to soften.
3) Police the area. Remove any
foreign objects from the area.
4) Identify and mark the location of sprinkler heads,
gas pipes, telephone cables etc.
“The Right Way to Rent”
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
STAY ALERT
DON’T GET HURT
SAFETY INSTRUCTIONS FOR RH918 USERS
OPERATING
INSTRUCTIONS
USE COMMON SENSE
AND PLENTY OF IT
TRANSPORT
BEFORE USE
1) DO NOT allow any person operate the
rotary hoe without first reading and
understanding the safety instructions and
operating instructions.
2) NEVER allow children to operate the rotary hoe.
8) ALWAYS make certain the Tyne Control Lever is
set at neutral while loading and unloading the
rotary hoe, or moving to and away from working area.
9) NEVER run the machine in reverse while the tynes
are rotating. Always move the tyne control lever to
“OFF” before reversing the wheels.
11) DO NOT leave the machine unattended while the
engine is running.
12) DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will
shorten engine life.
13) NEVER operate the rotary hoe in an
enclosed area. Engine exhaust contains
carbon monoxide, an odourless and
tasteless poison.
14) STOP the engine and disconnect the
spark plug lead(s) and allow engine to
cool before inspecting or performing
maintenance on the rotary hoe.
15)
1)
REFUELLING
* Shut off the engine. DO NOT REFUEL
AN ENGINE WHILE OPERATING!
* Allow engine to cool. Minimum 5 minutes
* USE UNLEADED FUEL ONLY.
Use clean, fresh unleaded fuel.
* Do not mix oil with unleaded fuel.
* Do not over-fill fuel tank. Allow space
for fuel expansion.
10) NEVER operate the unit without the safety
guards in place and in working order. Keep
the unit well maintained and in good
working order.
4) ALWAYS use the rotary
hoe in a well lighted area.
7) NEVER operate the rotary hoe when fatigued.
ALWAYS BE ALERT! If you get tired while
operating the rotary hoe, take a break. If you have
any type of physical or mental condition that may
be aggravated by strenuous work, consult with
your physician before you operate this equipment.
NEVER operate the rotary hoe under the influence
of medication, alcohol or drugs.
6) DO NOT allow other persons near the
rotary hoe. It is up to the operator to keep
bystanders and animals a minimum of 6
5) ALWAYS operate the rotary
hoe on level ground only.
Police the area before rotary
hoeing. Remove any foreign objects in the digging
area - bricks, rocks, wire and sticks. Locate and mark
any sprinkler heads, water pipes, gas lines,
electrical and telephone cables or any other hazard
either below or above ground.
3) ALWAYS wear protective clothing when operating
the rotary hoe. This includes, but is not limited to;
safety glasses, loose fitting gloves, steel capped
boots and hearing protection. NEVER wear loose
fitting clothing or jewellery when operating the
rotary hoe. Keep all clothing away from moving
parts. Items could become caught in the machine,
resulting in injury.
KNOW THE CONTROLS AND HOW TO STOP
THE ROTARY HOE QUICKLY IN AN EMERGENCY.
metres (20’) away from the machine while in
operation.
ALWAYS KEEP YOUR HANDS,
FEET AND BODY AWAY FROM
THE DIGGING ZONE WHILE
ENGINE IS RUNNING.
* Do not smoke.
* Allow no naked flame or hot material in refuelling area.
* Use only approved fuel containers and funnels.
Remember, fuel is a potential hazard .
Be sure Tyne Control Lever is set to “Neutral”
while loading and unloading the rotary hoe
and when moving to or from jobsite.
Ensure that all grass and weeds have been cut
as low as possible.
2) If the rotary hoe is to be used in clay or hard
ground conditions, it is recommended to water
the area thoroughly and allow sufficient time
for earth to soften.
3) Police the area. Remove any
foreign objects from the area.
4) Identify and mark the location of sprinkler heads,
gas pipes, telephone cables etc.
“The Right Way to Rent”
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
