RedSeven Amplification Duality 100 User manual

Duality 100
model: D100
User Manual

!
2!
INDIEX
INTRODUCTION pg 3
POWER SUPPLY pg 3
PREMISE pg 5
SOUND DESCRIPTION pg 6
TECHNICAL FEATURES pg 7
FIRST USAGE pg 9
MIDI AND SAVING A PRESET pg 10
LOOP FX pg 11
D100F FOOTSWITCH pg 11
TUBE LAYOUT AND CABINET pg 12
TROUBLESHOTTING pg 13
WARRANTY pg 14

!
3!
INTRODUCTION
Duality 100 is a three channel, modern style, guitar amplifier. Thought as ultimate tone weapon,
featuring rich clean crispy sound, a tridimensional multi stage overdriven channel and a third modern-
“over the top” gain lead channel.
Full MIDI implementation (CC and PC), double master volume and a serial high voltage buffered effects
loop make Duality 100 your life as guitarist easier than ever before.
Additional informations and audio/video demos can be found at www.redseven-amplification.com or
POWER SUPPLY
Duality is shipped with hardwired primary voltage. 240V, 230V or 115V must be chosen at order time.

!
4!
NOTE: IMPORTANT…NOT TO DO!
• Do not try to change output jacks (impedance) while the amplifier is on. You
must turn STANDBY and POWER switches to OFF position before changing the
output impedance.
• Do not try to change input/output levels of you devices plugged into fx loop
while the amplifier is on. You must turn STANDBY and POWER switches to OFF
position before changing input/output levels of your gear plugged into fx loop
or at least disconnect cables form SEND and RETURN jacks.
THIS OPERATIONS CAN LEAD TO FINAL BREAK OF THIS AMPLIFIER. IN THESE
PARTICULAR CASES RED SEVEN AMPLIFICATION WILL NO BE RESPONSIBLE FOR
DAMAGES TO AMPLIFIER ITSELF OR PEOPLE. PLEASE KEEP IN MIND YOU ARE
HANDLING A DEVICE WITH POTENTIALLY LETHAL VOLTAGE. PLEASE CAREFULLY
READ THIS MANUAL BEFORE TURING ON THE AMPLIFIER.
RED SEVEN AMPLIFICATION ARE NOT RESPONABLE FOR ANY PARTS SUBJECT TO
WEAR (LIKE TUBES, POTS, CAPACITORS, ETC).
WARNING!!
This amplifier uses potential lethal voltage, it must be inspected
only by expert people!
WARNING!!
Before insert power cord inside Duality100, check the voltage plate
under IEC socket and be sure to match wall voltage of your
country.

!
5!
PREMISE
By developing this amplifier we had few main visions in our minds:
1 – THE AMPLIFIER MUST SOUND GOOD IN A MUSICAL CONTEST AND NOT IN YOUR
BEEDROOM EXCLUSIVELY.
This can be hard to understand to some people, but in every step of our developing
process we recorded it through a professional studio recording system, making sure
that all useless frequencies which can fight with bass guitar, synths or maybe cymbals
in a live/recording environment are gone.A huge quantity of useless gain and can be
a bad thing and we have taken care of this issue as well.
2 – ALL THE DISTORTION CIRCUITS ARE 100% TUBE BASED, NO DIODE CLIPPING
HERE.
For this project we focused on dynamics. We found by having too much gain and
compression (like for example achieving this with diodes or LEDS) are totally useless for
this purpose. Weʼre not judging anyone here, only to explain the idea we had on this
particular amplifier. You will not find anything like a over- saturated / over-compressed
and over-gained sound here. Nothing at all. If you are looking at this type of
monothematic distortion sounds, you better search somewhere else.You will find only
an amp that talks the best with your pick control and volume control, capable to obtain
a multitude of sounds, even on one channel. Dynamics and control are everything for
us.
3 – MIDS IS EVERYTHING.
The mid frequencies is where your guitar amplifier lives. This mean you need good mids
and the right frequencies to pop out of the mix without having any volume problem.
We changed quite a bit in the way that a usual mid control works in almost every guitar
amplifier. By doing this we have developed a very sensitive mid control on the distorted
channel, ensuring a very special and musical way to express this delicate frequencies.
We believe in mids, do not underestimate this frequency range, weʼre serious about
this!

!
6!
SOUND DESCRIPTION
D100 were born from the demand of our clients to modify so many amps, until they
recognized an unique style and sound in our work. It took us almost a year to develop
this 100w all tube amplifier after all the positive experience with D100.
We are proud to say that this is not a clone of anything. You will not find any ingredients
from any other builder inside. Like it or not.Here is the sonic features for this amplifier:
• CH1 (Clean channel)is something between and old ‘50s Fender and late ʼ60
Marshall Plexi. Sparkly and rich clean sound, something that is hard to find in
todays modern multi channel amps. It can crunch with some aggressive pickups
but it stays almost clean with any guitar below the gain set at 4. With a classic
Strat type guitar it stays clean or have an early breakup between 5 and 7, with a
LP style guitar breakup is little earlier. Tone stack is way more effective than the
vintage ‘50/ʼ60 mono channel amplifiers, you can obtain quite a lot different
sounds from this channel. Bright switch also add some flexibility to it, B1 is classic
bright, a high shelf around 4KHz, B2 is way more effective and start around 1KHz,
boosting some mids.
• CH2 (VINTAGE): Vintage channel is where youʼll probably want to spend most
of your time. Gain quantity can be set from a crunchy Marshall-esque sound
(think of early AC/DC) to ‘80s VH. Not a super huge gain quantity and no over-
saturated gain in the low end. With the volume control you can obtain a very
good clean sound, even with gain dimed. With “LEAD” mode engaged you are in
the late hard rock ‘80s territory. Quite a lot of gain available now, consistent bass
response, dynamics is always at maximum. Eq is shared with MODERN channel
and itʼs way more effective than your usual eq and probably a bit different. Our
special mid control can scoop or boost mid in a unique way, capable to turn this
channel into a lot more channels, we are not joking here. Treble and bass is also
are super effective, you can dial in almost every guitar here and probably a bass
guitar too.
• CH3 (MODERN): The Modern channel starts where the Vintage channel ends
but with a little more gain and bass frequencies on top. This is a lot tighter, gainy,
compressed and saturated than the previous channel. Itʼs has the right amount
of gain to play solo parts even without using “LEAD” mode. Engaging “LEAD”
mode you have a huge quantity of gain, you can be ready for any hard rock /
classic metal tones.I
IMPORTANT NOTE: while VINTAGE and MODERN channel shares the same eq controls
they are two completely separated channels. This allow us to have two different flavours
of the same sound, using the second channel sound but with a bit more
gain/compression on top. Pure magic.

!
7!
TECHNICAL FEATURES
FRONT PANEL:
(from left to right)
• STANDBY / ON SWITCH:turn the amplifier in standby mode or in operative
mode.
• RED LED: (under STANDBT / ON SWITCH): this led will indicate the state of
incoming power supply. It will turn on if everything is ok.
• GREEN LEDs: when on, clean channel is activated.
• BLUE LEDs: when on, vintage channel is activated.
• RED LEDs: when on, modern channel is activated.
POTS:
• CHANNEL 1 (clean channel): Volume, Bass, Middle, Treble, Gain.
• CHANNEL 2 (vintage channel): Gain Vintage, Volume Vintage & Treble, Middle,
Bass shared with CH 3.
• CHANNEL 3(modern channel): Gain Modern, Volume Modern & Treble, Middle,
Bass shared with CH 2.
SWITCHES:
• CHANNEL 1: (clean channel): Bright switch (bright 1/ normal / bright 2),
• CHANNEL 2: (vintage channel): Bright switch (bright 1/ normal / bright 2).
• CHANNEL 3: (modern channel): Bright switch (bright 1/ normal / bright 2).
PUSHBUTTONS:
• CLEAN:activates clean channel.
• VINTAGE:activates vintage channel.
• MODERN:activates modern channel.
• LEAD:activates lead boost on both vintage and modern channels.
• LOOP: activates serial loop effects for all three channels.

!
8!

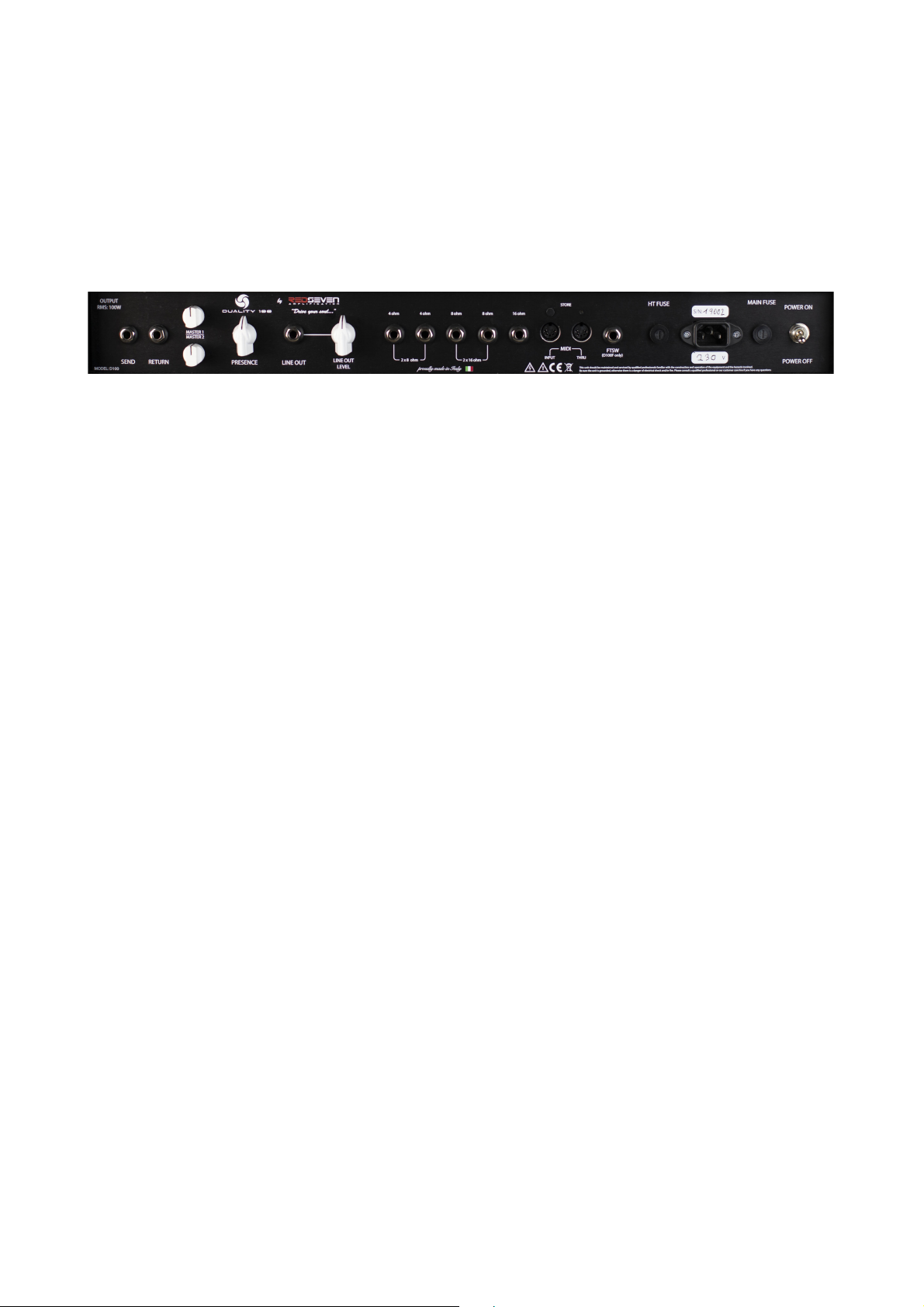

REAR PANEL
(from left to right)
• SEND & RETURN: Connection between pre amp and power amp. D100 is
shipped with pedal friendly signal level.
• MASTER ½:Master volume controls.
• PRESENCE:global setting for presence control. It acts on every channel.
• LINE OUT:jack and level pot for line out signal, taken from the output jacks.
Please remember you MUST use a cabinet anytime in conjunction with this
output. Using Line Out by itself without any load will damage this amplifier.
• OUTPUT:output jacks for connect the amp to cabinets. Please read carefully the
impedance before connect your cabinets.
• MIDI IN & MIDI THRU: sockets for midi communications. Midi IN receive midi
signal, Midi THRU left midi signal pass thru without modify original messages.
• FOOTSWITCH:input jack for Duality D100F footswitch. Pay attention: others
footswitches can damage the amp.
• STORE SWITCH:tactile switch for saving combinations of sounds into amplifier
digital memory.
• HT FUSE: (1A slo blow) high current fuse. Replace ONLY with same type.
• MAIN FUSE: (2.5A slo blow) input voltage fuse. Replace ONLY with same type.
• IEC SOCKET:connect power cable here.
• POWER ON / POWER OFF SWITCH: turn the amplifier on or off.

!
9!
FIRST USAGE
Before plugging in the power cord, make sure to check the input voltage of the
amplifier and be sure to match it with your wall voltage, and then insert the power
chord.Before plugging in the speaker cable, check the impedance of your cab and
match the output impedance of the amplifier with the impedance switch on the rear
panel, then connect the speaker cable from cabinet to amplifier.
Now you are ready to put the Power Switch in “POWER ON” position. Leave the amplifier
in this state for at least thirty seconds.Plug your signal cable into input jack then you
are ready to put the Standby Switch to “ON” position. Now you can rockʼnʼroll!

!
10!
MIDI
Duality, despite the full tube audio signal path, is equipped with digital memory which
can make saving combinations (preset) of functions inside the amp.
Duality is shipped with presetted midi channel #1. You can’t change midi channel on
the fly after bought it, but you can ask for a different midi channel at order time.
All the functions are recallable on the fly via midi CC. This is the full CC list:
• Clean channel: CC #100
• Vintage Channel: CC #101
• Modern Channel: CC#102
• Lead Boost: CC#103
• Loop effects: CC#104
• Master 1 / Master 2: CC#105
All the CC are also be changed for a custom numbers, but only at order time.
SAVING A PRESET
Saving a preset is quite easy with Duality 100, it takes only few steps:
• Choose the desired combination of functions (channel, loop, master, etc);
• Keep the “STORE” button on rear panel pressed for three seconds, until
corresponding led turn on, than release;
• By using a MIDI devices able to send Program Change, send the desired PC you
want to memorize this particular combination;
• Store led will blink couple time for confirmation;
• You preset is now created.
You can save and re-save a preset infinite time. With this procedure you can use
different midi pedalbords or interface for recall preset without losing data, because all
presets are stored inside the amp. You only need to send the exact PC and it will recall
the same combination of functions every time forever.
You can exit the saving routing in anytime by pressing “STORE” switch three seconds
until the corresponding led turn off.

!
11!
LOOP FX
Loop effects on D100 is between preamp output and power amp input, right before
master volume. It’s a buffered 100% serial loop fx with instrument level signal.
When loop effect is engaged 100% of your sound will pass thru the effect wired to
send/return jacks. When it’s bypassed, the signal goes straight from preamp to power
amp.
There’s no specific send/return control on back panel but channel volume acts as a
“send control” (the amount of signal to be sent to the input of your effect) and master
volume acts as “return control” (the amount of signal returning from your signal back
into the power amp).
Loop effect can always be activated/bypassed thru the front tactile switch, the
footswitch or via midi PC/CC.
SUGGESTION: if you are hearing some bad clipping sound when loop effect is on,
you’re probably overloading the input of your effect. Try to lower the preamp signal
(by lowering channels volume on the D50 or the input control or your effect) then
increase the incoming signal to return jack (by increasing master volume on D50 or
output volume of your effect)

!
12!
D100F FOOTSWITCH
Duality 100 comes with D100F footswitch. It can operate only with D100 model, so it
can’t be used with D50 model.
D100F also can’t be used with other amplifiers or devices, since it can be damaged by
incorrect uses.
D100F can basically do same things as the player can do with keypad situated on the
right side of the front panel. It can skip between CLEAN, VINTAGE and MODERN
channels with first three footswitches.
Footswitch named LEAD turn on/off lead boost on both VINTAGE and MODERN
channels.
Last footswitch LOOP/M2 can operate in three modes:
1 – turn on/off LOOP FX;
2 – select between MASTER 1 and MASTER 2 volume controls;
3 -turn on/off LOOOP FX and select between MASTER 1 and MASTER 2 controls at same
time.
In order to decide what this button can activate, you need to enter in “mapping mode”
by pressing CLEAN and LOOP FX/M2 footswitch together for three seconds until all leds
starts blinking, then release them.
Now you need to decide with operation mode you want to select and save, by pressing
one of the first three footswitch:
(CLEAN footswitch) LOOP FX on/off;
(VINTAGE footswitch) Master 1/Master 2 selection
(MODERN footswitch)LOOP FX on/Master 2 or LOOP FX off/Master 1
Once your choice is made and you pressed one of the first three footswitches, “mapping
mode” will automatically save your setting and quit. From now, every time you turn
D100 on, your D100F will remember the last saved setting, so you don’t need to repeat
this procedure every single time, but only if you need to change this.
Now your footswitch is set and ready to go on stage.

!
13!
TUBE LAYOUT
This amplifier comes with EL34B type tubes in the power amp section and 12AX7B in
preamp, selected by our trusty partners at Tube Amp Doctor.
Power tube can’t be changed with other type of tubes (i.e 6L6s, KT88s, etc), they can be
substitute only with other EL34 type tubes. You need to check the bias every time
poweramp tubes are changed. For doing this is necessary to open the amplifier, so
please contact us at info@redseven-amplification.com
Do not try swap P.A. tubes without adjusting bias current. In the most case this can lead
to a simply tube failure, in some other you can make some serious damages!
FRONT PANEL
V1 - suggested tube: TAD ECC83WA (rst and second stage for clean channel)
V2 - suggested tube: TAD ECC82WA (third stage for clean channel)
V3 - suggested tube: TAD 7025 (rst stage vintage mode and rst stage modern mode)
V4 - suggested tube: TAD ECC82WA (second stage for vintage/modern mode and lead boost)
V5 - suggested tube: TAD 7025 (tonestack)
V6 - suggested tube: TAD 7025 (phase inverter)
V7, V8, V9, V10 - suggested tube: TAD EL34B (poweramp tubes)
V1 V2
V7 V6
V3 V4 V5
V8
V9V10

!
14!
CABINET AND SPEAKERS
For the best sonic experience ever we highly suggest to play this amplifier with
RedSeven Pro Cab series, especially with 4x12 model.
We develop this amplifier thru this cabinet so this is the natural extension for it.
We suggest you to try D100 with Celestion V30 or Greenback or a mix of both first. This
is our first choice. Other type and brand of speakers can be good, Alnico speakers for
example would be our last choice here, but tastes is different for everyone!
TROUBLESHOTTING
• D100 IS NOT TURNING ON
Check the power chord, sometimes it will be loose and cannot make good
contact with IEC socket. Replace it. If this doesn’t work check MAIN fuse, if it’s
blown replace with SAME type and try again to turn on again. If fuse continue to
blown, turn off the amp and contact RedSeven Amplificaton.
• D100 IS TURNING ON (RED LED IS ON) BUT WITH NO SOUND
First of all be sure to connect speaker cable properly, both amplifier as the cabinet.
Check the input signal from guitar too. If this doesn’t work check HT fuse, if it’s
blown replace with SAME type and try again to turn on again. If fuse continue to
blown, turn off the amp and contact RedSeven Amplificaton.
• D100IS MAKE NO SOUND
If everything works properly be sure to have both relative channel volume and
master volume turned up.
• I’M NOT ABLE TO SAVE A PRESET
Read “SAVING A PRESET” chapter and do meticulously what it’s wrote. You have
to follow any step and not swap them. Check midi cable and try to replace it. Be
sure to connect your sending devices via MIDI OUT socket and Duality MIDI in
socket and not vice-versa.
If for some reason this doesn’t work contact RedSeven Amplificaton.
• I’M NOT ABLE TO RECALL A PRESET
Be sure to set up your midi board or midi interface on midi channel 1. Any other
channel will not work and you will not able to recall a preset. Check midi cable
and try to replace it. Be sure to connect your sending devices via MIDI OUT socket
and Duality MIDI in socket and not vice-versa.

!
15!
For any problem and in any moment you can contact a qualified tech at:
info@redseven-amplification.com
We will replay to you as soon as possibile.
WARRANTY DESCLAMER
Please, do not try to open the amplifier in any case. For any problem contact your seller
or write to us. This amplifier runs at very high voltage that can lead to death. Any
inexpert person should not even think of do anything inside this amplifier. RedSeven
Amplification offer a standard two year fully warranty for any component (except to
wear subjects).
By removing the amplifier form his wood cabinet or by making any modification to the
original state will violate standard warranty and RedSeven Amplification will not
responsible for any damage to people, things or animals.
Revision 1.0
September 2018
This manual suits for next models
1
Table of contents
Other RedSeven Amplification Musical Instrument Amplifier manuals
